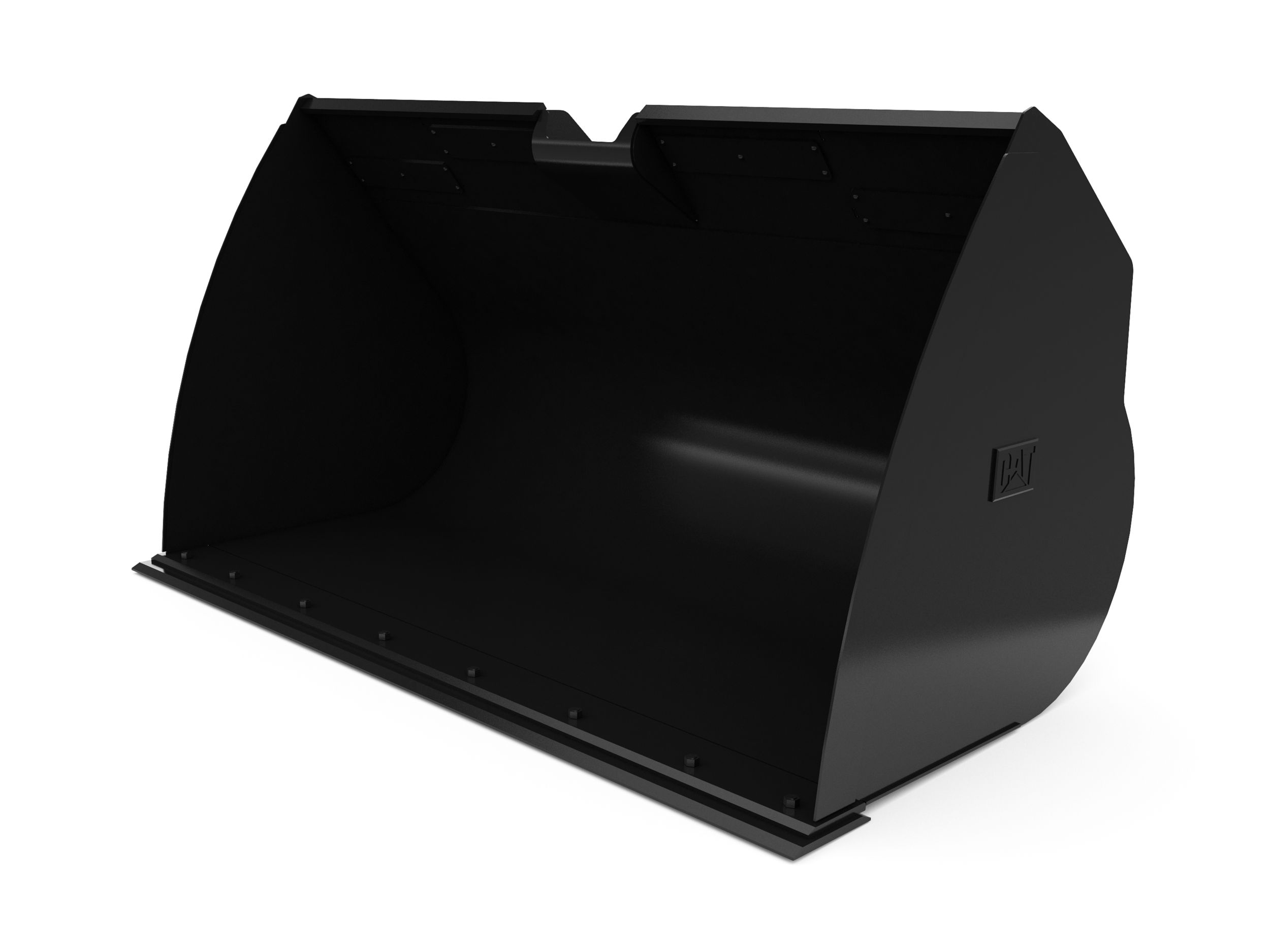

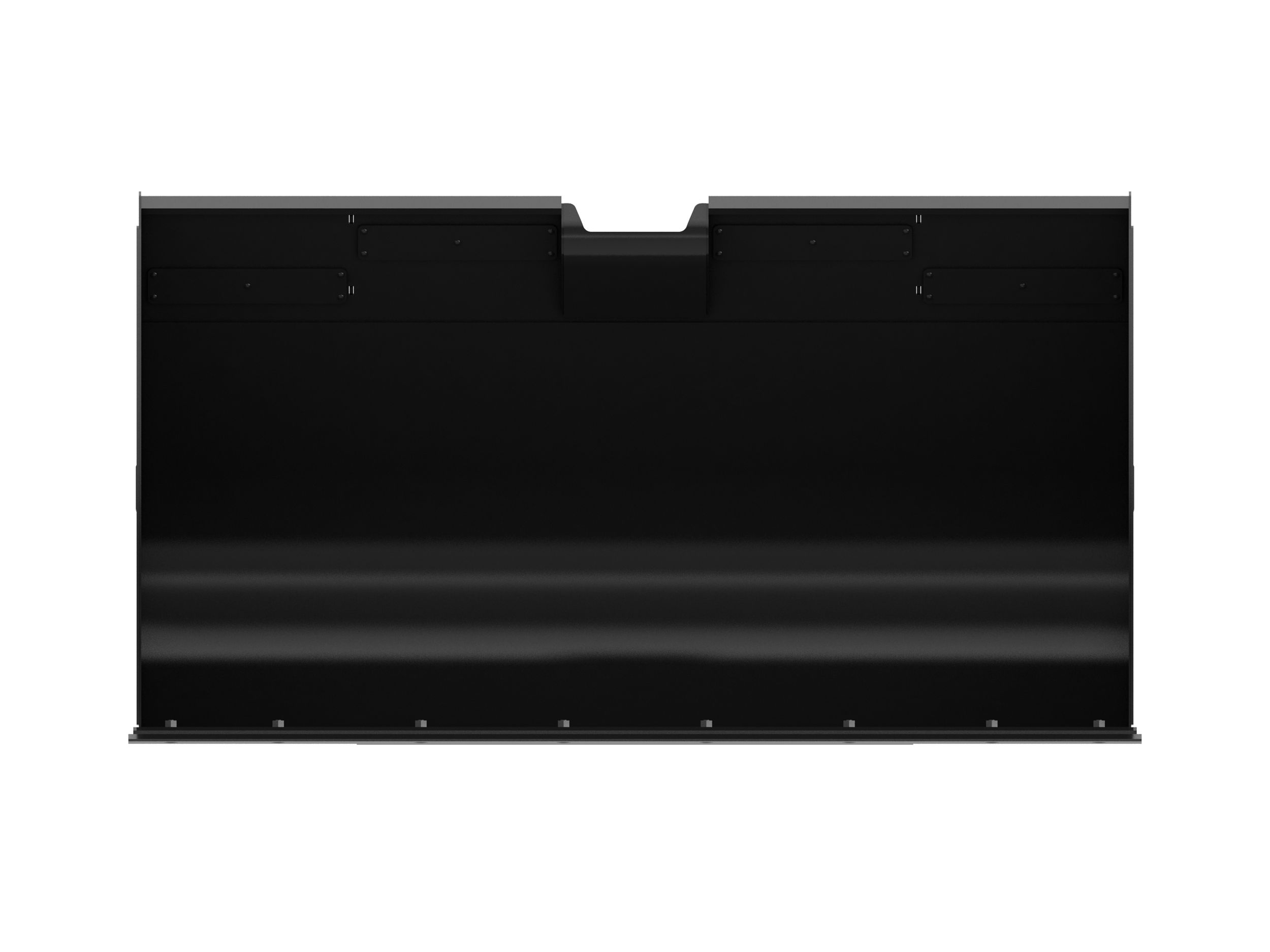

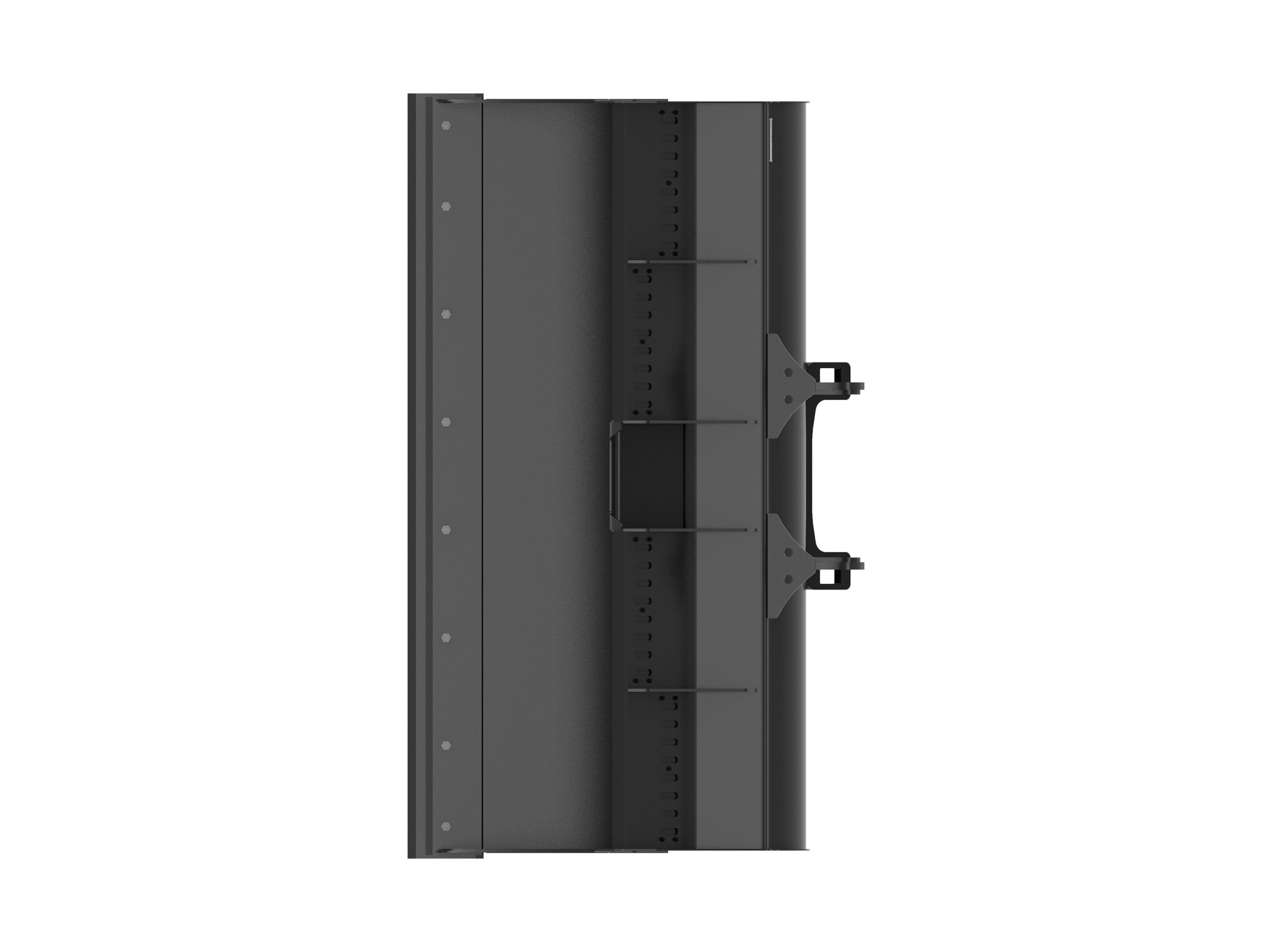

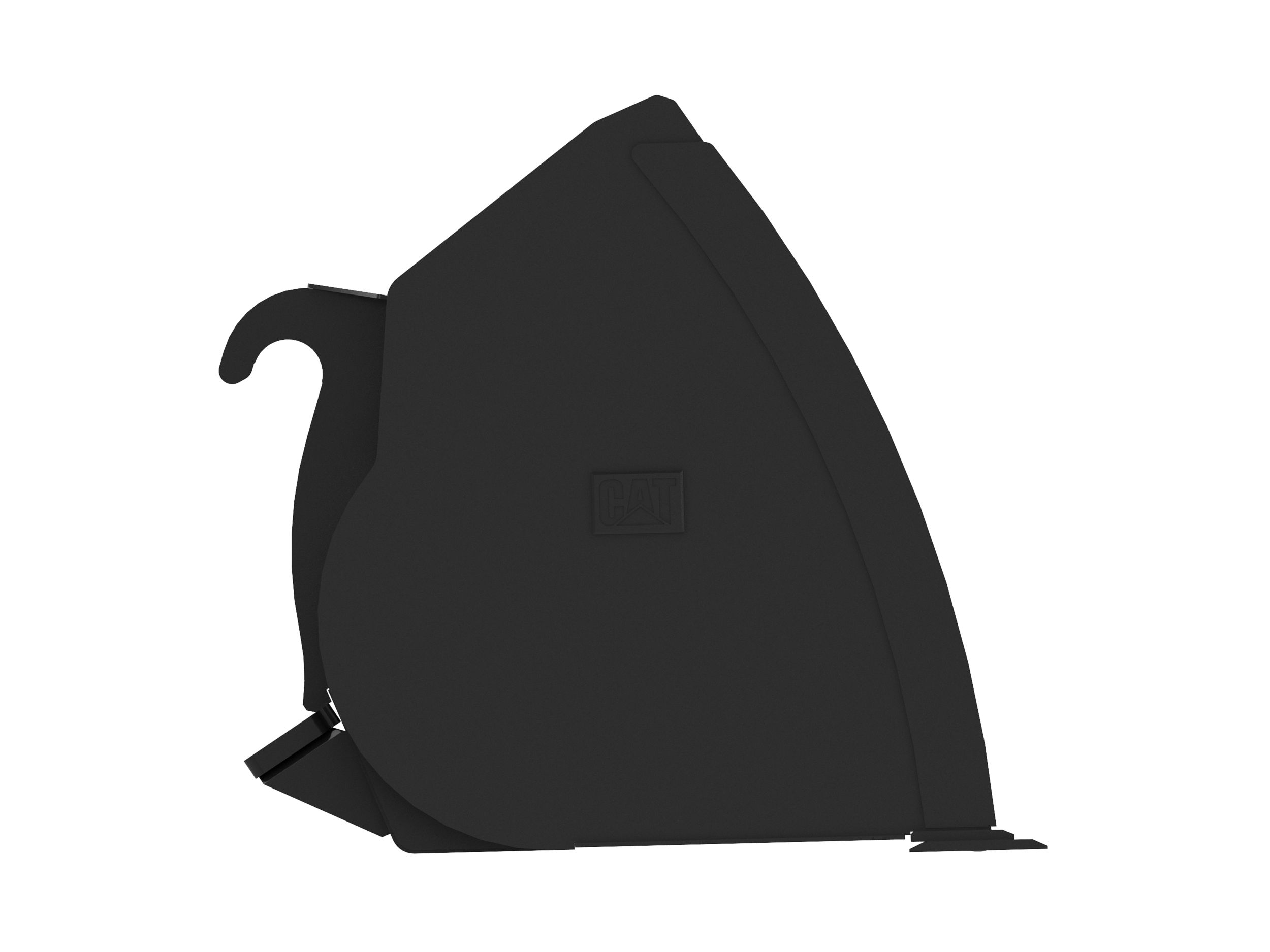

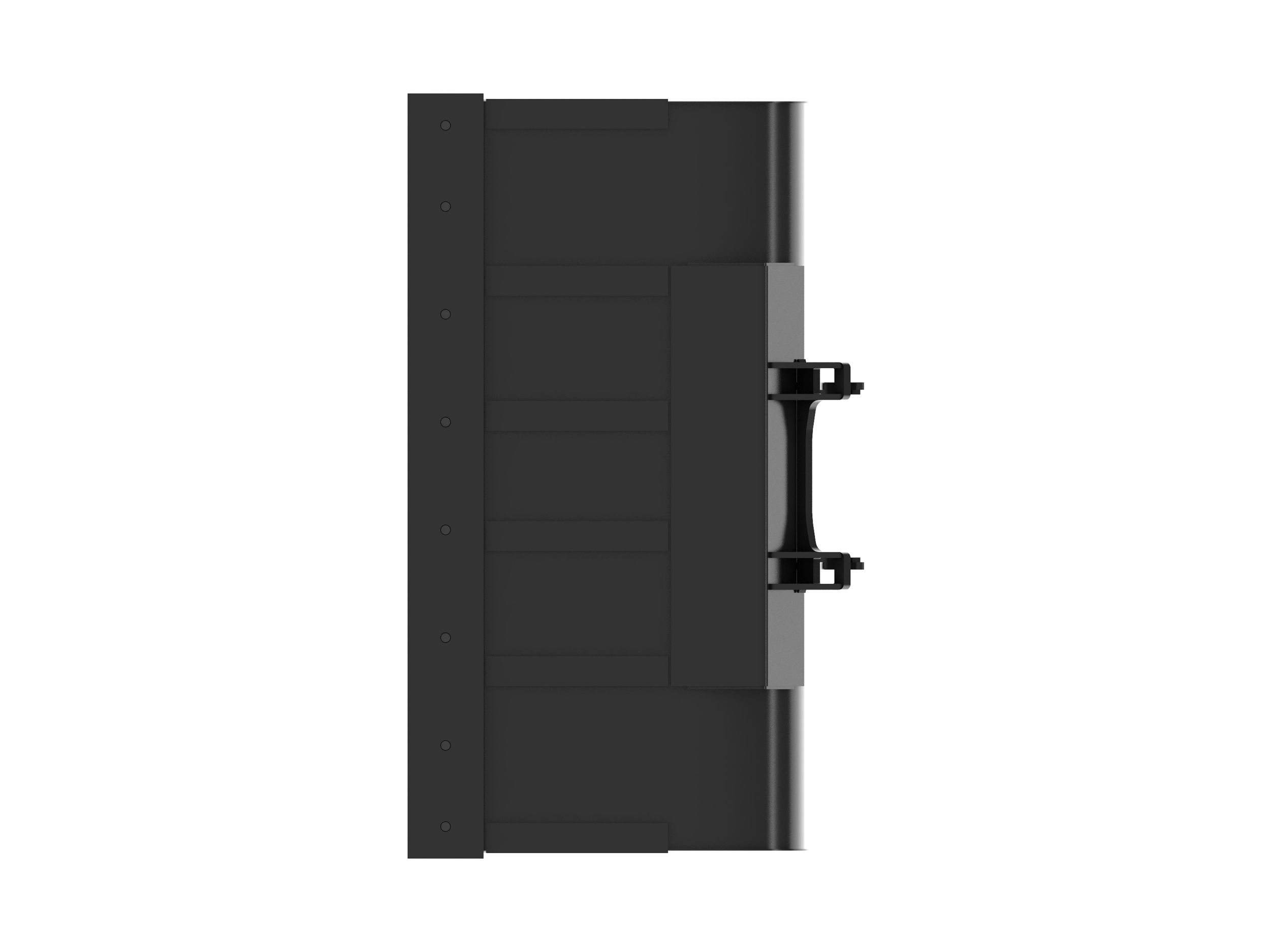

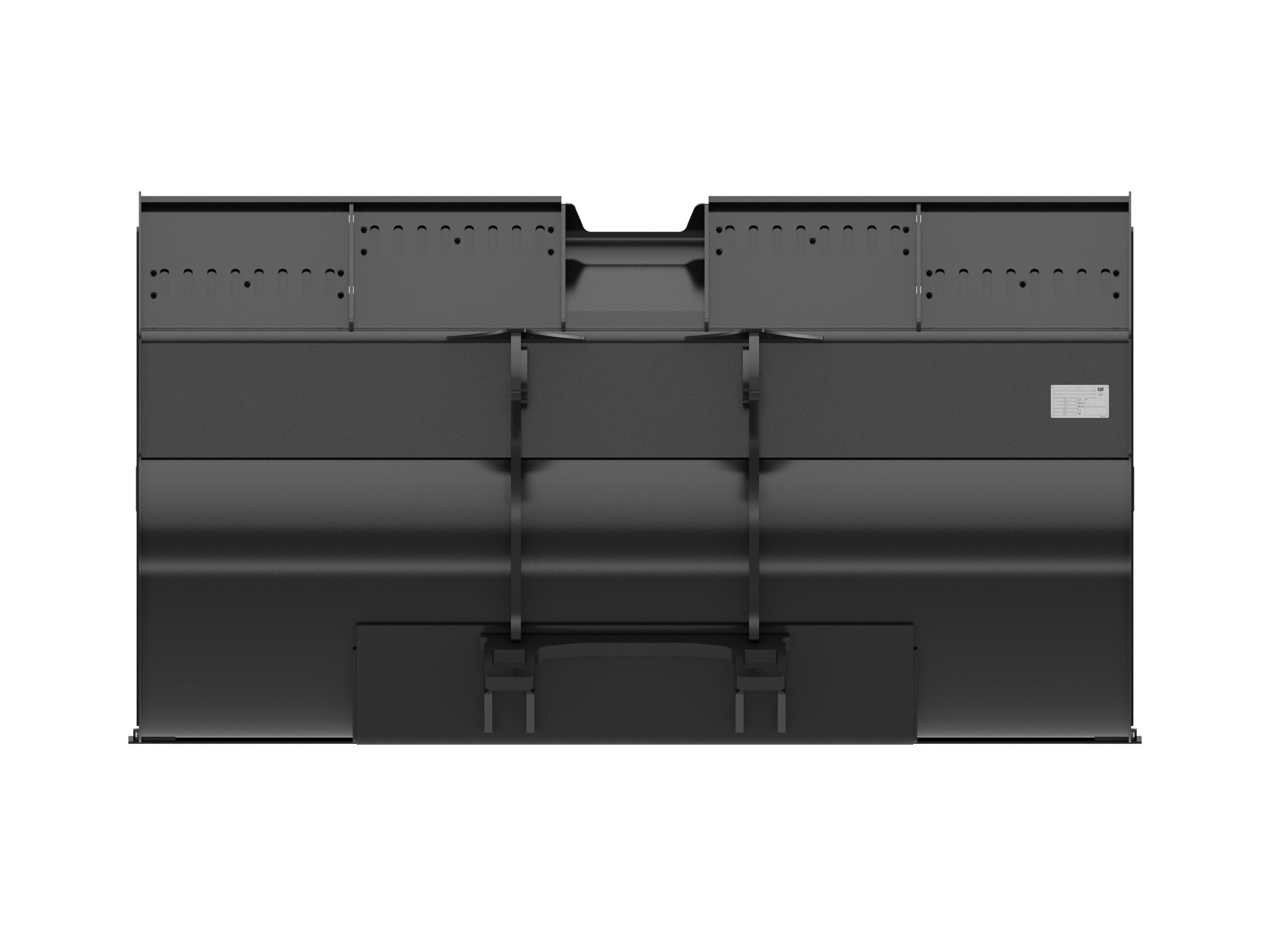

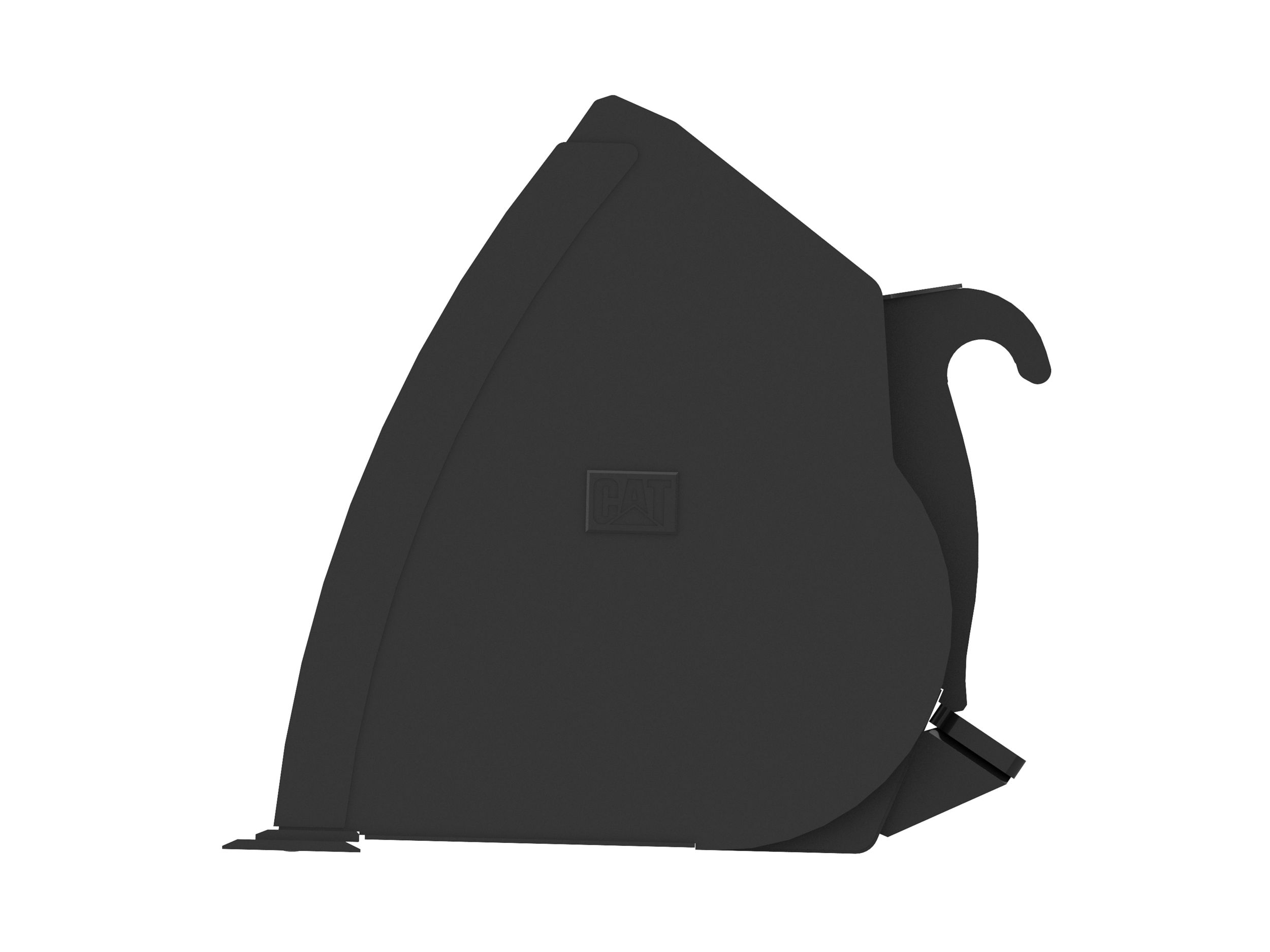

3.0 m3 (3.9 yd3), Fusion™ Coupler, Bolt-On Cutting Edge
Application
Designed to handle low density materials such as mulch, wood chips, dry topsoil, fertilizer, livestock feed and snow. Performance Series Light Material Buckets are designed with larger capacity for light density material applications in Agriculture, Waste and other segments. These applications generally require moderate to light breakout forces. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.
High Capacity
High capacity increases productivity in handling light materials.
Superior Loading
Long bucket floor length, combined with large radius back wrapper, provides superior material loading and dumping, resulting in greater payloads and quicker cycle times.
Rugged Design
Hardened steel base and side cutting edges provide excellent penetration, durability and wear life.
Additional information
العرض | 2549 مم ( 100.4 بوصة ) |
---|---|
الوزن | 884 كجم ( 1948.9 رطل ) |
الارتفاع | 1402 مم ( 55.2 بوصة ) |
الطول | 1471 مم ( 57.9 بوصة ) |
السعة | 3 m³ ( 3.9 yd³ ) |
سُمك حد القاعدة | 19 مم ( 0.7 بوصة ) |
سُمك حد القطع | 19 مم ( 0.7 بوصة ) |
نوع الوصلة البينية | قارنة التوصيل Fusion™ |
