3.0 m3 (3.9 yd3), Pin On, Bolt-On Cutting Edge

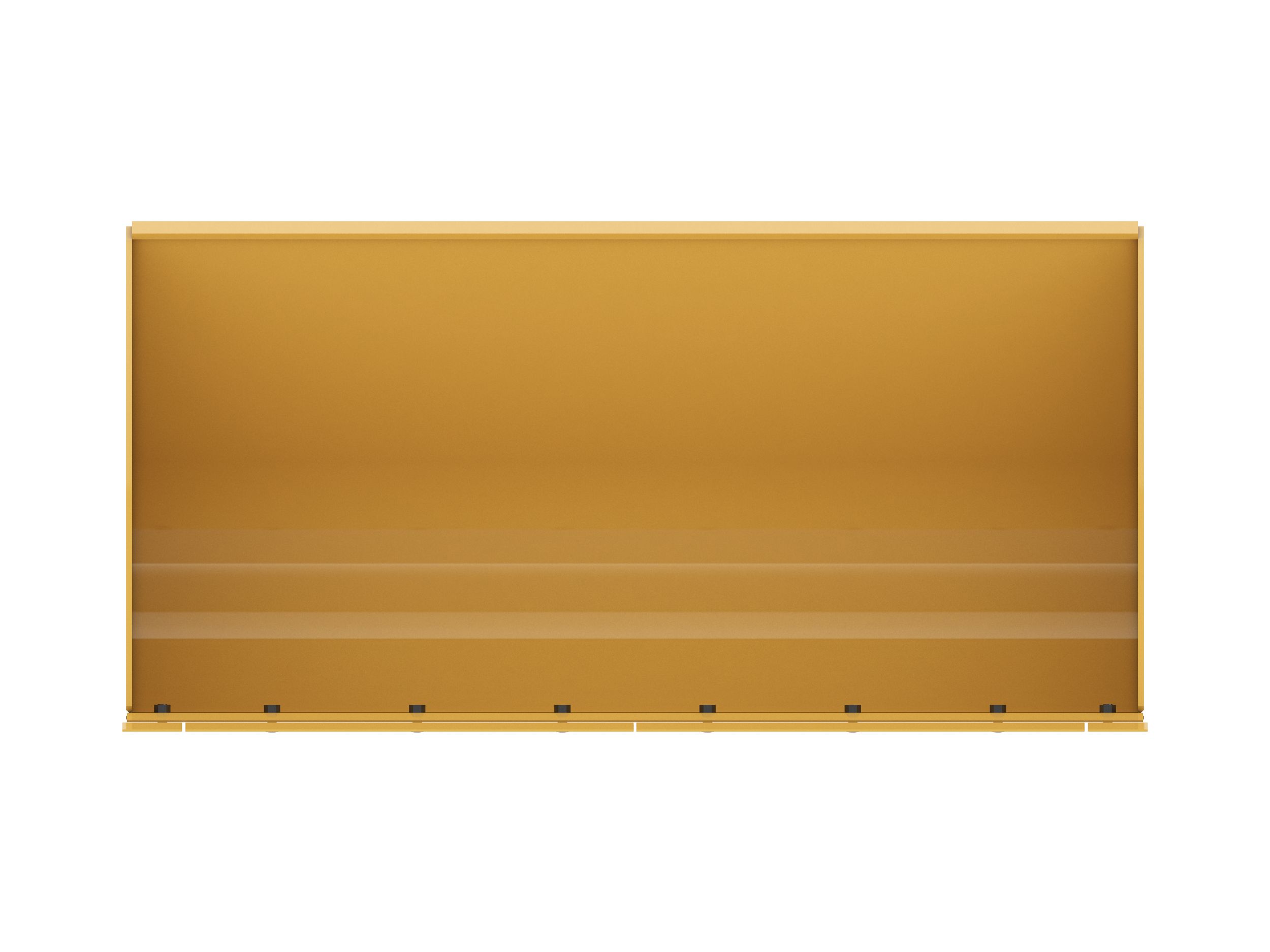

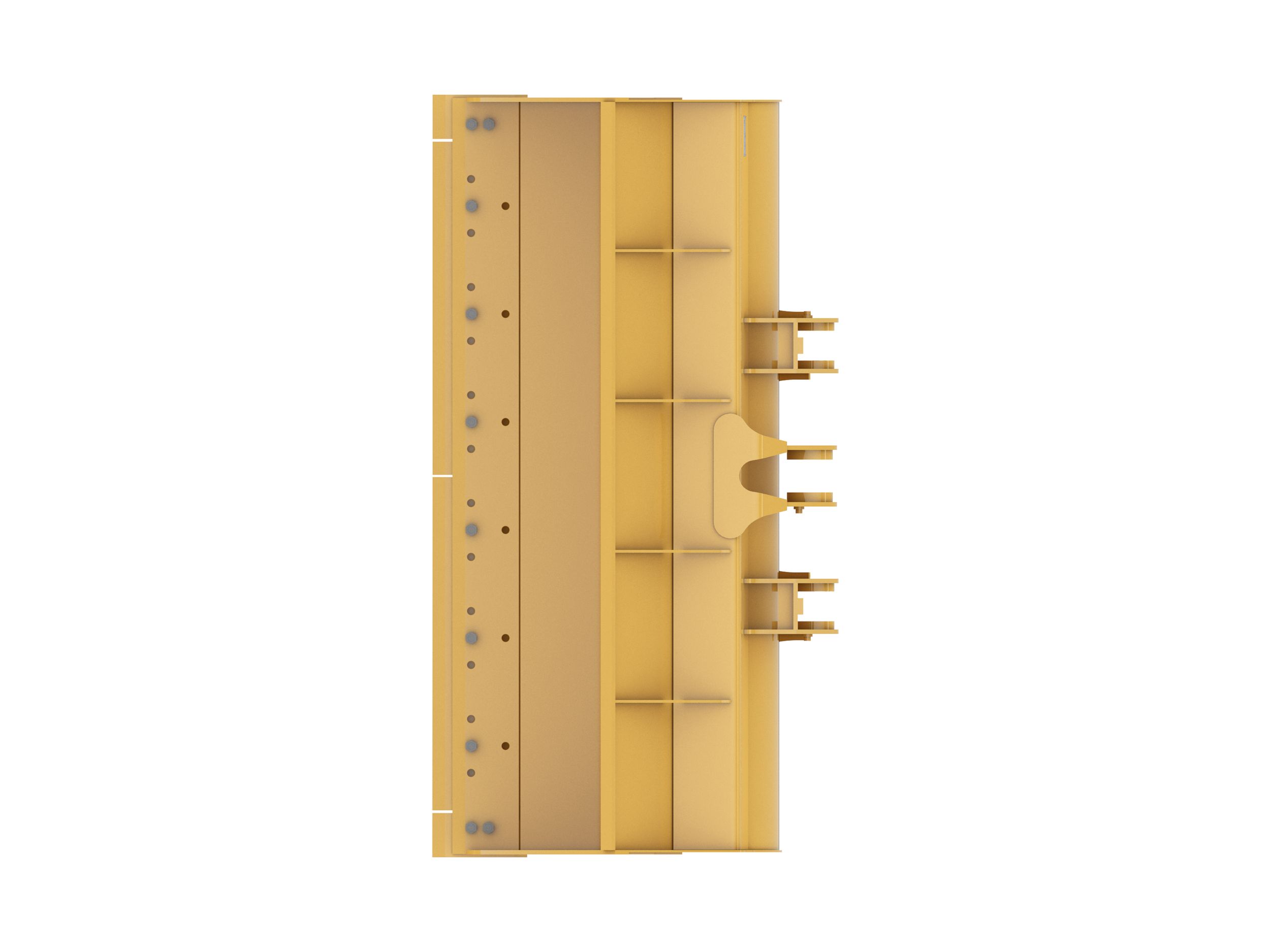

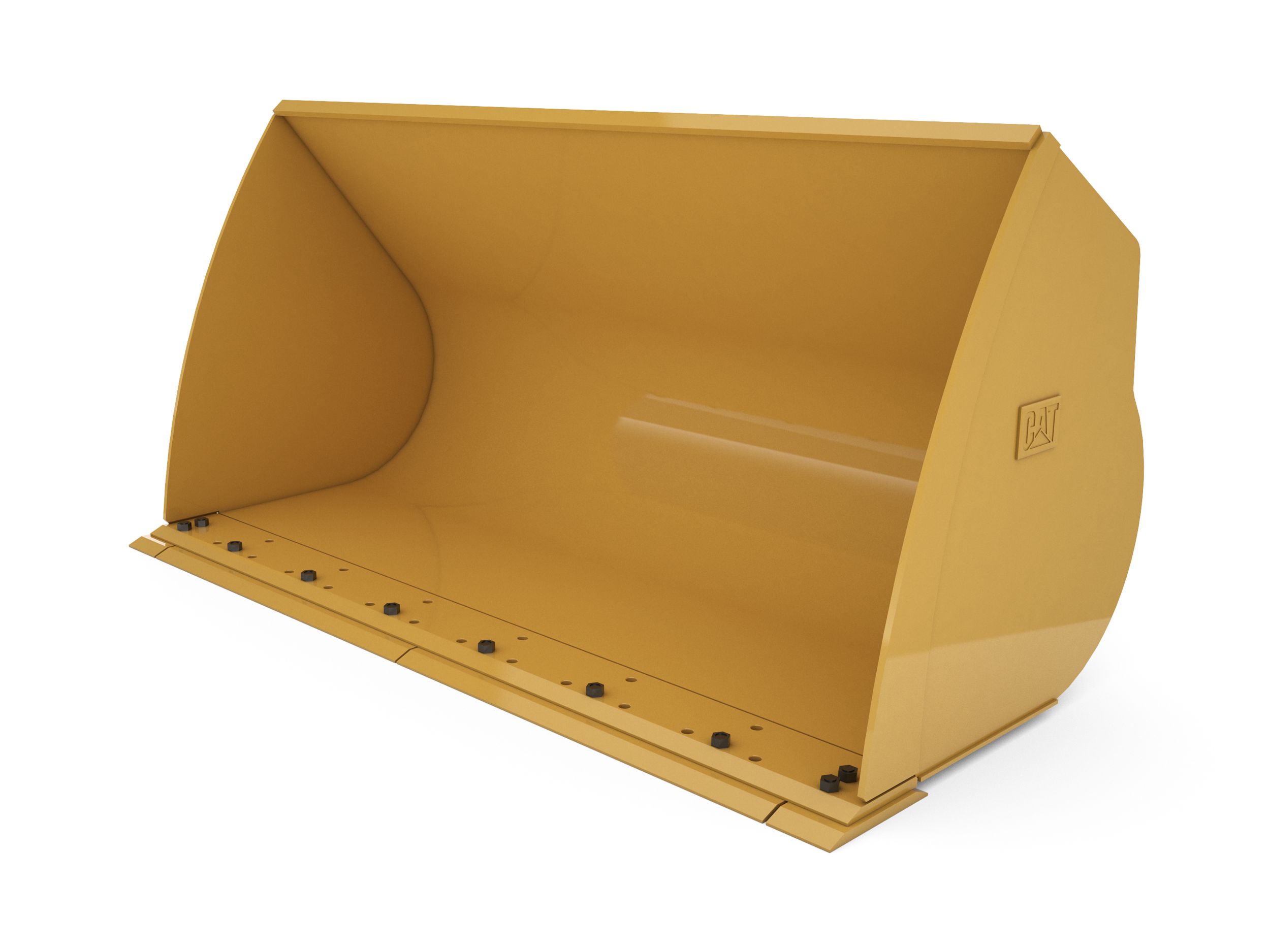

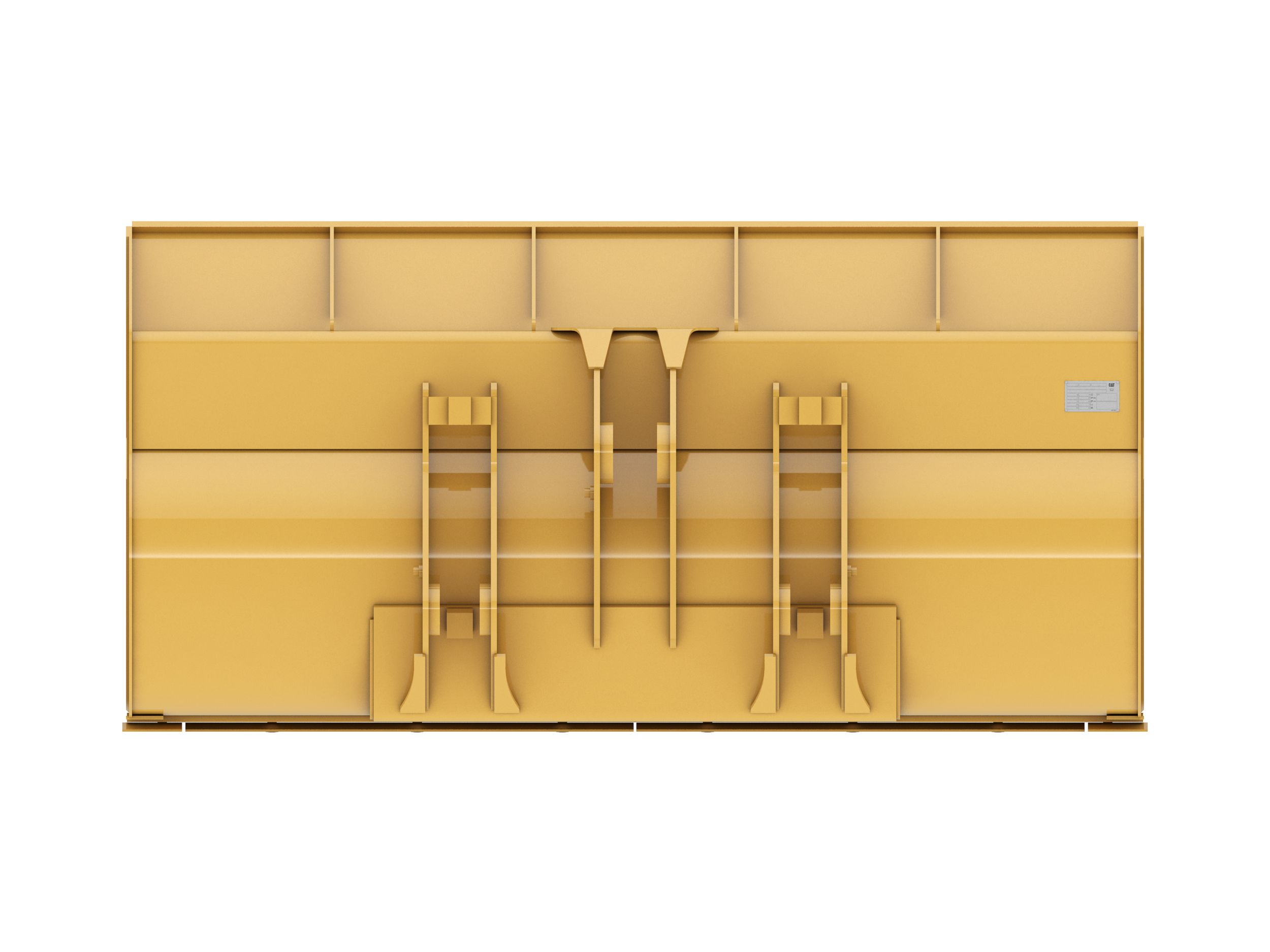

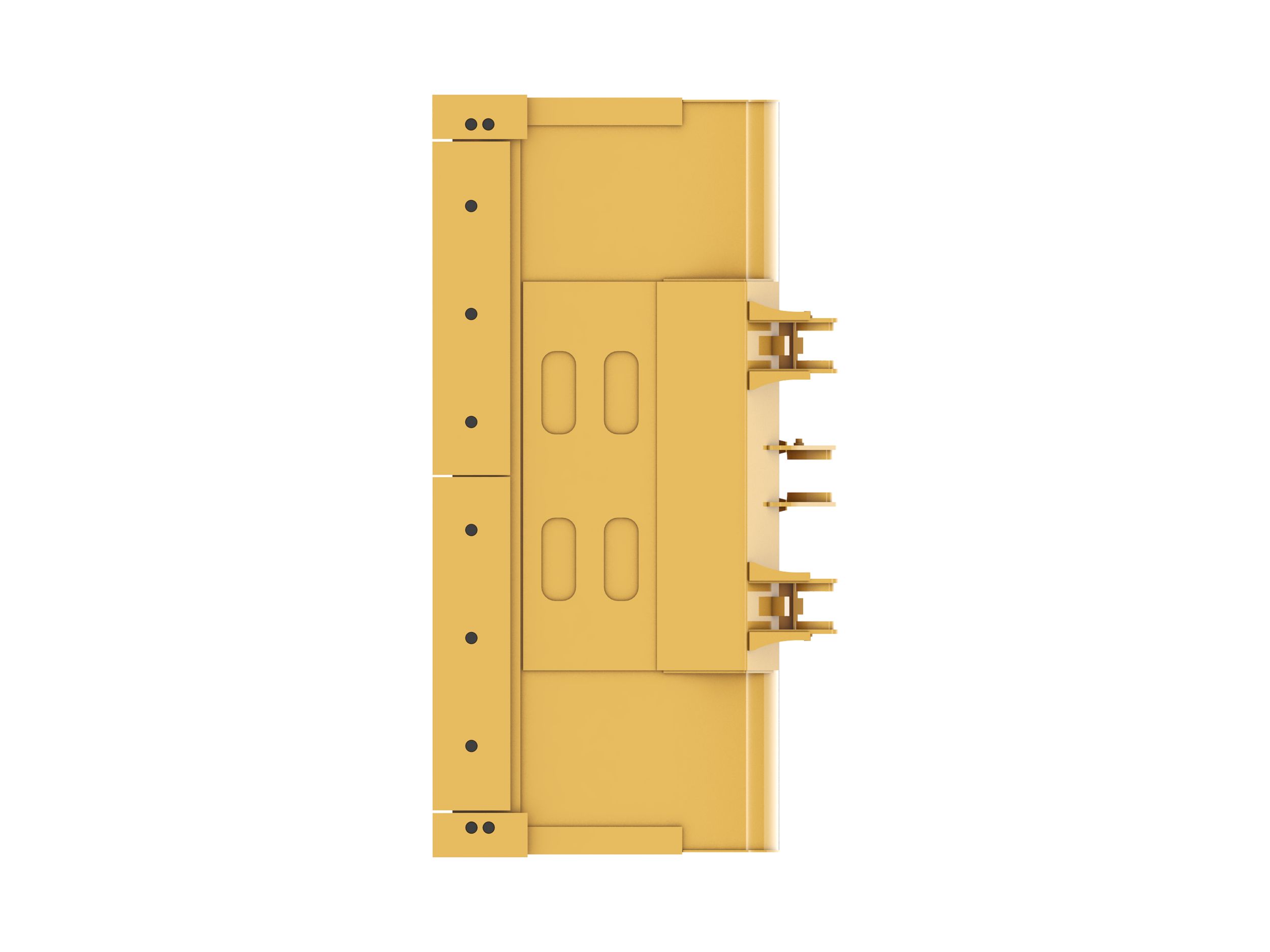

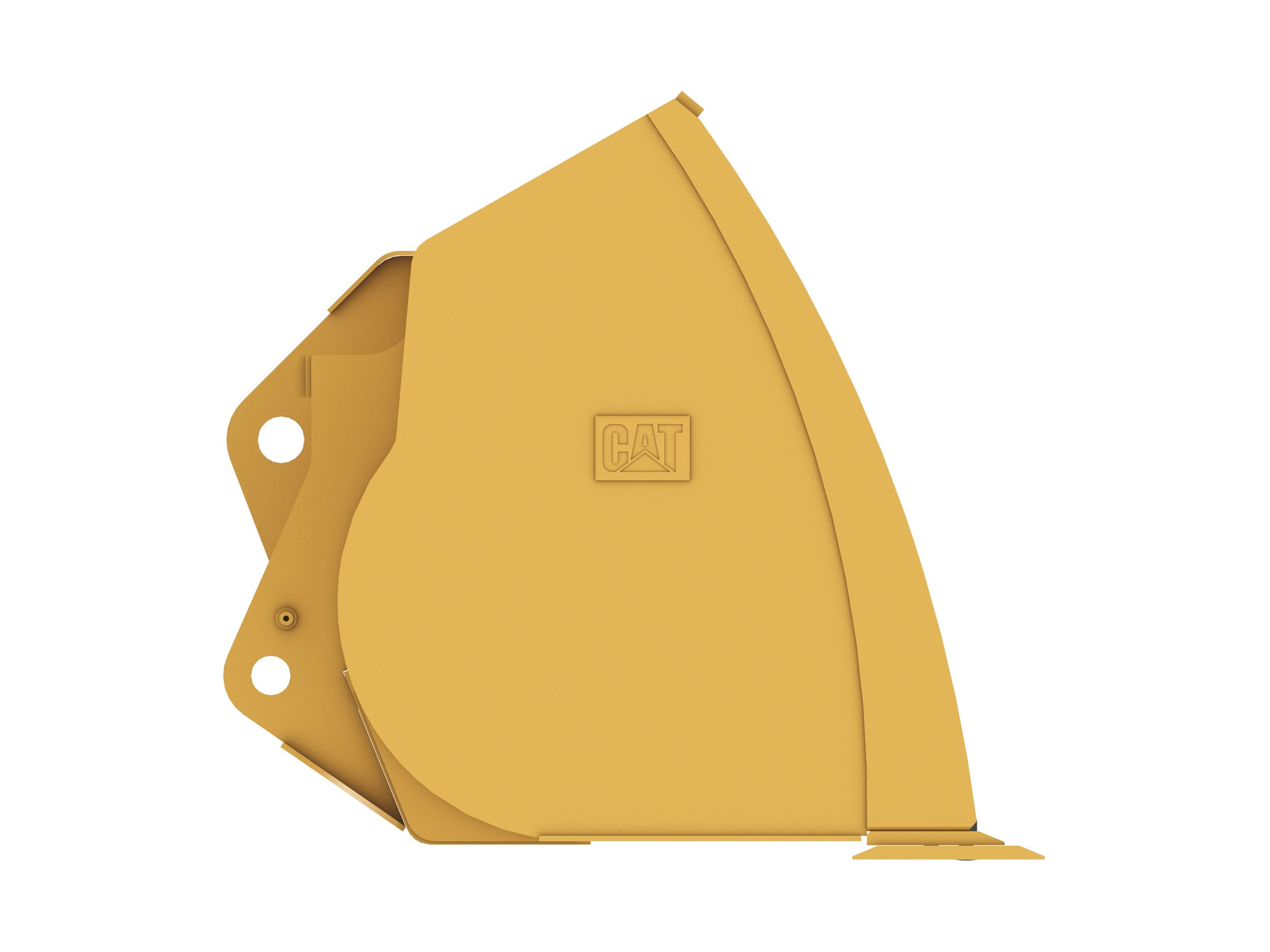

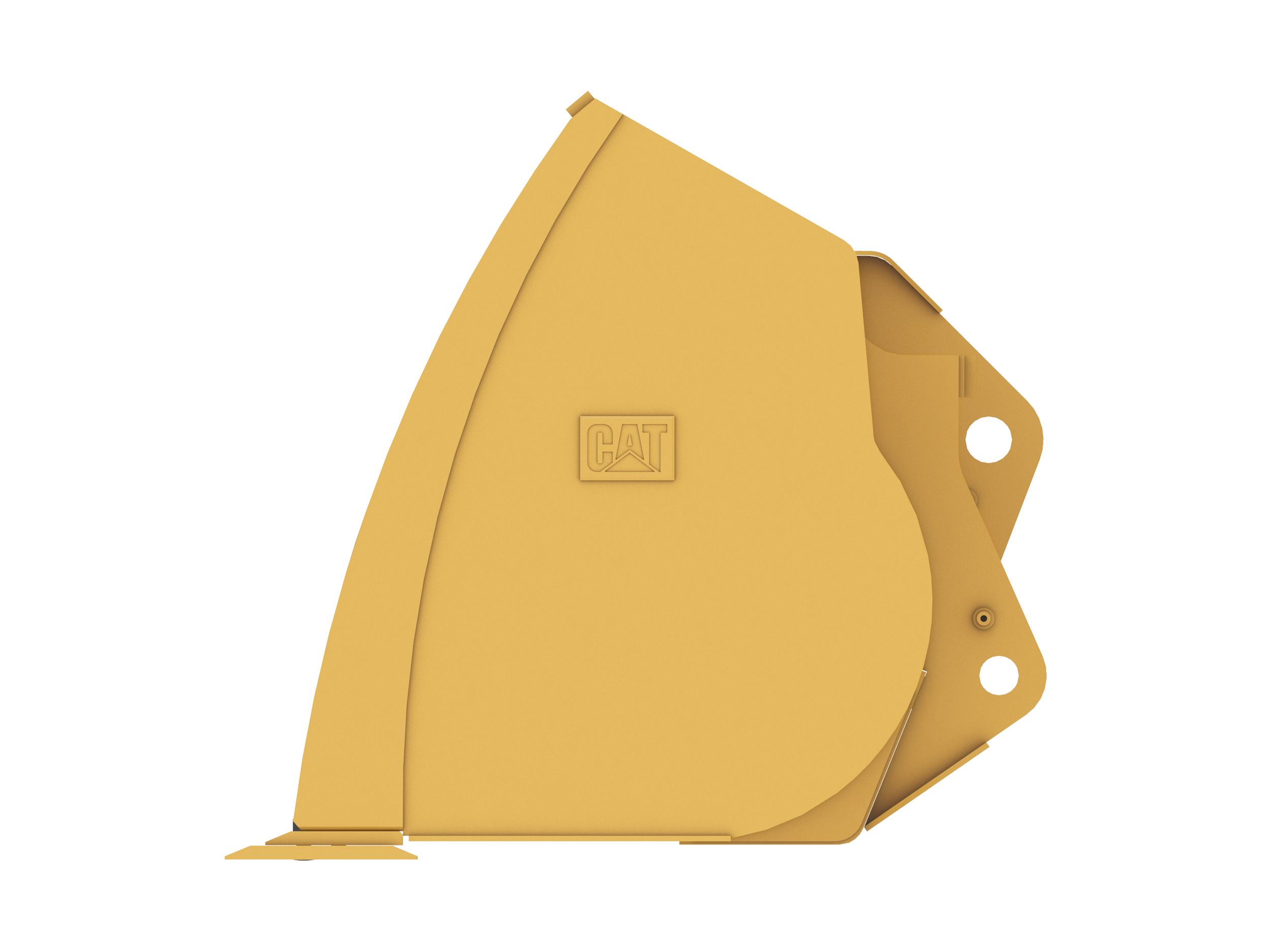

3.0 m3 (3.9 yd3) Pin On Light Material Bucket With Bolt-On Cutting Edge

Used for loading light, loosely-packed materials.

Application

Designed for carrying light, loosely-packed materials.

Versatile Design

Easily hauls, loads, digs and piles light materials such as snow, hay or woodchips.

High Capacity Design

Increased capacity up to 60% over standard buckets.

Material Density Rating

Designed for loading material with a density of 1300 lb/yd3 (770 kg/m3) or less.

Optional Top Clamp

Optional full-width top clamp tightly holds loose materials such as hay with minimum spillage, and holds large round bales securely.

Additional information

Offering Type

Width

2747 mm ( 108.1 in )

Height

1369 mm ( 53.9 in )

Weight

1239 kg ( 2731.5 lb )

Length

1462 mm ( 57.6 in )

Capacity

3 m³ ( 3.9 yd³ )

Base Edge Thickness

25 mm ( 1 in )

Interface Type

Pin On
