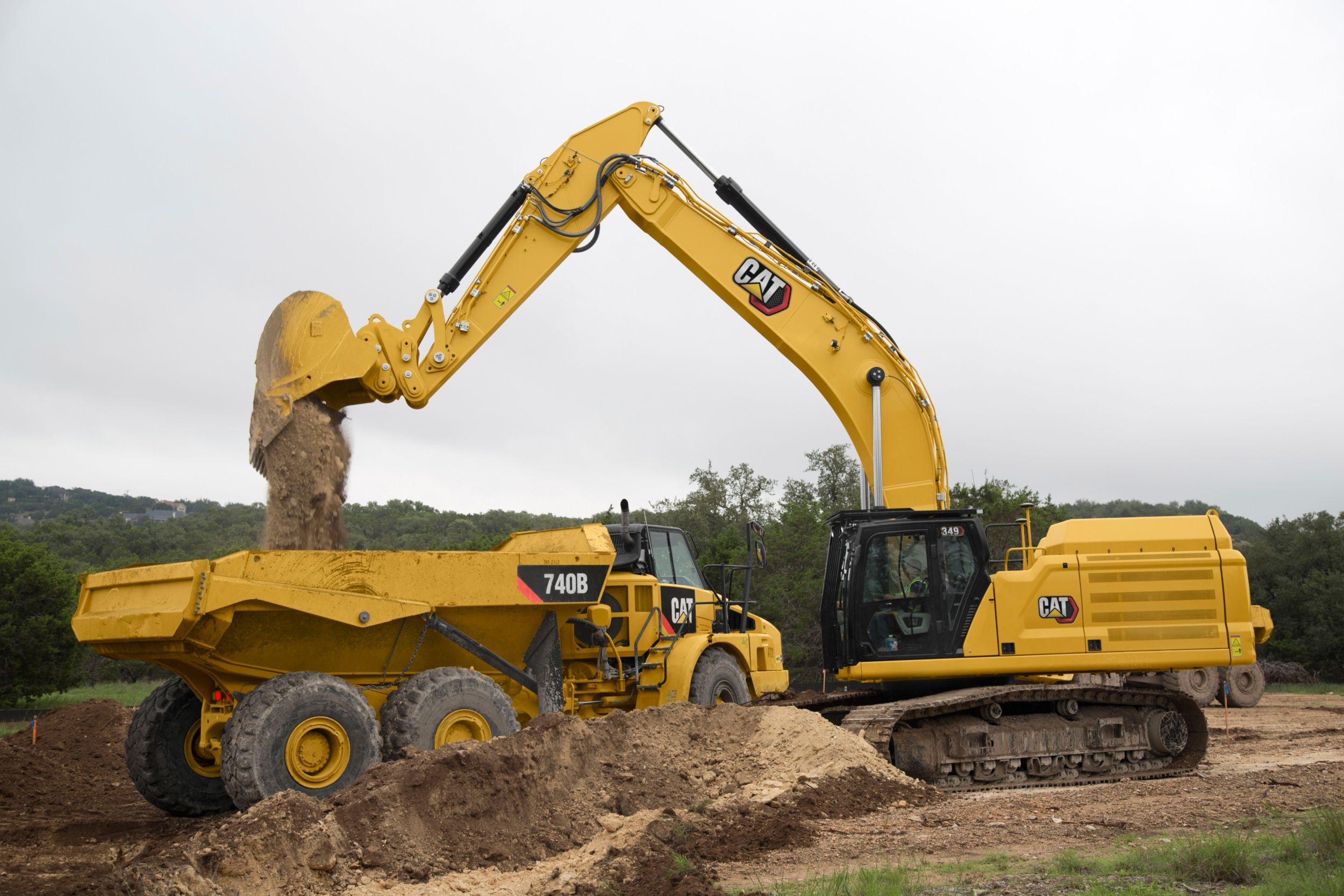

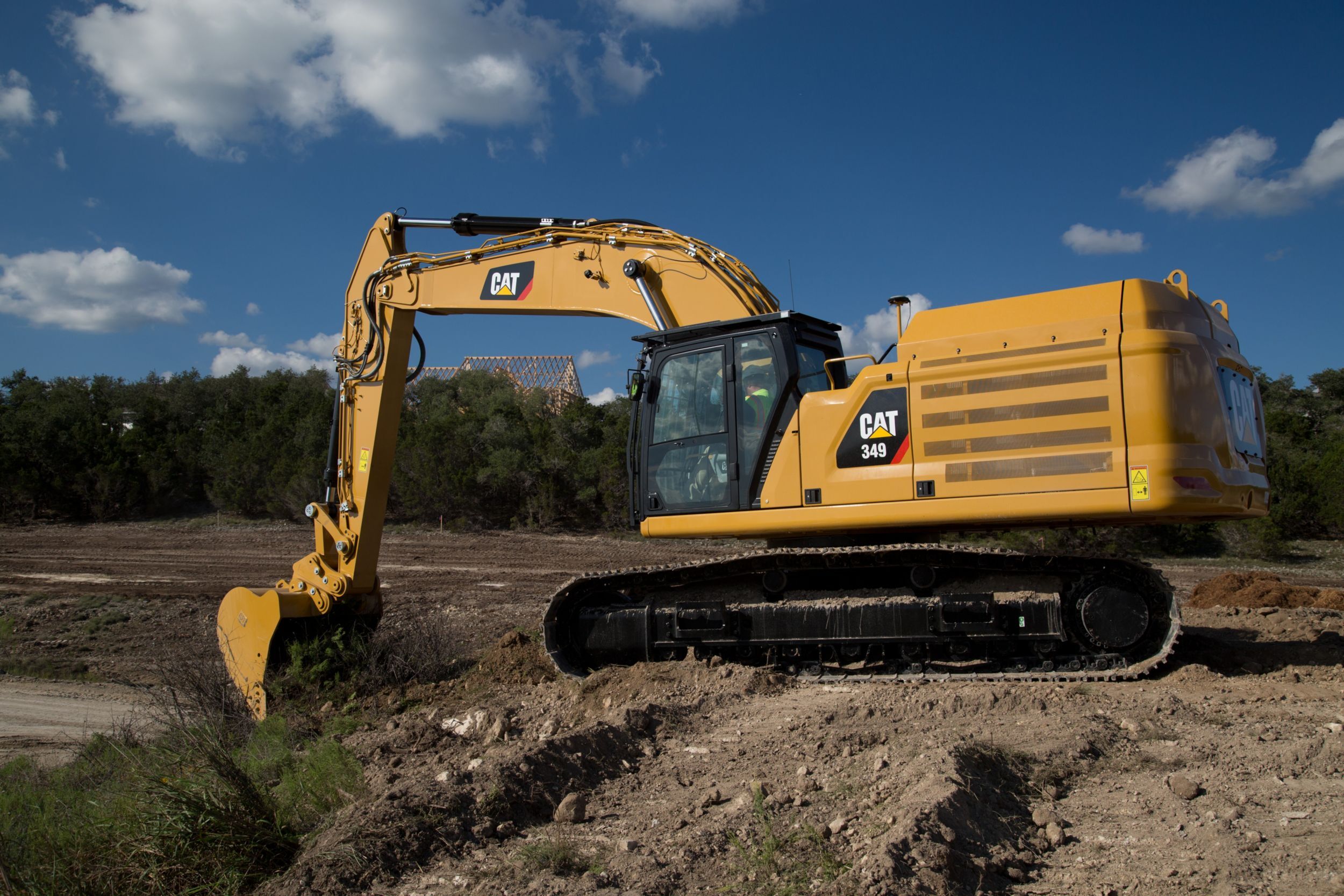

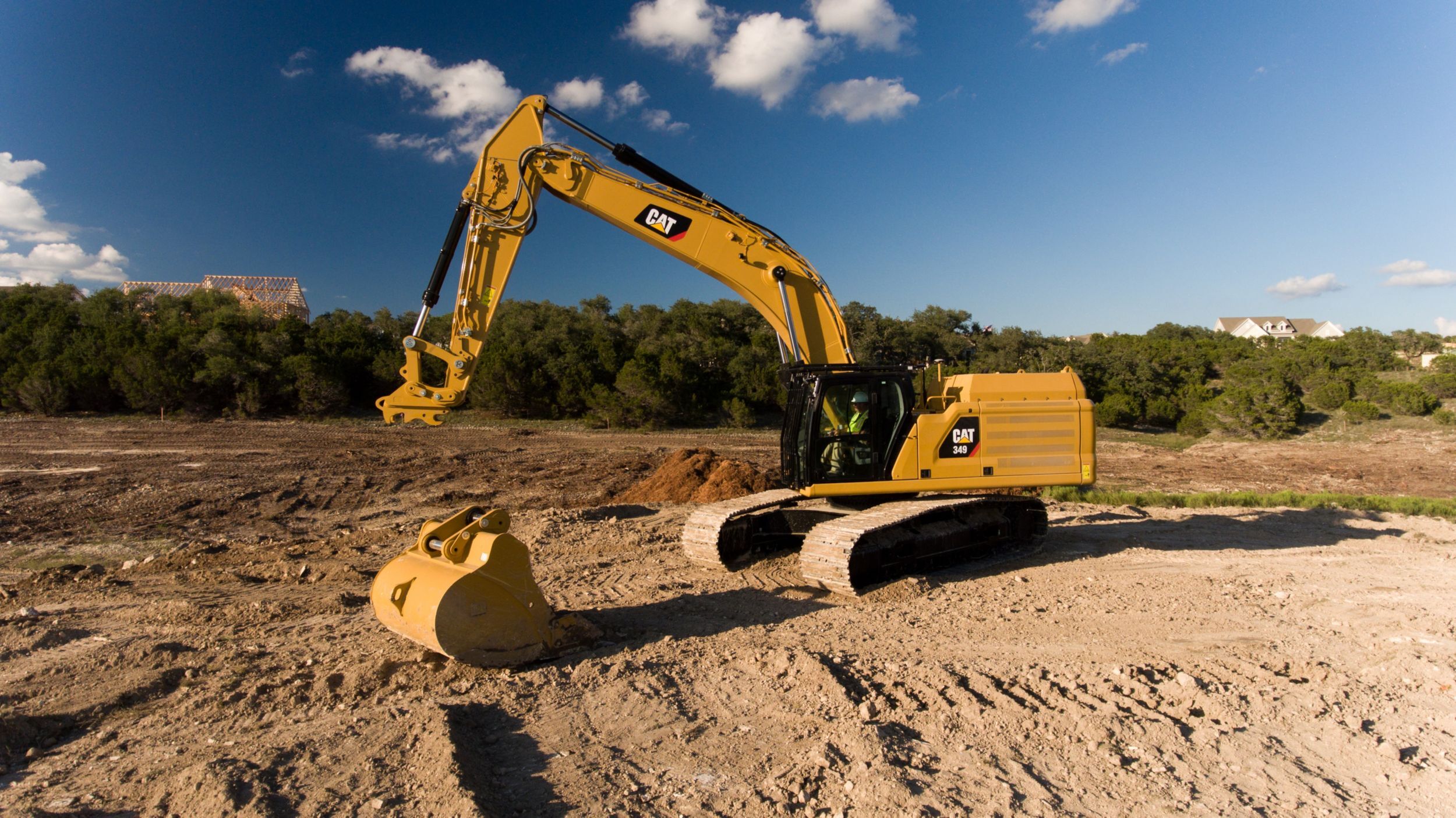

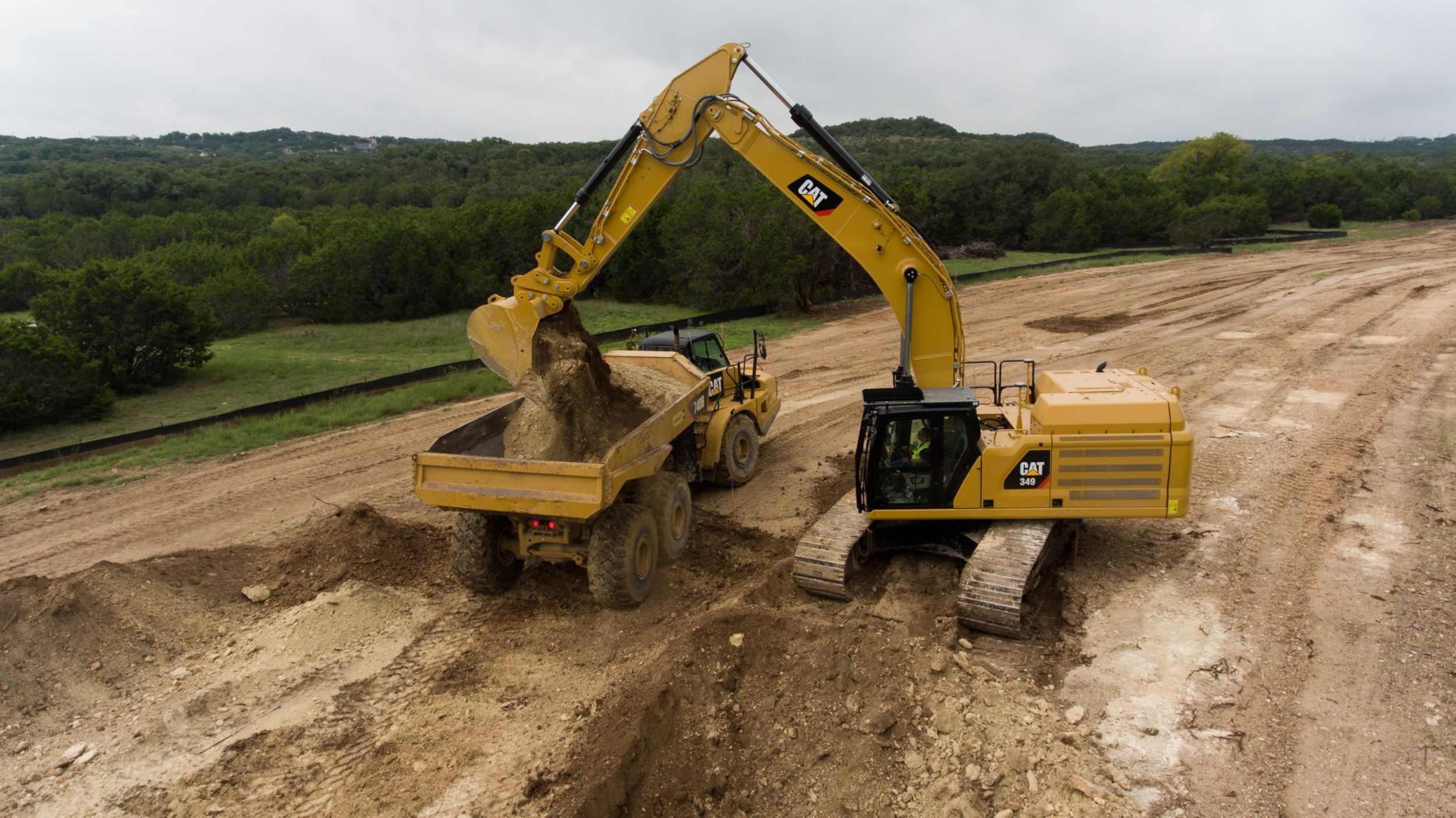

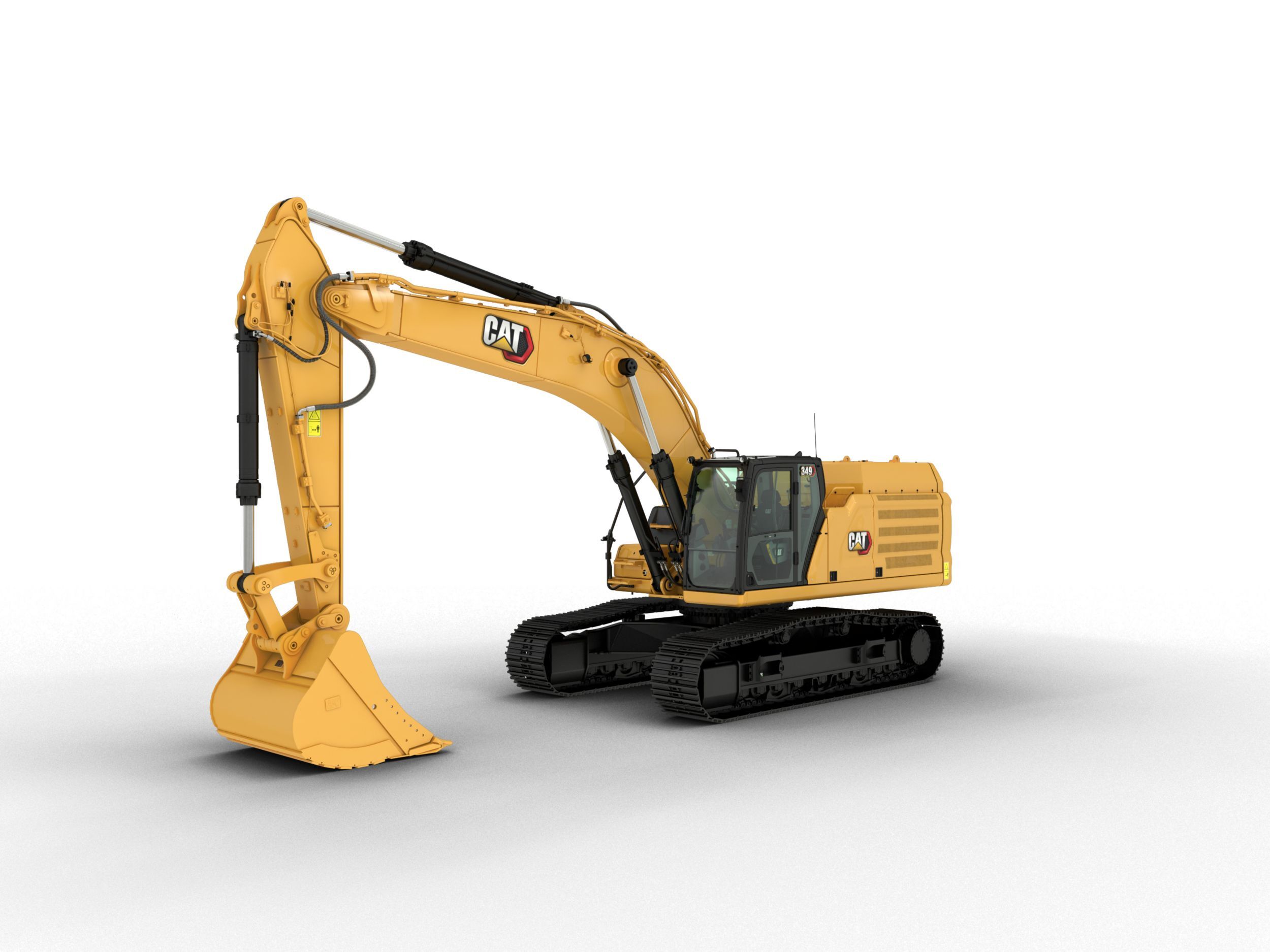

349 Hydraulic Excavator

The 349 gives you premium performance with simple-to-use technologies that boost operator efficiency to increase your productivity and lower operating costs.


  • Increase operating efficiency up to 45 percent with standard Cat technologies that lower operator fatigue and operating costs, including fuel consumption and daily maintenance.
  • Get up to 25 percent higher fuel efficiency – more work per unit of fuel – than the Cat 349D2 excavator.
  • The C13 engine meets Brazil MAR-1 and China Nonroad Stage IIIe mission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
  • Match the excavator to the job with three power modes – Power, Smart, and Eco. Smart mode automatically matches engine and hydraulic power to digging conditions, providing max power when needed and reducing power when it isn’t to help save fuel.
  • The new high-efficiency hydraulic fan cools the engine on demand to help reduce fuel consumption; available reverse function makes it easy to keep cores clean.
  • New self-sharpening Advansys™ bucket tips increase production and lower costs.
  • Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.
  • Don’t let the temperature stop you from working. This excavator has a high-ambient capability of 52° C (125° F) and cold start capability of –18° C (0° F).


  • Boost productivity up to 45 percent versus traditional grading with standard Cat GRADE with 2D system – includes indicate-only and laser capability.
  • Standard Grade Assist: Stay on grade – simply and effortlessly – with single-lever digging.
  • Set your desired bucket angle and let Bucket Assist automatically maintain the angle in sloping, leveling, fine grading, and trenching applications
  • Keep the tracks on ground in lifting and hard digging with Boom Assist.
  • Automatically stop excavator swing at operator-defined set points in truck loading and trenching applications with Swing Assist, which will help you use less effort and consume less fuel.
  • Standard Cat PAYLOAD on-board weighing system: Achieve precise load targets and increase loading efficiency with on-the-go weighing and real-time estimates of your payload without swinging.
  • Combine Payload with VisionLink® and remotely manage your production targets.
  • Take payload data with you. The monitor’s USBport lets you download your results from one shift all the way up to 30 days of work so can manage your progress without needing an internet connection or VisionLink® subscription.
  • Upgrade to optional Cat GRADE with Advanced 2D: Create and edit grade designs with ease on a second high-resolution 254 mm (10 in) touchscreen monitor.
  • Upgrade to optional Cat GRADE with 3D: Create and edit designs with ease and see the front linkage’s full range of motion on a second high-resolution 254 mm (10 in) touchscreen monitor.
  • Know the excavator’s exact position relative to GPS and GLONASS systems. The machine automatically compensates for excavator pitch and roll caused by sloping ground conditions.
  • Remote Troubleshoot connects you to a dealer service pro to help solve your problem and quickly get you to work.
  • Remote Flash works around your schedule to ensure your machine’s software is up to date for optimal performance.
  • The Cat App helps you manage fleet location, hours, and maintenance schedules; it also alerts you for required maintenance and even allows you to request service from your local Cat dealer.
  • Standard Product Link™ provides location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data on demand through VisionLink online interface, helping you improve job site efficiency with lower operating costs.
  • Already invested in another brand’s 3D system? No problem. Standard Cat technology like GRADE with 2D can readily integrate with that system to give you the precise results you need.


  • Choose between Comfort and Deluxe cabs – both with automatic climate control.
  • Sit in wide seats that adjust for all size operators; stay warm with the Deluxe heated seat.
  • Enjoy wide spacing between consoles for a more comfortable environment.
  • Get in and out of the cab easier using the tip-up left console (Deluxe cab only).
  • Advanced viscous mounts reduce cab vibration up to 50 percent over previous excavator models.
  • Control the excavator comfortably with easy-to-reach controls all located in front of you.
  • Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
  • Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.


  • Start the engine with a push button; use a Bluetooth key fob, smartphone app, or the unique Operator ID function.
  • Program each joystick button, including power mode, response, and pattern, using Operator ID; the machine will remember what you set each time you go to work.
  • Automatic hydraulic oil warm up gets you to work faster in cold temperatures and helps prolong the life of components.
  • Navigate quickly on the standard high-resolution 203 mm (8 in) touchscreen monitor, or with the optional 254 mm (10 in)touchscreen monitor, or with the aid of the jog dial control.
  • A second 254 mm (10 in) monitor is available for the advanced grade control and Cat GRADE with 3D.
  • Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.
  • The Cat PL161 Attachment Locator is a Bluetooth device that makes finding your attachments and other gear quick and easy. The excavator's onboard Bluetooth reader or Cat App on your phone will locate the device automatically.
  • Save more time and energy with the available work tool recognition feature. A simple shake of the attached tool confirms its identity; it also ensures all the attachment settings are correct so you can get to work quickly and efficiently.
  • Auto hammer stop helps you prevent unnecessary wear and tear on the attachment and excavator. Simply enable it through the monitor, and you and your fellow operators will be warned after 15 seconds of continuous firing followed by automatic shutoff at 30 seconds.


  • Expect up to 15 percent less maintenance cost than the 349D2 due to extended service intervals. (Savings calculated over 12,000 machine hours.)
  • Check hydraulic system oil and easily drain fuel system water and fuel tank water from ground level.
  • Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
  • Change all fuel filters at a synchronized 1,000 hours. Oil and fuel filters grouped and located on right-hand side of machine for easy maintenance.
  • The new air intake filter with pre-cleaner has double the dust holding capacity of the previous air intake filter.
  • The new hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000 hour replacement interval – 50 percent longer than previous filter designs.
  • The new high-efficiency hydraulic fan has an optional automatic reverse function to keep cores free from debris, eliminating the need for any operator interaction.
  • S∙O∙S ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.


  • Standard 2D E-Fence integrated right out of the factory prevents the excavator from moving outside of operator-defined set points.
  • Lift Assist helps you avoid tipping by letting you know if your load is within the excavator’s safe working range limits.
  • The standard ROPS cab meets ISO 12117-2:2008 requirements.
  • A travel direction indicator helps operators know which way to activate the travel levers.
  • Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab pillars, larger windows, and a flat engine hood design.
  • A ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
  • A rearview camera is standard. Upgrade to 360° visibility and you’ll easily visualize objects and personnel around the excavator in a single view.
  • Serrated steps and anti-skid punch plate on the service platform help prevent slipping.

Standard Equipment

  • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • ROPS, sound suppression
  • High-resolution LCD touch screen monitor
  • Heated seat with air-adjustable suspension (Deluxe only)
  • Heated and cooled seat with auto adjustable suspension (Premium only)
  • Three selectable modes: Power, Smart, and Eco
  • Auto engine speed control
  • Up to 4500m (14,760 ft) altitude capability
  • 52° C (126° F) high-ambient cooling capacity
  • -18° C (0° F) cold start capability
  • Double element air filter with integrated pre-cleaner
  • Remote disable
  • Biodiesel capability up to B20
  • Boom and stick regeneration circuit
  • Electronic main control valve
  • Auto hydraulic oil warm up
  • Auto swing parking brake
  • High performance hydraulic return filter
  • Two speed travel
  • Bio hydraulic oil capability
  • Towing eye on base frame
  • Maintenance-free 1000 CCA batteries (x2)
  • Centralized electrical disconnect switch
  • LED chassis light, left and right hand boom lights, cab lights
  • Cat GRADE with 2D
  • Cat GRADE with Assist
  • Cat Product Link
  • E-Fence
  • Lift Assist
  • Remote Services capability
  • Grouped location of engine oil & fuel filters
  • Scheduled Oil Sampling (S.O.S) ports
  • Caterpillar One Key security system
  • Lockable external tool / storage box
  • Lockable door, fuel, and hydraulic tank locks
  • Lockable fuel drain compartment
  • Service platform with anti-skid plate & recessed bolts
  • Rearview camera

Additional information

Offering Type


Engine - Net Power - ISO 9249

302 kW ( 405 HP )

Engine Model


Engine Power - ISO 14396

303 kW ( 406 HP )

Engine - Bore

130 mm ( 5 in )

Engine - Stroke

157 mm ( 6 in )

Engine - Displacement

12.5 l ( 763 in³ )

Hydraulic System - Main System - Maximum Flow

779 l/min (206 gal/min)

Hydraulic System - Maximum Pressure - Equipment

35000 kPa ( 5076 psi )

Hydraulic System - Maximum Pressure - Equipment - Lift Mode

38000 kPa ( 5511 psi )

Hydraulic System - Maximum Pressure - Travel

35000 kPa ( 5076 psi )

Hydraulic System - Maximum Pressure - Swing

26000 kPa ( 3771 psi )

Swing Mechanism - Swing Speed

8.44 r/min ( 8.44 r/min )

Swing Mechanism - Maximum Swing Torque

187 kN·m ( 138,000 ft·lbf )

Weights - Operating Weight

47500 kg ( 104,700 lb )

Service Refill Capacities - Fuel Tank Capacity

715 l ( 188.9 gal (US) )

Service Refill Capacities - Cooling System

52 l ( 13.7 gal (US) )

Service Refill Capacities - Engine Oil

40 l ( 10.6 gal (US) )

Service Refill Capacities - Swing Drive - Each

10.5 l ( 2.8 gal (US) )

Service Refill Capacities - Final Drive - Each

15 l ( 4 gal (US) )

Service Refill Capacities - Hydraulic System - Including Tank

550 l ( 145.3 gal (US) )

Service Refill Capacities - Hydraulic Tank

217 l ( 57.3 gal (US) )

Dimensions - Boom

Reach 6.9m (22'8")

Dimensions - Stick

R3.35m (11'0")

Dimensions - Bucket

SD 2.41 m³ (3.15 yd³)

Dimensions - Shipping Height - Top of Cab

3230 mm ( 10.6 ft )

Dimensions - Handrail Height

3370 mm ( 11.1 ft )

Dimensions - Shipping Length

11920 mm ( 39.1 ft )

Dimensions - Tail Swing Radius

3760 mm ( 12.3 ft )

Dimensions - Counterweight Clearance

1280 mm ( 4.2 ft )

Dimensions - Ground Clearance

475 mm ( 1.6 ft )

Dimensions - Track Length

5370 mm ( 17.6 ft )

Dimensions - Track Length to Center of Rollers

4360 mm ( 14.3 ft )

Dimensions - Track Gauge

2740 mm ( 9 ft )

Dimensions - Transport Width

11 ft ( 3340 mm )

Working Ranges & Forces - Maximum Digging Depth

7700 mm ( 25.3 ft )

Working Ranges & Forces - Boom

Reach 6.9m (22'8")

Working Ranges & Forces - Stick

R3.35m (11'0")

Working Ranges & Forces - Bucket

SD 2.41 m³ (3.15 yd³)

Working Ranges & Forces - Maximum Reach at Ground Level

11770 mm ( 38.6 ft )

Working Ranges & Forces - Maximum Cutting Height

10730 mm ( 35.2 ft )

Working Ranges & Forces - Maximum Loading Height

7390 mm ( 24.2 ft )

Working Ranges & Forces - Minimum Loading Height

2710 mm ( 8.9 ft )

Working Ranges & Forces - Maximum Depth Cut for 2440 mm (8 ft) Level Bottom

6950 mm ( 22.8 ft )

Working Ranges & Forces - Maximum Vertical Wall Digging Depth

5440 mm ( 17.8 ft )

Working Ranges & Forces - Bucket Digging Force - ISO

271 kN ( 60,850 lbf )

Working Ranges & Forces - Stick Digging Force - ISO

212 kN ( 47,680 lbf )
