3516E

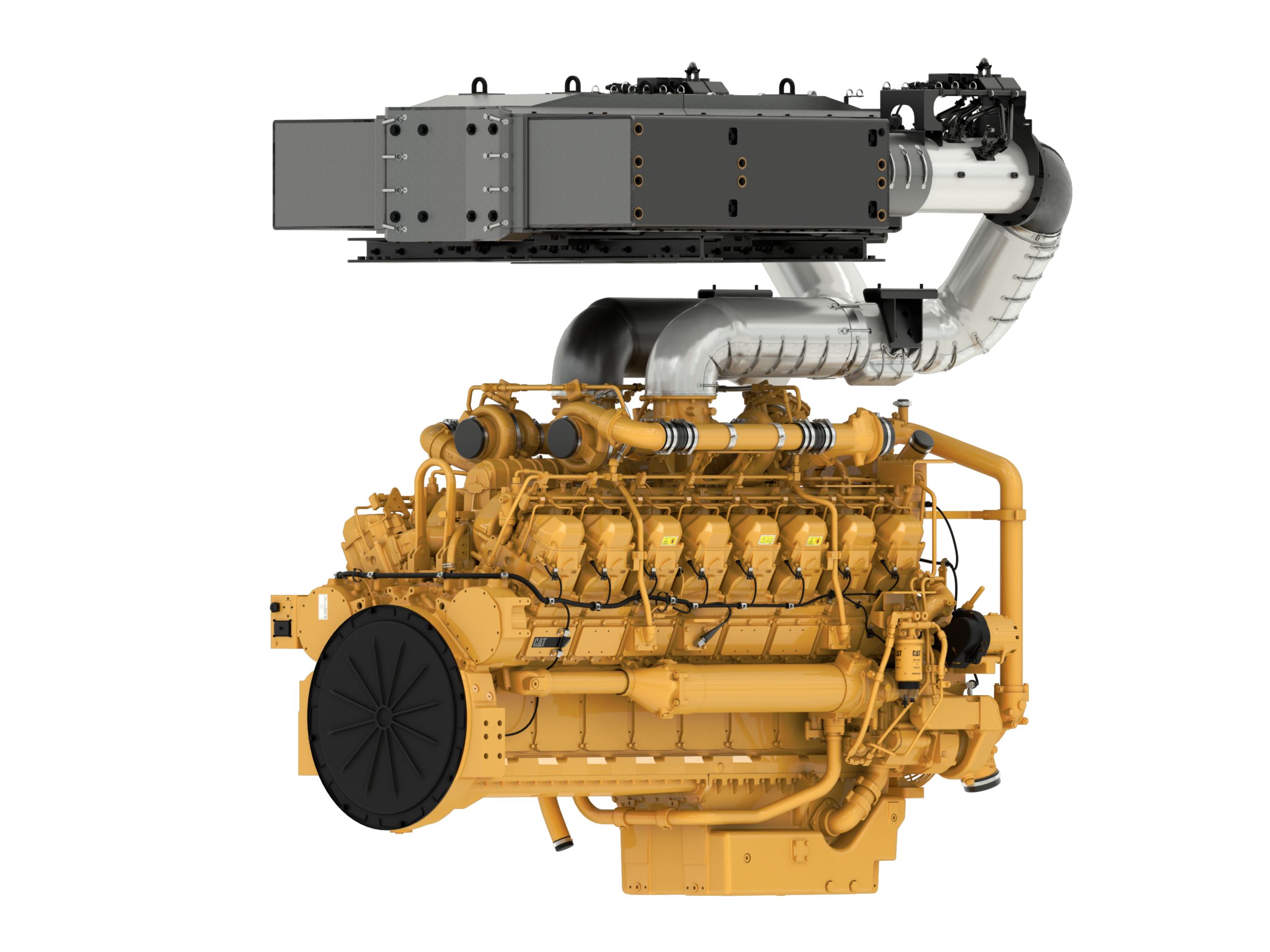

Cat® 3516E Diesel Engine
The Cat® 3516E industrial diesel engine is offered at a continuous rating of 1566 kW (2100 hp) @ 1650 rpm and is designed for applications that require continuous heavy-duty service. These engines are capable of being operated at maximum power and speed up to 100% of the time without interuption or load cycling.
High Continuous Power Density
The A-Rating means the 3516E is able to deliver the engine’s full 2100 hp (1566 kW) @1650 rpm continuously without interruption or load cycling. That’s the type of heavy duty usage that some applications demand and the 3516E delivers it.
Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.
Fuel Efficiency
Fuel consumption is optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs. Even with the addition of an SCR aftertreatment and the required diesel exhaust fluid, the 3516E costs 1.3% less to operate than the preceeding model
Tier 2 3516C.
Quality
Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
Air Inlet System
- Four turbochargers, centre mounted
- Air-to-Air Aftercooled (ATAAC)
Control System
- Electronic engine control
Exhaust System
- Two exhaust outlets, 203 mm (8 in) round flange
- Exhaust manifold, dry
- Four turbochargers with watercooled bearings
Cooling System
- Gear-driven centrifugal jacket water pump
- Connections for radiator cooling
- Thermostats and housing
Flywheels and Flywheel Housing
- Flywheel housing, SAE No. 0 or SAE No. 00
- Flywheel, SAE No. 18 or SAE No. 21
- SAE standard rotation
Fuel System
- Fuel filter, LH spin-on type
- Fuel transfer pump
- Electronically controlled unit injectors
Lube System
- Crankcase breather, top mounted
- Oil cooler
- Oil filler and dipstick, LH
- Oil pump
- Oil filter, LH, spin-on type
- Front sump oil pan, 500-hour change interval
General
- Paint: Caterpillar yellow, with optional colors available at request
- Vibration damper
- Lifting eyes
Additional information
| Offering Type | |
|---|---|
| Power Rating - Maximum Power | 1566 kW ( 2100 HP ) |
| Power Rating - Maximum Torque | 11220 Nm @ 1200 rpm ( 8275 lb-ft @ 1200 rpm ) |
| Power Rating - Rated Speed | 1650 rpm |
| Power Rating - Minimum Power | 1566 kW ( 2100 HP ) |
| Emission Standards - Emissions | U.S. EPA Tier 4 Final, EU Stage V |
| General - Engine Configuration | V-16 |
| General - Bore | 170 mm ( 6.7 in ) |
| General - Stroke | 215 mm ( 8.5 in ) |
| General - Displacement | 78 l ( 4760 in³ ) |
| General - Compression Ratio | 16.5:1 |
| General - Aspiration | Turbocharged Aftercooled (TTA) |
| General - Combustion System | MEUI |
| General - Rotation from Flywheel End | Counterclockwise |
| General - Aftertreatment | SCR |
| Engine Dimensions - Approximate - Length | 3105 mm ( 122.2 in ) |
| Engine Dimensions - Approximate - Width | 1616 mm ( 63.6 in ) |
| Engine Dimensions - Approximate - Height | 2108 mm ( 83 in ) |
| Engine Dimensions - Approximate - Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 8176 kg ( 18025 lb ) |
| Aftertreatment Dimensions - Length | 2350 mm ( 92.5 in ) |
| Aftertreatment Dimensions - Width | 2008 mm ( 79.1 in ) |
| Aftertreatment Dimensions - Height | 809 mm ( 31.9 in ) |
| Aftertreatment Dimensions - Weight | 1079 kg ( 2378 lb ) |
