3606

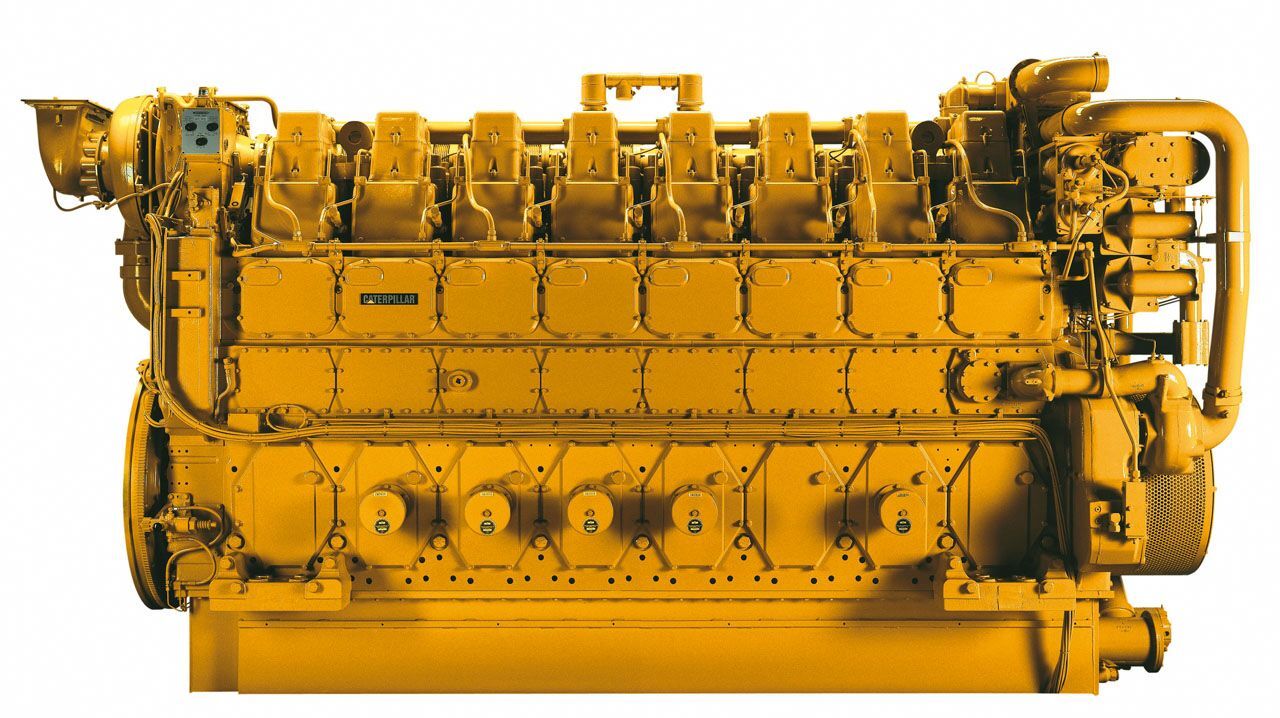

Cat® 3606 Industrial Diesel Engine
For your largest power needs in any environment, Cat® 3606 Industrial Diesel Engines offer the unsurpassed performance and durability your customers need to keep their industrial applications and operations running. They deliver high power output, proven reliability and excellent fuel efficiency. These engines maintain low operating costs to keep your customers profitable for years to come. Industries powered by 3606 engines include Construction, Forestry, General Industrial, Material Handling and Mining. These 3606 engines, with ratings: 1490-1850 bkW (1998-2481 bhp) @ 750-1000 rpm, are non-certified and available for global non-regulated areas.
Fuel Efficiency
Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.
Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.
Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
Air Inlet System
- Aftercooler core, corrosion resistant coated (air side)
- Air cleaner. Regular duty, dry, panel type with service indicators, turbocharger, jacket water aftercooled.
- Turbocharger, rear mounted
- Jacket water aftercooled
Control System
- Governor, RH, 3161 with self contained synthetic oil sump
- Air-fuel ratio control
- Mechanical speed control, without torque control
- Governor control
- Positive locking
Cooling System
- Thermostats and housing
- Jacket water pump, centrifugal
Exhaust System
- Exhaust manifold, dry
Flywheels and Flywheel Housing
- SAE No. 00 flywheel
- 183 flywheel teeth
- SAE No. 00 flywheel housing
Fuel System
- Fuel filter, with service indicators, cartridge type with RH service
- Fuel transfer pump
Instrumentation
- Instrument Panel, RH
- Engine oil pressure gauge
- Fuel pressure gauge
- Oil filter differential gauge
- Jacket water temperature gauge
- Service meter, electric
- Tachometer
Lube System
- Crankcase breather, top mounted
- Oil cooler
- Oil filler
- Oil dipstick
- Oil pump
- Oil filter, cartridge type with RH service
- Shallow oil pan
Mounting System
- Rails, mounting, engine length, 254 mm (10 in), industrial-type, C-channel.
Power Take Off
- Accessory drive, upper RH
- Front housing, single sided
Protection System
- Junction box
- Manual shutoff, RH
- Safety shutoff protection, energized to shutdown
- Low oil pressure, low idle 69 kPa (10 psi); high idle 207 kPa (30 psi)
- Water temperature
- Overspeed
- 3161 governor solenoid energized to shutdown
Starting System
- Starting switch
General
- Vibration damper
- Lifting eyes
- Paint: Caterpillar yellow, with optional colors available at request
Additional information
| تقدير القدرة - القدرة القصوى | 1850 كيلووات ( 2481 حصان ) |
|---|---|
| تقدير القدرة - أقصى عزم دوران | 18200 نيوتن-متر عند 820 دورة في الدقيقة ( 13424 lb-ft @ 820 rpm ) |
| تقدير القدرة - السرعة المقدرة | 750-1000 دورة في الدقيقة |
| تقدير القدرة - القدرة الدنيا | 1490 كيلووات ( 1998 حصان ) |
| معايير الانبعاثات - الانبعاثات | غير معتمد |
| عام - تكوين المحرك | ديزل بدورة من 4 أشواط، ذو 6 أسطوانات في خط مستقيم |
| عام - التجويف | 280 مم ( 11 بوصة ) |
| عام - الشوط | 300 مم ( 11.8 بوصة ) |
| عام - الإزاحة | 110.8 l ( 6764 بوصة³ ) |
| عام - نسبة الانضغاط | 13:01 |
| عام - السحب | مزوَّد بشاحن توربيني وتبريد لاحق |
| عام - الدوران من طرف الحدافة | عكس اتجاه حركة عقارب الساعة |
| عام - المعالجة اللاحقة | – |
| أبعاد المحرك - بالتقريب - الطول | 3988 مم ( 157 بوصة ) |
| أبعاد المحرك - بالتقريب - العرض | 1748 مم ( 69 بوصة ) |
| أبعاد المحرك - بالتقريب - الارتفاع | 2626 مم ( 103 بوصة ) |
| أبعاد المحرك - بالتقريب - الوزن - الصافي الجاف - محرك التشغيل الأساسي من دون الملحقات الاختيارية | 15680 كجم ( 34500 رطل ) |
| Offering Type |
