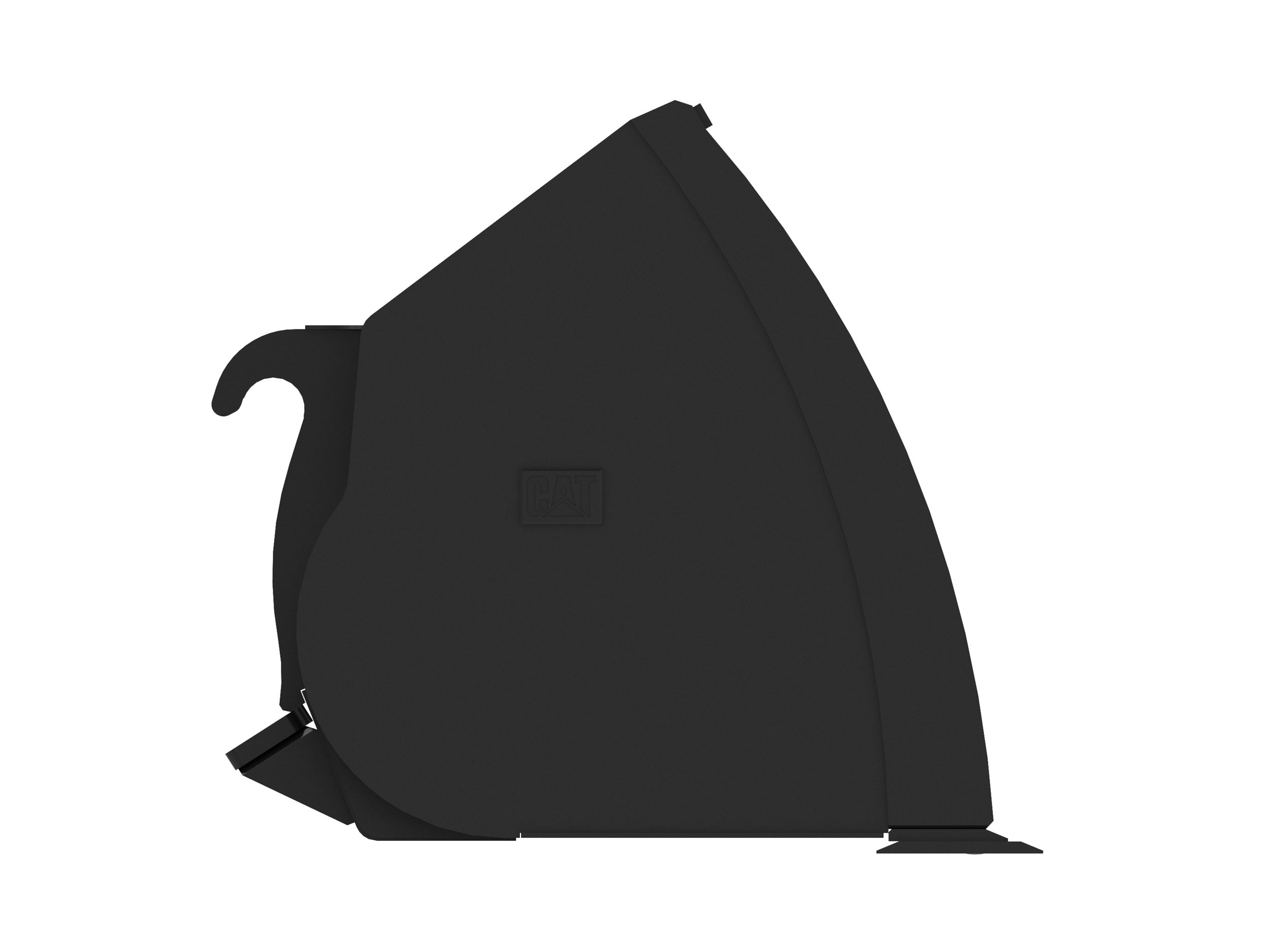

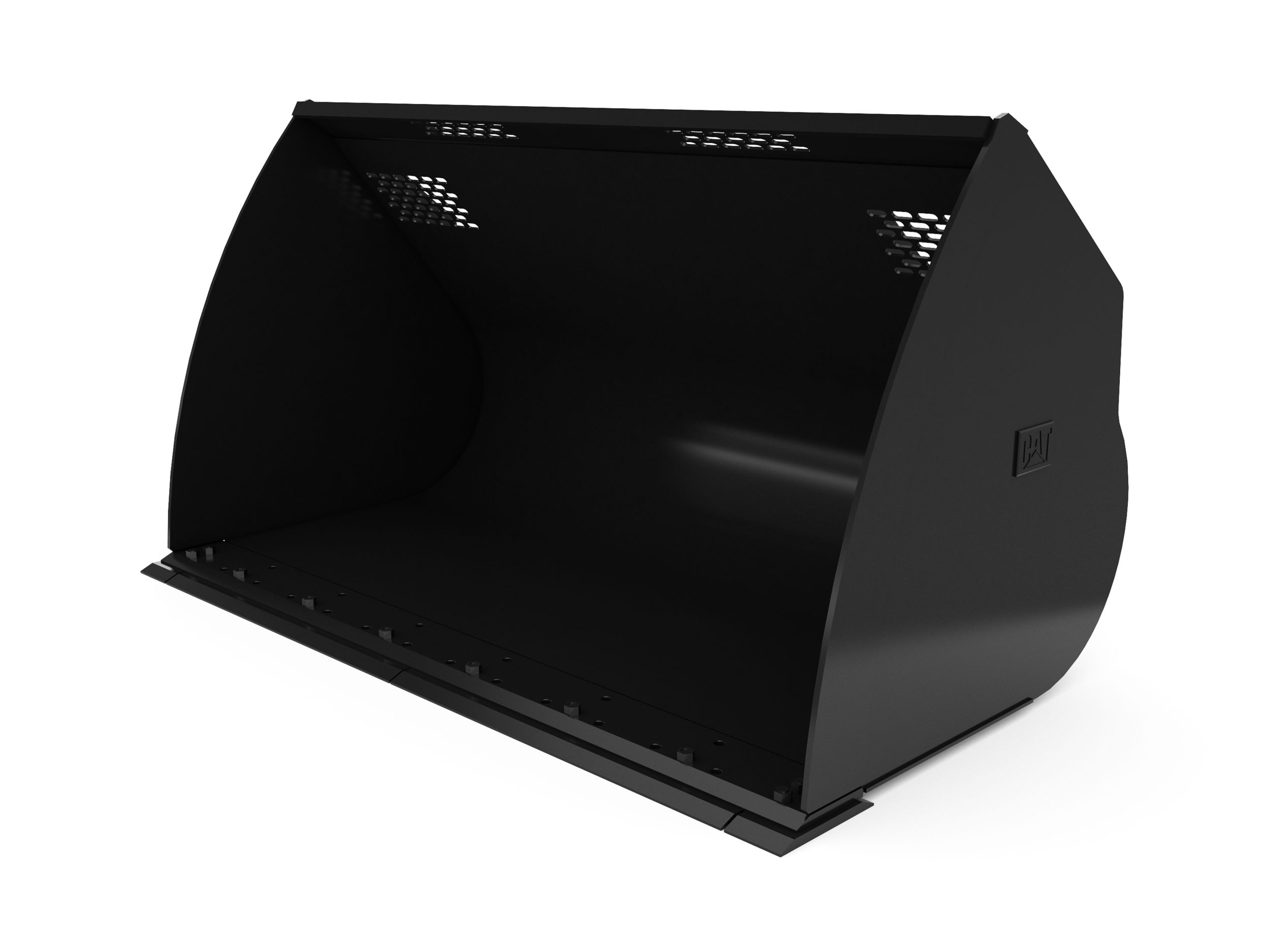

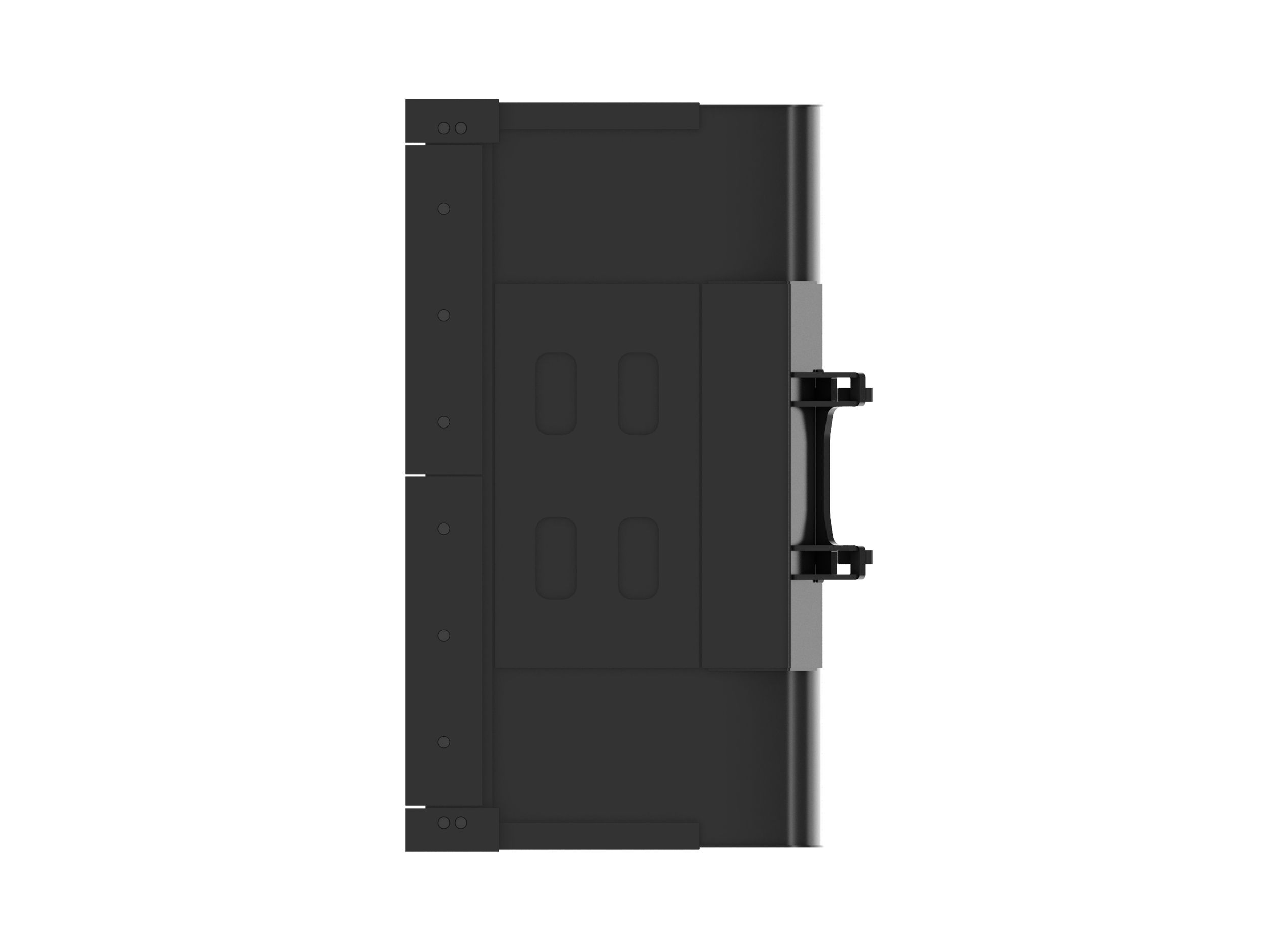

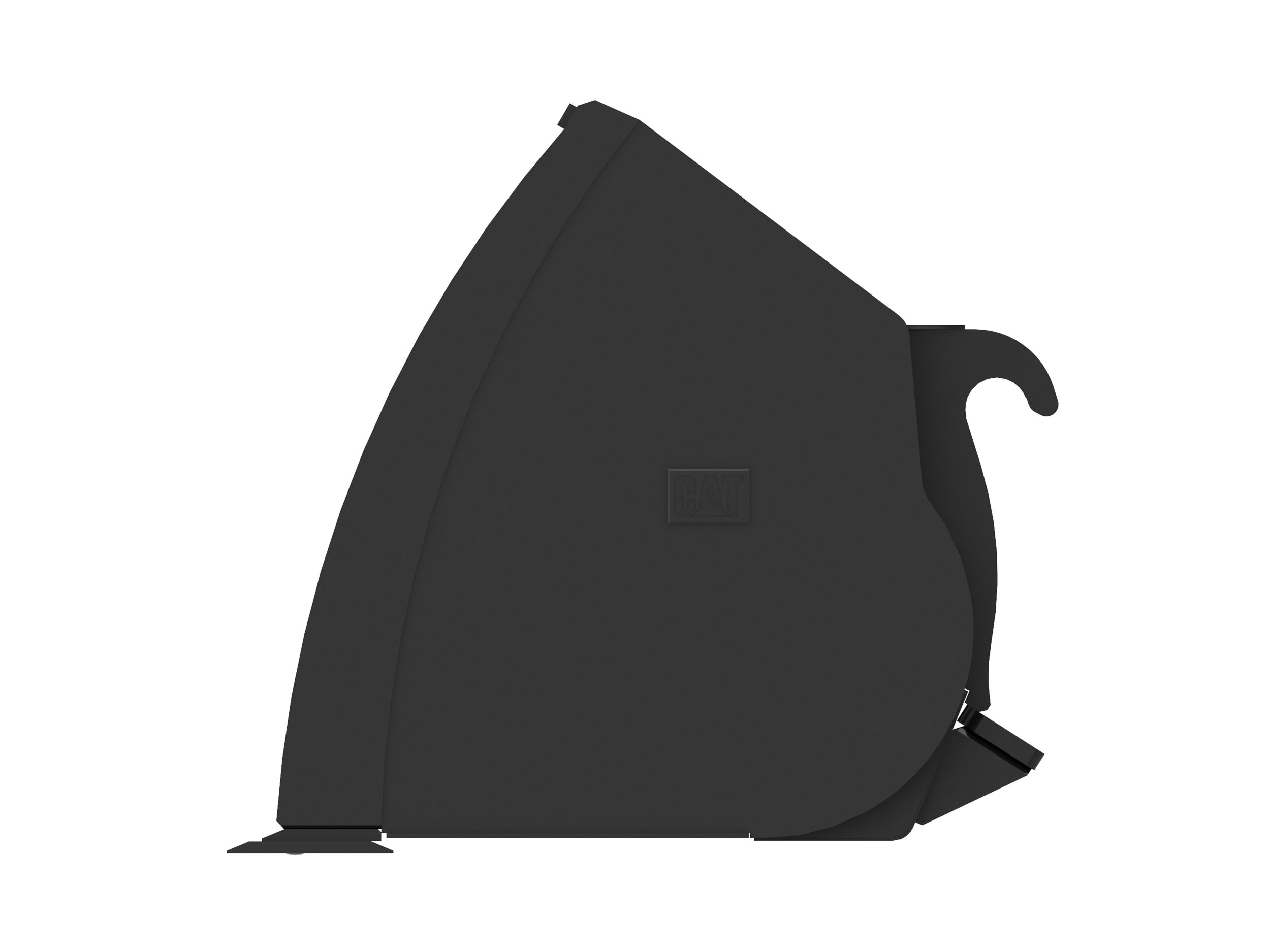

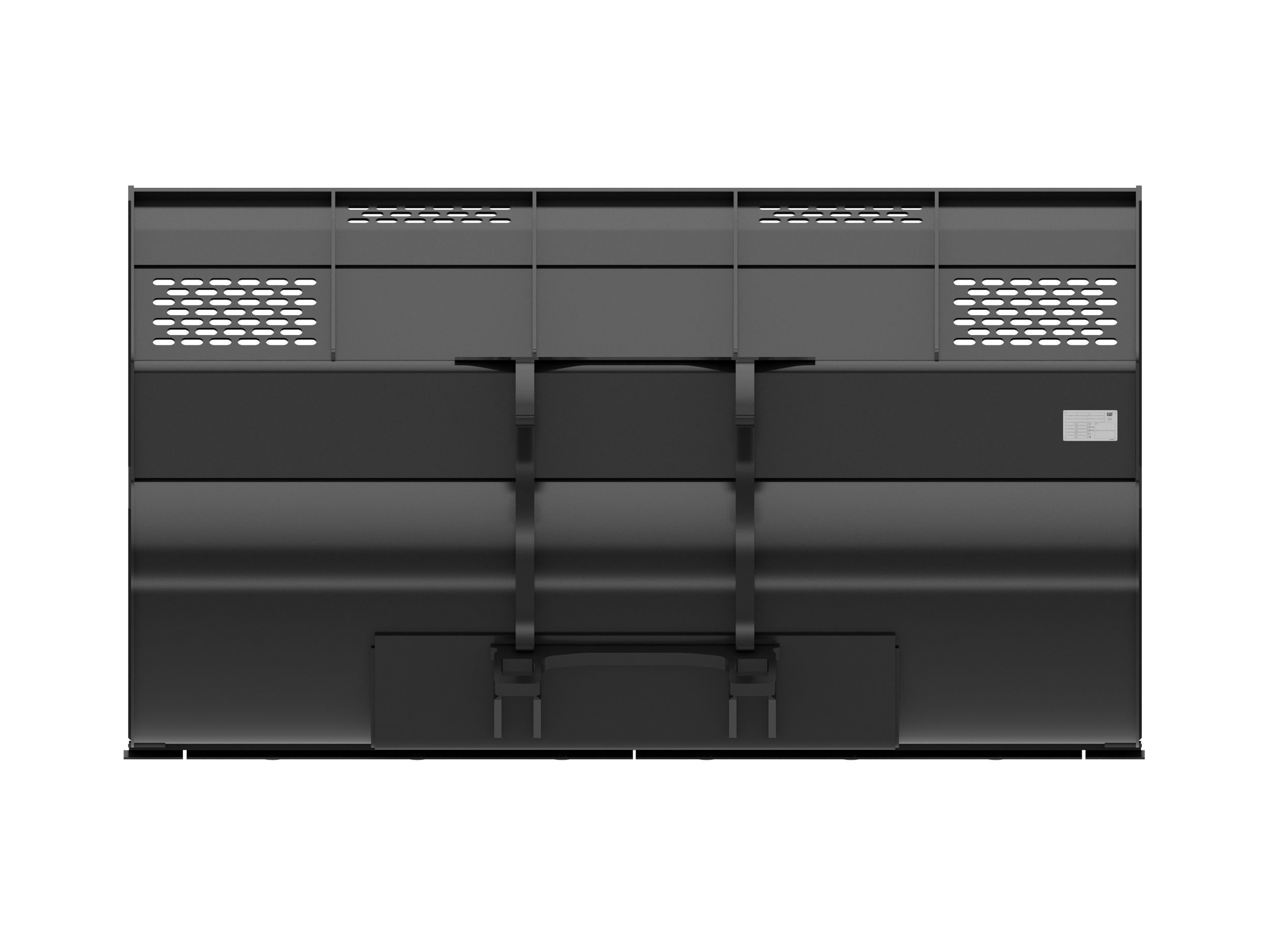

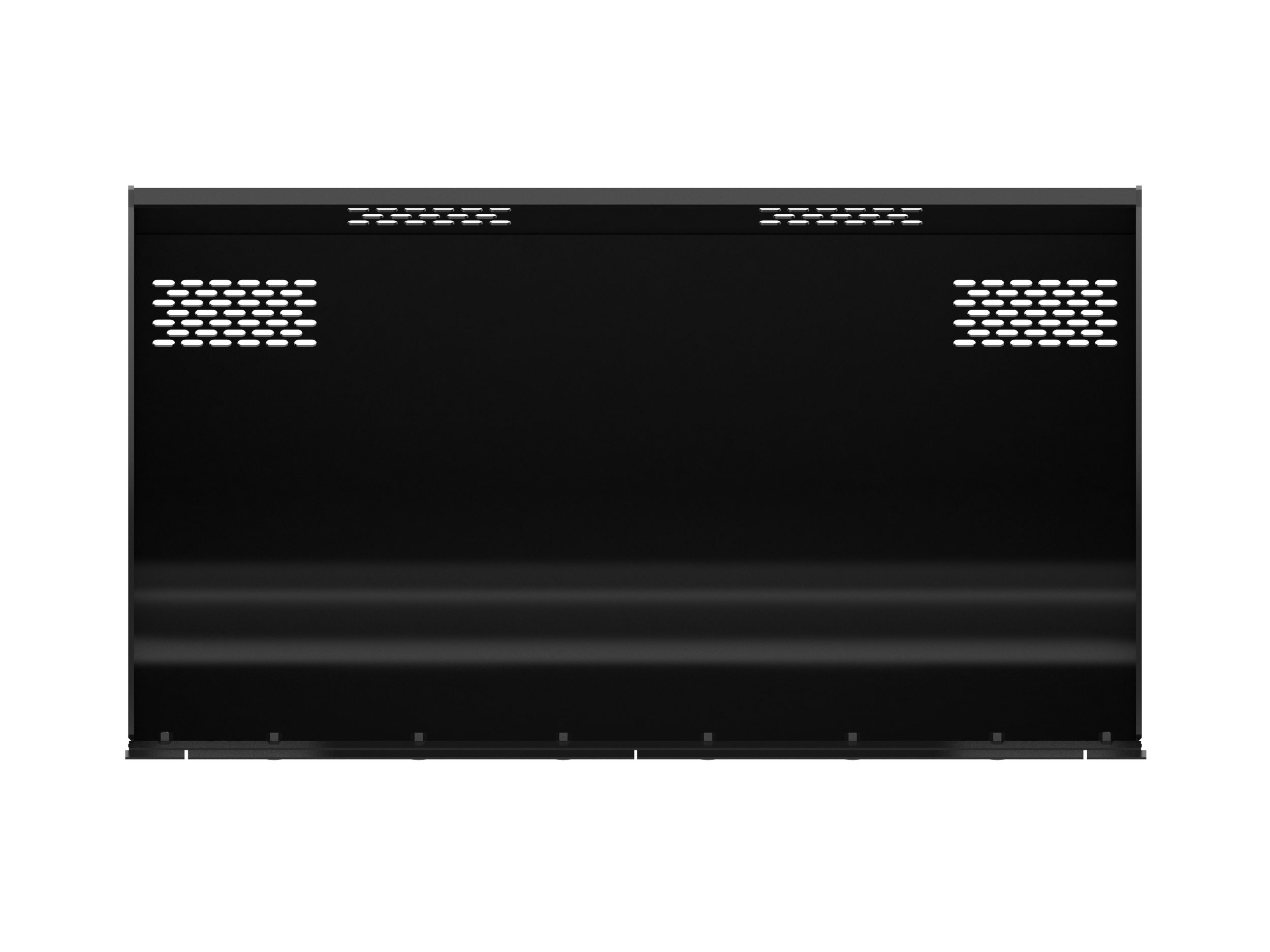

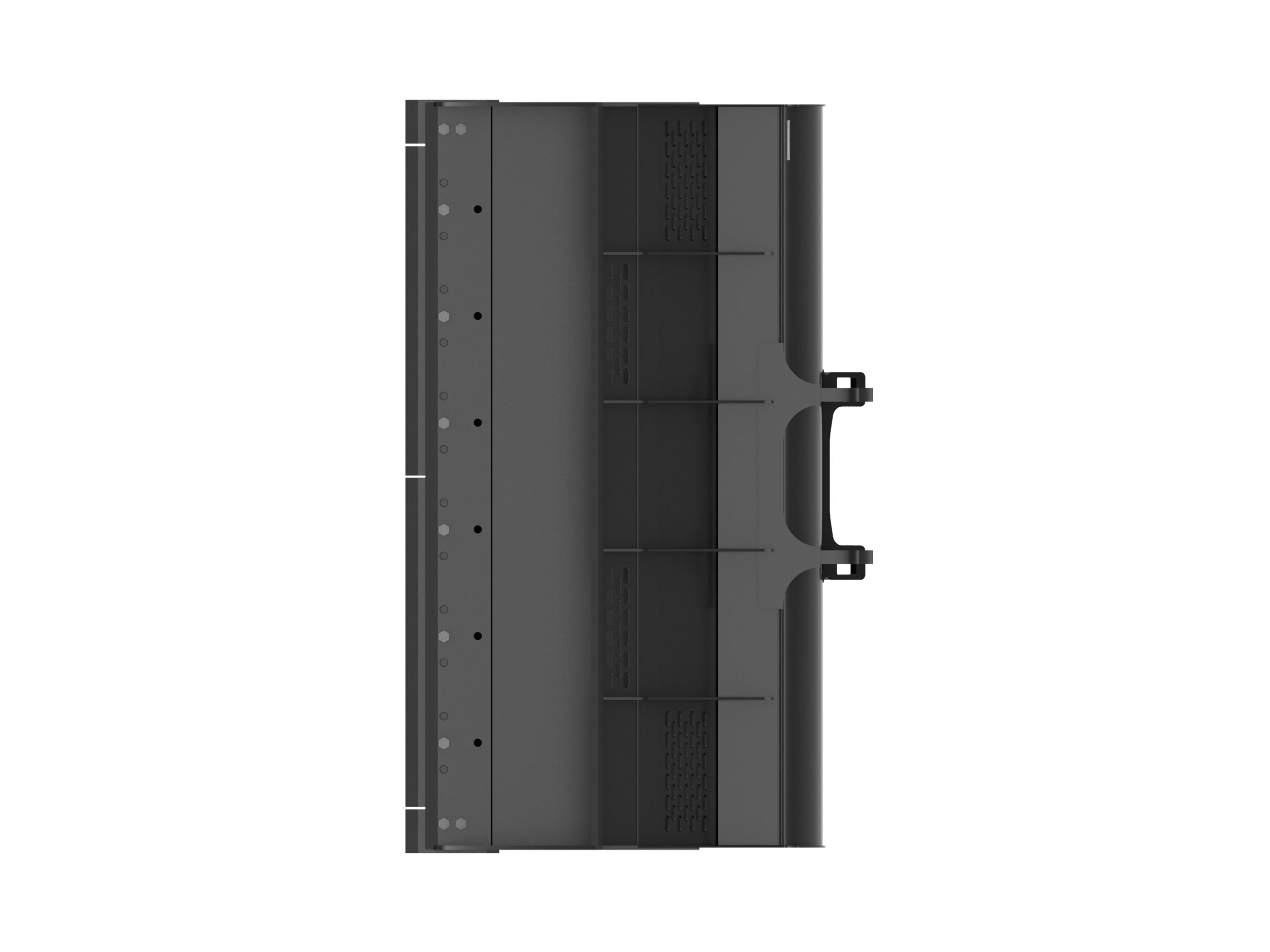

4.2 m3 (5.5 yd3), Fusion™ Coupler, Bolt-On Cutting Edge
Application
Designed for carrying light, loosely-packed materials.
Versatile Design
Easily hauls, loads, digs and piles light materials such as snow, hay or woodchips.
High Capacity Design
Increased capacity up to 60% over standard buckets.
Material Density Rating
Designed for loading material with a density of 1300 lb/yd3 (770 kg/m3) or less.
Optional Top Clamp
Optional full-width top clamp tightly holds loose materials such as hay with minimum spillage, and holds large round bales securely.
Additional information
Offering Type | |
---|---|
Width | 2747 mm ( 108.1 in ) |
Height | 1538 mm ( 60.6 in ) |
Weight | 1439 kg ( 3172.4 lb ) |
Length | 1676 mm ( 66 in ) |
Capacity | 4.2 m³ ( 5.5 yd³ ) |
Base Edge Thickness | 25 mm ( 1 in ) |
Interface Type | Fusion™ Coupler |
-
