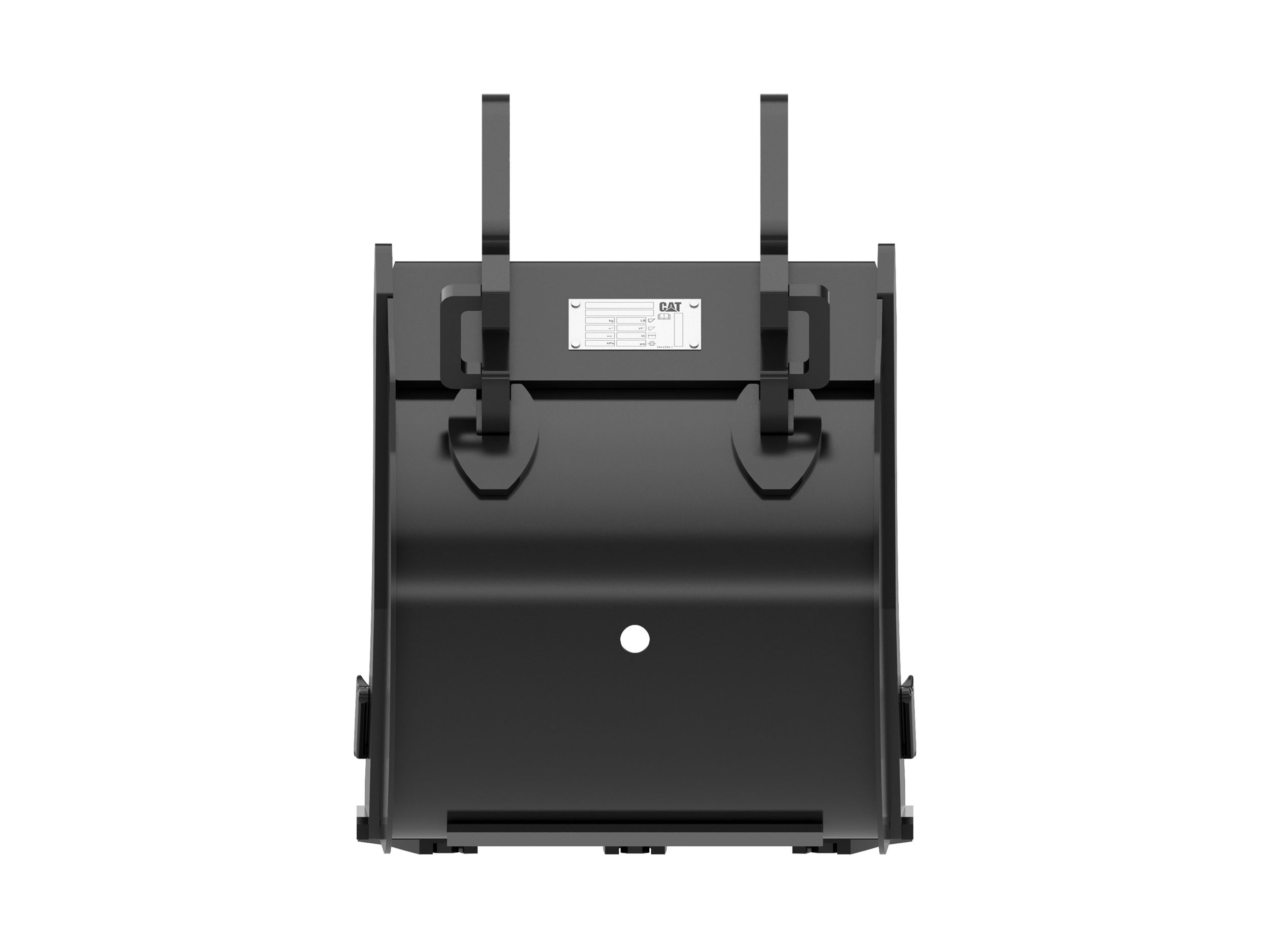

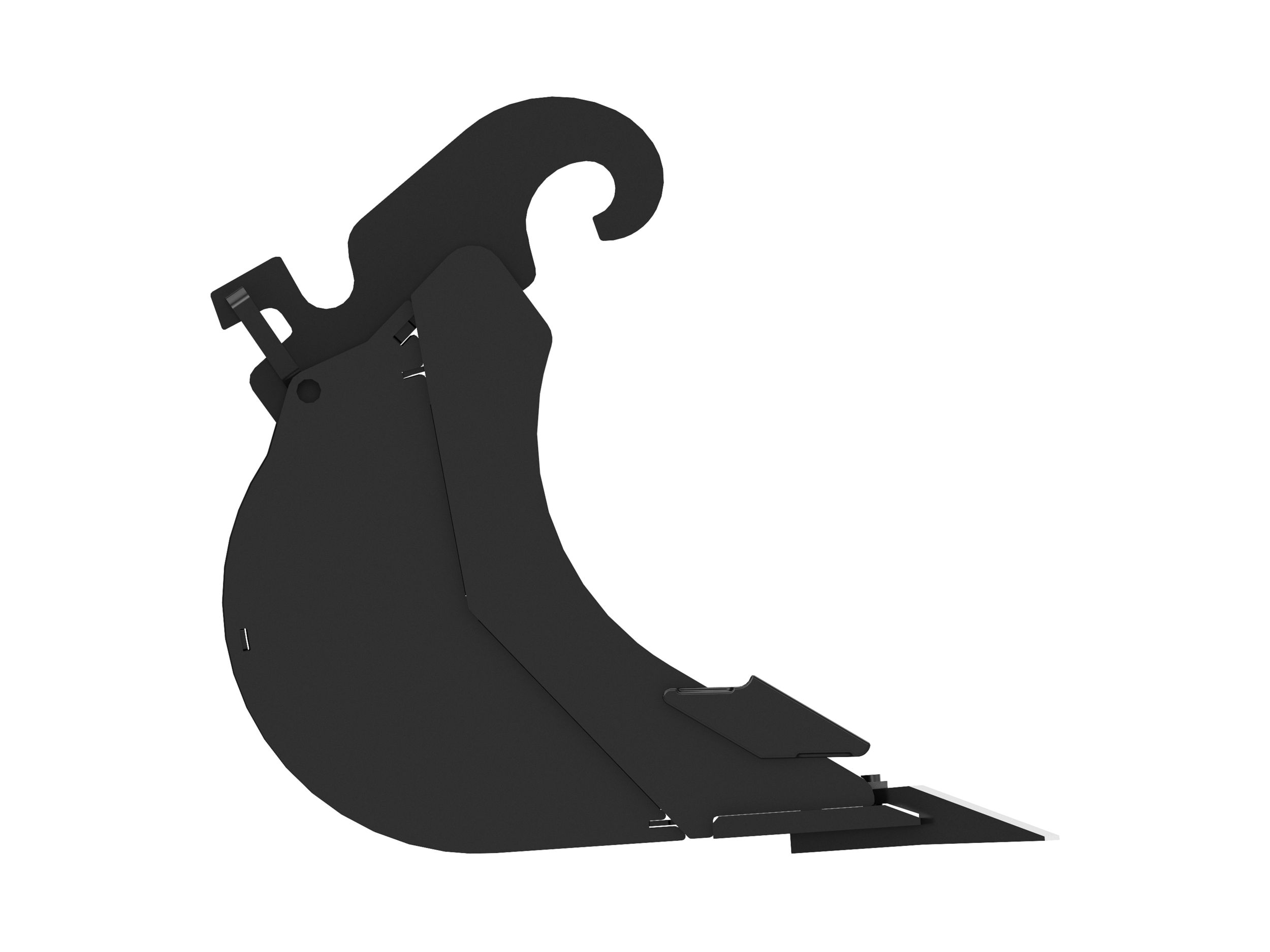

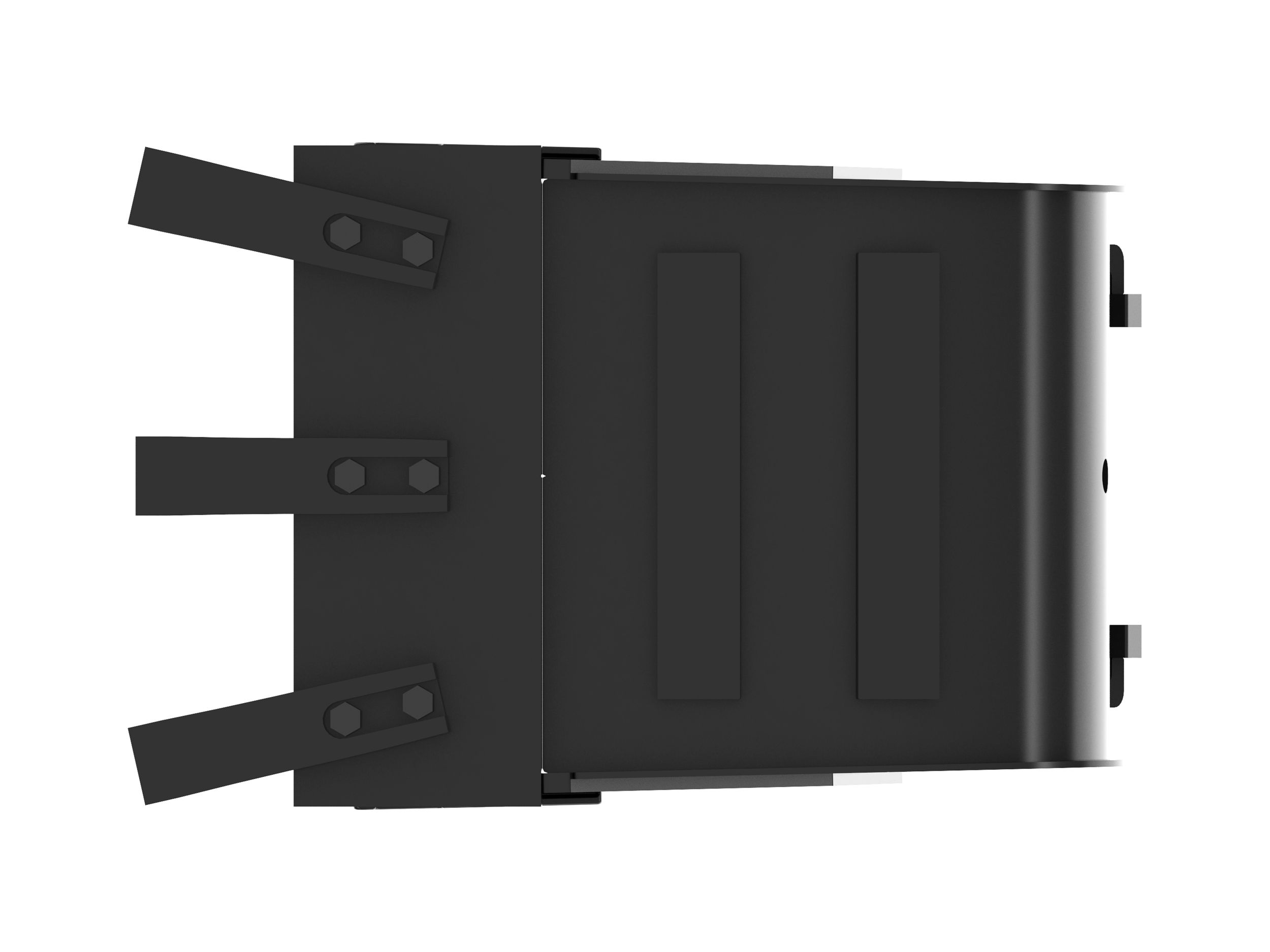

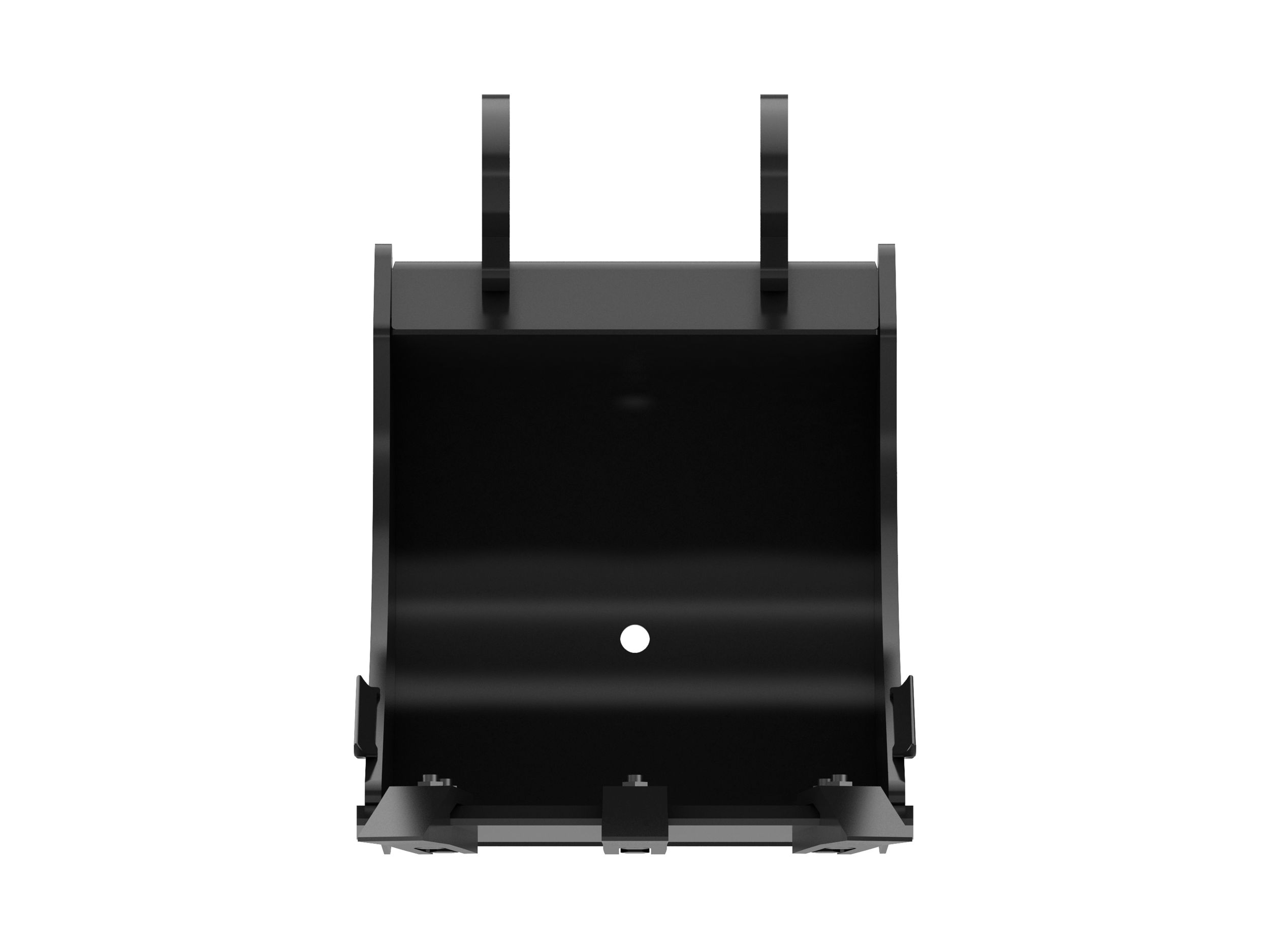

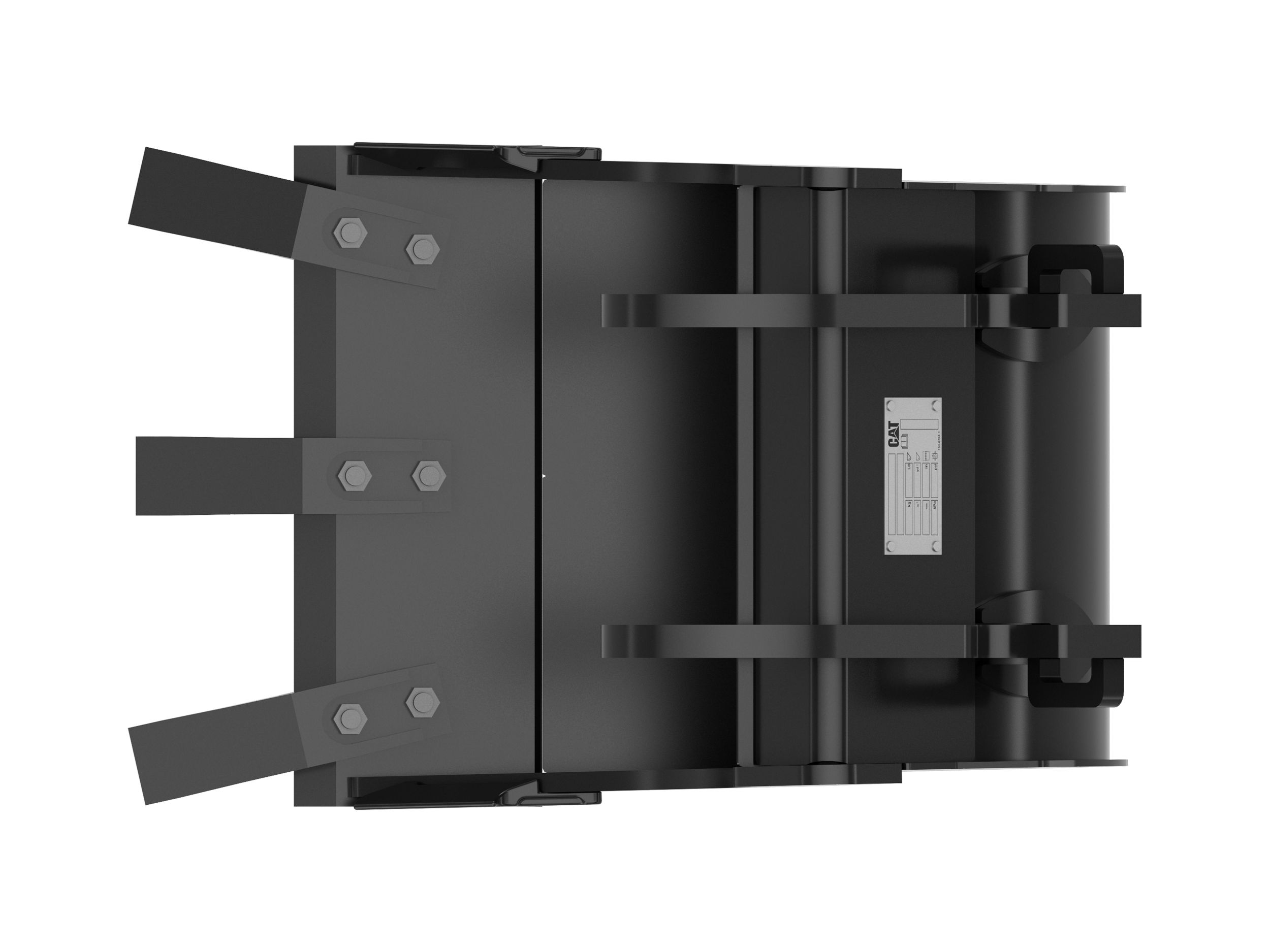

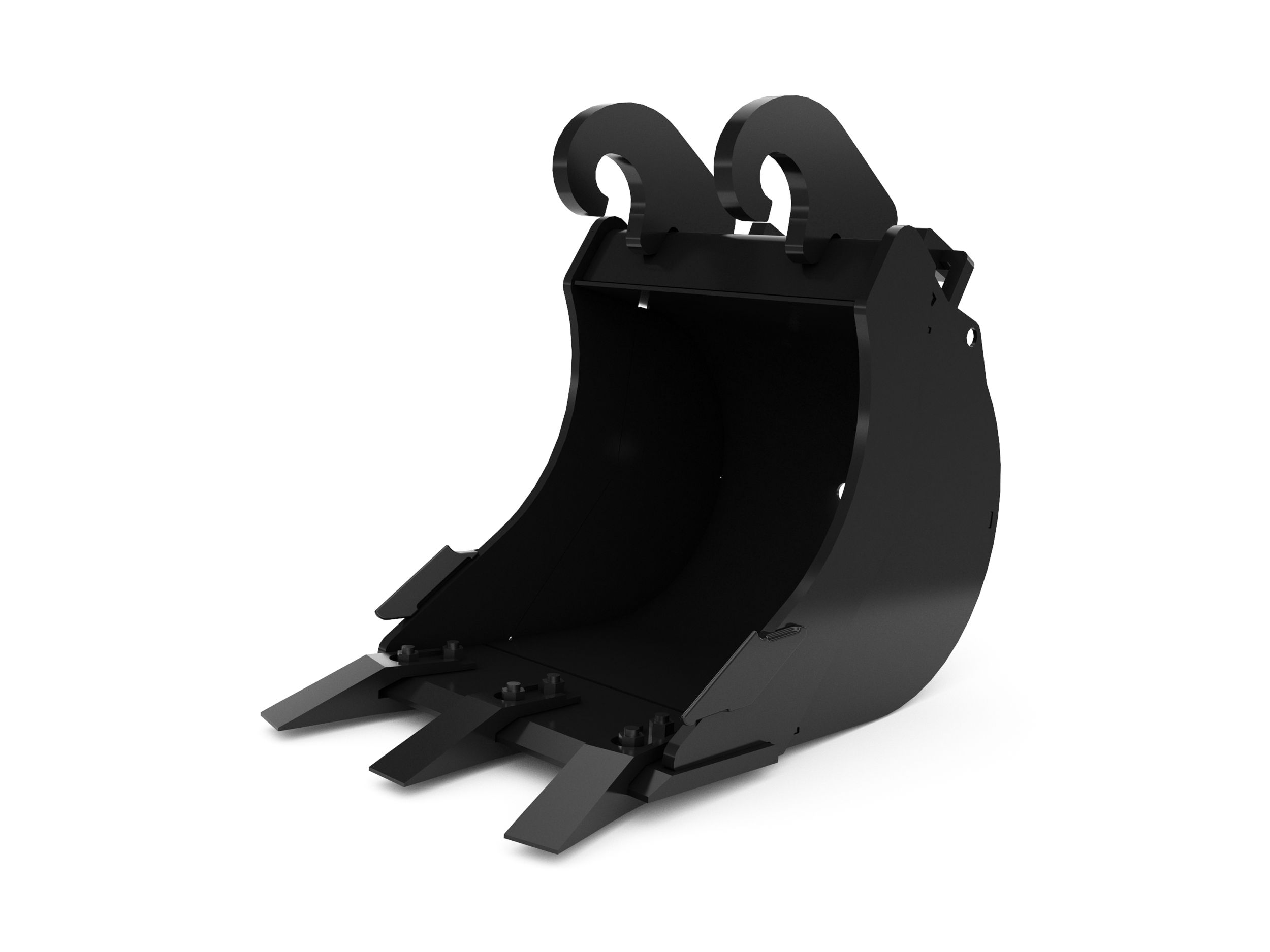

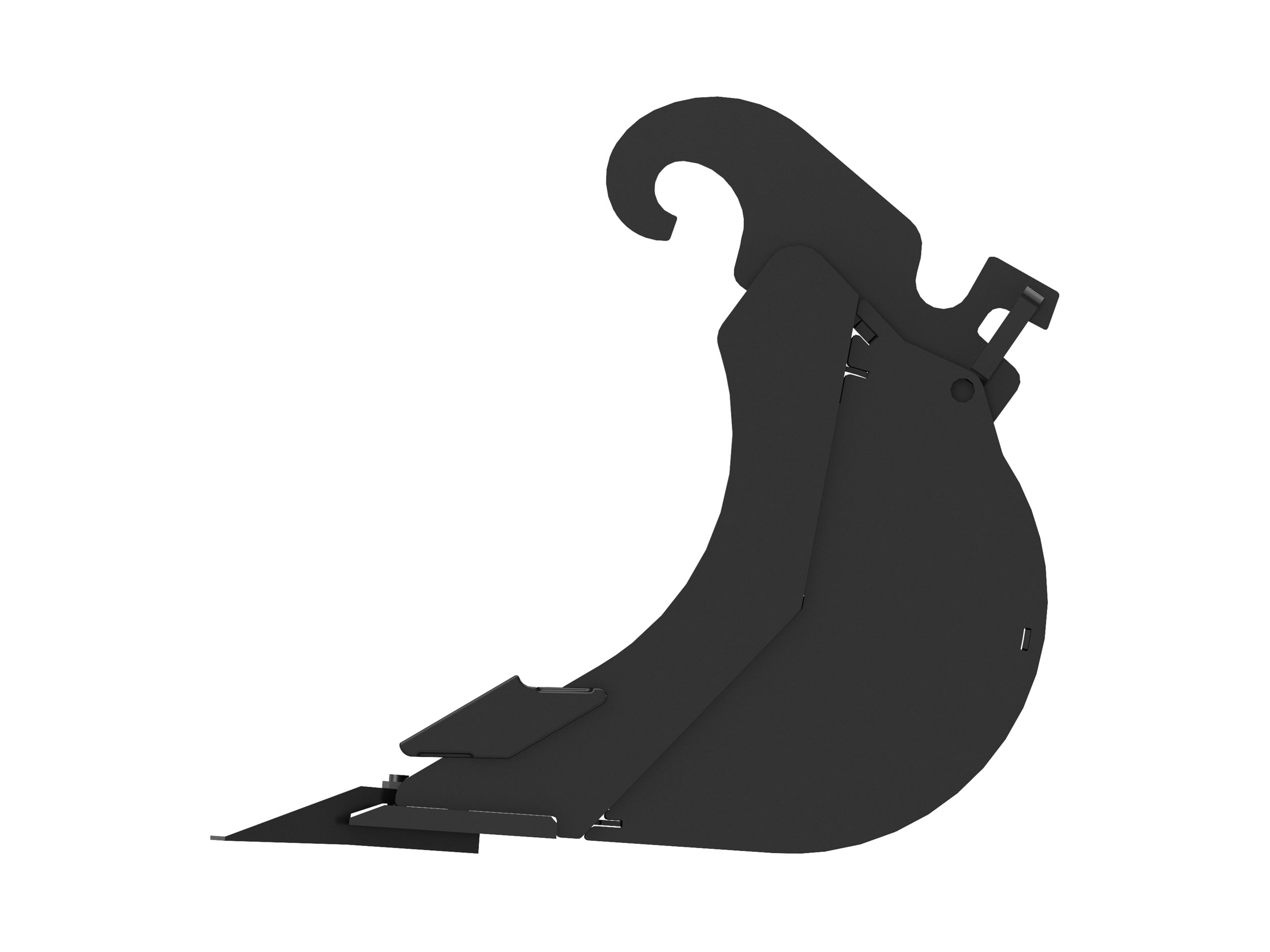

400 mm (16 in) Digging Bucket

These buckets are ideal for digging in soft to moderate ground.

Application

Designed for a wide variety of applications and materials.

Bucket Design

Formed back wrapper design enhances bucket loadability and production.

Superior Bucket Fill

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.

CW Coupler Interface

Designed for use with the CW Coupler Interface, which provides quick bucket changeovers and a wedge style coupler design that locks the bucket solidly in place.

Additional information

Offering Type

Width

400 mm ( 15.7 in )

Capacity

48 l ( 1.7 ft³ )

Weight

45 kg ( 99.2 lb )

Base Edge Thickness

16 mm ( 0.6 in )

Tip Radius

575 mm ( 22.6 in )

Interface Type

CW-05 Coupler
