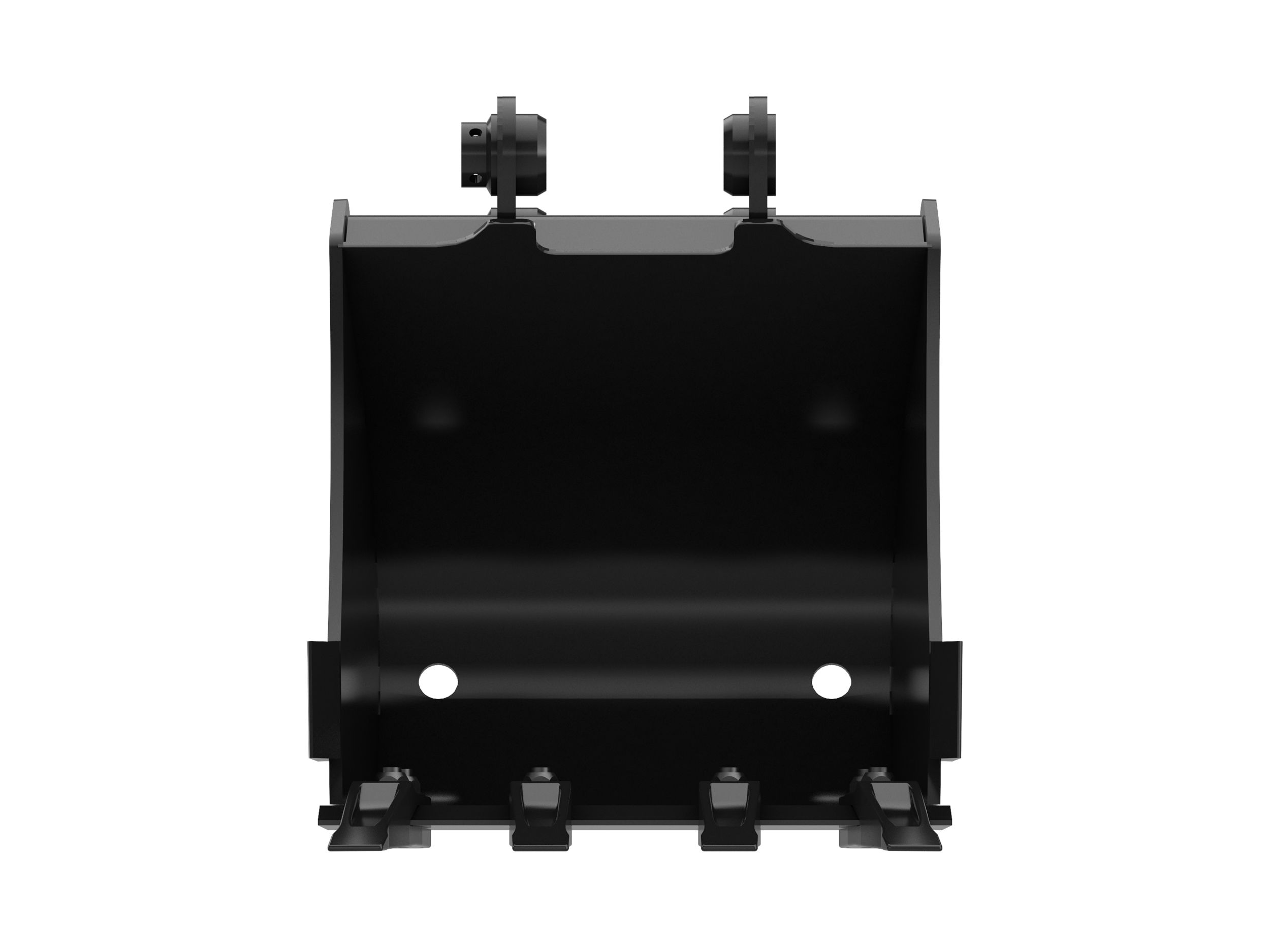

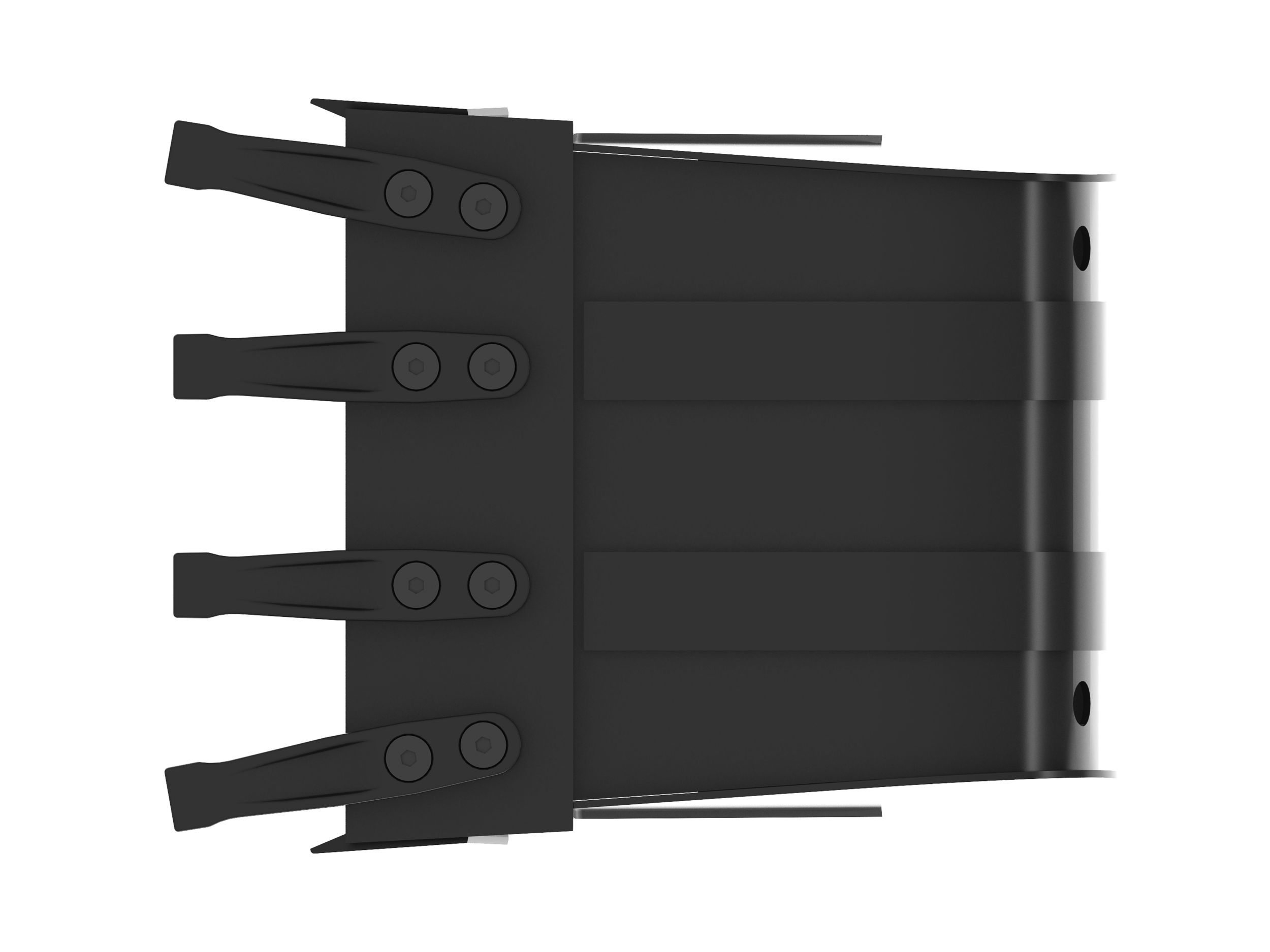

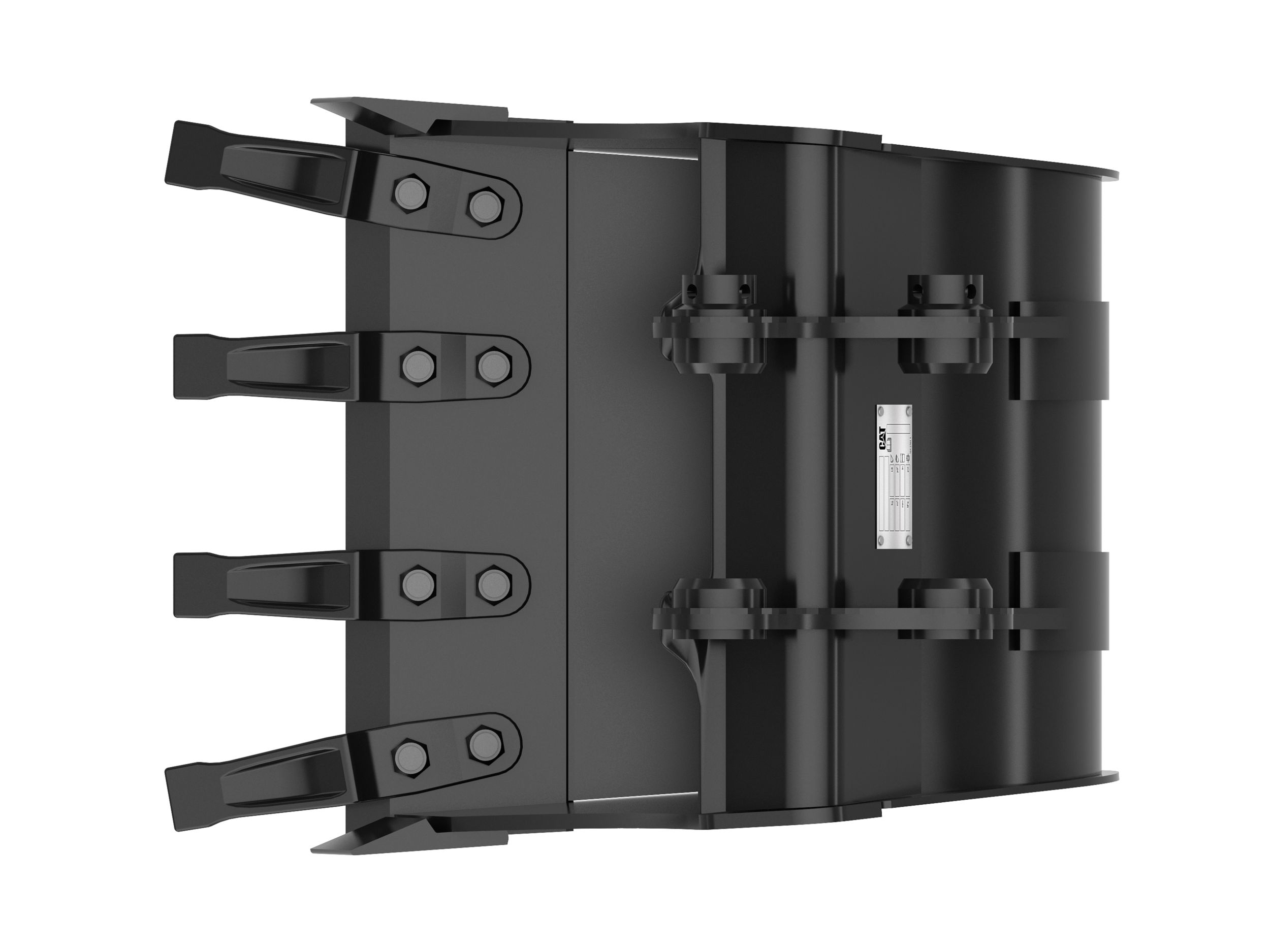

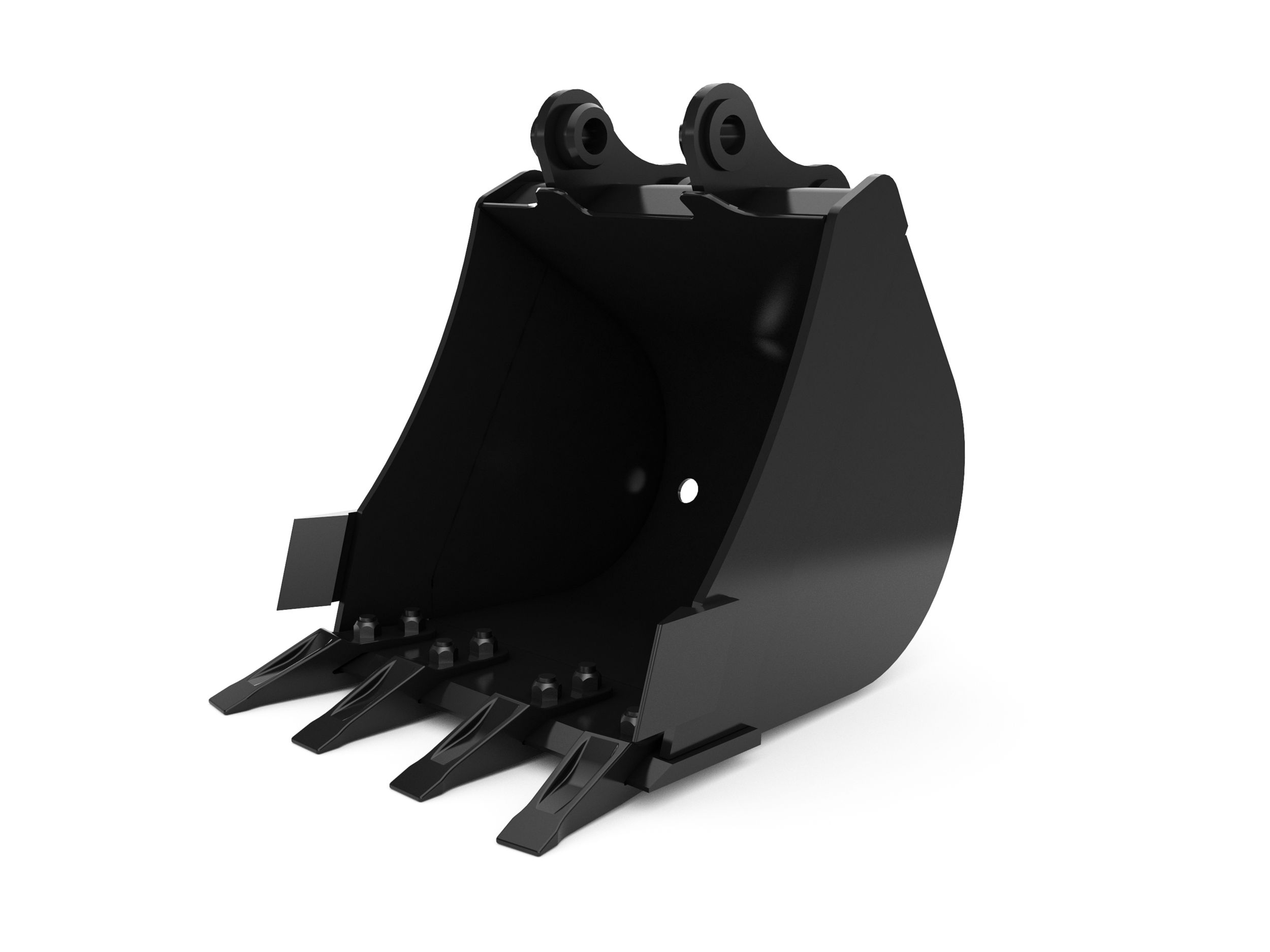

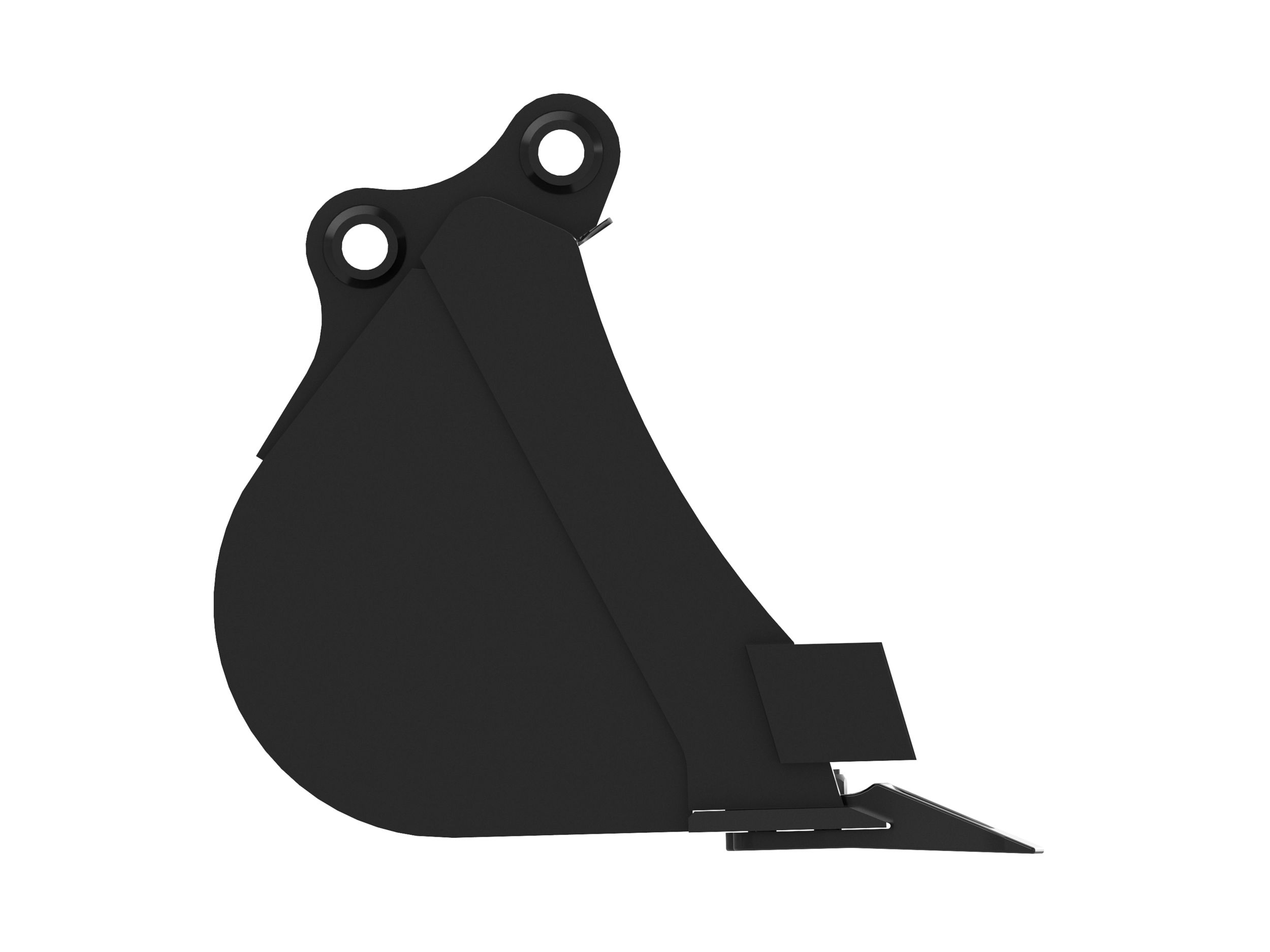

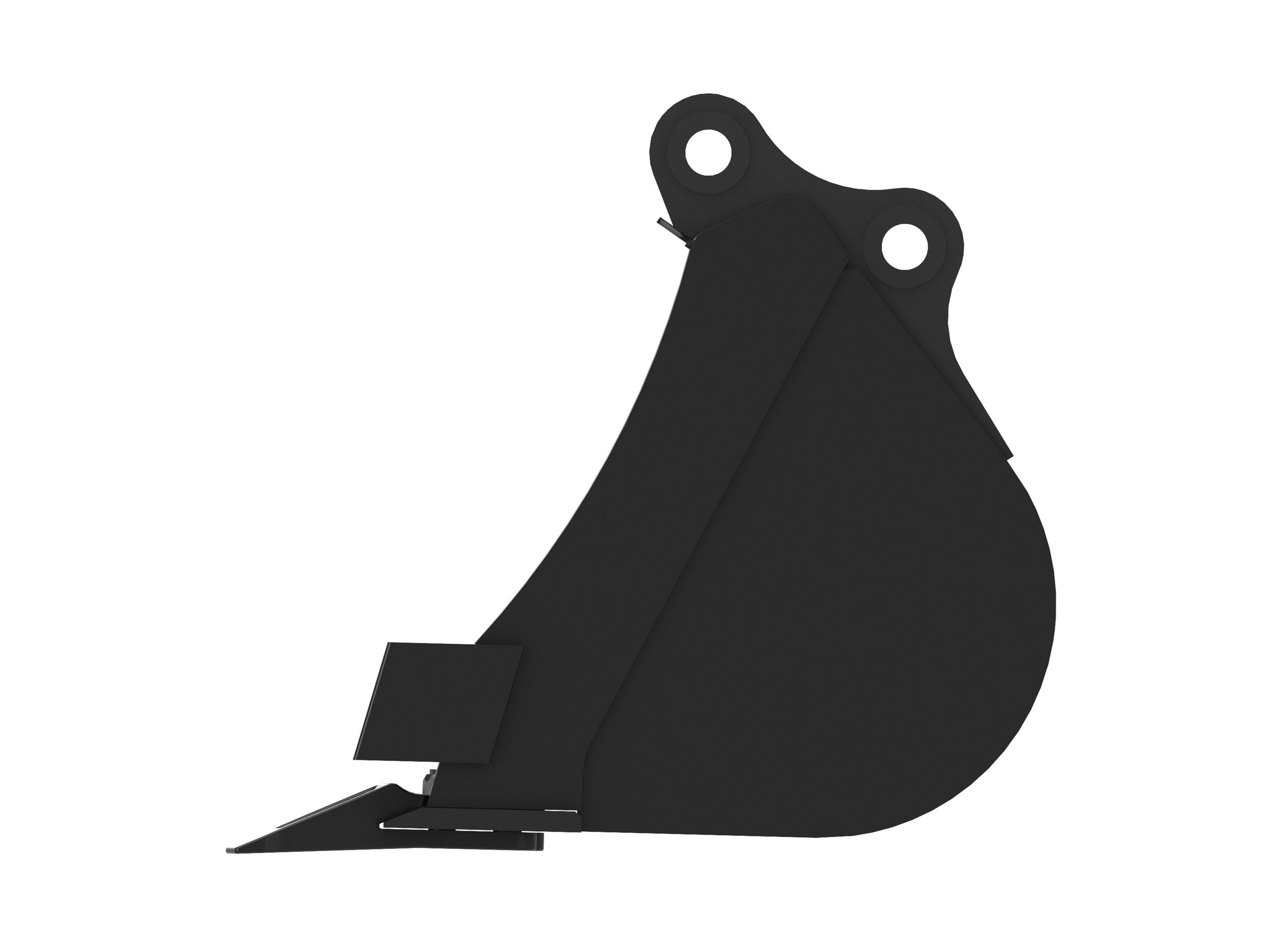

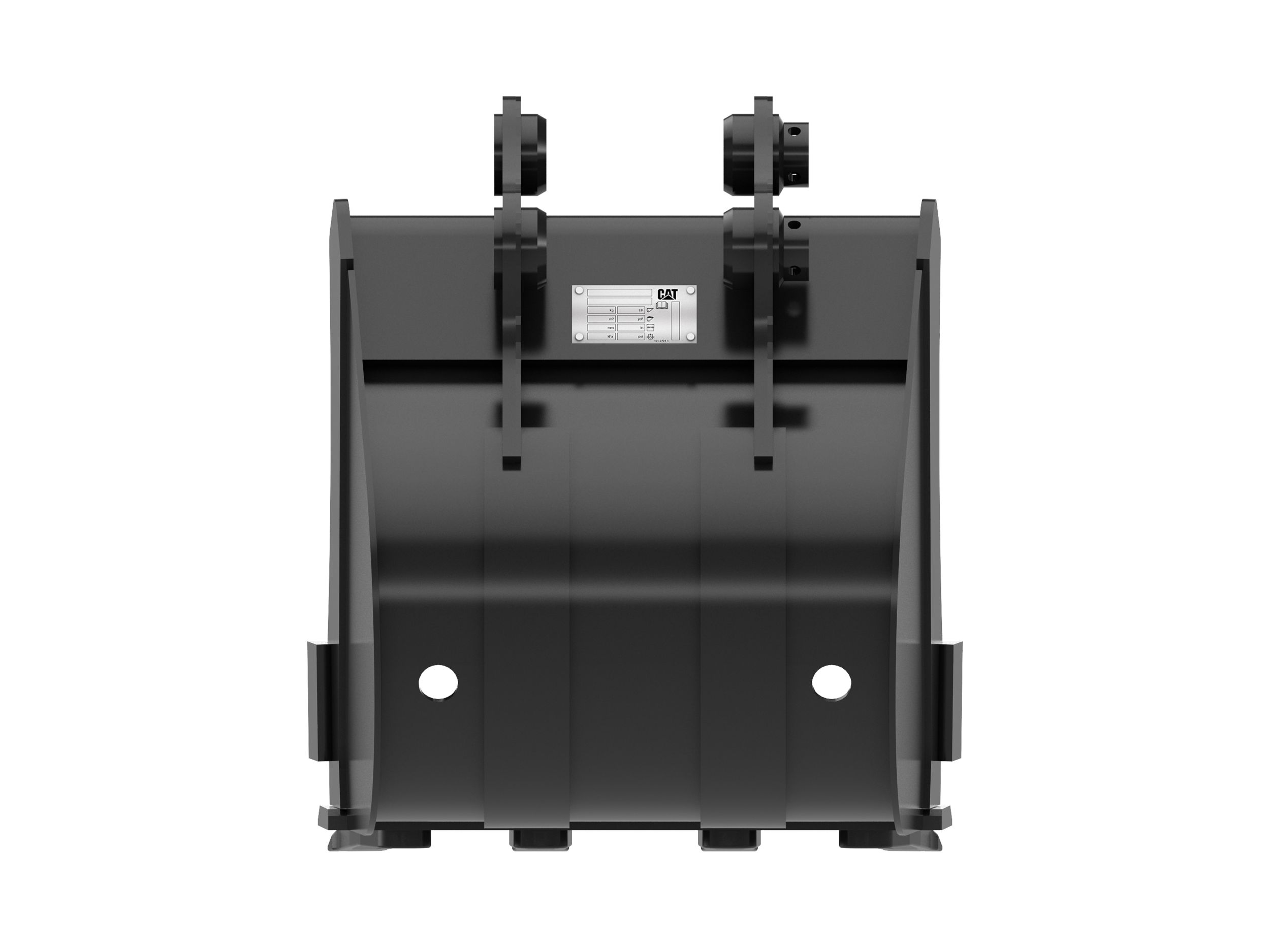

500 mm (20 in) Digging Bucket

These buckets are ideal for digging in soft to moderate ground.

Application

Designed for a wide variety of applications and materials.

Bucket Design

Formed back wrapper design enhances bucket loadability and production.

Superior Bucket Fill

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.

Additional information

Offering Type

Width

500 mm ( 19.7 in )

Capacity

73.59 l ( 2.6 ft³ )

Weight

63.59 kg ( 140.2 lb )

Base Edge Thickness

16 mm ( 0.6 in )

Tip Radius

643 mm ( 25.3 in )

Interface Type

Pin On
