500 mm (20 in)

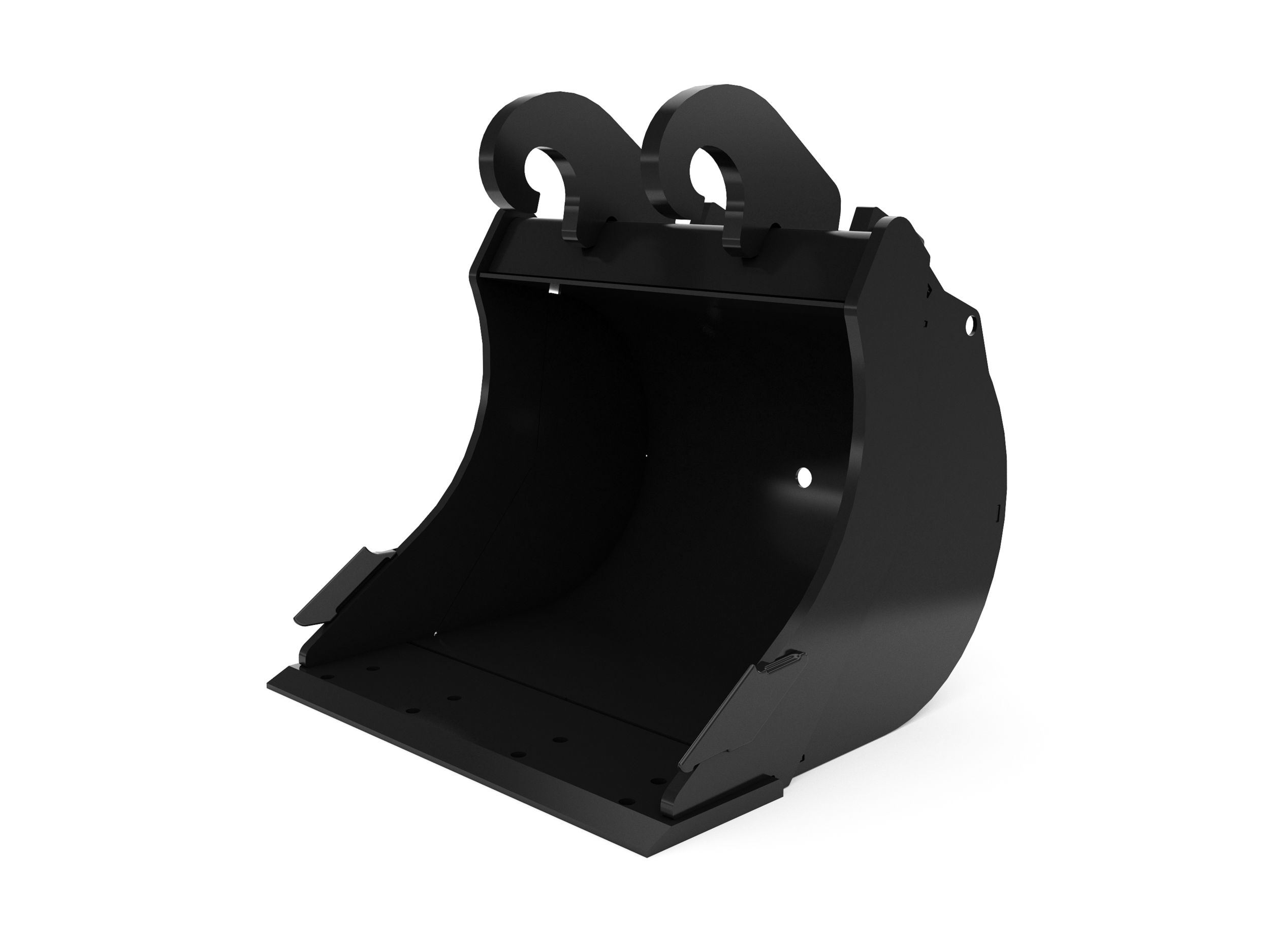

500 mm (20 in) Digging Bucket
These buckets are ideal for digging in soft to moderate ground.
Application
Designed for a wide variety of applications and materials.
Bucket Design
Formed back wrapper design enhances bucket loadability and production.
Superior Bucket Fill
Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.
Bucket Shape
Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
CW Coupler Interface
Designed for use with the CW Coupler Interface, which provides quick bucket changeovers and a wedge style coupler design that locks the bucket solidly in place.
Videos
Documents & Brochures
Additional information
| Offering Type | |
|---|---|
| Width | 500 mm ( 19.7 in ) |
| Capacity | 65 l ( 2.3 ft³ ) |
| Weight | 52 kg ( 114.6 lb ) |
| Base Edge Thickness | 16 mm ( 0.6 in ) |
| Tip Radius | 518 mm ( 20.4 in ) |
| Interface Type | CW-05 Coupler |
-
Mini Excavators
302.7 CR
View Details
