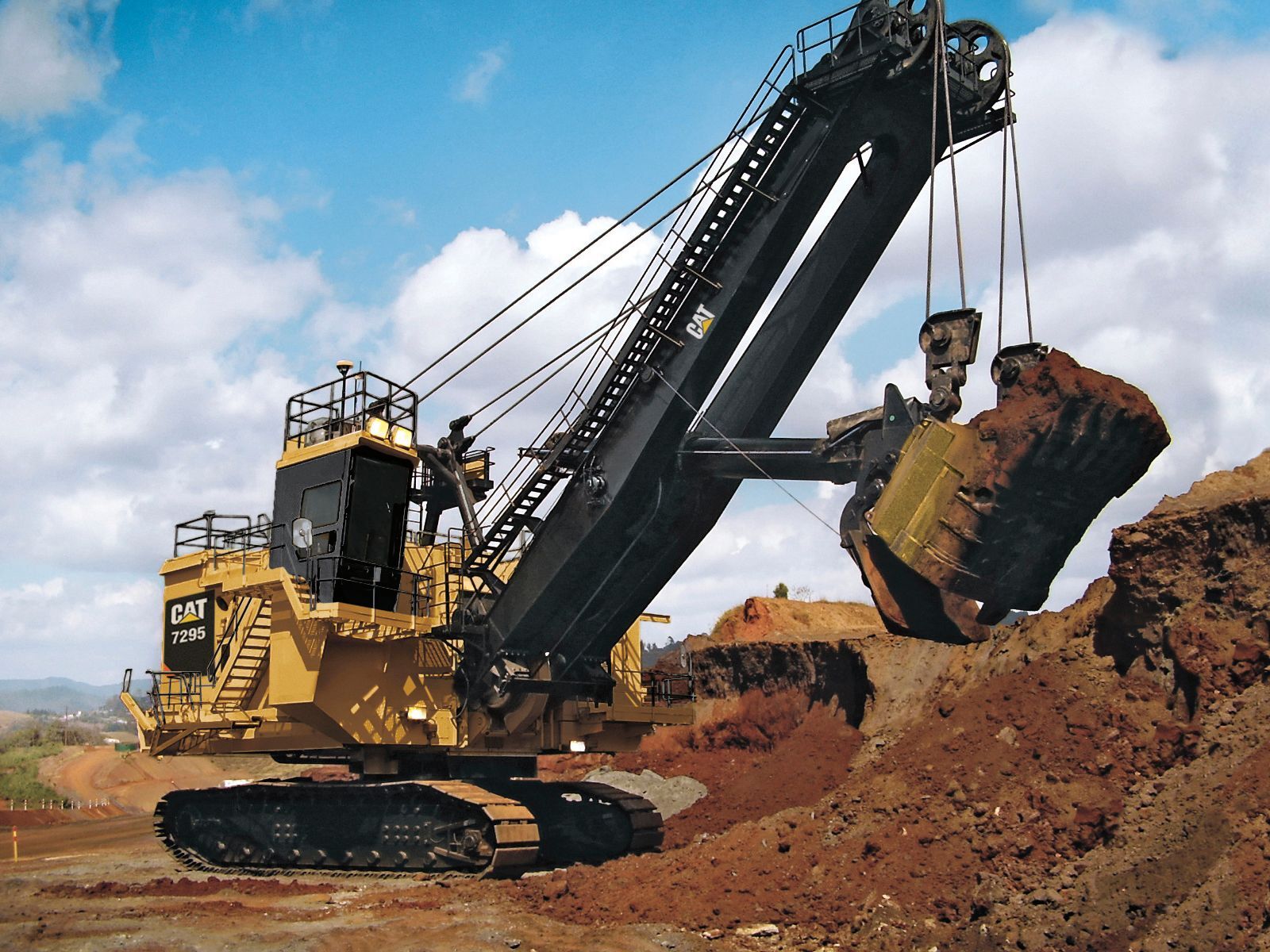

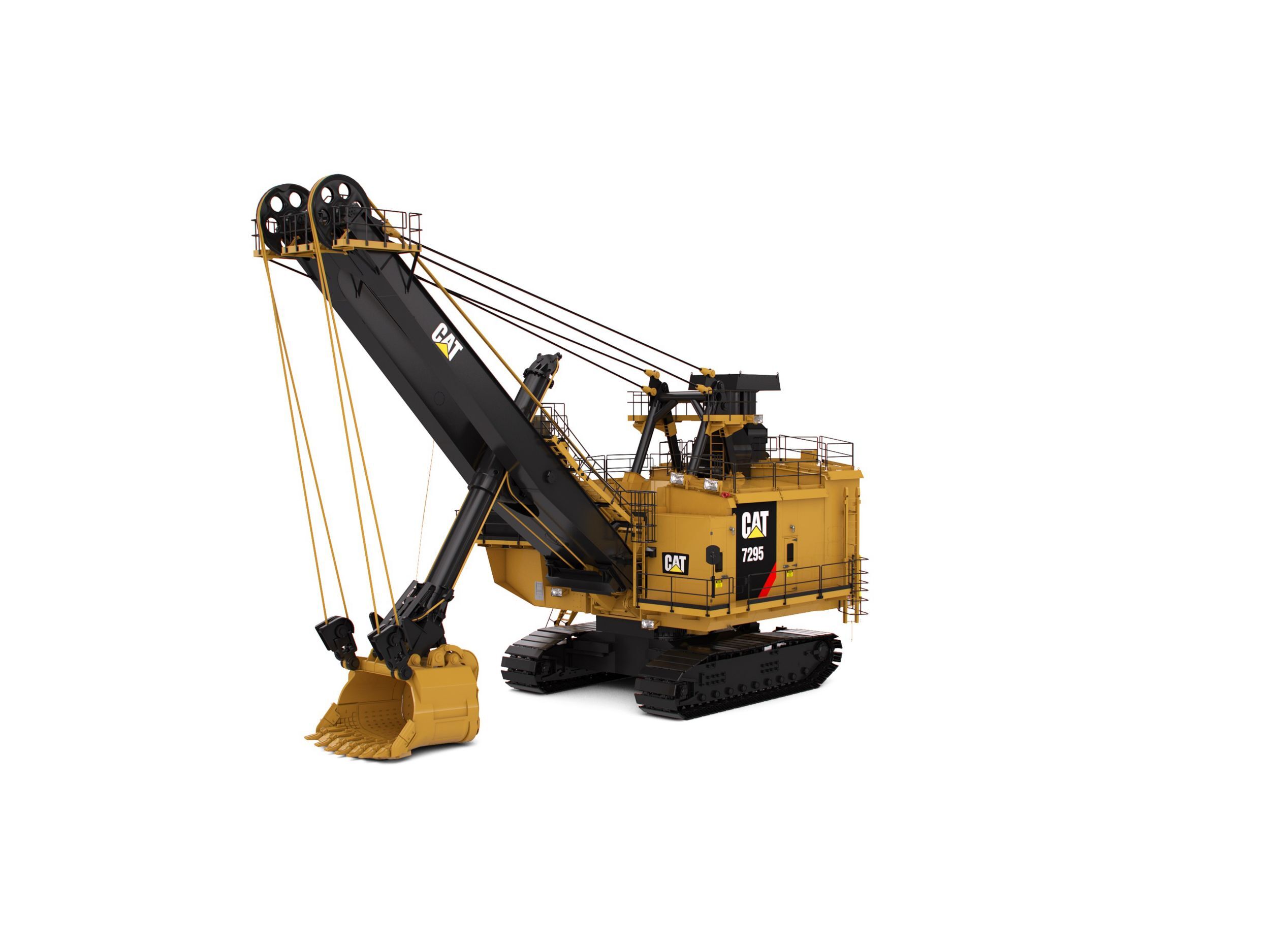

7295 Electric Rope Shovel

Cat® Electric Rope Shovels combine immense payload capability with low maintenance requirements and high reliability to deliver the lowest cost-per-ton loading solution for long-life mines. Our smallest rope shovel, the Cat 7295 has a payload of 45 tonnes (50 tons) — about half the payload of our flagship 7495. But like its larger counterpart, the 7295 features AC IGBT electrics for greater uptime, lower operating costs and faster cycle times. The 7295 is cleaner and more efficient than diesel-powered machines, plus its regenerative braking technology feeds electrical energy back to the grid.

Safety

Operator Cab

Reliability & Durability

Efficiency & Productivity

Ground Engaging Tools & Wire Rope

Technology

Serviceability

Sustainability

Documents & Brochures

Additional information

Offering Type

Dimensions - Dipper Payload

45 t ( 50 t )

Dimensions - Dipper Capacity

19.1-38.2 m3 (25-50 yd3)

Weights - Working Weight - With Dipper and Standard Links

793259 kg ( 1748837 lb )

Weights - Ballast - Furnished By Customer

159665 kg ( 352000 lb )

Main Structures - Ground Bearing Pressure

Ground bearing pressure is dependent upon many factors.

Main Structures - Upper Works Overall Width - Including Standard Walkways

12.6 cm ( 41.33 in )

Main Structures - Planetary Propel

Dual-motor independent drive.

Main Structures - Swing

Parallel shaft gear cases, driven by a vertically mounted motor, are located on either side of the revolving frame.

Main Structures - Hoist

A motor coupled to two gear reductions drives a 137 cm (54 in) hoist drum.

Optimal Working Ranges* - Dumping Height - With Clearance to Open Dipper Door

8.4 m ( 27.56 ft )

Optimal Working Ranges* - Cutting Radius - Maximum

20.6 m ( 67.59 ft )

Optimal Working Ranges* - Revolving Frame Tail Swing Radius

7.8 m ( 25.59 in )

Optimal Working Ranges* - Radius of Level Floor

14.9 m ( 48.88 ft )

Optimal Working Ranges* - Cutting Height - Maximum

13.7 m ( 45 ft )

Lube System - Type

Automatic, single-line system for open gear lubricant and grease.

Lube System - Components (1)

6 pumps (4 for open gear lubricant and 2 for grease) located in an insulated, heated, double-walled lube room.

Electrical - Power Requirements - 60 Hz

4,160V, 7,200V

Electrical - Power Requirements - Peak power

2152 kW ( 2886 HP )

Electrical - Drive

IGBT Acutrol drive system.

Electrical - Power Requirements - Voltage

3 phase, 50/60 Hz, 7,200V

Electrical - Power Requirements - 50 Hz

6,000V, 6,600V, 7,200V

Electrical - Power Requirements - Average Power Demand

538-753 kW (721-1,010 hp)

Front End - Components

One piece, forged, seamless tubular dipper handle and wide-spread boom point sheaves equipped with hoist ropes and dipper padlocks to stabilize dipper handle.

Front End - Note

High impact ropes available as an option

Lube System - Components (2)

External fast fill from lower level.

Dimensions - Note

Dependent on application and material density.

Weights - Note (1)

These weights will vary slightly depending upon dipper and optional equipment selection.

Weights - Note (2)

All specifications are based on a 19 m3 (25 yd3) dipper and standard 182.9 cm (72 in) treads.

Optimal Working Ranges* - Note (1)

Optimal working ranges based on loading a Cat® 785D truck.

Optimal Working Ranges* - Note (2)

*All specifications are based on a 19 m3 (25 yd3) dipper and standard 182.9 cm (72 in) treads.

Electrical - Note

Other voltages available to suit customer requirements.

Front End - Standard Rope Data - Boom Suspension - No.

4

Front End - Standard Rope Data - Crowd - Diameter

57 cm ( 2.25 in )

Main Structures - Ground Bearing Pressure - Total Effective Bearing Area

29.3 m² ( 315.6 ft² )

Main Structures - Ground Bearing Pressure - 182.9 cm (72 in) Treads

269 cm ( 39 in )

Front End - Standard Rope Data - Hoist - Diameter

60 mm ( 2.375 in )

Front End - Standard Rope Data - Crowd - No.

1

Front End - Standard Rope Data - Retract - Diameter

57 mm ( 2.25 in )

Front End - Standard Rope Data - Retract - No.

1

Front End - Standard Rope Data - Hoist - No.

2

Front End - Standard Rope Data - Dipper Trip - No.

1

Front End - Standard Rope Data - Boom Suspension - Diameter

70 mm ( 2.75 in )

Main Structures - Crawler Dimensions - Overall Width 182.9 cm (72 in) Treads, Standard

8.6 cm ( 28.22 in )

Front End - Standard Rope Data - Dipper Trip - Diameter

16 mm ( 0.625 in )
