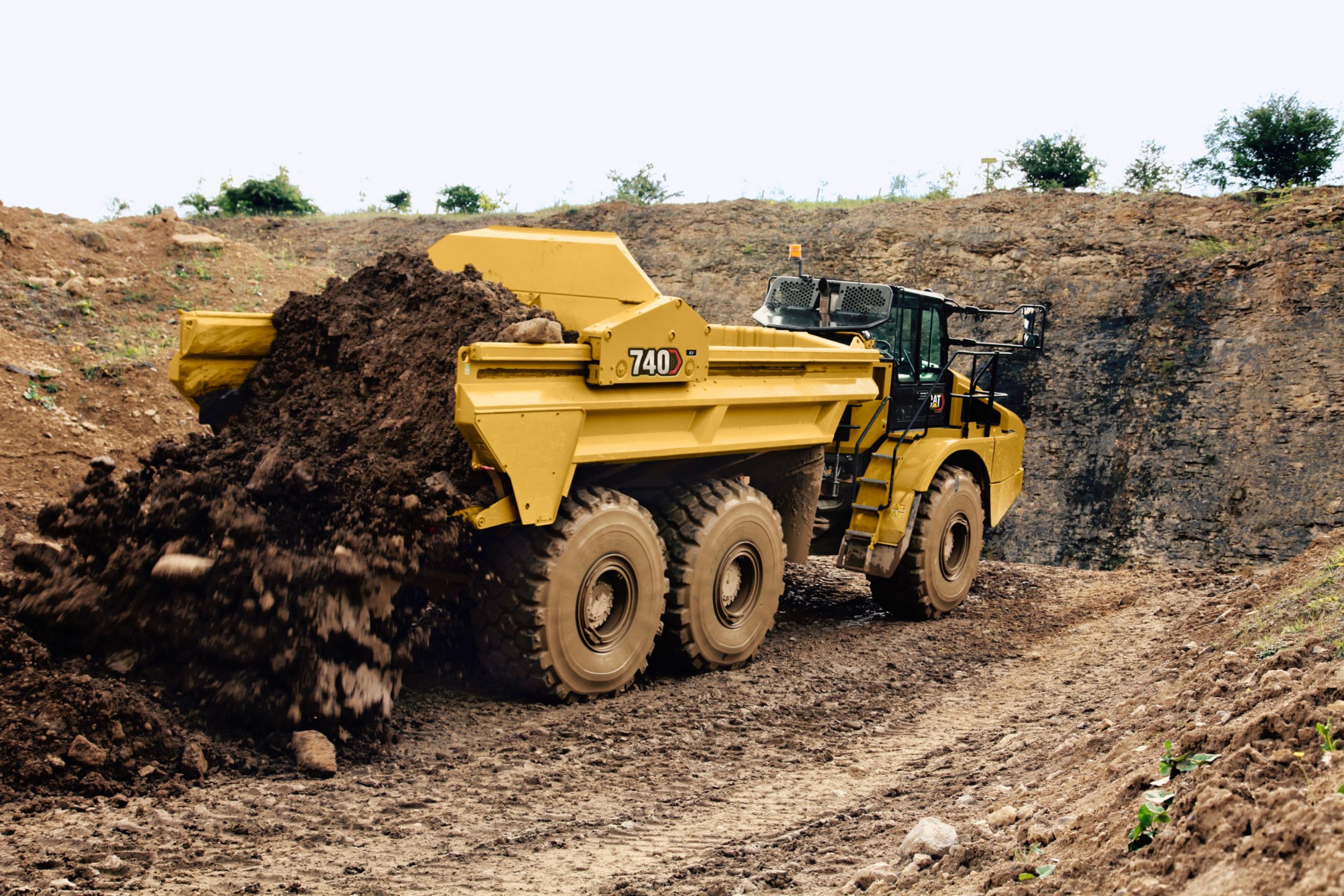

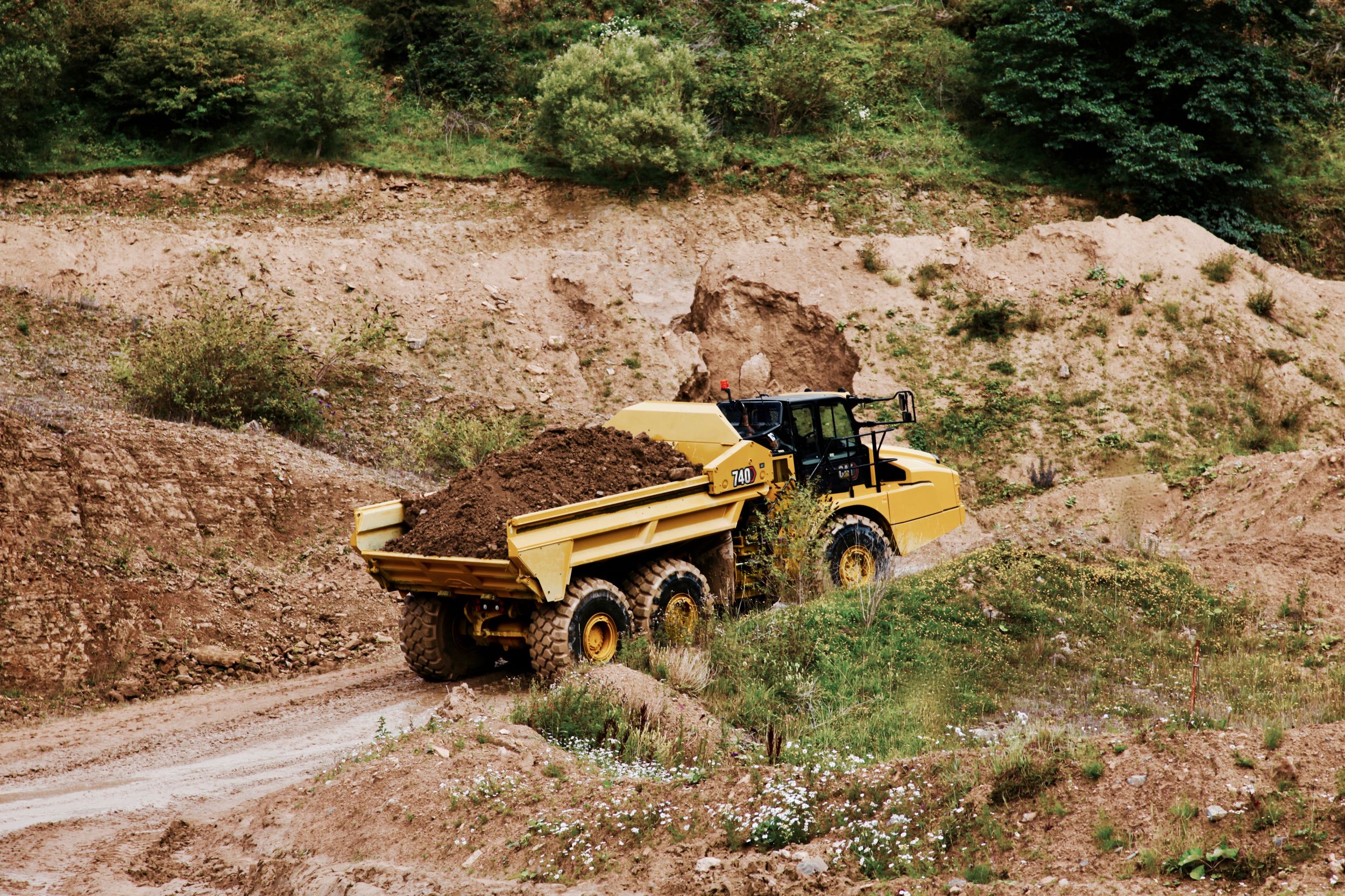

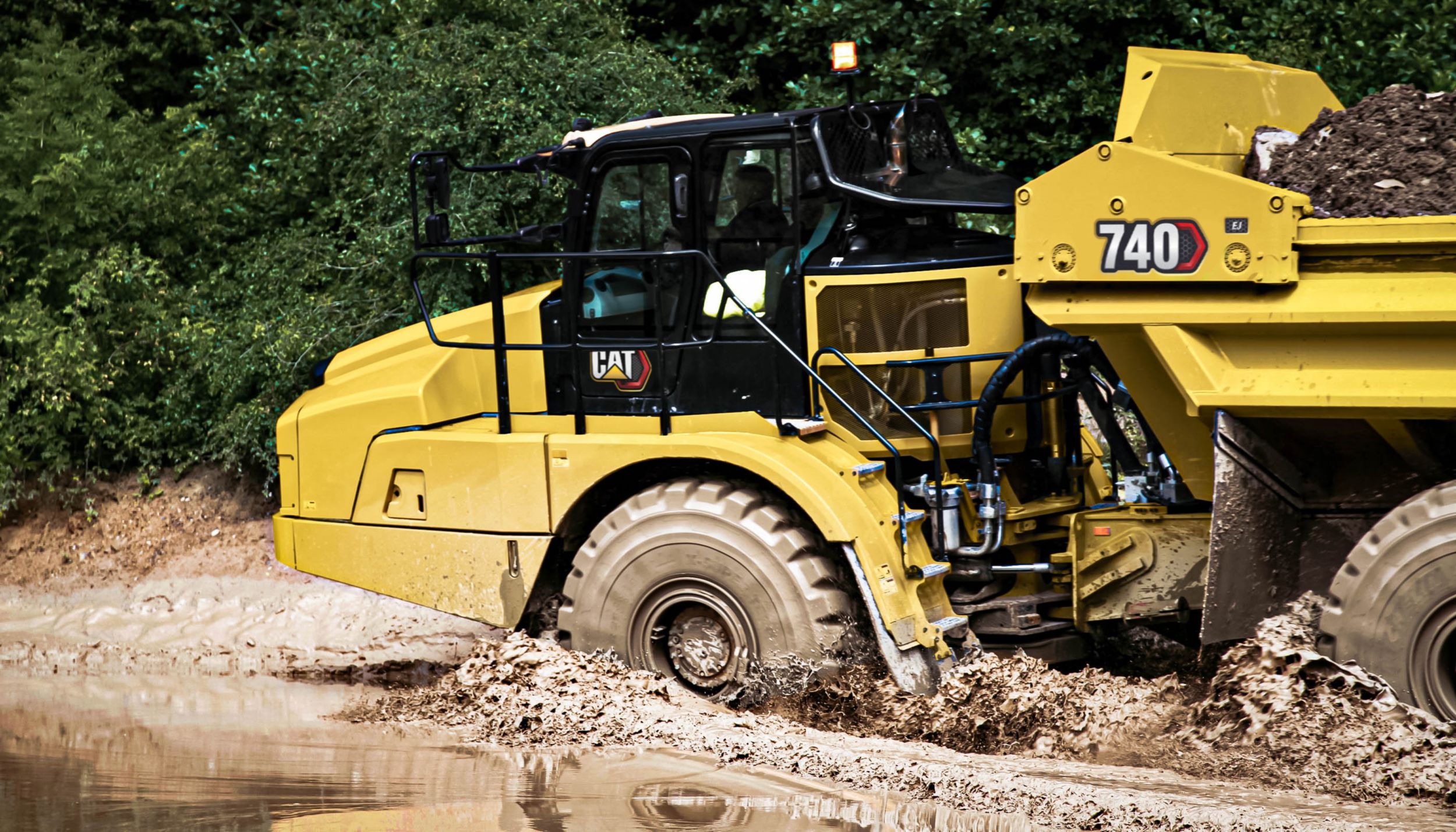

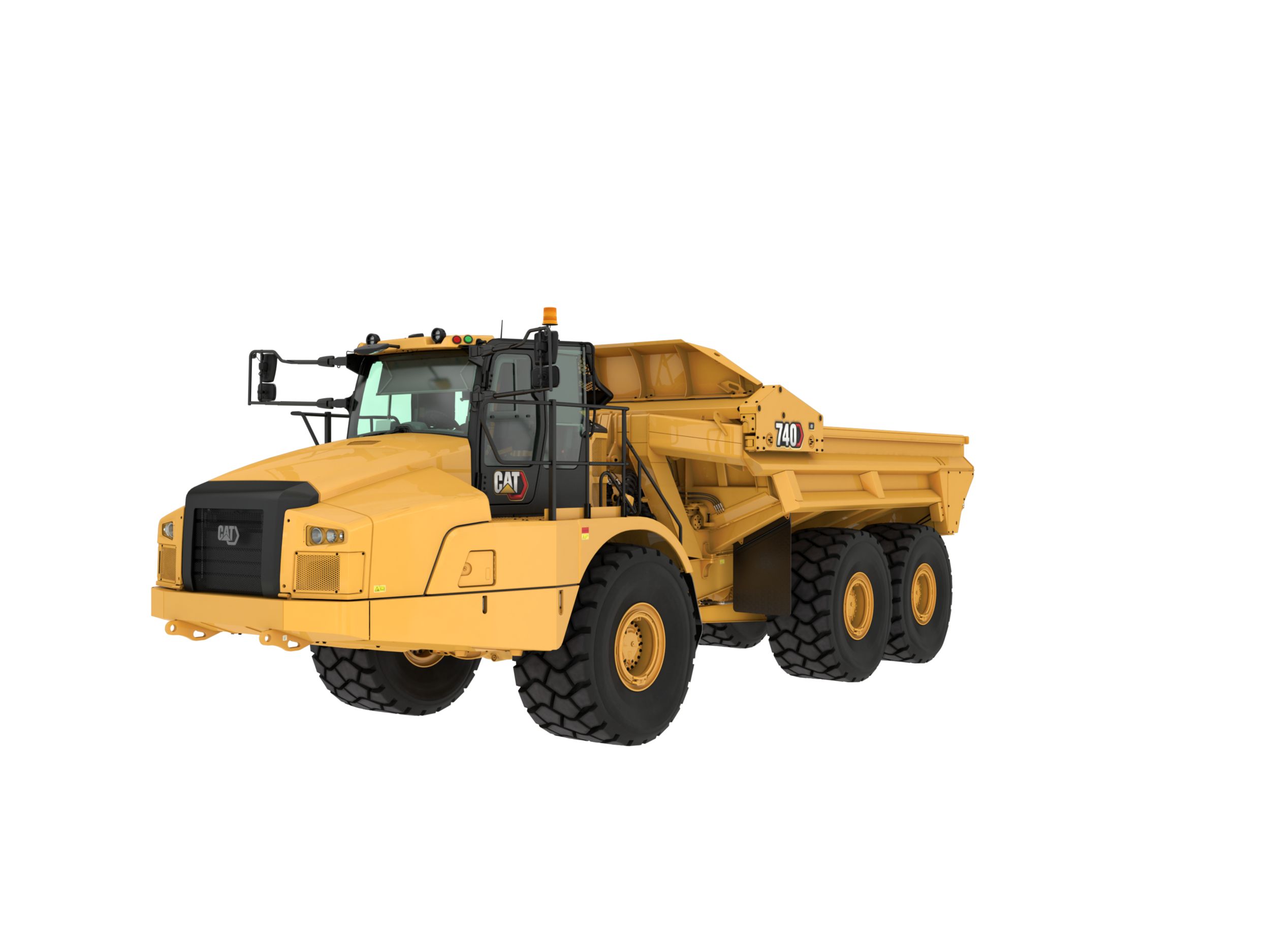

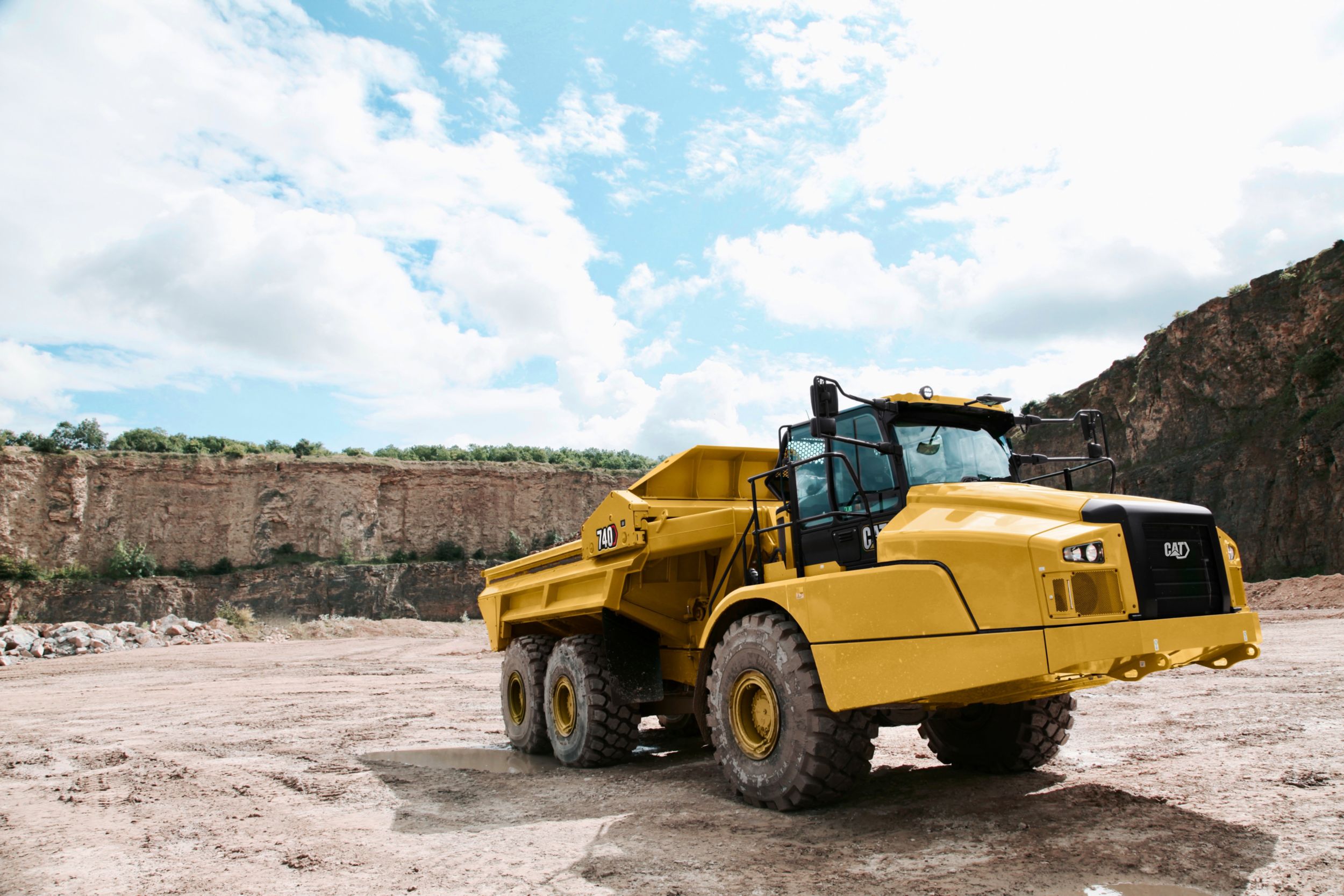

740 EJ Articulated Truck

The Cat® 740 EJ features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, stability-assist machine rollover warning system, and a fuel saving ECO mode.

MAXIMIZE PERFORMANCE

AUTOMATIC CONTROLS

HEAVY DUTY CONSTRUCTION

OPERATOR COMFORT AND CONTROL

BUILT TO PERFORM

TECHNOLOGY THAT GETS WORK DONE

BECAUSE UPTIME COUNTS

MORE SUSTAINABLE FUTURE

BUILT-IN SAFETY FEATURES

Standard Equipment

NOTE
  • Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
  • Combined gear selection and eject control lever
  • Windshield wiper and washer, two speed, intermittent (front)
  • Heater and defroster with variable speed fan
  • Machine operation monitoring system includes:
    – Action lamp
    – Engine oil pressure
    – Primary steering system
    – Left and right turn signal
    – High beam
    – Coolant temperature
    – Tachometer
    – Parking brake
    – Fuel level
    – Transmission oil temperature
    – Brake system
    – Transmission hold
    – Hoist control
    – Hydraulic system
    – Charging system
    – Retarder
    – Transmission fault
    – Traction control system
    – Check engine lamp
  • Glass windows: laminated and tinted-front toughened and tinted-sides and rear
  • Adjustable air vents
  • Window blinds
  • Storage:
    – Cup holder
    – Flask receptacle
    – Under seat storage
    – Door pocket
    – Behind seat storage
    – Coat hook
  • Windows opening side, tinted
  • Mirrors: Extensive arrangement for improved visibility
  • Liquid Crystal Display (LCD):
    – Alert indicator
    – Selected gear and direction
    – Speed or auto shift
    – Review Operation and Maintenance Manual (OMM)
    – Primary steering failure
    – Seat belt warning
    – Secondary steering failure
    – DPF regeneration filter
    – Machine Security System (MSS)
    – Secondary steering energy source engaged
    – Hour meter
    – Retarder active
  • Sun visor
  • Two seat belts, operator's retractable
  • Windshield wiper and washer, two speed (rear)
  • Secondary steering – electro hydraulic
  • Tilt and telescopic steering wheel
  • Air conditioning with R134A refrigerant
  • Touch screen display incorporating the rearview camera video feed
  • Seats:
    – Fully adjustable, air suspension
    – Padded trainer with lap belt
CAT TECHNOLOGIES
  • Product Link: PL631 (satellite) or PL641 (cellular) dependent on location and licensing agreement
  • Cat Detect with Stability Assist
ELECTRICAL AND LIGHTING
  • Batteries (two) maintenance free
  • Electrical system: 24 volt, 5A 24- to 12-volt converter
  • Horn
  • Lighting Systems:
    – Cab interior
    – Two head lamps
    – Two width marker
    – Two reversing
    – Work light
    – Two stop/tail lights
    – Front and rear direction indicators
  • Main disconnect switch
  • Remote starting receptacle (cables not included)
POWER TRAIN
  • Auto shift nine-speed forward and two reverse transmission
  • Cat C18 engine
  • Differentials: standard with automatic clutched inter and cross-axle differential locks
  • Dual circuit oil immersed, enclosed brakes – all wheels
  • Retarder: engine compression brake
  • Three axle, six-wheel drive
SAFETY
  • Reverse alarm
  • Rearview camera
  • ROPS/FOPS cab
GUARDS
  • Rear window
  • Radiator
  • Crankcase
  • Axle
  • Front dump body spill guard, integral part of fabricated body
OTHER STANDARD EQUIPMENT
  • Mud flaps: wheel arch and body mounted with transportation tiebacks
  • S·O·S sampling valves
  • Tires, six 29.5R25, radial
  • Vandalism protection: lockable caps for fuel tank and hydraulic oil tank

Additional information

Offering Type

Engine Model

Cat® C18

Engine - Bore

145 mm ( 5.7 in )

Engine - Stroke

183 mm ( 7.2 in )

Engine - Displacement

18.1 l ( 1106 in³ )

Engine - Net Power - ISO 14396

376 kW ( 504 HP )

Engine - Net Power - SAE J1349

370 kW ( 496 HP )

Engine - Gross Power - SAE J1995

381 kW ( 511 HP )

Weights - Rated Payload

38 t ( 42 ton (US) )

Body Capacities - Heaped (SAE 2:1)

23 m³ ( 30.1 yd³ )

Body Capacities - Struck

18 m³ ( 23.5 yd³ )

Transmission - Forward - 1

6.1 km/h ( 3.8 mile/h )

Transmission - Forward - 2

8.1 km/h ( 5 mile/h )

Transmission - Forward - 3

11.2 km/h ( 7 mile/h )

Transmission - Forward - 4

14.1 km/h ( 8.8 mile/h )

Transmission - Forward - 5

18.7 km/h ( 11.6 mile/h )

Transmission - Forward - 6

22.9 km/h ( 14.2 mile/h )

Transmission - Forward - 7

31.5 km/h ( 19.6 mile/h )

Transmission - Reverse - 1

6.4 km/h ( 4 mile/h )

Transmission - Reverse - 2

14.6 km/h ( 9.1 mile/h )

Sound Levels - Interior Cab

72 dB(A) ( 72 dB(A) )

Operating Weights - Center Axle - Empty

7832 kg ( 17267 lb )

Operating Weights - Center Axle - Rated Load

18198 kg ( 40120 lb )

Operating Weights - Front Axle - Empty

19841 kg ( 42243 lb )

Operating Weights - Total - Empty

35243 kg ( 77698 lb )

Operating Weights - Total - Loaded

73243 kg ( 161473 lb )

Operating Weights - Center Axle - Loaded

26030 kg ( 57386 lb )

Operating Weights - Rear Axle - Loaded

25768 kg ( 56809 lb )

Operating Weights - Rear Axle - Rated Load

18198 kg ( 40120 lb )

Operating Weights - Front Axle - Rated Load

1603 kg ( 3534 lb )

Operating Weights - Total - Rated Load

38000 kg ( 83776 lb )

Operating Weights - Front Axle - Loaded

21444 kg ( 47276 lb )

Operating Weights - Rear Axle - Empty

7570 kg ( 16689 lb )

Body Plate - Type

High Strength Brinell HB450 Wear Resistant Steel

Service Refill Capacities - Fuel Tank

550 l ( 145.3 gal (US) )

Service Refill Capacities - Cooling System

90 l ( 23.7 gal (US) )

Service Refill Capacities - Engine Crankcase

52 l ( 13.7 gal (US) )

Service Refill Capacities - Transmission - OTG

75 l ( 19.8 gal (US) )

Service Refill Capacities - Steering/Hoist Hydraulic System

140 l ( 36.9 gal (US) )

Service Refill Capacities - Brake Cooling Tank

67 l ( 17.7 gal (US) )

Steering - Lock to Lock

4.8 seconds @ 60 rpm

Standards - Brakes

ISO 3450 – 2011

Standards - Cab - FOPS

ISO 3449 Level II – 2005

Standards - Cab - ROPS

ISO 3471 – 2008

Standards - Steering

ISO 5010 – 2007

Turning Circle - Turning Dimensions - Aisle Width

5925 mm ( 233 in )

Turning Circle - Turning Dimensions - Clearance Radius

9045 mm ( 356 in )

Turning Circle - Turning Dimensions - Inside Radius

4413 mm ( 173 in )

Turning Circle - Turning Dimensions - SAE Turning Radius

8624 mm ( 339 in )

Turning Circle - Turning Dimensions - Steer Angle - Left/Right

45 deg

Transmission - Forward - 8

37.9 km/h ( 23.5 mile/h )

Peak Engine Torque Speed

1200 r/min ( 1200 r/min )

Service Refill Capacities - Final Drive - Each

5 l ( 1.3 gal (US) )

Transmission - Forward - 9

54.8 km/h ( 34 mile/h )

Body Plate - Front

7 mm ( 0.28 in )

Service Refill Capacities - Axles - Each

60 l ( 15.8 gal (US) )

No Engine De-rating Required Below

3050 m ( 10000 ft )

Optimal Loader/Truck Pass Matching - Wheel Loader: 980 - Passes

43926

Body Plate - Base

14 mm ( 0.55 in )

Optimal Loader/Truck Pass Matching - Wheel Loader: 972 - Passes

43926

Optimal Loader/Truck Pass Matching - Hydraulic Excavator: 390 - Passes

4

Engine - Emissions

The 740 EJ meets Tier 2/Stage II equivalent emission standards.

Body Plate - Side

11 mm ( 0.43 in )

Body Plate - Chute

14 mm ( 0.55 in )

Peak Engine Torque Gross (SAE J1995)

2618 N·m ( 1931 ft·lbf )

Peak Engine Torque Net (SAE J1349)

2558 N·m ( 1887 ft·lbf )

Optimal Loader/Truck Pass Matching - Wheel Loader: 982 - Passes

4

Optimal Loader/Truck Pass Matching - Hydraulic Excavator: 374 - Passes

5

Engine - Note (1)

The power ratings apply at rated speed of 1,700 rpm when tested under the conditions for the specified standard.

Engine - Note (2)

The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.

Engine - Note (3)

Net power when the fan is at maximum speed is 348 kW (467 hp) per the SAE reference conditions.

Turning Circle - Note

Dimensions are for machines equipped with 29.5R25 tires.

Sound Levels - Note (2)

Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.

Optimal Loader/Truck Pass Matching - Note

An optimum system match gives you a major productivity advantage. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.

Blade Eject/Retract - Retract (automatic)

21 s ( 21 s )

Blade Eject/Retract - Eject (manual)

17 s ( 17 s )

Engine Model - U.S. EPA Tier 2, EU Stage II Equivalent

Cat C18

Blade Eject/Retract - Eject (automatic)

16 s ( 16 s )

Blade Eject/Retract - Retract (manual)

21 s ( 21 s )
