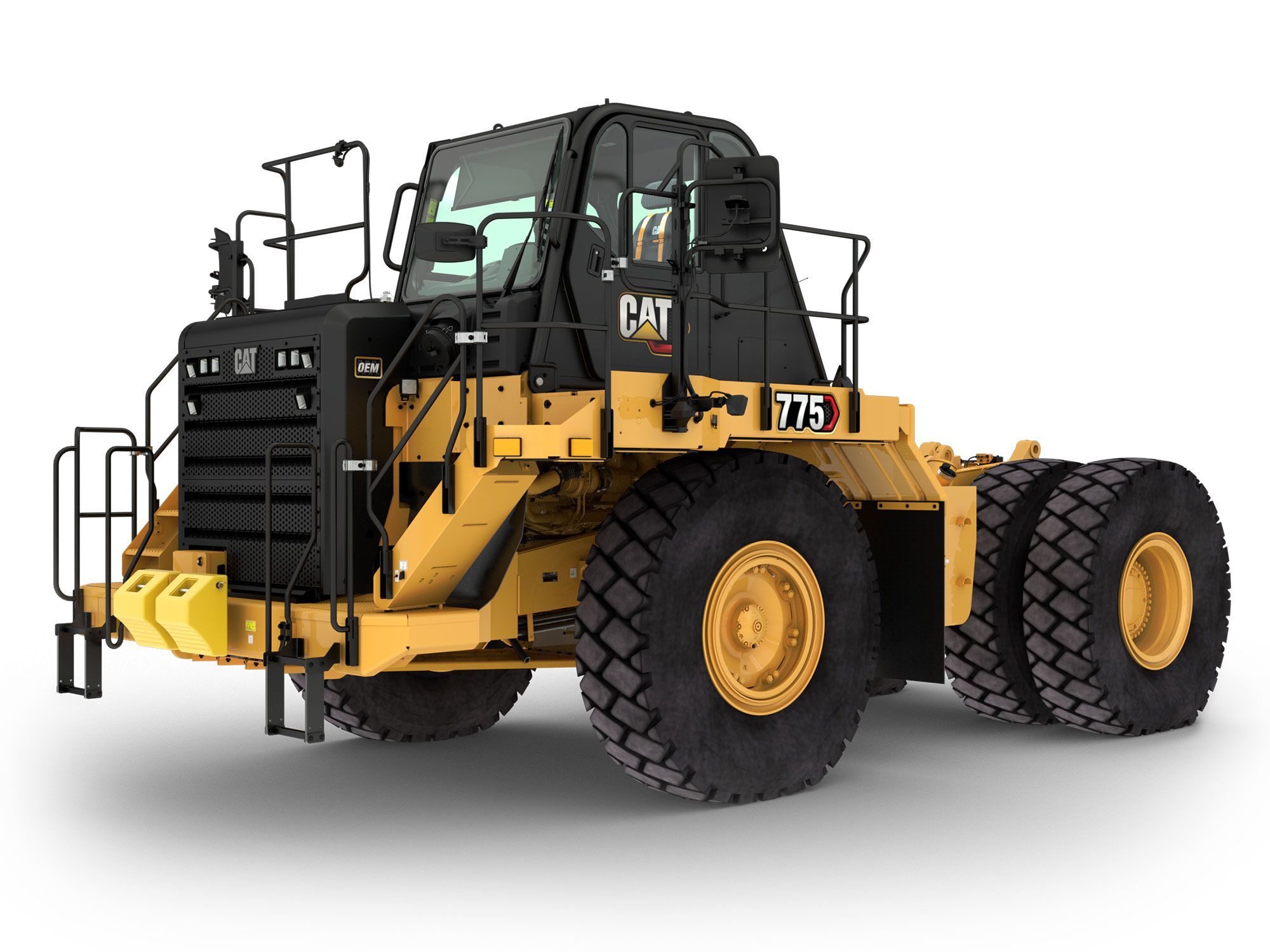

775 Bare Chassis
775G Off-Highway Truck
Caterpillar offers partial machines and systems, working with Cat dealers and Original Equipment Manufacturers (OEMs) to provide specialty machines for specific applications. Bare chassis trucks can be ordered with or without hoist cylinders and most product options are identical to the dump truck models. Typically, these models come equipped with the higher Tractor ROPS certification ratings needed for specialty machines including water trucks, tow tractors, and fuel / lube trucks. You’ll find these partial machine configurations are used in construction, demolition, waste, material handling, and mining industries and allow you to purchase complete solutions from your Cat dealer, using Cat equipment every step of the way.
Tractor ROPS Rating
- Cat® Off-Highway Truck Bare Chassis ROPS is certified to ISO 3471 Tractor criteria, to provide a higher level of protection for towing applications.

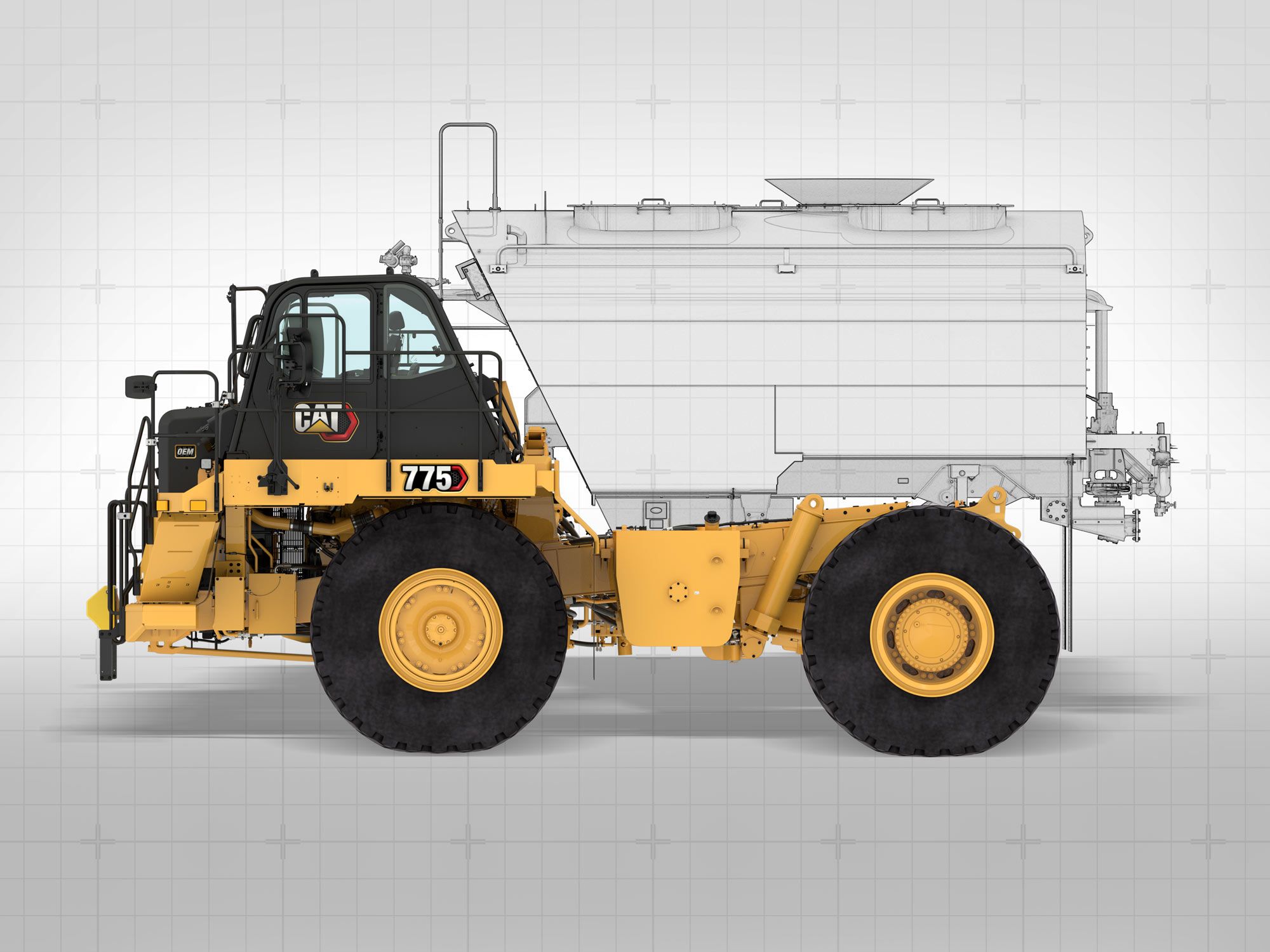

Water Truck Applications
- Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for water truck applications in both mining and construction projects.
- Using an off-highway truck bare chassis provides a solution that is ideal for dust suppression, road construction, fire protection, and other applications.
- Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the water truck application, all through your local Cat dealer, to provide the best solution for your business.

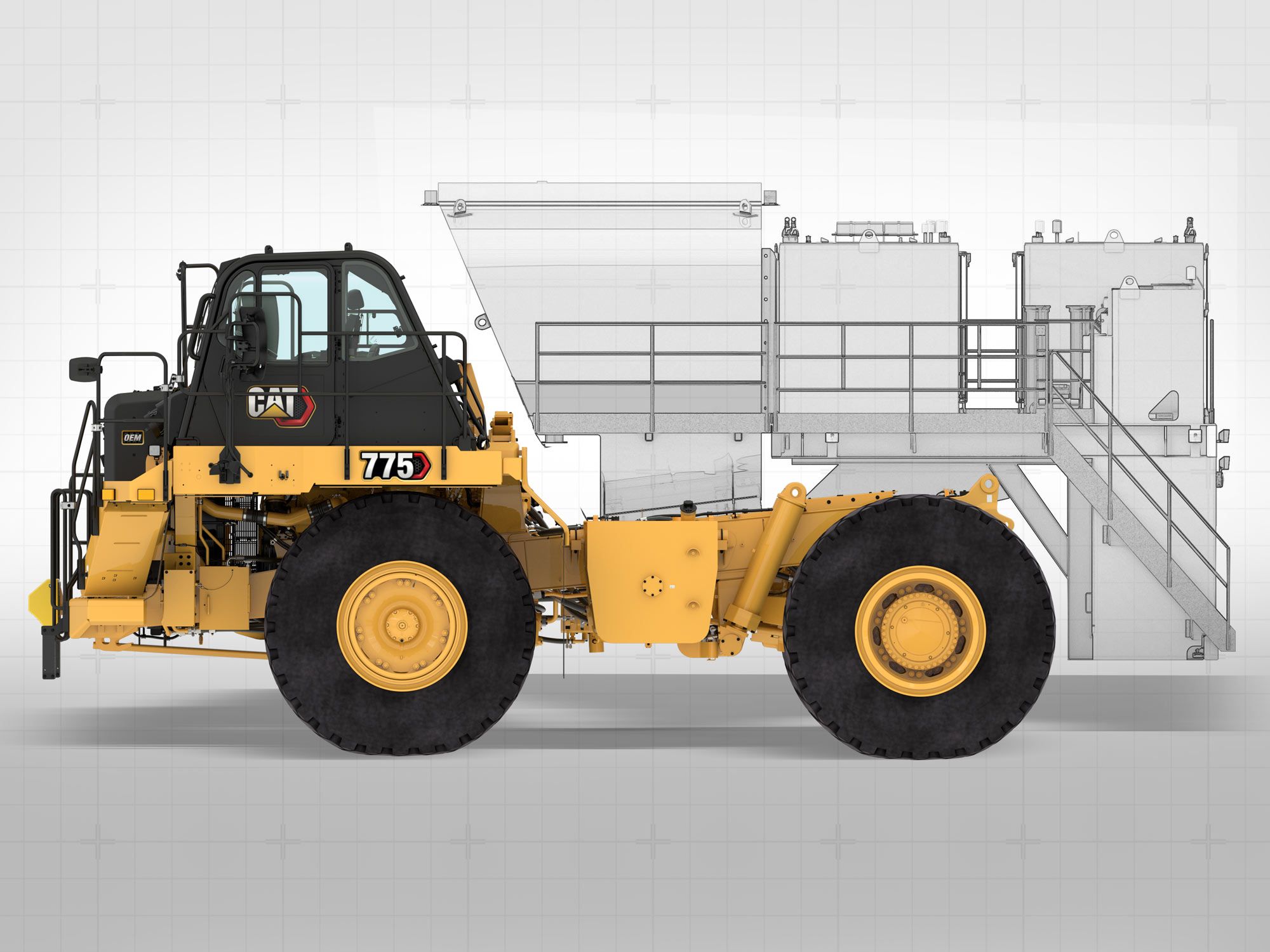

Service Truck Applications
- Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for service truck applications in both mining and construction projects.
- Using an off-highway truck bare chassis provides a solution that is ideal for delivering fuel and preventive maintenance lubrication to your site's machine fleet.
- Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the service truck application, all through your local Cat dealer, to provide the best solution for your business.
Tow Applications
- Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for tow applications.
- Using an off-highway truck bare chassis provides a solution that is ideal for equipment trailers and bottom dump trailers.
- Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the tow application, all through your local Cat dealer, to provide the best solution for your business.
Videos
Documents & Brochures
Standard Equipment
For more information on 775 Bare Chassis options, please contact Caterpillar OEM Solutions at [email protected].
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWERTRAIN
- C27 diesel engine: air cleaner with precleaner
(2), air-to-air aftercooler (ATAAC), electric start,
engine idle shutdown, ether starting aid, exhaust
muffler, NGMR radiator - Braking system: extended life brakes, automatic retarder control (ARC), manual retarder (utilizesrear oil-cooled, multiple disc brakes), brake releasemotor (towing), dry disc brakes (front), front brakedisconnect switch (front), oil-cooled multiple discbrakes (rear), brake wear indicator (rear), parkingbrake, secondary brake, service brake
- Direct drive fan, MEUI-A fuel system
- Engine idle shutdown
- Radiator, next generation module
- Transmission: 7-speed automatic powershift with Electronic Clutch Pressure Control(ECPC), Advanced Productivity ElectronicControl Strategy (APECS); automatic neutralidle, autostall, second gear start
ELECTRICAL
- Alarm backup
- Alternator, 120 amp
- Autolube power supply ready
- Batteries, maintenance-free, 12V (2), 1400 CCA combined
- Electrical system, 25 amp, 24V to 12V converter
- Lighting system: backup light (halogen),
directional signals/hazard warning (front and
rear LED), engine compartment light, headlights
(halogen) with dimmer, operator access
courtesy lights, side profile lights, stop/tail
lights (LED) - Service center containing: battery jump start,breakers with spare fuses, lockout switch, ports - ET and VIMS, service lockout switch (powerwithout engine start)
OPERATOR ENVIRONMENT
- Advisor display: air cleaner service indicator, fluid
level monitoring, fuel level monitoring, display
languages (market based) - Air conditioning/heat
- Ashtray and cigarette lighter
- Automatic tempature control
- Coat hook
- Cup holders (4)
- Diagnostic connection port, 24V
- Entertainment radio ready: 5 amp converter, Speakers, Antenna, Wiring harness
- Gauges and indicators panel: Air cleaner service indicator - electronic, Brake oil temperature gauge, Coolant temperature gauge, Hour meter, Tachometer, Engine overspeed indicator, Fuel level, Speedometer with odometer, Transmission gear indicator
- Hoist lever
- Horn, electric
- Light - dome
- Light - courtesy
- Mirrors (non-heated)
- Power port, 24V and 12V
- ROPS certification ISO tractor
- Seat, Cat Comfort Series III: full air suspension,
retractable 3-point seat belt with shoulder
harness - Seat (training) with lap belt
- Steering wheel, padded, tilt and telescopic
- Storage compartment
- Sun visor
- Throttle lock
- Window, sliding, right side(Emergency exit)
- Window, powered, left side
- Windshield wiper (intermittent) and washer
OTHER EQUIPMENT
- Guards: Driveline, Engine crankcase, Fan
- Body down indicator
- Body safety pin (secures body in up position)
- Center mounted rims
- Ground level battery disconnect
- Ground level engine shutdown
- Operator Maintenance Manual (OMM)
- Ground level grease fittings
- Rims 17 x 35
- Suspension, front and rear (EU compliant)
- Rock ejectors
- Secondary steering (electric)
- Secondary steering (electric)
- Tie down eyes
- Tow hooks, front/tow pin, rear
- Vandalism protection locks
CAT TECHNOLOGY PRODUCTS
- Product Link Ready
- Economy Modes (standard and adaptive)
- Payload System (TPMS)
- Vital Info Management System (VIMS)
- Tire monitoring system (TKPH/TMPH)
FLUIDS & FILTERS
- Extended life coolant, -35° C (-30° F)
- Grouped ground-level filters
