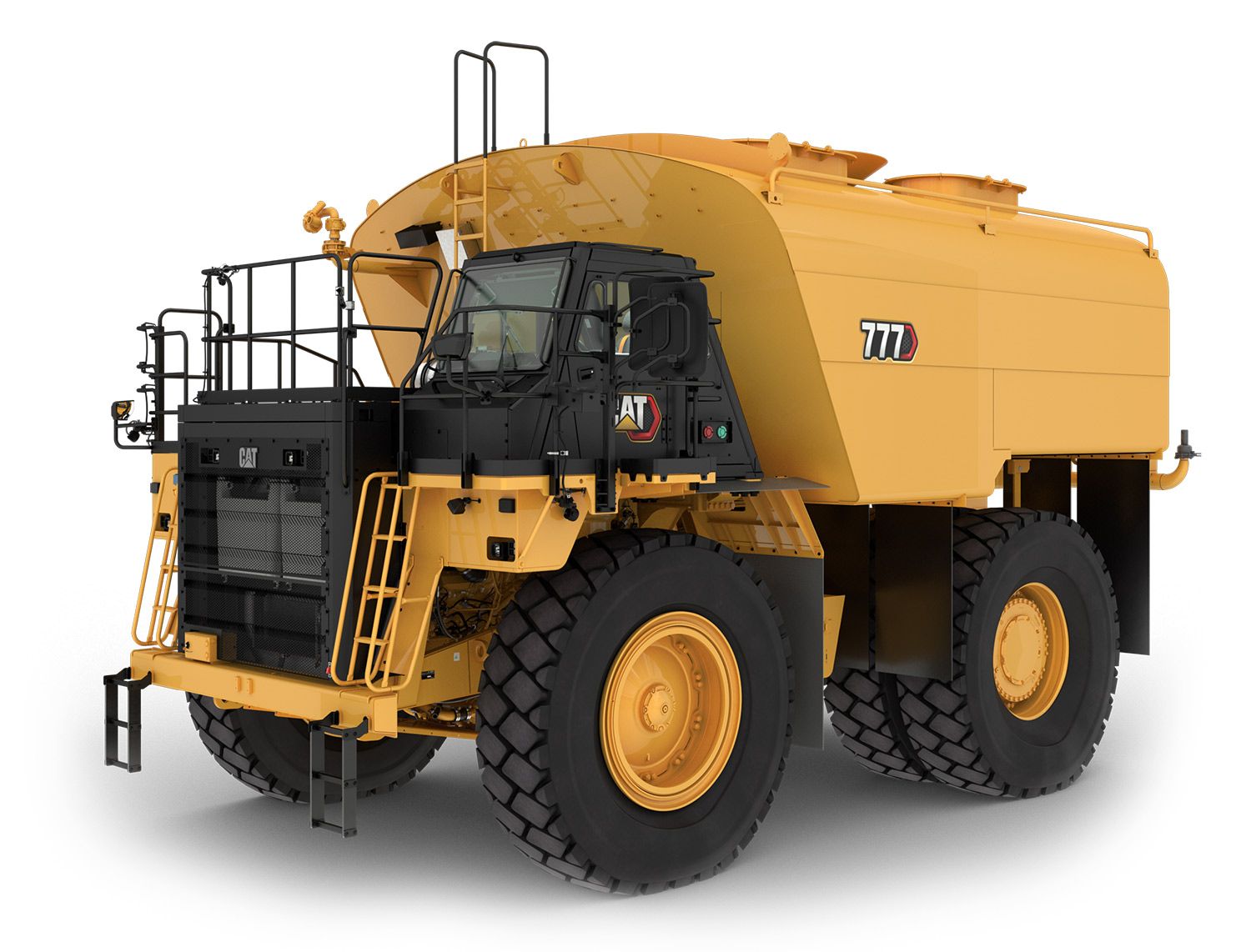

777 (05) Water Truck

Cat Water Solutions: 777 (05) Off-Highway Water Truck

Cat® Water Solutions helps you efficiently reduce haul road dust to enhance safety and increase productivity at your job site, quarry, or mine. A fully integrated truck, tank, and water delivery system – connected with scalable levels of technology helps you solve overwatering and underwatering issues with a focus on sustainable operations. This turnkey solution with Cat branded tank offerings is sold and supported by the local Cat dealer you know and trust.

Category:

ENHANCED SITE SAFETY

EASY TO OPERATE

OPTIMIZED PRODUCTIVITY

EFFICIENCY & SUSTAINABILITY

BOOST FUEL EFFICIENCY

SCALABLE CONNECTIVITY

PROVEN RELIABILITY AND SERVICEABILITY

INTEGRATION & SUPPORT

Standard Equipment

NOTE
  • Standard and optional equipment may vary. Consult your Cat dealer for details.
POWERTRAIN
  • Autostall
  • Engine idle shutdown
  • Air-To-Air Aftercooler (ATAAC)
  • Air cleaner with precleaner (2)
  • Automatic cold mode idle control
  • Electric priming pump
  • Electric cold weather start (two starters and four batteries)
  • Ether starting aid
  • Exhaust, muffler
  • Fuel filter/water separator
  • Turbocharger (2)
  • Braking system:
    – Extended Life Brakes
    – Brake wear indicator
    – Automatic Retarder Control (ARC) (utilizes oil-cooled, multiple disc brakes)
    – Brake release motor (towing)
    – Manual retarder (utilizes oil-cooled, multiple disc brakes)
    – Oil-cooled, multiple disc (front/rear)
    – Parking
    – Secondary
    – Service
  • Transmission
    – Auto neutral idle
    – APECS Software
    – ECPC
  • Part Throttle Shifting
    – 7-speed automatic powershift with Torque Shift Management Electronic Clutch Pressure Control
    – Body up-shift inhibitor
    – Directional shift management
    – Downshift inhibitor
    – Neutral start switch
    – Neutral coast inhibitor
    – Reverse shift inhibitor
    – Reverse neutralizer during dumping
    – Programmable top gear selection
SUSPENSION SYSTEMS
  • Suspension, rear
ELECTRICAL
  • Alarm, backup
  • Alternator, 115 ampere
  • Auxiliary jump start receptacle
  • Batteries, maintenance-free, 12V (4), 190 amp-hour
  • Electrical system, 25 AMP, 24V to 12V converter
  • Lighting system
    – Backup light (halogen)
    – Directional signals/hazard warning, (front and rear LED)
    – Headlights, (halogen) with dimmer
    – Payload, indicator lights
    – Operator access courtesy lights
    – Side profile lights
    – Stop/tail lights (LED)
    – Service lights
OPERATOR ENVIRONMENT
  • Air conditioning
  • Ashtray and cigarette lighter
  • Coat hook
  • Cup holders (4)
  • Diagnostic connection port, 24V
  • Entertainment Radio Ready
    – 5 amp converter
    – Speakers
    – Antenna
    – Wiring harness
  • Gauges/indicators
    – Brake oil temperature gauge
    – Coolant temperature gauge
    – Hour meter
    – Tachometer
    – Engine overspeed indicator
    – Fuel level
    – Speedometer with odometer
    – Transmission gear indicator
  • Heater/defroster (11 070 kCal/43,930 BTU)
  • Auto temp control
  • Fluid level monitoring
  • Hoist lever
  • Horn, electric
  • Light – dome
  • Light – courtesy
  • Load counter, automatic
  • Advisor display
  • VIMS
  • TPMS
  • Foot rest
  • Mirrors – heated
  • Power port, 24V and 12V (2)
  • ROPS cab, insulated/sound suppressed
  • Cat Comfort Series III
    – Full air suspension
    – Retractable 3-point seat belt with shoulder harness
  • Steering wheel, padded, tilt and telescopic
  • Storage compartment
  • Sun visor
  • Throttle lock
  • Window, right side, hinged access/egress
  • Electric left side window control
  • Windshield wiper (intermittent) and washer
  • Tinted, laminated glass
CAT TECHNOLOGY PRODUCTS
  • Adaptive economy mode
  • Object detection (4 cameras, 4 radars)
  • Product Link™ Ready (Level 1)
  • TKPH/TMPH (Tons Kilometer Per Hour/ Tons Mile Per Hour)
  • Work Area Vision System (WAVS)
  • Cat MineStar Edge™: Level 1 - Basic (Equipment Tracking)*
  • *Basic connectivity package comes standard on all Cat Water Solutions trucks with a 6-month complimentary service-based offering
GUARDS
  • Engine crankcase
  • Driveline
  • Fan and A/C
FLUIDS
  • Extended Life Coolant to –35° C (–30° F)
OTHER STANDARD EQUIPMENT
  • Body mounting group
  • Body safety pin (secures body in up position)
  • Body down indicator
  • CD-ROM parts book
  • Center-mounted rims
  • Fuel tank (1136 L/300 gal)
  • Ground level battery disconnect
  • Ground level engine shutdown
  • Ground level grease fittings
  • Reservoirs (separate)
    – Brake/hoist
    – Steering
    – Transmission/torque converter
  • Rims 19.5 × 49
  • Rock ejectors
  • Supplemental steering (automatic)
  • Tie down eyes
  • Tow hooks (front)/Tow pin (rear)
  • Vandalism protection locks
  • Wiggins fast fuel
  • Traction Control System (TCS) (new version)
  • Attachment Zone

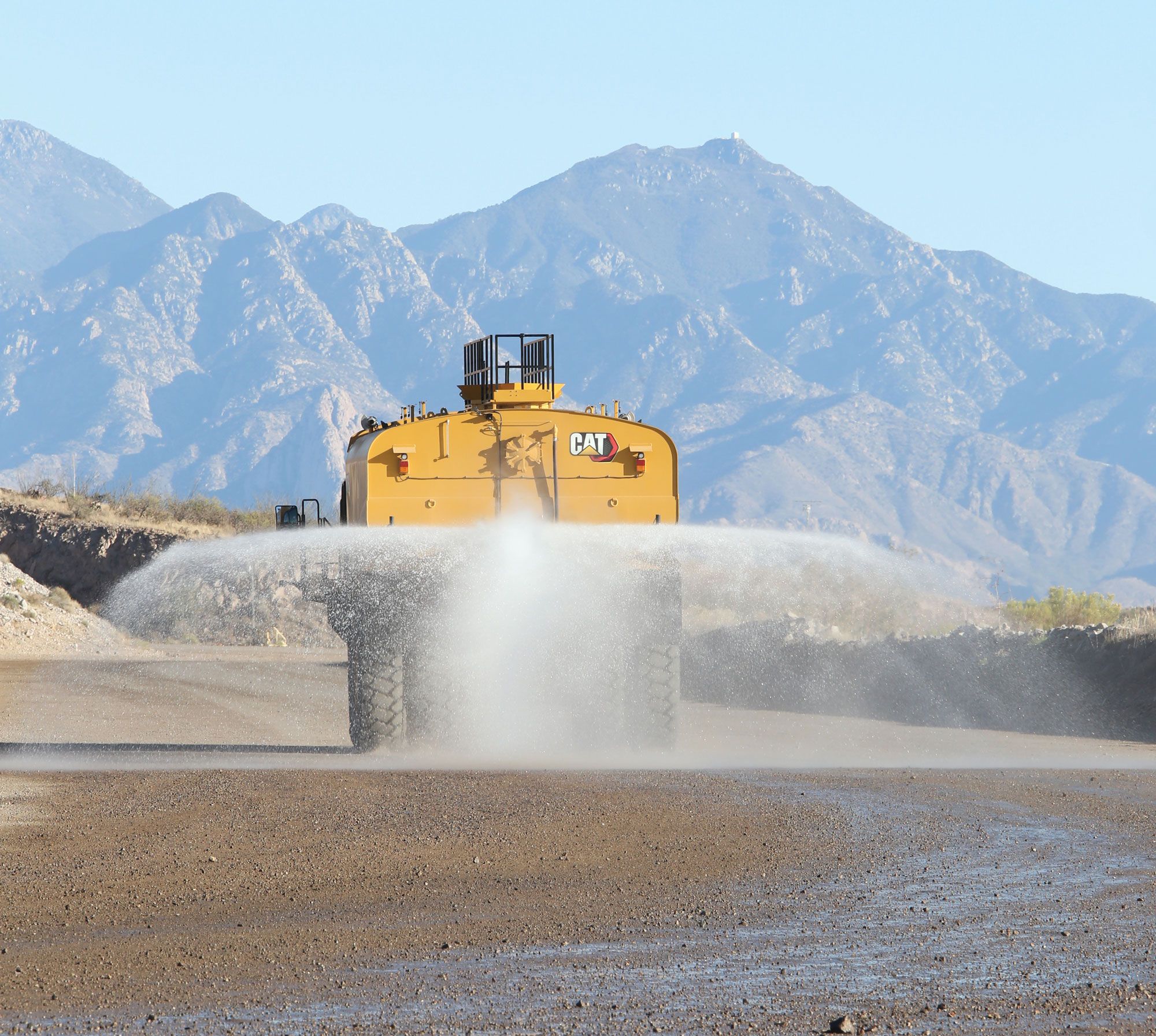

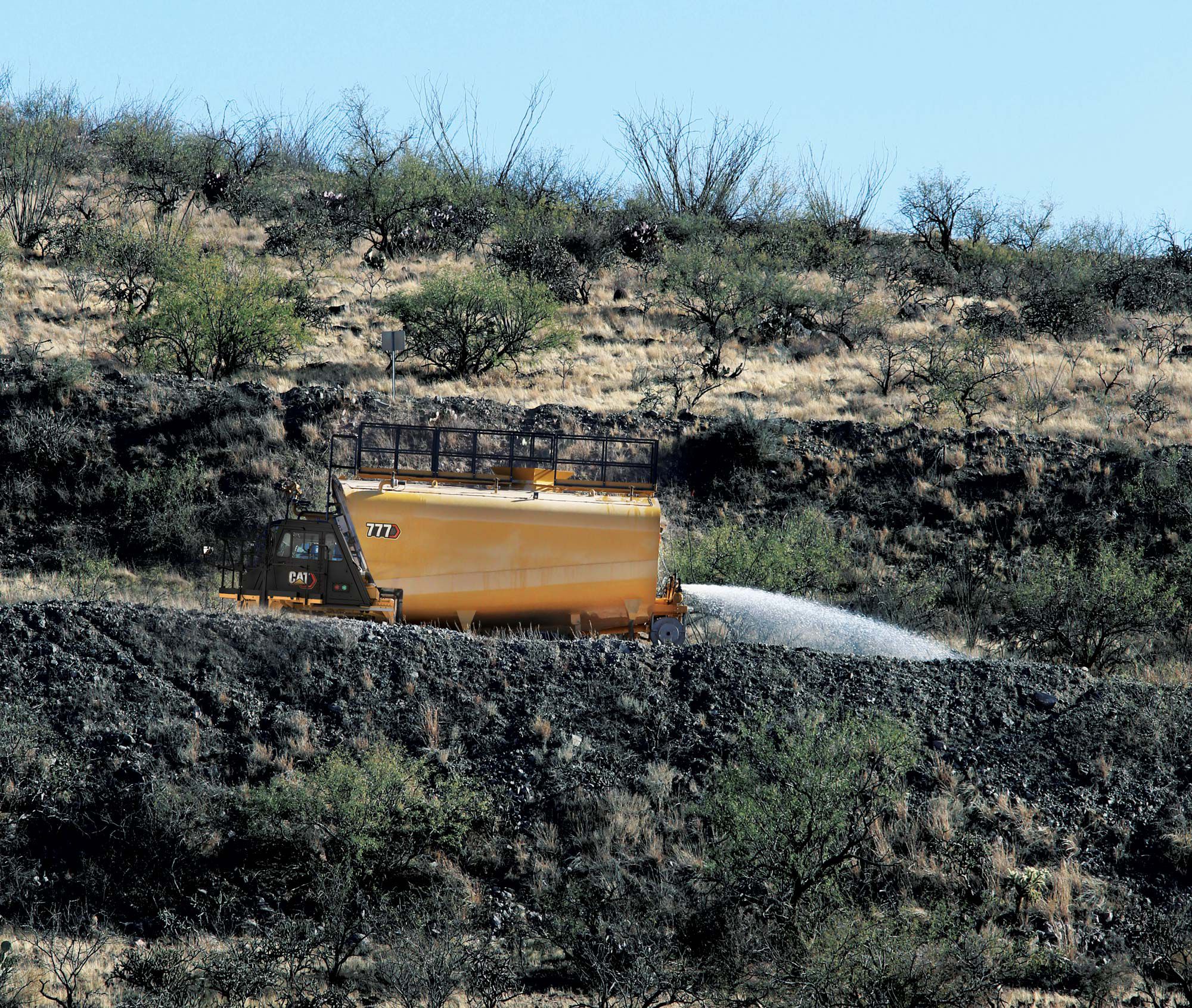

CAT WATER DELIVERY SYSTEM (WDS)
  • Controls: Factory installed and integrated into cab
  • Water System Monitor: integrated into cab, programmable spray configurations, automatic diagnostic messages
  • Variable Hydraulic Pump Drive: 1,200 gpm at speeds of 3 to 25 mph with auto shut-off and soft startup
  • Stainless Steel Spray Heads: maintenance free, patented design resists corrosion
  • Independent Hydraulic Cooling System: minimizes overheating
  • Water Cannon: hydraulically controlled, integrated joystick with cab controls, optional nozzles
  • Parts & service available through global Cat dealer network
Cat Branded Water Tank Offerings with Options
  • Cat branded tanks include additional features and options commonly selected by customers in the industry.
    – Splash guards, fill chute, and rock ejectors are standard.
    – Hoist cylinder mounting on all tank offerings enhances serviceability
    – Manufactured and supplied by recognized tank providers (covered by a Caterpillar warranty)

Additional information

Offering Type

Engine Model

Cat® C32B

Engine - Gross Power - SAE J1995

765 kW ( 1026 HP )

Engine Speed

1800 r/min ( 1800 r/min )

Engine - Net Power - SAE J1349

711 kW ( 953 HP )

Engine - Emissions

Fuel Optimized

Engine - Cylinders

12

Engine - Bore

145 mm ( 5.7 in )

Engine - Stroke

162 mm ( 6.4 in )

Engine - Displacement

32.1 l ( 1959 in³ )

Engine - Note (1)

Net Power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 1,800 rpm.

Engine - Note (2)

No engine derating required up to 3048 m (10,000 ft) altitude.

Engine - Note (3)

Meets China Nonroad Stage III emission standards equivalent to U.S. EPA Tier 2.

Cat Water Delivery System (WDS) - Maximum water flow

3785 l/min ( 1200 gal(US)/min )

Cat Water Delivery System (WDS) - Water per spray head (minimum)

130 l/min ( 35 gal(US)/min )

Cat Water Delivery System (WDS) - Water per spray head (maximum)

2270 l/min ( 600 gal(US)/min )

Cat Water Delivery System (WDS) - Spray head opening range (minimum)

1 mm ( 0.04 in )

Cat Water Delivery System (WDS) - Spray head opening range (maximum)

19 mm ( 0.75 in )

Cat Water Delivery System (WDS) - Maximum size debris flushed through spray head

19 mm ( 0.75 in )

Cat Water Delivery System (WDS) - Spray system hydraulic tank capacity

27.5 l ( 7.25 gal (US) )

Cat Water Delivery System (WDS) - Maximum number of rear spray heads

5

Cat Water Delivery System (WDS) - Minimum number of front/side spray heads

2

Cat Water Delivery System (WDS) - Maximum number of front/side spray heads

0

Cat Water Delivery System (WDS) - Maximum water from cannon (idle)

2271 l/min ( 600 gal(US)/min )

Cat Water Delivery System (WDS) - Maximum water from cannon (high idle)

4732 l/min ( 1250 gal(US)/min )

Cat Water Delivery System (WDS) - Maximum cannon spray distance

61 m ( 200 ft )

Cat Water Delivery System (WDS) - Type

Wet water pump/hydraulic motor coupling

Cat Water Delivery System (WDS) - Note

Operator selectable coverage: 0.2-0.8 L/m² (4 kph – 40 kph) / 0.05-0.2 gal/ft² (3 mph – 25 mph). Coverage rates above 0.6 L/m² may not be available at higher speeds depending on head count and configuration.

Cat Water Delivery System (WDS) - Note (1)

Opening is automatically controlled by the system to achieve AutoMode Coverage or Manual Mode Flow Rate.

Cat Water Delivery System (WDS) - Note (2)

AutoMode Spray controls water coverage automatically to the number of heads being used and ground speed achieved.

Cat Water Delivery System (WDS) - Note (3)

Manual Mode allows the operator to set a water flow rate that is constant regardless of ground speed.

Cat Water Delivery System (WDS) - Note (4)

Spray Heads on competitive water distribution systems require tools and maintenance to change flow and spray pattern. Caterpillar is the only company to have variable active spray heads to regulate water spray.

Cat Water Delivery System (WDS) - Note (5)

Water flow is continually adjusted during operation to conserve water and achieve desired coverage and flow rate

Tank Configurations - Water Tank Capacity

up to 75 700 L (20,000 gal)

Operating Specifications - Top Speed - Loaded

67.1 km/h ( 41.7 mile/h )

Operating Specifications - Note

Water Tank Capacity Range: 69 700 – 75 700 L (18,400 – 20,000 gal)

Tank Configurations - Note

Multiple tank configurations are offered based on customer preference and regional locations. Water Tank Capacity Range: 75 400 – 75 700 L (19,900 – 20,000 gal)

Tank Configurations - Machine Weight (with water tank full)

315,365 – 327,964 lb / 143 047 – 148 762 kg

Tank Configurations - Empty Machine Operating Weight (without water / with fuel)

151,204 – 153,221 lb / 68 585 – 69 500 kg

Tank Configurations - Water Tank - Max Empty Weight (no WDS)

42,983 – 44,092 lb / 19 497 – 20 000 kg

Tank Configurations - Note (1)

Cat branded tanks include additional features and options commonly selected by customers in the industry. Splash guards, fill chute, and rock ejectors are standard.

Operating Specifications - Note (2)

Operator selectable coverage: 0.2-0.8 L/m² (4 kph – 40 kph) / 0.5-0.2 gal/ft² (3 mph – 25 mph)

Tank Configurations - Note (2)

Hoist cylinder mounting on all tank offerings enhances serviceability.

Weights - Approximate - Target Gross Machine Weight

163360 kg ( 360148 lb )

Weights - Approximate - Chassis Weight

82022 kg ( 180827 lb )

Transmission - Forward - 1

10.9 km/h ( 6.8 mile/h )

Transmission - Forward - 2

14.8 km/h ( 9.2 mile/h )

Transmission - Forward - 3

20.1 km/h ( 12.6 mile/h )

Transmission - Forward - 4

27.1 km/h ( 16.9 mile/h )

Transmission - Forward - 5

36.8 km/h ( 22.9 mile/h )

Transmission - Forward - 6

49.4 km/h ( 30.7 mile/h )

Transmission - Forward - 7

67.1 km/h ( 41.7 mile/h )

Transmission - Reverse

12.1 km/h ( 7.5 mile/h )

Transmission - Note

Maximum travel speeds with standard 27.00R49 (E4) tires.

Final Drives - Differential Ratio

2.74:1

Final Drives - Planetary Ratio

7.00:1

Final Drives - Total Reduction Ratio

19.16:1

Braking System - Brake Surface - Front

2787 cm² ( 432 in² )

Braking System - Brake Surface - Rear

102116 cm² ( 15828 in² )

Braking System - Brake Standards

ISO 3450:2011

Body Hoists - Body Raise Time - High Idle

15 s ( 15 s )

Body Hoists - Body Lower Time - Float

13 s ( 13 s )

Body Hoists - Body Lower Time - High Idle

13 s ( 13 s )

Weight Distributions - Approximate - Front Axle - Empty

46 % ( 46 % )

Weight Distributions - Approximate - Front Axle - Loaded

30 % ( 30 % )

Weight Distributions - Approximate - Rear Axle - Empty

54 % ( 54 % )

Weight Distributions - Approximate - Rear Axle - Loaded

70 % ( 70 % )

Suspension - Effective Cylinder Stroke - Front

318 mm ( 12.5 in )

Suspension - Effective Cylinder Stroke - Rear

165 mm ( 6.5 in )

Suspension - Rear axle - Oscillation

5.4 ° ( 5.4 ° )

Steering Standards

ISO 5010:2007

Steering - Steer Angle

30.5 ° ( 30.5 ° )

Steering - Turning Diameter - Front

25.3 m ( 83 ft )

Steering - Turning Circle - Clearance Diameter

28.4 m ( 93.2 ft )

Tires - Standard Tire

27.00R49 (E4)

Tires - Note (1)

Productive capabilities of the 777 truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production.

Tires - Note (2)

Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection.

Service Refill Capacities - Fuel Tank (1)

1140 l ( 300 gal (US) )

Service Refill Capacities - Cooling System

212 l ( 56 gal (US) )

Service Refill Capacities - Crankcase

115 l ( 30 gal (US) )

Service Refill Capacities - Differentials

222 l ( 59 gal (US) )

Service Refill Capacities - Steering System - Including Tank

60 l ( 16 gal (US) )

Service Refill Capacities - Brake Hoist System

420 l ( 110 gal (US) )

Service Refill Capacities - Torque Converter - Transmission System

125 l ( 33 gal (US) )

Cab - Air Conditioning

42789 Btu/kWh ( 18390 Btu/lb )

Cab - Heater / Defroster

11070 kJ/kg ( 43930 Btu )

Cab - ROPS Standards (1)

Rollover protective structure (ROPS) cab offered by Caterpillar meets ISO 3471:2008 for operator and ISO 13459:2012 for trainer.

Cab - FOPS Standards

Falling objects protective structure (FOPS) meets ISO 3449:2005 Level II for operator and ISO 13459:2012 Level II FOPS for trainer.

Cab - Note (1)

The dynamic operator sound pressure level is 80 dB(A) as per ISO 6396:2008 for cab offered by Caterpillar. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed.

Select Up To 3 Models To Compare
