825K

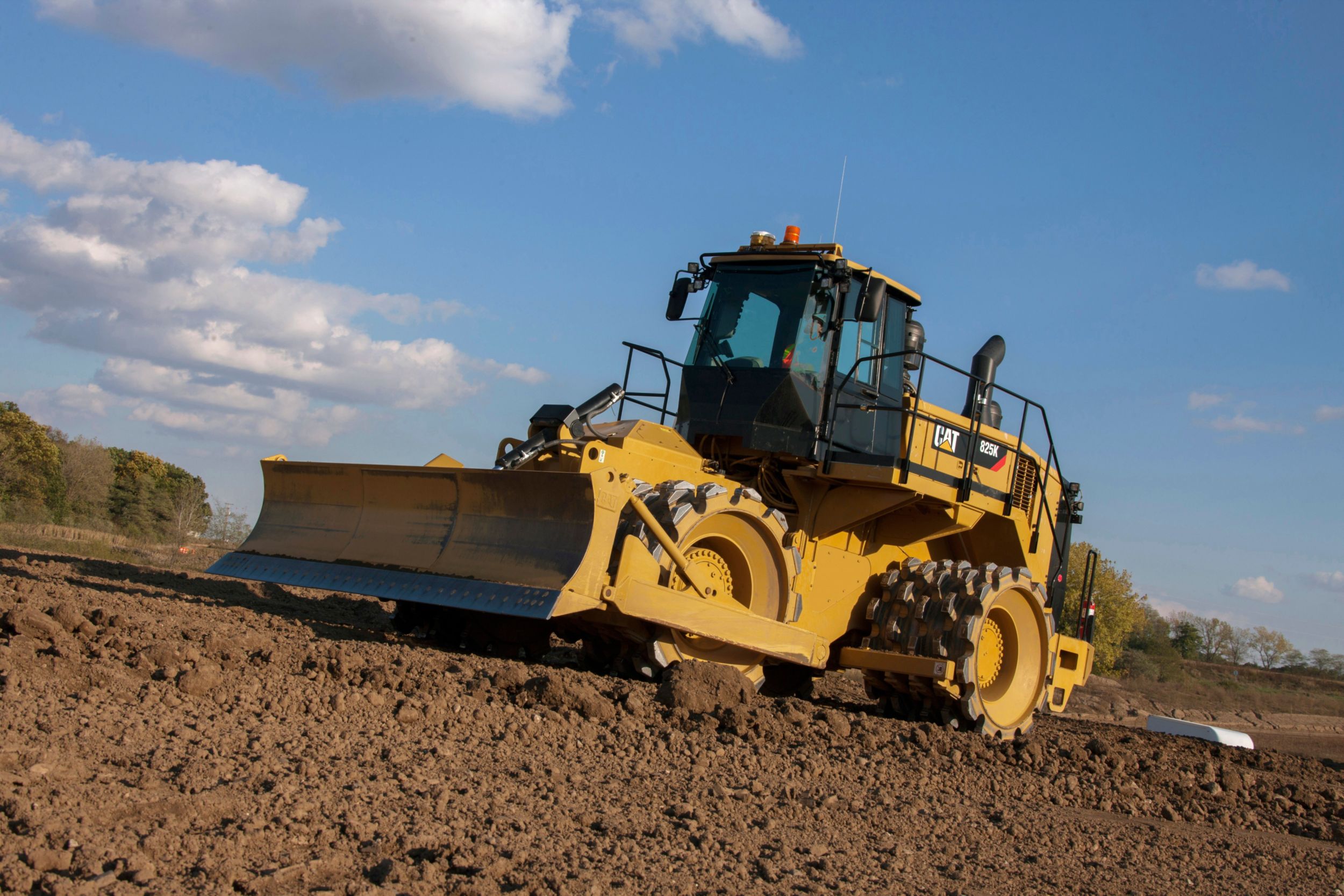

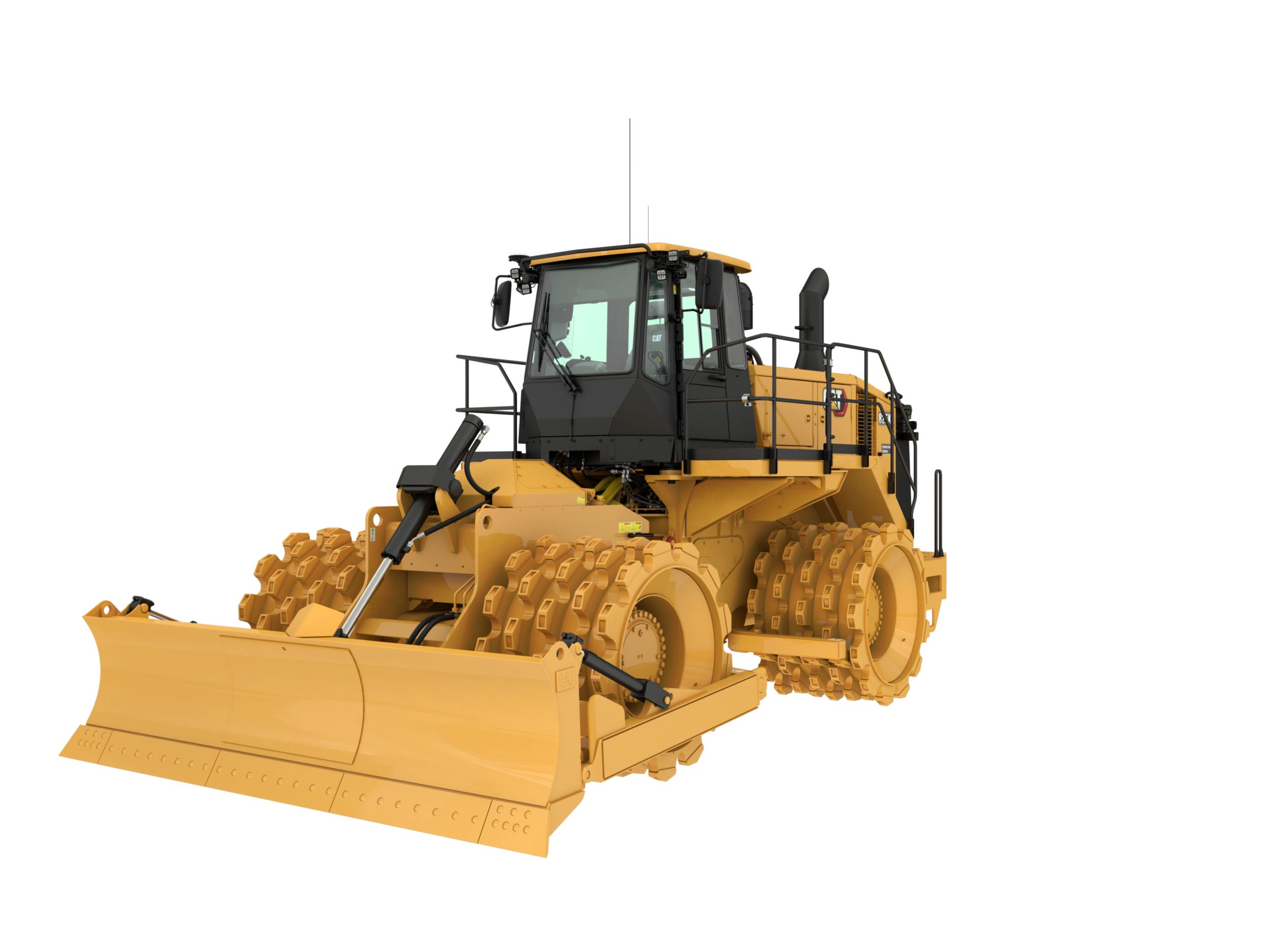

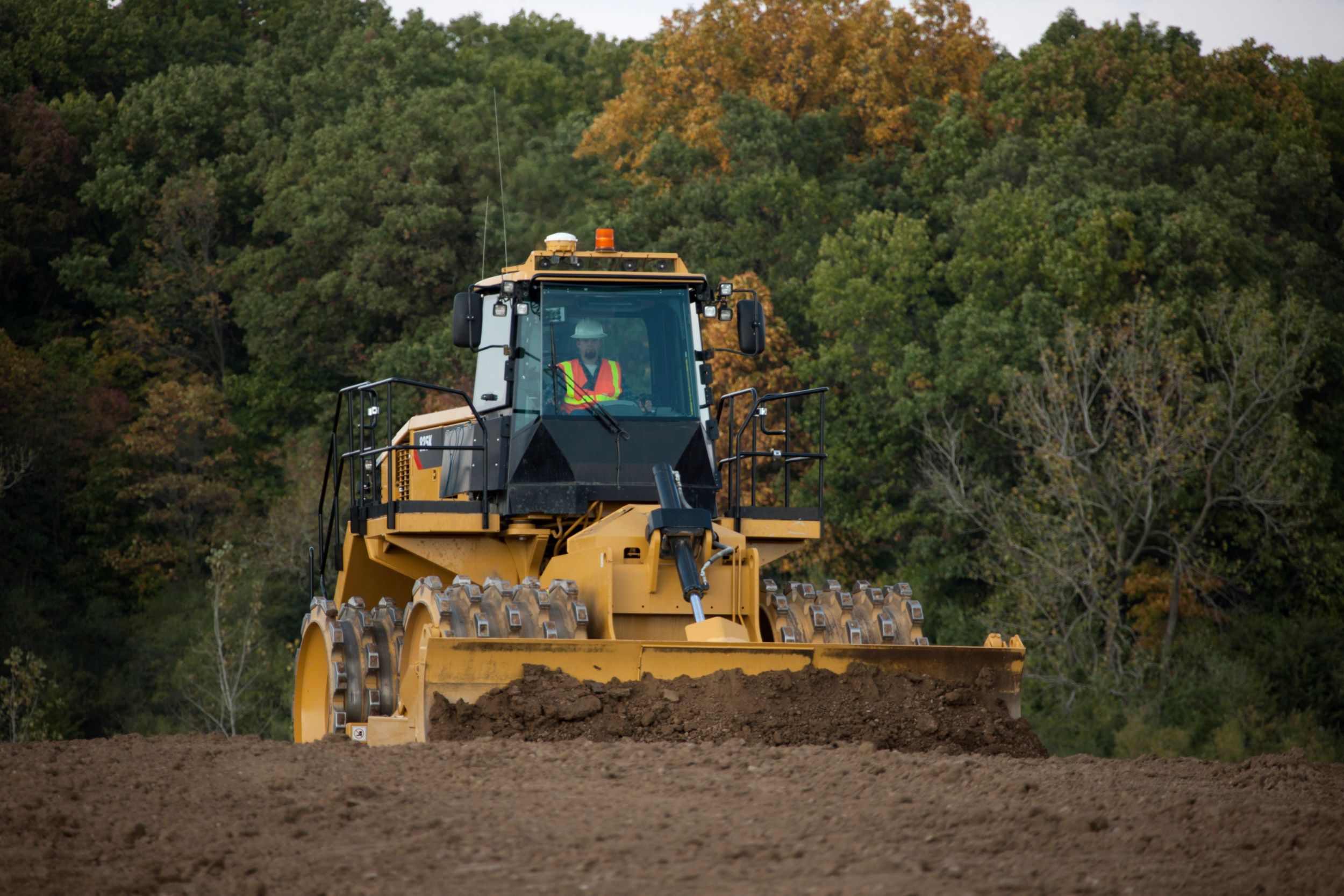

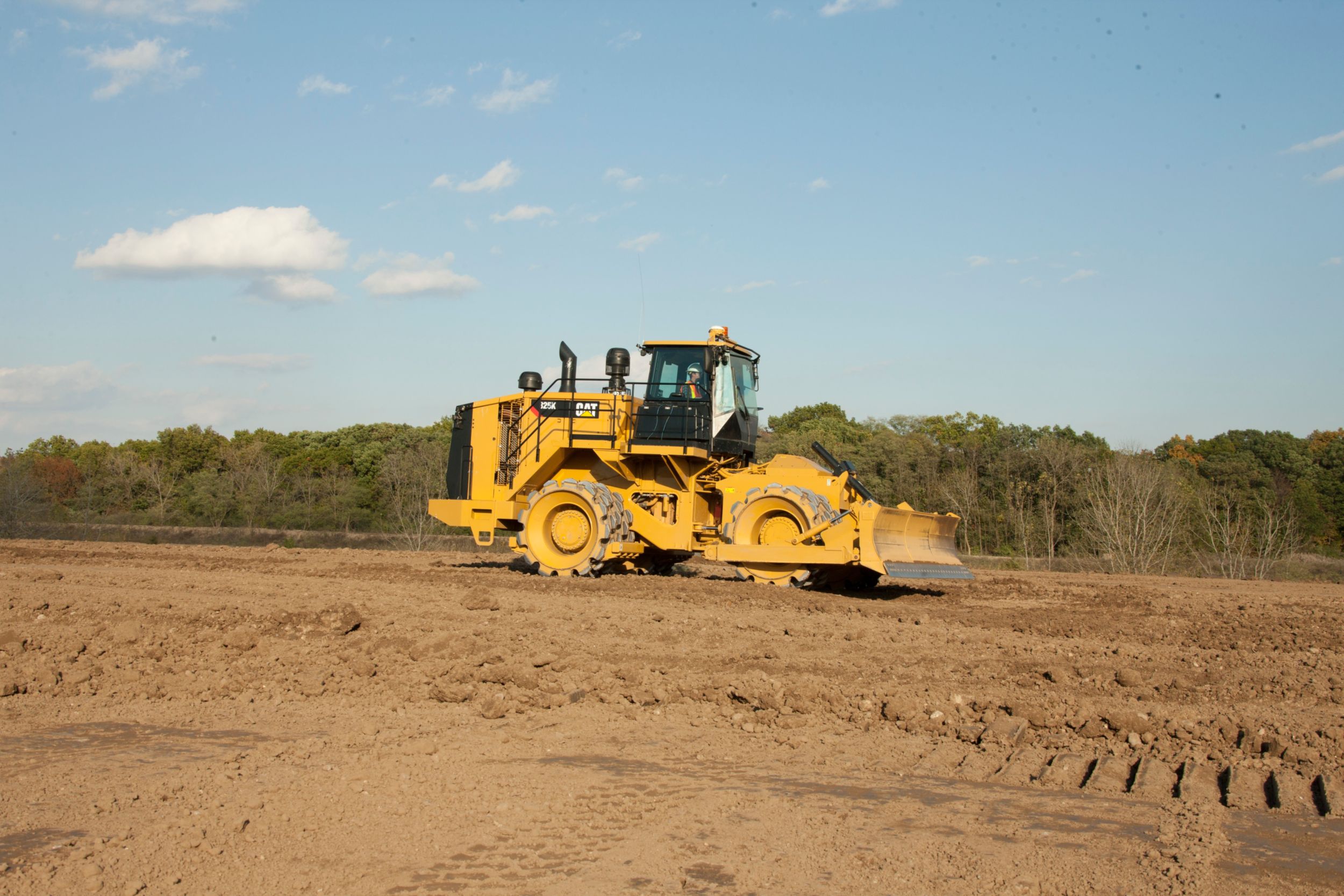

825K Soil Compactor
Designed with durability built in, the Cat 825K ensures maximum availability through multiple life cycles. Designed and manufactured for optimum performance and serviceability, this rugged, powerful machine delivers heavy-duty compaction and dozing.
POWERFUL EFFICIENCY
LONG TERM VALUE AND DURABILITY
PERFORMANCE WITH LESS FUEL
OPTIMIZE COMPACTION
OPERATOR COMFORT AND CONTROL
PRODUCTIVITY WITH TECHNOLOGY
BUILT-IN SAFETY FEATURES
REDUCE ENVIRONMENTAL IMPACT
TOP-TIER SERVICE AND SUPPORT
Videos
Virtual Tours
Documents & Brochures
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
- Air to air aftercooler
- Autoshift
- Brakes, full hydraulic, enclosed, wet multiple disc service brakes
- Cat clean emission module (Tier 4 Final/Stage IV)
- Electro-hydraulic parking brake
- Electronic Clutch Pressure Control (ECPC)
- Engine, Cat C15: – Tier 4 Final/Stage IV – Tier 3/Stage IIIA equivalent
- Fuel priming pump (electric)
- Fuel to air cooler
- Ground level engine shutoff
- Hydraulically driven demand fan
- Integrated braking system
- Muffler (under hood) (Tier 3/Stage IIIA equivalent)
- Radiator, Aluminum Modular (AMR)
- Separated cooling system
- Single Clutch Speed Shifting (SCSS)
- Starting aid (ether) automatic
- Throttle lock
- Torque converter with Lock Up Clutch (LUC)
- Transmission, planetary, with 3F/3R speed range control
ELECTRICAL
- Alarm, back-up
- Alternator, 150 amp
- Batteries, maintenance-free (4 – 1,000 CCA)
- Electrical system, 24V
- Ground level lockable master disconnect switch
- Light, warning unswitched (LED strobe)
- Lighting, access stairway
- Lighting, under hood
- Lighting system, halogen (front and rear)
- Lights, directional (rear)
- Starter, electric (heavy duty)
- Starting receptacle for emergency start
OPERATOR ENVIRONMENT
- 12V power port for mobile phone or laptop connection
- AccuGrade™ mapping (ready)
- Air conditioner
- Cab, sound-suppressed pressurized
- Cab door, sliding window (LH)

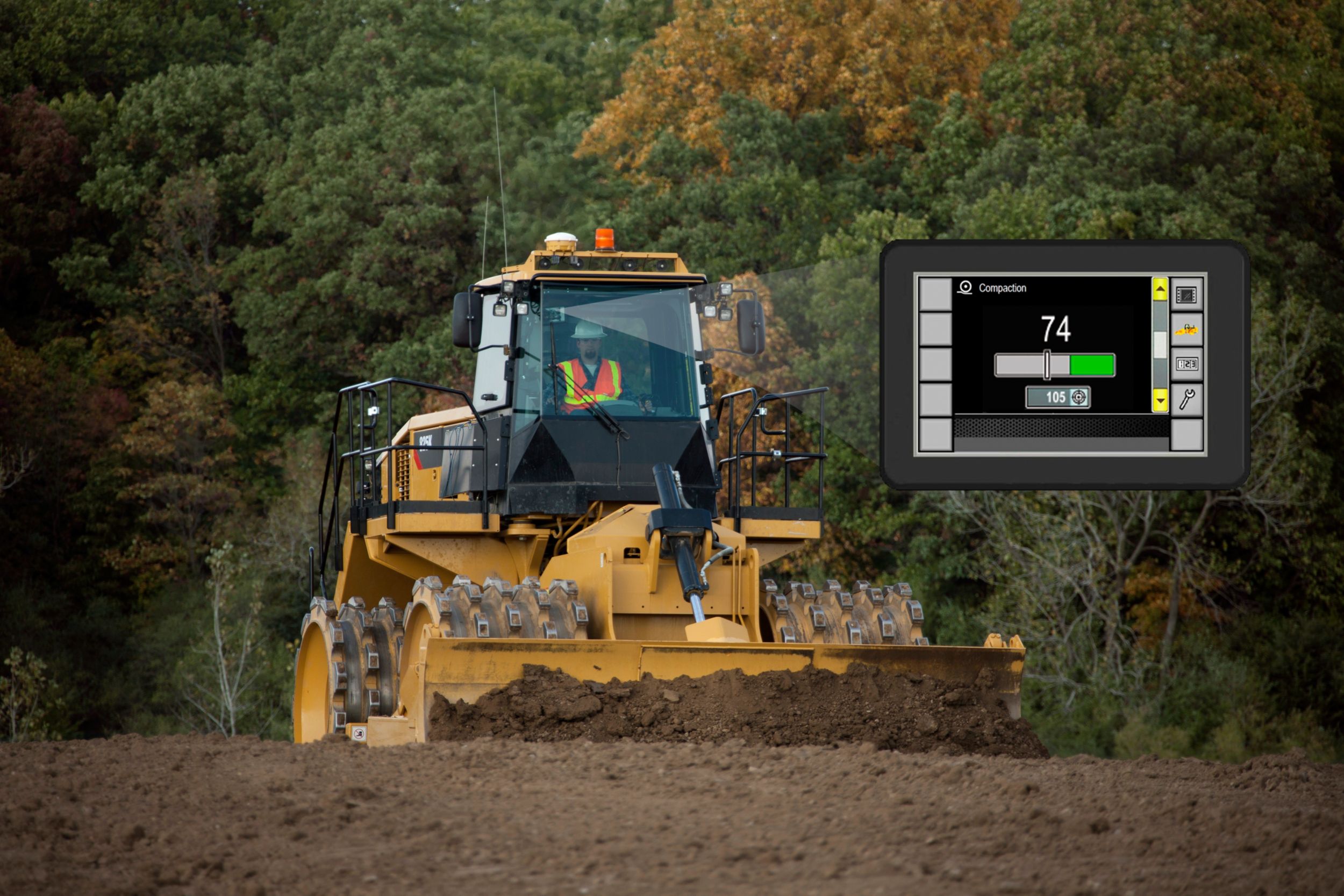

- Compaction control (ready)
- Coat and hard hat hooks
- Electro-hydraulic tilt and lift controls
- Finger tip shifting controls
- Flip-up armrest
- Heater and defroster
- Horn, electric
- Implement hydraulic lockout
- Instrumentation, gauges: – DEF fluid level (Tier 4 Final/Stage IV) – Engine coolant temperature – Fuel level – Hydraulic oil temperature – Speedometer/tachometer – Torque converter temperature
- Instrumentation, warning indicators: – Action alert system, three categories – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp – Parking brake status
- Internal four-post rollover protective structure (ROPS/FOPS)
- Laminated glass
- Light, (dome) cab
- Lunch box and beverage holders
- Mirror, internal (panoramic)
- Mirrors, heated ready
- Mirrors, rearview (externally mounted)
- Radio ready for entertainment: – Antenna – Speakers – Converter (12V, 10-15 amp)
- Seat, Cat Comfort (cloth) air suspension
- Seat belt with minder, retractable, 76 mm (3 in) wide
- STIC control system with lockout
- Sun visor, front
- Tinted glass
- Transmission gear (indicator)
- Vital Information Management System (VIMS): – Graphical information display – External data port – Customizable operator profiles
- Wet-arm wipers/washers (front and rear)
- Intermittent wipers (front and rear)
TIRES, RIMS AND WHEELS
- Wheels, tamping tips
GUARDS
- Guard, driveshaft
- Guards, crankcase and power train
BLADES
- Bulldozer straight blade, hydraulics, and linkage are included in the base machine
FLUIDS
- Antifreeze, premixed 50% concentration extended life (–34° C/–29° F)
OTHER STANDARD EQUIPMENT
- Cleaner bars with teeth
- Doors, service access (locking)
- Ecology drains for engine, radiator, transmission, hydraulic tank
- Emergency platform egress
- Engine, crankcase, 500 hour interval with CJ-4 oil
- Engine idle management features: – Auto idle kickdown – Delayed engine shutdown – Engine idle shutdown
- Fast fuel system
- Fire suppression ready
- Fuel tank, Fast Fill, 782 L (207 gal)
- Hitch, drawbar with pin
- Hoses, Cat
- Hydraulic, engine, and transmission oil coolers
- Oil change system, high speed
- Oil sampling valves
- Product Link
- Stairway, left and right rear access
- Steering, load sensing
- Toe kicks
- Total hydraulic filtration system
- Vandalism protection caplocks
- Venturi stack
- Fold down exhaust stack for shipping
Additional information
| Offering Type | |
|---|---|
| Blades - Height - Including Cutting Edge | 1032 mm ( 3.4 ft ) |
| Blades - Maximum Lift Above Ground | 958 mm ( 3.14 ft ) |
| Blades - Blade Tilt Angle - Right - Hydraulic | 6,3? |
| Blades - Blade Tilt Angle - Left - Mechanical | 4,1? |
| Blades - Blade Tilt Angle - Left - Hydraulic | 5,4? |
| Blades - Blade Tilt Angle - Right - Mechanical | 5,1? |
| Engine - Maximum Altitude - Without Derating (Tier 3 Final/Stage IIIA Equivalent) | 2773 m ( 9098 ft ) |
| Blades - Total Tilt Adjustment | 890 mm ( 2.9 ft ) |
| Blades - Maximum Depth of Cut | 602 mm ( 1.97 ft ) |
| Dimensions (Approximate) - Turning Radius - Inside of Push Arms | 2627 mm ( 8.6 ft ) |
| Engine - Net Power - Converter Drive - Torque Rise | 8,5% |
| Blades - Blade Tip Angle - Back | 7,5? |
| Blades - Blade Tilt Angle - Right Full | 10,8? |
| Blades - Blade Tip Angle - Total | 14,8? |
| Blades - Blade Tilt Angle - Left Full | 10,1? |
| Cab - Suppression - Operator Sound Level - ISO 6396 | 72 dB(A) ( 72 dB(A) ) |
| Cab - Standard - Machine Sound Level (ISO 6395) | 113 dB(A) ( 113 dB(A) ) |
| Hydraulic System - Pump Flow at 1,800 rpm | 117 l/min ( 30.9 gal/min ) |
| Blades - Width - Over End Bits | 4628 mm ( 15.18 ft ) |
| Blades - Moldboard - Length | 4390 mm ( 14.4 ft ) |
| Engine - Net Power - Direct Drive - Torque Rise | 33% |
| Hydraulic System - Steering - Vehicle Articulation Angle | 86 degrees |
| Cab - Suppression - Machine Sound Level (ISO 6395) | 110 dB(A) ( 110 dB(A) ) |
| Cab - Standard - Operator Sound Level - ISO 6396 | 73 dB(A) ( 73 dB(A) ) |
| Hydraulic System - Cylinders, Double Acting - Tilt, Bore and Stroke | 95.25 mm ? 216 mm (3.75 in ? 8.5 in) |
| Operating Specifications - Operating Weight - Tier 4 Final/Stage IV | 35528 kg ( 78326 lb ) |
| Operating Specifications - Operating Weight - Tier 3 Final/Stage IIIA Equivalent | 35081 kg ( 77340 lb ) |
| Blades - Blade Tip Angle - Forward | 7,3? |
| Engine Model | C15 Cat |
| Engine - Net Power | 302 kW ( 405 HP ) |
| Operating Specifications - Operating Weight | 35528 kg ( 78326 lb ) |
| Engine - Rated Power (Net ISO 9249) | 302 kW ( 405 HP ) |
| Transmission - Travel Speeds - Reverse - First | 6.2 km/h ( 3.9 mile/h ) |
| Transmission - Travel Speeds - Forward - First | 5.5 km/h ( 3.4 mile/h ) |
| Dimensions (Approximate) - Ground Clearance | 492 mm ( 1.6 ft ) |
| Service Refill Capacities - Hydraulic Tank Only | 134 l ( 35.4 gal (US) ) |
| Engine - Maximum Net Torque - 1,300 rpm | 2005 N·m ( 1478.8 lb/ft ) |
| Dimensions (Approximate) - Length - With Blade on Ground | 8561 mm ( 28.1 ft ) |
| Transmission - Travel Speeds - Reverse - Third | 19.7 km/h ( 12.2 mile/h ) |
| Engine - Maximum Altitude - Without Derating (Tier 4 Final/Stage IV) | 2834 m ( 9298 ft ) |
| Engine - Net Power - Converter Drive - Gross Power | 324 kW ( 435 HP ) |
| Service Refill Capacities - Differential - Final Drives - Rear | 110 l ( 29.1 gal (US) ) |
| Axles - Oscillation Angle | ?8? |
| Hydraulic System - Maximum Supply Pressure | 24100 kPa ( 3495 psi ) |
| Hydraulic System - Steering - Maximum System Flow | 170 L/min @ 1,800 rpm (44.9 gal/min @ 1,800 rpm) |
| Wheels - Weight | 7333 kg ( 16167 lb ) |
| Service Refill Capacities - Fuel Tank | 782 l ( 206.6 gal (US) ) |
| Service Refill Capacities - Cooling System | 116 l ( 30.6 gal (US) ) |
| Engine - Stroke | 171.4 mm ( 6.7 in ) |
| Wheels - Drum Width | 1125 mm ( 3.7 ft ) |
| Transmission - Travel Speeds - Reverse - Second | 11.1 km/h ( 6.9 mile/h ) |
| Dimensions (Approximate) - Height - Top of Exhaust Pipe | 4290 mm ( 14.1 ft ) |
| Transmission - Travel Speeds - Forward - Third | 17.2 km/h ( 10.7 mile/h ) |
| Hydraulic System - Steering - Stroke | 576 mm ( 22.7 in ) |
| Dimensions (Approximate) - Hitch to Centerline of Front Axle | 1850 mm ( 6.1 ft ) |
| Engine - Gross Power | 324 kW ( 435 HP ) |
| Hydraulic System - Main Relief Pressure | 24100 kPa ( 3495 psi ) |
| Transmission Type | Planetengetriebe ? Lastschaltgetriebe ? ECPC (Electronic Clutch Pressure Control, Elektronische Kupplungsdrucksteuerung) |
| Hydraulic System - Steering - Steering System - Circuit | Double Acting ? End Mounted |
| Engine - High Idle Speed | 2300 r/min ( 2300 r/min ) |
| Service Refill Capacities - Differential - Final Drives - Front | 100 l ( 26.4 gal (US) ) |
| Wheels - Drum Diameter | 1299 mm ( 4.3 ft ) |
| Engine - Rated Power (Net SAE J1349) | 302 kW ( 405 HP ) |
| Wheels - Tips per Wheel | 65 |
| Service Refill Capacities - Transmission | 66 l ( 17.4 gal (US) ) |
| Service Refill Capacities - Diesel Exhaust Fluid Tank (Tier 4 Final/Stage IV) | 32 l ( 8.5 gal (US) ) |
| Service Refill Capacities - Engine Crankcase | 34 l ( 9 gal (US) ) |
| Wheels - Width - Over Drums | 3650 mm ( 11.98 ft ) |
| Braking System - Parking Brake | Drum and Shoe, Spring Applied, Hydraulic Released |
| Hydraulic System - Steering - Bore | 114.3 mm ( 4.5 in ) |
| Engine - Emissions | Meets U.S. EPA Tier 4 Final/EU Stage IV emission standards or meets U.S. EPA Tier 3/EU Stage IIIA equivalent emission standards |
| Engine - Low Idle Speed | 800 r/min ( 800 r/min ) |
| Dimensions (Approximate) - Centerline of Rear Axle to Edge of Counterweight | 2830 mm ( 9.3 ft ) |
| Dimensions (Approximate) - Wheel Base | 3700 mm ( 12.1 ft ) |
| Hydraulic System - Cylinders, Double Acting - Lift, Bore and Stroke | 120 mm ? 1070 mm (4.7 in ? 42.1 in) |
| Dimensions (Approximate) - Ground Clearance - Bumper | 810 mm ( 2.7 ft ) |
| Dimensions (Approximate) - Height - Top of Beacon | 4381 mm ( 14.4 ft ) |
| Axles - Rear | Planetary ? Oscillating |
| Dimensions (Approximate) - Height - ROPS/Canopy | 4059 mm ( 13.3 ft ) |
| Axles - Front | Planetary ? Fixed |
| Transmission - Travel Speeds - Forward - Second | 9.7 km/h ( 6 mile/h ) |
| Hydraulic System - Steering - Steering Pressure Limited | 24000 kPa ( 3481 psi ) |
| Engine - Net Power - Direct Drive - Gross Power | 307 kW ( 412 HP ) |
| Engine - Bore | 137.2 mm ( 5.4 in ) |
| Dimensions (Approximate) - Height - Top of Hood | 3162 mm ( 10.4 ft ) |
| Dimensions (Approximate) - Width - Over Wheels | 3650 mm ( 11.98 ft ) |
| Wheels - Outside Diameter | 1672 mm ( 5.5 ft ) |
| Hydraulic System - Steering - Steering System - Pump | Piston ? Variable Displacement |
| Engine - Displacement | 15.2 l ( 927.6 in³ ) |
-
