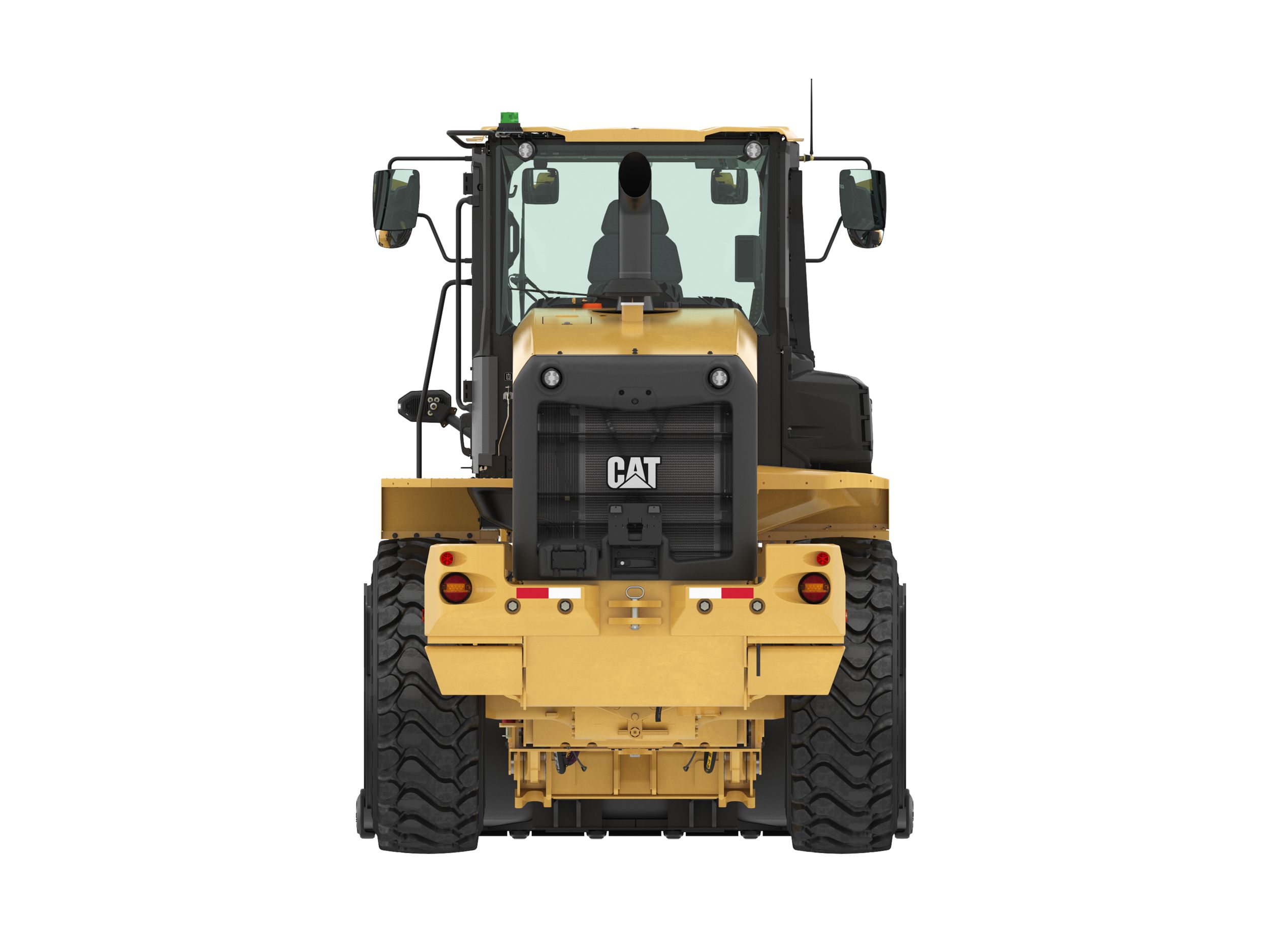

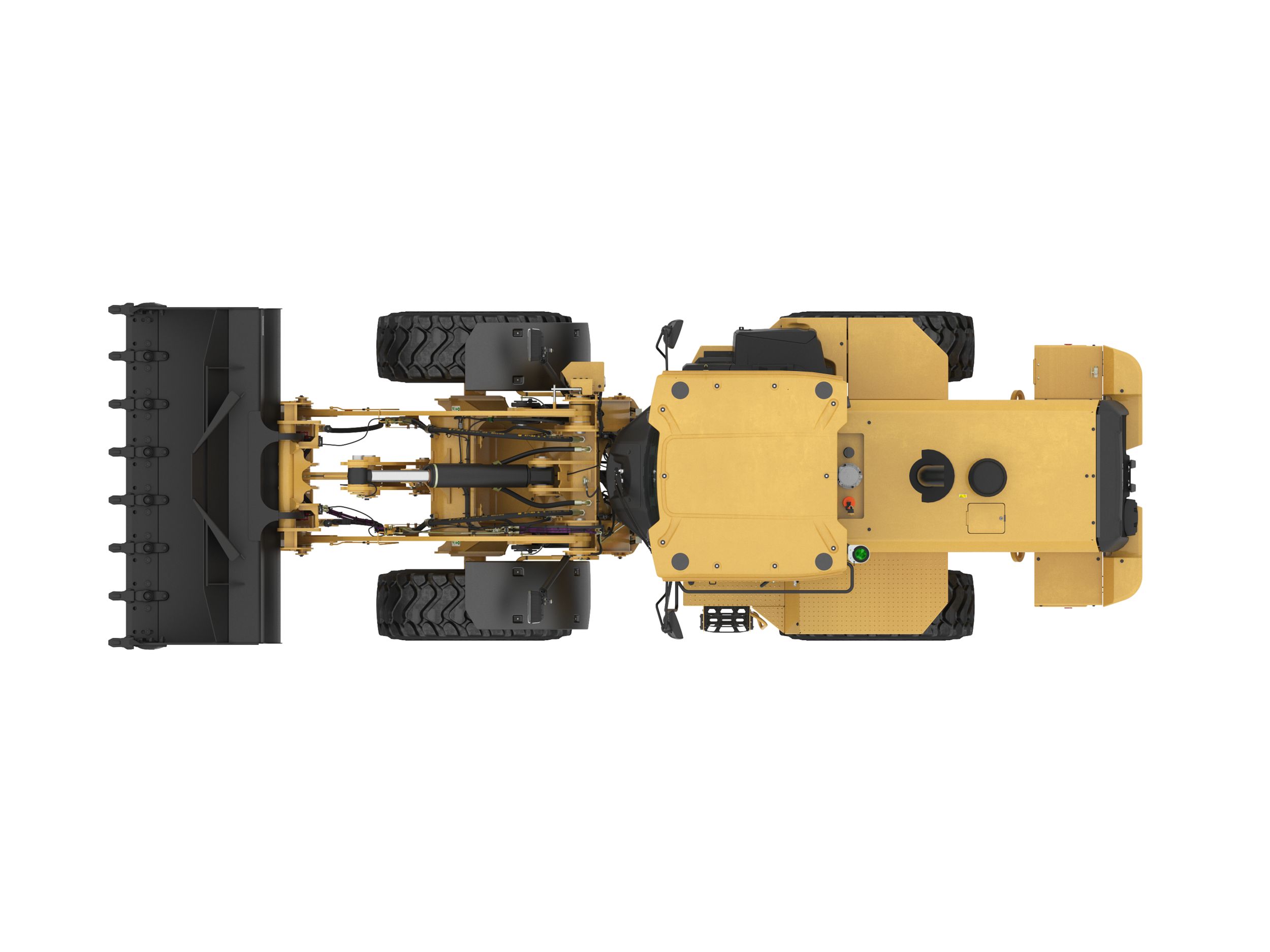

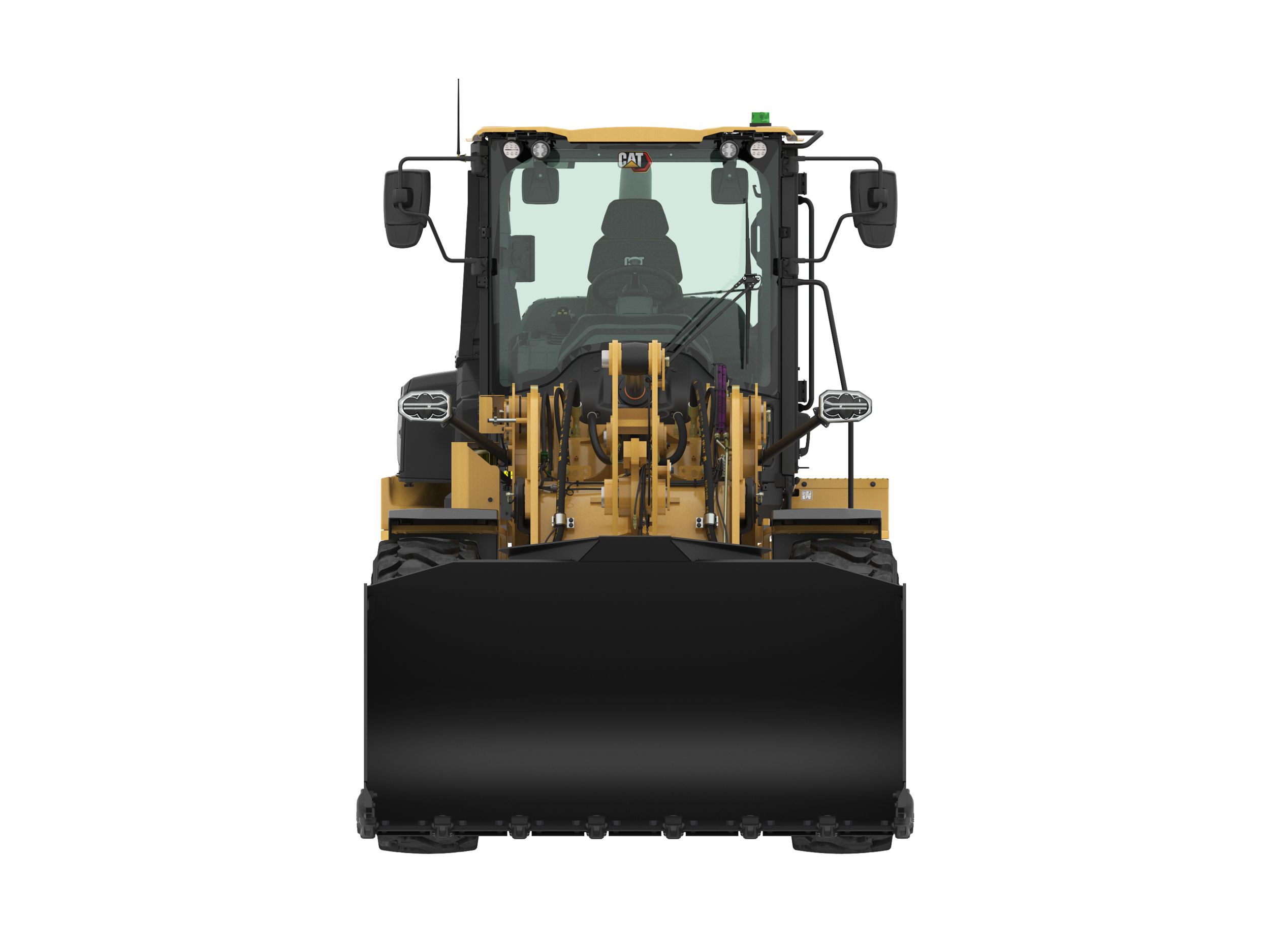

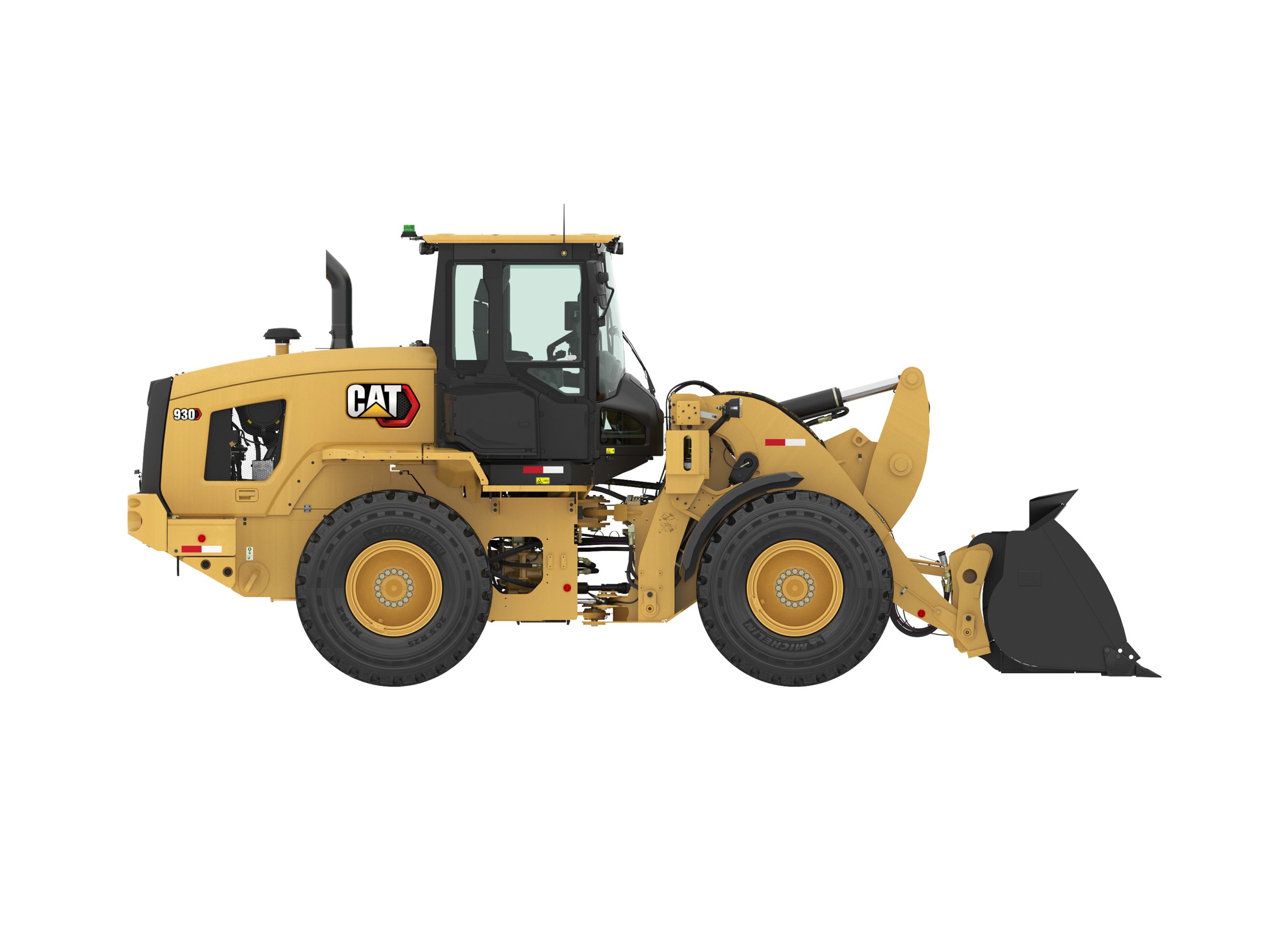

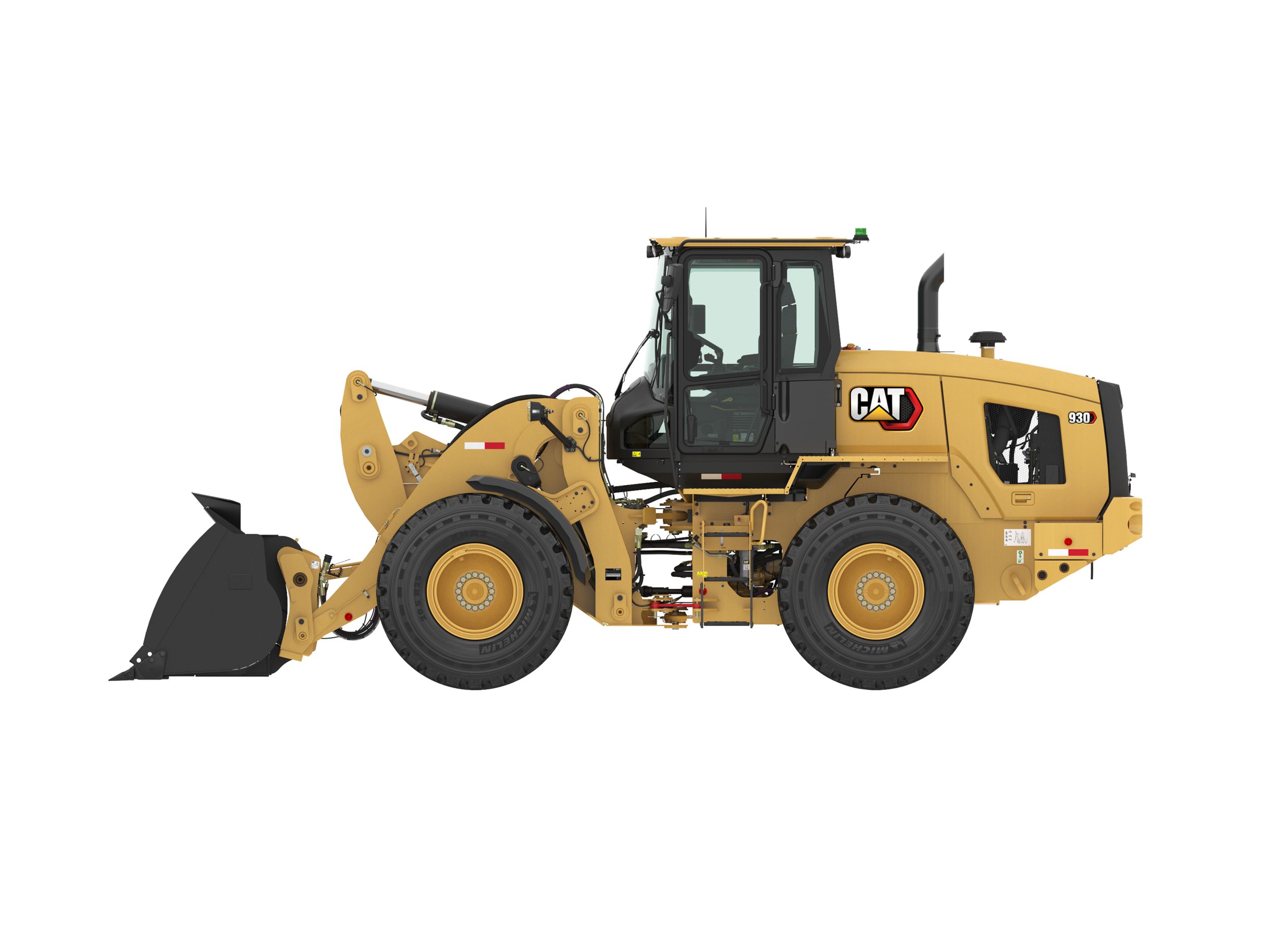

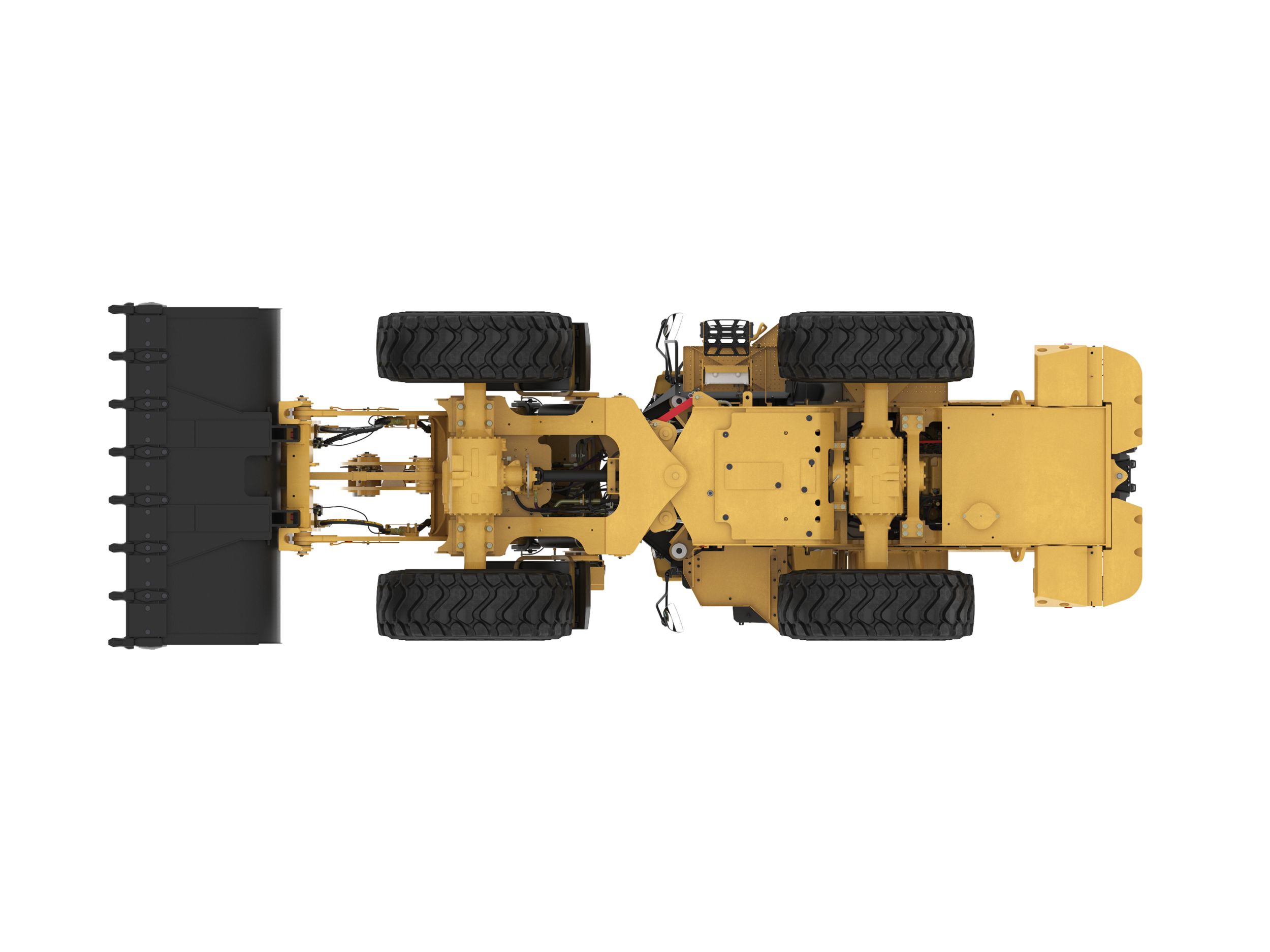

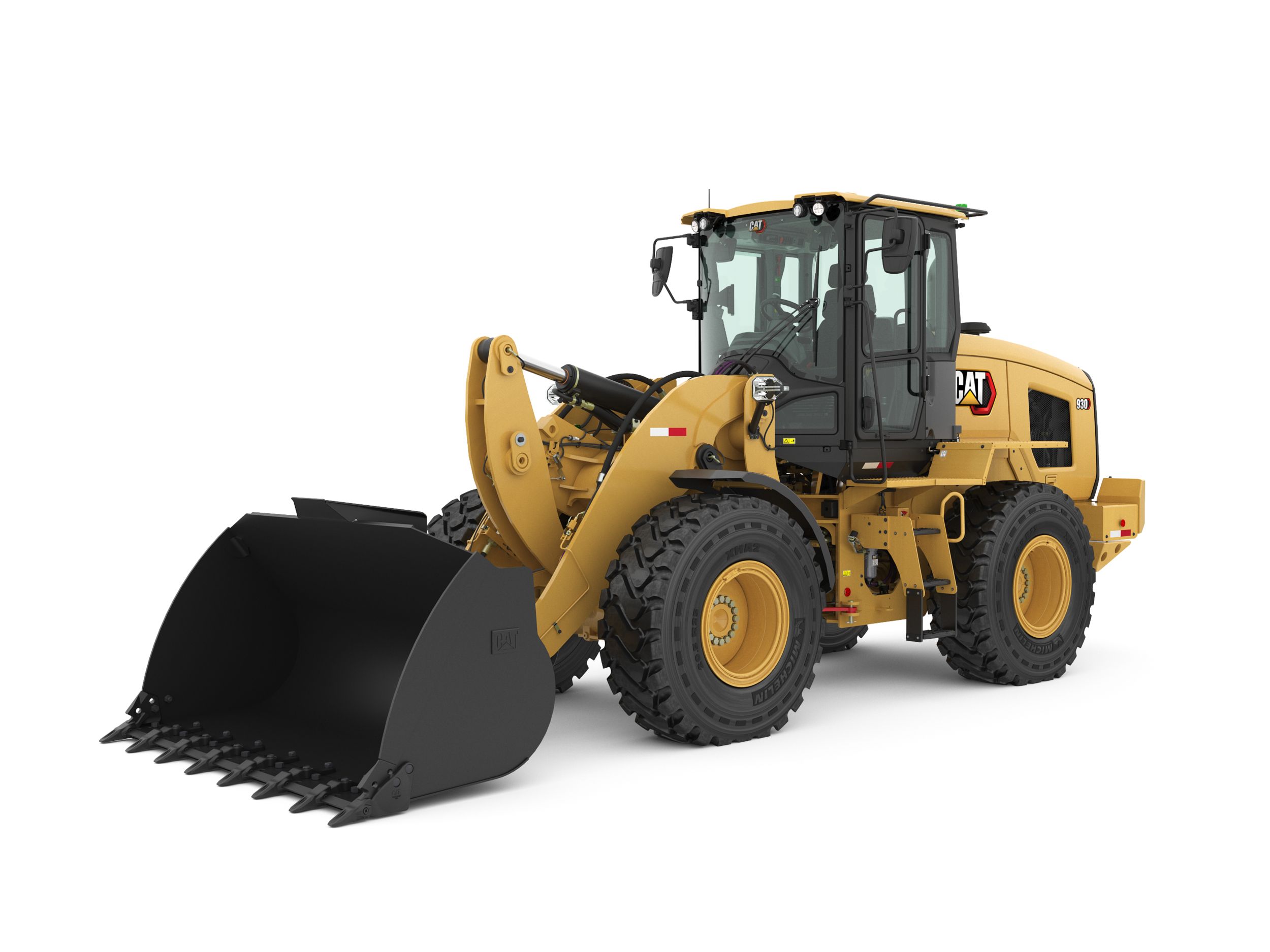

930 Small Wheel Loader

The Cat® 930 Small Wheel Loader sets the standard for productivity, fuel efficiency, operator comfort and low operating costs. Experience the industry benchmark.

Enjoy All Day Comfort

  • Have a seat in the new Cat small wheel loader and enjoy automatic temperature control, class leading sound levels, enhanced all-around visibility and low-effort joystick controls that move with you on a fully adjustable seat suspension. A large spacious operator environment combined with Caterpillar hydraulic cylinder damping and smooth predictable controls make this the most comfortable seat on your jobsite.
  • An upgrade to multi-view camera and rear object detection gives you an extra eye on the jobsite while the new optional force feedback joystick steering keeps you feeling confident on those long shifts. The operator not present function helps to isolate the machine if you leave the environment; while seat belt notifications give you a gentle reminder to buckle up.

Efficiently Powerful

  • Experience the difference with an intelligent hydrostatic power train and industry leading fuel savings through a lower maximum engine speed working in combination with a new auto engine RPM mode. This provides efficiency as standard with a boost in power when you need it. Optimize traction and minimize wheel slip with a new Auto Wheel Torque system tuned to provide peak performance while maximizing tire life and keeping operating costs low. Track your production and accurately hit your load targets with Cat Payload.

Work Made Easy

  • Move more with the Caterpillar patented quick loading performance series buckets and optimized Z-bar linkage with enhanced forward visibility that combines the digging efficiency of a traditional Z-bar with tool carrier capabilities. The parallel lift and high tilt forces throughout the working range allow you to confidently handle loads with precise control.
  • Multi-function work has never been easier with dedicated pumps for each system and a flow sharing implement valve governed by an intelligent power management system. Simultaneously lift, steer, and drive without compromise. Upgrade to autolube to make service easy and get to work quicker. Light the way with auto roading lights that come on at night fall.

Customize Your Experience

  • Meet your application requirements and individual preferences with Caterpillar industry first Hystat™ Operator Modes featuring four unique power train settings. Select classic torque converter for smooth rollout, conventional hystat for aggressive engine braking, an ice mode that maximizes your control on slippery underfoot, and an all new single pedal mode for simplified use.
  • Fine tune machine performance with adjustments at your fingertips through programmable joysticks, soft touch buttons, and a new jog dial that works in combination with a standard touch screen display. Quickly recall attachment profiles that maintain key settings for versatility onthe jobsite and optimal efficiency.

Upgrades and Services

  • Enjoy a full range of upgrades and accessories to configure your small wheel loader for a broader range of applications.
  • Utilize readily available services and maintenance parts including a range of self-service options (SSO) and dealer installed kits.

Standard Equipment

NOTE: Not all features are available in all regions.
    OPERATOR ENVIRONMENT
    • 75 mm (3 in) retractable seatbelt
    • Automatic temperature control
    • Cab, enclosed ROPS/FOPS pressurized and sound suppressed
    • Push to Start
    • 8 Inch Touch Screen
    • Programmable Joystick
    • Cup holders
    • External mirrors with lower parabolic
    • Ground level cab door release
    • Hydraulic control lockout
    • Interior cab lighting, door
    • Lunch box storage
    • Radio ready speakers
    • Seat mounted electronic implement controls, adjustable
    • Sliding glass on side window
    • Column mounted multi function control lights, wipers, turn signal
    • Suspension seat, fabric
    • Tilt steering wheel
    • Tinted front glass
    • Wet arm wiper/washer, 2-speed and intermittent, front
    • Wet arm wiper washer, rear
    • Mounting Provision
    • Digital hour meter, odometer and tachometer
    • Digital ground speedometer and direction indicator
    • Engine coolant temperature gauge
    • Fuel and diesel exhaust fluid levels
    • Hydraulic oil temperature gauge
    • Fuel and diesel exhaust fluid levels
    • Hydraulic oil temperature gauge
    POWER TRAIN
    • Cat C7.1 engine
    • Auto idle shut down feature
    • Auto Engine RPM
    • Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
    • Turbocharged and aftercooled
    • Filtered crankcase breather
    • Power Modes (standard and performance)
    • Dry type air cleaner
    • Coolant protection to –34 °C (–29 °F)
    • Fuel priming pump, automatic
    • Fuel water separator
    • Axle seal guards
    • Enclosed wet disc full hydraulic brakes
    • Parking brake, electric
    • Lubed for life driveshafts
    • Hydrostatic transmission with electronic control
    • Operator modes (TC, Hystat, Single Pedal and Ice)
    • Directional shift aggressiveness (fast, medium, slow)
    • Auto Wheel Torque control, adjust wheel torque
    • Creeper control, adjust ground speed
    • Single plane cooling package, wide 6 fins per inch density
    • Hydraulically driven demand cooling fan
    • Scheduled Oil Sampling (S·O·SSM) port, engine, coolant, transmission
    HYDRAULICS
    • Automatic lift and bucket kickouts, adjustable in-cab
    • Bucket and fork modes, adjustable in-cab
    • Cylinder damping at kickout and mechanical end stops
    • Fine mode control (fast, medium, slow)
    • Hydraulic response setting (fast, medium, slow)
    • Hydraulic diagnostic connectors and S·O·S ports
    • Hydraulic sight gauge, visible
    • Load sensing hydraulics and steering
    • Seat mounted hydraulic joystick controls
    ELECTRICAL
    • Alternator, 115-amp, heavy duty
    • 12V power supply in cab (2)
    • Batteries, 1,000 CCA (2) 24-volt system, disconnect switch
    • Back up alarm
    • Emergency shutdown switch
    • LED rear stop and turn lights
    • Heavy duty gear reduction starter
    • Product Link™
    • Remote jump start post
    • Resettable main and critical function breakers
    • Roading lights front and rear
    OTHER
    • Large-access enclosure doors with adjustable close/open force
    • Parallel lift loader linkage
    • Recovery hitch with pin
    • Remote mounted lubrication points
    • Lockable compartments

    Additional information

    Offering Type

    Rated Engine Power - ISO 14396

    119 kW ( 160 HP )

    Engine Model

    Cat C7.1*

    Engine - Performance Mode

    Automatic

    Rated Gross Power - Rated Engine Speed

    1800 r/min ( 1800 r/min )

    Rated Engine Power - ISO 14396 (DIN)

    162 mhp ( 162 mhp )

    Engine - Rated Net Power - SAE J1349 at Minimum Fan Speed

    116 kW ( 156 HP )

    Engine - Rated Net Power - ISO 9249 at Minimum Fan Speed

    116 kW ( 156 HP )

    Engine - Rated Net Power - ISO 9249 (DIN) at Minimum Fan Speed

    159 mhp ( 159 mhp )

    Maximum Gross Torque - Engine Speed

    1400 r/min ( 1400 r/min )

    Engine - Maximum Gross Torque - ISO 14396

    787 N·m ( 580 ft·lbf )

    Engine - Maximum Net Torque - SAE J1349

    753 N·m ( 555 ft·lbf )

    Engine - Maximum Net Torque - ISO 9249

    761 N·m ( 561 ft·lbf )

    Engine - Displacement

    7.01 l ( 427 in³ )

    Engine - Bore

    105 mm ( 4 in )

    Engine - Stroke

    135 mm ( 5 in )

    Engine - Note

    *Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.

    Engine - Note (1)

    Advertised power is tested per the specified standard in effect at the time of manufacture.

    Engine - Note (2)

    Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed.

    Weights - Operating Weight

    13246 kg ( 29202 lb )

    Weights - Operating Weight - High Lift

    13472 kg ( 29700 lb )

    Buckets - Bucket Capacities

    1.9-5.0 m3 (2.5-6.5 yd3)

    Steering Cylinder - Bore Diameter

    70 mm ( 2.8 in )

    Steering Cylinder - Rod Diameter

    40 mm ( 1.6 in )

    Steering Cylinder - Stroke

    438 mm ( 17.2 in )

    Maximum Flow - Steering Pump

    130 l/min ( 34 gal/min )

    Maximum Working Pressure - Steering Pump

    24130 kPa ( 3500 psi )

    Steering Cycle Times (Full Left to Full Right) - Minimum RPM: Pump Flow Limited

    2.8 s ( 2.8 s )

    Steering Cycle Times (Full Left to Full Right) - Maximum RPM: 90 RPM Steering Wheel Speed

    2.4 s ( 2.4 s )

    Loader Hydraulic System - Maximum Flow - Implement Pump

    190 l/min ( 50 gal/min )

    Loader Hydraulic System - Maximum Flow - Implement Pump - 3rd Function Maximum Flow*

    190 l/min ( 50 gal/min )

    Loader Hydraulic System - Maximum Flow - Implement Pump - 4th Function Maximum Flow*

    160 l/min ( 42 gal/min )

    Loader Hydraulic System - Maximum Working Pressure - Implement Pump

    26000 kPa ( 3771 psi )

    Loader Hydraulic System - Relief Pressure - Tilt Cylinder

    28000 kPa ( 4061 psi )

    Loader Hydraulic System - Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure

    25000 kPa ( 3626 psi )

    Loader Hydraulic System - Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure

    28000 kPa ( 4061 psi )

    Loader Hydraulic System - Lift Cylinder: Standard Lift Linkage - Bore Diameter

    120 mm ( 4.7 in )

    Loader Hydraulic System - Lift Cylinder: Standard Lift Linkage - Rod Diameter

    65 mm ( 2.6 in )

    Loader Hydraulic System - Lift Cylinder: Standard Lift Linkage - Stroke

    728 mm ( 28.7 in )

    Loader Hydraulic System - Tilt Cylinder: Standard Lift Linkage - Bore Diameter

    150 mm ( 5.9 in )

    Loader Hydraulic System - Tilt Cylinder: Standard Lift Linkage - Rod Diameter

    90 mm ( 3.5 in )

    Loader Hydraulic System - Tilt Cylinder: Standard Lift Linkage - Stroke

    555 mm ( 21.9 in )

    Loader Hydraulic System - Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift

    5.1 s ( 5.1 s )

    Loader Hydraulic System - Hydraulic Cycle Time - Dump (at Maximum Lift Height)

    1.5 s ( 1.5 s )

    Loader Hydraulic System - Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level

    2.7 s ( 2.7 s )

    Loader Hydraulic System - Hydraulic Cycle Time - Total Cycle Time

    9.3 s ( 9.3 s )

    Loader Hydraulic System - Note

    *3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped.

    Service Refill Capacities - Fuel Tank

    195 l ( 51.5 gal (US) )

    Service Refill Capacities - Cooling System

    32 l ( 8.5 gal (US) )

    Service Refill Capacities - Engine Crankcase

    19.5 l ( 5.2 gal (US) )

    Service Refill Capacities - Transmission - Gear Box

    8.5 l ( 2.2 gal (US) )

    Service Refill Capacities - Front Axles

    26 l ( 6.9 gal (US) )

    Service Refill Capacities - Rear Axles

    25 l ( 6.6 gal (US) )

    Service Refill Capacities - Hydraulic System - Including Tank

    165 l ( 43.6 gal (US) )

    Service Refill Capacities - Hydraulic Tank

    90 l ( 23.8 gal (US) )

    Transmission - Forward and Reverse - Range 1*

    1-13 km/h (0.6-8 mph)

    Transmission - Forward and Reverse - Range 2

    13 km/h ( 8 mile/h )

    Transmission - Forward and Reverse - Range 3

    27 km/h ( 17 mile/h )

    Transmission - Forward and Reverse - Range 4

    40 km/h ( 25 mile/h )

    Transmission - Note

    *Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph).

    Tires - Standard Size

    20.5 R25, radial (L-3)

    Tires - Other Choices Include

    20.5 R25, radial (L-5), 20.5-25 16 PR (L-3)

    Tires - Note (1)

    Other tire choices are available. Contact your Cat dealer for details.

    Tires - Note (2)

    In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.

    Tires - Note (3)

    Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

    Cab - ROPS

    ISO 3471:2008

    Cab - FOPS

    ISO 3449:2005 LEVEL II

    Axles - Front

    Fixed; Open differential (standard); Locking differential (optional)

    Axles - Rear

    Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional)

    Air Conditioning System - Air Conditioning

    The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.99 tons).

    Operator Sound Pressure (ISO 6396:2008)

    68 dB(A) ( 68 dB(A) )

    Average Exterior Sound Pressure (ISO 6395:2008)

    101 dB(A) ( 101 dB(A) )

    Sound - Note (1)

    Measurements were conducted with properly installed and maintained cab doors and windows closed.

    Sustainability - Recyclability

    95%

    Dimensions with Bucket - Standard Lift - Height - Ground to Cab**

    3340 mm ( 131.5 in )

    Dimensions with Bucket - Standard Lift - Height - Ground to Beacon**

    3707 mm ( 146 in )

    Dimensions with Bucket - Standard Lift - Height - Ground to Axle Center**

    685 mm ( 26.9 in )

    Dimensions with Bucket - Standard Lift - Height - Ground Clearance**

    397 mm ( 15.6 in )

    Dimensions with Bucket - Standard Lift - Length - Overall*

    7613 mm ( 299.7 in )

    Dimensions with Bucket - Standard Lift - Length - Rear Axle to Bumper

    1993 mm ( 78.4 in )

    Dimensions with Bucket - Standard Lift - Length - Hitch to Front Axle

    1500 mm ( 59 in )

    Dimensions with Bucket - Standard Lift - Length - Wheel Base

    3000 mm ( 118.1 in )

    Dimensions with Bucket - Standard Lift - Clearance - Bucket at 45°*

    2761 mm ( 108.7 in )

    Dimensions with Bucket - Standard Lift - Clearance - Load over Height**

    3331 mm ( 131.1 in )

    Dimensions with Bucket - Standard Lift - Clearance - Level Bucket**

    3580 mm ( 141 in )

    Dimensions with Bucket - Standard Lift - Height - Bucket Pin**

    3907 mm ( 153.8 in )

    Dimensions with Bucket - Standard Lift - Height - Overall**

    5239 mm ( 206.2 in )

    Dimensions with Bucket - Standard Lift - Reach - Bucket at 45°*

    1109 mm ( 43.6 in )

    Dimensions with Bucket - Standard Lift - Carry Height - Bucket Pin

    410 mm ( 16 in )

    Dimensions with Bucket - Standard Lift - Dig Depth**

    100 mm ( 3.9 in )

    Dimensions with Bucket - Standard Lift - Width - Bucket

    2550 mm ( 100.4 in )

    Dimensions with Bucket - Standard Lift - Width - Tread Center

    1930 mm ( 76 in )

    Dimensions with Bucket - Standard Lift - Turning Radius - Over Bucket

    5961 mm ( 234.7 in )

    Dimensions with Bucket - Standard Lift - Width - Over Tires

    2540 mm ( 100 in )

    Dimensions with Bucket - Standard Lift - Turning Radius - Outside of Tires

    5402 mm ( 212.6 in )

    Dimensions with Bucket - Standard Lift - Turning Radius - Inside of Tires

    2851 mm ( 112.2 in )

    Dimensions with Bucket - Standard Lift - Rack Angle at Full Lift

    54 ° ( 54 ° )

    Dimensions with Bucket - Standard Lift - Dump Angle at Full Lift

    48 ° ( 48 ° )

    Dimensions with Bucket - Standard Lift - Rack Angle at Carry

    44 ° ( 44 ° )

    Dimensions with Bucket - Standard Lift - Departure Angle

    33 ° ( 33 ° )

    Dimensions with Bucket - Standard Lift - Articulation Angle

    40 ° ( 40 ° )

    Dimensions with Bucket - Standard Lift - Tipping Load - Straight (ISO 14397-1:2007)*

    9737 kg ( 21466 lb )

    Dimensions with Bucket - Standard Lift - Tipping Load - Full Turn (ISO 14397-1:2007)*

    8634 kg ( 18439 lb )

    Dimensions with Bucket - Standard Lift - Breakout*

    11970 kg ( 26388 lb )

    Dimensions with Bucket - Standard Lift - Operating Weight

    13246 kg ( 29202 lb )

    Dimensions with Bucket - Standard Lift - Note (1)

    *Vary with bucket.

    Dimensions with Bucket - Standard Lift - Note (2)

    **Vary with tire.

    Dimensions with Bucket - Standard Lift - Note (3)

    Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.5 m3 (3.2 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge.

    Dimensions with Bucket - High Lift - Height - Ground to Cab**

    3340 mm ( 131.5 in )

    Dimensions with Bucket - High Lift - Height - Ground to Beacon**

    3707 mm ( 146 in )

    Dimensions with Bucket - High Lift - Height - Ground to Axle Center**

    685 mm ( 26.9 in )

    Dimensions with Bucket - High Lift - Height - Ground Clearance**

    397 mm ( 15.6 in )

    Dimensions with Bucket - High Lift - Length - Overall*

    8407 mm ( 331 in )

    Dimensions with Bucket - High Lift - Length - Rear Axle to Bumper

    1993 mm ( 78.4 in )

    Dimensions with Bucket - High Lift - Length - Hitch to Front Axle

    1500 mm ( 59 in )

    Dimensions with Bucket - High Lift - Length - Wheel Base

    3000 mm ( 118.1 in )

    Dimensions with Bucket - High Lift - Clearance - Bucket at 45°*

    3353 mm ( 132 in )

    Dimensions with Bucket - High Lift - Clearance - Load over Height**

    3540 mm ( 139.3 in )

    Dimensions with Bucket - High Lift - Clearance - Level Bucket**

    4173 mm ( 164.3 in )

    Dimensions with Bucket - High Lift - Height - Bucket Pin**

    4500 mm ( 177.2 in )

    Dimensions with Bucket - High Lift - Height - Overall**

    5382 mm ( 229.6 in )

    Dimensions with Bucket - High Lift - Reach - Bucket at 45°*

    1429 mm ( 56.2 in )

    Dimensions with Bucket - High Lift - Carry Height - Bucket Pin

    638 mm ( 25.1 in )

    Dimensions with Bucket - High Lift - Dig Depth**

    135 mm ( 5.3 in )

    Dimensions with Bucket - High Lift - Width - Bucket

    2550 mm ( 100.4 in )

    Dimensions with Bucket - High Lift - Width - Tread Center

    1930 mm ( 76 in )

    Dimensions with Bucket - High Lift - Turning Radius - Over Bucket

    6351 mm ( 250 in )

    Dimensions with Bucket - High Lift - Width - Over Tires

    2540 mm ( 100 in )

    Dimensions with Bucket - High Lift - Turning Radius - Outside of Tires

    5402 mm ( 212.6 in )

    Dimensions with Bucket - High Lift - Turning Radius - Inside of Tires

    2851 mm ( 112.2 in )

    Dimensions with Bucket - High Lift - Rack Angle at Full Lift

    53 ° ( 53 ° )

    Dimensions with Bucket - High Lift - Dump Angle at Full Lift

    47 ° ( 47 ° )

    Dimensions with Bucket - High Lift - Rack Angle at Carry

    50 ° ( 50 ° )

    Dimensions with Bucket - High Lift - Departure Angle

    33 ° ( 33 ° )

    Dimensions with Bucket - High Lift - Articulation Angle

    40 ° ( 40 ° )

    Dimensions with Bucket - High Lift - Tipping Load - Straight (ISO 14397-1:2007)*

    7021 kg ( 15478 lb )

    Dimensions with Bucket - High Lift - Tipping Load - Full Turn (ISO 14397-1:2007)*

    5697 kg ( 13155 lb )

    Dimensions with Bucket - High Lift - Breakout*

    11674 kg ( 25738 lb )

    Dimensions with Bucket - High Lift - Operating Weight

    13472 kg ( 29700 lb )

    Dimensions with Bucket - High Lift - Note (1)

    *Vary with bucket.

    Dimensions with Bucket - High Lift - Note (2)

    **Vary with tire.

    Dimensions with Bucket - High Lift - Note (3)

    Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.5 m3 (3.2 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge.

    Select Up To 3 Models To Compare
