990K

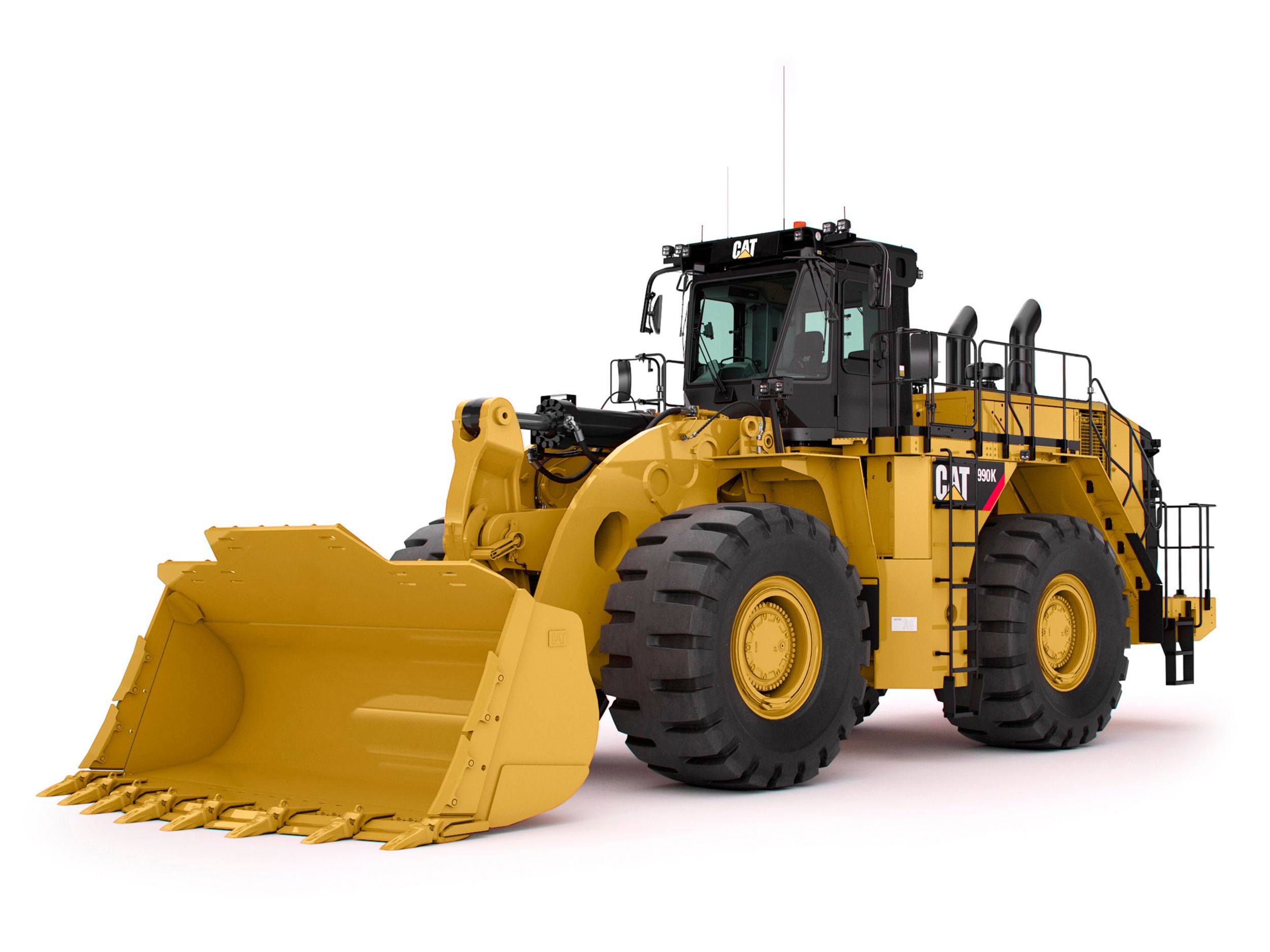

990K Wheel Loader

Cat Large Wheel Loaders are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to move more material efficiently and safely at a lower cost per ton. The Cat 990 Wheel Loader has been a proven performer in mines, quarries and industrial applications around the world. The 990K brings all new levels of performance, safety, operator comfort and efficiency.

Category:
Add to Quote

PROVEN RELIABILITY

PERFORMANCE AND PRODUCTIVITY

OPERATOR COMFORT AND CONTROL

LONG TERM VALUE AND DURABILITY

POWERFUL EFFICIENCY

PRODUCTIVITY WITH TECHNOLOGY

SAVE ON SERVICE AND MAINTENANCE

TOP-TIER SERVICE AND SUPPORT

SAFETY FIRST

REDUCE ENVIRONMENT IMPACT

EFFICIENT EQUIPMENT MATCH

ATTACHMENTS TO MEET YOUR NEEDS

PERFORMANCE WITH LESS FUEL

Videos

Virtual Tours

Documents & Brochures

Standard Equipment

NOTE
  • Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
  • Air conditioner and heater with automatic temperature control
  • Cab, sound-suppressed pressurized, protective structure (ROPS/FOPS), radio ready for (entertainment) includes antenna, speakers and converter (12V, 10-15 amp)
  • 12V power port for mobile phone or laptop connection
  • Camera, rear vision
  • Cigar lighter and ashtray
  • Coat hook
  • Electro-hydraulic tilt and lift controls (seat mounted)
  • Flip-up armrest
  • Heater and defroster
  • Horn, electric
  • Implement hydraulic lockout
  • Instrumentation, gauges:
    – Engine coolant temperature
    – Fuel level
    – Ground speed
    – Gear
    – Hydraulic oil temperature
    – Speedometer/tachometer
    – Torque converter temperature
  • Instrumentation, warning indicators:
    – Action alert system, three category
    – Automatic transmission model enable status
    – Brake malfunction
    – Bucket float status
    – Delayed engine shutdown status
    – Engine idle shutdown status
    – Engine malfunction
    – Fuel economy mode enable status
    – Hydraulic lockout
    – Lockup clutch enable status
    – Low fuel level
    – Parking brake status
    – Rimpull control enable status
    – Seatbelt warning
    – Secondary steering (if equipped)
    – Throttle lock status
    – Transmission gear
  • Keypad, control with indicator lights:
    – Auto trans mode speed range
    – Auto/manual transmission mode
    – Fuel economy mode
    – Implement kickout
    – Lockup clutch
    – Reduced rimpull
    – Throttle lock
  • Light, dome (cab)
  • Lunchbox and beverage holders
  • Mirrors, rearview (externally mounted)
  • Seat, Cat comfort (cloth) air suspension
  • Seat belt, retractable, 76 mm (3 in) wide
  • STIC control system with steering lock
  • Tinted glass
  • Trainer seat with lap belt
  • Vital Information Management System (VIMS) 3G with graphical information display: external data port, customizable operator profiles, cycle timer, and integral Cat Production Measurement
    – Wet-arm wipers/washers (front, rear and corner) intermittent front wiper
POWER TRAIN
  • Brakes, full hydraulic, enclosed, oil-disc
  • Axle-shaft oil-disc service brake
  • Electro hydraulic parking brake
  • Case drain filters
  • Cat clean emission module (Tier 4 only)
  • Demand fan
  • Engine Cat C27
  • Fuel priming pump (electric)
  • Ground level engine shutoff, bumper
  • Mufflers (under hood) (Tier 2 equivalent only)
  • Precleaner, engine air intake
  • Radiator, Aluminum Modular (AMR)
  • Separated cooling system
  • Starting aid, (ether) manual override
  • Throttle Lock
  • Torque Converter, Impeller Clutch with lock-up clutch feature and rimpull control system
  • Transmission, 534 mm (21 in) planetary power shift (electronic) (3F/3R)
ELECTRICAL
  • Alarm, back-up
  • Alternator, 150 amp
  • Batteries, maintenance free (2 – 1,400 CCA)
  • Converter, 10/15 amp, 24V to 12V
  • Deutsch component connectors
  • Electrical system, 24V
  • Electronic transmission control
  • Lighting system, halogen (front and rear) lighting, access stairway, engine compartment
  • Starter, electric
  • Starter lockout in bumper
  • Starting receptacle for emergency start
  • Transmission lockout in bumper
OTHER
  • Automatic bucket tilt/lift kickouts electronically adjustable from cab
  • Axle temperature sensor
  • Battery disconnect and jump start receptacle, bumper
  • Coupling, Caterpillar O-ring face seals
  • Economy mode with on demand throttle
  • Emergency platform egress
  • Engine, crankcase, 500 hour interval with CH4
  • Engine idle management features:
    – Auto idle kickdown
    – Delayed engine shutdown
    – Engine idle shutdown
  • Fenders, steel (front)
  • Guards, crankcase and power train
  • Grouped/labeled lube points
  • Hitch, drawbar with pin
  • Hoses, Cat XT™
  • Oil sampling valves
  • Positive flow control hydraulic system
  • Product Link
  • Sight Gauges: hydraulic tanks, steering/fan and implement/brake, and transmission
  • Stairway, left and right rear access
  • Steering, load sensing
  • Toe kicks
  • Vandalism protection caplocks
  • Venturi stack
  • Premixed 50% concentration of extended life coolant with freeze protection to –34° C (–29° F)

Additional information

Operating Specifications - Rated Payload - Loose Material (Standard)

22 t ( 20 ton (US) )
Operating Specifications - Rated Payload - Loose Material (High Lift)

20 t ( 22 ton (US) )
Operating Specifications - Rated Payload - Standard (Quarry Face)

15.9 t ( 17.5 ton (US) )
Operating Specifications - Rated Payload - High Lift (Quarry Face)

15.9 t ( 17.5 ton (US) )
Operating Specifications - Bucket Capacity Range

8,6 m³ – 10,0 m³ (11,25 yd³ – 13,0 yd³)
Operating Specifications - Cat Truck Match - Standard

773-775
Operating Specifications - Cat Truck Match - High Lift

775-777
Engine - Net Power

521 kW ( 699 HP )
Operating Specifications - Operating Weight

80974 kg ( 178517 lb )
Buckets - Bucket Capacities

7,4-14,9 m³ (9,7-19,5 yd³)
Engine Model

C27 Cat®
Engine - Bore

137.2 mm ( 5.4 in )
Engine - Stroke

152.4 mm ( 6 in )
Engine - Displacement

27.03 l ( 1649.5 in³ )
Engine - Torque Rise

18 % ( 18 % )
Engine - Rated Speed

1,800/min
Transmission Type

Cat-Planetenlastschaltgetriebe
Transmission - Forward - 1

7.3 km/h ( 4.5 mile/h )
Transmission - Forward - 2

13.3 km/h ( 8.3 mile/h )
Transmission - Forward - 3

22.9 km/h ( 14.2 mile/h )
Transmission - Reverse - 1

7.9 km/h ( 4.9 mile/h )
Transmission - Reverse - 2

14.7 km/h ( 9.1 mile/h )
Transmission - Reverse - 3

24.9 km/h ( 15.5 mile/h )
Transmission - Direct Drive - Forward 1

Lock-up disabled
Transmission - Direct Drive - Forward 2

13.7 km/h ( 8.5 mile/h )
Transmission - Direct Drive - Forward 3

24.5 km/h ( 15.2 mile/h )
Transmission - Direct Drive - Reverse 1

8.7 km/h ( 5.4 mile/h )
Transmission - Direct Drive - Reverse 2

15.4 km/h ( 9.6 mile/h )
Transmission - Direct Drive - Reverse 3

26.4 km/h ( 16.4 mile/h )
Axles - Front

Fixed
Axles - Rear

Trunnion
Axles - Oscillation Angle

8.5°
Hydraulic Cycle Times - Raise

8.2 s ( 8.2 s )
Hydraulic Cycle Times - Dump

2.9 s ( 2.9 s )
Service Refill Capacities - Fuel Tank

1114 l ( 294.3 gal (US) )
Service Refill Capacities - Cooling System

208 l ( 54.9 gal (US) )
Service Refill Capacities - Transmission

110 l ( 29.1 gal (US) )
Engine - Rated Speed - Net Power - SAE J1349 - Standard Ambient

521 kW ( 699 HP )
Hydraulic System - Lift/Tilt - Pilot System

Open loop and pressure reducing
Sound Performance - Suppression - Operator Sound Level (ISO 6396:2008)

69 dB(A) ( 69 dB(A) )
Sound Performance - Suppression - Machine Sound Level (ISO 6395:2008)

113 dB(A) ( 113 dB(A) )
Engine - Rated Speed - Net Power - SAE J1349 - High Ambient

483 kW ( 648 HP )
Service Refill Capacities - Hydraulic Tank - Implement and Hydraulic Fan

261 l ( 68.9 gal (US) )
Sound Performance - Standard - Machine Sound Level (ISO 6395:2008)

115 dB(A) ( 115 dB(A) )
Hydraulic Cycle Times - Lower Float Down

3.6 s ( 3.6 s )
Hydraulic System - Lift/Tilt - Maximum Flow at 1,800 rpm (1)

817 l/min ( 216 gal/min )
Hydraulic Cycle Times - Lower

3.7 s ( 3.7 s )
Hydraulic Cycle Times - Total Hydraulic Cycle Time - Empty Bucket

13.8 s ( 13.8 s )
Engine - Rated Speed - Gross - SAE J1995

571 kW ( 766 HP )
Sound Performance - Standard - Operator Sound Level (ISO 6396:2008)

69 dB(A) ( 69 dB(A) )
Engine - Net Power - SAE J1349

521 kW ( 699 HP )
Hydraulic System - Lift/Tilt - Cylinders, Double Acting - Lift, Bore and Stroke

235 mm × 1287 mm (9.3 in × 50.7 in)
Service Refill Capacities - Differential - Final Drives - Rear

261 l ( 68.9 gal (US) )
Hydraulic System - Lift/Tilt - Relief Valve Setting - Lift/Tilt

33000 kPa ( 4786 psi )
Hydraulic System - Steering - Total Steering Angle

70°
Hydraulic System - Steering - Steering System - Pump

Piston, variable displacement
Hydraulic System - Lift/Tilt - Maximum Flow at 1,800 rpm (2)

84 l/min ( 22.2 gal/min )
Service Refill Capacities - Differential - Final Drives - Front

271 l ( 71.6 gal (US) )
Hydraulic System - Lift/Tilt - Relief Valve Setting - Main

3500 kPa ( 507 psi )
Engine - Emissions

U.S. EPA Tier 4 Final OR Tier 2 Equivalent
Transmission - Note

Travel speeds based on Michelin 45/65R39 LD D2**L5 tires.
Engine - Rated Speed - Gross - ISO 14396

561 kW ( 752 HP )
Hydraulic Cycle Times - Rack Back

4.3 s ( 4.3 s )
Engine - Gross - ISO 14396

561 kW ( 752 HP )
Engine - Peak Torque - 1,200 rpm

3557 N·m ( 2624 lb/ft )
Hydraulic System - Steering - Steering System - Circuit

Pilot, load sensing
Hydraulic System - Steering - Steering

ISO 5010: 2007
Service Refill Capacities - Hydraulic Tank - Steering and Braking

132 l ( 34.9 gal (US) )
Hydraulic System - Steering - Relief Valve Setting - Steering

32000 kPa ( 4641 psi )
Service Refill Capacities - Engine Crankcase

75.7 l ( 20 gal (US) )
Hydraulic System - Lift/Tilt - Lift/Tilt System - Circuit

Positive flow control
Hydraulic System - Lift/Tilt - Cylinders, Double Acting - Tilt, Bore and Stroke

292.1 mm × 820 mm (11.5 in × 32.3 in)
Service Refill Capacities - Hydraulic System Factory Fill

795 l ( 210 gal (US) )
Operator's Cab - ROPS/FOPS

ROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards
Hydraulic System - Steering - Maximum Flow at 1,400 rpm

358 l/min ( 94.5 gal/min )
Hydraulic System - Lift/Tilt - Lift/Tilt System

Variable displacement piston
Service Refill Capacities - Note

All nonroad U.S. EPA Tier 4 diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfur or less. Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214. Cat DEO‑ULS™ or oils that meet the Cat ECF-3, API CJ‑4, and ACEA E9 specification are required. For further fluid specifications and guidelines, visit: http://parts.cat.com/cda/files/3244668/7/SEBU6250-19.pdf.
Brakes

ISO 3450: 2011
