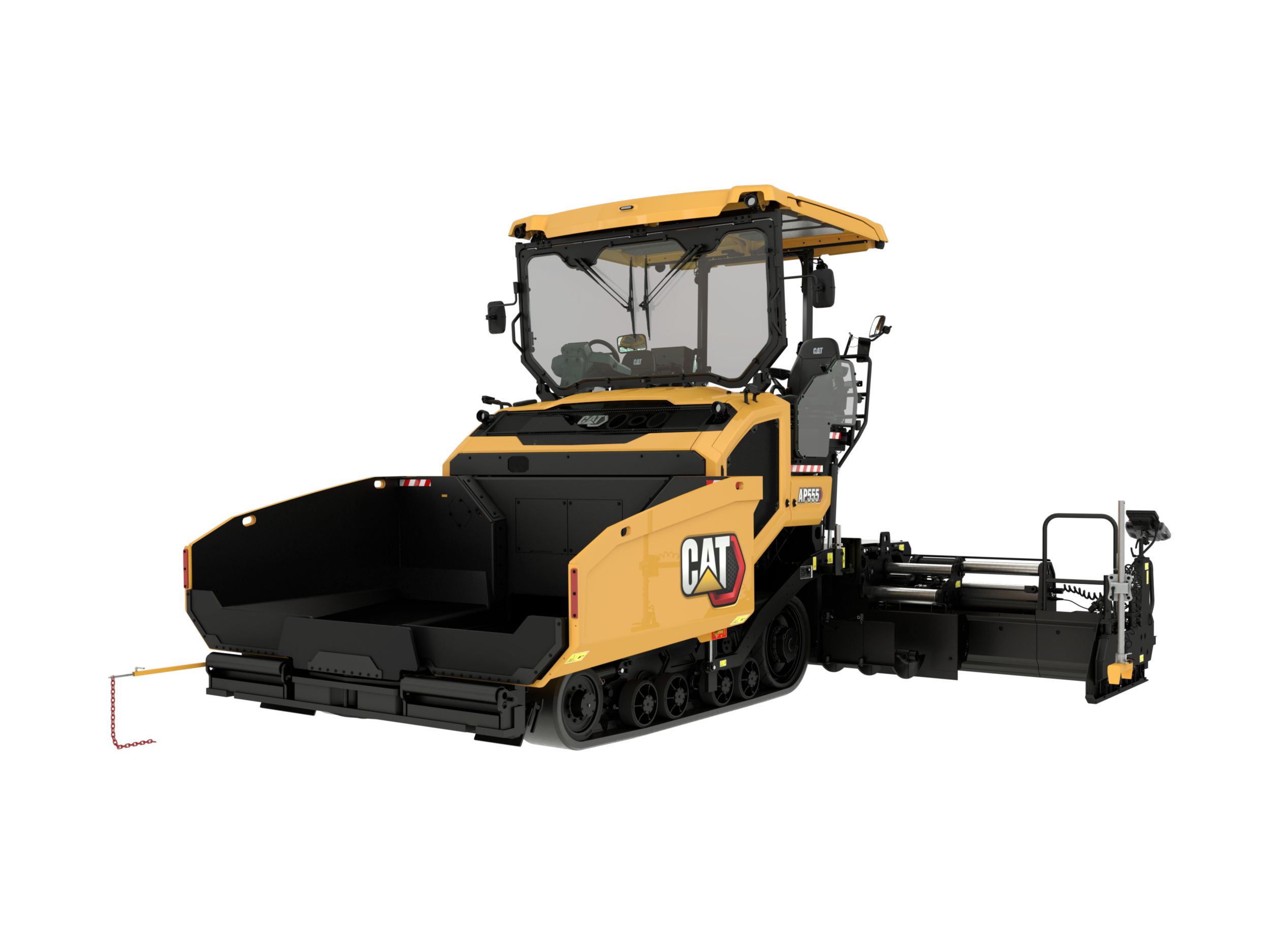

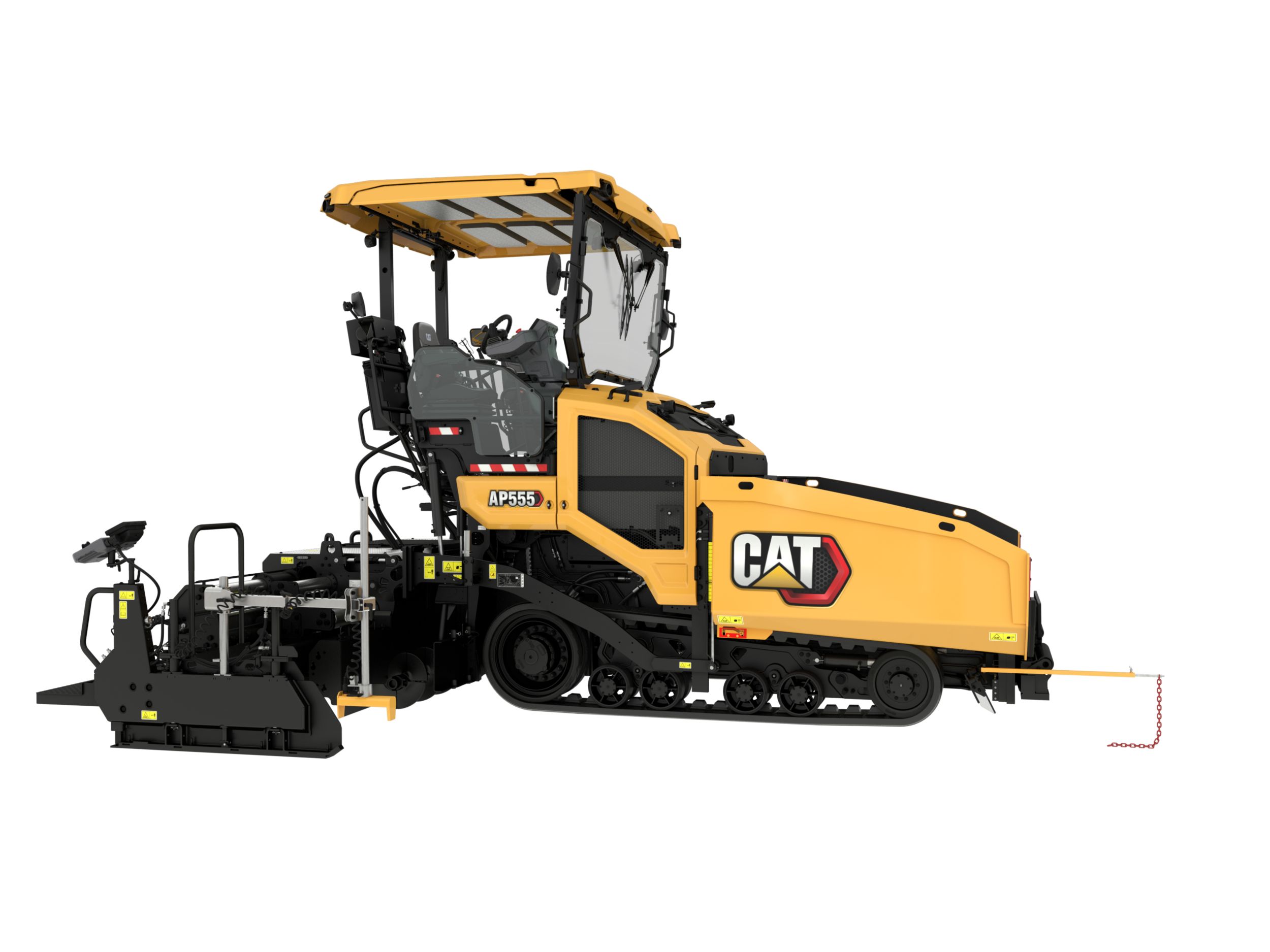

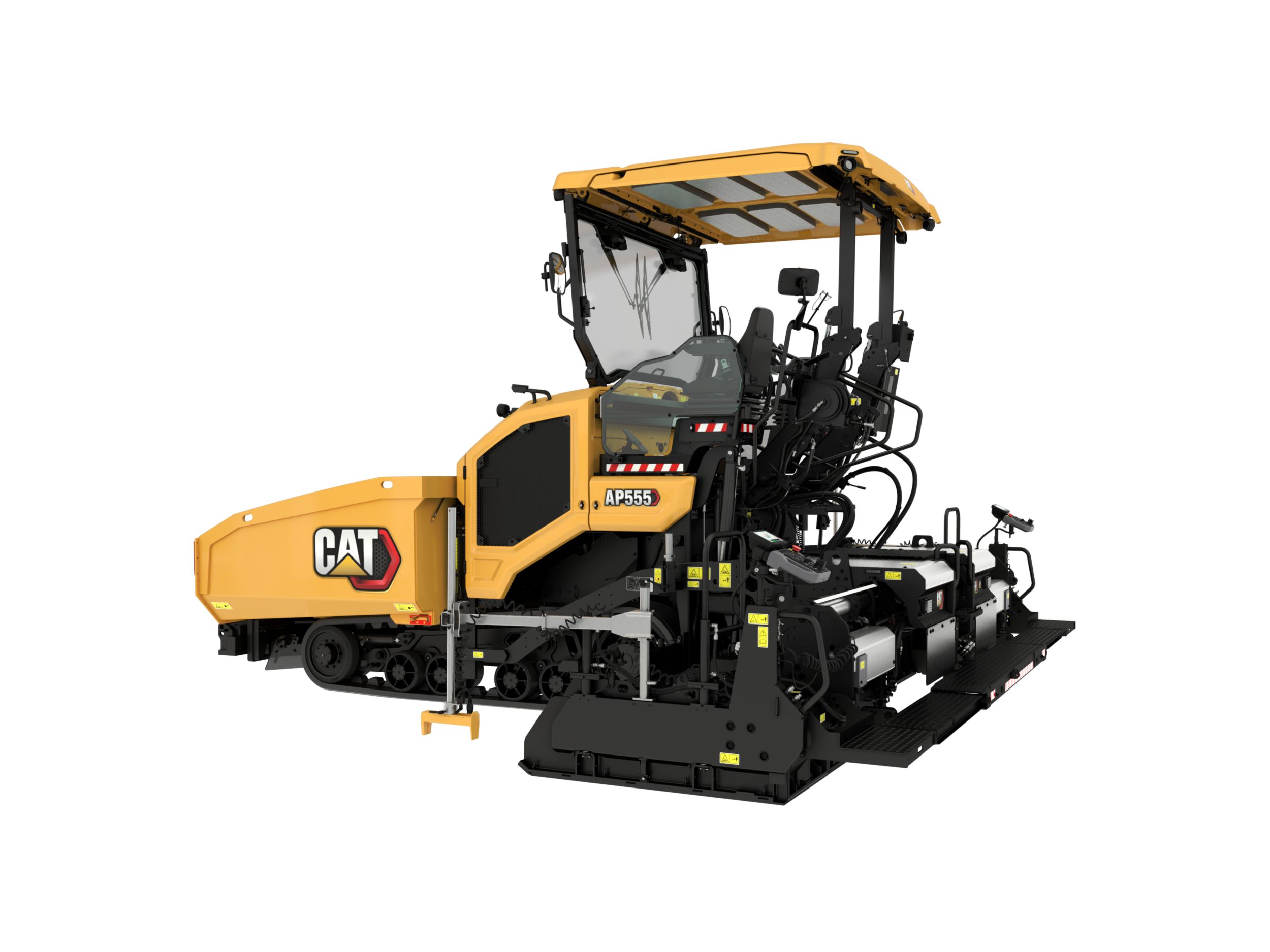

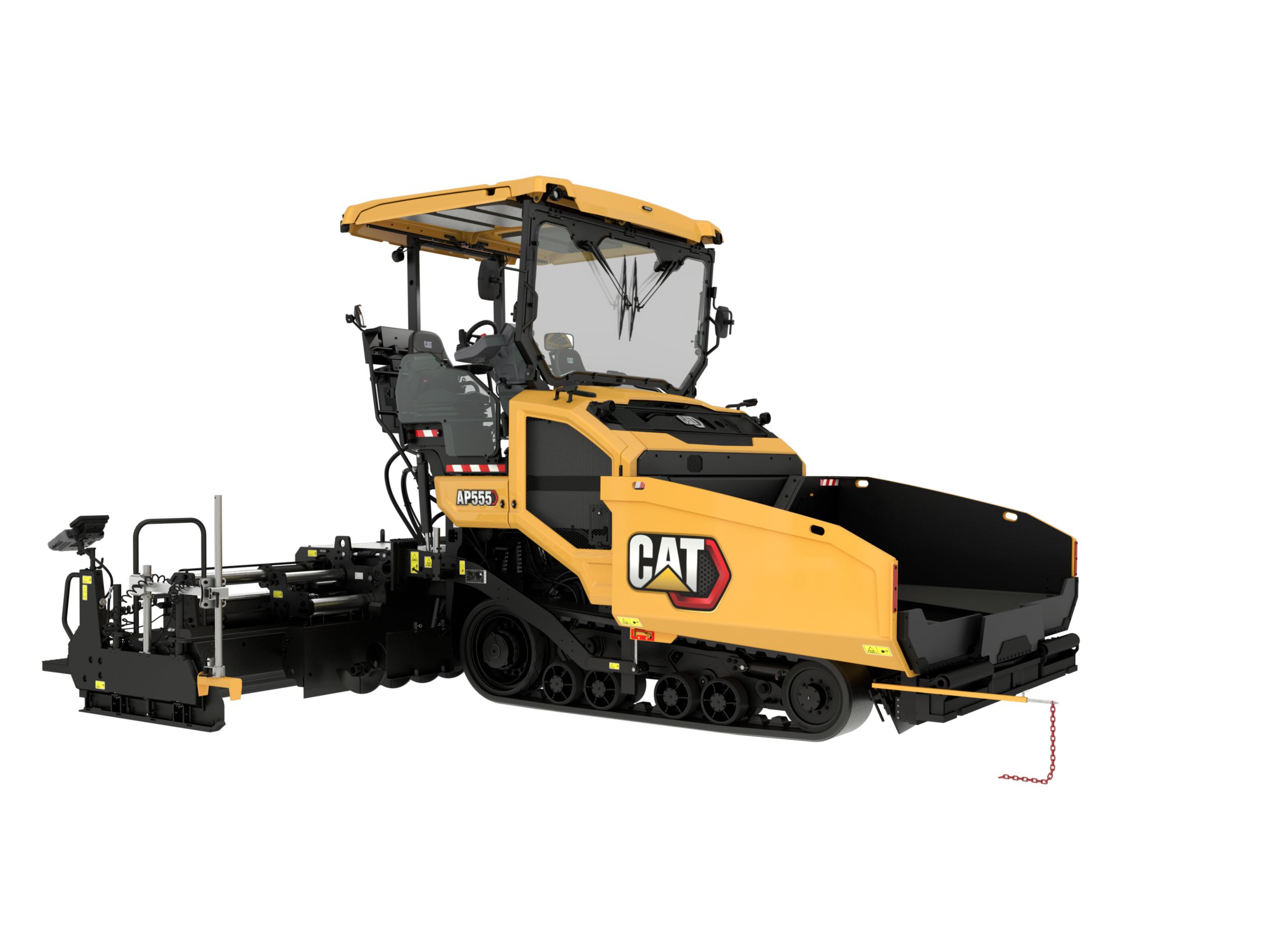

AP555

The Cat® AP555 Mobil-trac™ Asphalt Paver is sized right for both urban and rural applications. It delivers excellent traction and mobility as-well-as easy set-up, and a wide paving range making it the perfect fit for urban streets, car parks, rural roads and many other intermediate sized applications.

More Performance and Flexibility

  • Powerful C4.4 engine supports increased feeder system capacity as well as hopper inserts for continuous paving
  • Tight 90º turning capability enables the paver to rotate and cover tracks on a return paving pass
  • Standard paving range utilizing the SE47 VT screed is 2.4 m - 4.7 m (7' 10" - 15' 4") with a maximum width of 6.0 m (19' 8")

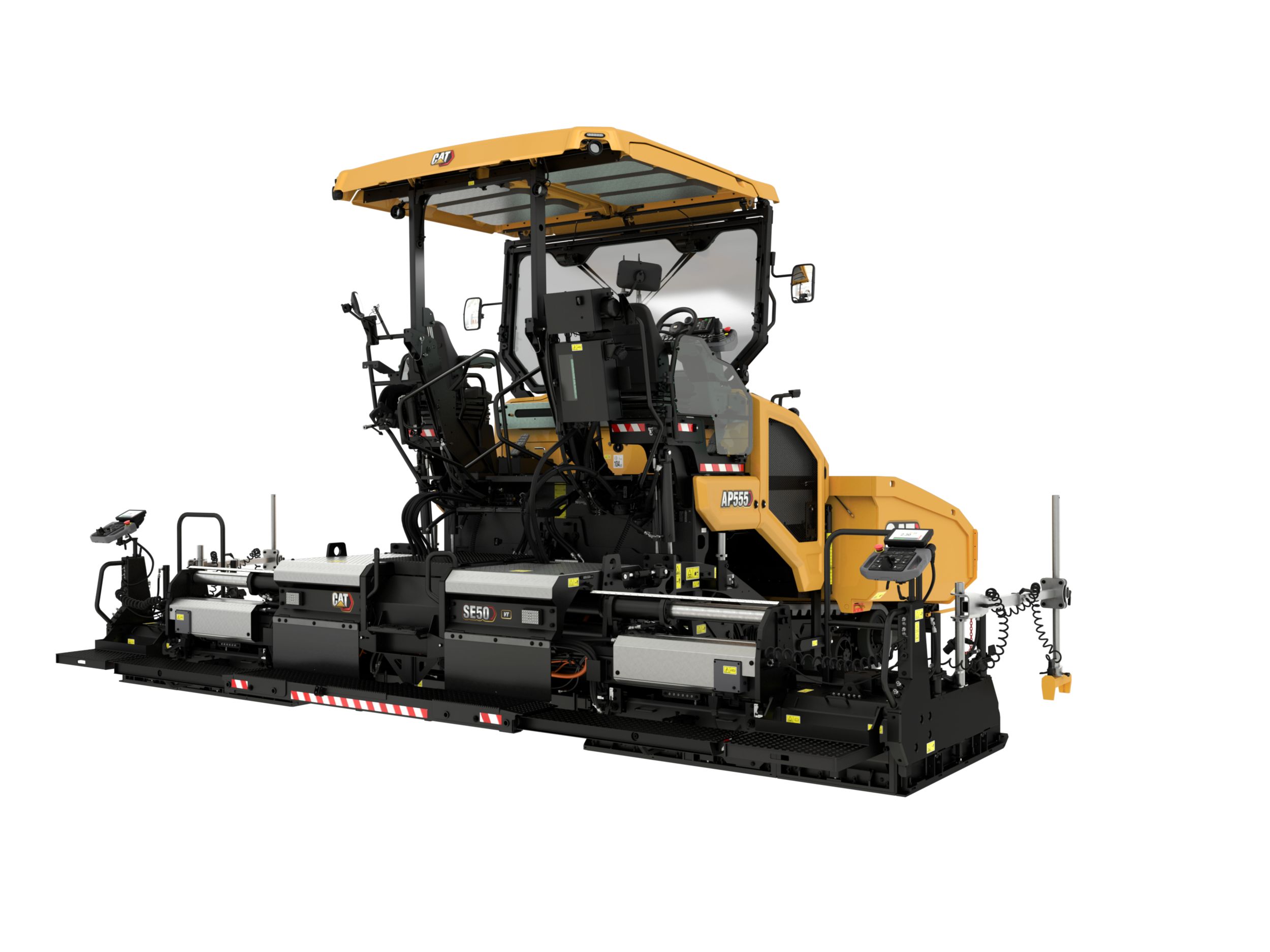

  • Standard paving range utilizing the the SE50 VT is 2.55 m - 5.0 m (8' 4" - 16' 4") with a maximum width of 7.64 m (25')
  • Paving depths up to 300 mm (12") supports aggregate paving applications

Transport Made Easy

  • Paver and screed combination weight of 16 mt (35,258 lb) enables easy transport on a variety of trailer types
  • Length of less than 5.72 m (18' 9") and width of 2.55 m (8' 4") when equipped with the SE47 VT accommodates machine transport without special permits
  • Length of less than 6.0 m (19' 6") and width of 2.55 m (8' 4") when equipped with the SE50 VT and folding end gates accommodates machine transport without special permits
  • The front-loading angle of 15º and high front bumper clearance reduces the need for additional blocking when loading onto various trailer designs
  • Front, middle, and rear tie-down locations make securing the load efficient for quick travel to the next job site

Exceptional Mobility

  • Mobil-trac™ undercarriage provides exceptional mobility, outstanding traction, and fast travel speeds for unmatched maneuverability around the job site
  • Counter-rotating tracks provide excellent maneuverability in tight quarters
  • Self-tensioning accumulators, center guide blocks, and rugged internal belt cables help ensure durability
  • Rubber-coated components help shed asphalt and prevent accumulation
  • Efficient track plow design pushes material away from the tracks and helps eliminate cold patches caused by track compression

Smooth Material Flow

  • Low truck entry height and short front apron enhance material flow while simplifying clean out
  • Feeder system design with 355 mm (14") diameter augers provides consistent material flow across the screed for efficient flow at both narrow and wide paving widths
  • Confined auger chamber keeps material moving and helps eliminate stagnate patches
  • Independent control of each material feed sensor when utilizing a cut-off shoe, simply turn off the sensor for proportional feed system

control

More Comfort

  • Optional ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
  • The single sliding console provides operation from either side of the machine for optimal visibility to curbs, edges, and transverse joints
  • Dual independent seats swing-out 40º beyond the platform for good visibility to curbs and obstacles
  • Optimized height and integrated exhaust provide unobstructed visibility around the machine
  • Optional screed and paver mounted umbrellas offer protection from direct sunlight
  • Heated seat option delivers comfort in cool weather conditions
  • High visibility 76 mm (3") seat belt helps with crew safety compliance

Easy Viewing Displays

  • High-definition, touch screen displays with adjustable brightness control for all types of lighting conditions, including direct sunlight
  • New touch screen operating display with simplified menu structures, intuitive graphics, and short-cut keys help simplify machine adjustments
  • Single-touch functions from main screen include screed heat, washdown system, vibratory activation, ventilation system, accessory panel
  • Cat® Grade Control or Basic Grade Control options available
  • Operating displays can be tailored to specific language requirements with multiple options available
  • Wash-down system includes level indication

Low Owning and Operating Costs

  • Durable Cat C4.4 engine provides 110 kW (148 hp) of power with variations that meet U.S. EPA Tier 4 Final or EU Stage V emission standards. The Cat C4.4 engine also meets UN ECE R96 Stage IIIA emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA and provides 106 kW (142 hp) of power.
  • Single source supplier of Cat engines and machine parts helps maximize uptime
  • Exclusive Eco-mode and Automatic Engine Speed Control reduce fuel consumption and lower sound levels for better comfort and communication
  • Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
  • Maintenance-free high torque motors reduce service requirements for the auger and conveyor drive systems

Product Link™ Elite

  • Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
  • Easily track location, machine hours, fuel usage, and idle time in real time
  • Diagnostic codes are made available through online web applications
  • Remote flash for easy software updates
  • Scheduled maintenance and Scheduled Oil Sampling notification
  • Remote disable deactivates the engine for enhanced security

Service and Repair Kits

  • Paver and screed service and repair kits include all the parts necessary to complete specific repairs
  • Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
  • Repair kits are identified by a single part number to make ordering easy
  • Select kits are available to be packaged as a kit by the dealer for over-the-counter purchases or through the dealer service shop

Standard Equipment

Operating Environment
  • Single sliding console
  • Steering guide
Technology
  • Product Link™ Elite 643 (cellular)
Powertrain
  • Cat C4.4, four-cylinder
  • Cooling fan, variable speed
  • Mobil-trac™, smooth belt
Electrical System
  • 1400 CCA battery, maintenance free
  • 150-amp alternator
  • 12-volt charging system
  • Automotive-type fuse system
  • Auto-reset breaker for material sensors
  • Cat Electronic Technician (Cat ET)
Material Delivery
  • Auger extensions, 0.15 m (6")
  • Material feed sensors, contact
  • Push-roller, adjustable
  • Tamper bar system
Service and Maintenance
  • Hydraulic oil, Cat HYDO™ Advanced
  • Remote access drains
  • Remote flash
  • Service repair kits
  • Sampling ports for Scheduled Oil Sampling
  • Sight Gauges, engine coolant, hydraulic oil
Safety
  • Steering, spring return
  • Alarm, back-up
  • Horn, warning (front & rear)
  • Lights, LED Working
  • Mirror package

Additional information

الأبعاد - نطاق الرصف مع SE47 VT

2,4 م – 6 م (7 أقدام و10 بوصات – 19 قدمًا و8 بوصات)

موديل المحرك (1)

Cat® C4.4 (وكالة حماية البيئة (EPA) الأمريكية من المستوى 4 النهائي، الاتحاد الأوروبي من المرحلة V)

قدرة المحرك (1)

110 كيلووات ( 148 حصان )

موديل المحرك (2)

Cat C4.4 (UN ECE R96 المرحلة IIIA، مكافئ لمعايير وكالة حماية البيئة (EPA) الأمريكية من المستوى 3 ومعايير الاتحاد الأوروبي من المرحلة IIIA)

قدرة المحرك (2)

106 كيلووات ( 142 حصان )

مواصفات التشغيل - الحد الأقصى لسرعة الرصف - بذراع التسوية ذات قضبان المدك

25 m/min ( 82 ft/min )

مواصفات التشغيل - الحد الأقصى لسرعة السير

11 كم/س ( 7 ميل/ساعة )

الأوزان - الوزن التشغيلي مع SE47 VT

15914 كجم ( 35,054 رطل )

الأوزان - وزن الشحن - الراصف فقط

12589 كجم ( 27,754 رطل )

مواصفات التشغيل - الحد الأقصى للسعة الإنتاجية

1000 tonnes/hr ( 1100 ton(US)/h )

الأبعاد - نطاق الرصف مع SE50 VT

2,55 م – 7,64. م (8 أقدام و4 بوصات – 25 قدمًا)

الأبعاد - ارتفاع مدخل الشاحنة

567 مم ( 22 بوصة )

الأبعاد - الطول أثناء التشغيل

5.9 m ( 19.5 قدم )

الأبعاد - عرض التشغيل

3.3 m ( 10.75 قدم )

الأبعاد - الارتفاع الإجمالي

3.8 m ( 12.5 قدم )

الأبعاد - طول النقل

5.7 m ( 18.75 قدم )

الأبعاد - عرض النقل

2.55 m ( 8.3 قدم )

الأبعاد - ارتفاع النقل

2.9 m ( 9.6 قدم )

سعات إعادة التعبئة للخدمة - خزان الوقود

200 l ( 53 جالون (أمريكي) )

سعات إعادة التعبئة للخدمة - خزان DEF

19 l ( 5 جالون (أمريكي) )

سعات إعادة التعبئة للخدمة - نظام التبريد - الإجمالي

24 l ( 6.3 جالون (أمريكي) )

سعات إعادة التعبئة للخدمة - خزان الزيت الهيدروليكي

121 l ( 32 جالون (أمريكي) )

سعات إعادة التعبئة للخدمة - خزان الرش الخاص بالغسل

32 l ( 8.5 جالون (أمريكي) )
