C1.5

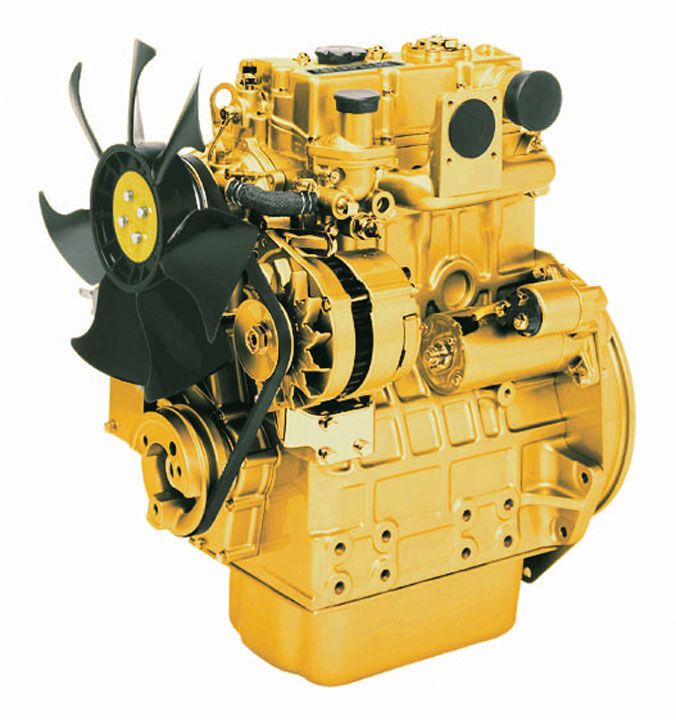

Cat® C1.5 Diesel Engine
Cat® C1.5 Industrial Diesel Engines deliver impressive performance throughout a wide speed range with exceptional power density. Their ultra-compact package size and extensive choice of options ensures these engines are ideal for a wide range of small, off road applications. Single-side servicing improves ease of maintenance and lowers overall owner operating costs. Applications powered by C1.5 engines include: Agriculture Tractors, Combines and Harvesters, Aircraft Ground Support, Bore/Drill Rigs, Chippers, Grinders, Compactors, Rollers, Compressors, Construction, Irrigation, Pumps, Turf, Landscaping, Mobile Earthmoving, Paving, Trenchers, Underground Mining, and Material Handling. C1.5 engines, with ratings: 20.9-30 bkW (28-40.2 bhp) @ 2200-3000 rpm, meet EPA Tier 4 Interim equivalent emission standards. They are available using U.S. EPA Flexibility, and for other regulated and non-regulated areas.
Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.
High Performance
Substantial torque rise delivers impressive performance throughout a wide speed range while maintaining low operating costs.
Fuel Efficiency
Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.
Broad Application Range
Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.
Package Size
Ultra-compact package size ensures ease of installation as well as exceptional power density.
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
Air Inlet System
- Inlet manifold with choice of inlets.
Control System
- Alternator 12 volt 65 amp
- Starter motor 12 volt
- Glow plug starting aid
Cooling System
- Belt-driven coolant pump
- Coolant temperature switch
- Choice of cooling fans
Flywheel & Flywheel Housing
- Naturally Aspirated: SAE No. 7 1/2 flywheel
- Turbocharged: SAE No. 6 1/2 or SAE No. 7 1/2 flywheel
- Naturally Aspirated: Choice of SAE No. 4 or standard backplate flywheel housing
- Turbocharged: Choice of SAE No. 4 or SAE No. 5 or standard backplate flywheel housing
Fuel System
- Fuel injection pump
- Spin-on fuel filter
- Electronic Shut-off Solenoid (ESOS)
Lube System
- Alternative oil fillers
- Spin-on lube oil filter
- Lube oil pressure switch
- Lube oil sump
General
- Cast iron, engine block
- Cast iron exhaust manifold--side outlet
- Cold start capability to -20° C (-4° F)
- Gradeability 35° continuous
- Paint: Caterpillar yellow, with optional colors available at request
Additional information
| Offering Type | |
|---|---|
| Power Rating - Maximum Power | 30 kW ( 40.2 HP ) |
| Power Rating - Maximum Torque | 112 Nm @ 1800 rpm ( 83 lb-ft @ 1800 rpm ) |
| Power Rating - Rated Speed | 2200-3000 rpm |
| Power Rating - Minimum Power | 20.7 kW ( 27.8 HP ) |
| Emission Standards - Emissions | U.S. EPA Tier 4 Interim Equivalent |
| General - Engine Configuration | Inline 3, 4-Stroke-Cycle Diesel |
| General - Bore | 84 mm ( 3.3 in ) |
| General - Stroke | 90 mm ( 3.5 in ) |
| General - Displacement | 1.496 l ( 91 in³ ) |
| General - Compression Ratio | 22.5:1 |
| General - Aspiration | Naturally Aspirated (NA) or Turbocharged (T) |
| General - Combustion System | Indirect Injection |
| General - Rotation from Flywheel End | Counterclockwise |
| General - Aftertreatment | – |
| Engine Dimensions - Approximate - Length | 572 mm ( 22.5 in ) |
| Engine Dimensions - Approximate - Width | 512 mm ( 20.3 in ) |
| Engine Dimensions - Approximate - Height | 643 mm ( 25.3 in ) |
| Engine Dimensions - Approximate - Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 157 kg ( 345 lb ) |
