C1.7

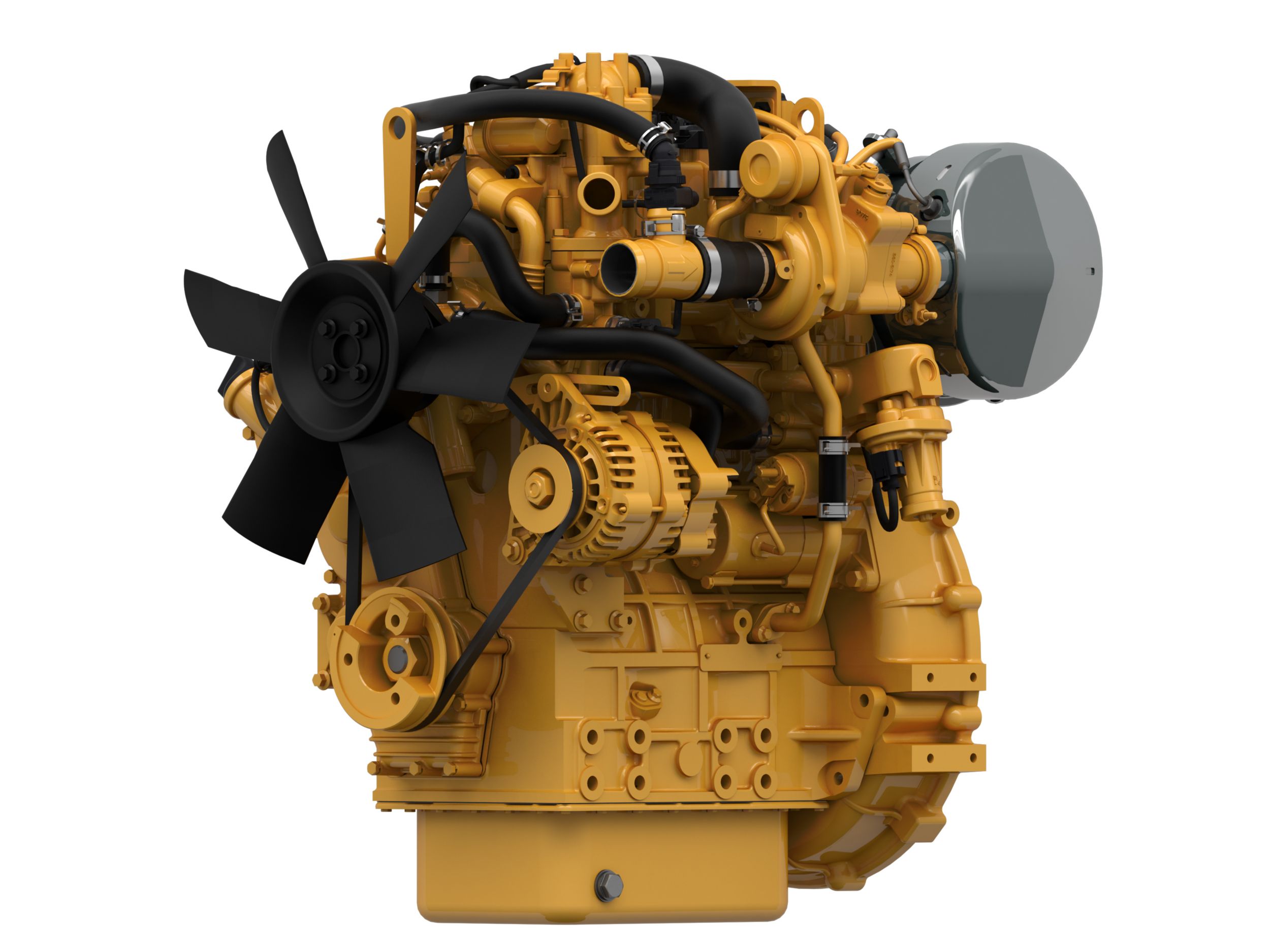

Cat® C1.7 Diesel Engine
The new electronic Cat® C1.7 Industrial Diesel Engines, with common rail fuel system, delivers impressive performance throughout a wide speed range with exceptional power density. Ultracompact package size and extensive options make them ideal for agriculture, aerial lifts, compressors, construction, general industrial, irrigation equipment, material handling, mobile earthmoving equipment, mobile light towers, turf and landscaping, underground mining equipment, and welders.
Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.
High Performance
Substantial torque rise delivers impressive performance throughout a wide speed range while maintaining low operating costs.
Fuel Efficiency
Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.
Broad Application Range
Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.
Package Size
Ultra-compact package size ensures ease of installation as well as exceptional power density.
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
Air Inlet System
- Standard air cleaner
- Turbocharger
Control System
- Alternator 12 volt 85 amp
- Starter motor 12 volt
- Glow plug starting aid
- Electronic control unit
- Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
- All connectors and wiring harness are waterproof and designed to withstand harsh non-road environments
- Robust reliable sensors
Cooling System
- Belt-driven coolant pump
- Coolant temperature switch
- Choice of cooling fans
- Fan drive options
Flywheel & Flywheel Housing
- Flywheel and flywheel housing options
Fuel System
- Electronic 2000 bar common rail fuel system
- Spin-on fuel filter
- Simple pintle nozzle injectors
Lube System
- Spin on oil filter
- Lube oil pressure switch
- Sump options for various applications
Power Take Off (PTO)
- SAE A PTO drive
General
- Cast iron, engine block
- Cast iron exhaust manifold options
- Paint: Caterpillar yellow, with optional colors available at request
- Induction manifold options
- Engine mounting
- Block heater provision
Aftertreatment/Clean Emissions Control Equipment
- Diesel Oxidation Catalyst (DOC)
- Diesel Particulate Filter (DPF)
Additional information
| تقدير القدرة - القدرة القصوى | 36 كيلووات ( 48 HP ) |
|---|---|
| تقدير القدرة - أقصى عزم دوران | 166 Nm @ 1600 rpm ( 122 lb-ft @ 1600 rpm ) |
| تقدير القدرة - السرعة المقدرة | 2800 دورة في الدقيقة |
| معايير الانبعاثات - الانبعاثات | معايير الاتحاد الأوروبي من المرحلة V، معايير وكالة حماية البيئة (EPA) الأمريكية من المستوى 4 النهائي |
| عام - تكوين المحرك | 3 أسطوانات في خط مستقيم |
| عام - التجويف | 84 مم ( 3.3 بوصة ) |
| عام - الشوط | 100 مم ( 3.9 بوصة ) |
| عام - الإزاحة | 1.7 l ( 103.7 بوصة³ ) |
| عام - نسبة الانضغاط | 17.0:1 |
| عام - السحب | مزود بشاحن توربيني (T) |
| عام - نظام الاحتراق | حقن مباشر |
| عام - الدوران من طرف الحدافة | عكس اتجاه حركة عقارب الساعة |
| عام - المعالجة اللاحقة | حفاز أكسدة الديزل (DOC) + فلتر جسيمات الديزل (DPF) |
| أبعاد المحرك - بالتقريب - الطول | 713 مم ( 28.1 بوصة ) |
| أبعاد المحرك - بالتقريب - العرض | 536 مم ( 21.1 بوصة ) |
| أبعاد المحرك - بالتقريب - الارتفاع | 722 مم ( 28.4 بوصة ) |
| أبعاد المحرك - بالتقريب - الوزن - الصافي الجاف - محرك التشغيل الأساسي من دون الملحقات الاختيارية | 190 كجم ( 419 رطل ) |
| Offering Type |
