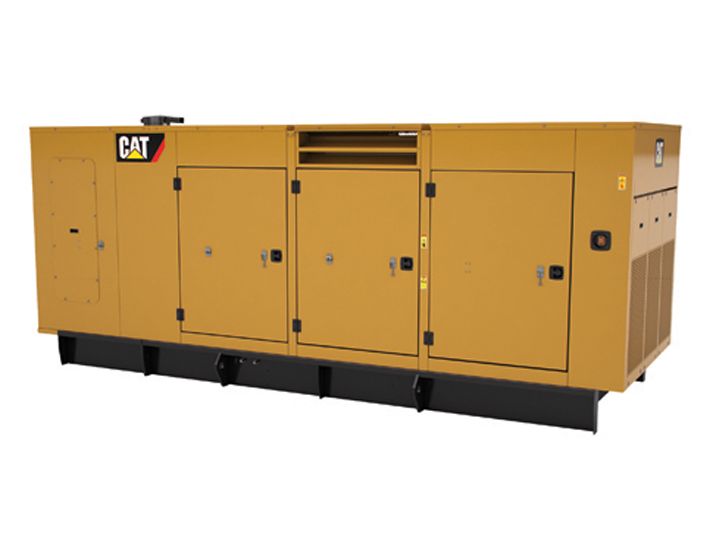

C13, C15, C18 SA enclosure. 350-600 kW 60 Hz

Excellent Service and Maintenance Access

• Large cable entry area for installation ease
• Accommodates side mounted single or multiple breaker
• Three doors on both sides
• Vertically hinged allow 180° opening rotation and retention with door stays
• Lube oil and coolant drains piped to the exterior of the enclosure base
• Radiator fill cover

Security and Safety

• Lockable access doors which give full access to control panel and breaker
• Cooling fan and battery charging alternator fully guarded
• Fuel fi ll, oil fi ll and battery can only be reached via lockable access
• Externally mounted emergency stop button
• Designed for spreader bar lifting to ensure safety
• Stub-up area is rodent proof

Transportability

These enclosures are of extremely rugged construction to withstand outdoor exposure and rough handling common on many construction sites.

Options

• Caterpillar yellow or white paint
• UL Listed integral fuel tank with 670, 400, and 300 gallon capacities
• UL Listed sub base fuel tank with 660, 1000, 1900, and 2200 gallon capacities
• Seismic certifi cation per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, IBC 2012, CBC 2007, CBC 2010
• IBC Certifi cation for 150 mph wind loading
• Anchoring details are site specifi c and are dependent on many factors such as generator set size, weight, and concrete strength. IBC Certifi cation requires that the anchoring system used is reviewed and approved by a professional engineer
• AC/DC lighting package
