C13

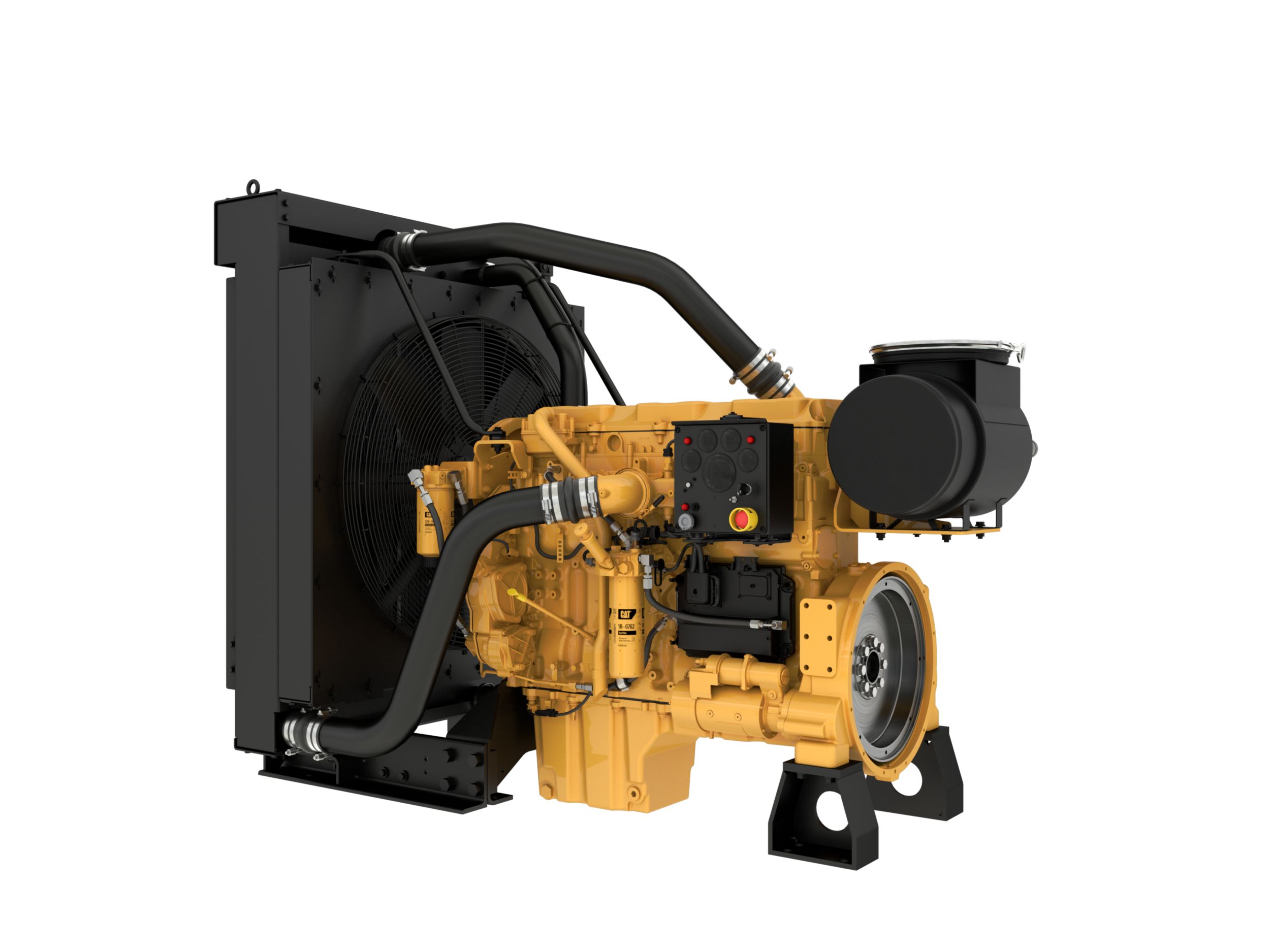

Cat® C13 Industrial Power Unit
The Cat® C13 IPU configuration not only provides the flexibility and options found on a standard industrial engine, but also comes fitted with air filter and mounting, an integrated cooling system with air and coolant lines, and full wire harnessing with an engine-mounted ECM. Meeting Brazil MAR-1 and UN R96 Stage IIIA emission standards and UN R120 performance standards for measurement of net power and specific fuel consumption, the IPU allows for easier and faster installation, allowing the customer to spend less time worrying about integration and more time doing the work that matters.
Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.
Broad Application Range
Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.
Package Size
Exceptional power density enables standardization across numerous applications. Multiple installation options minimize total package size. Ideal for equipment with narrow engine compartments.
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
Air Inlet System
- Turbocharged
- Air-to-Air Aftercooled
Control System
- Electronic governing, PTO speed control
- Programmable ratings
- Automatic altitude compensation
- Power compensation for fuel temperature
- Programmable low and high idle and total engine limit
- Electronic diagnostics and fault logging
- Engine monitoring system SAE J1939 broadcast and control
- ADEM™ A4 Electronic Control Unit (ECU)
Cooling System
- Thermostats and housing, vertical outlet
- Jacket water pump, centrifugal
- Water pump, inlet
Exhaust System
- Exhaust manifold, dry
- Optional exhaust outlet
Flywheels and Flywheel Housing
- SAE No. 1 flywheel housing
Fuel System
- MEUI injection
- Fuel filter, secondary (2 micron)
- ACERT™ Technology
- Fuel transfer pump
- Fuel priming pump
Lube System
- Crankcase breather
- Oil cooler
- Oil filler
- Lube oil filter
- Front sump oil pan
- Oil dipstick
- Gear driven oil pump
General
- Vibration damper
- Lifting eyes
- Cold start capability to -20° C (-4° F)
- Paint: Caterpillar yellow, with optional colors available at request
Additional Information
| تقدير القدرة - القدرة القصوى | 400 كيلووات ( 536 حصان ) |
|---|---|
| تقدير القدرة - السرعة المقدرة | 1800-2100 |
| تقدير القدرة - القدرة الدنيا | 287 كيلووات ( 385 حصان ) |
| معايير الانبعاثات - الانبعاثات | المعايير البرازيلية MAR-1، ومعايير الأمم المتحدة UN R96 من المرحلة IIIA، ومعايير وكالة حماية البيئة (EPA) الأمريكية من المستوى 3 |
| عام - تكوين المحرك | ديزل بدورة من 4 أشواط، ذو 6 أسطوانات في خط مستقيم |
| عام - التجويف | 130 مم ( 5.1 بوصة ) |
| عام - الشوط | 157 مم ( 6.2 بوصة ) |
| عام - الإزاحة | 12.5 l ( 763 بوصة³ ) |
| عام - نسبة الانضغاط | 17.0:1 |
| عام - السحب | مزوَّد بشاحن توربيني ومبرد لاحق (TA) |
| عام - الدوران من طرف الحدافة | عكس اتجاه حركة عقارب الساعة |
| عام - المعالجة اللاحقة | – |
| أبعاد وحدة القدرة - الطول | 2328 مم ( 92 بوصة ) |
| أبعاد وحدة القدرة - العرض | 1271 مم ( 50 بوصة ) |
| أبعاد وحدة القدرة - الارتفاع | 1816 مم ( 71 بوصة ) |
| أبعاد وحدة القدرة - الوزن | 1692 كجم ( 3730 رطل ) |
| Offering Type |
