C15 ACERT Tier 4i

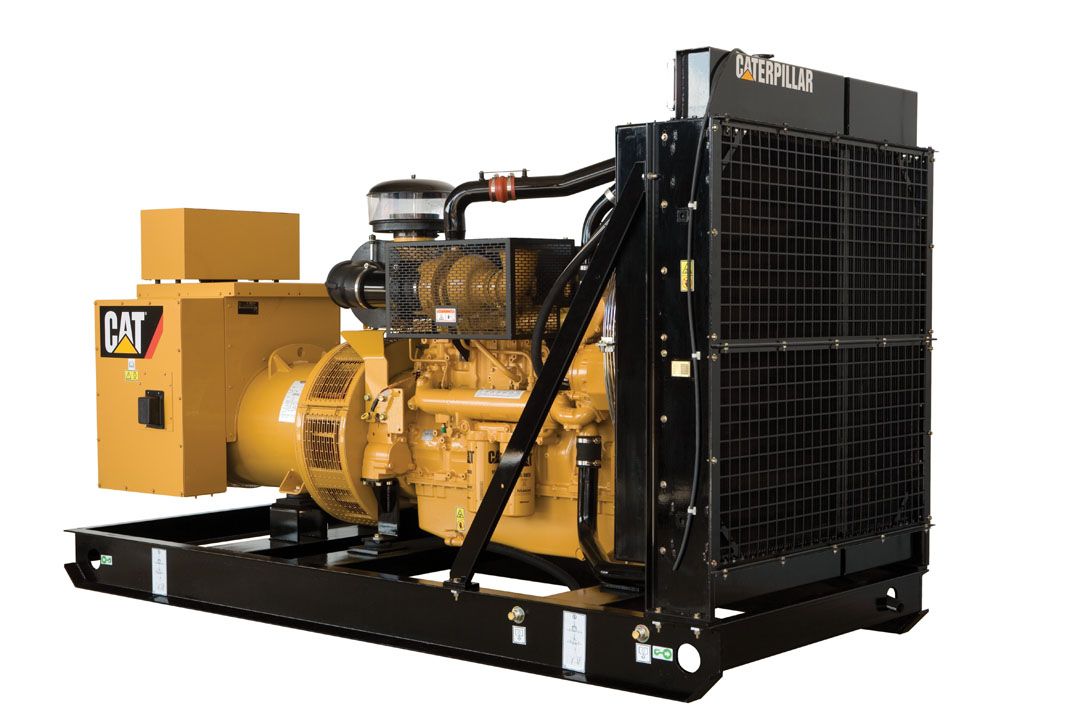

C15 ACERT Tier 4i Oilfield Diesel Generator Set
Producing oil and gas is a complex task that requires equipped designed specifically for the oilfield. Cat C-Series oilfield diesel generator sets offer a rugged design capable of withstanding harsh conditions in the oilfield. Decades of experience in engine manufacturing combined with the latest electronics deliver the highest performance, safe operation, low emissions, and simplified operator interface. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. C15 ACERT oilfield diesel generator set. Ratings: 450 ekW (562 kVA) @ 60 Hz (1800 rpm) meets U.S. EPA Tier 4 interim emission standards.
EMCP 4.2 Control Panel
- Integrated control system and communications gateway
- EMCP 4.2 is standard and offers basic engine/generator monitoring, metering and protection and an open protocol allowing for simple integration
- Features more advanced options including power metering, modbus capability, and programmable discrete output
Product Support Offered Through the Global Cat Dealer Network
- More than 2,200 dealer outlets - Cat factory-trained dealer technicians service every aspect of your Cat petroleum product - Worldwide parts availability, service, and warranty - Preventive maintenance agreements available for repairbefore- failure opti
Product Support Offered Through the Global Cat Dealer Network
- More than 2,200 dealer outlets - Cat factory-trained dealer technicians service every aspect of your Cat petroleum product - Worldwide parts availability, service, and warranty - Preventive maintenance agreements available for repairbefore- failure options - SOSSM program matches your oil and coolant samples against Caterpillar set standards to determine: Internal engine component condition Presence of unwanted fluids Presence of combustion by-products Site-specific oil change interval
Over 80 Years of Engine Manufacturing Experience
Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.
Over 80 Years of Engine Manufacturing Experience
Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.
Web Site
For all your petroleum power requirements, visit www.catoilandgasinfo.com.
Documents & Brochures
Standard Equipment
Air Inlet System
- Heavy-duty dual element air cleaner
- Service indicator
Cooling System
- Radiator package mounted (50° C)
- Side-by-side cores
- Coolant drain line with valve at edge of base
- Coolant level sight gauge
- Fan and belt guards
- Cat Extended Life Coolant
- Metal top and bottom tanks
Exhaust System
- Dry exhaust manifold
Fuel System
- Primary fuel filter
- Secondary fuel filter
- Fuel priming pump
- Fuel transfer pump
Generator
- SR4B brushless, single-bearing, self-excited
- Class H insulation
- Random wound
- IP23 protection
- Cat DVR
- Coastal protection
Controls
- ADEM A4 ECU
- EMCP 4.2 control panel
- Emergency stop pushbutton
Lube System
- Oil cooler
- High efficiency oil filter
- Oil drain valves
- Fumes disposal
- Gear-type lube oil pump
Mounting System
- Heavy-duty oilfield welded steel base (skiddable)
- Anti-vibration mounts
- Designed welded base for increased durability (C-channel design)
Starting/Charging System
- 24-volt starting motor
- 45-amp charging alternator
General
- Paint — Caterpillar yellow except rails and radiators (gloss black)
- Flywheel and flywheel housing — SAE No. 1
- Engine lifting eyes
Additional information
| Offering Type | |
|---|---|
| Engine Specifications - Maximum Rating | 450 ekW (562 kVA) |
| Engine Specifications - Minimum Rating | 450 ekW (562 kVA) |
| Engine Specifications - Emissions/Fuel Strategy | U.S. EPA Tier 4 interim |
| Engine Specifications - Aspiration | Turbocharged, aftercooled |
| Engine Specifications - Manifold Type | Dry |
| Engine Specifications - Bore | 137.2 mm ( 5.4 in ) |
| Engine Specifications - Stroke | 171.4 mm ( 6.75 in ) |
| Engine Specifications - Displacement | 15.2 l ( 927.0 in³ ) |
| Engine Specifications - Engine Control and Protection | ADEM A4 |
| Engine Specifications - Generator Set Control | EMCP 4.2 |
| Engine Specifications - Generator | SR4B |
| Engine Specifications - Fuel System | MEUI |
| Engine Specifications - Frequency - Speed | 60 Hz (1800 rpm) |
| Capacity for Liquids - Fuel | Diesel |
| Dimensions - Length | 3505.0 mm ( 138.0 in ) |
| Dimensions - Width | 1524.0 mm ( 60.0 in ) |
| Dimensions - Height | 2108.0 mm ( 83.0 in ) |
| Dimensions - Weight | 4726.0 kg ( 10420.0 lb ) |
