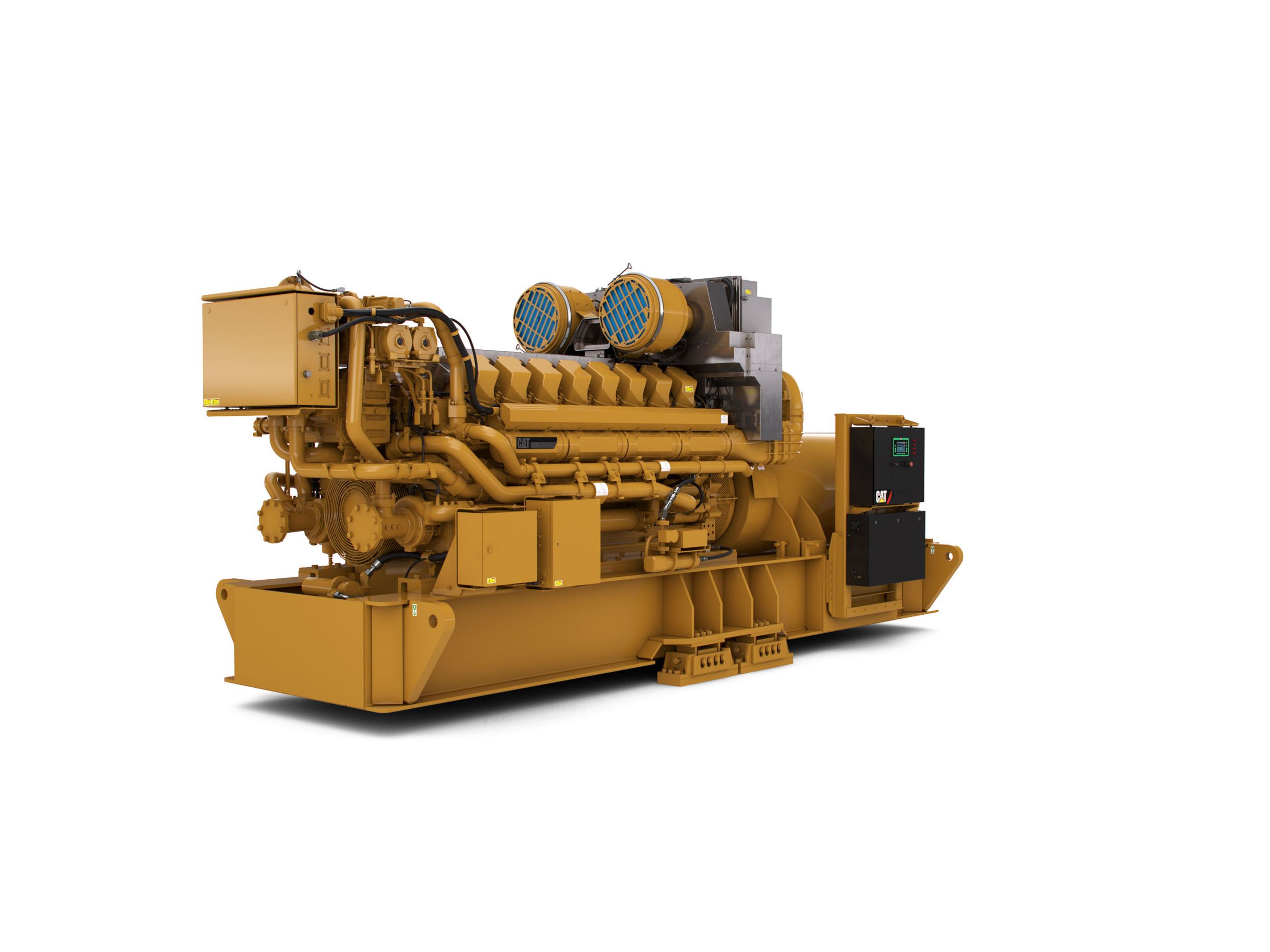

C175-16
C175-16 Offshore Generator Set
Caterpillar can help you navigate the challenges in the oil and gas industry, including global competition, tightening emission standards, and high productivity demands. The Cat® C175 delivers more reliable power in less space than any other generator set in its class. As efficient as it is powerful, this compact package will make a huge impact on your rig’s performance. The proven success of the 3500 series engines forms the foundation of the Cat C175 diesel engine. Low owning and operating costs, high endurance components, and outstanding serviceability add to the innovations. The Cat Alarm and Protection System integrates with dual ADEM A4 engine control modules to provide redundant engine control, generator set protection, and a simple operator interface. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. Cat C175-16 offshore generator set. Ratings: 1833-2660 ekW 2619-3325 kVA) @ 50/60 Hz (1500/1200/1800 rpm). U.S. EPA Marine Tier 2 certified and IMO Tier II emissions compliant.
Custom Packaging
For any petroleum application, trust Caterpillar to meet your project needs with custom factory generator sets and mechanical packages. Cat engines, generators, controls, radiators, and transmissions can be custom designed and matched in collaboration with our local dealers to create unique solutions. Custom packages are globally supported and are covered by a one year warranty after startup.
Custom Packaging
For any petroleum application, trust Caterpillar to meet your project needs with custom factory generator sets and mechanical packages. Cat engines, generators, controls, radiators, and transmissions can be custom designed and matched in collaboration with our local dealers to create unique solutions. Custom packages are globally supported and are covered by a one year warranty after startup.
Full Range of Attachments
Large variety of factory-installed attachments increases application flexibility and reduces installation time.
Testing
- Every unit is full-load tested to ensure proper package performance - Full range of factory tests and reports are available including performance, torsional-vibration analysis, fuel consumption, engine, and generator special tests
Unmatched Product Support Offered Through the Worldwide Cat Dealer Network
- More than 2,200 dealer outlets - Cat factory-trained dealer technicians service every aspect of your Cat product - Caterpillar parts and labor warranty - Preventive maintenance agreements available for repair before failure. - S•O•SSM program matches your oil sample to Caterpillar set standards to determine: • Internal engine component condition • Presence of unwanted fluids and combustion by-products • Site-specific oil change interval
Over 80 Years of Engine Manufacturing Experience
Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.
Over 80 Years of Engine Manufacturing Experience
Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.
Web Site
For all your petroleum power requirements, visit www.catoilandgas.cat.com.
Virtual Tours
Documents & Brochures
Standard Equipment
Air Inlet System
- Dual turbochargers
- Corrosion-resistant aftercooler core
- Air cleaners — single or dual element
Exhaust System
- Dry exhaust manifolds with thermo-laminated heat shields
- Dual turbochargers with water-cooled bearings and thermo-laminated heat shields
- Vertical exhaust outlet
- Flange and exhaust expanders
Cooling System
- Separate-circuit-aftercooler (SCAC) and jacket water (JW) circuit cooling system
- Gear-driven centrifugal pumps, one for each circuit
- SCAC electronic thermostat, outlet-controlled with aftercooler inlet temperature sensing
- JW electronic thermostat, outlet-controlled with outlet temperature sensing
- Engine oil cooler in JW circuit
Fuel System
- Cat common rail high-pressure fuel system with electronically controlled unit injectors
- Duplex primary fuel filter with water separator
- Duplex secondary/tertiary fuel filters
- Electric fuel priming pump
- Gear-driven low pressure transfer pump
- Gear-driven high pressure transfer pump
- Double-walled high pressure fuel lines
- Fuel pressure, temperature, and leak detection sensors
Lubrication System
- Engine-driven, gear-type oil pump
- Integral lube oil cooler
- Front-mounted oil drain lines and valve
- Oil sampling valve
- Filler and dipstick
- Four-canister simplex oil filter
- Prelube pump — electric, air, or custom
- Fumes disposal with crankcase breathers
- Crankcase explosion relief valves
Engine Control and Protection
- Dual ADEM A4 engine control unit (ECU) for redundancy
- Software monitors engine parameters and performs alarm, derate, and shutdown functions
- Rigid wiring harness
- Marine Power Display 3.0 (MPD 3.0)
Mounting
- Inner-outer base with vibration isolators
Generator
- Kato brushless permanent magnet 6P6.6-3200 HR
- 2-bearing, close-coupled arrangement
- 60 Hz, 600V, 0.7 PF
- UL/CSA listed, IP23
Flywheel and Coupling
- Flywheel housing, SAE No. 00
- Flywheel, SAE No. 00
- ABS certified, non-certified, or custom-coupling and coupling mounting
- Free-standing or close-coupled generator set arrangements
Starting System
- Turbine air starter or
- Dual electric starting motors or
- Air and electric starting motors (redundant)
General
- Power distribution box — 24V or custom
- 20A battery charger
- Cat yellow paint
- Offshore oil field sub-base
- Integral spring isolators with limit stop
- Lift provisions on base
- Oil drain extension
- Engine length drip pan with drain
- Torsional dampened driveline couplings
Additional information
| Offering Type | |
|---|---|
| Engine Specifications - Minimum Rating | 1833.0 ekW ( 2619.0 kV·A ) |
| Engine Specifications - Maximum Rating | 2660.0 ekW ( 3325.0 kV·A ) |
| Engine Specifications - Emissions | Available in IMO Tier II/ EPA Marine Tier 2 configurations |
| Engine Specifications - Stroke | 220.0 mm ( 8.66 in ) |
| Engine Specifications - Weight | 24312.0 kg ( 53599.0 lb ) |
| Engine Specifications - Oil Change Interval | 1000.0 h ( 1000.0 h ) |
| Engine Specifications - Fuel System | Common Rail/EUI™ |
| Engine Specifications - Engine Control | Dual ADEM™ A4 |
| Engine Specifications - Generator Set Control | MPD 3.0 / Cat® Alarm and Protection System |
| Engine Specifications - Bore | 175.0 mm ( 6.89 in ) |
| Engine Specifications - Displacement | 85.0 l ( 5167.0 in³ ) |
| Engine Specifications - Aspiration | Turbocharged/2-stage aftercooled |
| Dimensions - Height | 50 Hz – 2928 (115 in) / 60 Hz – 2916 mm ( 115 in) |
| Dimensions - Width | 50 Hz – 2413 mm (95 in) / 60 Hz – 2125 mm (84 in) |
| Dimensions - Length | 50 Hz – 6782 mm (267 in) / 60 Hz – 6742 mm (265 in) |
| Capacity for Liquids - Cooling System - Engine | 77.0 l ( 92.0 gal (US) ) |
| Capacity for Liquids - Lube Oil System - Refill | 946.0 l ( 250.0 gal (US) ) |
| Engine Specifications - Speed | 1200/1500/1800 rpm |
