C3.3 | DE56AE0

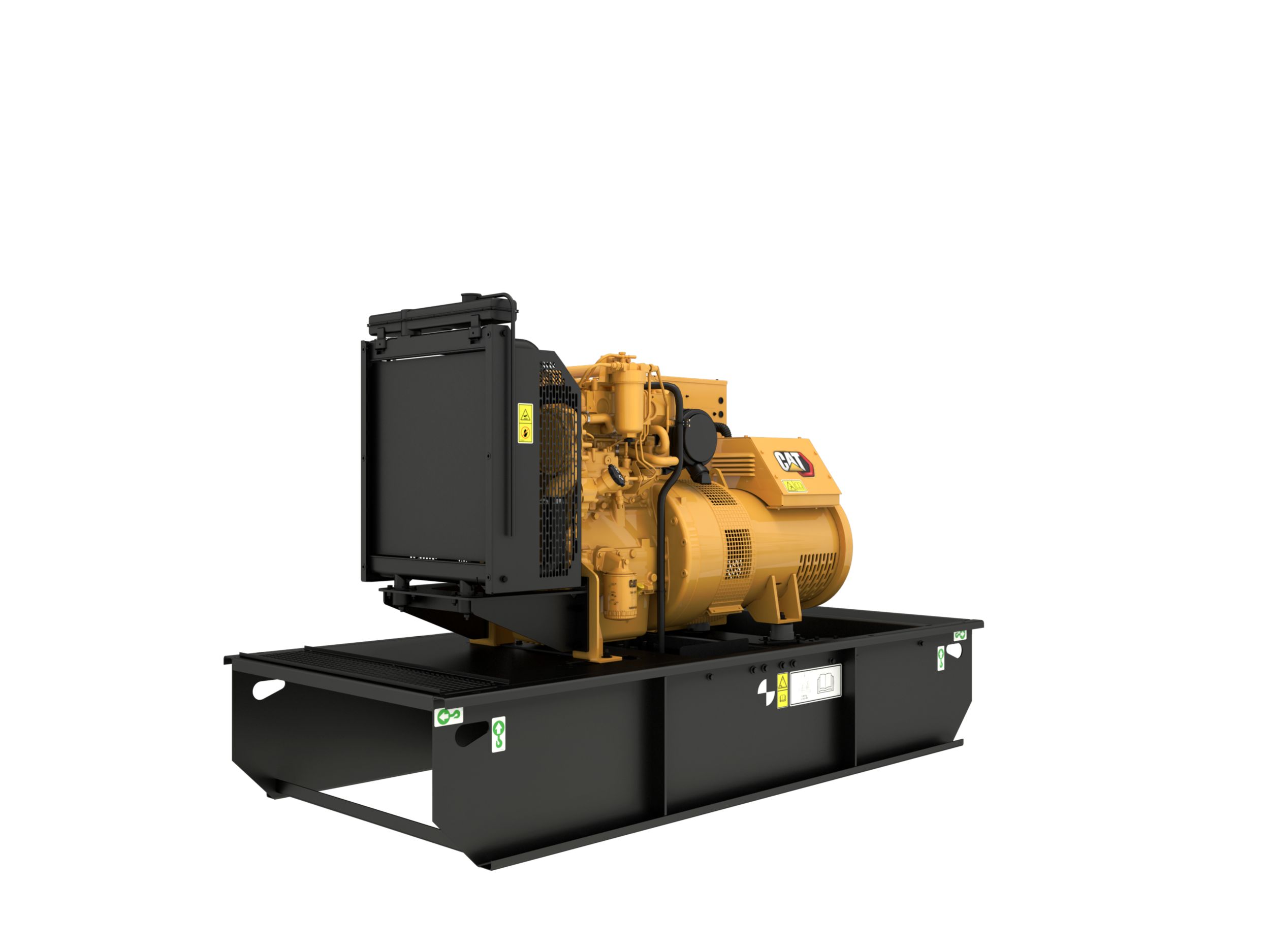

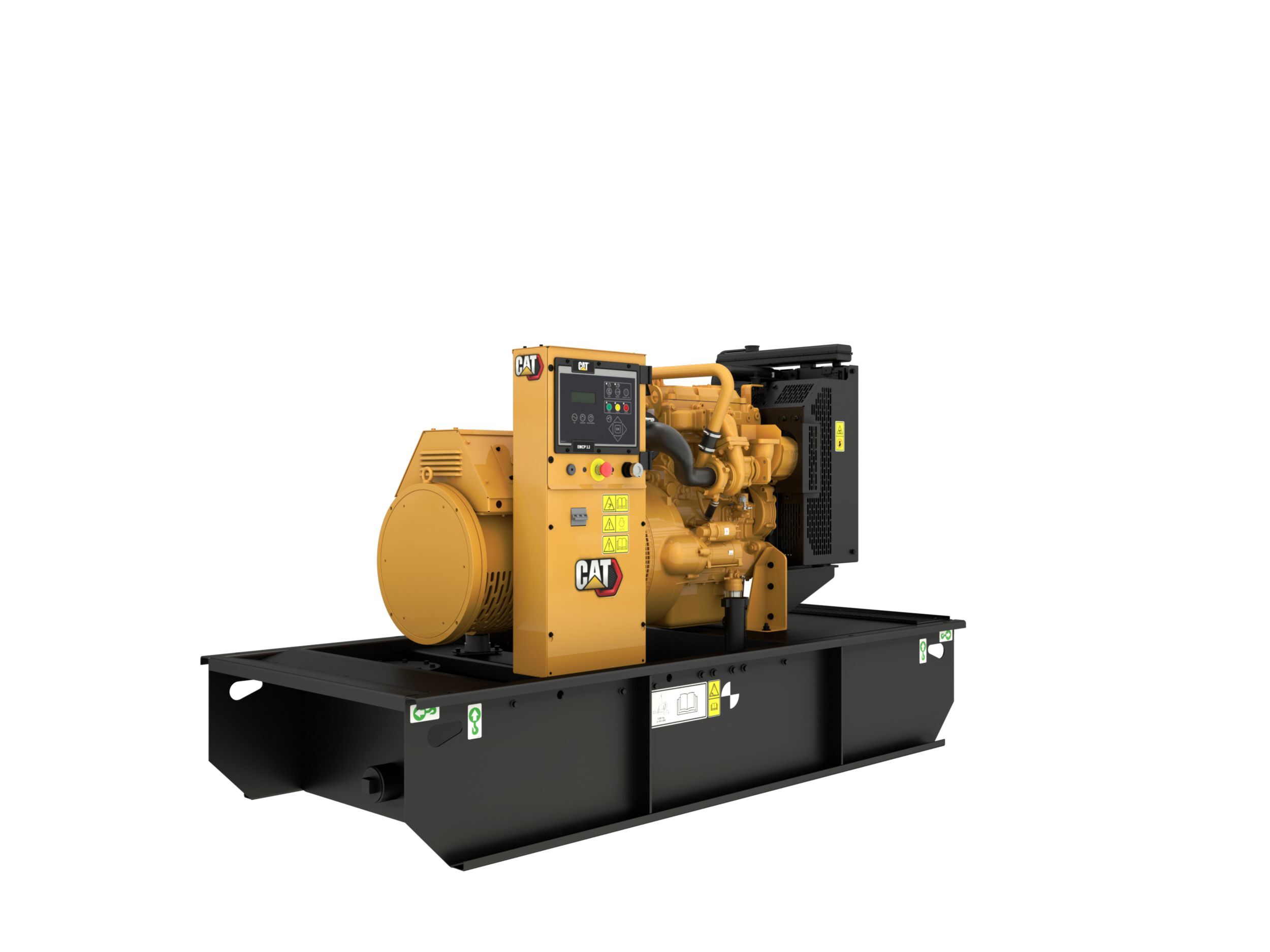

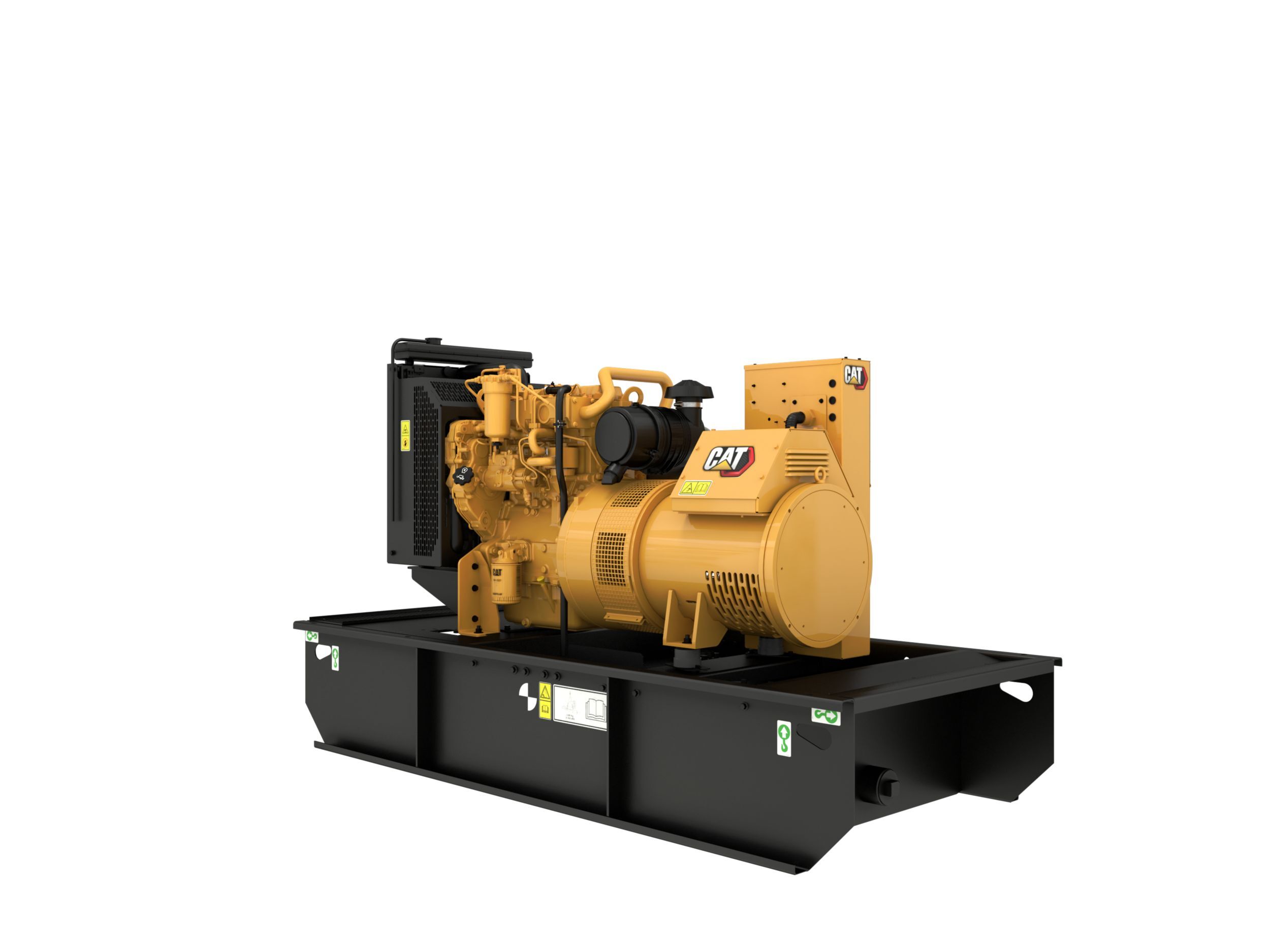

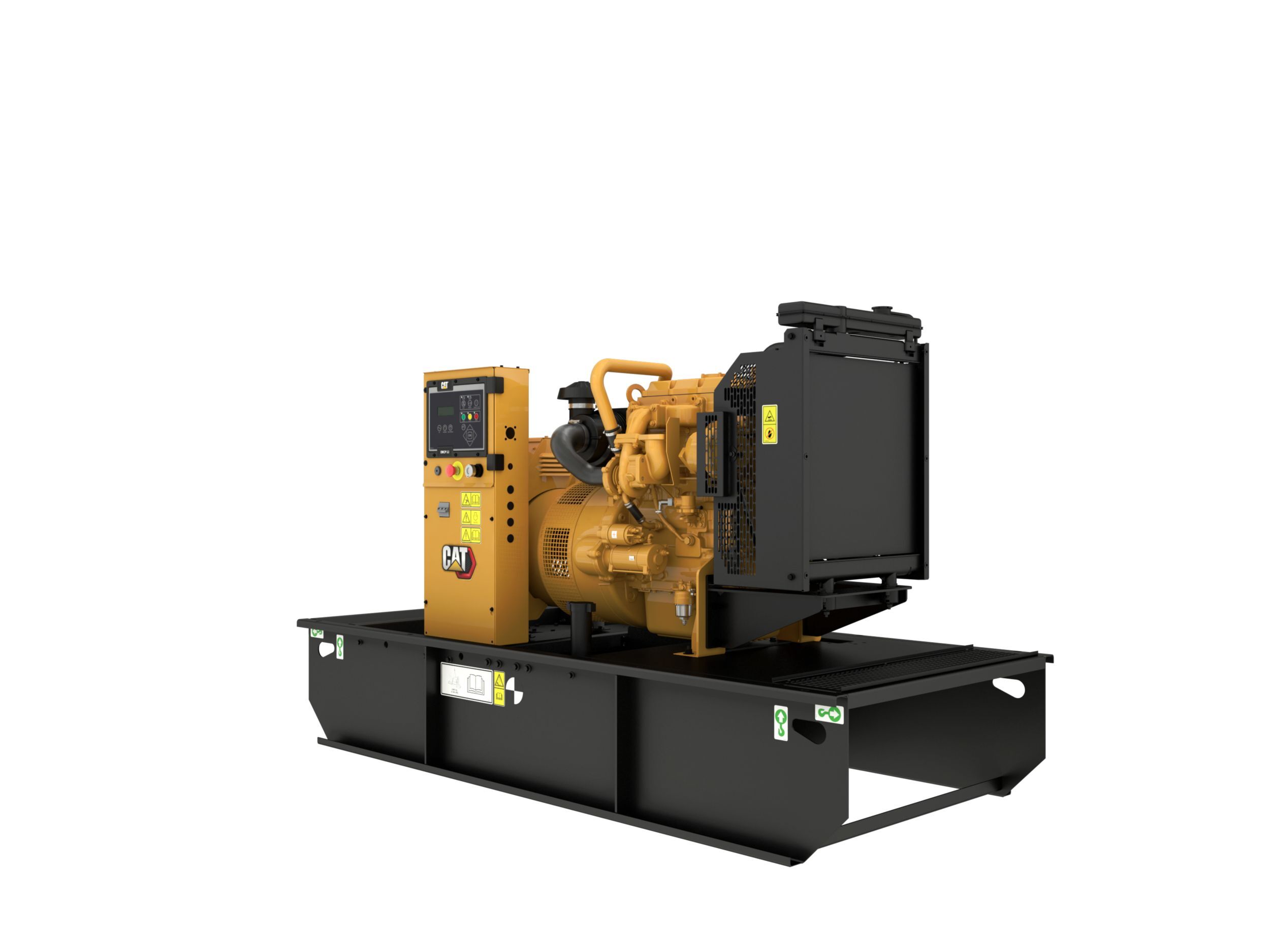

DE56AE0 (50 Hz) Generator Set

The range Caterpillar generator sets provides reliable energy solutions for every business, every need. Cat generators can be installed as the prime power source or standby service.

Cat Generator Set Package

  • Cat generator set packages have been fully prototype tested
  • Accepts 100% block load in one step and meets NFPA 110 loading requirements
  • Conform to ISO 8528-3 steady state and transient response requirements

Cat Diesel Engine

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

GTA Frame Alternator

  • Superior motor starting capability minimizes need for oversizing alternator
  • Designed to match performance and output characteristics of Cat diesel engines
  • Robust Class H insulation

EMCP Control Panel

  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements

Cooling System

  • Designed to operate in standard ambient temperatures up to 55°C (131°F)
  • Contact your Cat Dealer for specific ambient and altitude capabilities

Certifications

Fully prototype tested with certified torsional vibration analysis available

One Safe Source

  • Components used in the generator set are selected based on seamless design integration to provide the optimum performance
  • The generator set is fully assembled at a Caterpillar facility following our quality guidelines
  • Each generator set package is tested before leaving the Caterpillar facility
  • Cat product support, including dealer service, parts and warranty covers the entire Cat power system

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Standard Equipment

Engine
  • C3.3, Inline 3 cylinder, 4 stroke diesel
Control panel
  • EMCP 4.1
Governing system
  • Mechanical governor
Alternator
  • GTA Frame standard alternator
Fuel Storage
  • Single wall 8 hour fuel tank

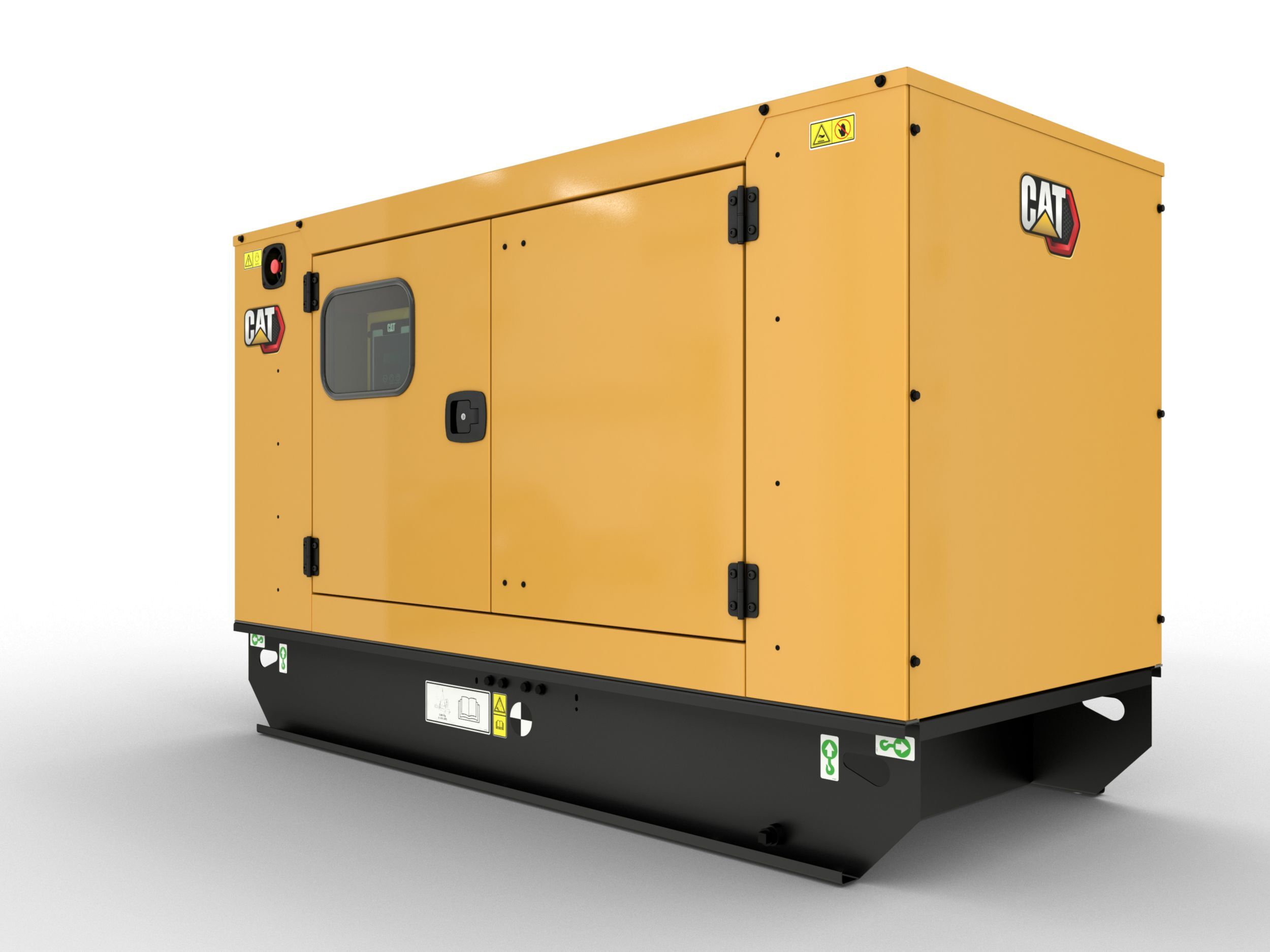

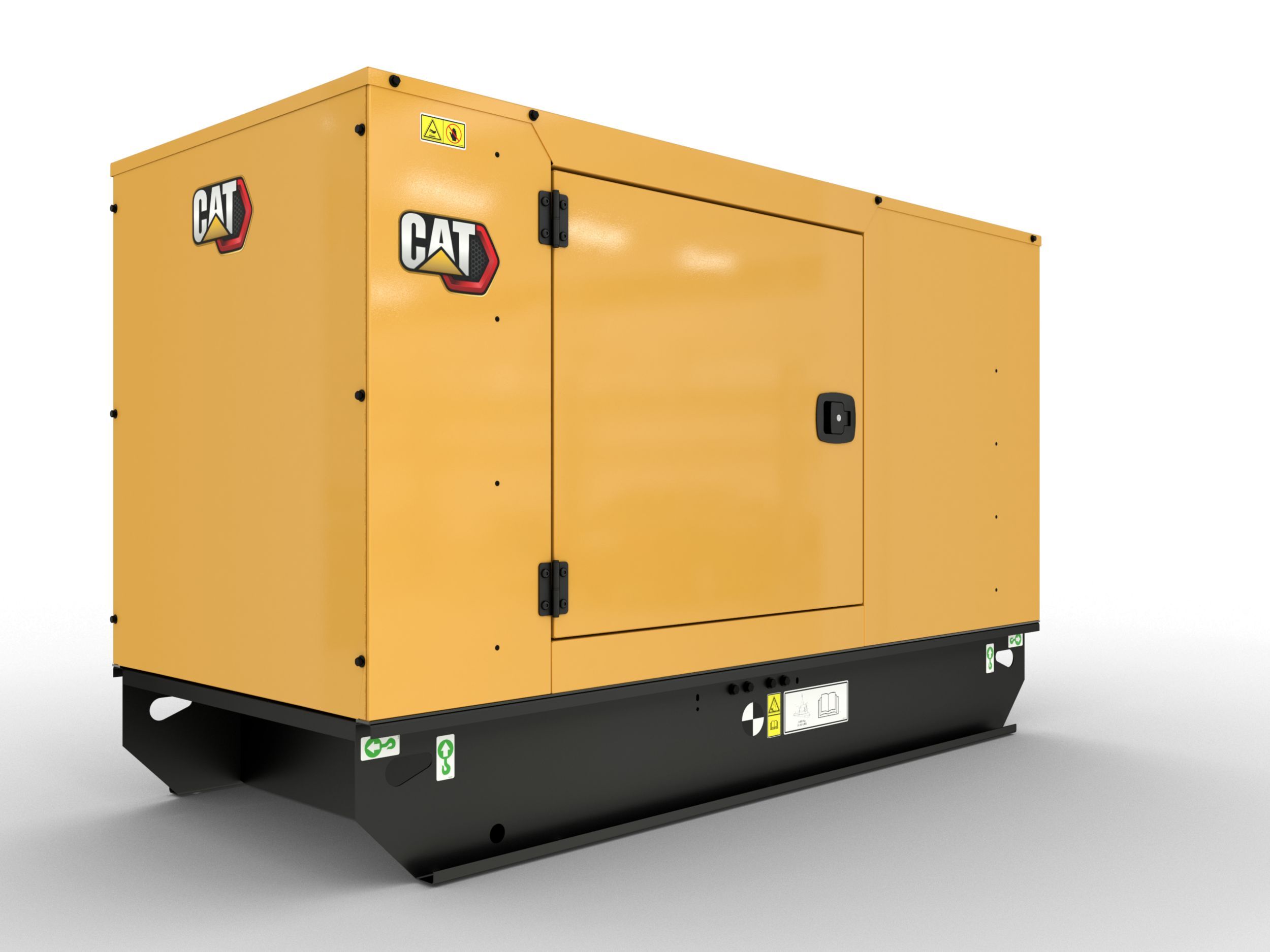

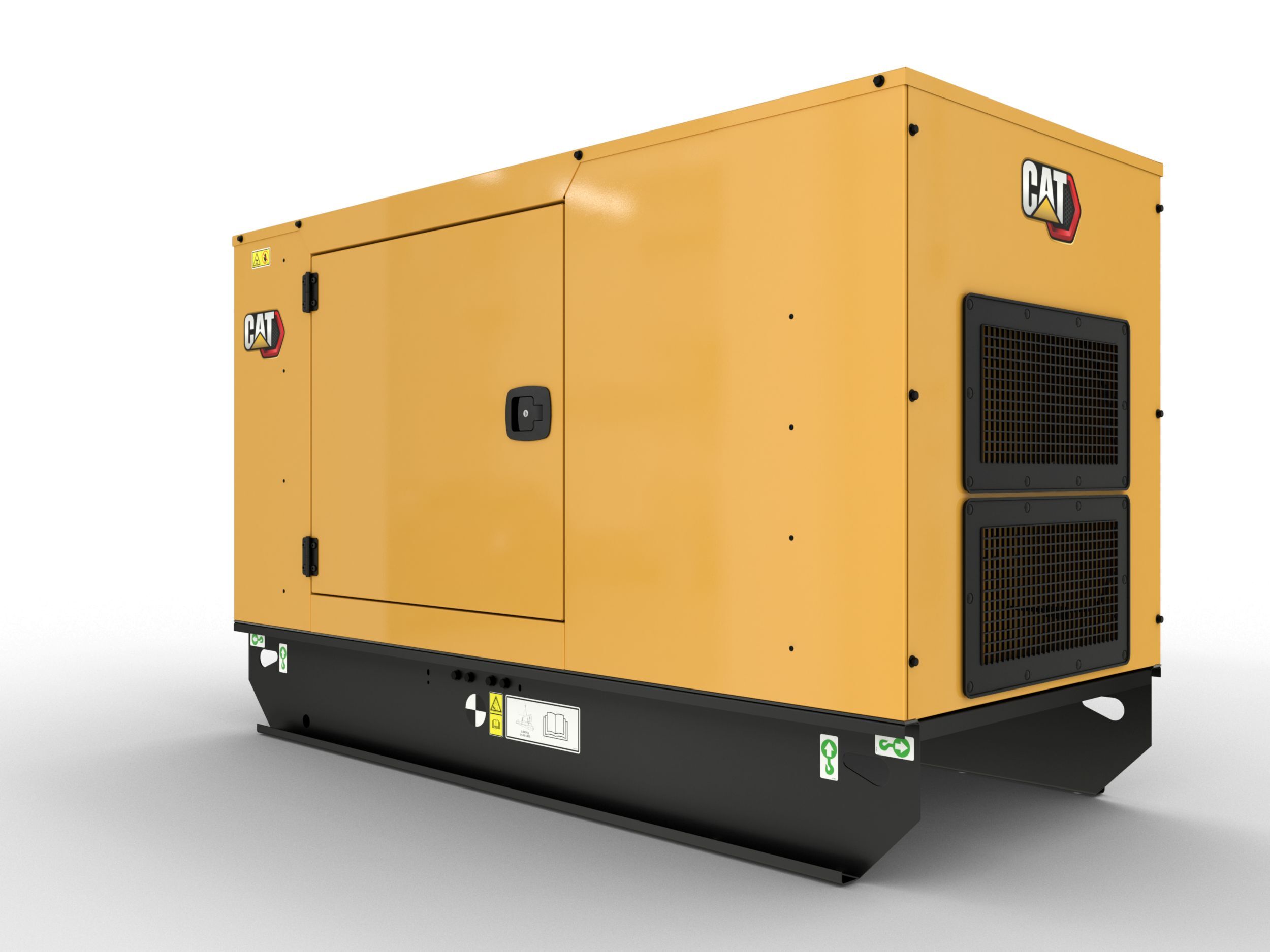

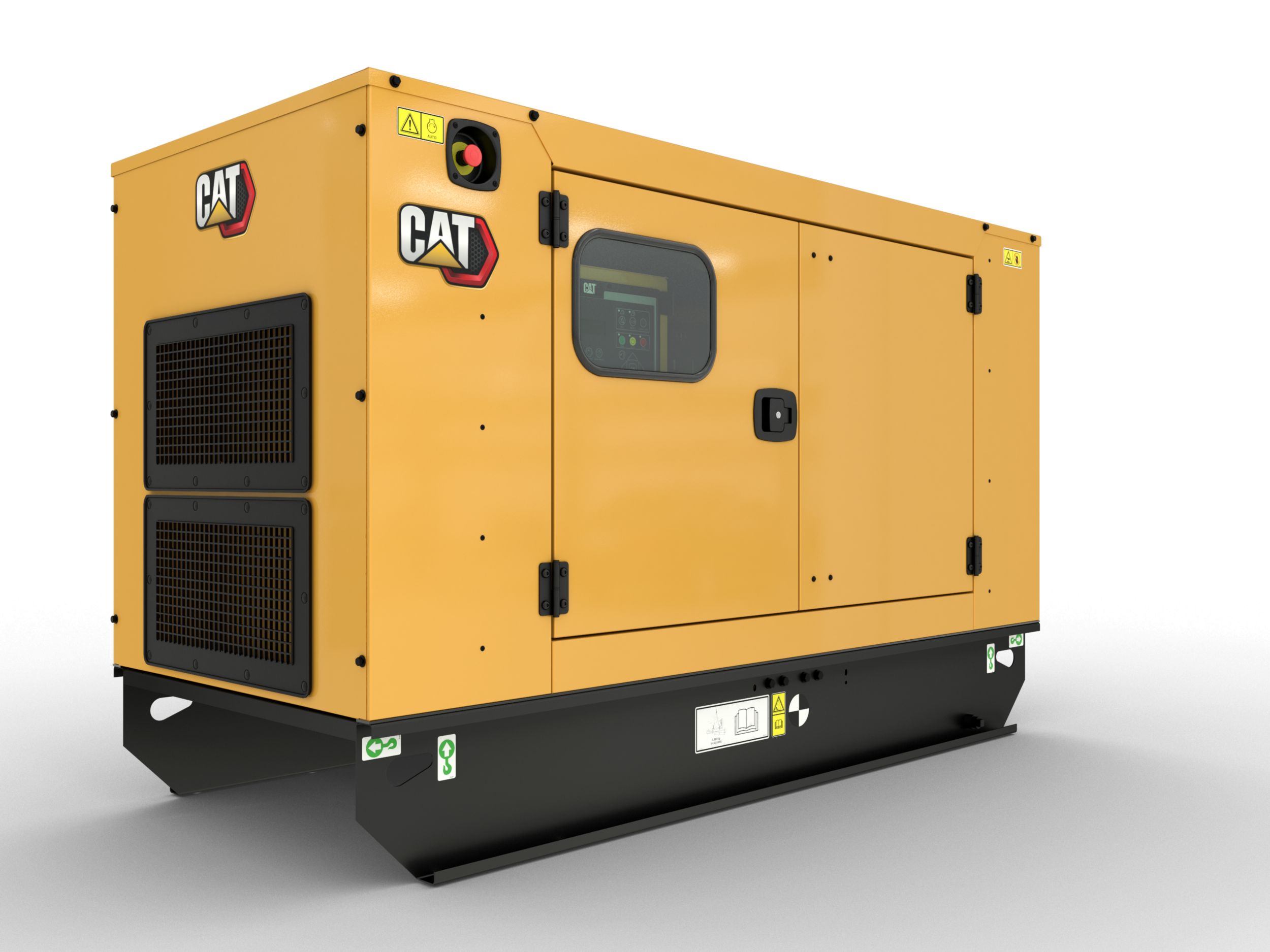

Enclosure
  • Modular easy access acoustic enclosure
Air, Cooling & Exhaust
  • Enclosure silencer
General
  • Engine and alternator pre-paint, Caterpillar yellow

Additional information

Offering Type

Generator Set Specifications - Maximum Rating

49.2 kVA

Generator Set Specifications - Minimum Rating

45.0 kVA

Generator Set Specifications - Emissions/Fuel Strategy

Non-Certified Emissions

Generator Set Specifications - Voltage

220 to 380 Volts

Generator Set Specifications - Frequency

50 Hz

Generator Set Specifications - Speed

1500 rpm

Generator Set Specifications - Duty Cycle

Standby, Prime

Engine Specifications - Engine Model

Cat® C3.3

Engine Specifications - Bore

105 mm ( 4.1 in )

Engine Specifications - Stroke

127 mm ( 5 in )

Engine Specifications - Displacement

3.3 l ( 201.4 in³ )

Engine Specifications - Compression Ratio

17.25:1

Engine Specifications - Aspiration

Turbocharged

Engine Specifications - Fuel System

Common Rail

Engine Specifications - Governor Type

Mechanical

Generator Set Dimensions - Length - Maximum

1680 mm ( 66.1 in )

Generator Set Dimensions - Width - Maximum

29.9 in ( 760 mm )

Generator Set Dimensions - Height - Maximum

1333 mm ( 52.5 in )

Generator Set Dimensions - Dry Weight - Genset (maximum)

814 kg ( 1795 lb )
