C32 IMO II

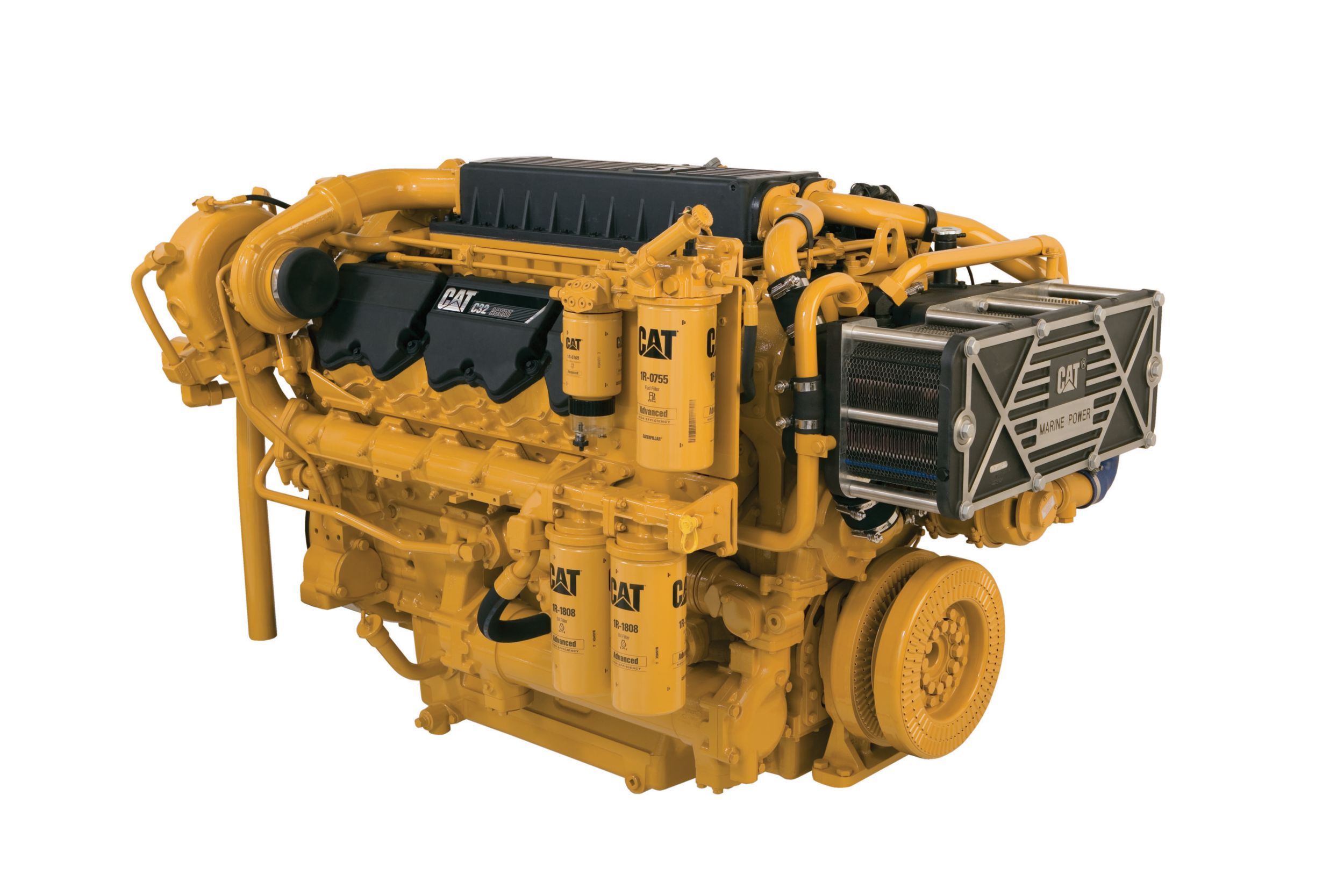

Cat C32 Propulsion Engine (IMO II)
The C32 marine propulsion engine is available at ratings that meet IMO II emissions regulations. It has a separate circuit aftercooling system (SCAC) for A through C ratings, six ratings with Wide Operating Speed Range (WOSR) and extended oil change intervals. Other benefits include proven engine operating history and performance iron with thousands of validation testing hours for quality and durability. The C32 marine engine is supported by the extensive Cat global dealer network and Caterpillar’s standard warranty.
Emissions
IMO II - meets the International Maritime Organization's Regulation 13 of Revised Annex VI to the MARPOL Convention.
Worldwide Support
Extensive service network of Cat Dealers and unparalleled service from authorized marine dealers
Durability
The C32 ACERT has proven engine operating history. It consists of performance iron with thousands of hours of validation testing for quality and durability.
Reliability
Backed by Caterpillar's standard warranty
Six Ratings with Wide Operating Speed Range (WOSR)
Excellent reserve power for acceleration, Ideal for applications requiring the engine to operate normally at more than one speed or load, Provides an alternative to torque converters, multi-speed transmissions, Controllable Pitch Propeller (CPP)
Extended Oil Change Intervals
Seperate Circuit Aftercooling System: A-C Ratings
No seawater circulating through the aftercooler, isolator mounts available as optional attachments, mounting and isolator base require wider stringer without vertical adjustment nut (adjustable height), thrust (recommended for remote gear) and non-thrust (recommended for close gear) options available
Documents & Brochures
- C32 Marine Propulsion Engine (IMO II) 969 bkW (1299 bhp) @ 1800-2100 rpm
- C32 Marine Propulsion Engine (IMO II) 492 bkW (660 bhp) @ 1800 rpm
- C32 Marine Propulsion Engine (IMO II) 1081 bkW (1450 bhp) @ 2300 rpm
- C32 Marine Propulsion Engine (IMO II) 970 bkW (1300 bhp) @ 1800 rpm
- C32 Marine Propulsion Engine (IMO II) 895 bkW (1200 bhp) @ 2000 rpm
- C32 Marine Propulsion Engine (IMO II) 970 bkW (1300 bhp) @ 2100 rpm
- C32 Marine Propulsion Engine (IMO II) 708 bkW (950 bhp) @ 1600 rpm
- IMO II/IMO III Solutions
Standard Equipment
AIR INLET SYSTEM
- Separate Circuit After-Cooled (SCAC
- Air cleaner
- Turbochargers, jacket water cooled
- Turbochargers inlet, 152 mm (6 in) OD straight connection
CONTROL SYSTEM
- Programmable Low Idle (550 - 750 rpm)
- WOSR (Wide Operating Speed Range) available for - A, B, & C Ratings
- Programmable High Idle Limit for WOSR Ratings
- Electronic diagnostics and fault logging
- Engine and transmission monitoring (speed, temperature, pressure)
- Electronic fuel/air ratio control
- Engine Protection Mode for extended ambient conditions
- Torque Limiting functionality for WOSR ratings only
- 70-pin customer connector
- Throttle Input signal options
COOLING SYSTEM
- Separate Circuit After-Cooling (SCAC) for Heat Exchanged (HEX) & Keel cooled engines
- Jacket Water (JW) and SCAC Heat Exchangers Shell & Tube for HEX cooled engines
- SCAC pump, gear driven
- Jacket water pump, gear driven
- Sea water pump, bronze impeller, gear driven, for HEX cooled engines only
- Sea water Pump & JW Heat Exchanger Connection: 76.2 mm (3in) ID Standard
- Keel Connections: 76.2 mm (3in) ID Standard 4 Bolt ANSI Flange Connection
- SCAC and JW shunt tanks for maintaining proper pump inlet pressures
EXHAUST SYSTEM
- 4 Bolt 130 mm (5.12 in) diameter flanged outlet
- Water-cooled exhaust manifold & turbocharger
FLYWHEELS & FLYWHEEL HOUSINGS
- SAE standard rotation (CCW facing exciter end)
- Flywheel Housing: SAE No. 0, Flywheel: 18 inch, 136 teeth
FUEL SYSTEM
- Duplex Fuel Filters, Spin-on, RH & LH service
- Fuel connections size:Supply JIC 37 Deg -10 (7/8-14), Return JIC 37 Deg -8 (3/4-16)
- Plate Type Fuel Cooler installed behind Aftercooler Shunt Tank
- Fuel transfer pump, gear driven
- Manual fuel priming pump
- Hybrid fuel line design
LUBE SYSTEM
- Simplex Oil Filters, RH or LH service
- Deep sump oil pan
- RH or LH service oil filler locations
- RH or LH service dipstick
- Oil pump, gear driven
MOUNTING SYSTEM
- Front support - adjustable
POWER TAKE-OFFS
- Front Poly-V groove pulley (Quantity 1) for auxiliary drives
GENERAL
- Common electrical bonding point
- Engine does not ship with zinc components
Additional information
| Offering Type | |
|---|---|
| Power Rating - Power Range | 660-1450 bhp (492-1081 bkW) |
| Engine Specifications - Speed Range | 1600-2300 rpm |
| Engine Specifications - Emissions | IMO II, EU IW |
| Engine Specifications - Aspiration | TTA |
| Engine Specifications - Bore | 145.0 mm ( 5.71 in ) |
| Engine Specifications - Stroke | 162.0 mm ( 6.38 in ) |
| Engine Specifications - Displacement | 32.1 l ( 1959.0 in³ ) |
| Engine Specifications - Rotation from Flywheel End | Counterclockwise |
| Engine Specifications - Configuration | Vee 12, 4-Stroke-Cycle Diesel |
| Dimensions & Weights - Minimum Dry Weight | 3152.0 kg ( 6950.0 lb ) |
| Dimensions & Weights - Minimum Length | 2121.0 mm ( 77.8 in ) |
| Dimensions & Weights - Maximum Length | 2284.0 mm ( 83.5 in ) |
| Dimensions & Weights - Minimum Height | 1547.0 mm ( 60.9 in ) |
| Dimensions & Weights - Maximum Height | 1587.0 mm ( 62.5 in ) |
| Dimensions & Weights - Minimum Width | 1528.0 mm ( 60.17 in ) |
| Dimensions & Weights - Maximum Width | 1528.0 mm ( 60.17 in ) |
