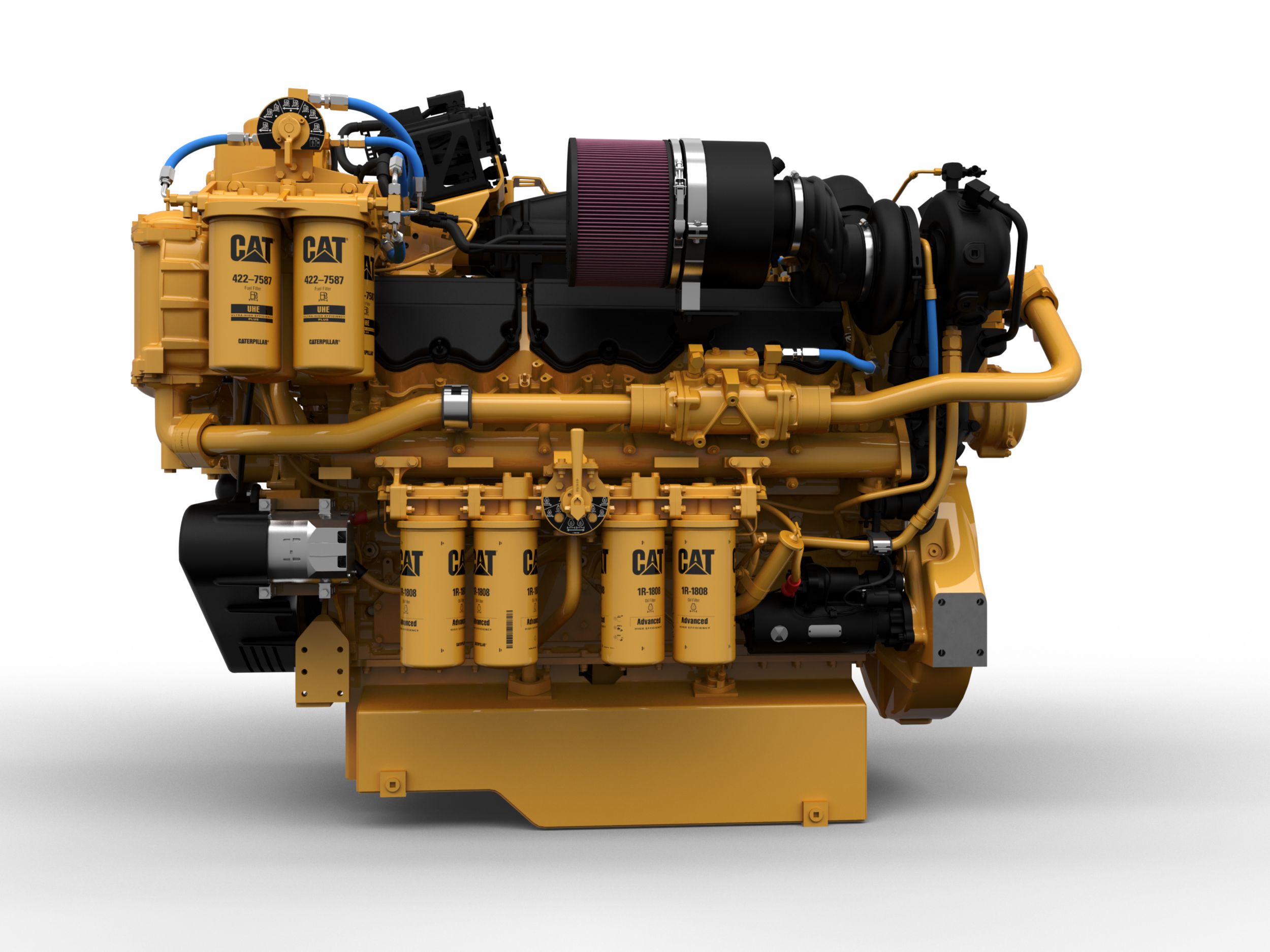

C32 Tier 4 / IMO III
Cat C32 Auxiliary / Diesel Electric Propulsion Engine (US EPA Tier 4 / IMO III)
Cat C32 Auxiliary / Diesel Electric Propulsion Engine (US EPA Tier 4 / IMO III)
Emissions
Utilizes SCR Technology to enable U.S. EPA Tier 4 Final emission regulations compliance while lowering operational costs
Control Strategy
Utilizes closed loop air assisted DEF dosing control strategy that delivers: Highest efficiency mixing and control to lower operational costs; Extends emissions useful life; Ensures compliance; Flexible to urea quality
Fuel System
Enhanced control of fuel injection optimized through crank timing and the A5 ECM technology
Power Reserve
Industry leading power reserve
Certifications
Wide range of available Marine Society certifications
Warranty
Industry-leading warranty coverage for factory packaged components
Service
Global dealer network for service in any location
Documents & Brochures
Standard Equipment
AIR INLET SYSTEM
- Separate circuit aftercooled (SCAC)
- Closed crankcase fumes disposal
CONTROL SYSTEM
- 24V control system
COOLING SYSTEM
- Heat exchanger or Keel Cooling
- Watercooled exhaust manifold and turbocharger
- Hard seawater lines – no flexible hoses
- Flanges for cooling connections, ANSI or DIN
FUEL SYSTEM
- Duplex fuel filters with hybrid fuel lines
- Shipped loose primary fuel filter with water separator
- Fuel transfer and priming pump
LUBE SYSTEM
- Oil fill, simplex filter and dipstick
- Deep or shallow sump oil pan
MOUNTING SYSTEM
- Adjustable front support mounting system
GENERAL
- Right or left hand service sides
- Customer wiring and service tool connector
Additional information
| Offering Type | |
|---|---|
| Power Rating - Minimum Rating | 298 bkW ( 400 BHP ) |
| Power Rating - Maximum Rating | 994 bkW ( 1333 BHP ) |
| Engine Specifications - Aspiration | Turbocharged-aftercooled |
| Engine Specifications - Rotation | Counterclockwise from flywheel end |
| Engine Specifications - Bore | 145 mm ( 5.71 in ) |
| Engine Specifications - Configuration | Vee 12, 4-stroke-cycle diesel |
| Engine Specifications - Stroke | 162 mm ( 6.38 in ) |
| Engine Specifications - Displacement | 32.1 l ( 1959.0 in³ ) |
| Dimensions & Weights - Maximum Width | 1455 mm ( 57.3 in ) |
| Dimensions & Weights - Maximum Height | 1613 mm ( 63.5 in ) |
| Dimensions & Weights - Maximum Engine Dry Weight | 3248.0 kg ( 7160.0 lb ) |
| Dimensions & Weights - Minimum Engine Dry Weight | 3152.0 kg ( 6950.0 lb ) |
| Dimensions & Weights - Minimum Length | 2130 mm ( 83.9 in ) |
| Dimensions & Weights - Maximum Length | 2280 mm ( 89.8 in ) |
| Dimensions & Weights - Minimum Width | 1451 mm ( 57.1 in ) |
| Dimensions & Weights - Minimum Height | 1507 mm ( 59.3 in ) |
| Engine Specifications - Emissions | U.S. EPA Tier 4 Final certified, IMO III emissions certified (SCR required) |
| Clean Emissions Module (CEM) - Dimensions - 6 Brick Z-Flow - Weight | 565 kg ( 1246 lb ) |
| Clean Emissions Module (CEM) - Dimensions - 6 Brick Z-Flow - Width | 1106 mm ( 43.5 in ) |
| Clean Emissions Module (CEM) - Dimensions - Dosing Cabinet - Length | 949 mm ( 37.4 in ) |
| Clean Emissions Module (CEM) - Dimensions - Dosing Cabinet - Width | 477 mm ( 18.8 in ) |
| Engine Specifications - Oil Change Interval | 750 hrs – deep pan |
| Clean Emissions Module (CEM) - Dimensions - 6 Brick U-Flow - Height | 597 mm ( 23.5 in ) |
| Clean Emissions Module (CEM) - Dimensions - 6 Brick Z-Flow - Height | 597 mm ( 23.5 in ) |
| Engine Specifications - Rated Engine Speed | 1800 rpm |
| Clean Emissions Module (CEM) - Dimensions - 6 Brick U-Flow - Weight | 560 kg ( 1235 lb ) |
| Clean Emissions Module (CEM) - Dimensions - Dosing Cabinet - Weight | 95 kg ( 209 lb ) |
| Clean Emissions Module (CEM) - Dimensions - 6 Brick U-Flow - Width | 1445 mm ( 56.9 in ) |
| Engine Specifications - Governor | Electronic (A5 ECM) |
| Clean Emissions Module (CEM) - Dimensions - 6 Brick Z-Flow - Length | 3751 mm ( 147.7 in ) |
| Clean Emissions Module (CEM) - Dimensions - Dosing Cabinet - Height | 579 mm ( 22.8 in ) |
| Engine Specifications - Refill Capacity | Lube Oil System w/ oil filter change: 146 L (38.5 gal) – deep pan |
| Clean Emissions Module (CEM) - Dimensions - 6 Brick U-Flow - Length | 2159 mm ( 85.0 in ) |
| Engine Specifications - Cooling | Heat exchanger or keel cooled |
| Engine Specifications - Flywheel Housing | SAE No. 0 with SAE No. 18 flywheel (136 teeth) |
