C4.4 (50 Hz)
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meetsNFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
M-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
- Image may not be a representative of actual product
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S•O•S℠ program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Documents & Brochures
- Electric Power Ratings Guide
- DE55E2 50 Hz 55.0 kVA, LC Frame, EU II Compliant Emissions Spec Sheet
- DE55E3S 50 Hz 55.0 kVA, LC Frame, EU IIIA Compliant Emissions Spec Sheet
- DE65E3 50 Hz 65.0 kVA, LC Frame, EU IIIA Compliant Emissions Spec Sheet
- DE88E0 50 Hz 55.0 kVA, 60 Hz 100 kVA, LC Frame, Non Compliant Spec Sheet
- DE88E3 50 Hz 88.0 kVA, LC Frame, EU IIIA Compliant Emissions Spec Sheet
- DE90E2S 50 Hz 90.0 kVA, LC Frame, EU II Compliant Emissions Spec Sheet
- DE90E2S 50 Hz 90.0 kVA, LC Frame, EU II Compliant Emissions Spec Sheet
- DE110E2 50 Hz 110.0 kVA, 60 Hz 125.0 kVA, LC Frame, EU II Compliant Spec Sheet
- DE110E3, 50 Hz 110.0 kVA, LC Frame, EU IIIA Compliant Spec Sheet
- DE55E2 50 Hz 55.0 kVA, M Frame, EU II Compliant Emissions Spec Sheet
- DE55E3S 50 Hz 55.0 kVA, M Frame, EU IIIA Compliant Emissions Spec Sheet
- DE65E3 50 Hz 65.0 kVA, M Frame, EU IIIA Compliant Emissions Spec Sheet
- DE88E0 50 Hz 88.0 kVA, 60 Hz 100 kVA, M Frame, Non Compliant Emissions Spec Sheet
- DE88E3 50 Hz 88.0 kVA, M-Frame, EUIIIA Compliant Spec Sheet
- DE90E2S 50 Hz 90.0 kVA, 60 Hz 99.5 kVA, M Frame, EU II Compliant Emissions Spec Sheet
- DE90E3S 50 Hz 90.0 kVA, M Frame, EU II Compliant Emissions Spec Sheet
- DE110E2 50 Hz 110.0 kVA, M-Frame, EUIII Compliant Spec Sheet
- DE110E3 50 Hz 110.0 kVA, M-Frame, EUIIIA Compliant Spec Sheet
- Sound Attenuated Level 2 Enclosures
Standard Equipment
Air Inlet System
- Air cleaner; light duty with disposable element
Cooling System
- Coolant drain line with valve
- Caterpillar extended life coolant
- Radiator and cooling fan with guards
- Fan drive, battery charging alternator drive
Exhaust System
- Stub pipe, gaskets, raincap and SAE exhaust flange for customer use - shipped loose
Fuel System
- Standard open set fuel tank/base supplied base, formed steel with single wall integral 8-hour fuel tank
Control Panel
- GCCP 1.3
Generators and Attachments
- Voltage regulator (single phase sensing)
- Tower panel, IP22, bottom cable entry
- IP23 Protection
- Circuit breaker, IEC, 3 pole, mounted in tower panel
- 12 Leads
- Segregated low voltage (AC/DC) wiring panel
Governing System
- Mechanical and electrical governing system - model dependent
Mounting System
- Captive linear vibration isolators between base and engine-generator
- Includes lifting provision and drag points
- Termination points for coolant and lube oil drain lines
Starting/Charging System
- Batteries
- 24V battery with rack and cables
General
- Engine and alternator pre-paint, Caterpillar yellow
Lube System
- Oil drain line with valve
- Lubricating oil
Additional information
Offering Type | |
---|---|
Generator Set Specifications - Maximum Rating | 110 kVA |
Generator Set Specifications - Minimum Rating | 50 kVA |
Generator Set Specifications - Emissions/Fuel Strategy | EU Stage II & R96/EUIIIa |
Generator Set Specifications - Voltage | 110 to 480 Volts |
Generator Set Specifications - Frequency | 50 Hz |
Generator Set Specifications - Speed | 1500 rpm |
Generator Set Specifications - Duty Cycle | Standby, Prime |
Engine Specifications - Engine Model | Cat® C4.4 |
Engine Specifications - Bore | 105 mm ( 4.1 in ) |
Engine Specifications - Stroke | 127 mm ( 5 in ) |
Engine Specifications - Displacement | 4.4 l ( 268.5 in³ ) |
Engine Specifications - Compression Ratio | 16.2:1, 17.25:1, 18.2:1 or 18.3:1 |
Engine Specifications - Aspiration | Turbocharged |
Engine Specifications - Fuel System | Direct Injection or Common Rail |
Engine Specifications - Governor Type | Mechanical |
Generator Set Dimensions - Length - Maximum | 1925 mm ( 75.8 in ) |
Generator Set Dimensions - Width - Maximum | 1120 mm ( 44.1 in ) |
Generator Set Dimensions - Height - Maximum | 1361 mm ( 53.6 in ) |
-

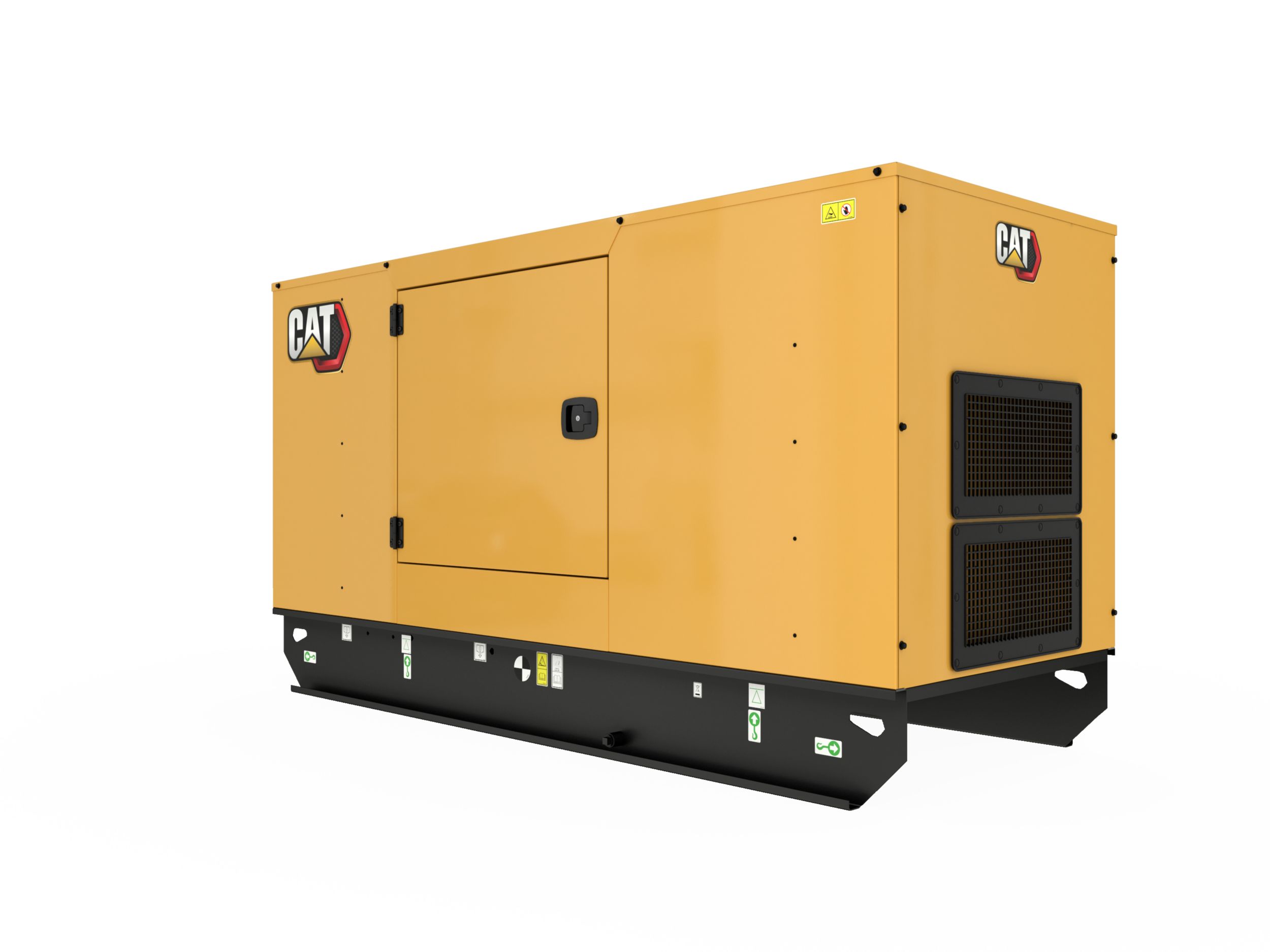

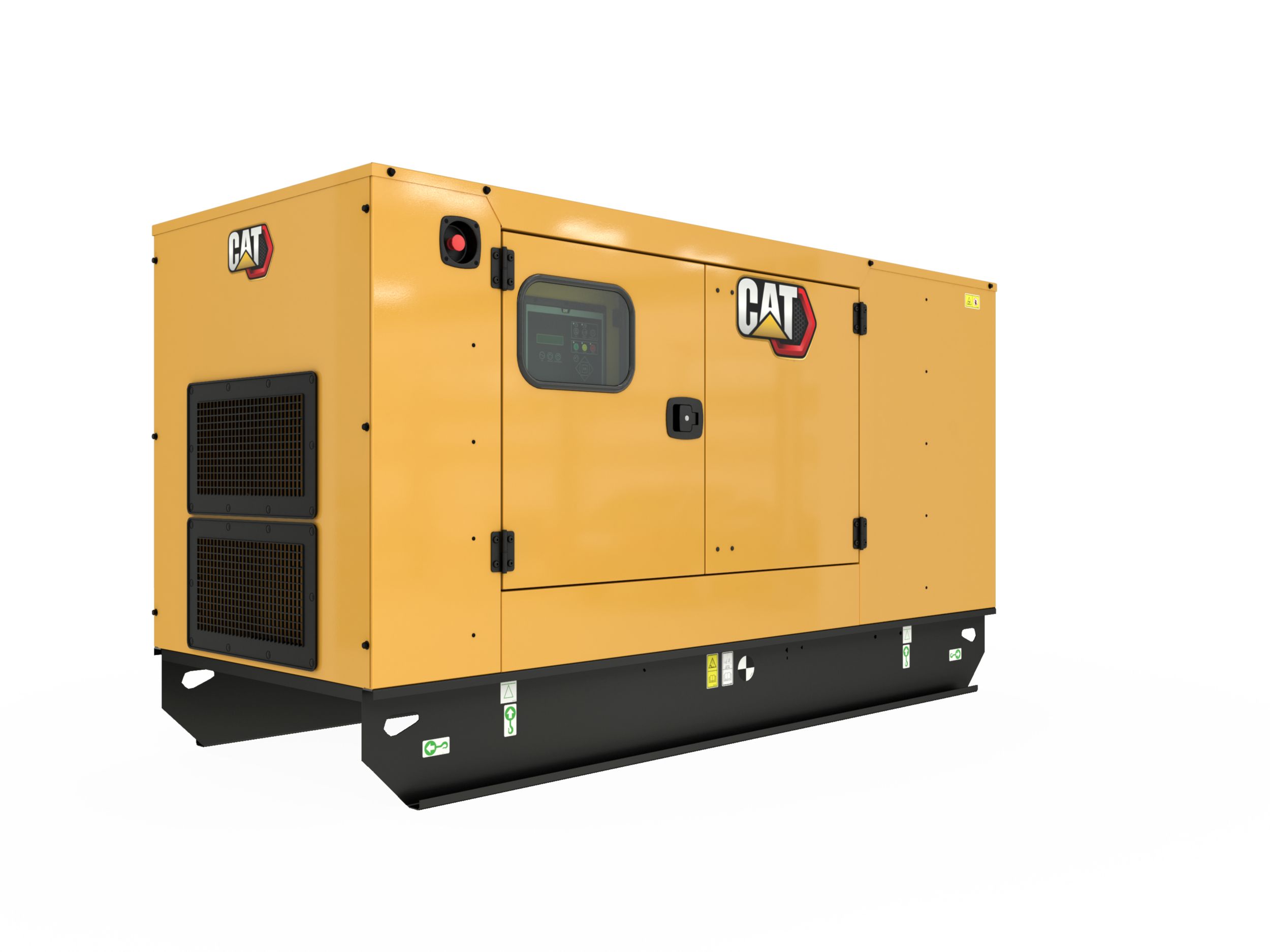

Enclosures
