C2.2 (50 Hz)
C2.2 Generator Set
Producing reliable power from 13.0 to 22.0 kVA at 50 Hz, our C2.2 diesel generator sets designed to ISO 8528-5 transient response requirements. All C2.2 generator sets are R96/EUIIIa equivalent emissions compliant.

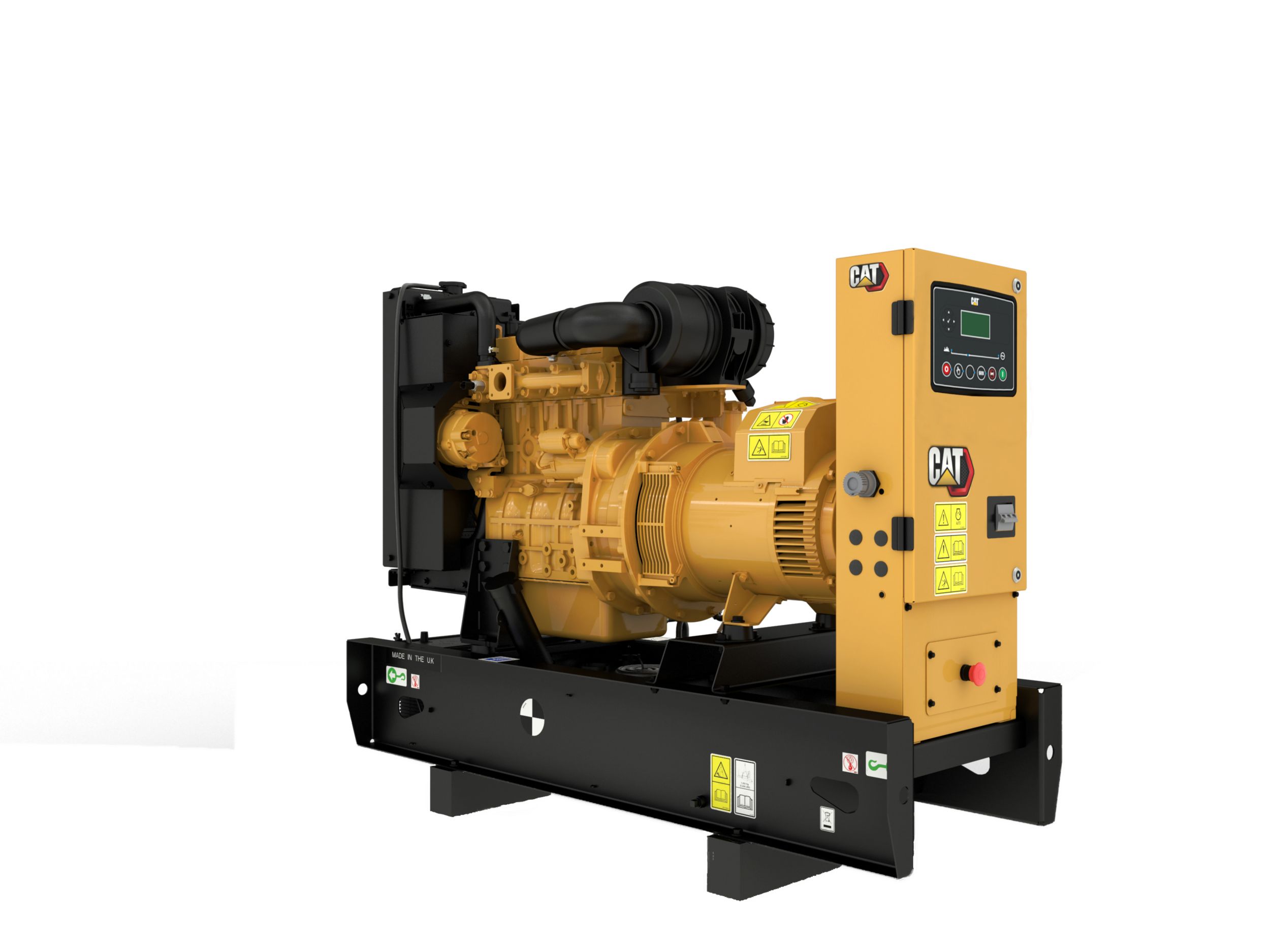

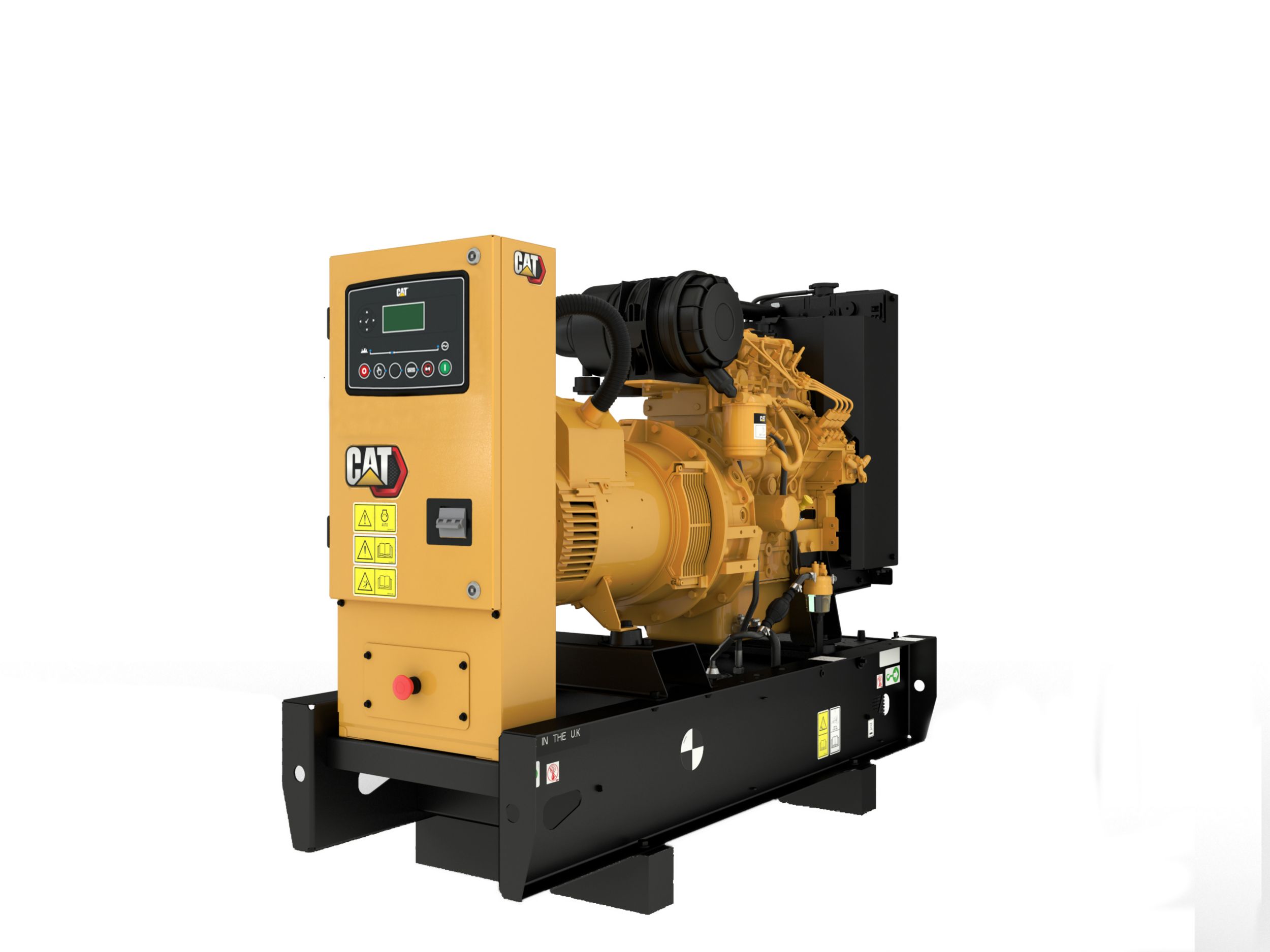

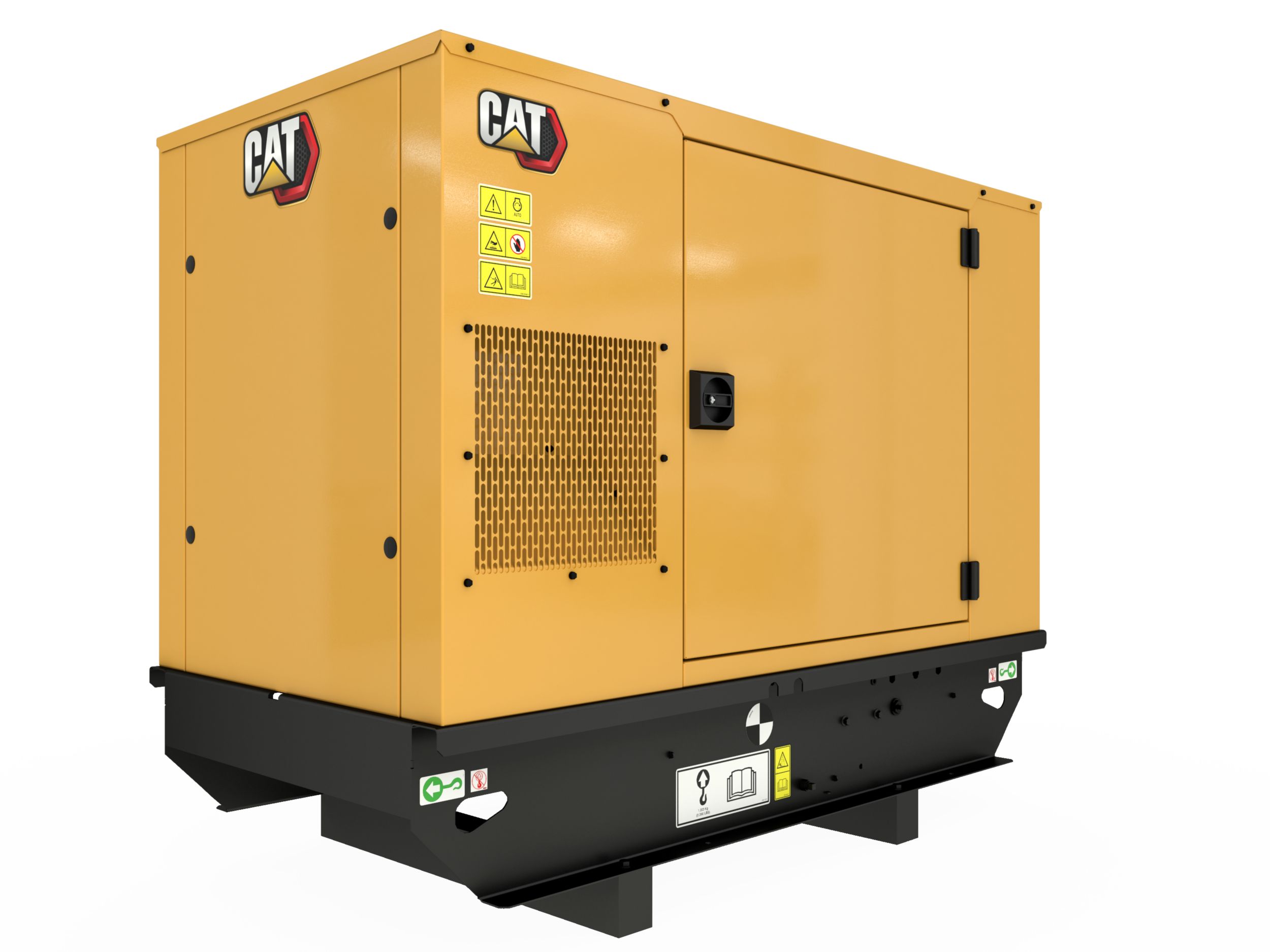

Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
M-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
- Image may not be a representative of actual product
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
Cat Dealers provide extensive post sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Cat® SOSSM program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products.
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Virtual Tours
Documents & Brochures
- DE22E3 50 Hz 22.0 kVA, 60 Hz 25.0 kVA, M Frame, EU IIIA Emissions Compliant Spec Sheet
- Electric Power Ratings Guide
- DE14E3S 50 Hz 14.0 kVA, 60 Hz 17.0 kVA, M Frame, EU IIIA Compliant Emissions Spec Sheet
- DE16E3S 50 Hz 16.5 kVA, 60 Hz 19.4 kVA, M Frame, EU IIIA Emissions Compliant Spec Sheet
- DE18E3 50 Hz 18.0 kVA, 60 Hz 22.0 kVA, M Frame, EU IIIA Compliant Emissions Spec Sheet
- DE14E3S 50 Hz 14.0 kVA, 60 Hz 17.0 kVA, LC Frame, EU IIIA Emissions Compliant Spec Sheet
- DE16E3S 50 Hz 16.5 kVA, 60 Hz 19.4 kVA, LC Frame, EU IIIA Emissions Compliant Spec Sheet
- DE18E3 50 Hz 18.0 kVA, 60 Hz 22.0 kVA, LC Frame, EU IIIA Emissions Compliant Spec Sheet
- DE22E3 50 Hz 22.0 kVA, 60 Hz 25.0 kVA, LC Frame, EU IIIA Emissions Compliant Spec Sheet
- C1C2 Diesel Generator Set, 6.8 - 22 kVA, 50/60 Hz Spec Sheet
- C1C2 Diesel Generator Set, 6.8 - 22 kVA, 50/60 Hz Spec Sheet
Standard Equipment
Control Panel
- GCCP 1.3
Air Inlet System
- Air cleaner; light duty with disposable element
Cooling System
- Radiator and cooling fan with guards
- Caterpillar extended life coolant
- Coolant drain line with valve
- Fan drive, battery charging alternator drive
Fuel System
- Standard open set fuel tank/base supplied
- Base, formed steel with single wall integral 8-hour fuel tank
Exhaust System
- Stub pipe, gaskets, raincap & SAE exhaust flange for customer use - shipped loose
Generators and Generator Attachments
- Voltage regulator (single phase sensing)
- Segregated low voltage (AC/DC) wiring panel
- Tower panel, IP22, bottom cable entry
- IP23 Protection
- Circuit breaker, IEC, 3 pole, mounted in tower panel
- 12 Leads
Governing System
- Mechanical governing system
Lube System
- Oil drain line with valve
- Lubricating oil
Mounting System
- Captive linear vibration isolators between base and engine-generator
- includes lifting provisions and termination points for coolant
Starting / Charging System
- 12 Volt battery with rack and cables
General
- Engine and alternator pre-paint, Caterpillar yellow
Additional information
| مواصفات مجموعة المولدات - أقصى معدل | 22,0 كيلوفولت أمبير |
|---|---|
| مواصفات مجموعة المولدات - أدنى معدل | 13,0 كيلوفولت أمبير |
| مواصفات مجموعة المولدات - الانبعاثات/إستراتيجية الوقود | يكافئ R96/EUIIIa |
| مواصفات مجموعة المولدات - الجهد | 110 إلى 415 فولت |
| مواصفات مجموعة المولدات - التردد | 50 هرتز |
| مواصفات مجموعة المولدات - السرعة | 1500 دورة في الدقيقة |
| مواصفات مجموعة المولدات - دورة العمل | الاحتياطية، والرئيسية |
| مواصفات المحرك - موديل المحرك | محرك Cat® C2.2، ديزل خطي 4، رباعي الدورات |
| مواصفات المحرك - التجويف | 84 مم ( 3.3 بوصة ) |
| مواصفات المحرك - الشوط | 100 مم ( 3.9 بوصة ) |
| مواصفات المحرك - الإزاحة | 2.2 l ( 135.2 بوصة³ ) |
| مواصفات المحرك - نسبة الانضغاط | 22.5:1 |
| مواصفات المحرك - السحب | يعمل بالسحب الطبيعي |
| مواصفات المحرك - نظام الوقود | حقن غير مباشر |
| مواصفات المحرك - نوع المنظم | ميكانيكي |
| أبعاد مجموعة المولدات - الطول - الحد الأقصى | 1500 مم ( 59.1 بوصة ) |
| أبعاد مجموعة المولدات - العرض - الحد الأقصى | 620 مم ( 24.4 بوصة ) |
| أبعاد مجموعة المولدات - الارتفاع - الحد الأقصى | 1115 مم ( 43.9 بوصة ) |
