3516 (50 Hz) with Upgradeable Package

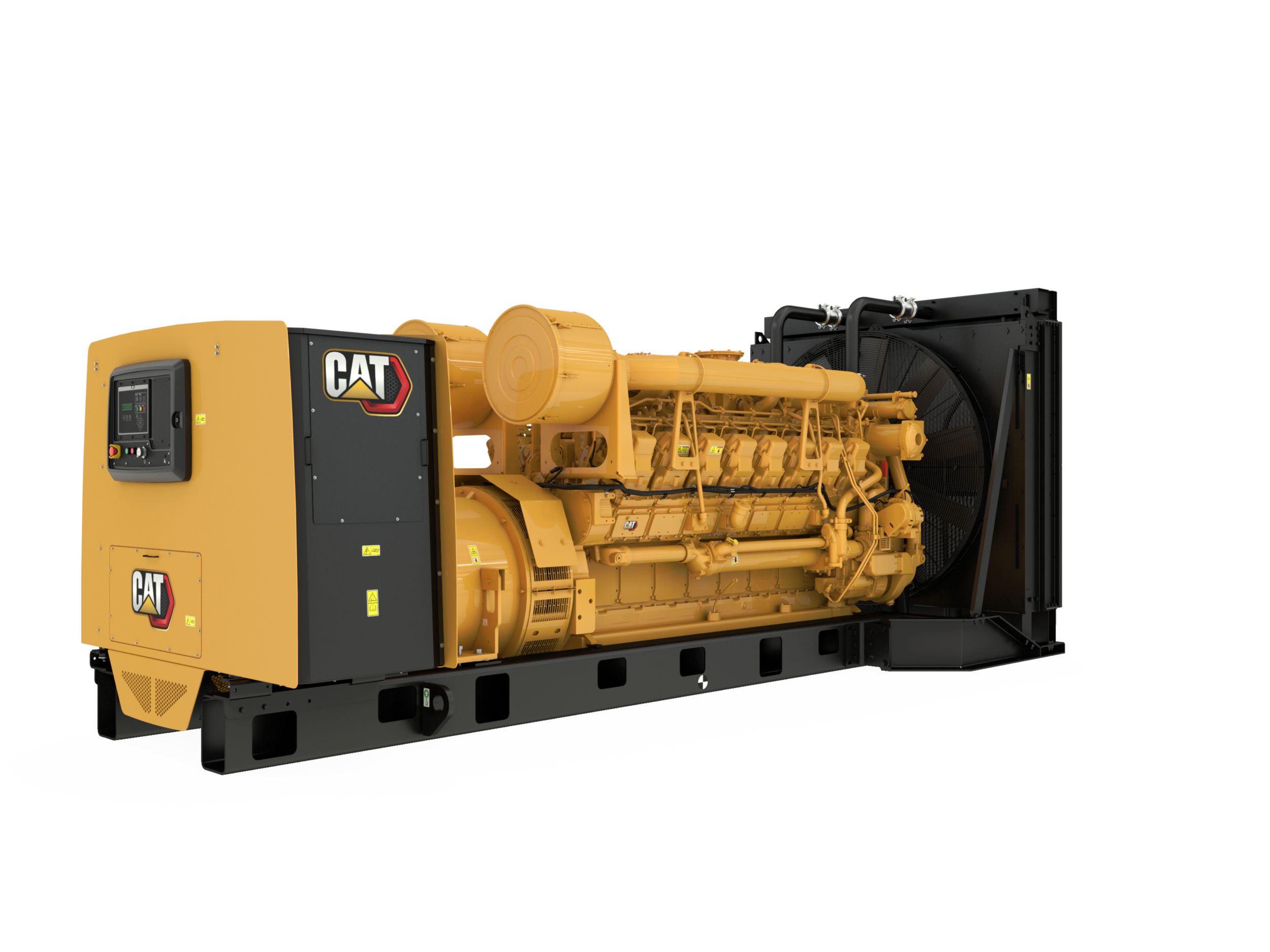

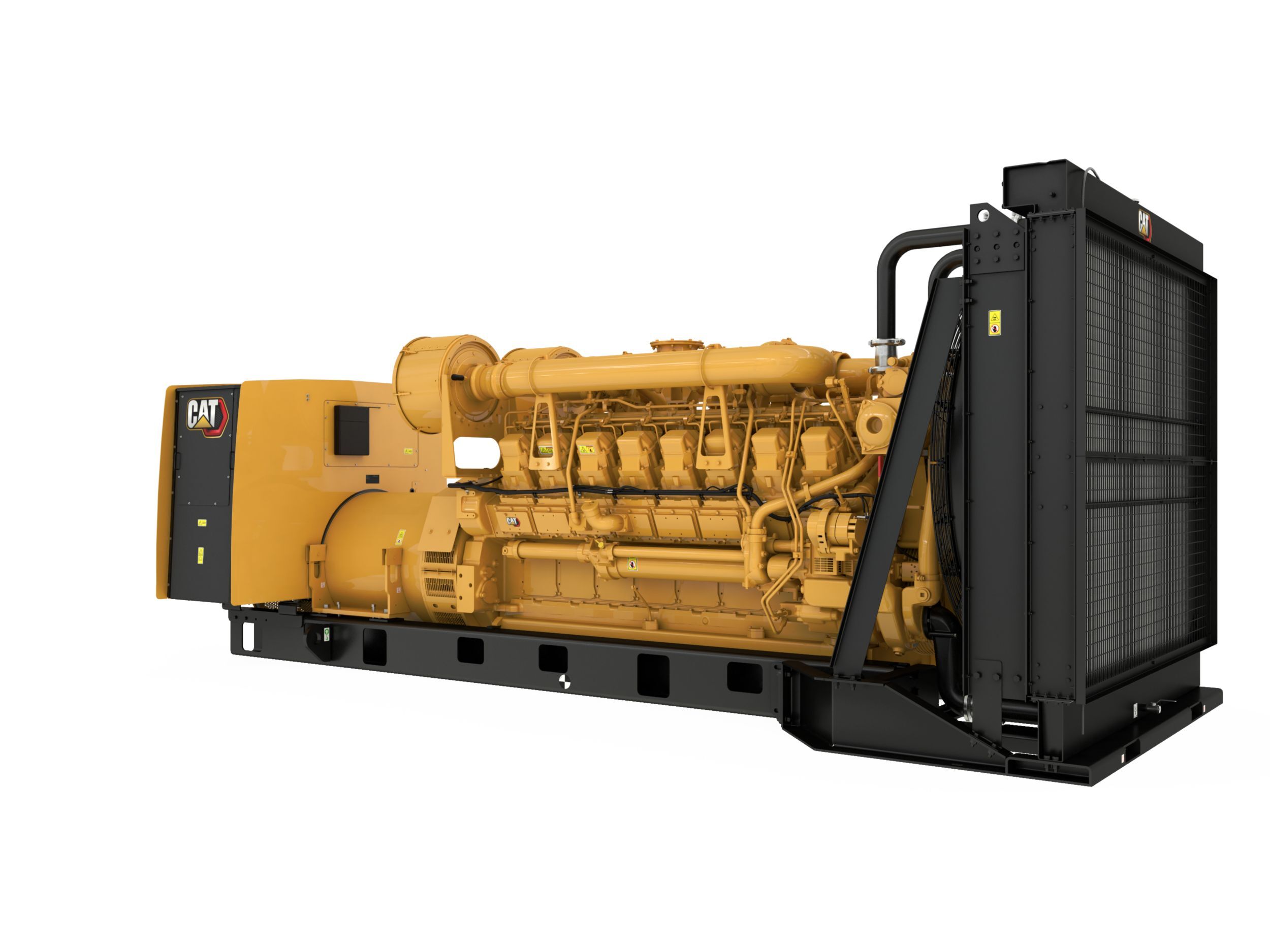

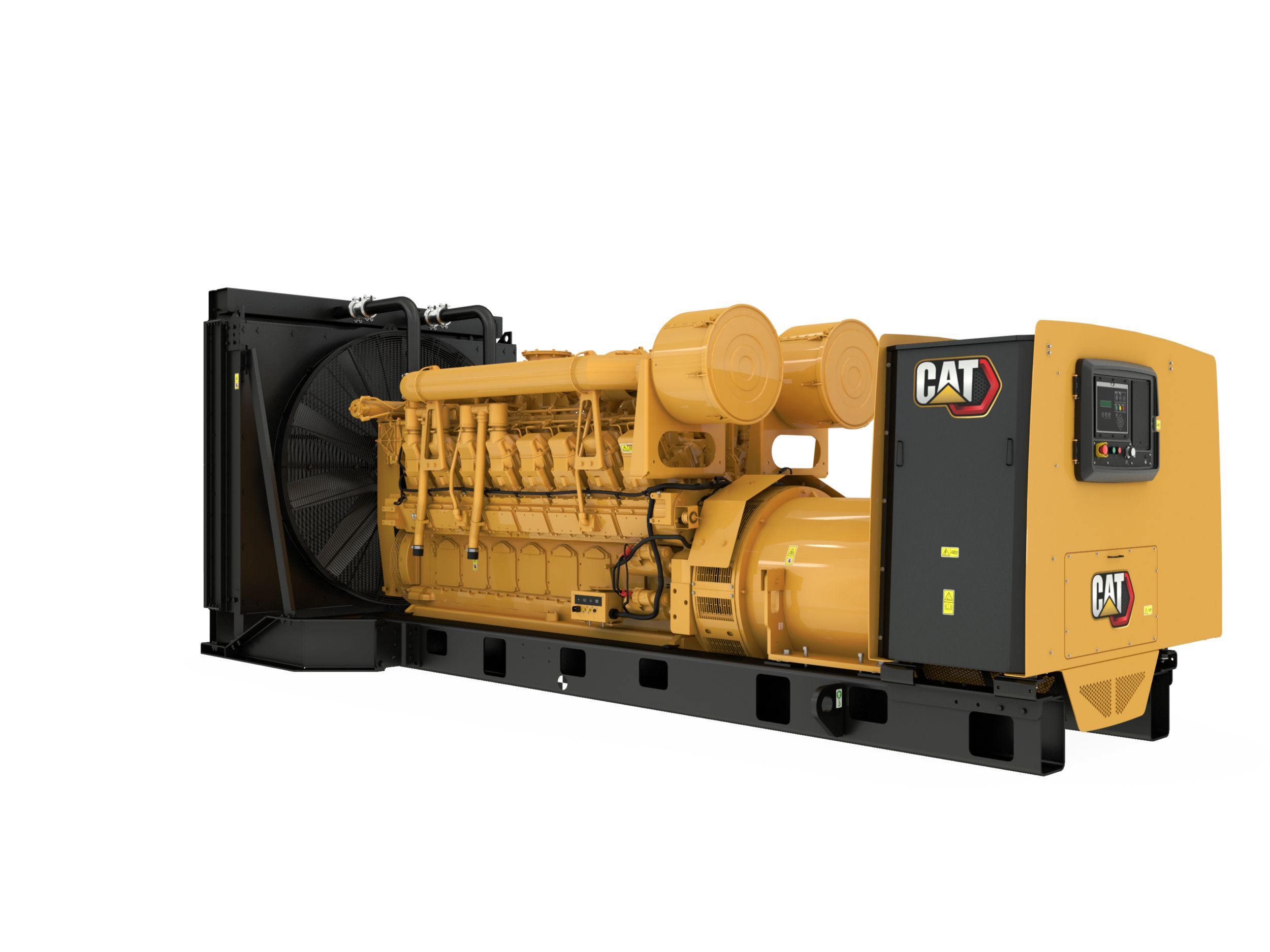

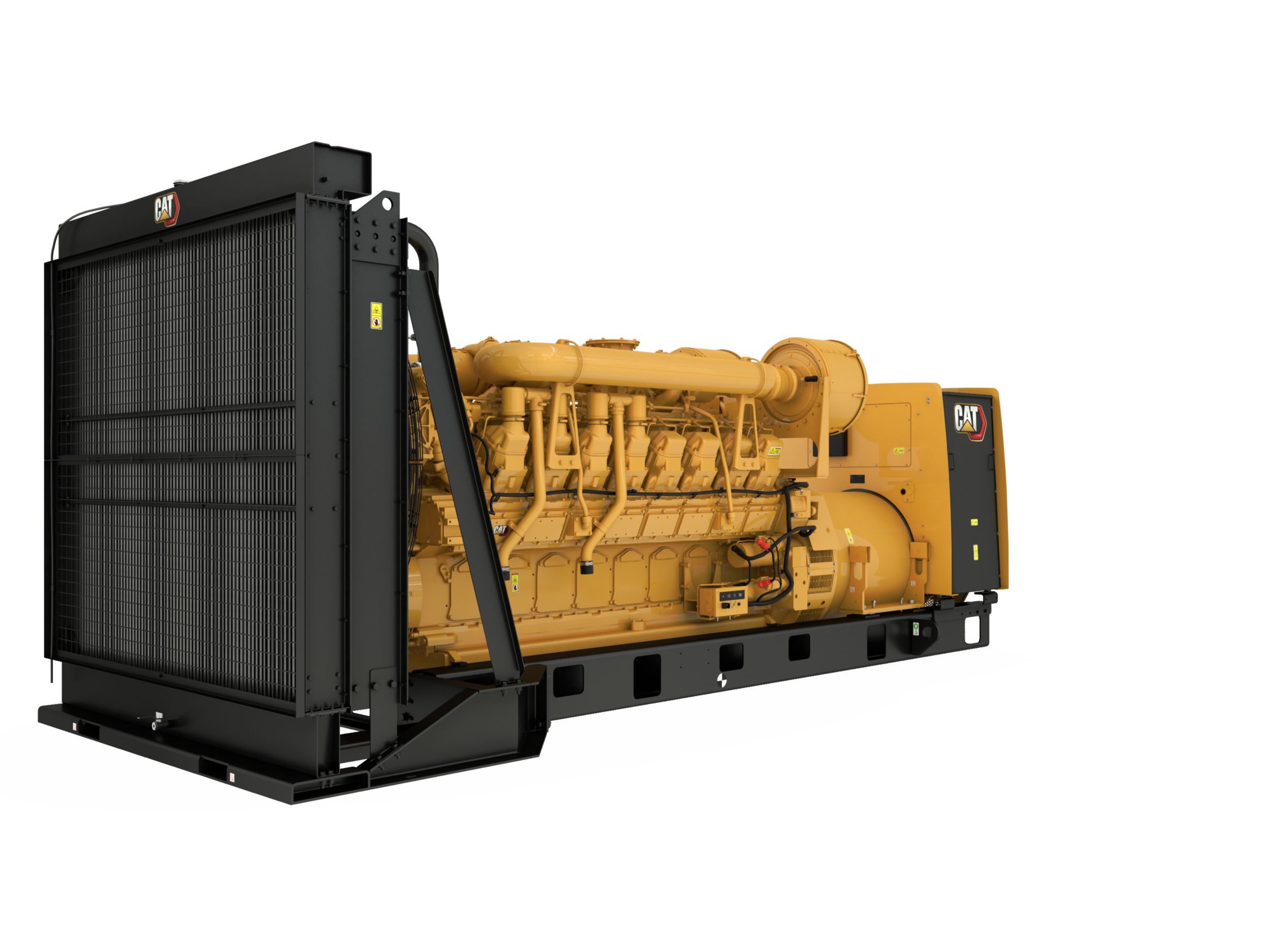

3516 Diesel Generator Set

Producing reliable power from 1600 to 2000 kVA at 50 Hz, our 3516 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Generator sets offer both low fuel consumption and low emission systems.

Category:
Add to Quote

Cat Generator Set Package

  • Cat generator set packages have been fully prototype tested
  • Accepts 100% block load in one step and meets NFPA 110 loading requirements
  • Conform to ISO 8528-5 steady state and transient response requirements

Cat Diesel Engine

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

SR5 Alternator

  • Superior motor starting capability minimizes need for oversizing alternator
  • Designed to match performance and output characteristics of Cat diesel engines
  • Robust Class H insulation

EMCP 4 Control Panel

  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements

Cooling System

  • Designed to operate in standard ambient temperatures up to 50°C (122°F)
  • Contact your Cat Dealer for specific ambient and altitude capabilities

Certifications

  • EU Declaration of Conformity
  • EU Declaration of Incorporation
  • Eurasian Conformity (EAC)
  • Telecommunication Lab of China

One Safe Source

  • Components used in the generator set are selected at the design stage to provide optimum package performance
  • The generator set is fully assembled at a Caterpillar facility following our quality guidelines
  • Each generator set package is tested before leaving the Caterpillar facility
  • Cat product support, including dealer service, parts and warranty covers the entire Cat power system

World Wide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Virtual Tours

Documents & Brochures

Standard Equipment

Air Inlet System
  • Air cleaner; single element canister type
Governing System
  • ADEM A3
Control System
  • Auto/start/stop control
  • EMCP 4.2B
  • Environmental sealed front face
  • Generator mounted - rear facing
  • Speed adjust
  • 24 Volt DC operation
  • Generator set packages include Caterpillar's voltage regulator
  • Text alarm/event descriptions
  • Emergency stop pushbutton
  • Engine cool-down timer
  • Engine cycle crank
  • IVR includes reactive droop capability, 3-phase voltage sensing, KVAR / PF modes, RFI suppression, min / max exciter. Limiter and exciter diode monitor
  • Controls:
  • Alarm acknowledge
  • Lamp test
  • PLC functionality
  • Load histogram feature
  • 3 Analog inputs
  • Operating hours
  • Serial annunciator module data link
  • Digital indication for:
  • 4 programmable relay outputs (Form A)
  • ATAAC - 3516E package radiators shipped installed
  • Communications:
  • Customer data link (Modbus RTU)
  • Reverse reactive power (kVAr) (32RV)
  • Accessory module data link
  • Number of I/O varies on options selected
  • RPM
  • Overcurrent (50/51)
  • Customizable screens -0 True RMS AC metering, 3-phase, +/-2% accuracy
  • 1 programmable relay outputs (Form C)
  • 1 programmable digital outputs
  • Cat connect
  • 6 Customer programmable digital inputs
  • Certified standard PGS provided
  • Volts (L-L & L-N)
  • Coolant temperature
  • Oil pressure (psi, kPa or bar) - Coolant temperature - Volts (L-L & L-N) - Frequency (Hz) - Amps (per phase & average) - Power factor (per phase & average) - kW (per phase, average & percent) - kVA (per phase, average & percent) - kVAr (per phase, average & percent) - kW-hr (total) - kVAr-hr (total)
  • Frequency (Hz)
  • kVA (per phase, average & percent)
  • Amps (per phase & average)
  • Power factor (per phase & average)
  • kVAr (per phase, average & percent)
  • kW (per phase, average & percent)
  • kW-hr (total)
  • kVAr-hr (total)
  • Failure to start (overcrank)
  • Emergency stop
  • Overspeed
  • Warning/shutdown with common LED indication of shutdowns for:
  • High coolant temperature
  • Low oil pressure
  • Programmable protective relaying functions
  • Low coolant level
  • Low coolant temperature
  • Generator phase sequence
  • Over/under frequency (81 o/u)
  • Over/under voltage (27/59)
  • Reverse power (kW) (32)
Exhaust System
  • Dry exhaust manifold
  • Flanged faced outlet(s)
Fuel System
  • Fuel priming pump
  • Flexible fuel lines - shipped loose
  • Secondary fuel filters
  • Fuel cooler; not included with packages without radiator
General
  • Right hand servicing
  • Flywheel and flywheel housing - SAE No. 00
  • Caterpillar yellow with high gloss black rails and radiator
  • SAE standard rotation
Generator and Attachments
  • Winding temperature detectors
  • Busbar connections, right side extension box, bottom cable entry
  • Permanent magnet excitation (PMG)
  • NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime/150C standby
  • Busbar connections, top center mounted, top cable entry
  • Anti-condensation space heater
  • NEMA standard hole pattern
  • NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime/150C standby)
  • Low voltage:
  • Winding temperature detectors
  • Form wound
  • Medium voltage:
  • Winding temperature detectorsle pattern
  • NEMA standard hole pattern
  • Six lead
  • Form wound
  • Internal excitation (IE)
  • 3 Phase brushless, Salient pole
  • Random wound
  • Busbar connections, top center mounted, top cable entry
  • Class H insulation, Class F temperature rise at 40C ambient (105C prime/130C standby)
  • High voltage:
Literature
  • Parts book
Lubrication System
  • Oil drain lines and valve
  • Lubricating oil
  • Gear type lube oil pump
  • Integral lube oil cool
  • Fumes disposal
  • Oil filter, filler and dipstick
Mounting System
  • Rails - Engine/generator/radiator mounting
  • Rubber anti-vibration mounts - shipped loose
  • Anti-vibration mounts (shipped loose)
Starting System
  • 24 Volt electric starting motor
  • 45 Amp Charging alternator
  • Battery disconnect switch
  • Battery and battery rack w/cables

Additional information

مواصفات مجموعة المولدات - تقدير الطاقة الرئيسية

1825 كيلوفولت أمبير
مواصفات مجموعة المولدات - الانبعاثات/إستراتيجية الوقود

استهلاك وقود منخفض
مواصفات مجموعة المولدات - الجهد

380 إلى 415 فولت
مواصفات مجموعة المولدات - التردد

50 هرتز
مواصفات مجموعة المولدات - السرعة

1500 دورة في الدقيقة
مواصفات مجموعة المولدات - دورة العمل

استخدامات الطاقة الاحتياطية، والمهام الصعبة، والطاقة الرئيسية، والطاقة المتواصلة
مواصفات مجموعة المولدات - أقصى معدل

2000 كيلوفولت أمبير
مواصفات مجموعة المولدات - أدنى معدل

1600 كيلوفولت أمبير
مواصفات المحرك - موديل المحرك

3516 TA، ديزل على شكل حرف V ذو 16 أسطوانة، و4 أشواط، ومبرد بالمياه
مواصفات المحرك - التجويف

170 مم ( 6.69 بوصة )
مواصفات المحرك - الشوط

190 مم ( 7.48 بوصة )
مواصفات المحرك - الإزاحة

69 l ( 4210.64 بوصة³ )
مواصفات المحرك - نسبة الانضغاط

13.0:1
مواصفات المحرك - السحب

TA
مواصفات المحرك - نظام الوقود

حقن الوحدات الميكانيكي
مواصفات المحرك - نوع المنظم

Woodward
أبعاد مجموعة المولدات - الطول - الحد الأقصى

5953 مم ( 234.4 بوصة )
أبعاد مجموعة المولدات - العرض - الحد الأقصى

2286 مم ( 90 بوصة )
أبعاد مجموعة المولدات - الارتفاع - الحد الأقصى

2410 مم ( 94.9 بوصة )
أبعاد مجموعة المولدات - الوزن الجاف - مجموعة المولدات (الحد الأقصى)

15350 كجم ( 33840 رطل )
