EMCP 4.4 Control Panel

EMCP 4.4 Control Panel

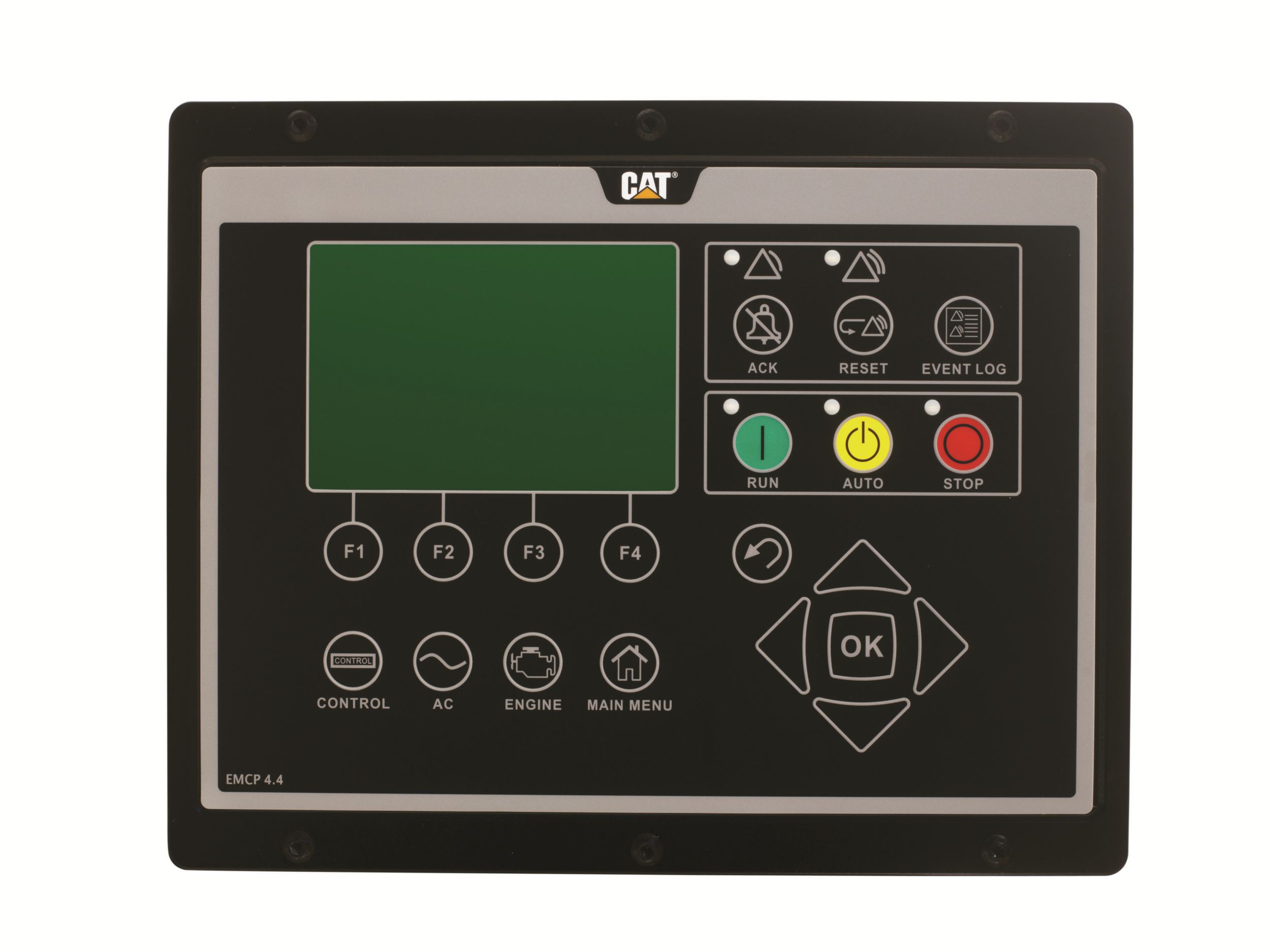

The EMCP 4 Control Panel provides all of the controls and system indicators in one easy to access interface.

Category:

EMCP 4 Controls

The EMCP 4 includes the following controls:

  • Auto / Start / Stop Control
  • Speed and Voltage Adjust
  • Engine Cycle Crank
  • Programmable Cycle Timer
  • 24-volt DC operation
  • Environmental sealed front face
  • Text alarm/event descriptions
  • Paralleling Mutiple Generator Set or Single Generator Set to Single Utility

Digital Indicators

  • RPM
  • DC volts
  • Operating hours
  • Oil pressure (psi, kPa or bar)
  • Coolant temperature
  • Volts (L-L & L-N), frequency (Hz)
  • Amps (per phase & average)
  • ekW, kVA, kVAR, kW-hr, %kW, PF

Warning / Shutdown Indicators

The EMCP 4 has common LED indicators of the following warning and shutdown conditions

  • Low oil pressure
  • High coolant temperature
  • Overspeed
  • Emergency stop
  • Failure to start (overcrank)
  • Low coolant temperature
  • Low coolant level

Programmable Protective Relaying

  • Generator phase sequence
  • Over/Under voltage (27/59)
  • Over/Under Frequency (81 o/u)
  • Reverse power (kW) (32)
  • Reverse reactive power (kVAr) (32RV)
  • Overcurrent (50/51)
  • Overcurrent Thermal Damage Curve
  • Current Balance (46)
  • Bus Phase Sequence

Communications

  • Twelve digital inputs
  • Emergency stop pushbutton
  • Five Analog output
  • Seventeen digital outputs
  • Two Analog Input
  • customer data link (Modbus RTU)
  • Accessory module data link
  • Serial annunciator module data link
  • Ethernet SCADA (Modbus TCP)

Compatibility

The EMCP 4 is compatible with:

  • Remote CAN annunciator
  • Remote serial annunciator
  • Local Annunciator
  • Remote Monitoring Software
  • Digital I/O module
  • RTD module
  • Thermocouple module
  • Supervisory Control Panel
  • Master Control Panel

Standard Equipment

Control
  • Auto / Start / Stop control
  • Remote start / stop
  • Speed and voltage adjust
  • Engine Cooldown Timer
  • Local and remote emergency stop
  • Engine Cycle Crank
  • Programmable Cycle Timer
  • Paralleling Multiple Generator Sets or Single Generator Set to Single Utility
Multiple Generator Set Paralleling
  • Load sense / load demand
Single Gen to Single Utility Paralleling
  • Emergency Mode with Closed/Open Return
  • Standby Emergency
  • Base Load Control
  • Import/Export
  • Soft Load/Unload
  • Load shed/add (Up to Six Stages)
  • LV/MV/HV capable (< 15kV)
  • Genset & Utility Circuit Breaker control
Display
  • A 480 x 320 pixel, 5.5 inch, white backlit graphical display denotes text alarm/event descriptions, set points, engine and generator monitoring, and is visible in all lighting conditions.
Generator Monitoring
  • Voltage (L-L, L-N)
  • Current (Phase)
  • Average Volt, Amp, Frequency
  • kW, kVAr, kVA (Average, Phase, %)
  • Power Factor (Average, Phase)
  • kW-hr, kVAr-hr (total)
Generator Protection
  • Over/Under voltage (27/59)
  • Over/Under frequency (81/OU)
  • Generator phase sequence
  • Bus phase sequence
  • Overcurrent (50/51)
  • Overcurrent (Thermal Damage Curve)
  • Reverse Power (kW)(32)
  • Reverse Reactive Power (kVAr) (32RV)
  • Current Balance (46)
Engine Monitoring
  • Engine speed (RPM)
  • Battery voltage
  • Oil pressure
  • Oil Temperature
  • Coolant temperature
  • Multiple Language Support
  • Crank attempt and successful start counter
  • Run hours
  • Enhanced engine monitoring (with electronic engines)
Engine Protection
  • Low engine oil pressure (alarm)
  • High engine oil temp (alarm and shutdown)
  • High coolant temp (alarm and shutdown)
  • Low coolant temp (alarm)
  • Low coolant level (alarm)
  • Overcrank
  • Overspeed
  • Control switch not in auto (alarm)
  • Low, high, and weak battery voltage
Communications
  • Primary and accessory CAN data links
  • RS-485 annunciator data link
  • Modbus RTU (RS-485 Half duplex)
  • Modbus TCP (10BT Ethernet)
Inputs & Outputs
  • Seventeen programmable digital outputs
  • Two dedicated analog inputs
  • Two programmable analog inputs
  • Two dedicated digital inputs
  • Twelve programmable digital inputs
Language Support
  • Arabic, Bulgarian, Chinese, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Lithuanian, Japanese, Norwgian, Polish, Portguese, Romanian, Russian, Slovak, Slovene, Spanish, Swedish & Turkish
Environmental
  • Control module operating temperature: -40°C to 70°C
  • Display operating temperature: -20°C to 70°C
  • Humidity: 100% condensing 30°C to 60°C
  • Storage temperature: -40°C to 85°C
  • Vibration: Random profile, 24-1000 Hz, 6.0G ms
