C18 (50 Hz) China Non Road

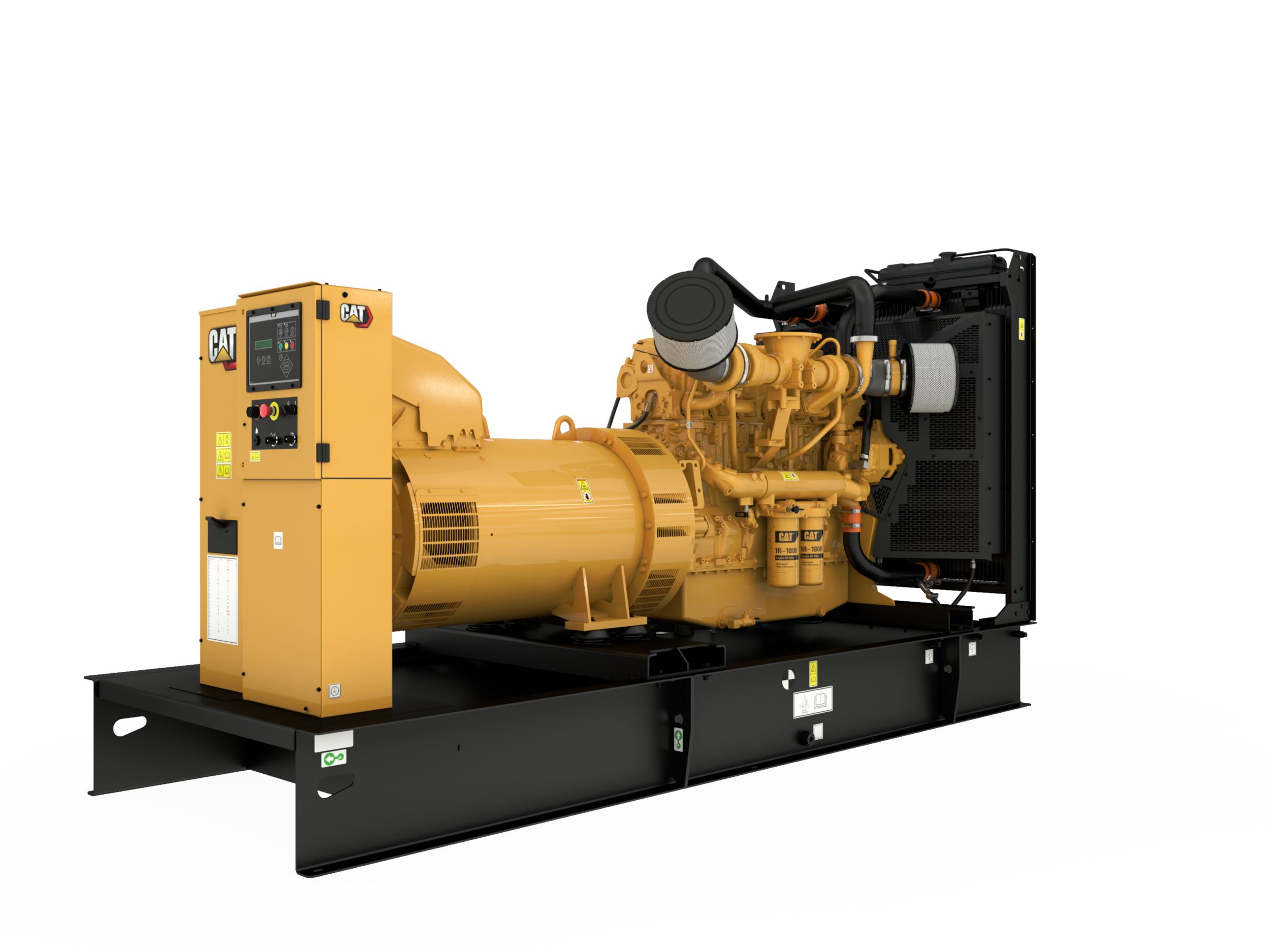

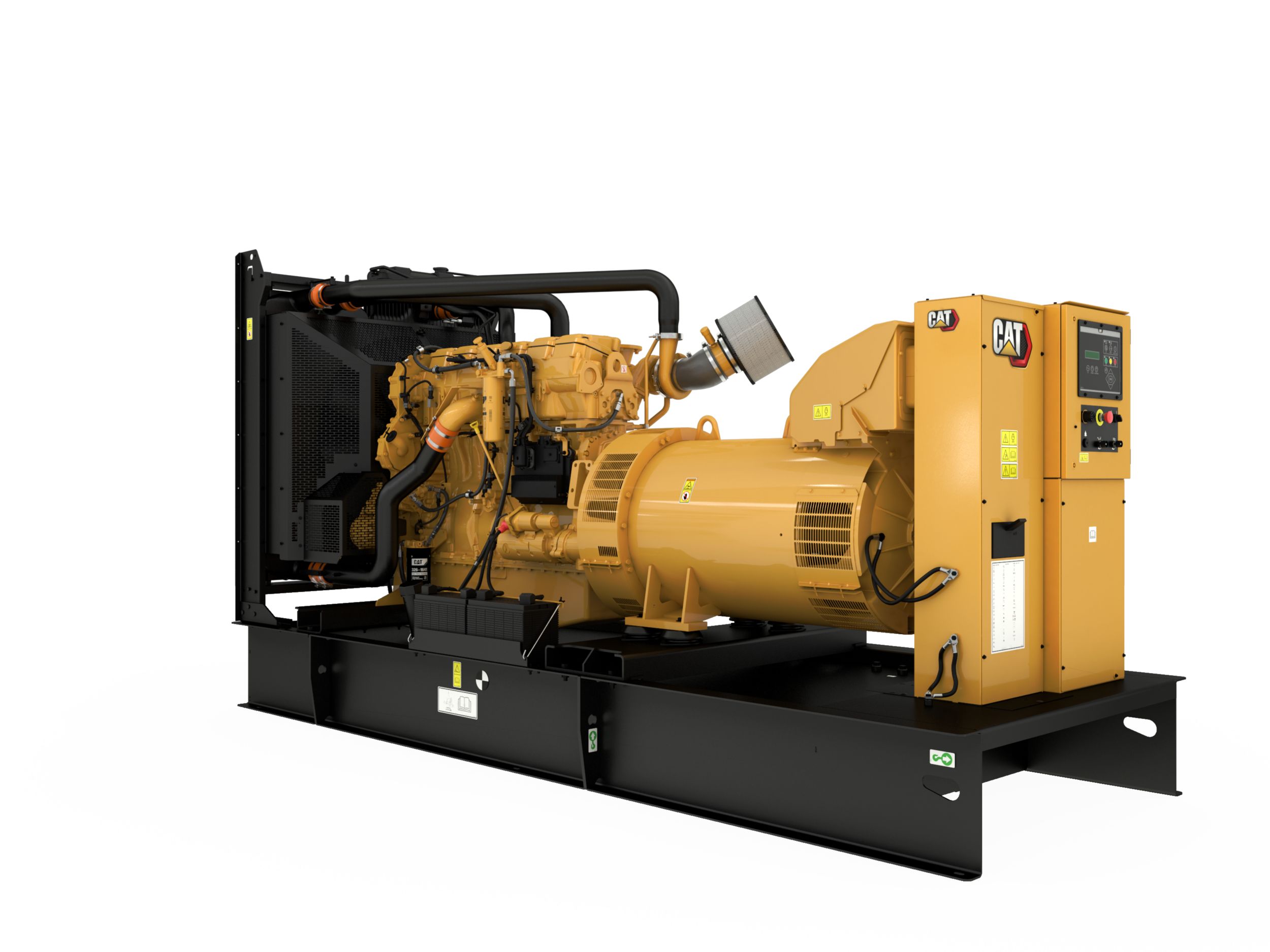

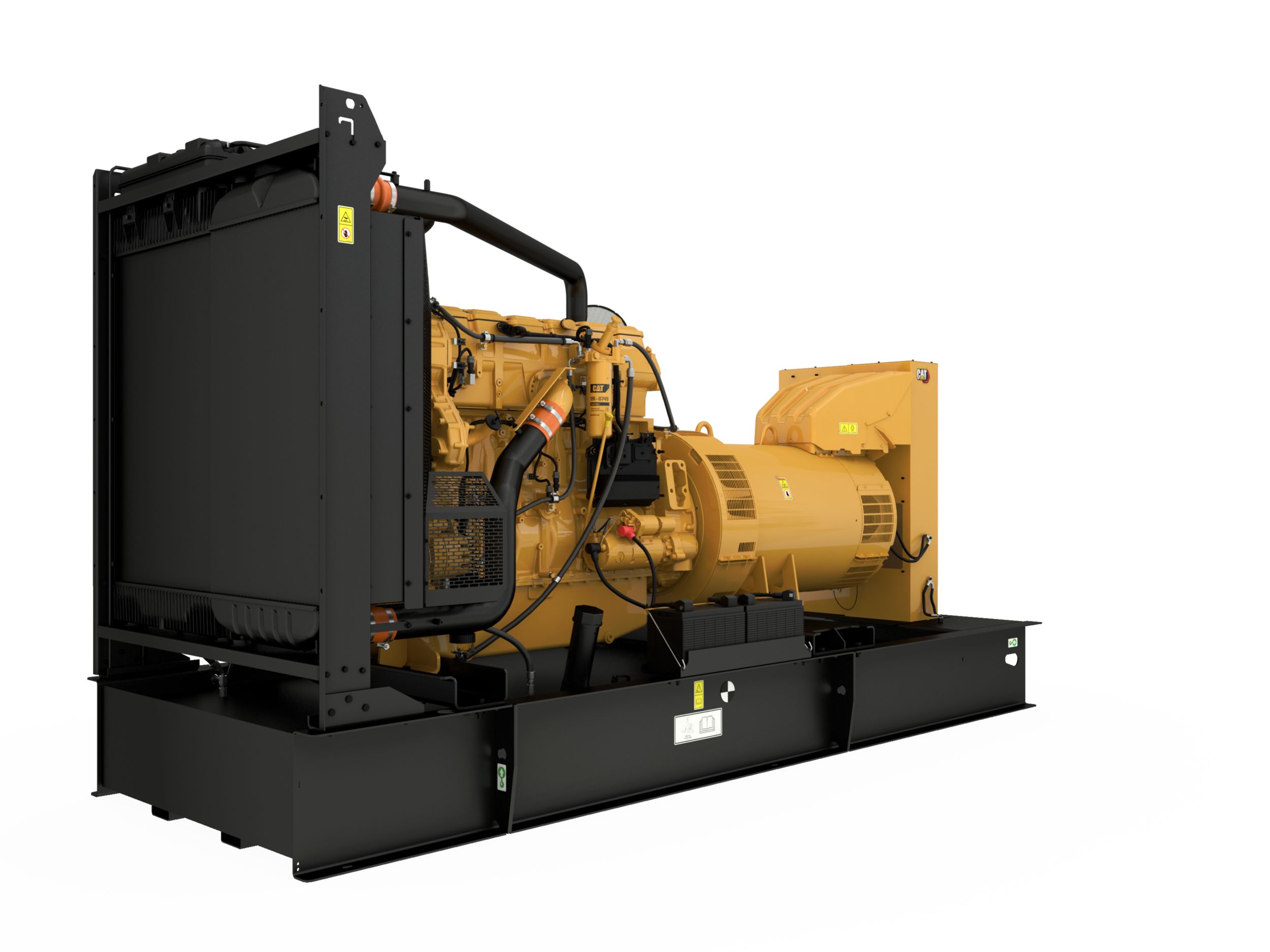

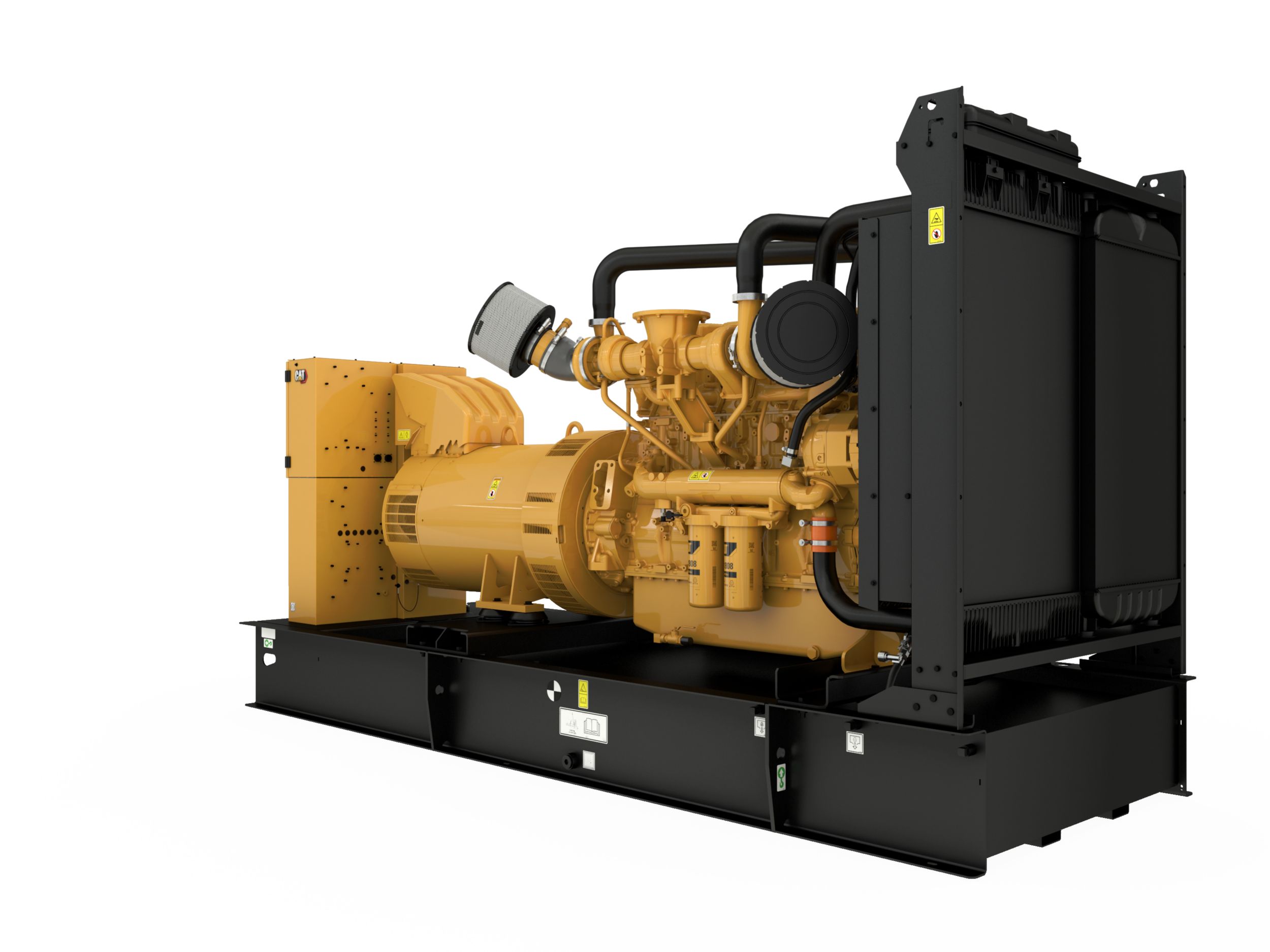

C18 Generator Set
The C18 diesel generator sets developed for critical, standby and prime applications. Producing reliable power from 550 to 715 kVA at 50 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Certified for low fuel consumption, EU Stage IIIA Nonroad Emission Standards, China Nonroad III Emission Standards Emissions / Fuel Strategy.
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Virtual Tours
Documents & Brochures
Standard Equipment
Air System
- Air cleaner, light duty
- Turborcharger
Air Inlet
- Air cleaner
Control Panel
- GCCP 1.3
- GCCP Genset Controller
Cooling
- Package mounted radiator
Cooling System
- Coolant drain line with valve
- Fan drive, battery charging alternator drive
- Radiator and cooling fan with guard
- Caterpillar extended life coolant
Exhaust
- Exhaust flange outlet
Exhaust System
- Stainless steel exhaust flex, gaskets, raincap and SAE exhaust
flange for customer use - shipped loose
Fuel System
- Standard open set fuel tank/base supplied
Base, formed steel with single wall integral 8-hour fuel tank
Fuel
- Fuel priming pump
- Secondary fuel filters
- Primary fuel filter with integral water separator
Generator
- Matched to the performance and output characteristics of Cat engines
- IP23 Protection
- Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time
Generator and Attachments
- Segregated low voltage (AC/DC) wiring panel
- Power center, IP22
- Optional LC Frame generator - IP23 Protection,
- Mandatory option rear circuit breaker, IEC, 3 pole, mounted in power center
- Integrated voltage regulator (IVR)
- A Frame generator - IP21 Protection
Governing System
- Cat electronic governor (ADEM A4)
Power Termination
- Busbar
Lube System
- Oil drain valves
- Lubricating oil
Mounting System
- Captive linear vibration isolators between base and engine-generator includes lifting provisions and termination points for coolant and lube oil drain lines
Starting / Charging
- 24 Volt battery with rack and cables
Starting/Charging
- 24 volt starting motor
- Batteries
Mounting
- Rubber vibration isolators
General
- Engine and alternator pre-paint, Caterpillar yellow
- Paint - Caterpillar yellow except rails and radiators gloss black
Additional information
| Offering Type | |
|---|---|
| Generator Set Specifications - Maximum Rating | 715 kVA |
| Generator Set Specifications - Minimum Rating | 550 kVA |
| Generator Set Specifications - Emissions/Fuel Strategy | Low Fuel, EU Stage IIIA |
| Generator Set Specifications - Voltage | 380 to 415 Volts |
| Generator Set Specifications - Frequency | 50 Hz |
| Generator Set Specifications - Speed | 1500 rpm |
| Generator Set Specifications - Duty Cycle | Standby, Prime |
| Engine Specifications - Engine Model | C18 ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
| Engine Specifications - Bore | 145 mm ( 5.71 in ) |
| Engine Specifications - Stroke | 183 mm ( 7.2 in ) |
| Engine Specifications - Displacement | 18.1 l ( 1106.4 in³ ) |
| Engine Specifications - Compression Ratio | 14.5:1 |
| Engine Specifications - Aspiration | Air to Air Aftercooled |
| Engine Specifications - Fuel System | Electronic unit injection |
| Engine Specifications - Governor Type | Adem™A4 |
| Generator Set Dimensions - Length - Minimum | 5550 mm ( 218.5 in ) |
| Generator Set Dimensions - Length - Maximum | 5550 mm ( 218.5 in ) |
| Generator Set Dimensions - Width - Maximum | 2056 mm ( 80.9 in ) |
| Generator Set Dimensions - Height - Maximum | 2737 mm ( 107.8 in ) |
-
