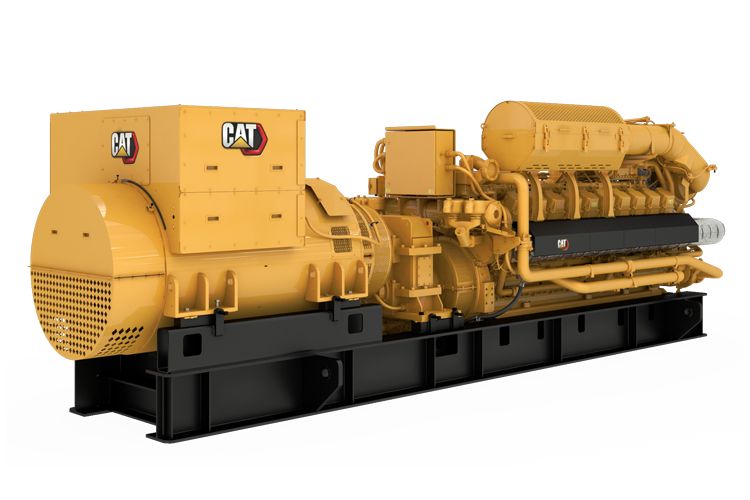

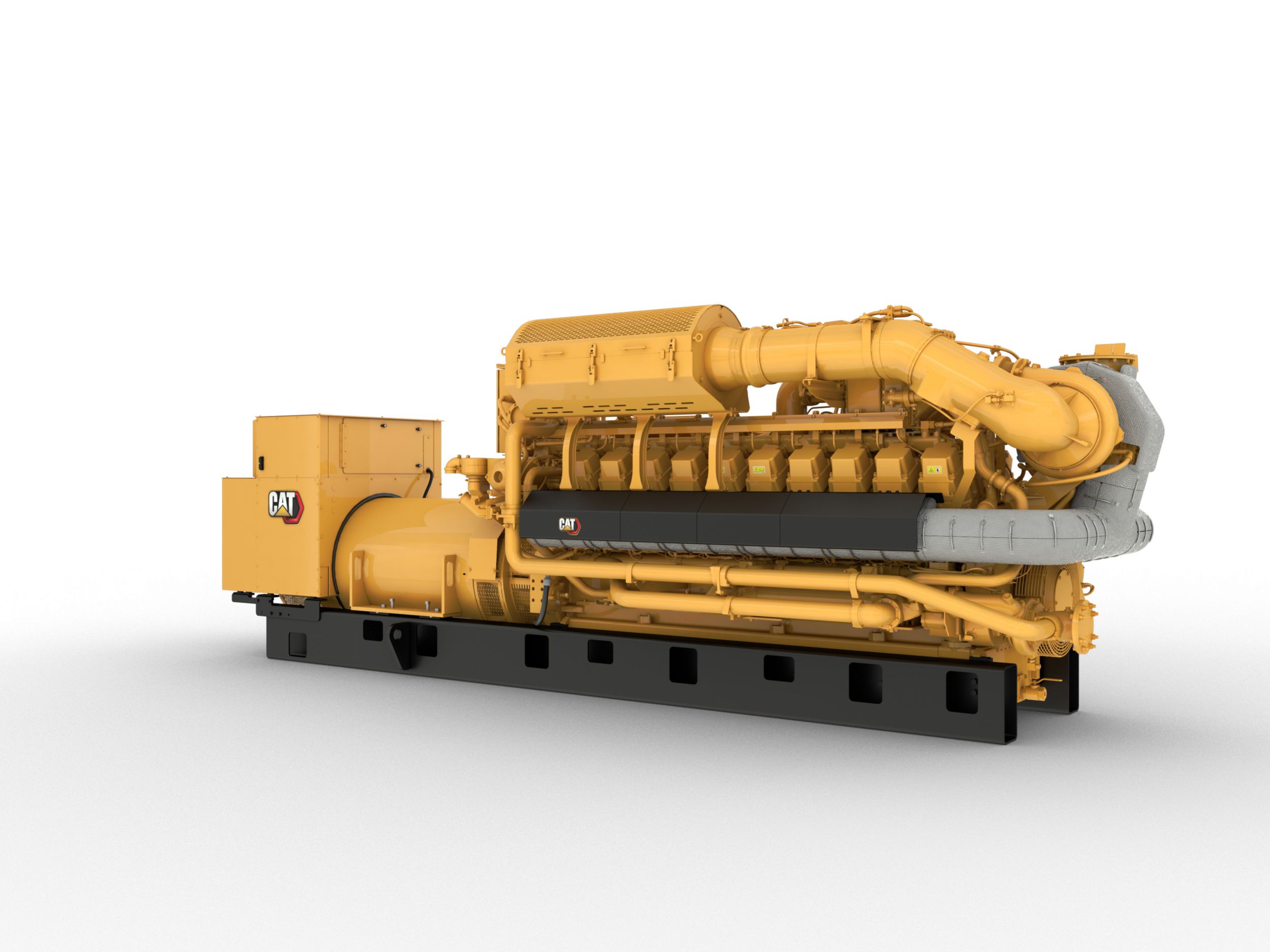

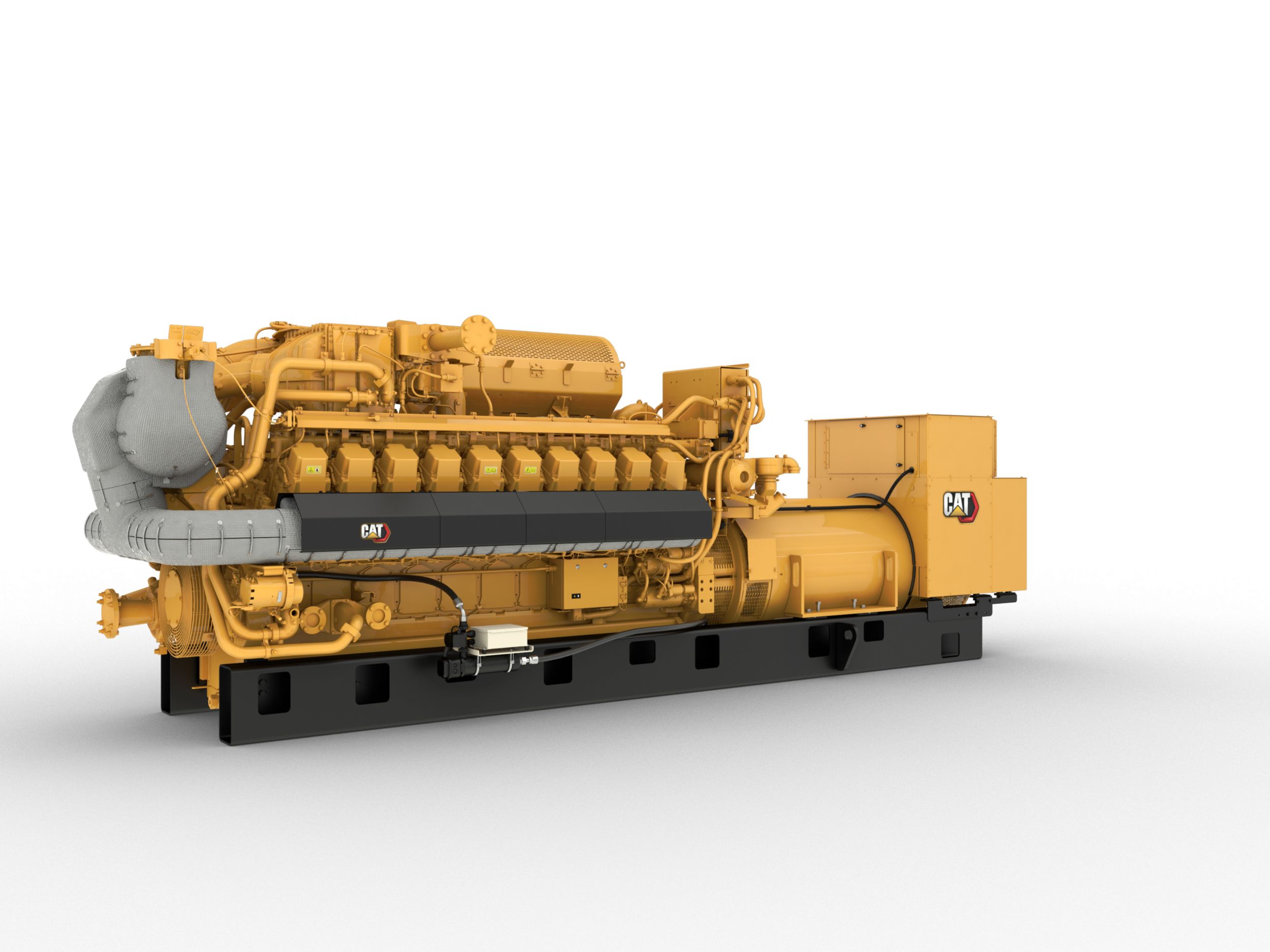

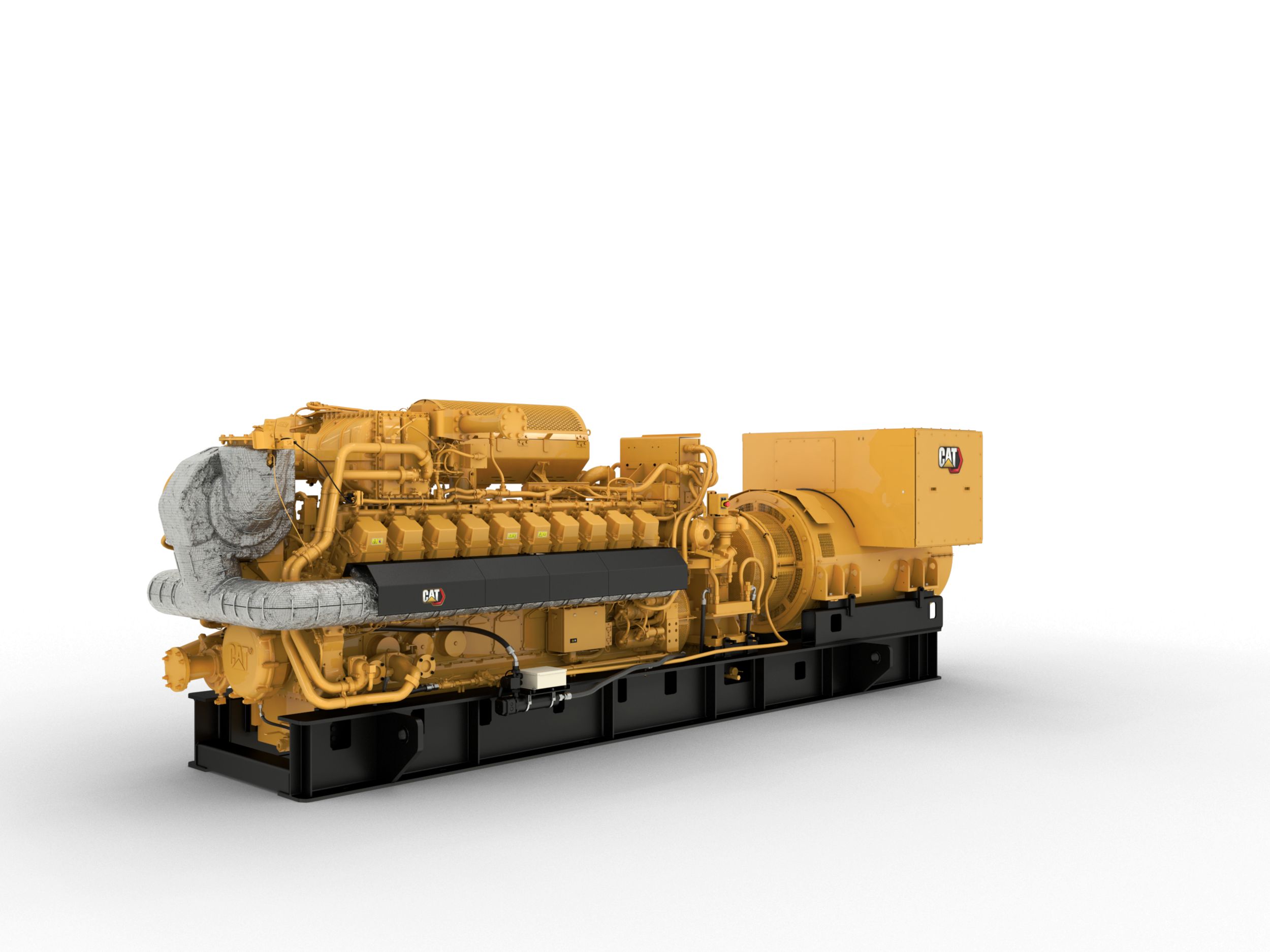

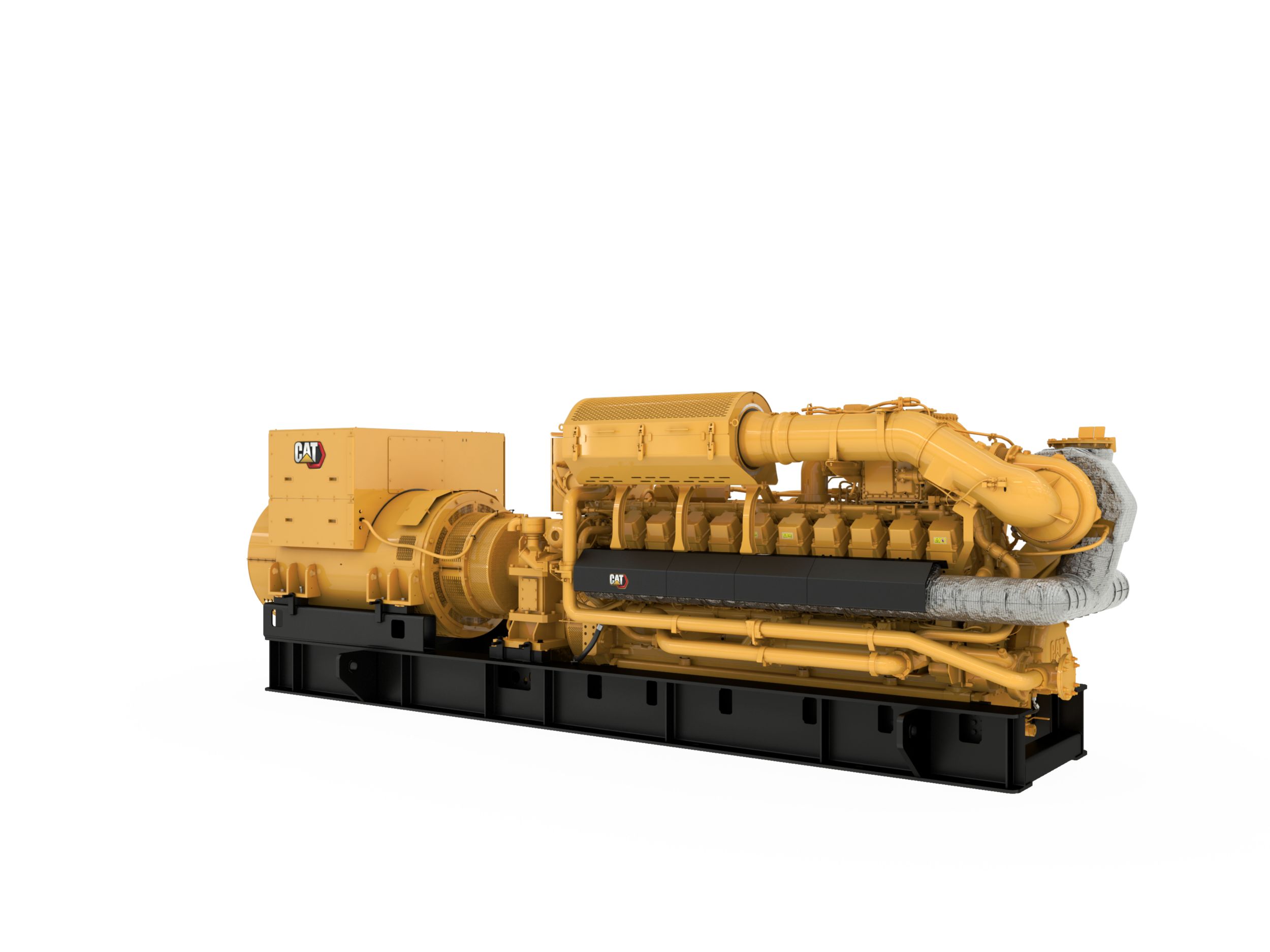

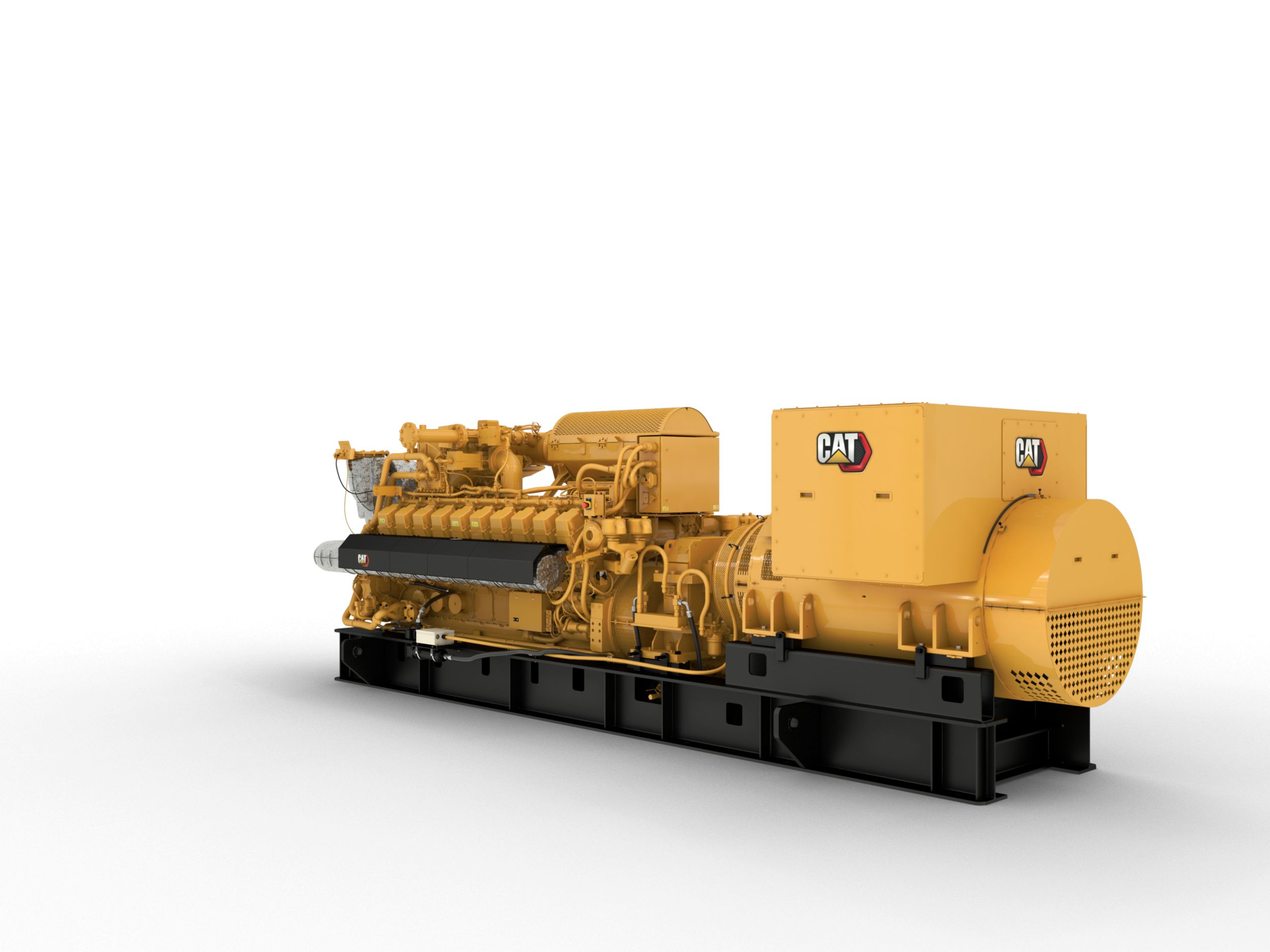

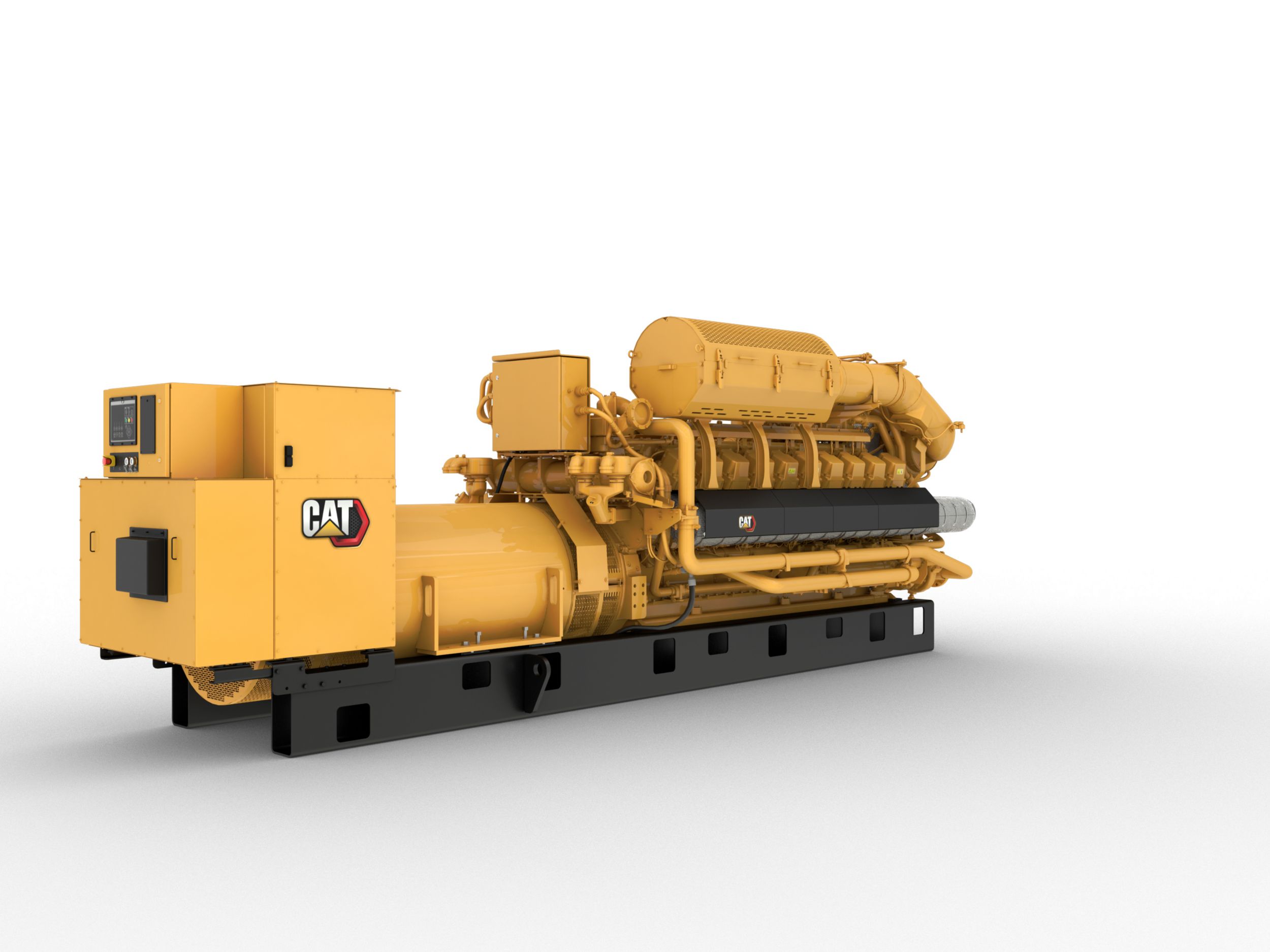

G3520H Gas Generator

From natural gas to biogas, coal mine gases, or hydrogen fuel blends to support combined heat and power (CHP), emergency power, and local grid support applications, Caterpillar has a wide range of reliable gas power solutions.

Category:

Cat G3520H Gas Engine

  • Robust high speed block design provides prolonged life and lower owning operationg costs
  • Designed for maximum performance on low pressure pipeline natural gas and hydrogen mixtures
  • Simple open chamber combustion system for reliability and fuel flexibility
  • Leading edge technology in ignition system and air/fuel ratio control for lower emission and engine efficiency
  • One electronic control module handles all engine functions: ignition, governing, air/fuel ratio control and engine protection

SR5 Generator

  • Designed to match performance and output characteristics of Caterpillar gas engines
  • Industry leading mechanical and electrical design
  • High efficiency

EMCP 4.3 Control Panel

  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements

Emissions

  • Meets most worldwide emissions requirements down to 0.5 g/bhp-hr Nox level without aftertreatment

Proven System

  • Field proven in a wide range of applications worldwide
  • Fully prototype tested
  • Certified torsional vibration analysis available

Full Range of Attachments

  • Wide range of bolt-on system expansion attachments
  • Factory designed and tested
  • Flexible packaging options for easy and cost effective installation

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Standard Equipment

Control Panel
  • EMCP 4.3
Air Inlet
  • Two-element single-stage air cleaner with enclosure and service indicator
Cooling
  • Engine driven water pumps for jacket water and aftercooler
  • Jacket water and SCAC thermostats
  • ANSI/DN customer flange connections for JW inlet and outlet
Circuit Breaker
  • LSI Long-Time, Short-Time, Instantaneous Annunciator
  • Rear-mounted
  • 5000A 3-Pole IEC Rated Circuit Breakers
Exhaust
  • Center section cooled turbocharger with Cat flanged outlet
  • Dry exhaust manifolds, insulated and shielded
  • Individual exhaust port and turbocharger outlet wired to Integrated Tmeperature Sensing Module (ITSM) with GECM providing alarms and shutdowns
Fuel System
  • Electronic fuel metering valve
  • Throttle plate, 24V DC actuator, controlled by GECM
Fuel system
  • Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
Ignition System
  • Electronic Ignition System (controlled by ADEM A4)
  • Individual Cylinder Detonation Sensitive Timing (DST)
Generator
  • Caterpillar's Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control
  • SR4B
  • Crankshaft Vibration Damper and Guard
  • Busbar connections
  • Paint- Caterpillar Yellow except rails gloss black
  • Winding temperature detectors
  • Operation and maintenance manuals
  • Parts book
  • Anti-condensation space heater
  • RH Service
  • SR5
  • Reactive droop
Govrerning System
  • ADEM A4 4-20mA (0-5VV) Speed Input

Additional information

مواصفات مجموعة المولدات - الحد الأقصى للتقديرات المتواصلة

2519 / 2500 كيلووات كهربائي عند معامل طاقة 1,0

مواصفات مجموعة المولدات - نوع الوقود

الغاز الطبيعي

مواصفات مجموعة المولدات - أقصى كفاءة كهربائية

45.30%

مواصفات مجموعة المولدات - التردد

50/60 هرتز

مواصفات مجموعة المولدات - دورة في الدقيقة

1500

مواصفات المحرك - موديل المحرك

G3520H

مواصفات المحرك - الإزاحة

97.5 l ( 5956 بوصة³ )

مواصفات المحرك - السحب

TA

مواصفات المحرك - التجويف

170 مم ( 6.7 بوصة )

مواصفات المحرك - الشوط

215 مم ( 8.5 بوصة )

أبعاد مجموعة المولدات - الطول

7668 مم ( 302 بوصة )

أبعاد مجموعة المولدات - العرض

2173 مم ( 86 بوصة )

أبعاد مجموعة المولدات - الارتفاع

2473 مم ( 97 بوصة )

أبعاد مجموعة المولدات - الوزن الجاف - مجموعة المولد

25285 كجم ( 54675 رطل )

مواصفات المحرك - نسبة الانضغاط

12.1
