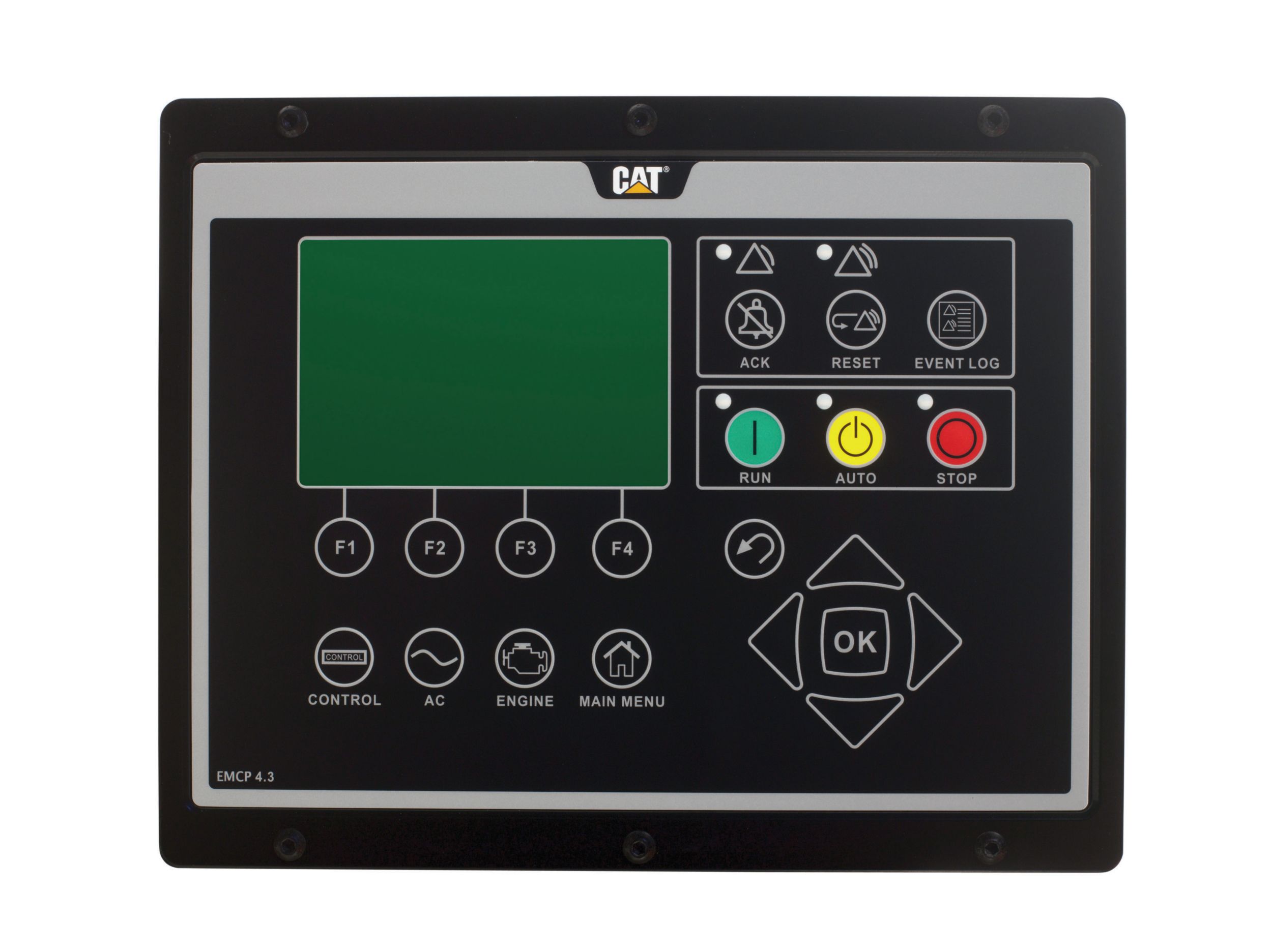

EMCP 4.3 Control Panel

EMCP 4 Controls

The EMCP 4 includes the following controls:

• Auto / Start / Stop Control
• Speed and Voltage Adjust
• Engine Cycle Crank
• Programmable Cycle Timer
• 24-volt DC operation
• Environmental sealed front face
• Text alarm/event descriptions

Digital Indicators

• RPM
• DC volts
• Operating hours
• Oil pressure (psi, kPa or bar)
• Coolant temperature
• Volts (L-L & L-N), frequency (Hz)
• Amps (per phase & average)
• ekW, kVA, kVAR, kW-hr, %kW, PF

Warning / Shutdown Indicators

The EMCP 4 has common LED indicators of the following warning and shutdown conditions

• Low oil pressure
• High coolant temperature
• Overspeed
• Emergency stop
• Failure to start (overcrank)
• Low coolant temperature
• Low coolant level

Programmable Protective Relaying

• Generator phase sequence
• Over/Under voltage (27/59)
• Over/Under Frequency (81 o/u)
• Reverse power (kW) (32)
• Reverse reactive power (kVAr) (32RV)
• Overcurrent (50/51)
• Overcurrent Thermal Damage Curve
• Current Balance (46)

Communications

• Twelve digital inputs
• Emergency stop pushbutton
• Five Analog output
• Sixteen digital outputs
• One Analog Input
• customer data link (Modbus RTU)
• Accessory module data link
• Serial annunciator module data link
• Ethernet SCADA (Modbus TCP)

Compatibility

The EMCP 4 is compatible with:

• Remote CAN annunciator
• Remote serial annunciator
• Local Annunciator
• Remote Monitoring Software
• Digital I/O module
• RTD module
• Thermocouple module

Documents & Brochures

• Electric power EMCP 4.3 / 4.4 Remote Display
