G3520C

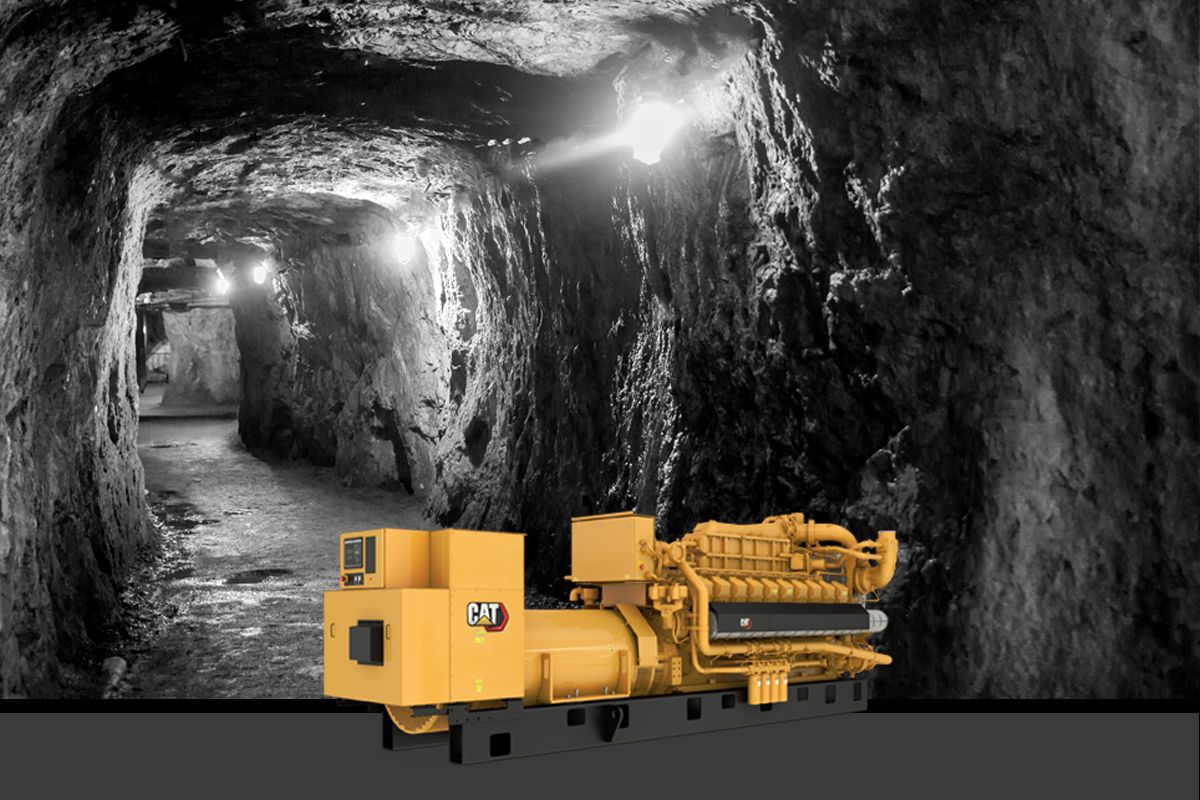

G3520C Gas Generator
From natural gas-fueled combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.
Cat G3520C Gas Engine
- Robust high speed block design provides prolonged life and lower owning operationg costs
- Designed for maximum performance on low pressure pipeline natural gas
- Simple open chamber combustion system for reliability and fuel flexibility
- Leading edge technology in ignition system and air/fuel ratio control for lower emission and engine efficiency
- One electronic control module handles all engine functions: ignition, governing, air/fuel ratio control and engine protection
SR4B or SR5 Generator
- Designed to match performance and output characteristics of Caterpillar gas engines
- Industry leading mechanical and electrical design
- High efficiency
EMCP 4.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
Emissions
- Meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment
Proven System
- Field proven in a wide range of applications worldwide
- Fully prototype tested
- Certified torsional vibration analysis available
Full Range of Attachments
- Wide range of bolt-on system expansion attachments
- Factory designed and tested
- Flexible packaging options for easy and cost effective installation
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Virtual Tours
Documents & Brochures
Standard Equipment
Air Inlet
- Two-element single-stage air cleaner with enclosure and service indicator
Control Panels
- EMCP 4.3
Cooling
- ANSI Class 6 in/DN customer flange connections for JW inlet and outlet
- Engine driven water pumps for jacket water and aftercooler
- 2nd Stage SCAC-Cat Flange
- Jacket water and SCAC driven pumps
- Jacket water and SCAC thermostat and outlet--ANSI 6 in/DN150
Exhaust
- Dry exhaust manifolds, insulated and shielded
- Cat-flanged face outlet on turbocharger
- Individual exhaust port and turbocharger outlet wired to Integrated Tmeperature Sensing Module (ITSM) with GECM providing alarms and shutdowns
Fuel System
- Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
- Electronic fuel metering valve, ANSI flange
- Throttle plate, 24V DC actuator, controlled by GECM
- 24V ETR Gas Shutoff Valve
Ignition System
- Electronic Ignition System (controlled by GECM)
- Individual Cylinder Detonation Sensitive Timing (DST)
Generator
- 3-phase brushless, salient pole
- Class F Insulation & temperature rise
- Reactive droop
- Permanent Magnet Excitiation
- Winding temperature detectors
- Anti-condensation space heater
- SR4B or SR5
- Busbar connections
- Caterpillar's Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control
- SR4B
General
- Crankshaft Vibration Damper and Guard
- RH Service
- Parts Book
- Operation and maintenance manuals
- Paint - Caterpillar Yellow except rails and radiators gloss black
Additional information
| مواصفات مجموعة المولدات - الحد الأقصى للتقديرات المتواصلة | 2050 كيلووات كهربائي |
|---|---|
| مواصفات مجموعة المولدات - نوع الوقود | الغاز الطبيعي، والغاز الحيوي، وغاز الفحم |
| مواصفات مجموعة المولدات - أقصى كفاءة كهربائية | 40.10% |
| مواصفات مجموعة المولدات - أقصى تقدير للطاقة الاحتياطية | 2050 |
| مواصفات مجموعة المولدات - التردد | 50 / 60 هرتز |
| مواصفات مجموعة المولدات - دورة في الدقيقة | 1200 / 1500 / 1800 دورة في الدقيقة |
| مواصفات المحرك - موديل المحرك | G3520C |
| مواصفات المحرك - الإزاحة | 86 l ( 5270 بوصة³ ) |
| مواصفات المحرك - السحب | TA |
| مواصفات المحرك - التجويف | 170 مم ( 6.7 بوصة ) |
| مواصفات المحرك - الشوط | 190 مم ( 7.5 بوصة ) |
| أبعاد مجموعة المولدات - الطول | 6312 مم ( 249 بوصة ) |
| أبعاد مجموعة المولدات - العرض | 1830 مم ( 79 بوصة ) |
| أبعاد مجموعة المولدات - الارتفاع | 2340 مم ( 92 بوصة ) |
| أبعاد مجموعة المولدات - الوزن الجاف - مجموعة المولد | 17215 كجم ( 37959 رطل ) |
| مواصفات المحرك - نظام الوقود | الغاز الطبيعي، والغاز الحيوي، وغاز الفحم |
| مواصفات المحرك - نسبة الانضغاط | 11.3 |
| أبعاد مجموعة المولدات - الوزن | 17215 كجم ( 37953 رطل ) |
