CG170B-12

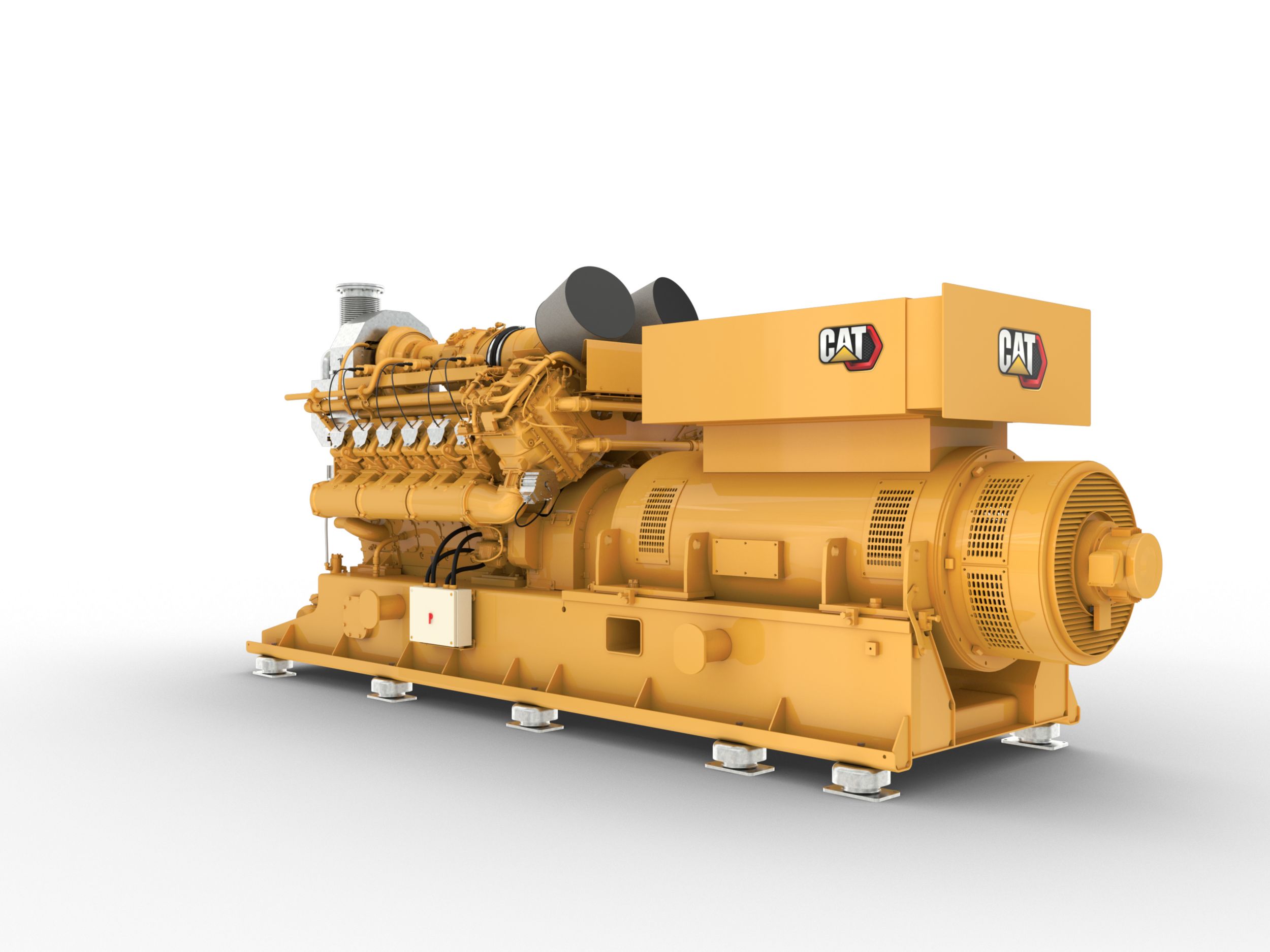

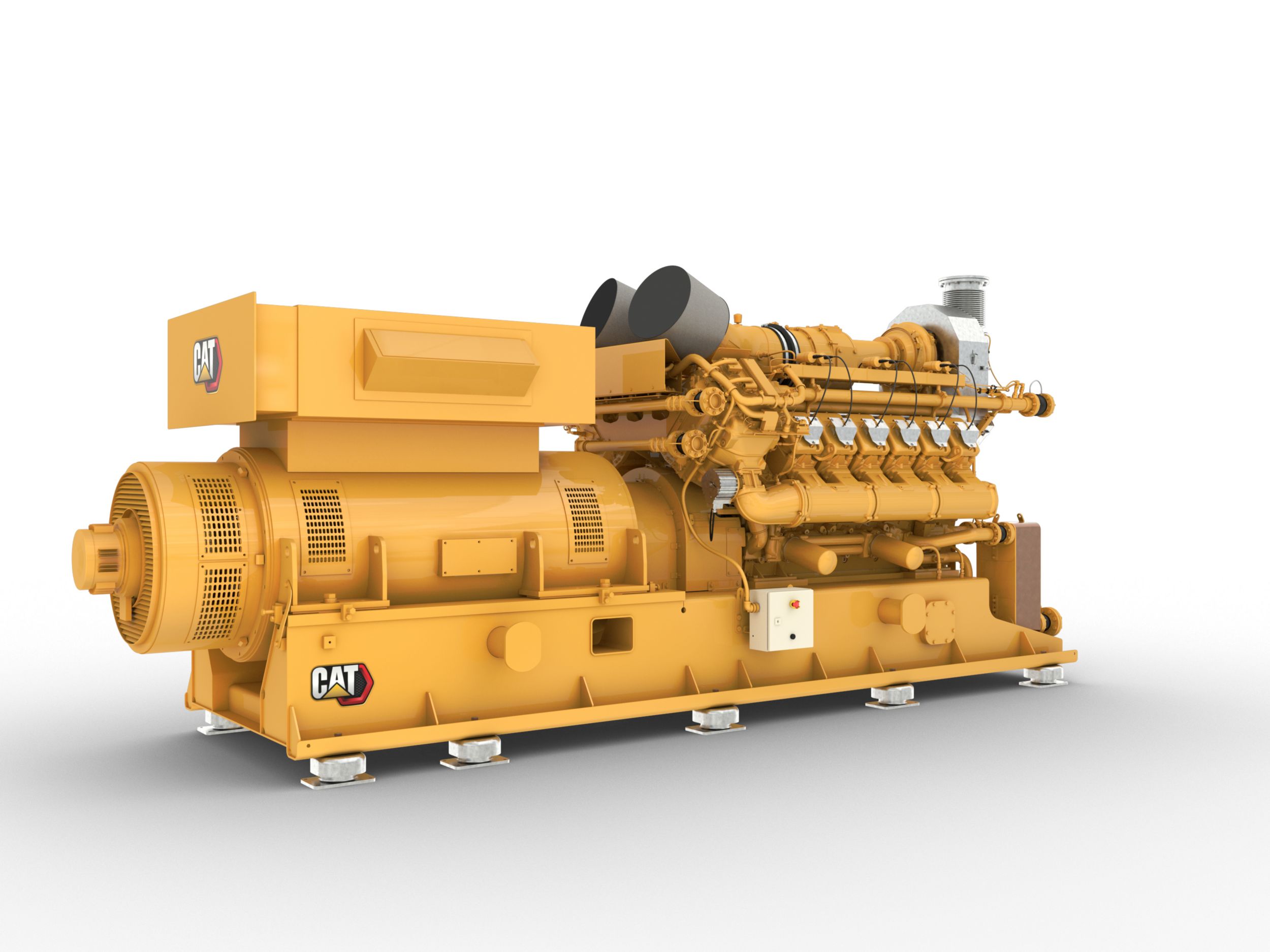

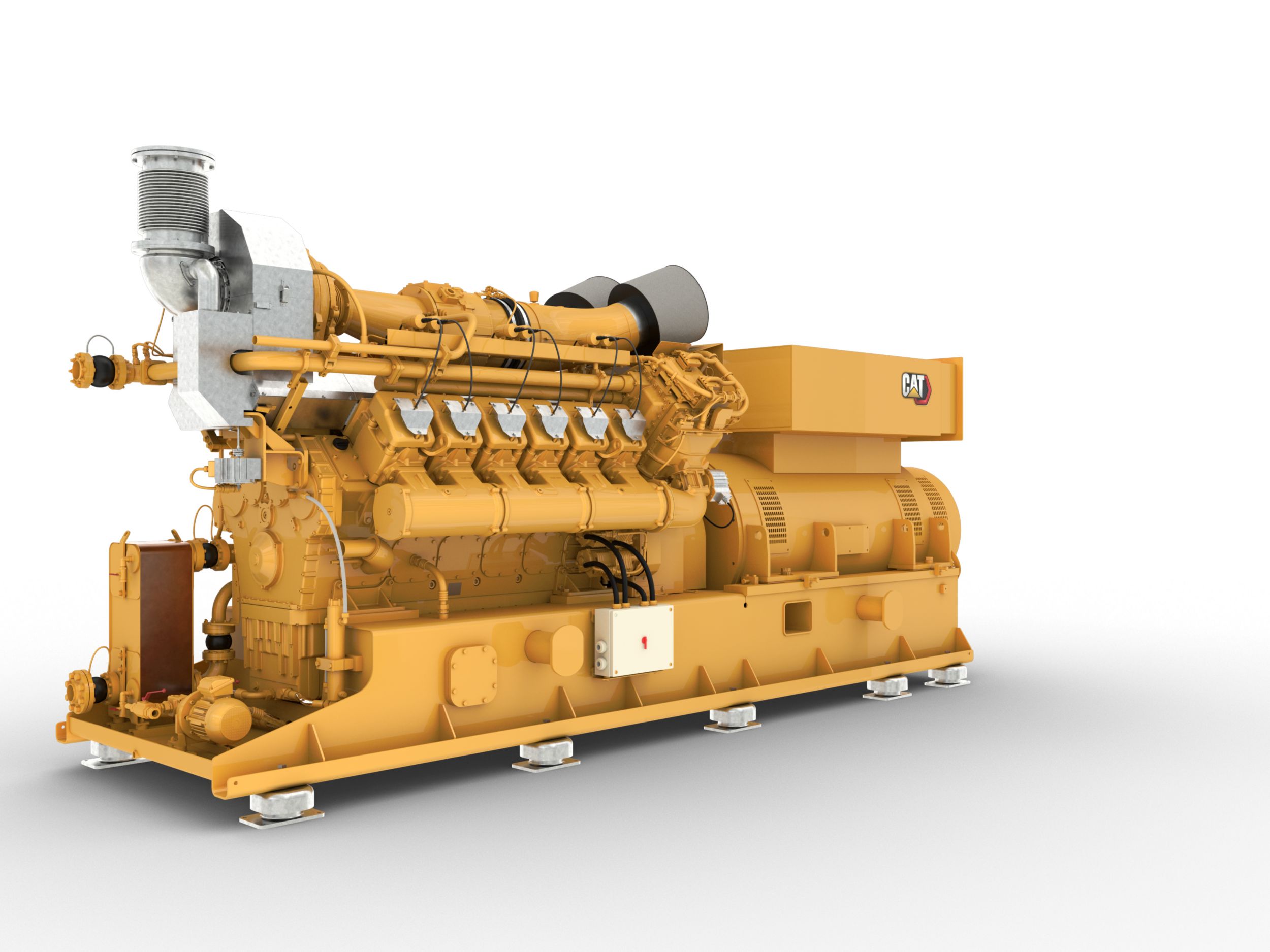

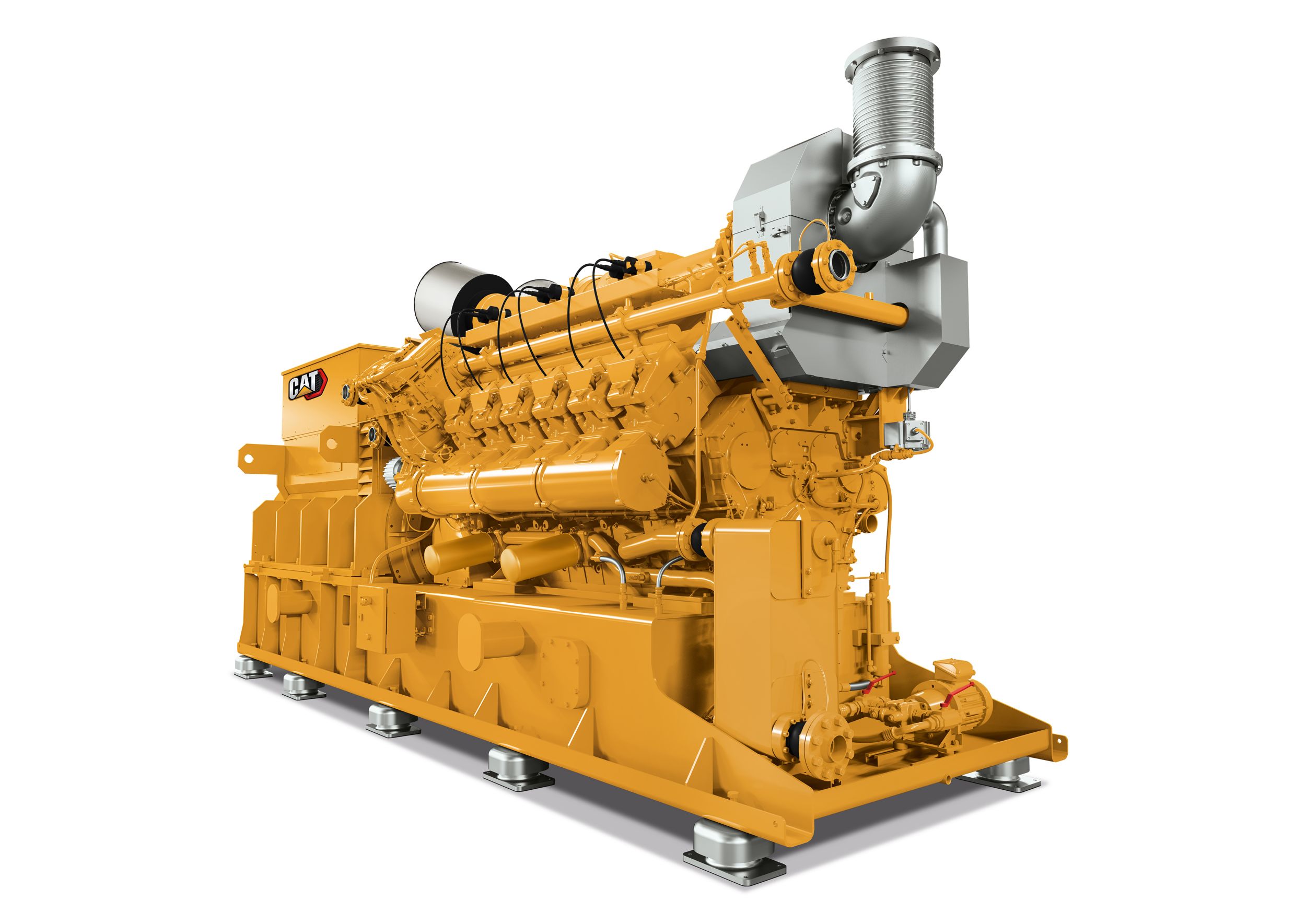

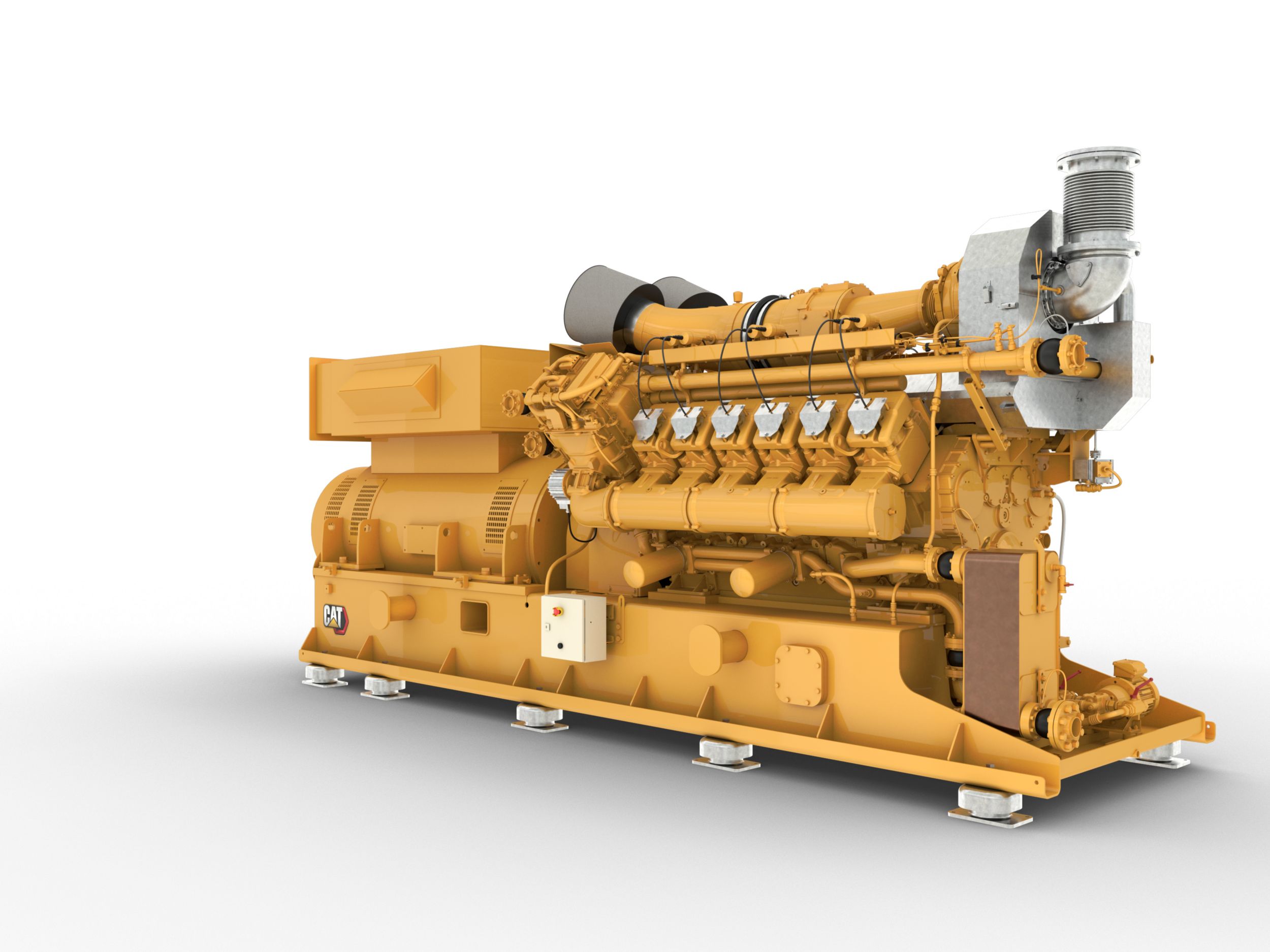

CG170B-12 Gas Generator Set
State-of-the-art components providing more power: the compact design, a focus on a wide range of applications and highest efficiency values of its class make sure of that. Managed by a smart and secure control system, the new CG170B series offers the optimal balance between profitability and reliability.
High Efficiency, Lower Operating Costs
- Up to 45% electrical efficiency with Natural Gas
- 43.6% electrical efficiency with biogas
- Electrical output up to 1,380 kWel
- Reduced vibration and stress on components
Compact Size, High Profitability
- Compact design that delivers up to 18% more power output at the same size as its predecessor
- Long maintenance intervals (up to 80,000 hours)
- Available in different applications, such as natural gas, biogas, wellhead- and propane gas operation
- Maximum flexibility through different engine variants
Optimized Lubrication Consumption
- Consumes ~0.15g/kWh
- Reduced lube oil temperature through better cooling performance
- Savings of up to 3,000 liters of lube oil per year compared to comparable gensets
Virtual Tours
Documents & Brochures
Standard Equipment
Air Inlet
- One-element single-stage air cleaner with enclosure and sevice indicator
- Turbocharger with a water-cooled bearing case for all cylinder
Control Panels
- TPEM (Total Plant & Energy Management System)
Cooling
- Jacket water and SCAC thermostats
- ANSI/DN customer flange connections for JW inlet and outlet
- Electrical jacket water and aftercooler coolant pump
- flange connections for JW inlet and outlet
Exhaust
- Exhaust waste gate for the CG170B-12
- PEARL/Low resistence exhaust system
- Closed crankcase ventilation system
Fuel system
- Pre-chamber spark plugs
- Electronic fuel metering valve
- Independently controlled cylinder monitoring and ignition system
Generator
- Reactive droop
- closed-coupled generator result in no torque transmission to the base frame
- Winding temperature detectors
- Busbar connections
- grid code generator
- Anti-condensation space heater
- 3-phase sensing and KVAR/PF control
Starting/Charging
- 24V starting motors
- Battery disconnect switch
General
- Crankshaft vibration damper and guard
Additional information
| Offering Type | |
|---|---|
| Generator Set Specifications - Continuous Rating | 1380 ekW @1.0pf |
| Generator Set Specifications - Fuel Type | Natural Gas, Biogas, Coal Gas, Hydrogen Blend (up to 25%) |
| Generator Set Specifications - Maximum Electrical Efficiency | 45.00% |
| Generator Set Specifications - Maximum Standby Rating | 1380 |
| Generator Set Specifications - Frequency | 50 Hz |
| Generator Set Specifications - RPM | 1500 rpm |
| Engine Specifications - Engine Model | CG170B-12 |
| Engine Specifications - Aspiration | TA |
| Engine Specifications - Bore | 170 mm ( 6.7 in ) |
| Engine Specifications - Stroke | 195 mm ( 7.7 in ) |
| Generator Set Dimensions - Length | 5080 mm ( 200 in ) |
| Generator Set Dimensions - Width | 1710 mm ( 67 in ) |
| Generator Set Dimensions - Height | 2190 mm ( 86 in ) |
| Generator Set Dimensions - Dry Weight - Genset | 12900 kg ( 28440 lb ) |
