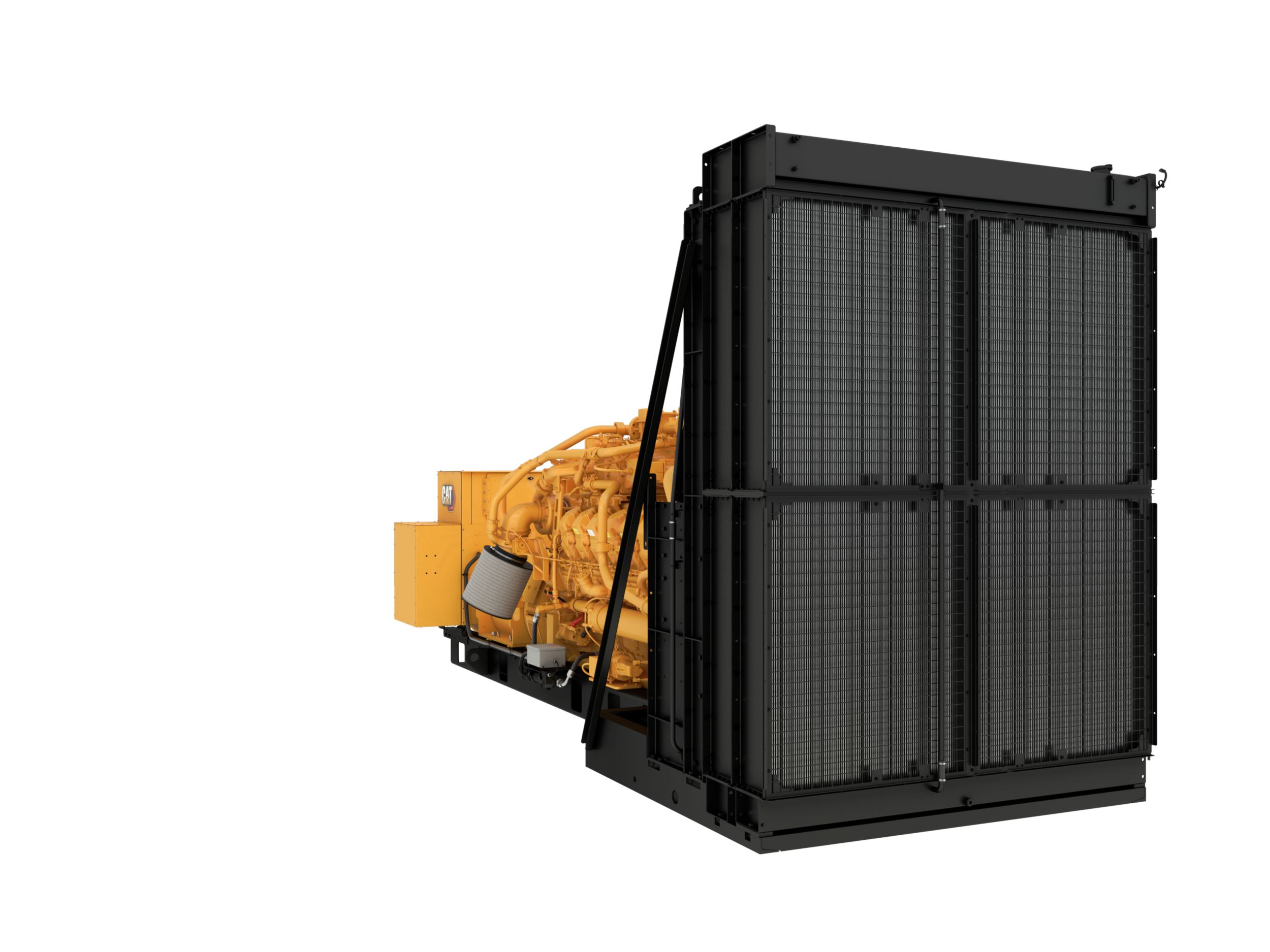

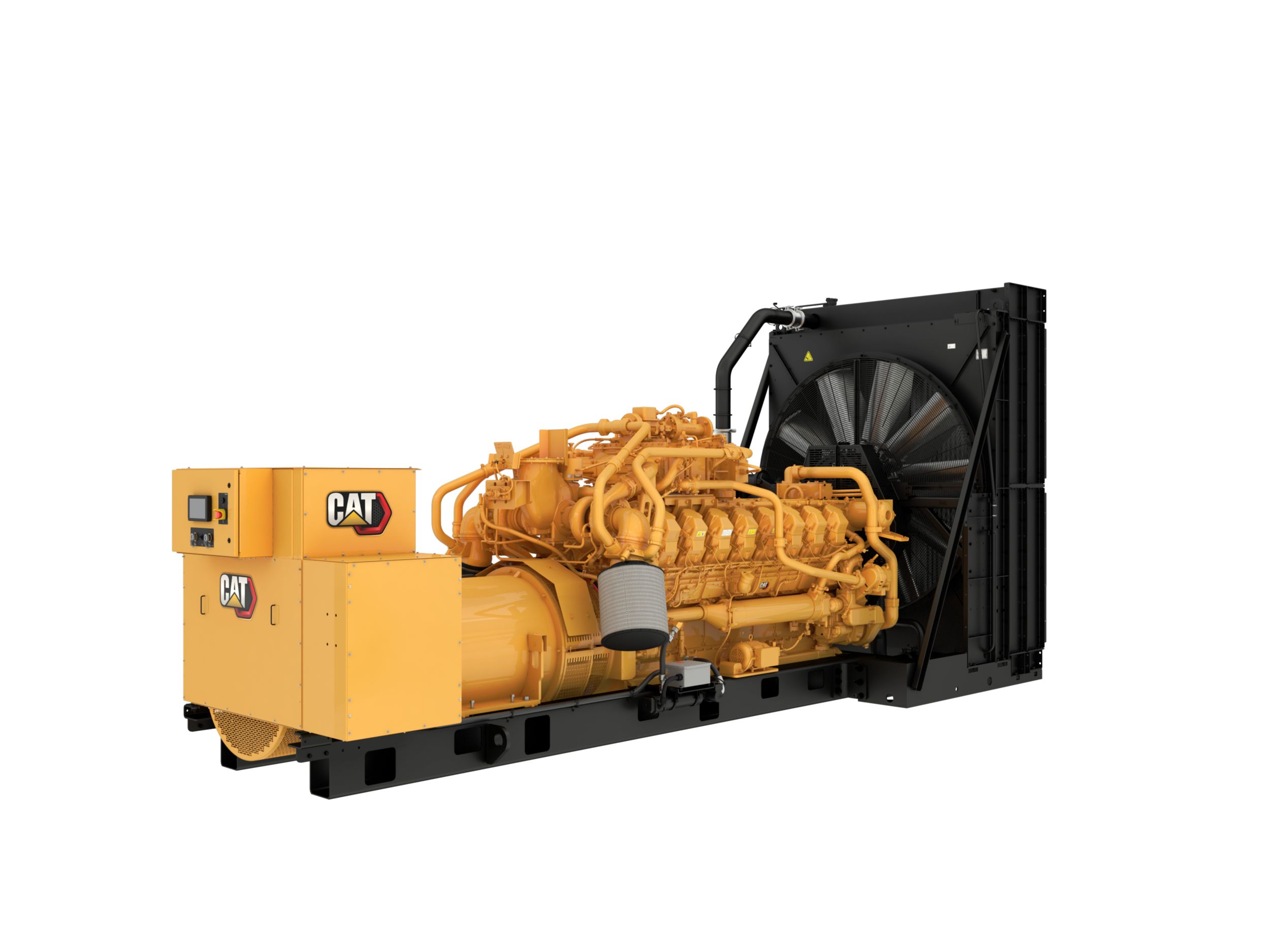

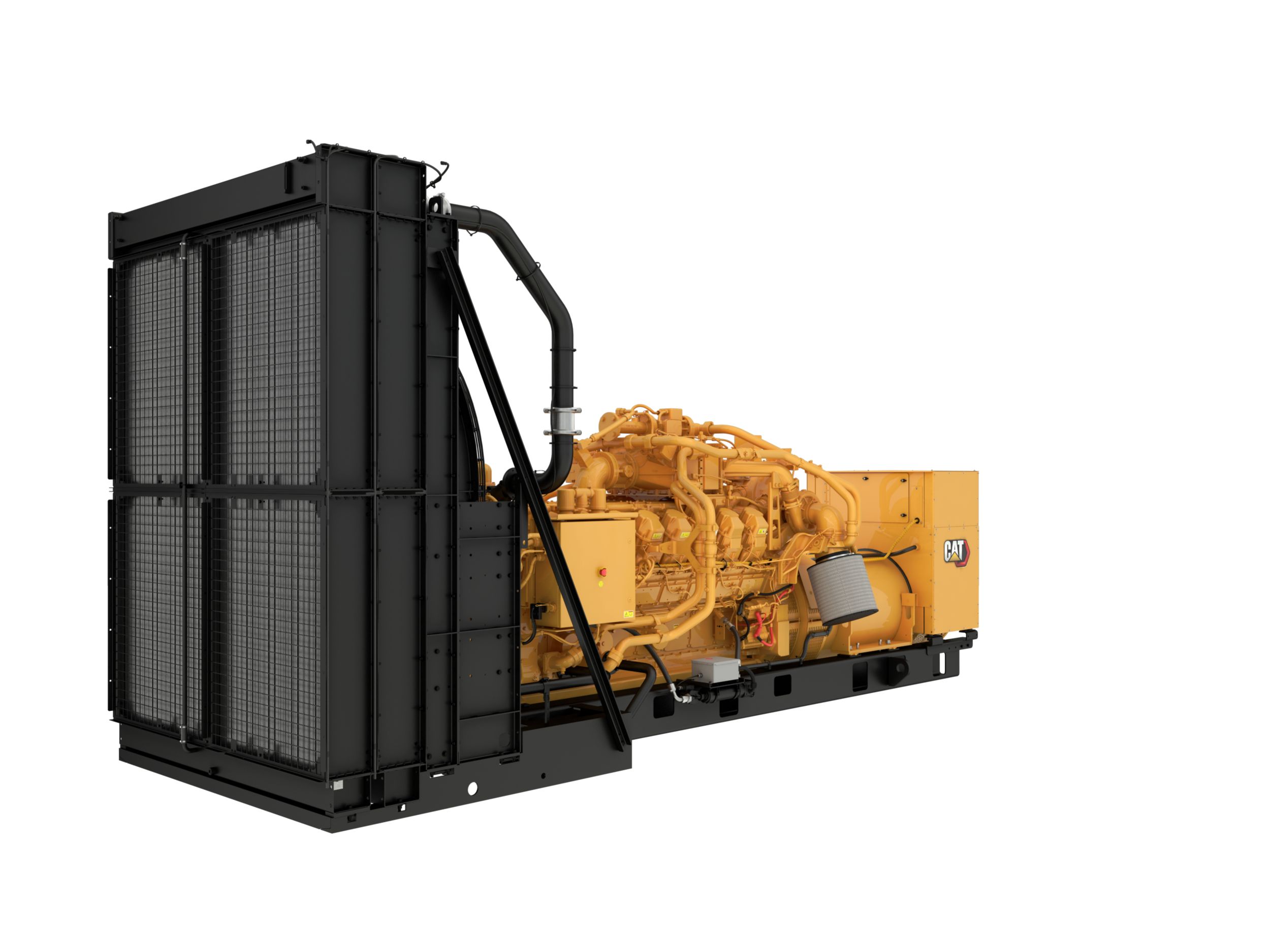

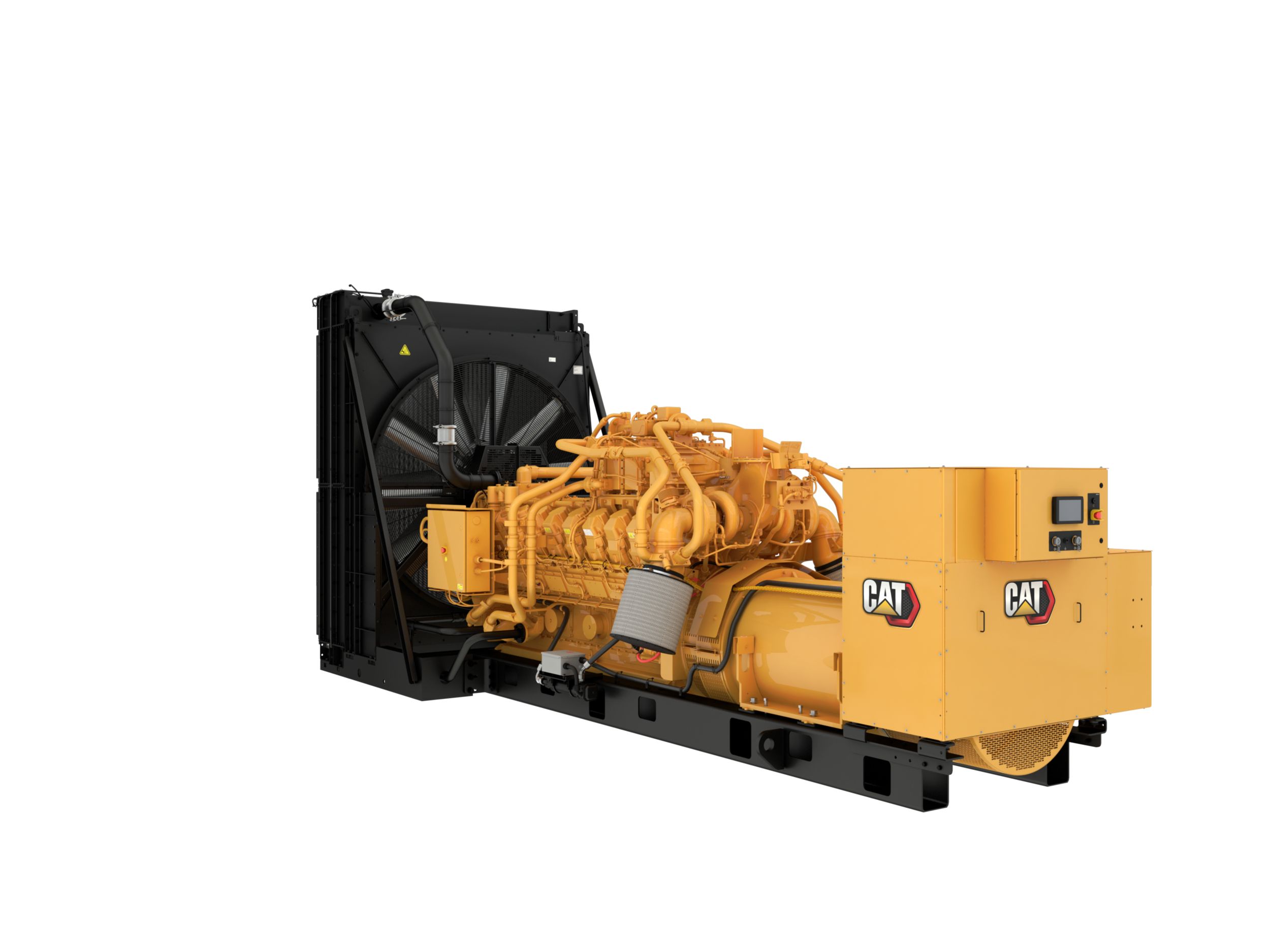

G3516 with FAST RESPONSE
CAT G3516 Gas Engine
SR5 Generator
Cat ECS 100 Control Panel
Cooling System
- Designed to operate in standard ambient temperatures up to 43°C (110°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Emissions
Proven System
Full Range of Attachments
Worldwide Product Support
Documents & Brochures
Standard Equipment
Air Inlet
- Two-element single-stage air cleaner with enclosure and service indicator
Control Panel
- Cat ECS 100
Cooling
- Jacket water and SCAC engine-driven pumps
- Jacket water and SCAC thermostats
Exhaust
- Dry exhaust manifolds, insulated and shielded
- Individual exhaust port and turbocharger outlet wired to integrated temperature sensing module (ITSM) with GCEM providing alarms and shutdowns
- Cat-flanged face outlet on turbocharger
Fuel System
- Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
- Throttle plate, 24V DC actuator, controlled by GECM
- Gas pressure regulator
- 24V DC energized-to-run (ETR) gas shutoff valve
- Engine-installed electronic control valve
General
- Crankshaft vibration damper and guard
- Paint- Caterpillar Yellow with high gloss black rails and radiator
- RH Service
- Operation and maintenance manuals
- Parts book
Generator
- Permanent Magnet Excitiation
- Anti-condensation space heater
- Winding temperature detectors
- NEMA Class H insulation
- Integrated voltage regulator (IVR)
- SR5
Starting/Charging
- Electric Starter
- 24V starting motors
- Jacket water heater
- Battery with cables and rack (shipped loose)
Governing System
- ADEM A4
Ignition System
- Individual Cylinder Detonation Sensitive Timing (DST)
- Electronic Ignition System (controlled by ADEM A4)
Additional information
مواصفات مجموعة المولدات - تقدير احتياطي الغاز | 1500 كيلووات كهربائي عند معامل طاقة 0,8 |
---|---|
مواصفات مجموعة المولدات - نوع الوقود | غاز طبيعي، خليط هيدروجين (حتى 5%) |
مواصفات مجموعة المولدات - الانبعاثات/إستراتيجية الوقود | معتمد وفقًا لمعايير وكالة حماية البيئة (EPA) الأمريكية للاستخدامات الثابتة لغير حالات الطوارئ |
مواصفات مجموعة المولدات - دورة في الدقيقة | 1800 دورة في الدقيقة |
مواصفات مجموعة المولدات - التردد | 60 هرتز |
مواصفات المحرك - موديل المحرك | G3516 |
مواصفات المحرك - الإزاحة | 78 l ( 4765 بوصة³ ) |
مواصفات المحرك - السحب | TA |
مواصفات المحرك - التجويف | 170 مم ( 6.7 بوصة ) |
مواصفات المحرك - الشوط | 215 مم ( 8.5 بوصة ) |
مواصفات مجموعة المولدات - نسبة الانضغاط | 11.5 |
أبعاد مجموعة المولدات - الطول | 7000 مم ( 275.6 بوصة ) |
أبعاد مجموعة المولدات - العرض | 2345 مم ( 92.3 بوصة ) |
أبعاد مجموعة المولدات - الارتفاع | 3265 مم ( 128.5 بوصة ) |
أبعاد مجموعة المولدات - الوزن | 18315 كجم ( 40384 رطل ) |
