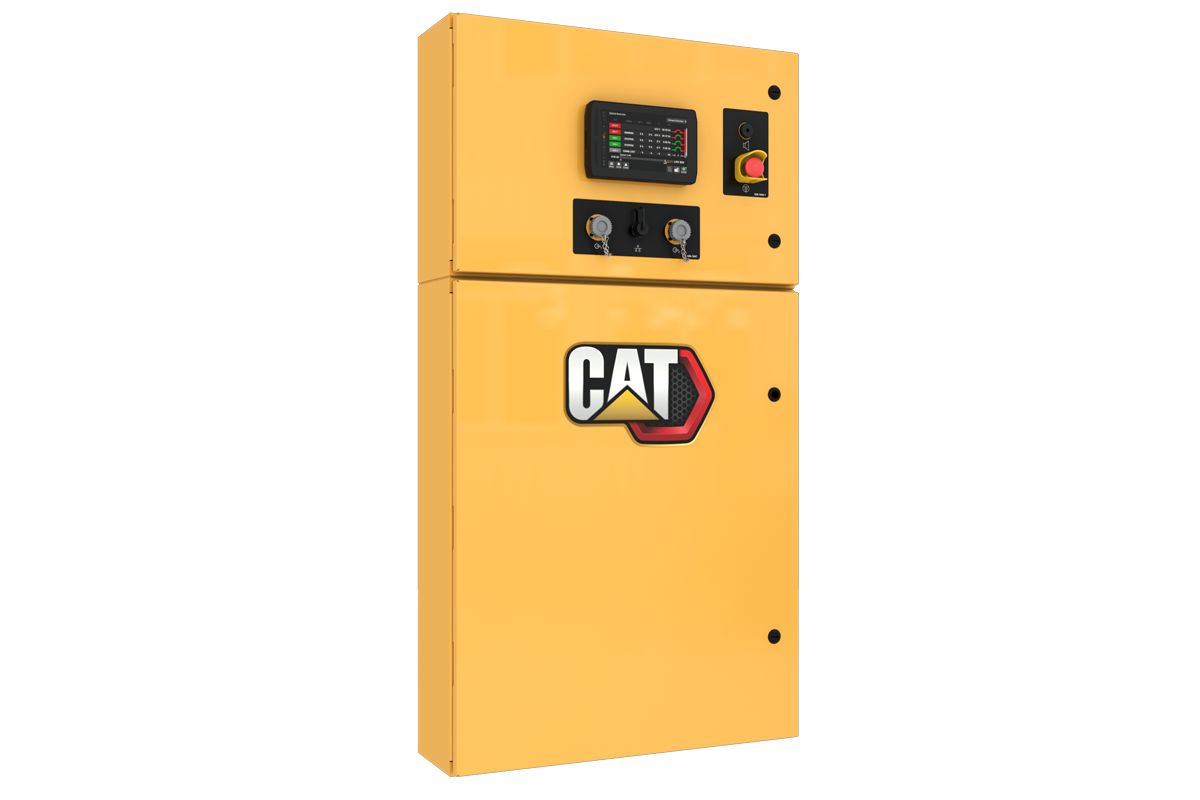

Cat® Energy Control System 200 (Cat ECS 200) control panel

Cat® Energy Control System 200 (Cat ECS 200) control panel

The Cat® Energy Control System 200 (Cat ECS 200) control panel provides all of the controls and system indicators in one easy to access interface for multiple generator set paralleling operations.

Category:

Cat® Energy Control System 200

The Cat ECS 200 generator set controller uses:



  • System graphic icons and labels that allow for simple, comprehensive generator set paralleling operation
  •

  • Easy-to use 8” color LED touchscreen display features scroll navigation
  •

  • Generator set and remote-mount options are available

Control Features



  • Island paralleling – up to 32 genset operation
  •

  • High visibility graphical touchscreen display with alarm/event descriptions, set points, engine and generator monitoring
  •

  • Intuitive navigation for display of power metering, protection, engine and generator parameters and tuning
  •

  • Lockout security provision to assure platform integrity with three programable security levels
  •

  • Multi-language support

Communications



  • Ethernet Modbus TCP for external communications
  •

  • Support of up to four off-package remote HMI’s (sold separately)
  •

  • Compatible with Cat Connect Product Link devices
  •

  • Embedded HMI Web Server
  •

  • Advanced Paralleling Control Data Link (APCDL)

Advance Functionality



  • Automatic mains failure with utility voltage sensing capability (open transition) and remote breaker or contactor control/monitoring
  •

  • Engine remote start integrity monitoring
  •

  • Generator circuit breaker control
  •

  • Single genset transient load relief (TLR)
  •

  • Advanced Overcurrent Protection
  •

  • Arc Flash Maintenance Mode
  •

  • Basic programmable logic control (PLC) function
  •

  • Base load with utility
  •

  • Dead bus arbitration
  •

  • EPA Tier 4 integration
  •

  • Inducement override
  •

  • Real (kW) load histograms
  •

  • Status event log
  •

  • Real-Time Clock
  •

  • Programmable Cycle Timer (PCT)
  •

  • Supports dynamic gas blending (DGB)
  •

  • Failsafe Adaptive Load Sharing/Droop operation
  •

  • Ring network topology for system resilience

Applicable Standards and Certifications



  • Compliance with UL2200 3rd edition requirements including UL6200 functional safety requirements
  •

  • Local annunciation facilitates compliance to NFPA 110 (subject to local authority having jurisdiction approval)

World Wide Product Support



  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  •

  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Documents & Brochures

Standard Equipment

Control
  • Auto/Start/Stop
  • Emergency stop
  • Engine cooldown timer
  • Engine cycle crank
  • Programmable cycle timer
  • Speed and voltage adjust
  • Synchronizing
Generator Monitoring
  • Generator AC voltage monitoring (+/- 0.25% accuracy)
  • Utility AC voltage monitoring (+/- 0.25% accuracy)
  • 3 phase/4 wire (L-L & L-N) sensing
  • Generator current sensing (3 phase/6 wire) (+/- 0.25% accuracy)
  • Generator AC current (per phase and average)
  • Generator frequency
  • kWh, kVArh and import and export kVAh (total and trip)
  • Generator stator and bearing temperature (with optional RTD module)
  • kW load histogram
  • Island paralleling up to 32 gensets
  • Genset circuit breaker control
  • Base load with utility
  • Dead bus arbitration
  • Failsafe adaptive load sharing/droop operation
Generator Protection
  • Generator phase sequence (47G)
  • Bus phase sequence (47)
  • Over/Under voltage (27/59)
  • Over/Under frequency (81 O/U)
  • Overcurrent timed and inverse (50/51)
  • Overcurrent (thermal damage curve) (51)
  • Reverse power real (kW) (32)
  • Reverse power reactive (kVAr) (32RV)
  • Current balance (46)
  • Overload (49)
  • Voltage imbalance (60)
  • Arch flash maintenance mode
  • Open phase detection
Utility Protection
  • Open Phase Detection
  • Over/Under voltage and frequency (27/59) and (81O/U)
Bus Protection
  • Over/Under voltage and frequency (27/59) and (81O/U)
Engine Monitoring
  • Engine oil pressure (psi or kPa)
  • Engine oil temperature (°C or °F)
  • Engine coolant temperature (°C or °F)
  • Engine speed (RPM)
  • Battery voltage
  • Crank attempt and successful start counter
  • Run hour meter
  • Real time clock
Engine Protection
  • Control switch not in auto (alarm)
  • Low oil pressure
  • High coolant temperature (alarm and shutdown)
  • Low coolant temp (alarm)
  • Low coolant level (alarm and shutdown)
  • High engine oil temp (alarm and shutdown)
  • Low/High/Weak battery voltage
  • Fail to start
  • Overspeed
  • Overcrank
  • Low gas pressure (alarm and shutdown)
Communications
  • Primary and accessory CAN data link
  • Remote annunciator data link
  • Cat Data Link - with optional PLE702
  • Ethernet (Modbus TCP/IP) - 100 baseT
  • 8x 4-wire ports/managed switch (for internal and customer use)
  • 4x 2-wire ports: internal device network
Inputs & Outputs
  • Digital Inputs: Emergency stop
  • Digital Inputs: Remote start
  • Digital Inputs: 32 programmable inputs (generator set configuration may affect available features)
  • Digital Outputs: 24 programmable outputs (total)
  • Digital Outputs: Up to 4 programmable outputs for functional safety
  • Analog Outputs: 4 analog outputs
  • PWM Outputs: 6 total (1 for IVR - standard)
  • Analog Inputs: 6 programmable inputs 0-5V or resistive (generator set configuration may affect available features)
Language Support
  • Multi-Language support
Environmental
  • Control Module Box
  • Operating Temp: -40°C to +70°C (Storage Temp: -55°C to +85°C)
  • Ingress Protection: IP66 (HMI Touchscreen from the front)
