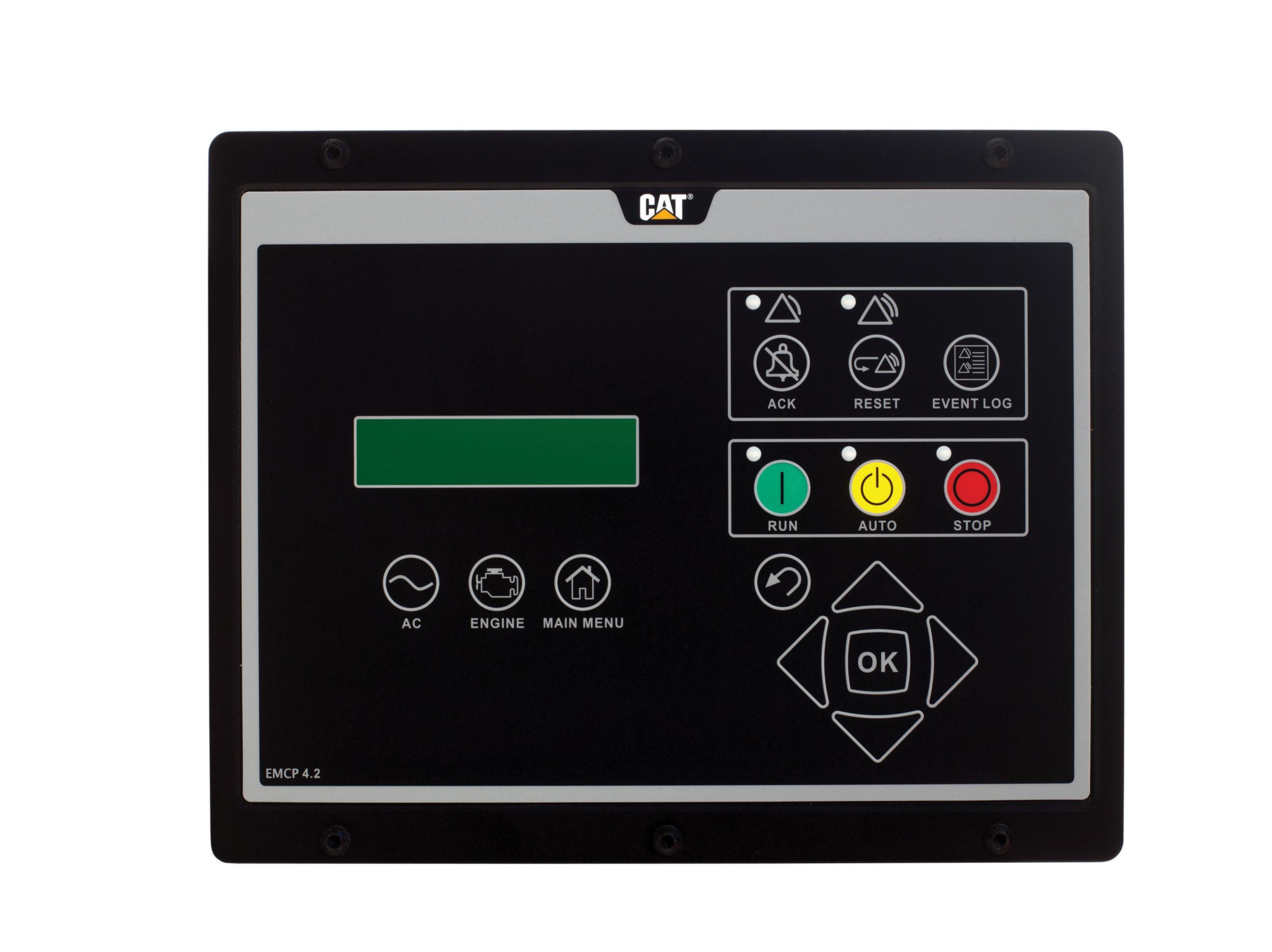

EMCP 4.2B Control Panel

EMCP 4.2B Generator Set Controller

The EMCP 4 Control Panel provides all of the controls and system indicators in one easy to access interface.

Category:

EMCP 4 Controls

The EMCP 4 includes the following controls:

  • Auto / Start / Stop Control
  • Speed and Voltage Adjust
  • Engine Cycle Crank
  • Programmable Cycle Timer
  • 24-volt DC operation
  • Environmental sealed front face
  • Text alarm/event descriptions

Digital Indicators

  • RPM
  • DC volts
  • Operating hours
  • Oil pressure (psi, kPa or bar)
  • Coolant temperature
  • Volts (L-L & L-N), frequency (Hz)
  • Amps (per phase & average)
  • ekW, kVA, kVAR, kW-hr, %kW, PF

Warning / Shutdown Indicators

The EMCP 4 has common LED indicators of the following warning and shutdown conditions

  • Low oil pressure
  • High coolant temperature
  • Overspeed
  • Emergency stop
  • Failure to start (overcrank)
  • Low coolant temperature
  • Low coolant level

Programmable Protective Relaying

  • Generator phase sequence
  • Over/Under voltage (27/59)
  • Over/Under Frequency (81 o/u)
  • Reverse power (kW) (32)
  • Reverse reactive power (kVAr) (32RV)
  • Overcurrent (50/51)
  • Overcurrent Thermal Damage Curve

Communications

  • Six digital inputs
  • Emergency stop pushbutton
  • Six relay outputs (Form A)
  • Two relay outputs (Form C)
  • Two digital outputs
  • One Analog Input
  • customer data link (Modbus RTU)
  • Accessory module data link
  • Serial annunciator module data link

Compatibility

The EMCP 4 is compatible with:

  • Remote CAN annunciator
  • Remote serial annunciator
  • Local Annunciator
  • Remote Monitoring Software
  • Digital I/O module
  • RTD module
  • Thermocouple module

Standard Equipment

Control
  • Auto / Start / Stop control
  • Remote start / stop
  • Speed and voltage adjust
  • Engine Cooldown Timer
  • Local and remote emergency stop
  • Engine Cycle Crank
  • Programmable Cycle Timer
Display
  • A 33 x 132 pixel, 3.8 inch, graphical display denotes text alarm/event descriptions, set points, engine and generator monitoring and is visible in all lighting conditions
Generator Monitoring
  • Voltage (L-L, L-N)
  • Current (Phase)
  • Average Volt, Amp, Frequency
  • kW, kVAr, kVA (Average, Phase, %)
  • Power Factor (Average, Phase)
  • kW-hr, kVAr-hr (total)
Generator Protection
  • Over/Under voltage (27/59)
  • Over/Under frequency (81/OU)
  • Generator phase sequence
  • Overcurrent (50/51)
  • Overcurrent (Thermal Damage Curve)
  • Reverse Power (kW)(32)
  • Reverse Reactive Power (kVAr) (32RV)
Engine Monitoring
  • Engine speed (RPM)
  • Battery voltage
  • Oil pressure
  • Oil Temperature
  • Coolant temperature
  • Multiple Language Support
  • Crank attempt and successful start counter
  • Run hours
  • Enhanced engine monitoring (with electronic engines)
Engine Protection
  • Low engine oil pressure (alarm)
  • High engine oil temp (alarm and shutdown)
  • High coolant temp (alarm and shutdown)
  • Low coolant temp (alarm)
  • Low coolant level (alarm)
  • Overcrank
  • Overspeed
  • Control switch not in auto (alarm)
  • Low, high, and weak battery voltage
Communications
  • Primary and accessory CAN data links
  • RS-485 annunciator data link
  • Modbus RTU (RS-485 Half duplex)
Inputs & Outputs
  • Six programmable form A dry contacts
  • Two programmable form C dry contacts
  • Two digital outputs
  • Two dedicated analog inputs
  • One programmable analog input
  • Two dedicated digital inputs
  • Six programmable digital inputs
Language Support
  • Arabic, Bulgarian, Chinese, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Lithuanian, Japanese, Norwgian, Polish, Portguese, Romanian, Russian, Slovak, Slovene, Spanish, Swedish & Turkish
Environmental
  • Control module operating temperature: -40°C to 70°C
  • Display operating temperature: -20°C to 70°C
  • Humidity: 100% condensing 30°C to 60°C
  • Storage temperature: -40°C to 85°C
  • Vibration: Random profile, 24-1000 Hz, 4.3G ms
