C32 (50 Hz)

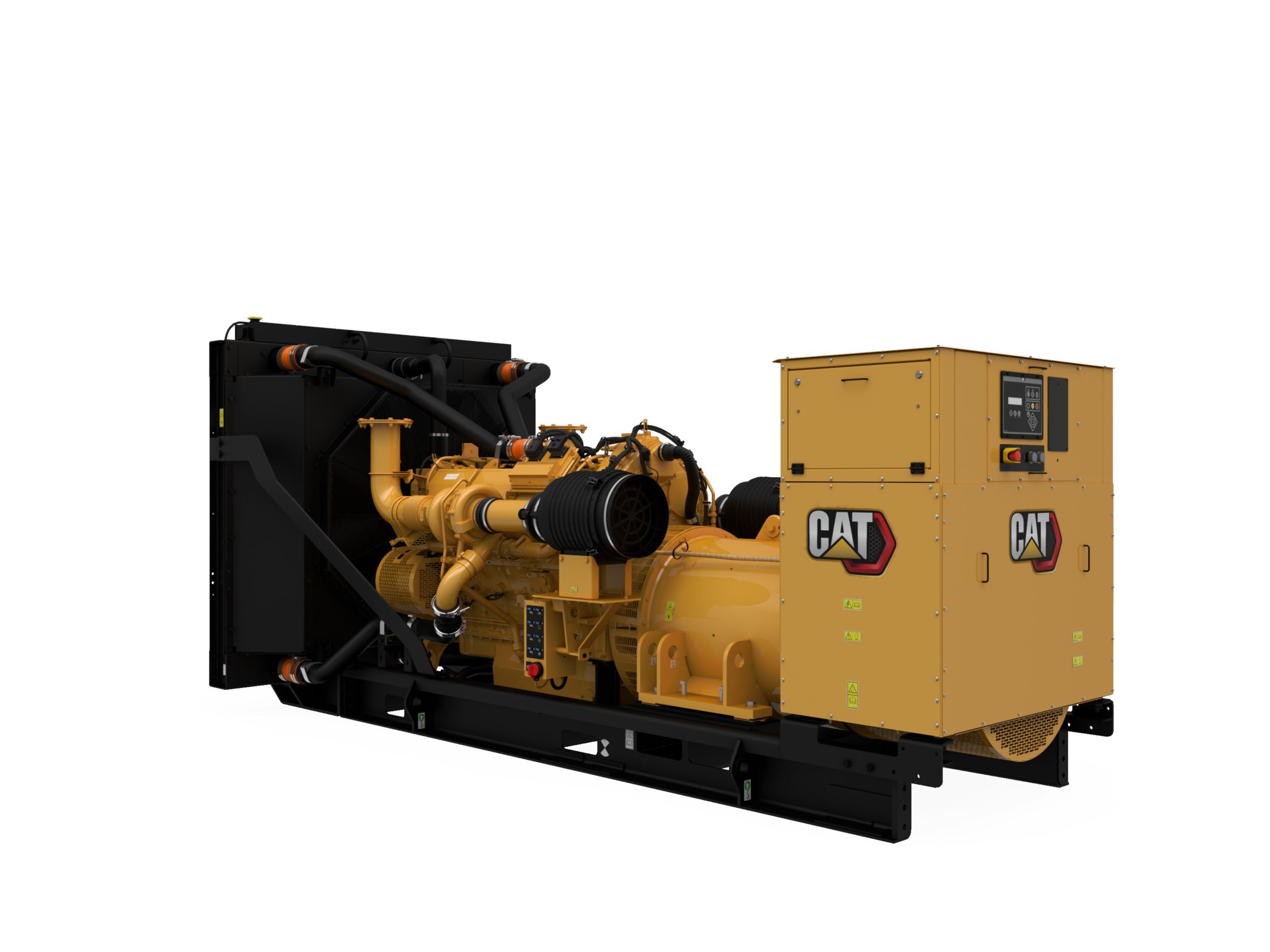

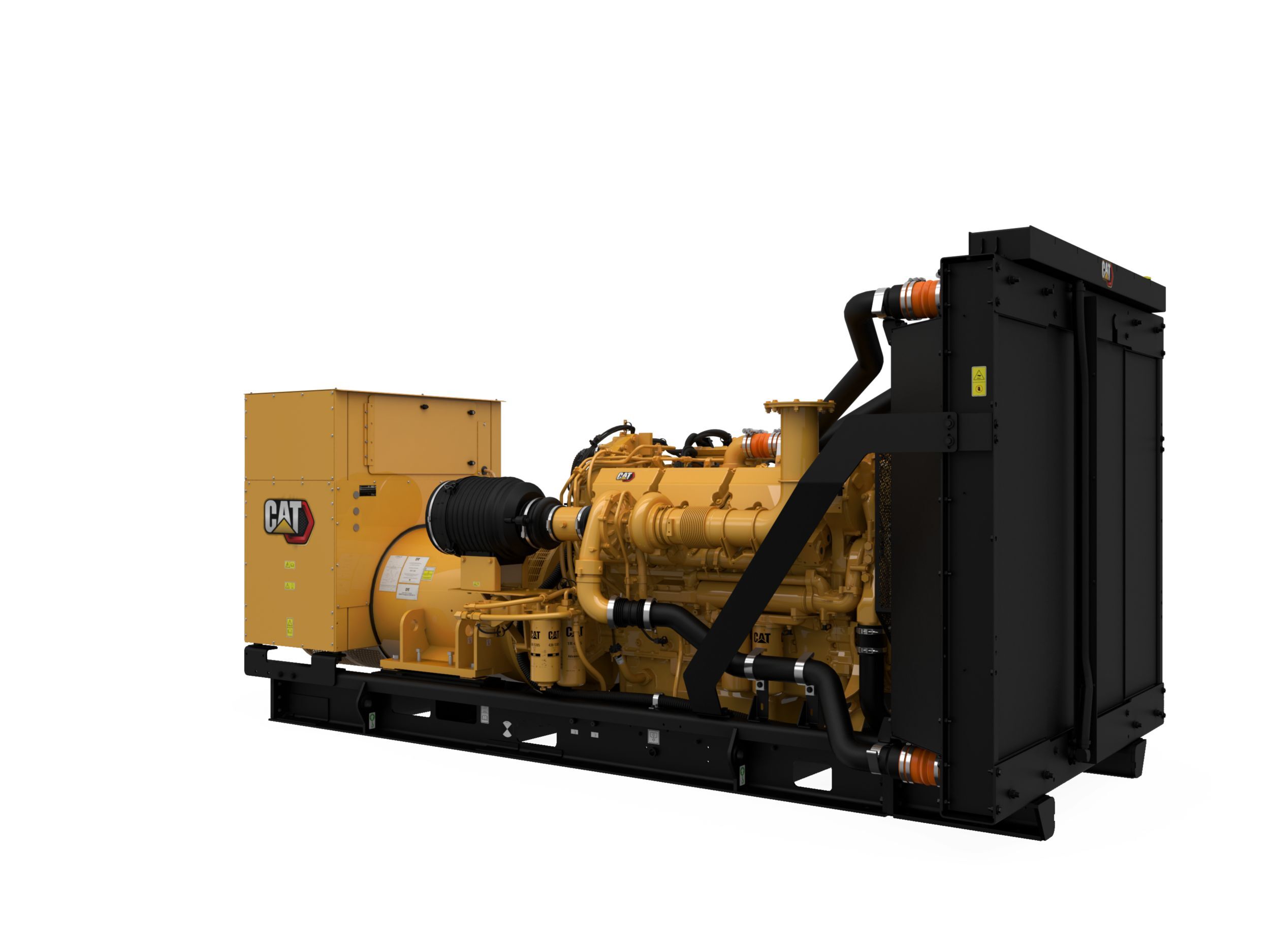

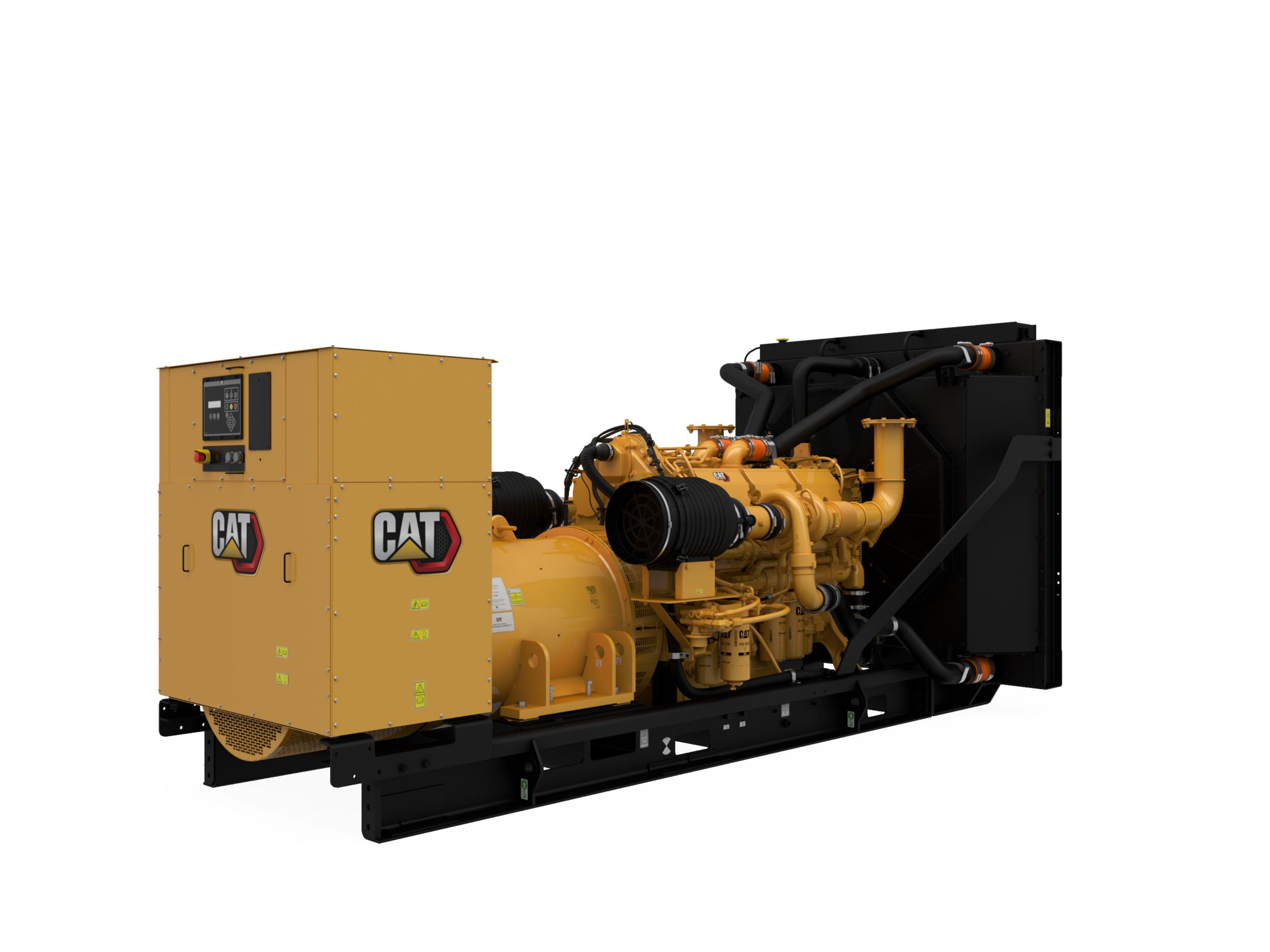

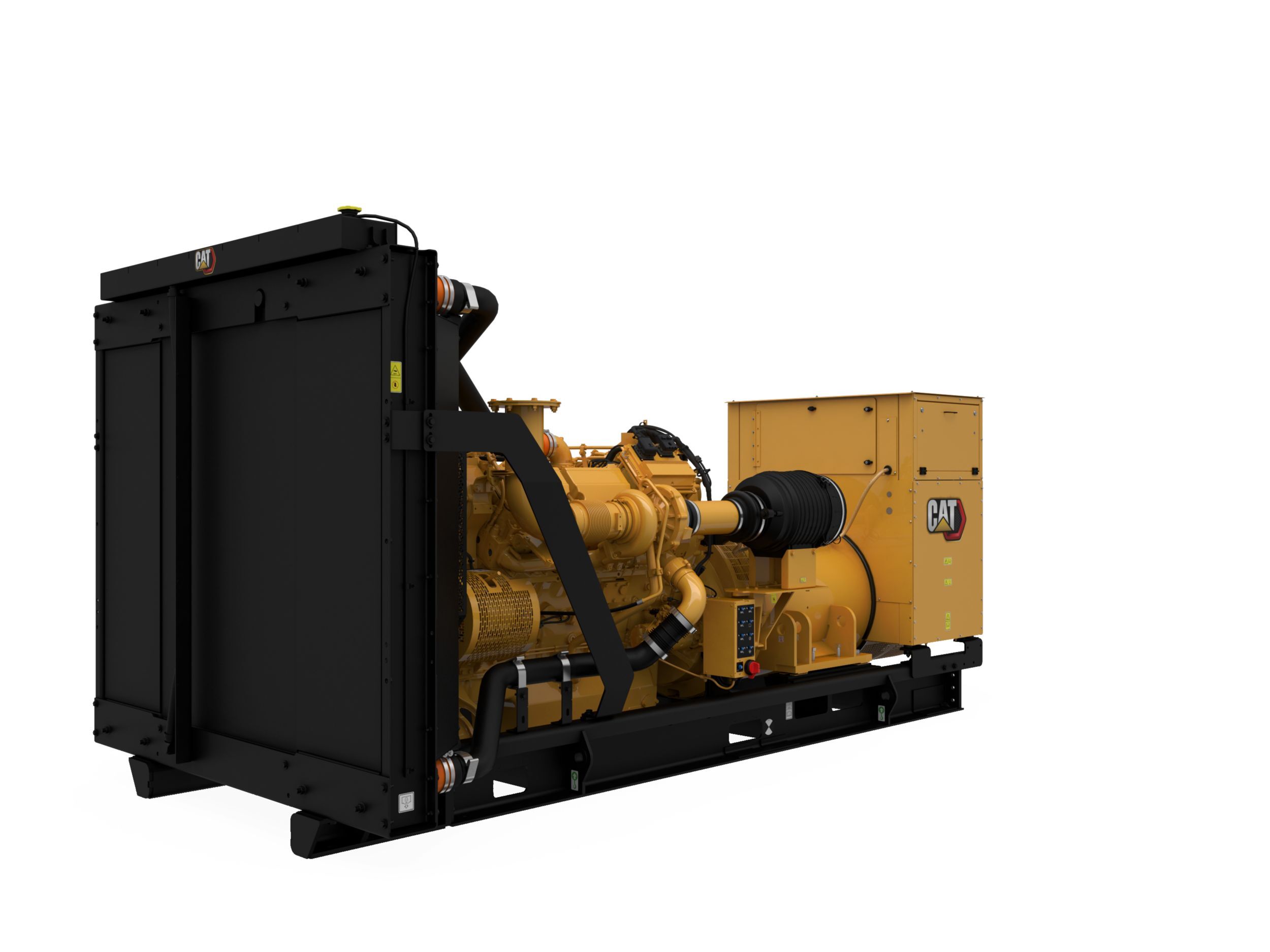

C32 Generator Set
Producing reliable power from 910 kVA to 1500 kVA at 50 Hz, our C32 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100 % rated load in one step. Our C32 generator sets are made for demands, so you can make yours.
Cat Generator Set Package
Cat Diesel Engine
SR5 Alternator
EMCP 4 Control Panel
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Videos
Virtual Tours
Documents & Brochures
Standard Equipment
Air Inlet System
- Single element canister type with service indicator
Control Panel
- EMCP 4.2B
- Warning shutdowns
- Control features
- Communications
- Programmable protective relaying functions
- Digital indicators
Cooling System
- Radiator fan and fan drive
- Coolant drain line with valve
- ATAAC
- Caterpillar extended life coolant
- Fan and belt guards
- Low coolant level sensor
Exhaust
- Exhaust manifold - dry
- 203 mm (8 in) ID round flanged outlet
Fuel System
- Primary fuel filter with water separator
- Secondary fuel filters
- Fuel cooler
- Fuel priming pump
Generators and Attachments
- 6 Lead
- Salient pole
- NEMA Class H insulation
- Internal excitation (IE)
- Permanent magnet excitation (PMG)
- Reactive droop
- 3 Phase brushless
- Winding temperature detectors
- Class H temperature rise at 40C ambient
- Busbar connections, top center mounted, top cable entry
- IEC standard hole pattern
- Integrated voltage regulator (IVR)
Governing System
- ADEM(tm) A4
Mounting System
- Rubber anti-vibration mounts
- Rails - engine/generator/radiator mounting
Lube System
- Gear type lube oil pump
- Oil filter, filler and dipstick
- Integral lube Oil cooler
- Fumes disposal
- Oil drain lines and valve
- Lubricating oil
Power Termination
- Busbar
Starting / Charging System
- Battery disconnect switch
- Battery, rack and cables
- 24 Volt electric starting motor
- 45 Amp Charging alternator
General
- Caterpillar yellow with high gloss black rails & radiator
- Flywheel and flywheel housing-SAE
- SAE standard rotation
- RH service
Additional information
| Offering Type | |
|---|---|
| Generator Set Specifications - Maximum Rating | 1500 kVA |
| Generator Set Specifications - Minimum Rating | 910 kVA |
| Generator Set Specifications - Emissions/Fuel Strategy | Low Fuel, Low Emissions |
| Generator Set Specifications - Voltage | 400 to 3300 Volts |
| Generator Set Specifications - Frequency | 50 Hz |
| Generator Set Specifications - Speed | 1500 rpm |
| Generator Set Specifications - Duty Cycle | Standby, Mission Critical, Prime, Continuous |
| Engine Specifications - Engine Model | C32 TA, V-12, 4-Stroke Water-Cooled Diesel |
| Engine Specifications - Bore | 145 mm ( 5.71 in ) |
| Engine Specifications - Stroke | 162 mm ( 6.38 in ) |
| Engine Specifications - Displacement | 32.1 l ( 1958.86 in³ ) |
| Engine Specifications - Compression Ratio | 15.0:1 |
| Engine Specifications - Aspiration | TA |
| Engine Specifications - Fuel System | MEUI |
| Engine Specifications - Governor Type | Adem™A4 |
| Generator Set Dimensions - Length - Minimum | 4165 mm ( 164 in ) |
| Generator Set Dimensions - Length - Maximum | 4485 mm ( 176.6 in ) |
| Generator Set Dimensions - Width - Minimum | 1684 mm ( 66.3 in ) |
| Generator Set Dimensions - Width - Maximum | 2228 mm ( 87.8 in ) |
| Generator Set Dimensions - Height - Minimum | 2162 mm ( 85.1 in ) |
| Generator Set Dimensions - Height - Maximum | 2194 mm ( 86.4 in ) |
| Generator Set Dimensions - Dry Weight - Genset (minimum) | 6668 kg ( 14700 lb ) |
| Generator Set Dimensions - Dry Weight - Genset (maximum) | 8099 kg ( 17855 lb ) |
-
