3516B (50 Hz)

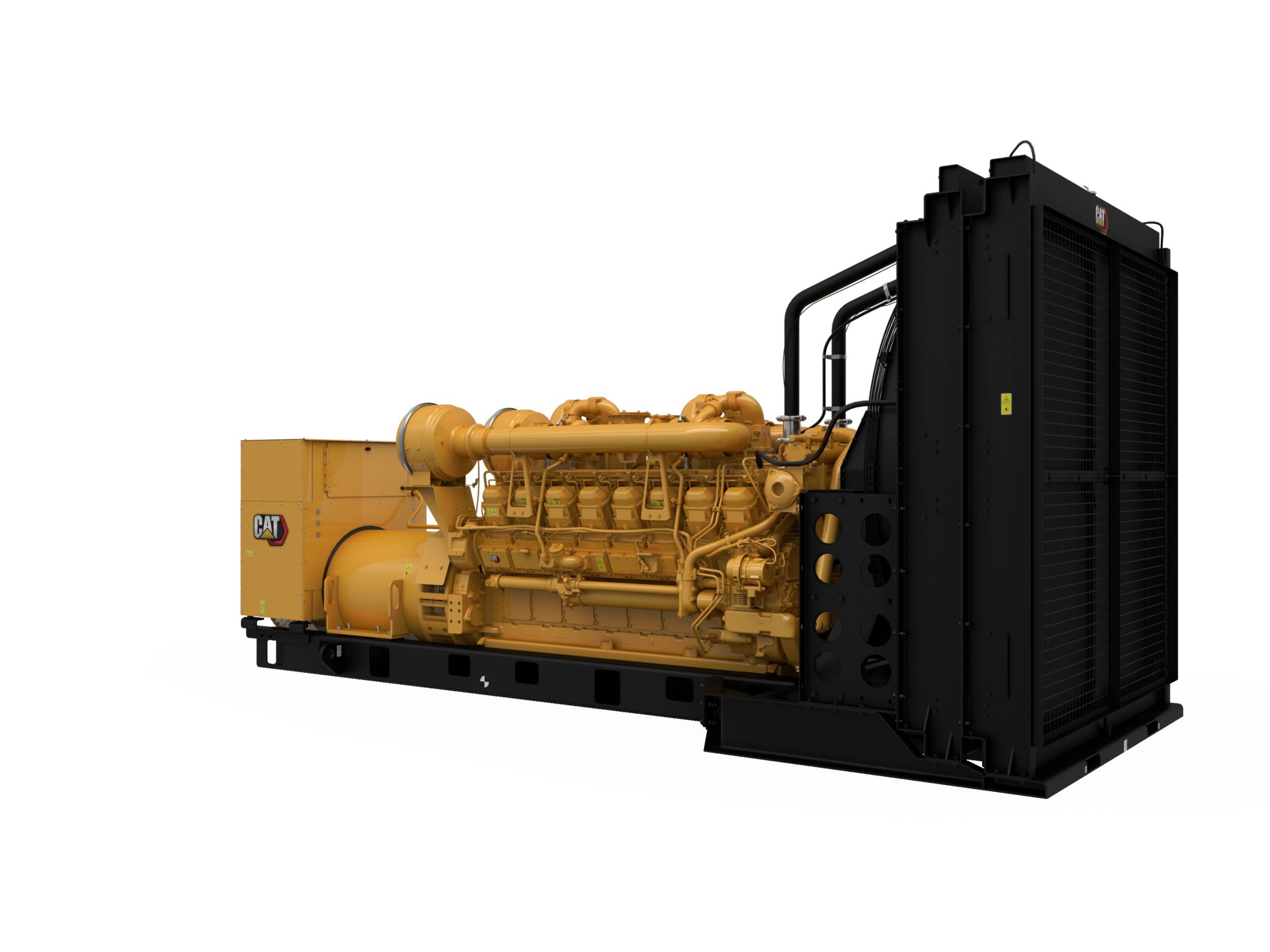

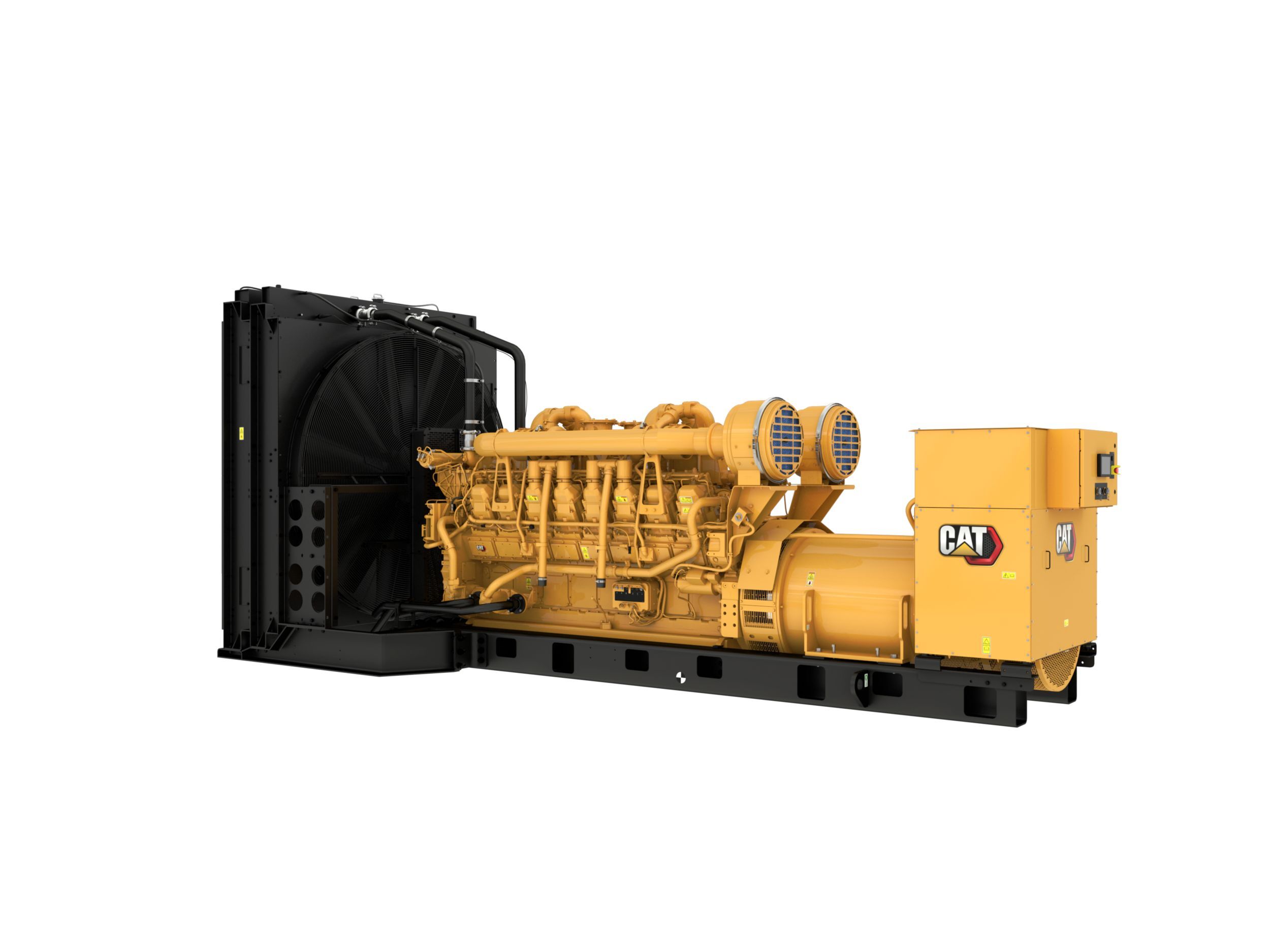

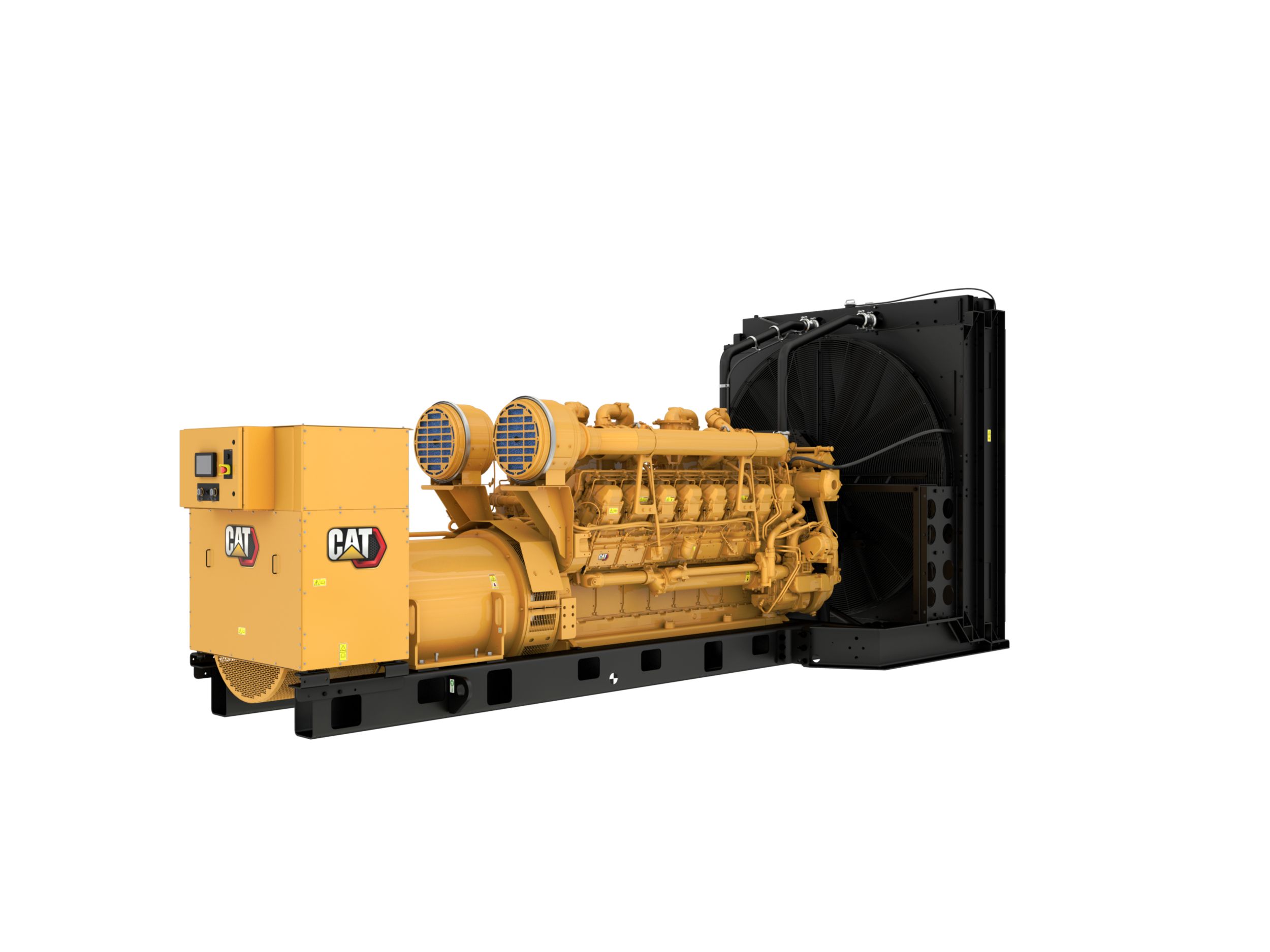

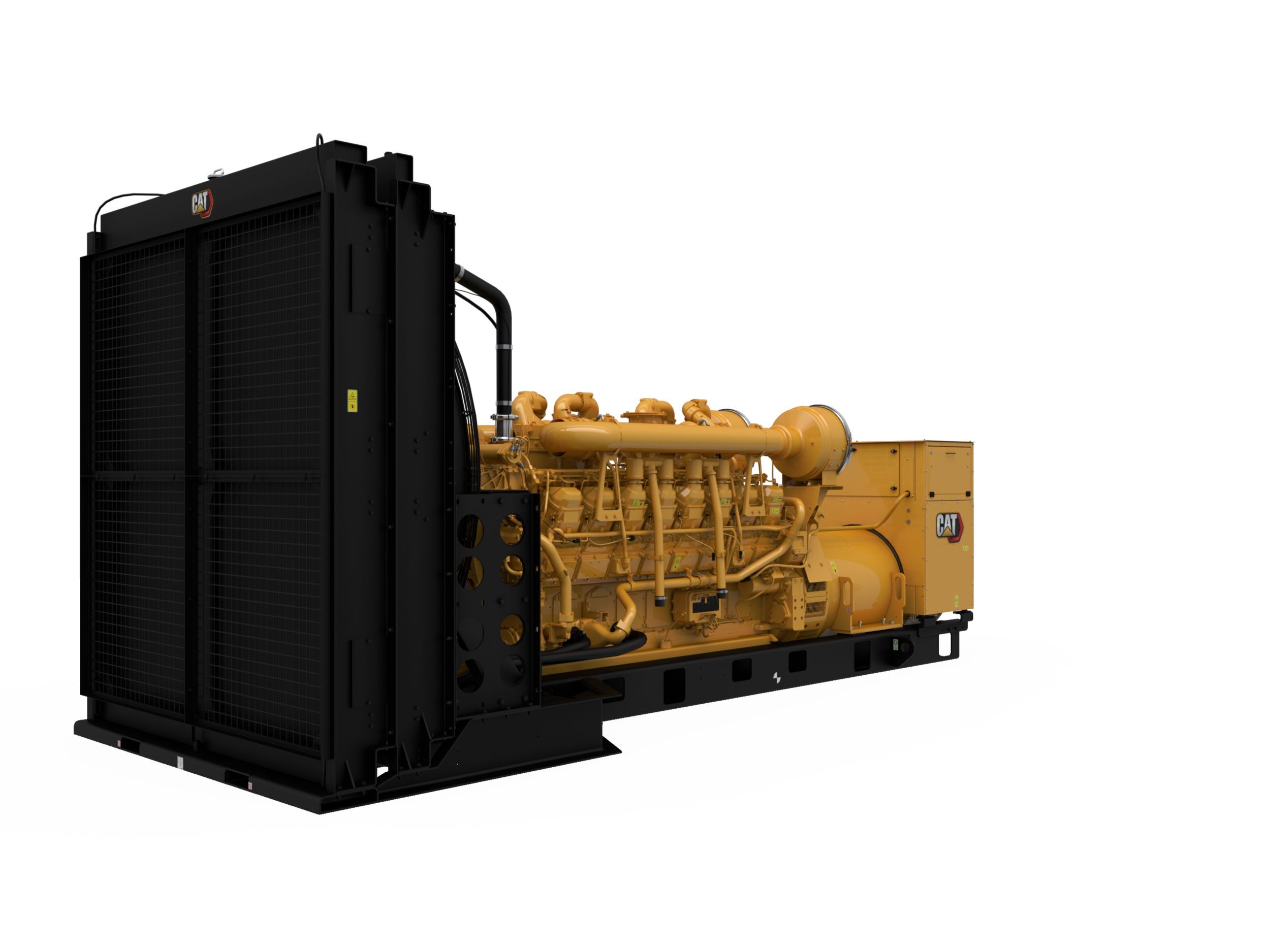

3516B (50 Hz) Generator Set
Producing reliable power from 2000 to 2500 kVA at 50 Hz, our 3516B diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Generator sets offer both low fuel consumption and low emission systems.
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
SR5 Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
Cat ECS Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirements
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 50�C (122�F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
- IBC seismic certification
- EU Declaration of Conformity
- EU Declaration of Incorporation
- Eurasian Conformity (EAC)
Single-Source Supplier
- Components used in the generator set are selected at the design stage to provide optimum package performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Videos
Virtual Tours
Documents & Brochures
Standard Equipment
Air Inlet
- Air cleaner
Cooling
- Package mounted radiator
Exhaust
- Exhaust flange outlet
Fuel
- Secondary fuel filters
- Fuel priming pump
- Primary fuel filter with integral water separator
Generator
- Matched to the performance and output characteristics of Cat engines
- IP23 Protection
Power Termination
- Busbar
Control Panel
- Cat ECS 100
General
- Paint - Caterpillar yellow except rails and radiators gloss black
Additional information
| Offering Type | |
|---|---|
| Generator Set Specifications - Standby Rating | 2500 kVA |
| Generator Set Specifications - Prime Power Rating | 2275 kVA |
| Generator Set Specifications - Emissions/Fuel Strategy | Low Fuel, Low Emissions |
| Generator Set Specifications - Voltage | 380 to 11000 Volts |
| Generator Set Specifications - Frequency | 50 Hz |
| Generator Set Specifications - Speed | 1500 rpm |
| Generator Set Specifications - Duty Cycle | Standby, Mission Critical, Prime, Continuous |
| Generator Set Specifications - Maximum Rating | 2500 kVA |
| Generator Set Specifications - Minimum Rating | 2000 kVA |
| Engine Specifications - Engine Model | 3516B TA, V-16, 4-Stroke Water-Cooled Diesel |
| Engine Specifications - Bore | 170 mm ( 6.69 in ) |
| Engine Specifications - Stroke | 215 mm ( 8.46 in ) |
| Engine Specifications - Displacement | 78.08 l ( 4764.73 in ) |
| Engine Specifications - Compression Ratio | 15.5:1 |
| Engine Specifications - Aspiration | TA |
| Engine Specifications - Fuel System | Electronic unit injection |
| Engine Specifications - Governor Type | Adem™3 |
| Generator Set Dimensions - Length - Minimum | 5928 mm ( 233.4 in ) |
| Generator Set Dimensions - Length - Maximum | 6377 mm ( 251.7 in ) |
| Generator Set Dimensions - Width - Maximum | 2286 mm ( 90 in ) |
| Generator Set Dimensions - Height - Maximum | 2367 mm ( 93.2 in ) |
| Generator Set Dimensions - Dry Weight - Genset (minimum) | 14470 kg ( 31900 lb ) |
| Generator Set Dimensions - Dry Weight - Genset (maximum) | 18290 kg ( 40320 lb ) |
-
