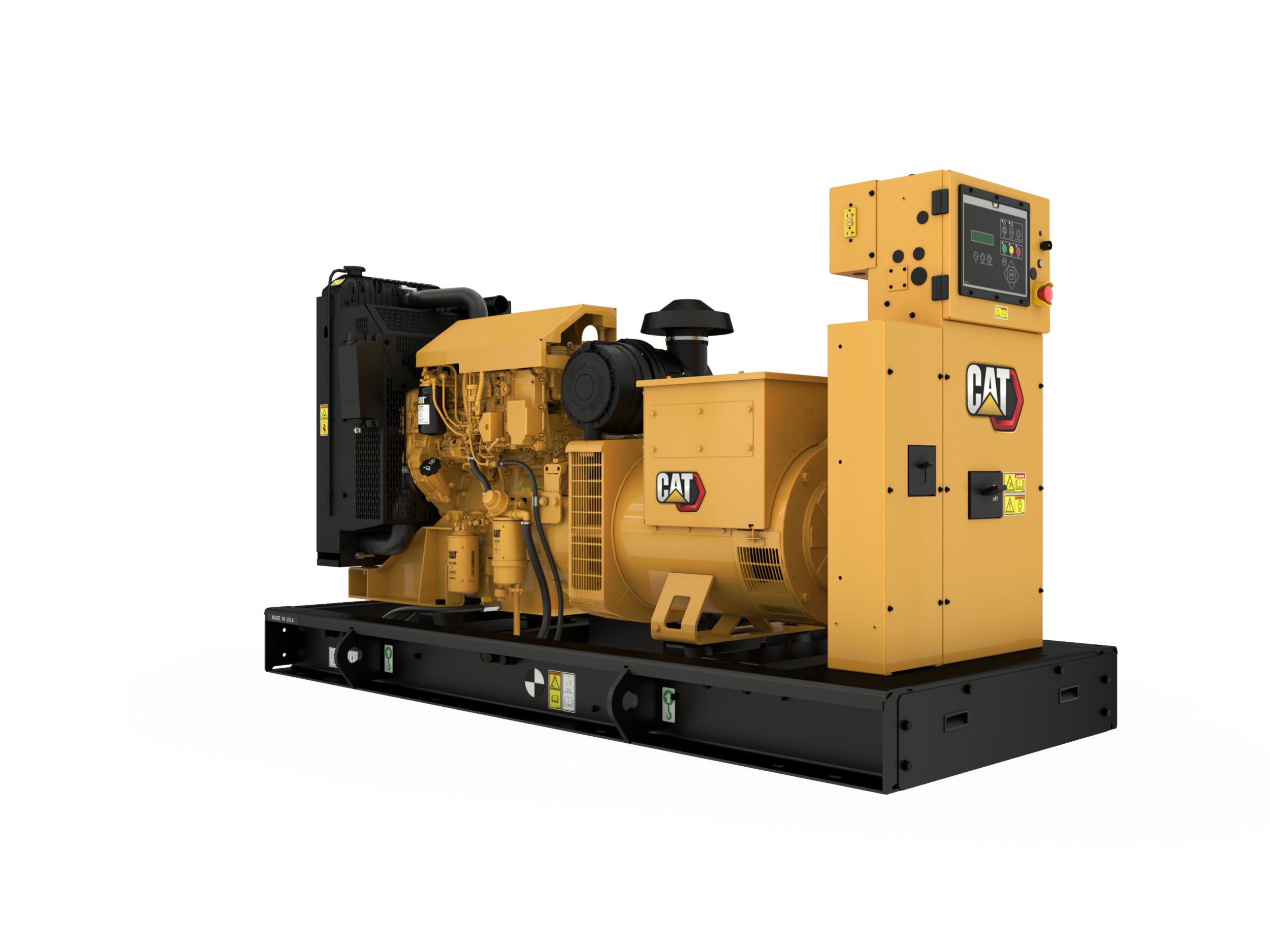

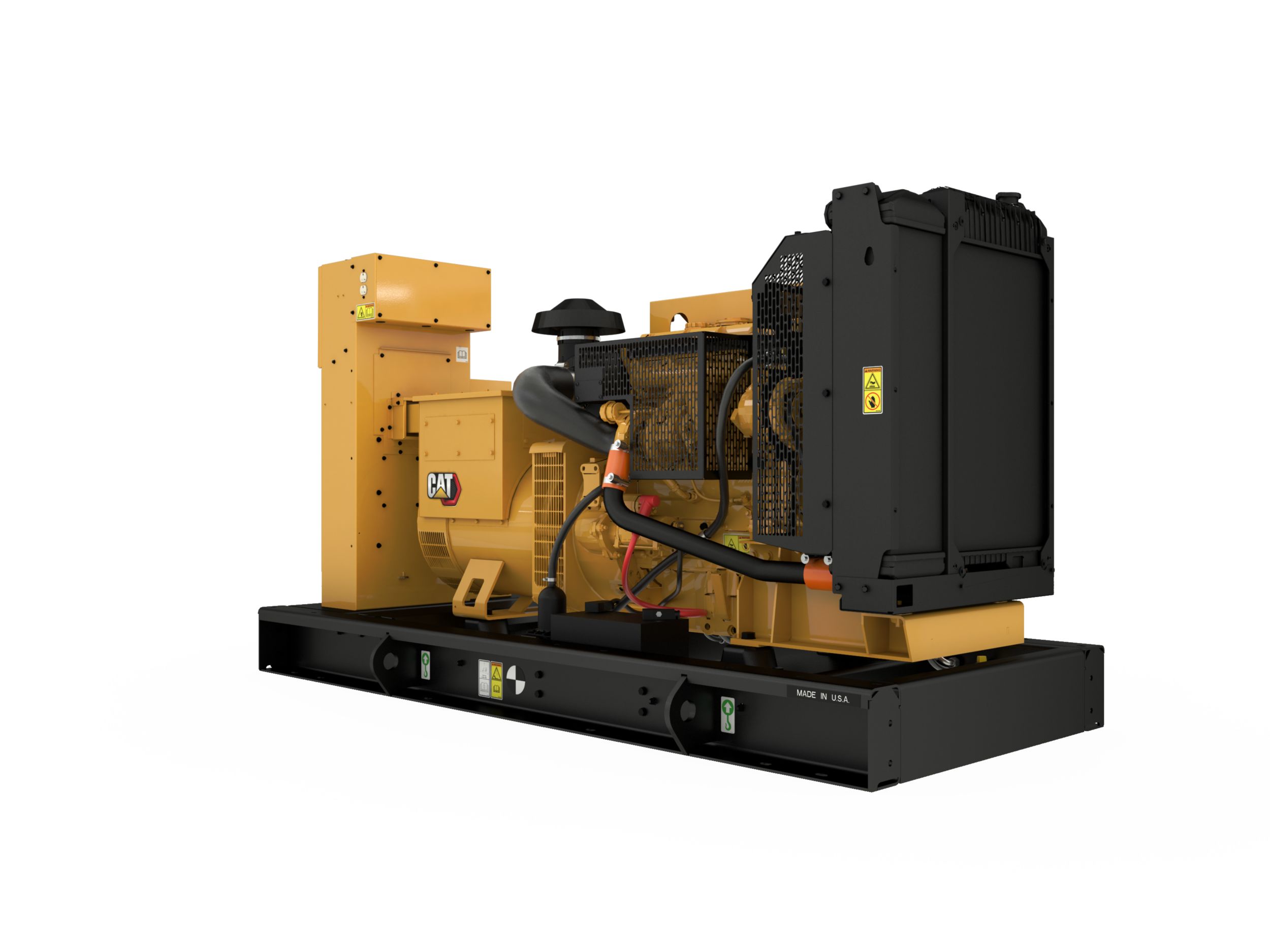

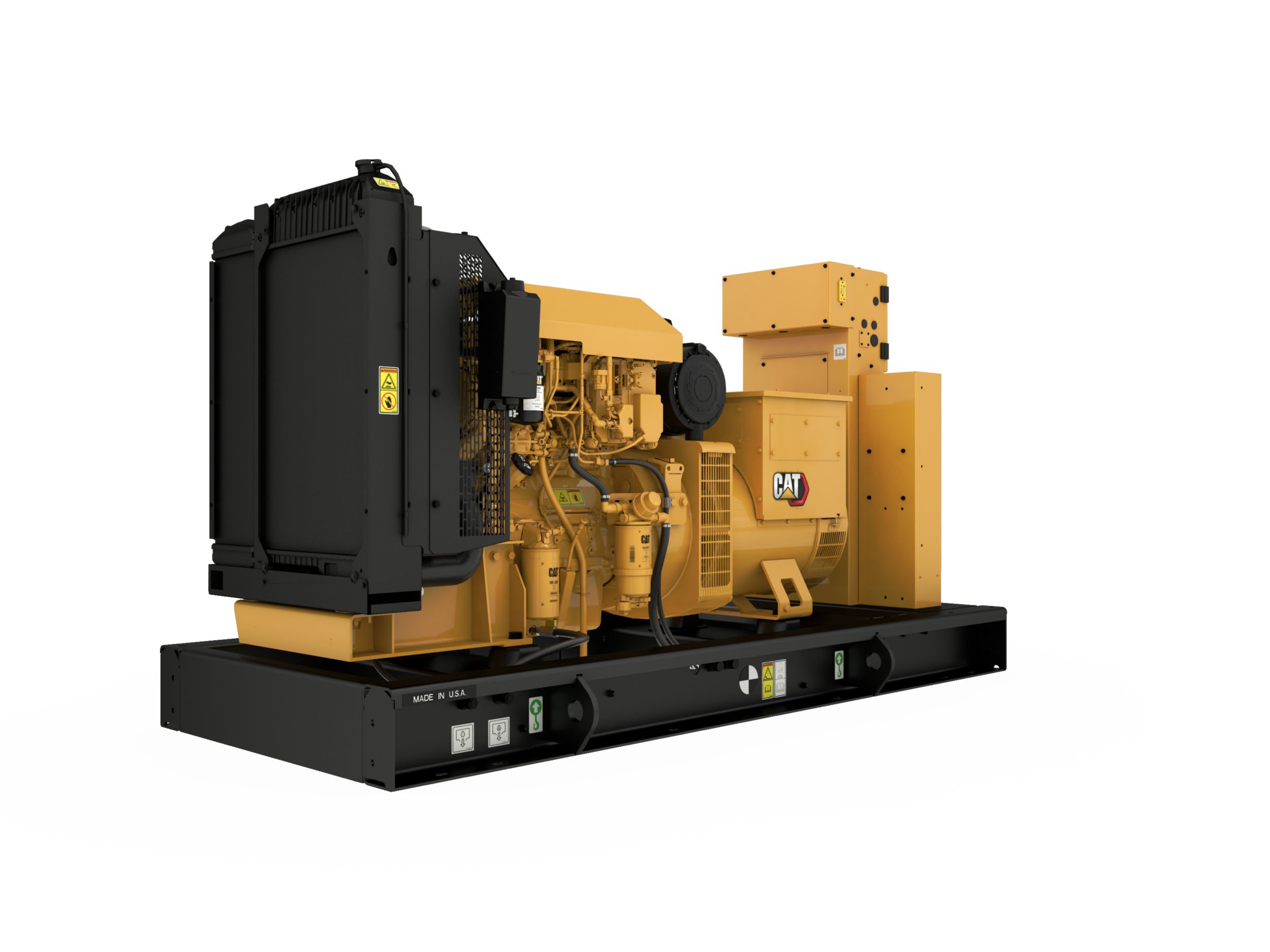

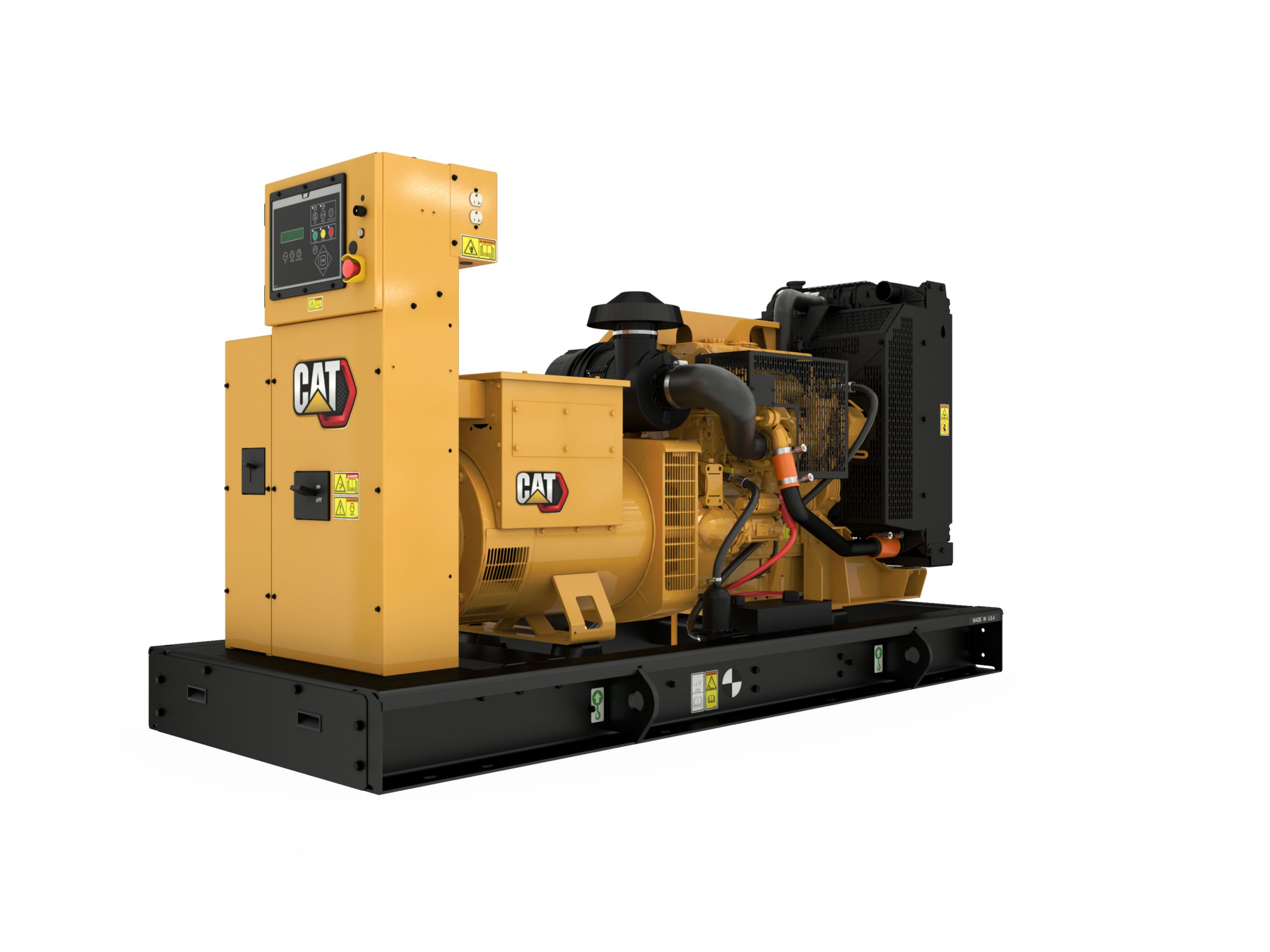

C4.4 (60 Hz)
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
F-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.2 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
- Image may not be a representative of actual product
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S•O•S℠ program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Virtual Tours
Documents & Brochures
- Electric Power Ratings Guide
- 60 Hz 40 ekW, EPA Tier III Compliant Emissions Spec Sheet
- 60 Hz 60 ekW, EPA Tier III Compliant Emissions Spec Sheet
- 60 Hz 50 ekW, EPA Tier III Compliant Emissions Spec Sheet
- 60 Hz 36 ekW, SCAQMD & US EPA Tier 3 equivalent Compliant Emissions Spec Sheet
- 60 Hz 40 ekW, SCAQMD & US EPA Tier 3 equivalent Compliant Emissions Spec Sheet
- 60 Hz 45 ekW, SCAQMD & US EPA Tier 3 equivalent Compliant Emissions Spec Sheet
- 60 Hz 50 ekW, SCAQMD & US EPA Tier 3 equivalent Compliant Emissions Spec Sheet
- 60 Hz 60 ekW, U.S. EPA Certified for Stationary Emergency Application Compliant Emissions Spec Sheet
- 60 Hz 55 ekW, U.S. EPA Certified for Stationary Emergency Application Compliant Emissions Spec Sheet
- C4.4 Diesel Generator Set, 60 Hz, 40 - 60 ekW, Spec Sheet
- GCCP 1.2 Control Panel Data Sheet

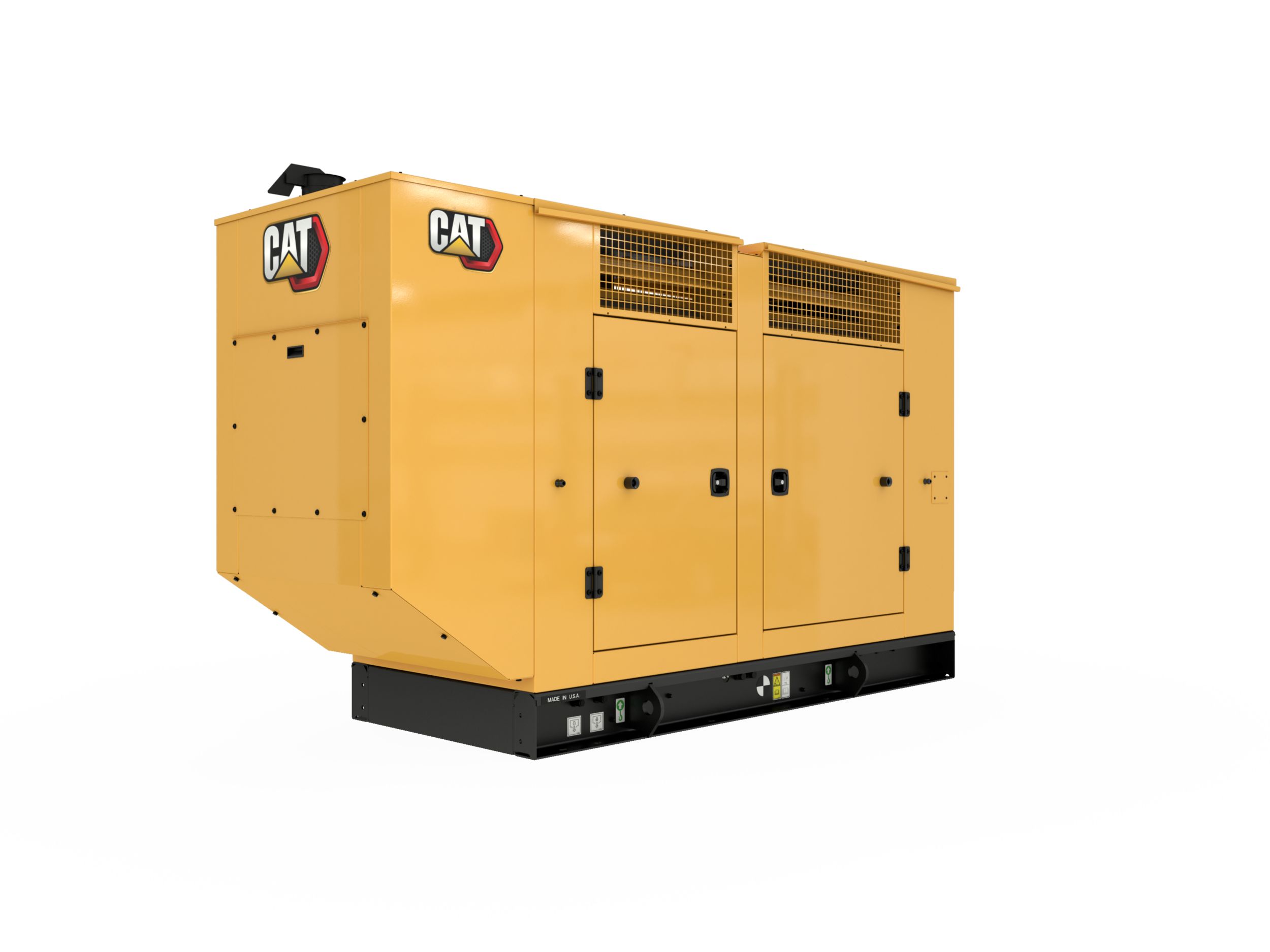

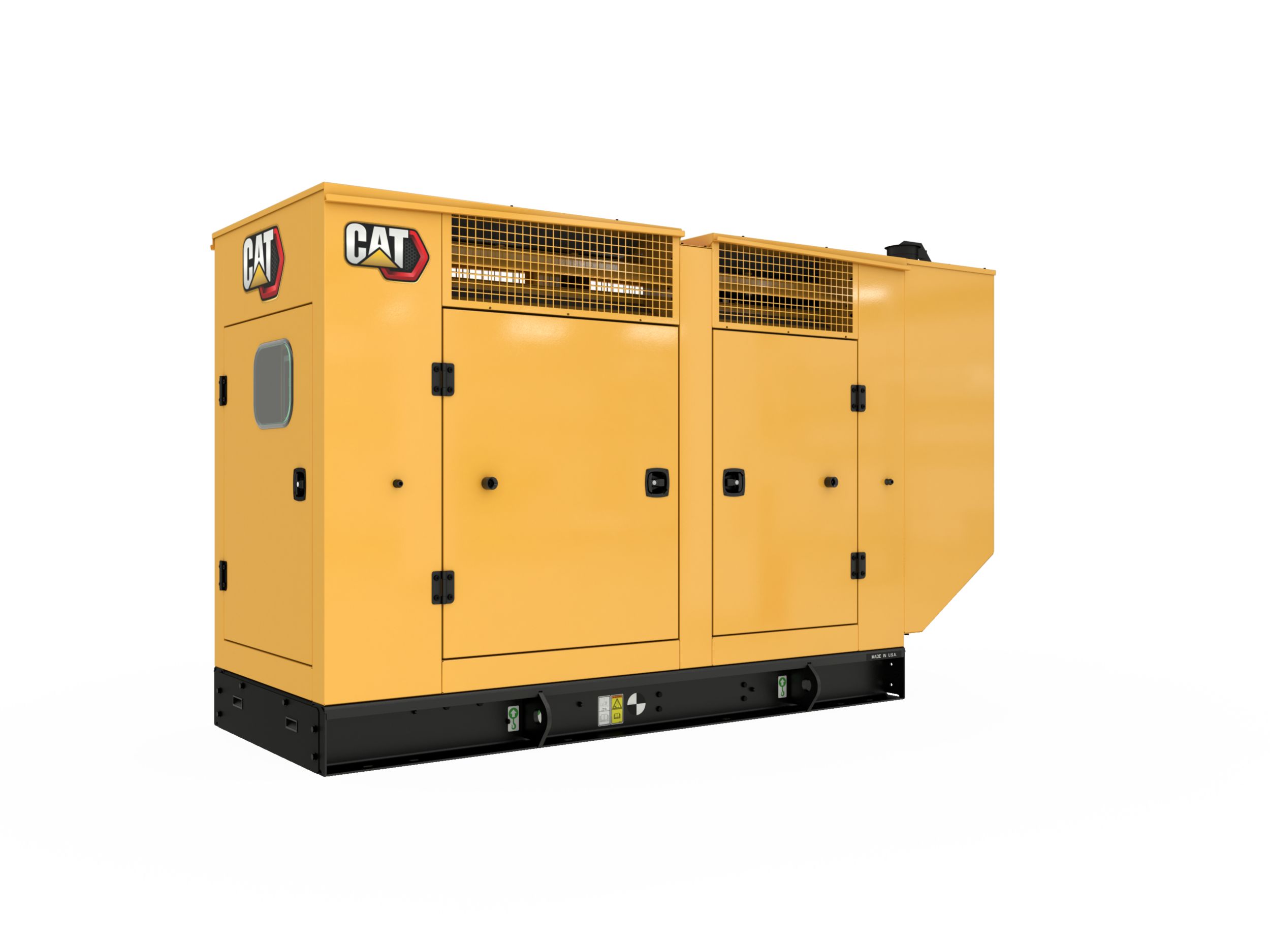

- 24-220 KVA SA LVL 2 Enclosure
- GCCP 1.5 Control Panel Data Sheet
Standard Equipment
Certificates
- IBC seismic and wind Certifications
Charging System
- NFPA battery charger UL10A 120VAC
Air Inlet System
- Air cleaner
- Cartridge type air filter
Circuit breakers
- Second circuit breaker box
- 3-Pole 100% rated
- Power terminal strip
- Breakers (100% UL rated)
Control Panel
- 1000028996
Exhaust System
- Stub pipe, gaskets, raincap and SAE exhaust flange for customer use - shipped loose
Fuel System
- Standard open set fuel tank/base supplied base, formed steel with single wall integral 8-hour fuel tank
Cooling System
- Coolant drain line with valve
- Radiator and cooling fan with guards
- Fan drive, battery charging alternator drive
- Caterpillar extended life coolant
- Radiator stone guard
Generator
- 12 Leads
Governing System
- Mechanical and electrical governing system - model dependent
Lube System
- Oil drain line with valve
- Lubricating oil
Control Panels
- WCA1 Low coolant temperature alarm
- WSS1 Low coolant level shut down
- FSS Low fuel level alarm & indication panel circuitry required when sub-base tank is selected
- NFPA110 bundle includes:
- PAA1 Panel mounted audible alarm
- A Coolant heater, remote annunciator or 0.8 power factor test may be required depending on the application
- Oil temperature gauge and sender
- PBC10NU NFPA battery charger
- Ground fault relay
- Discrete I/O module
- Volt free contacts genset run and common alarm
- Audible alarm
- Remote E-stop button
- Remote annunciator module
- Low coolant temperature alarm
- Protective devices:
- Overload shutdown via breaker
- Fuel level reading
- Low coolant level shutdown
General
- Engine and alternator pre-paint, Caterpillar yellow
Starting/Charging System
- 24V battery with rack and cables
- Batteries
Additional information
مواصفات مجموعة المولدات - أقصى معدل | 60 كيلووات كهربائي |
---|---|
مواصفات مجموعة المولدات - أدنى معدل | 36 كيلووات كهربائي |
مواصفات مجموعة المولدات - الانبعاثات/إستراتيجية الوقود | معتمد وفق معايير وكالة حماية البيئة (EPA) الأمريكية، من المستوى 3 |
مواصفات مجموعة المولدات - الجهد | 208 إلى 600 فولت |
مواصفات مجموعة المولدات - التردد | 60 هرتز |
مواصفات مجموعة المولدات - السرعة | 1800 دورة في الدقيقة |
مواصفات مجموعة المولدات - دورة العمل | الاحتياطية، والرئيسية |
مواصفات المحرك - موديل المحرك | محرك C4.4 ديزل خطي 4، رباعي الدورات |
مواصفات المحرك - التجويف | 105 مم ( 4.13 بوصة ) |
مواصفات المحرك - الشوط | 127 مم ( 5 بوصة ) |
مواصفات المحرك - الإزاحة | 4.4 l ( 268.5 بوصة ) |
مواصفات المحرك - نسبة الانضغاط | 18.2:1 |
مواصفات المحرك - السحب | شاحن توربيني |
مواصفات المحرك - نظام الوقود | إلكتروني (قابل للضبط) |
مواصفات المحرك - نوع المنظم | Adem™A4 |
أبعاد مجموعة المولدات - الطول - الحد الأقصى | 1925 مم ( 75.8 بوصة ) |
أبعاد مجموعة المولدات - العرض - الحد الأقصى | 1120 مم ( 44.1 بوصة ) |
أبعاد مجموعة المولدات - الارتفاع - الحد الأقصى | 1361 مم ( 53.6 بوصة ) |
