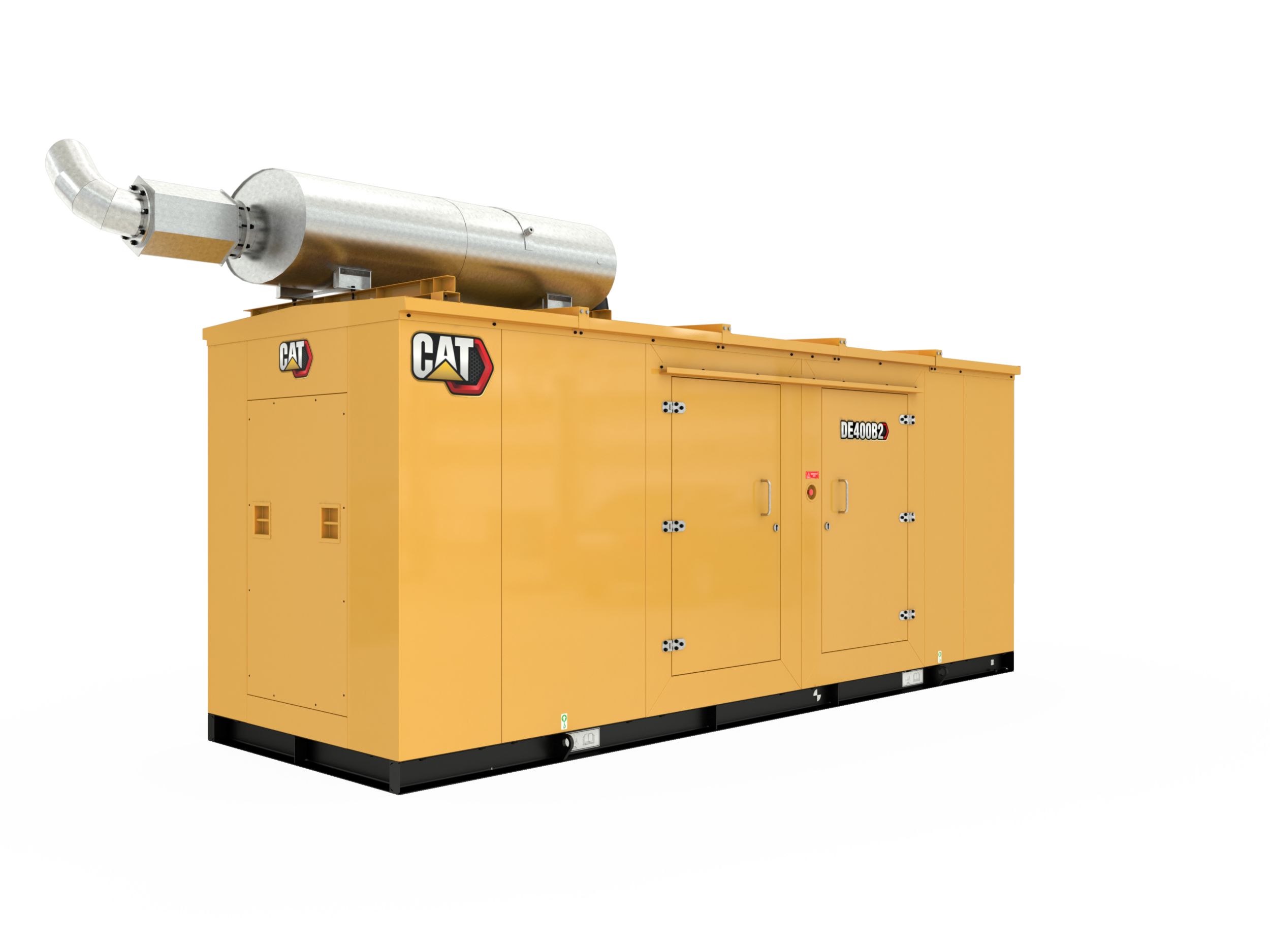

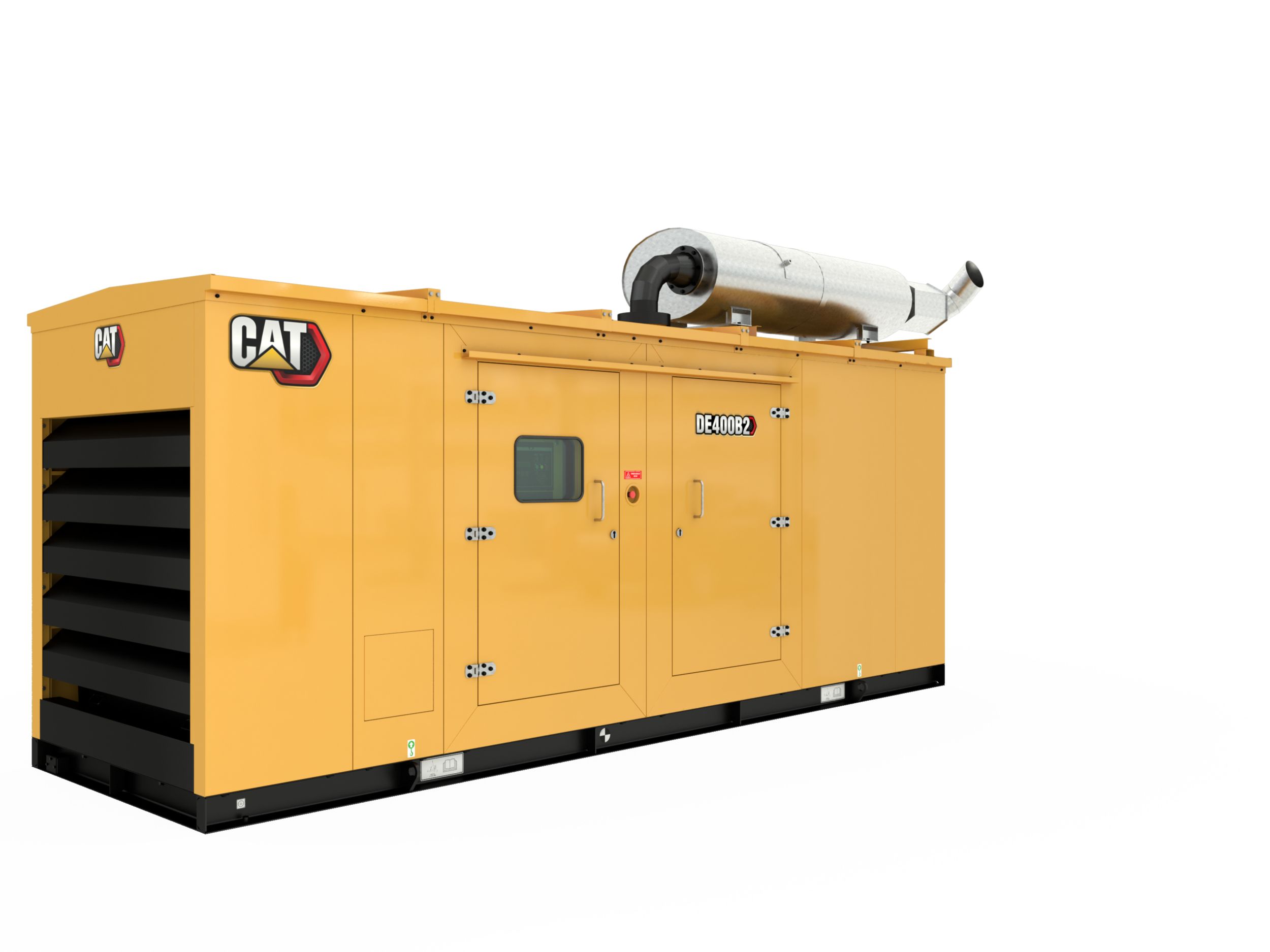

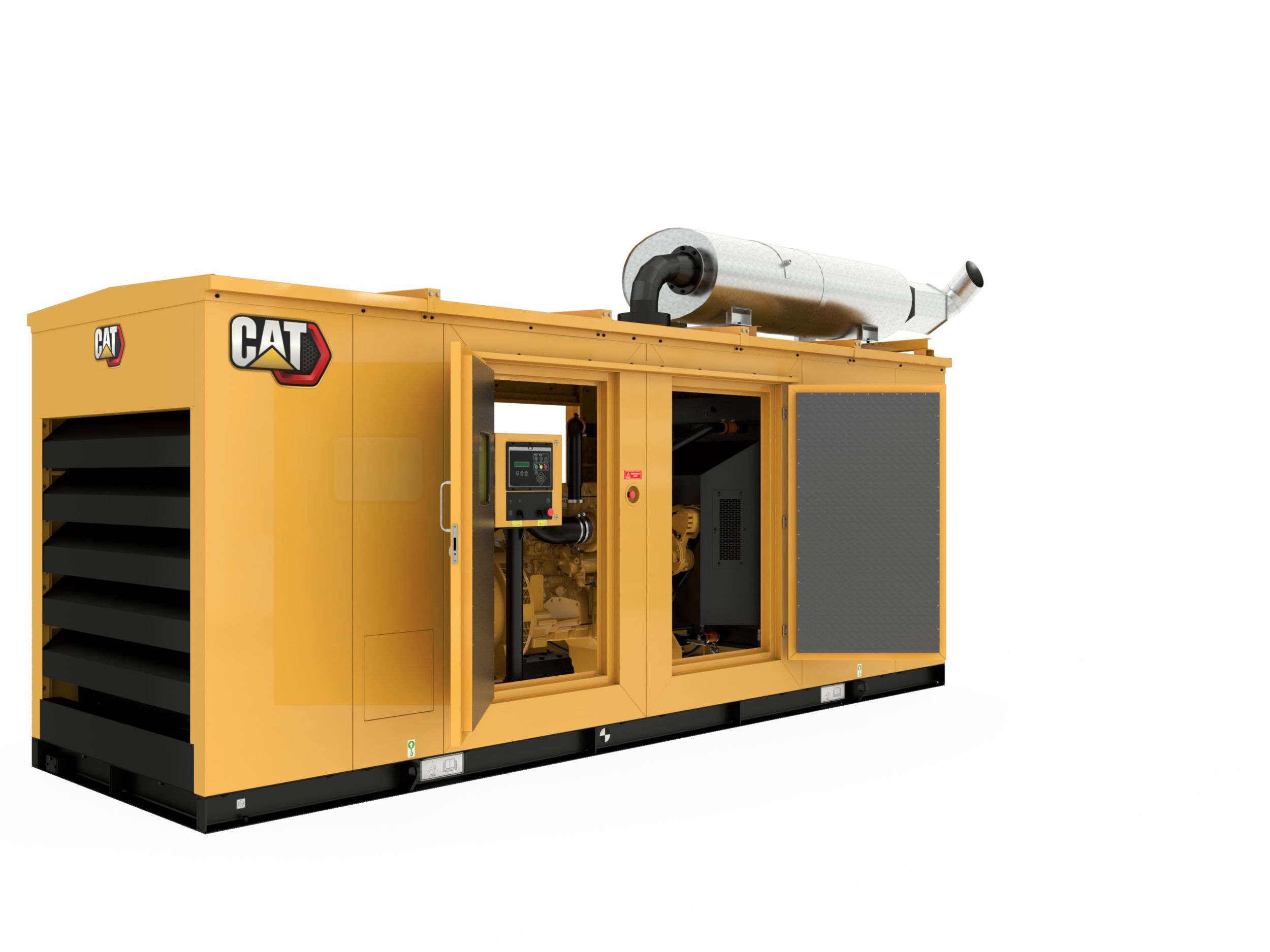

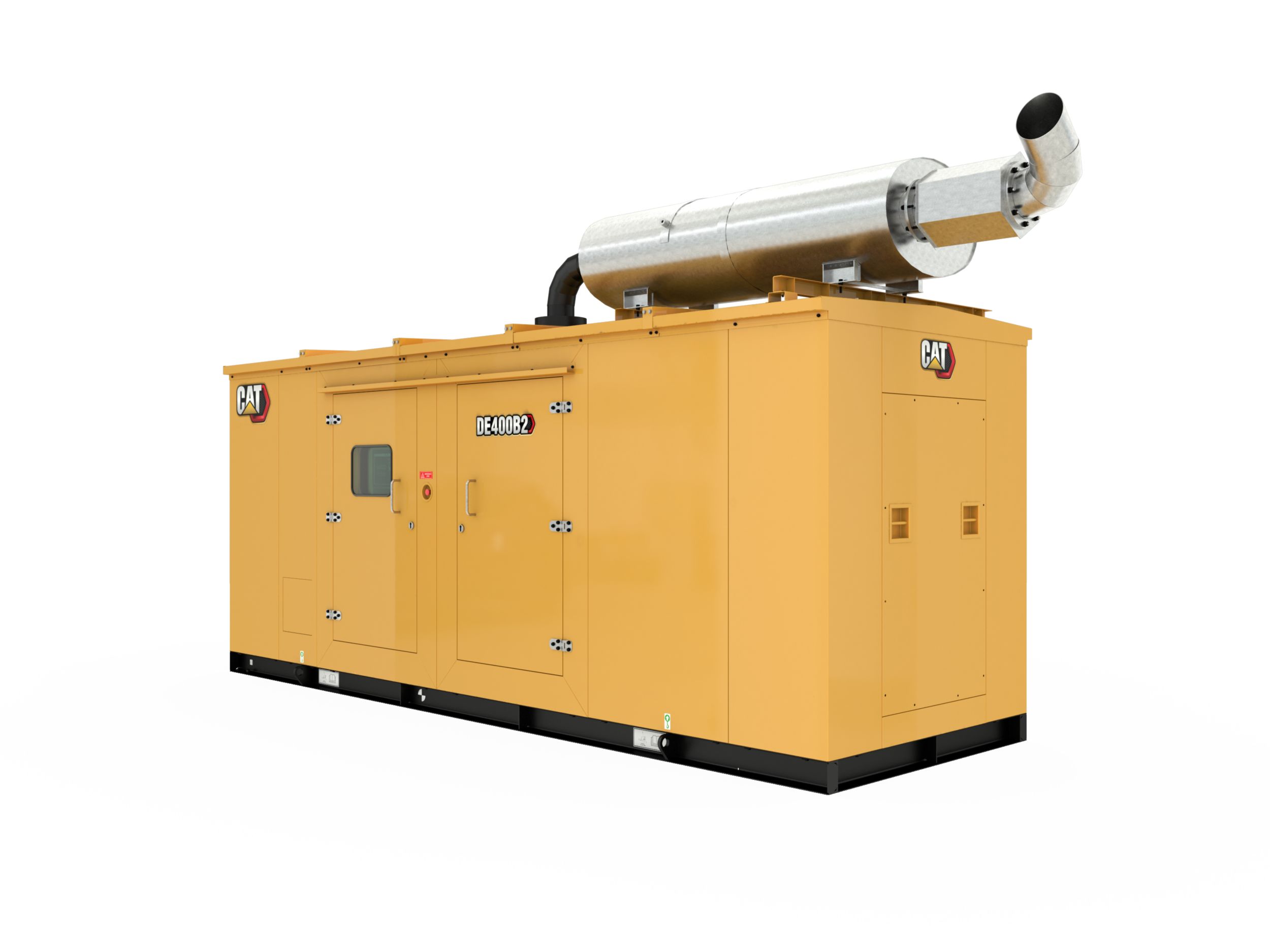

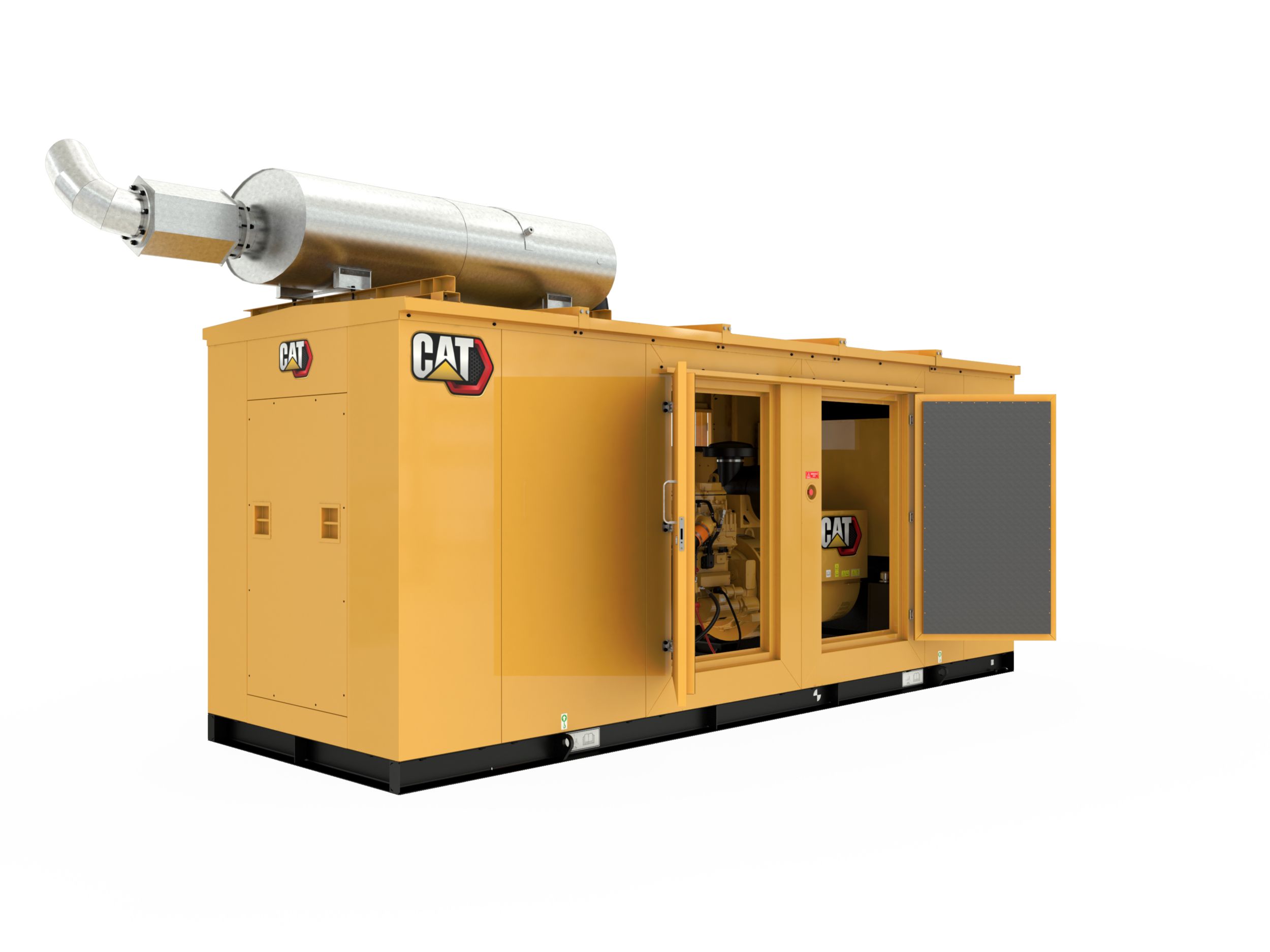

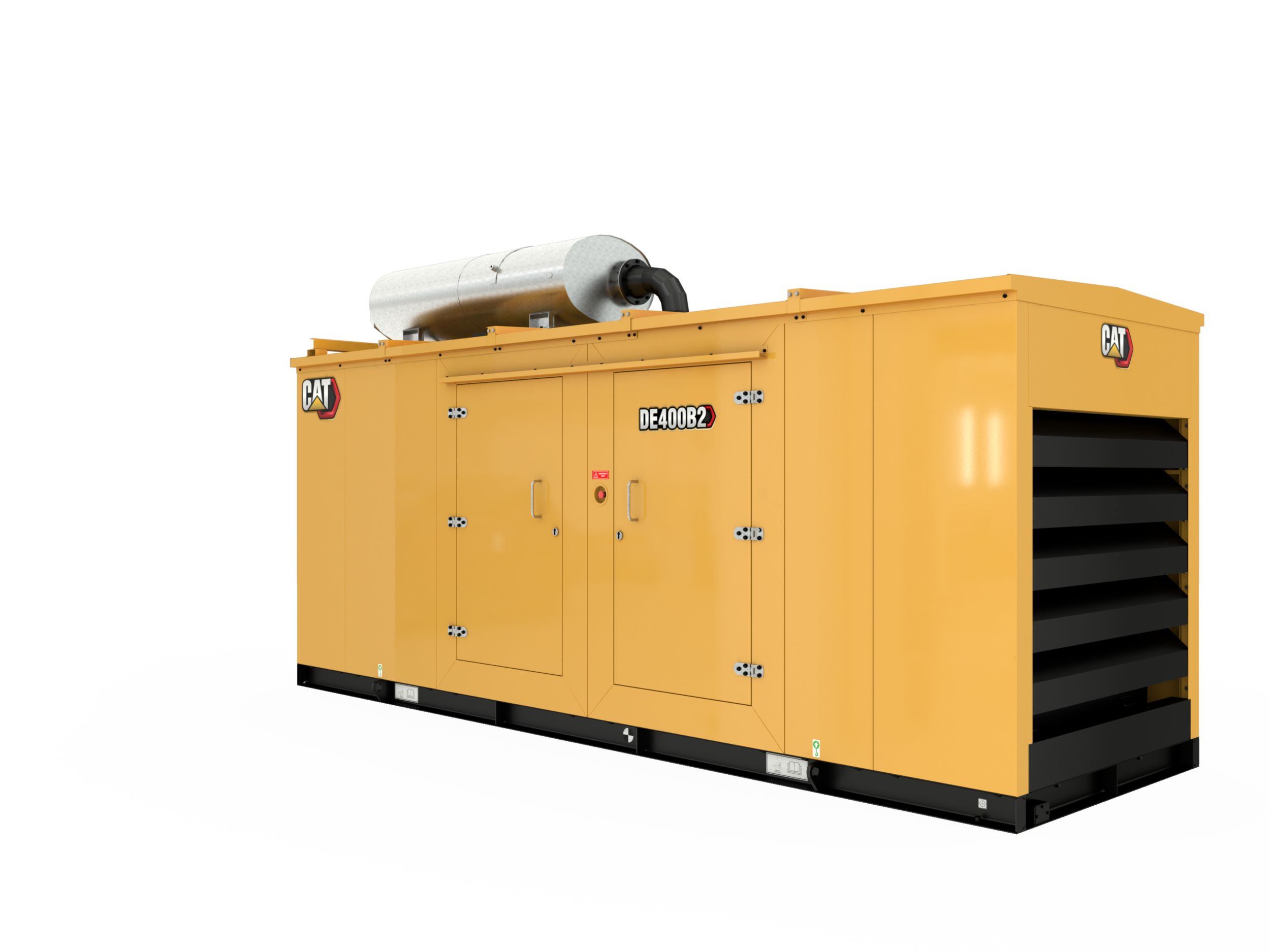

C13 | 400 kVA (50 Hz)
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
EMCP Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Virtual Tours
Documents & Brochures
Standard Equipment
Air cleaner
- Service indicator
- Dual element cannister type air cleaner
Cooling System
- Radiator
Exhaust
- Exhaust flange outlet
Control Panel
- EMCP 4.1
General
- Paint - Caterpillar yellow except rails and radiators gloss black
Additional information
مواصفات مجموعة المولدات - أقصى معدل | 400 كيلوفولت أمبير |
---|---|
مواصفات مجموعة المولدات - أدنى معدل | 400 كيلوفولت أمبير |
مواصفات مجموعة المولدات - الانبعاثات/إستراتيجية الوقود | CPCB/MoEF للسوق الهندية |
مواصفات مجموعة المولدات - الجهد | 415 فولت |
مواصفات مجموعة المولدات - التردد | 50 هرتز |
مواصفات مجموعة المولدات - السرعة | 1500 دورة في الدقيقة |
مواصفات مجموعة المولدات - دورة العمل | الاحتياطية، والرئيسية |
مواصفات المحرك - موديل المحرك | C13 ATAAC ديزل، I-6، 4 أشواط ومبرد بالمياه |
مواصفات المحرك - التجويف | 130 مم ( 5.12 بوصة ) |
مواصفات المحرك - الشوط | 157 مم ( 6.18 بوصة ) |
مواصفات المحرك - الإزاحة | 762.8 l ( 12.5 بوصة ) |
مواصفات المحرك - نسبة الانضغاط | 16.6:1 |
مواصفات المحرك - السحب | تبريد لاحق هواء إلى هواء |
مواصفات المحرك - نظام الوقود | MEUI™ |
مواصفات المحرك - نوع المنظم | Adem™A4 |
أبعاد مجموعة المولدات - الطول - الحد الأقصى | 4743 مم ( 186.7 بوصة ) |
أبعاد مجموعة المولدات - العرض - الحد الأقصى | 2014 مم ( 79.3 بوصة ) |
أبعاد مجموعة المولدات - الارتفاع - الحد الأقصى | 2133 مم ( 84 بوصة ) |
