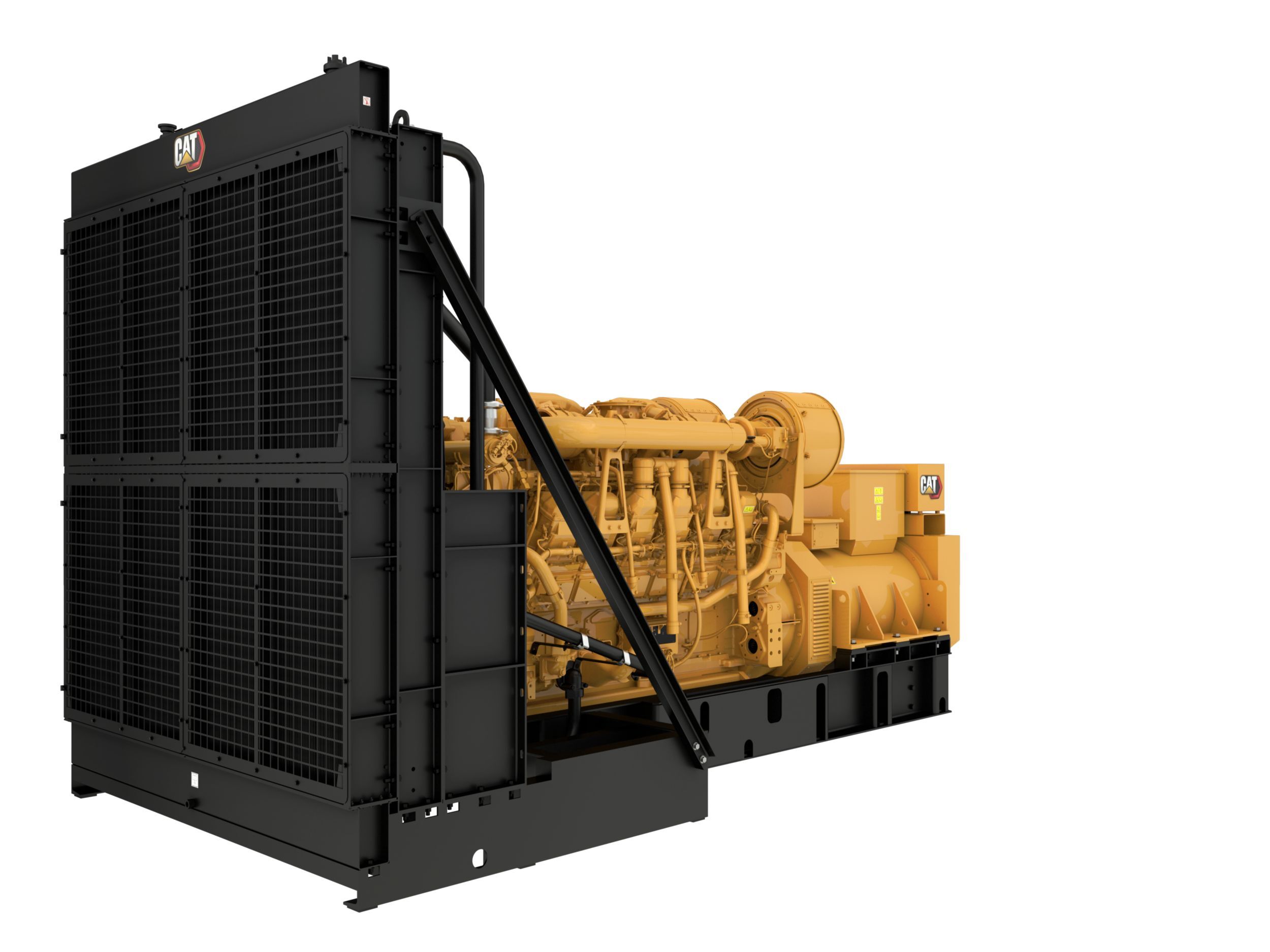

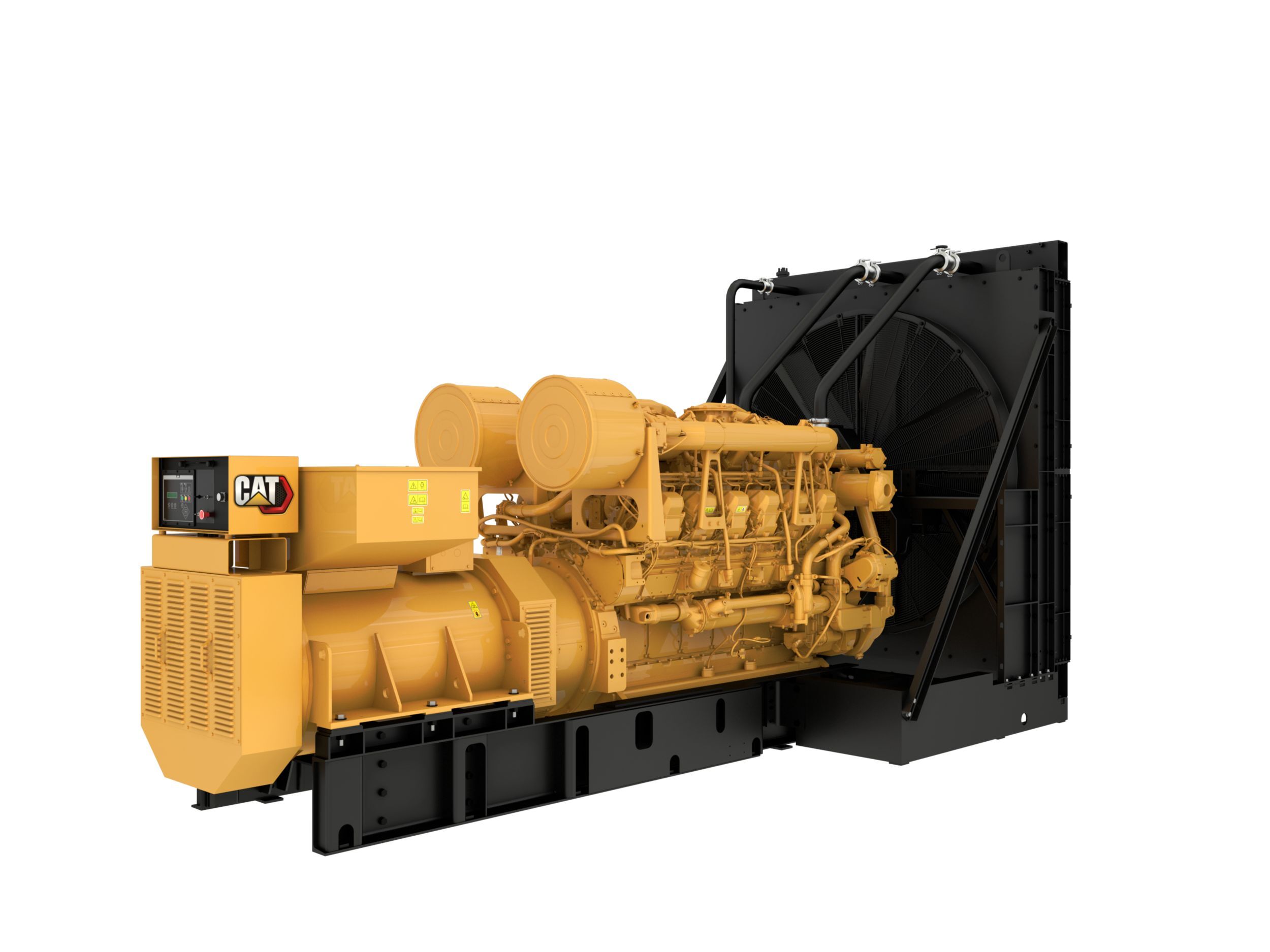

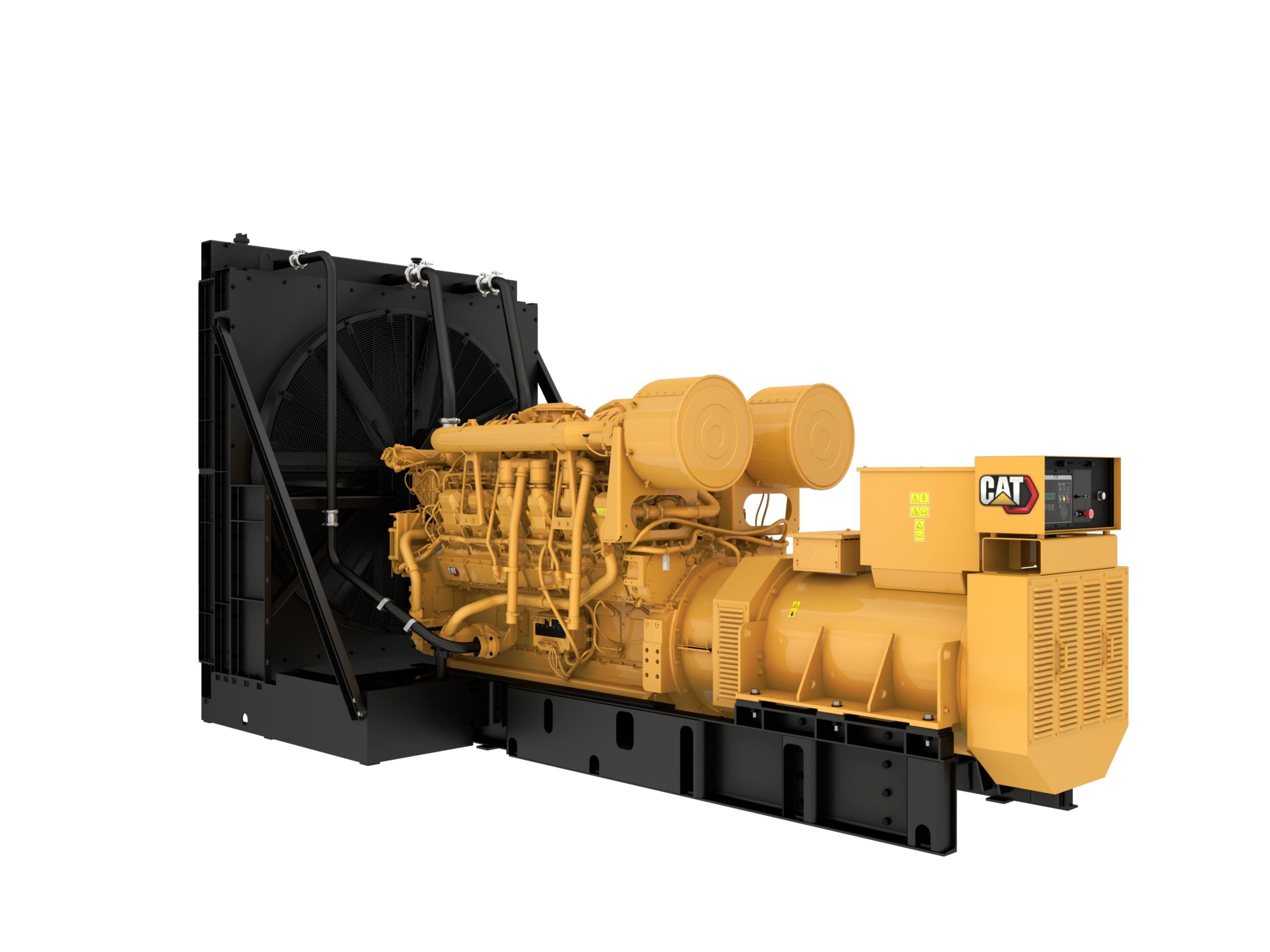

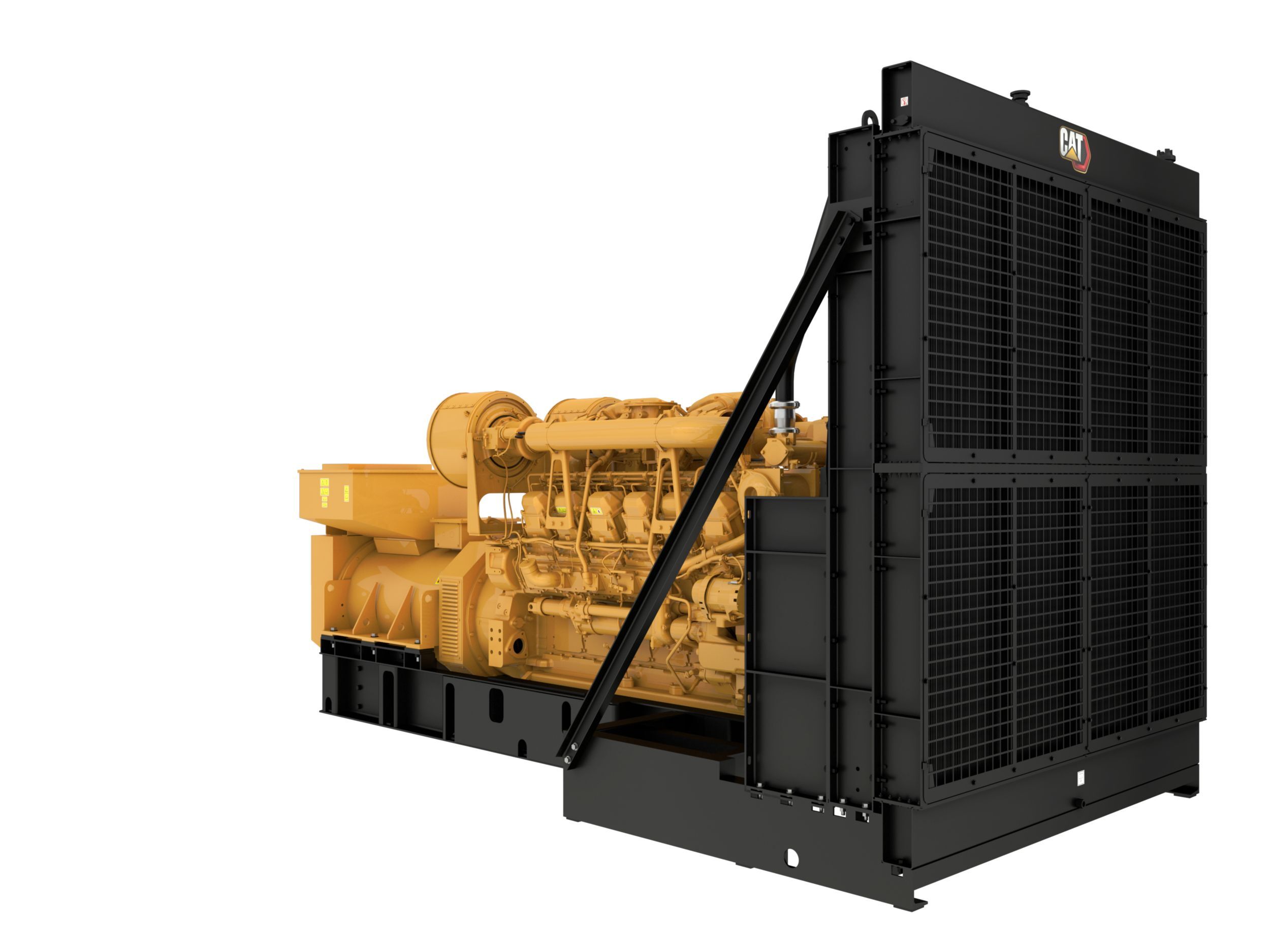

3512B (50 Hz) India Market Only
3512B (50 Hz) India Market Only
Producing reliable power from 1500 kVA 50 Hz, our 3512 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Generator sets offer a low fuel consumption system.
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Design Criteria
The generator set meets transient response and block loading steps as ISO 8528-5.
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
SR5 Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
EMCP 4 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 50°C (122°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
One Safe Source
- Components used in the generator set are selected at the design stage to provide optimum package performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Virtual Tours
Documents & Brochures
Standard Equipment
Cooling System
- Radiator or heat exchanger
Control Panel
- EMCP 4.2
General
- Paint - Caterpillar yellow except rails and radiators gloss black
Additional information
| Offering Type | |
|---|---|
| Generator Set Specifications - Maximum Rating | 1500 kVA |
| Generator Set Specifications - Minimum Rating | 1500 kVA |
| Generator Set Specifications - Emissions/Fuel Strategy | Low Fuel Consumption |
| Generator Set Specifications - Voltage | Low (415 Volts), Medium and High Voltage |
| Generator Set Specifications - Frequency | 50 Hz |
| Generator Set Specifications - Speed | 1500 rpm |
| Generator Set Specifications - Duty Cycle | Standby, Prime |
| Engine Specifications - Engine Model | 3512B TA, V-12, 4-Stroke Water-Cooled Diesel |
| Engine Specifications - Bore | 170 mm ( 6.69 in ) |
| Engine Specifications - Stroke | 190 mm ( 7.48 in ) |
| Engine Specifications - Displacement | 51.8 l ( 3161.03 in³ ) |
| Engine Specifications - Compression Ratio | 14.0:1 |
| Engine Specifications - Aspiration | TA |
| Engine Specifications - Fuel System | Electronic Unit Injection |
| Engine Specifications - Governor Type | ADEM™ A3 |
-
