G3520 with FAST RESPONSE

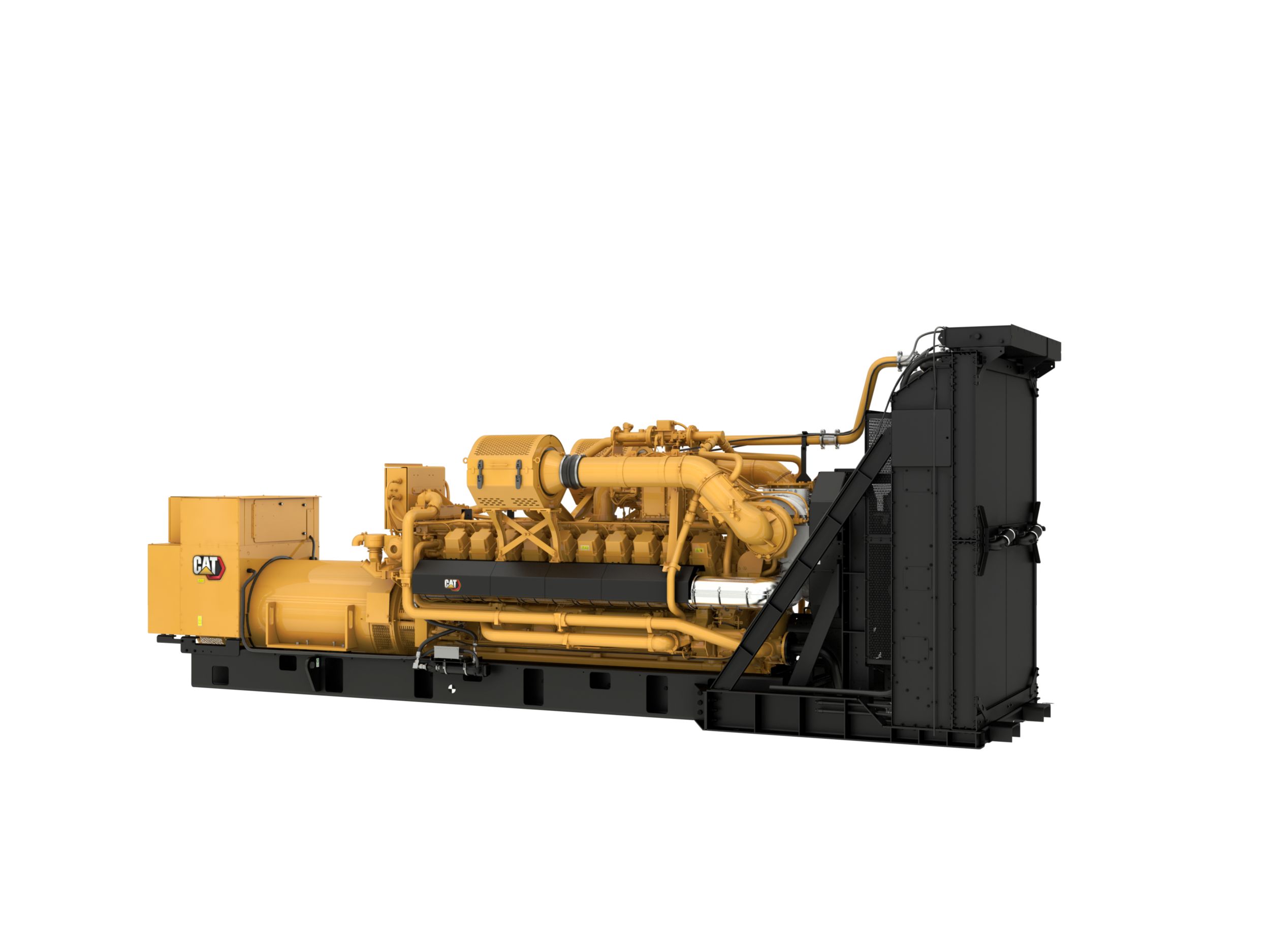

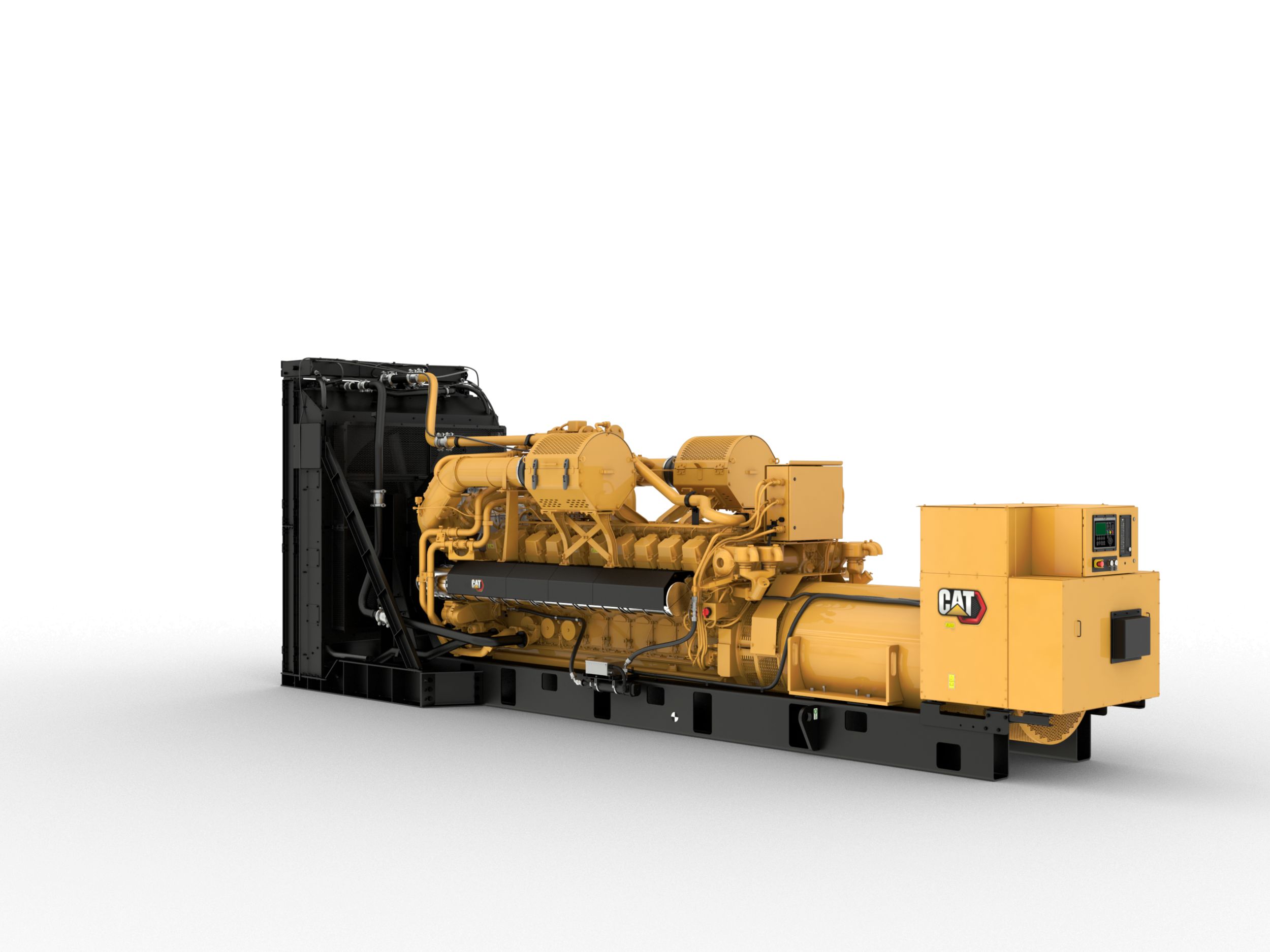

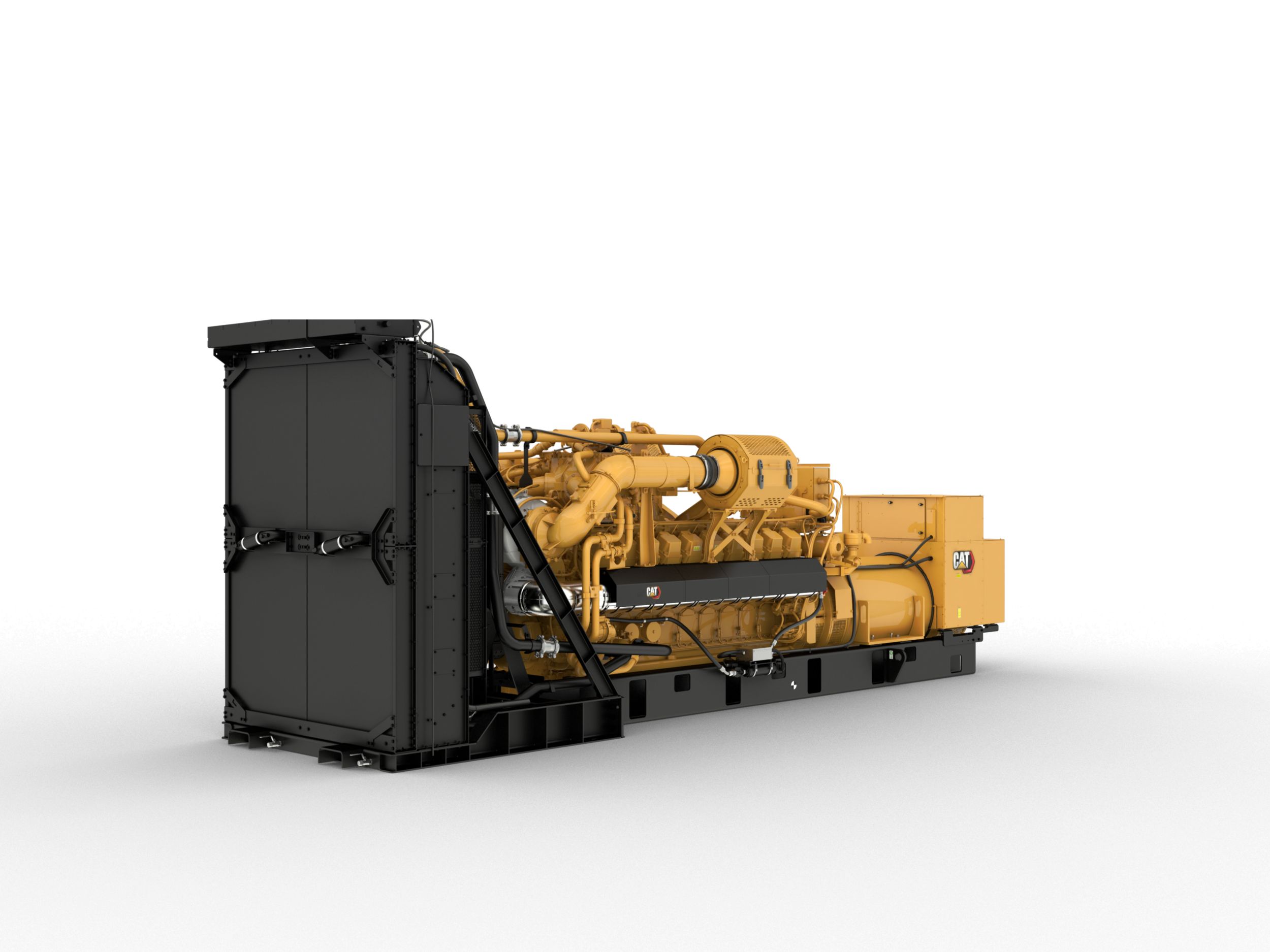

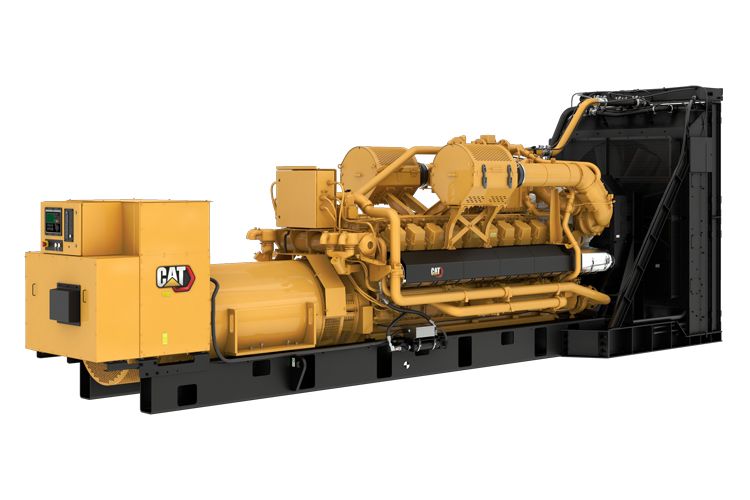

G3520 2500kW Gas Generator Set
Caterpillar is leading the power generation marketplace with Fast Response generator sets engineered to deliver unmatched performance, reliability, and cost-effectiveness.
CAT G3520 Gas Engine
Full Range of Attachments
Worldwide Product Support
SR5 Generator
Cat ECS 100 Control Panel
Proven System
Emissions
Documents & Brochures
Standard Equipment
Air Inlet
- Two-element single-stage air cleaner with enclosure and service indicator
Control Panel
- Cat ECS 100
Cooling
- Jacket water and SCAC engine-driven pumps
- Jacket water and SCAC thermostats
Exhaust
- Cat-flanged face outlet on turbocharger
- Individual exhaust port and turbocharger outlet wired to integrated temperature sensing module (ITSM) with GCEM providing alarms and shutdowns
- Dry exhaust manifolds, insulated and shielded
Fuel System
- Gas pressure regulator
- Engine-installed electronic control valve
- Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
- 24V DC energized-to-run (ETR) gas shutoff valve
- Throttle plate, 24V DC actuator, controlled by GECM
General
- Crankshaft vibration damper and guard
- Operation and maintenance manuals
- RH Service
- Paint- Caterpillar Yellow with high gloss black rails and radiator
- Parts book
Generator
- SR5
- Permanent Magnet Excitiation
- NEMA Class H insulation
- Winding temperature detectors
- Integrated voltage regulator (IVR)
- Anti-condensation space heater
Starting/Charging
- Battery with cables and rack (shipped loose)
- 24V starting motors
- Electric Starter
- Jacket water heater
Governing System
- ADEM A4
Ignition System
- Electronic Ignition System (controlled by ADEM A4)
- Individual Cylinder Detonation Sensitive Timing (DST)
Additional information
| Offering Type | |
|---|---|
| Generator Set Specifications - Gas Standby Rating | 2500 ekW @ 0.8pf |
| Generator Set Specifications - Fuel Type | Natural Gas, Hydrogen Blend (up to 5%) |
| Generator Set Specifications - Emissions/Fuel Strategy | U.S. EPA Stationary Non-Emergency Certified |
| Generator Set Specifications - RPM | 1800 rpm |
| Generator Set Specifications - Frequency | 60 Hz |
| Engine Specifications - Engine Model | G3520 |
| Engine Specifications - Displacement | 97.6 l ( 5956 in³ ) |
| Engine Specifications - Aspiration | TA |
| Engine Specifications - Bore | 170 mm ( 6.7 in ) |
| Engine Specifications - Stroke | 215 mm ( 8.5 in ) |
| Generator Set Specifications - Compression Ratio | 11.5 |
| Generator Set Dimensions - Length | 8534 mm ( 336 in ) |
| Generator Set Dimensions - Width | 2386 mm ( 94 in ) |
| Generator Set Dimensions - Height | 3230 mm ( 128 in ) |
| Generator Set Dimensions - Weight | 22000 kg ( 48500 lb ) |
-
