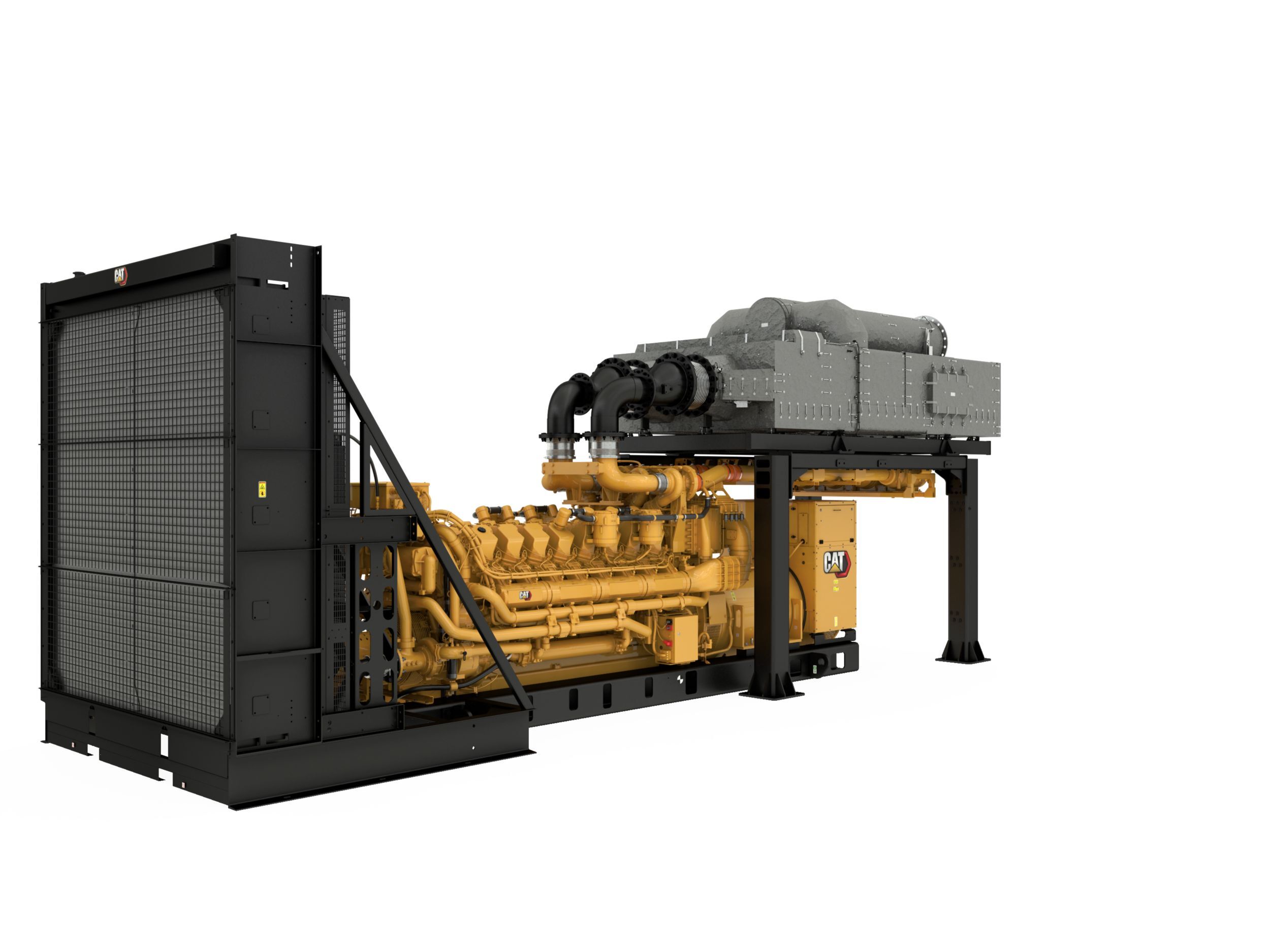

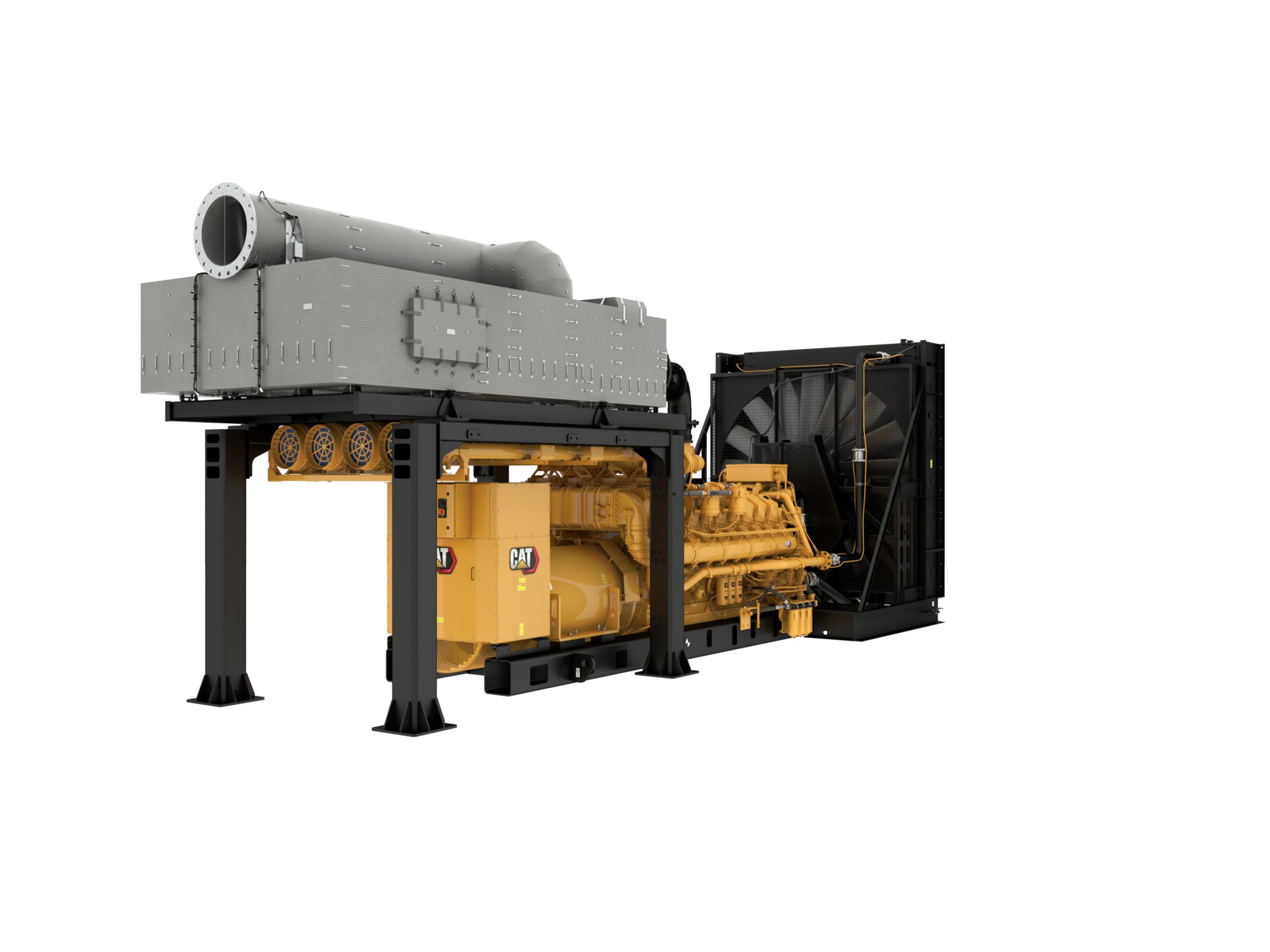

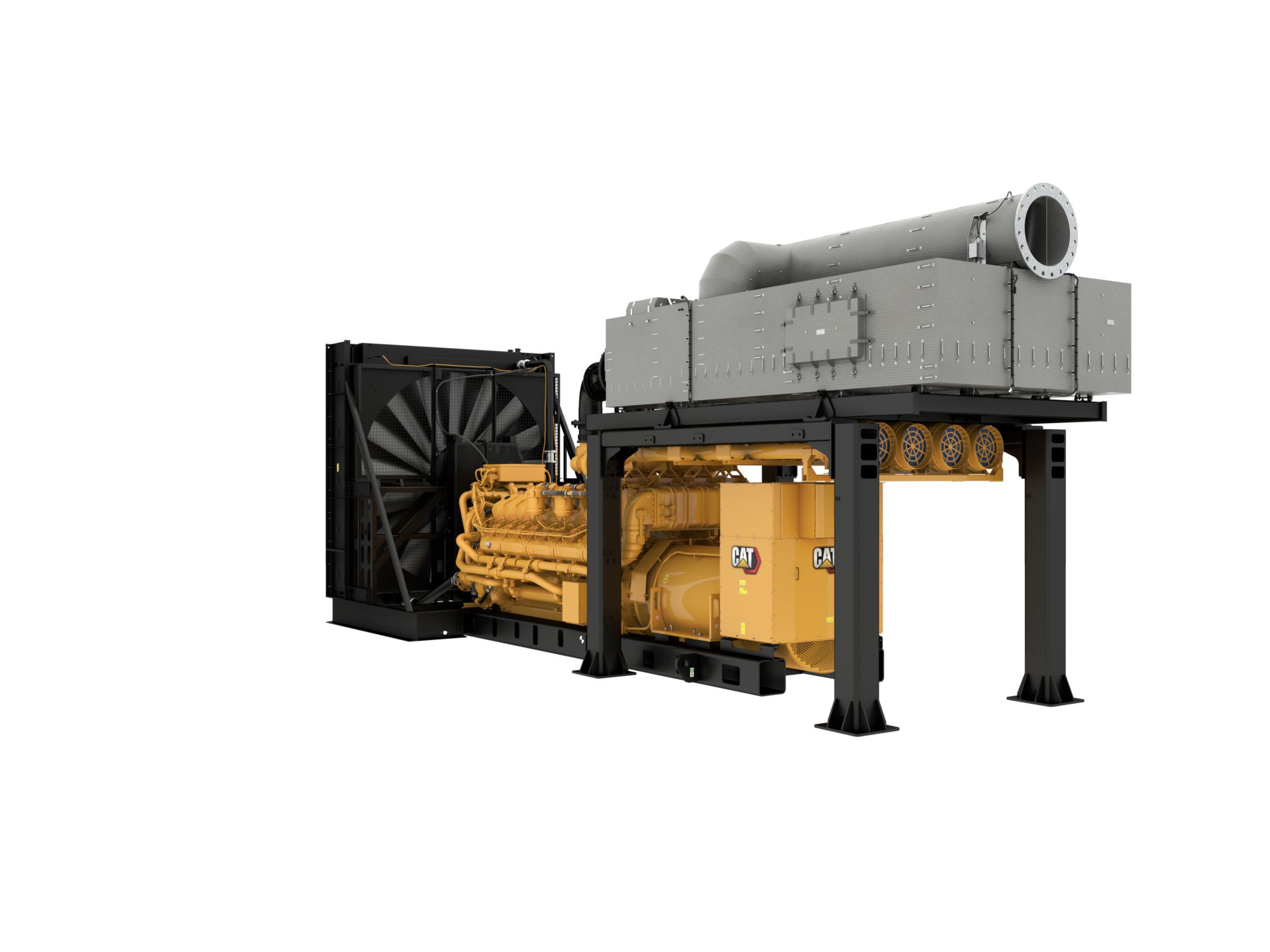

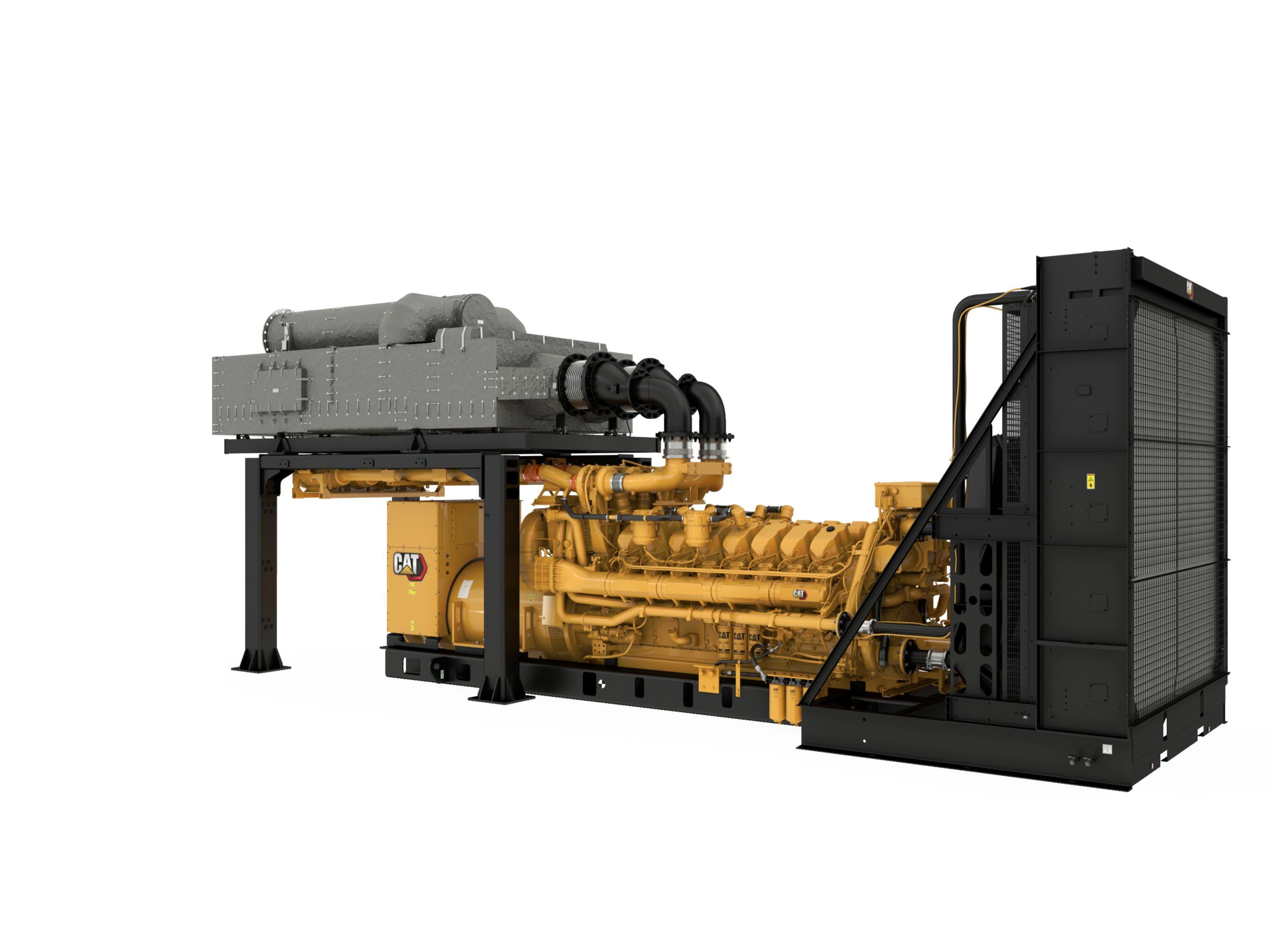

C175-16 Tier 4 Final (60 Hz)

C175-16 Tier 4 Final

Producing reliable power from 2500 – 3000 ekW (3100 ekW without fan) in 60 Hz, our C175-16 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set is U.S. EPA Certified for Non-Emergency Stationary certified.

Category:
Add to Quote

Cat Generator Set Package

  • Cat generator set packages have been fully prototype tested
  • Accepts 100% block load in one step and meets NFPA 110 loading requirements
  • Conform to ISO 8528-5 steady state and transient response requirements

Cat Diesel Engine

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

SR5 Alternator

  • Superior motor starting capability minimizes need for oversizing alternator
  • Designed to match performance and output characteristics of Cat diesel engines
  • Robust Class H insulation

Cat ECS Control Panel

  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements

Cooling System

  • Designed to operate in standard ambient temperatures up to 50°C (122°F)
  • Contact your Cat Dealer for specific ambient and altitude capabilities

Certifications

  • UL 2200 Listed
  • CSA
  • IBC seismic certification
  • OSHPD pre-approval

One Safe Source

  • Components used in the generator set are selected at the design stage to provide optimum package performance
  • The generator set is fully assembled at a Caterpillar facility following our quality guidelines
  • Each generator set package is tested before leaving the Caterpillar facility
  • Cat product support, including dealer service, parts and warranty covers the entire Cat power system

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Videos

Virtual Tours

Documents & Brochures

Standard Equipment

Control Panel
  • - Warning/shutdown with common LED indication of shutdowns with indicating lights for:
  • #NAME?
  • Environmental sealed front face
  • #NAME?
  • Lamp test
  • #NAME?
  • Generator mounted - rear facing
  • - Volts (L-L & L-N)
  • - Amps (per phase & average)
  • #NAME?
  • Auto/start/stop control
  • 24 Volt DC operation
  • #NAME?
  • - Overcurrent (50/51)
  • Local annunciator option
  • #NAME?
  • Overspeed
  • #NAME?
  • #NAME?
  • 12 Programmable digital inputs
  • kW (per phase, average & percent)
  • #NAME?
  • True RMS AC metering, 3-phase, +/-0.25% accuracy
  • #NAME?
  • DC volts
  • Low coolant level Over/under voltage (27/59)
  • #NAME?
  • Controls:
  • #NAME?
  • Amps (per phase & average)
  • #NAME?
  • #NAME?
  • kVAr (per phase, average & percent)
  • - kVA (per phase, average & percent)
  • - Over/under voltage (27/59)
  • #NAME?
  • Failure to start (overcrank)
  • #NAME?
  • #NAME?
  • Low coolant level (requires optional coolant sensor)
  • 4 Programmable relay outputs (Form A)
  • Power factor (per phase & average)
  • Reverse reactive power (kVAr) (32RV)
  • Emergency stop button
  • #NAME?
  • Over/under frequency (81 o/u)
  • Volts (L-L & L-N)
  • Warning/shutdown with common LED indication of shutdowns with indicating lights for:
  • - Power factor (per phase & average)
  • 2 Programmable digital outputs
  • #NAME?
  • #NAME?
  • #NAME?
  • #NAME?
  • Digital indication for:
  • Engine cool-down timer
  • 6 Programmable digital inputs
  • #NAME?
  • Customer data link (Modbus RTU)
  • #NAME?
  • 2 Programmable PWM outputs
  • #NAME?
  • kVAr-hr (total)
  • Low oil pressure
  • - Over/under frequency (81 o/u)
  • Accessory module data link
  • Low coolant temperature
  • 16 Programmable digital outputs
  • - kVAr (per phase, average & percent)
  • kVA (per phase, average & percent)
  • - kW (per phase, average & percent)
  • Serial annunciator module data link
  • Cat ECS 100
  • 2 Programmable relay outputs (Form C)
  • Coolant temperature
  • #NAME?
  • Operating hours
  • - Reverse reactive power (kVAr) (32RV)
  • Programmable protective relaying functions:
  • RPM
  • #NAME?
  • 3 Programmable analog outputs
  • Overcurrent (50/51)
  • Alarm acknowledge
  • #NAME?
  • - Reverse power (kW) (32)
  • kW-hr (total)
  • High coolant temperature
  • #NAME?
  • Communications
  • #NAME?
  • Engine cycle crank
  • Cat ECS 100 controller includes:
  • Reverse power (kW) (32)
  • - True RMS AC metering, 3-phase, +/-0.25% accuracy
  • Frequency (Hz)
  • - 24 Volt DC operation
  • Text alarm/event descriptions
  • 3 Programmable analog inputs
  • Speed adjust
  • #NAME?
Cooling System
  • Radiator group - shipped loose
  • Fan and belt guards
  • SCAC cooling
  • Coolant sensor - (2 x shipped loose: 1/4-18 and 1/2-14 NPTF)
  • Coolant drain line and valves
Exhaust System
  • CEM dosing module Features include:
  • Insulated CEM
  • DEF filter
  • CEM dosing module
  • Harness from dosing module to CEM
  • Air filter
  • Anti-freeze protection
  • 120 VAC
  • Dry exhaust manifold
  • Flanged faced outlets at CEM in (21.2") and out (25")
  • Air and heated DEF lines from dosing module to CEM
Fuel System
  • Secondary/tertiary fuel filters
  • Primary fuel filter water/fuel water separator
  • 3 Filters, shipped loose - can be mounted on frame rails (Requires dealer provided flex)
  • 10 Micron spin on type
  • 3 Filters, engine mounted
  • 4 Micron Spin On Type
  • 10 Micron spin on type
Generator and Attachments
  • Caterpillar's digital voltage regulator (CDVR) includes:
  • Permanent magnet excitation (PMG)
  • (MV) Busbar connections, right side extension box, bottom cable entry: - 60 Hz models: NEMA standard hole pattern
  • NEMA Class H insulation system, Class F temperature rise at 40C ambient (105C prime / 130C standby)
  • RFI suppression
  • 3000 Frame generators (MV/HV)
  • 6 Lead
  • Reactive droop capability
  • Class H temperature rise at 40C ambient (125C prime / 150C standby)
  • Form wound
  • 3 Phase voltage sensing
  • KVAR / PF modes
  • Right side extension box, bottom cable entry
  • 3 Phase brushless, Salient pole
  • Anti-condensation space heater
  • IEC platinum stator RTDs (.00385 temperature coefficient)
  • Exciter diode monitor
  • 1800 Frame generators (LV/MV)
  • Min / Max exciter limiter
  • (LV) Busbar connections, top / center mounted, top cable entry 60 Hz models: NEMA standard hole pattern
  • NEMA Class H insulation
Governing System
  • ADEM A4
  • Redundant shutdown (Overspeed protection through a duplicate speed sensing system)
Lube System
  • Oil filter, filler and dipstick
  • Gear type lube oil pump
  • Integral lube Oil cooler
  • Lubricating oil
  • Prelube - required with prime and continuous; optional with standby
  • Oil drain lines and valve
  • Fumes disposal
Mounting System
  • Batteries and battery rack w/cables
  • Battery disconnect switch
  • Rubber anti-vibration mounts - shipped loose
  • Dual 24-volt Electric starting motors
  • Rails - Engine/Generator
Service Instructions
  • Two PM Inspections
General
  • * For HV applications, customer to provide 120V secondary sensing, 5A secondary current sensing and harness between package and EMCP4.3 (drawing provided). CDVR is installed in wall mount.
  • Paint - Caterpillar yellow with high gloss black rails & radiator
  • *For HV Cat ECS: Includes wall mount control panel, shipped loose, for customer mounting and 7.5 meter interconnect harness.
  • RH service (except oil filter service 60 Hz models: left hand service)
  • SAE standard rotation
  • Flywheel and flywheel housing-SAE No. 00
Air Inlet System
  • Air cleaner; 4 x single element canister with service indicator(s).
  • Single stage air cleaner

Additional information

مواصفات مجموعة المولدات - تقدير الطاقة الرئيسية

2825 (بدون مروحة)/2725 كيلووات كهربائي
مواصفات مجموعة المولدات - الانبعاثات/إستراتيجية الوقود

معتمد وفقًا لمعايير وكالة حماية البيئة (EPA) الأمريكية من المستوى 4
مواصفات مجموعة المولدات - الجهد

480 إلى 13800 فولت
مواصفات مجموعة المولدات - التردد

60 هرتز
مواصفات مجموعة المولدات - السرعة

1800 دورة في الدقيقة
مواصفات مجموعة المولدات - دورة العمل

استخدامات الطاقة الاحتياطية، والمهام الصعبة، والطاقة الرئيسية، والطاقة المتواصلة
مواصفات مجموعة المولدات - أقصى معدل

3100 كيلووات كهربائي
مواصفات مجموعة المولدات - أدنى معدل

2500 كيلووات كهربائي
مواصفات المحرك - موديل المحرك

C175-16 SCAC، V-16، ديزل 4 أشواط ومبرد بالمياه
مواصفات المحرك - التجويف

175 مم ( 6.89 بوصة )
مواصفات المحرك - الشوط

220 مم ( 8.66 بوصة )
مواصفات المحرك - الإزاحة

84.67 l ( 5155.88 بوصة³ )
مواصفات المحرك - نسبة الانضغاط

16.7:1
مواصفات المحرك - السحب

شاحن توربيني مع تبريد لاحق
مواصفات المحرك - نظام الوقود

EUI
مواصفات المحرك - نوع المنظم

ADEM� A4
أبعاد مجموعة المولدات - الطول - الحد الأقصى

7928.7 مم ( 312.2 بوصة )
أبعاد مجموعة المولدات - العرض - الحد الأقصى

3123.3 مم ( 123 بوصة )
أبعاد مجموعة المولدات - الارتفاع - الحد الأقصى

3613.3 مم ( 142.3 بوصة )
أبعاد مجموعة المولدات - الوزن الجاف - مجموعة المولدات (الحد الأقصى)

20463 كجم ( 45114 رطل )
