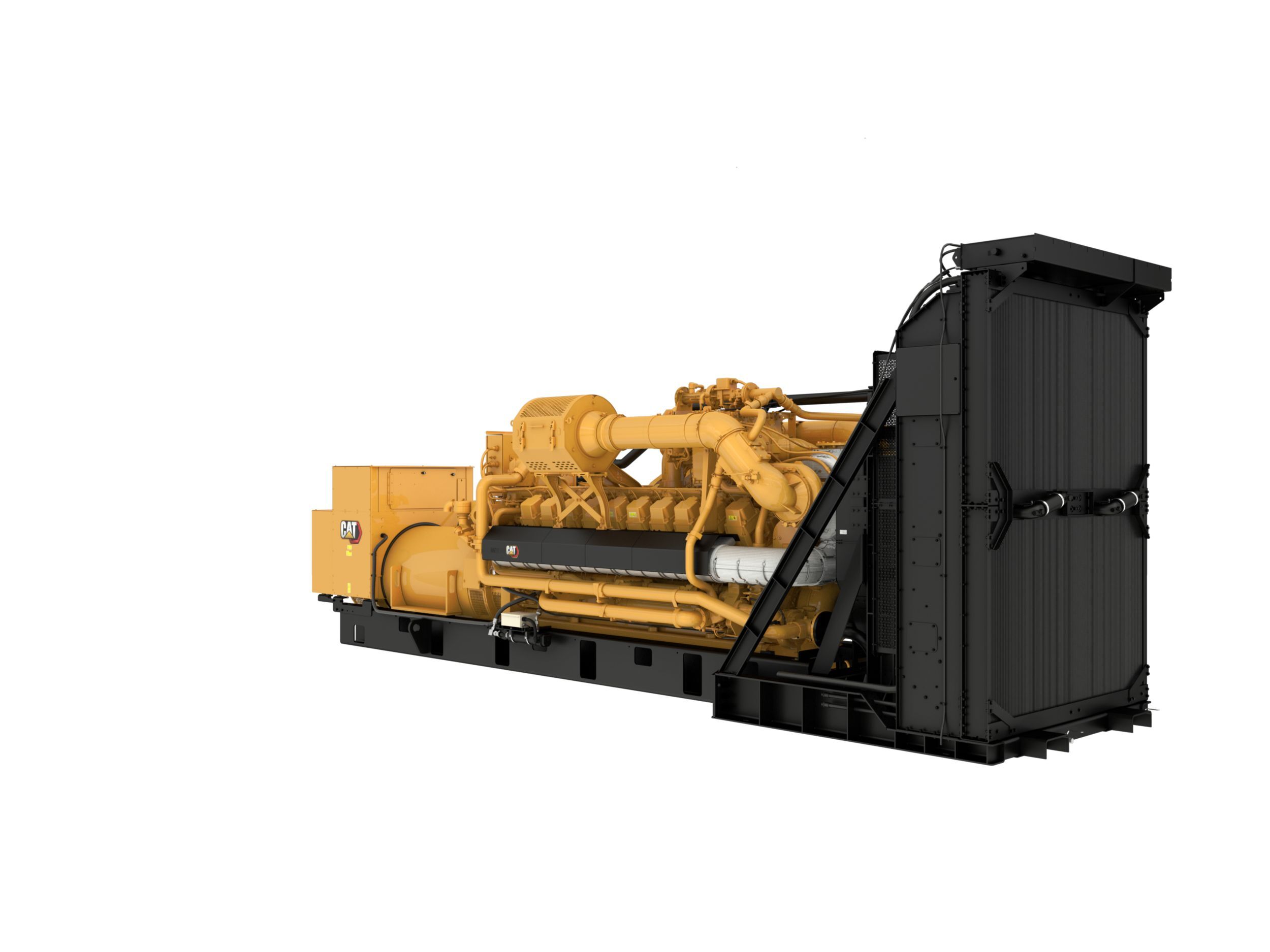

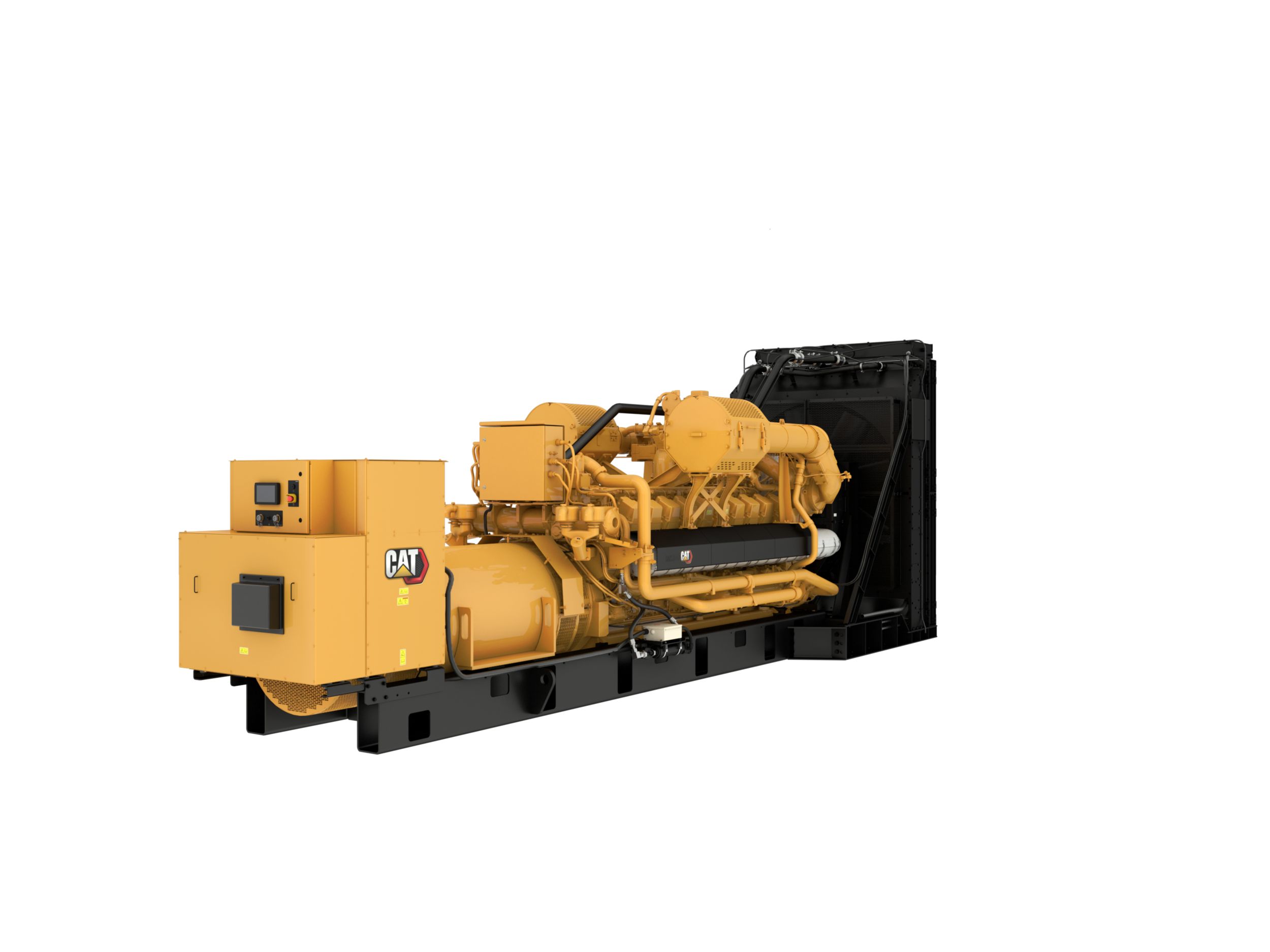

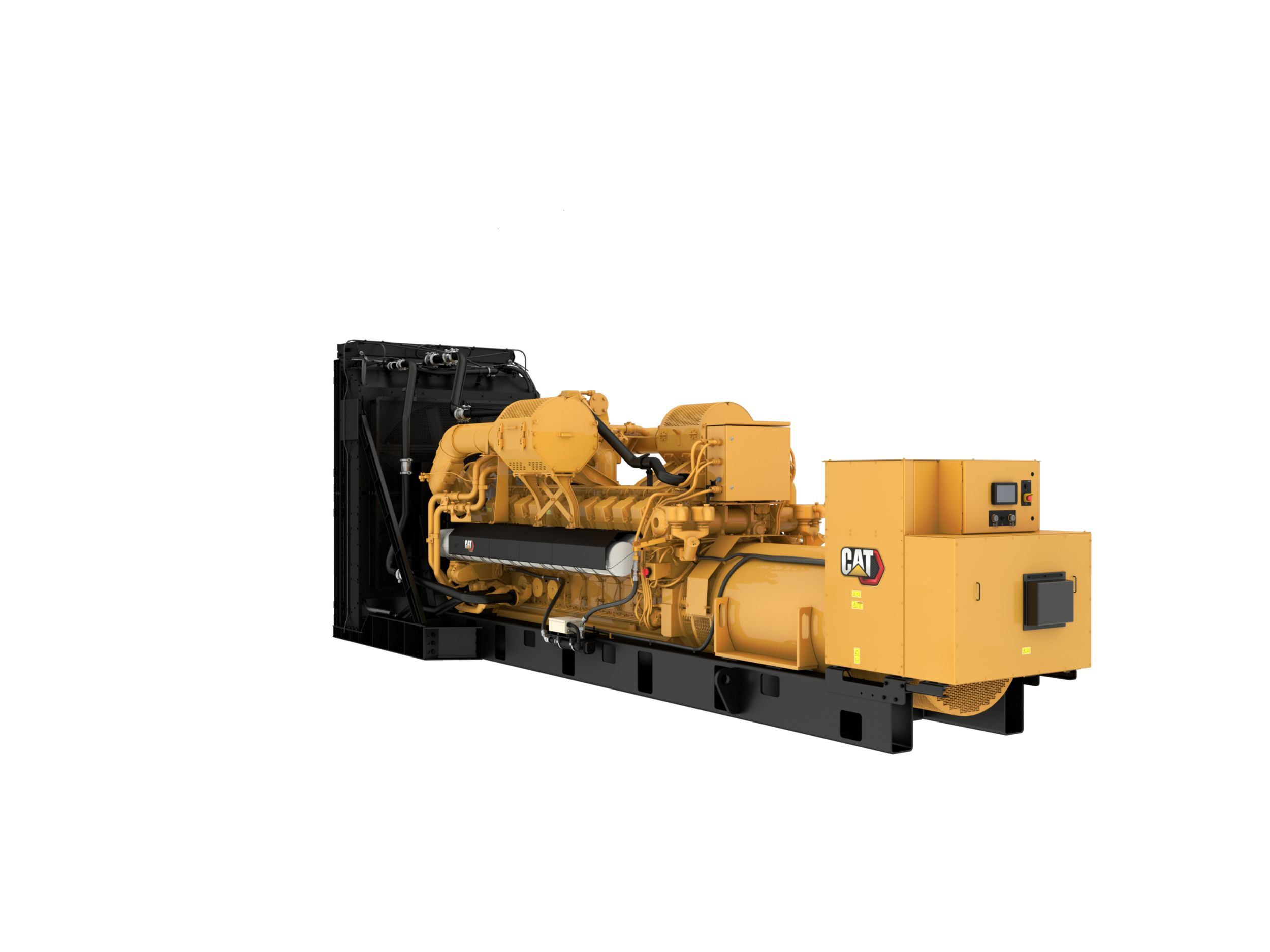

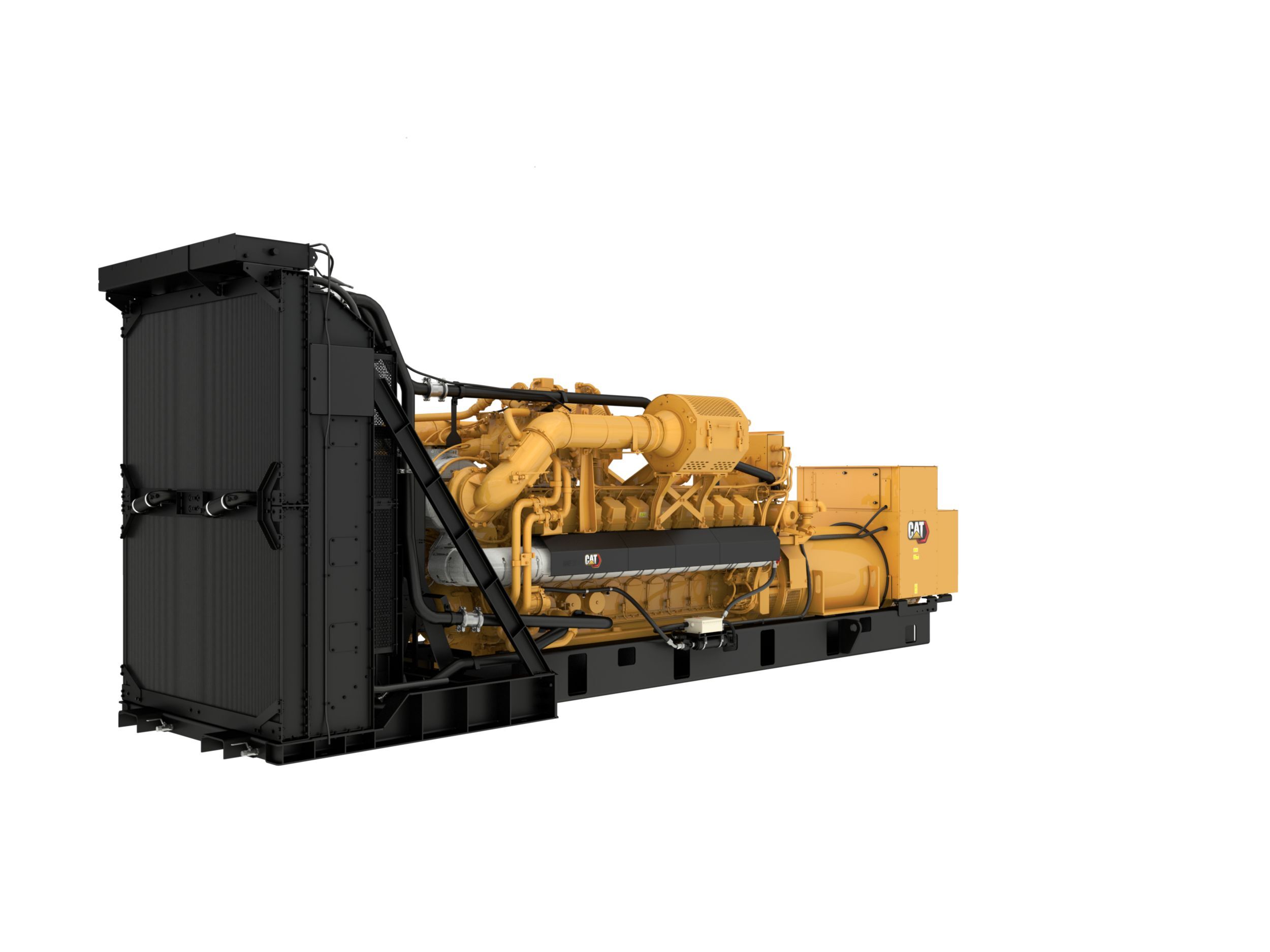

G3520 with FAST RESPONSE
Cat G3520 Gas Engine
- Robust high speed block design provides prolonged life and lower owning operationg costs
- Designed for maximum performance on low pressure pipeline natural gas and hydrogen blends
- Simple open chamber combustion system for reliability and fuel flexibility
- Leading edge technology in ignition system and air/fuel ratio control for lower emission and engine efficiency
- One electronic control module handles all engine functions: ignition, governing, air/fuel ratio control and engine protection
SR5 Generator
- Designed to match performance and output characteristics of Caterpillar gas engines
- Industry leading mechanical and electrical design
- High efficiency
Cat ECS 100 Control Panel
Cooling System
- Designed to operate in standard ambient temperatures up to 43°C (110°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Emissions
- EPA Certified for use in Emergency and Non-Emergency applications
- Additional a NOx selectable genset is available to meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment
Proven System
- Field proven in a wide range of applications worldwide
- Fully prototype tested
- Certified torsional vibration analysis available
Full Range of Attachments
- Wide range of bolt-on system expansion attachments
- Factory designed and tested
- Flexible packaging options for easy and cost effective installation
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Documents & Brochures
Standard Equipment
Air Inlet
- Two-element single-stage air cleaner with enclosure and service indicator
Control Panel
- Cat ECS 100
Cooling
- Jacket water and SCAC engine-driven pumps
- Jacket water and SCAC thermostats
Exhaust
- Dry exhaust manifolds, insulated and shielded
- Cat-flanged face outlet on turbocharger
- Individual exhaust port and turbocharger outlet wired to integrated temperature sensing module (ITSM) with GCEM providing alarms and shutdowns
Fuel System
- Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
- Engine-installed electronic control valve
- Gas pressure regulator
- Throttle plate, 24V DC actuator, controlled by GECM
- 24V DC energized-to-run (ETR) gas shutoff valve
General
- Parts book
- Paint- Caterpillar Yellow with high gloss black rails and radiator
- Operation and maintenance manuals
- Crankshaft vibration damper and guard
- RH Service
Generator
- Permanent Magnet Excitiation
- Integrated voltage regulator (IVR)
- SR5
- Winding temperature detectors
- Anti-condensation space heater
- NEMA Class H insulation
Starting/Charging
- 24V starting motors
- Battery with cables and rack (shipped loose)
- Jacket water heater
- Electric Starter
Governing System
- ADEM A4
Ignition System
- Electronic Ignition System (controlled by ADEM A4)
- Individual Cylinder Detonation Sensitive Timing (DST)
Additional information
مواصفات مجموعة المولدات - تقدير احتياطي الغاز | 2000 كيلووات كهربائي عند معامل طاقة 0,8 |
---|---|
مواصفات مجموعة المولدات - نوع الوقود | غاز طبيعي، خليط هيدروجين (حتى 5%) |
مواصفات مجموعة المولدات - الانبعاثات/إستراتيجية الوقود | معتمد وفقًا لمعايير وكالة حماية البيئة (EPA) الأمريكية للاستخدامات الثابتة لغير حالات الطوارئ |
مواصفات مجموعة المولدات - التردد | 60 هرتز |
مواصفات مجموعة المولدات - دورة في الدقيقة | 1800 دورة في الدقيقة |
مواصفات المحرك - موديل المحرك | G3520 |
مواصفات المحرك - الإزاحة | 97.6 l ( 5956 بوصة³ ) |
مواصفات المحرك - السحب | TA |
مواصفات المحرك - التجويف | 170 مم ( 6.7 بوصة ) |
مواصفات المحرك - الشوط | 215 مم ( 8.5 بوصة ) |
مواصفات مجموعة المولدات - نسبة الانضغاط | 11.5 |
أبعاد مجموعة المولدات - الطول | 8534 مم ( 336 بوصة ) |
أبعاد مجموعة المولدات - العرض | 2386 مم ( 94 بوصة ) |
أبعاد مجموعة المولدات - الارتفاع | 3230 مم ( 128 بوصة ) |
أبعاد مجموعة المولدات - الوزن | 22000 كجم ( 48500 رطل ) |
