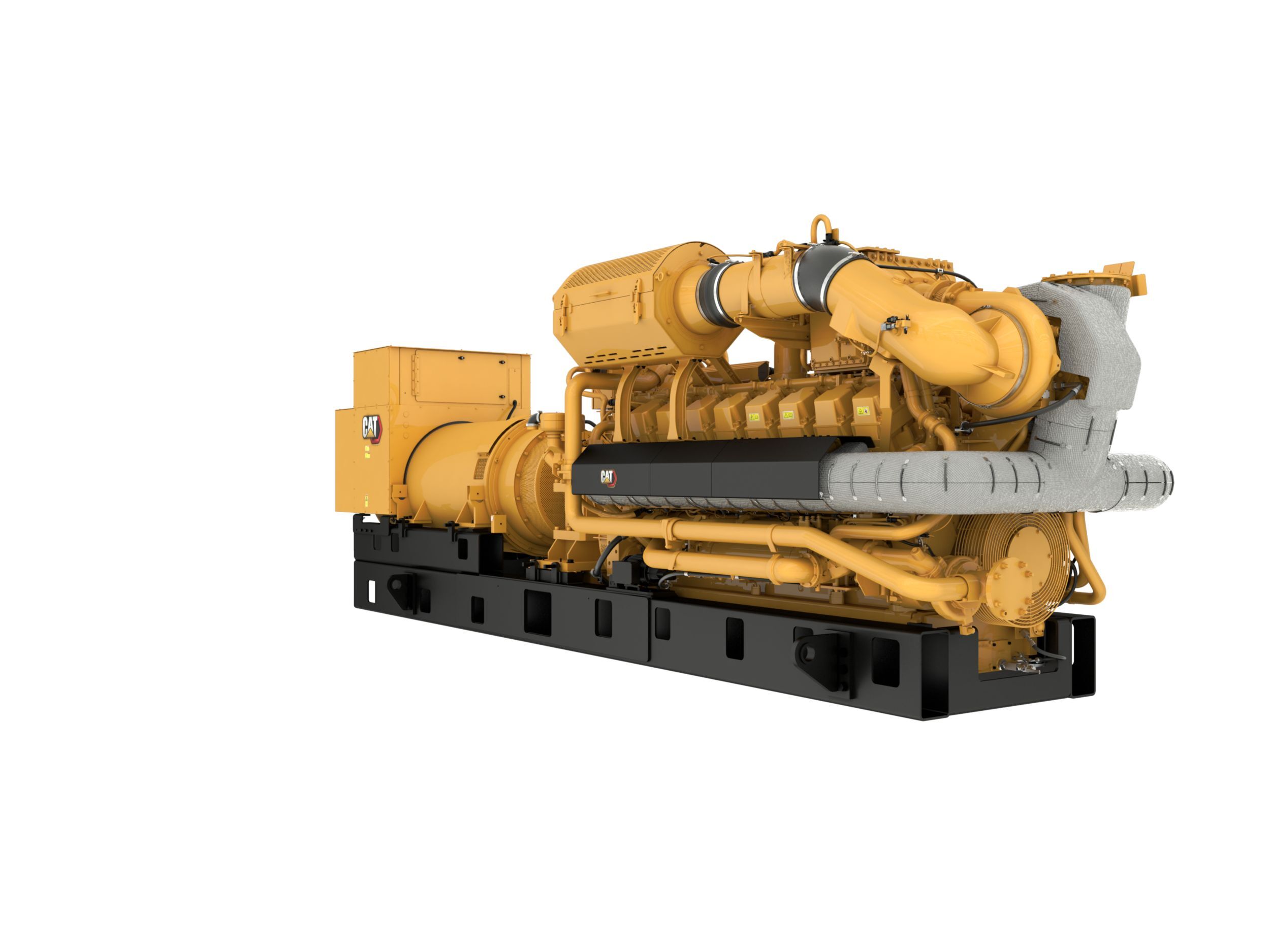

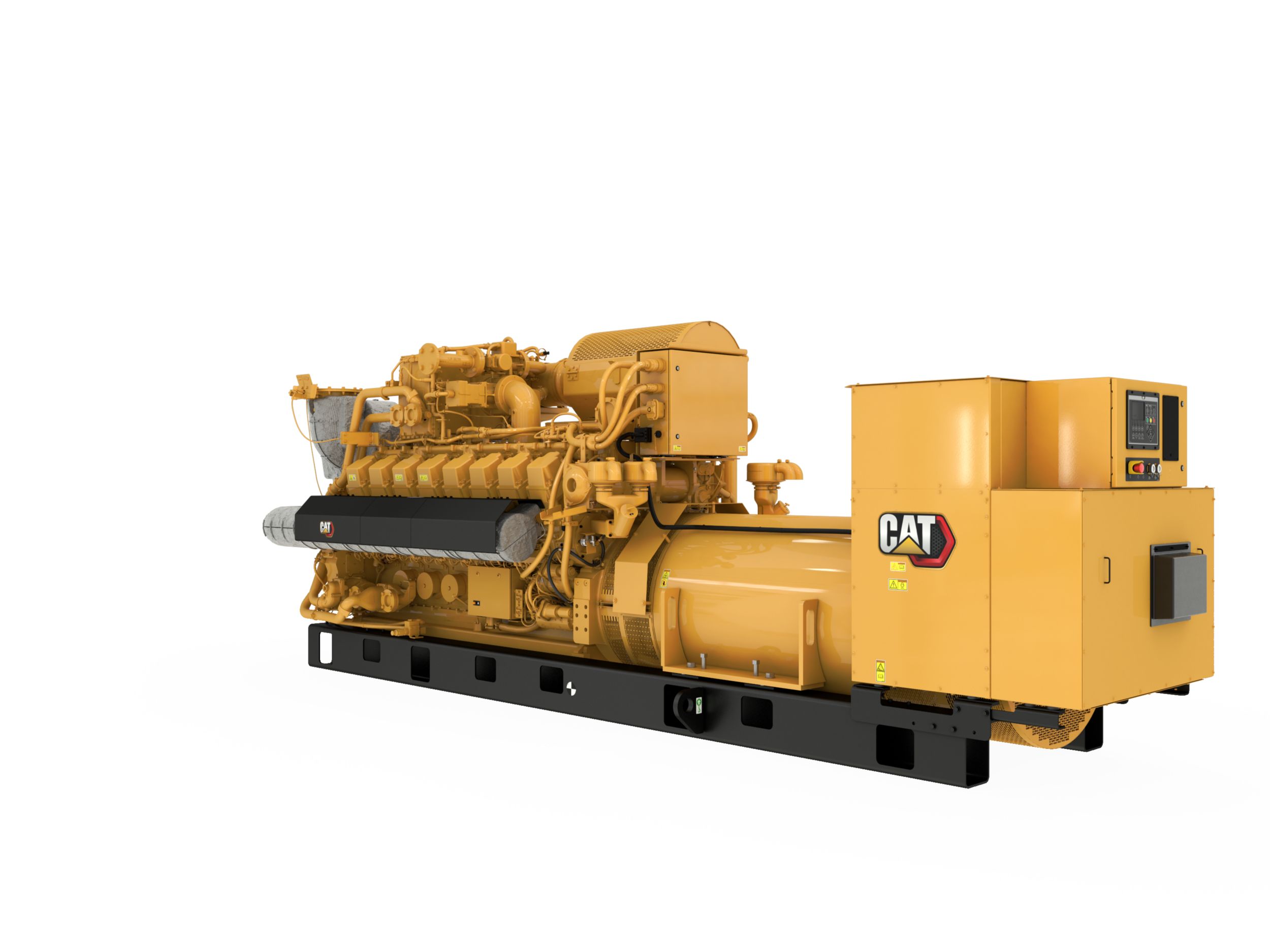

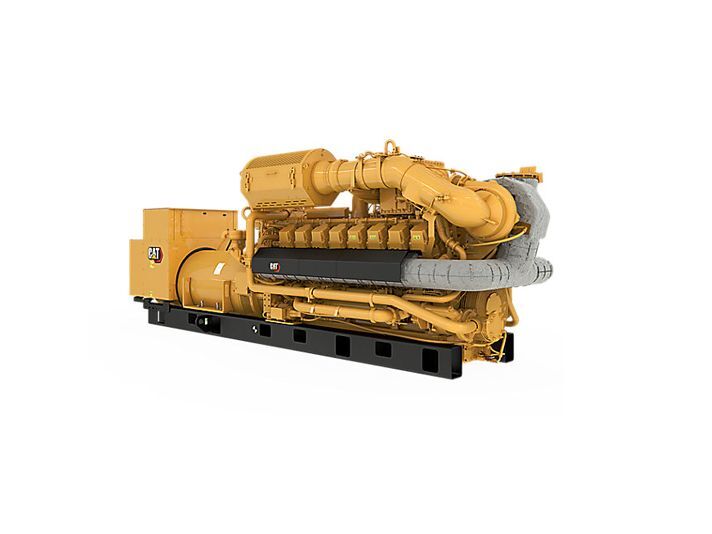

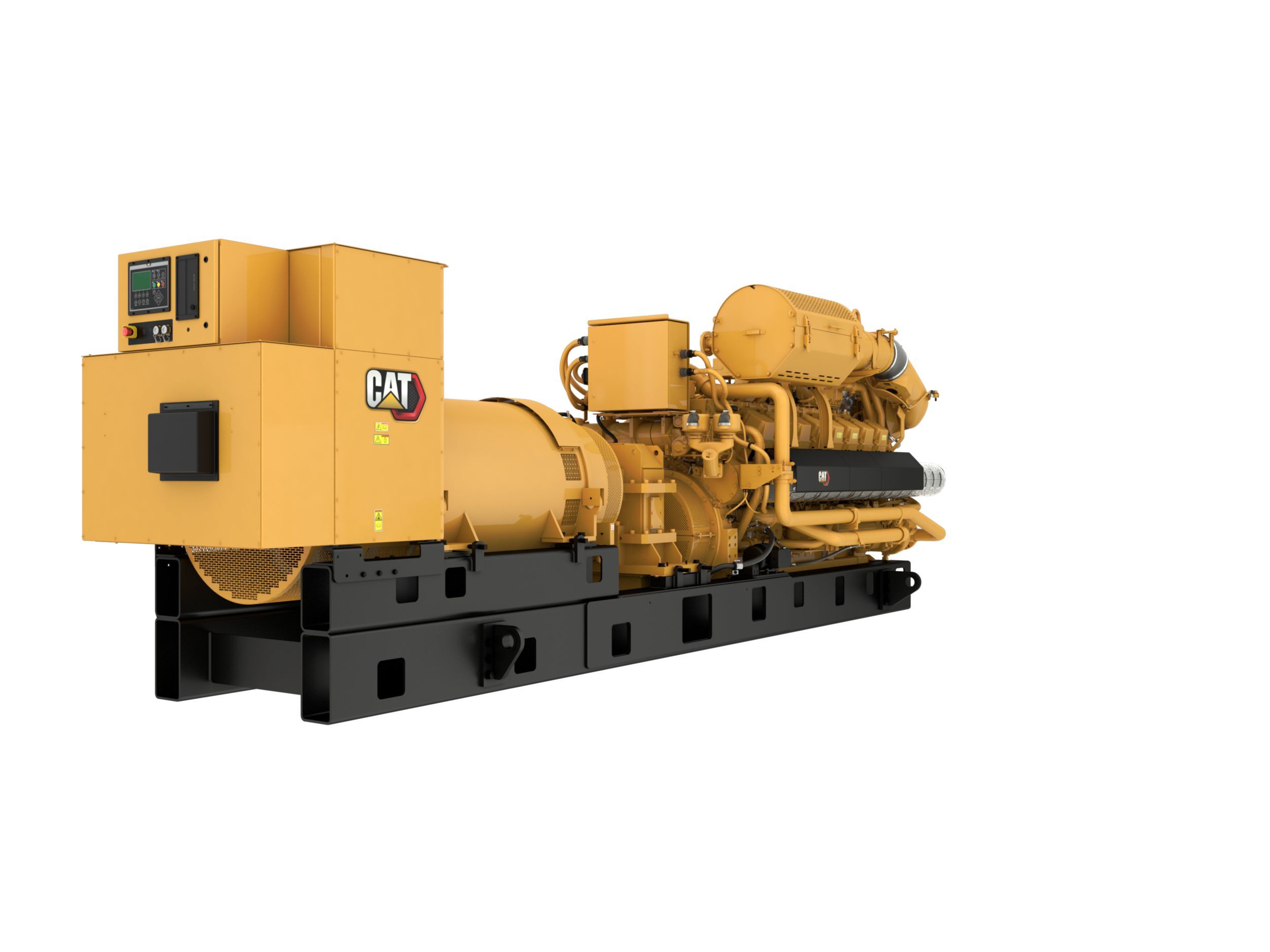

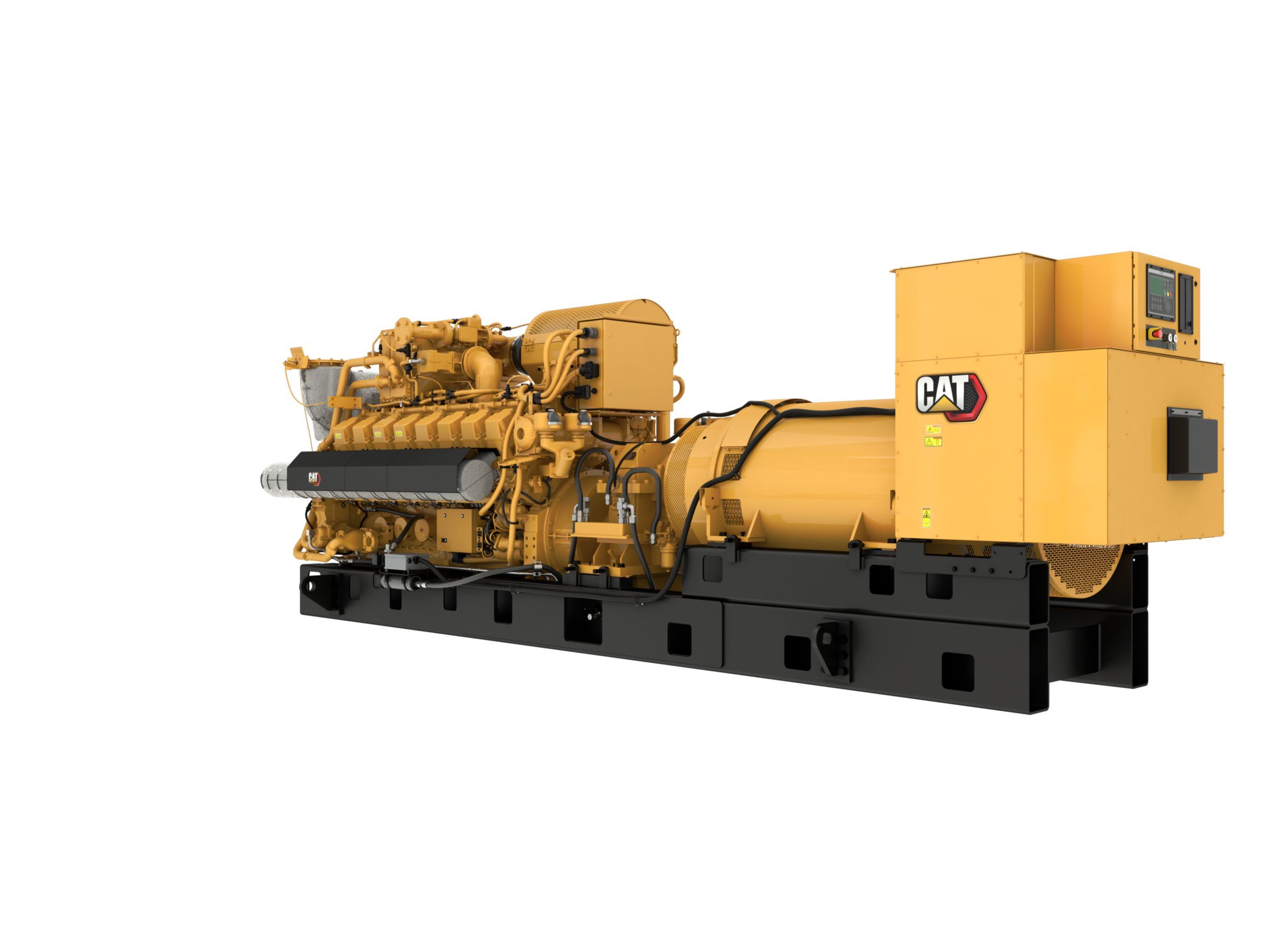

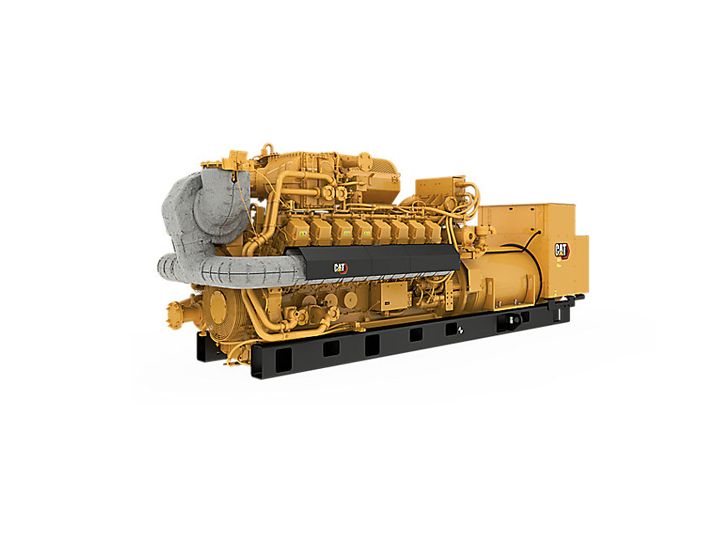

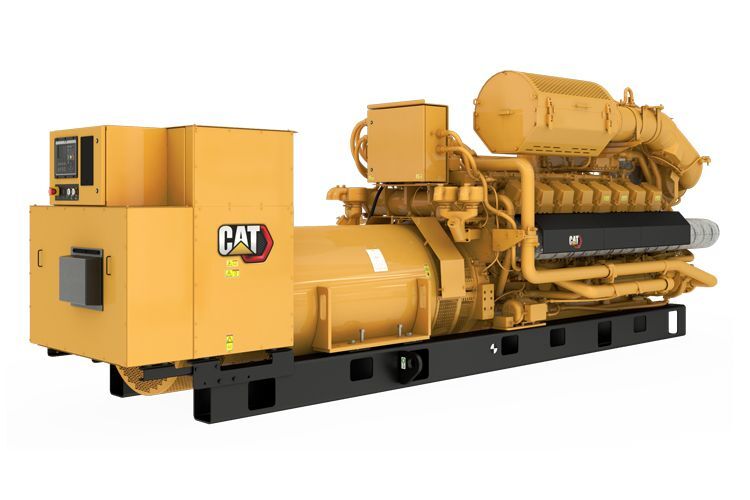

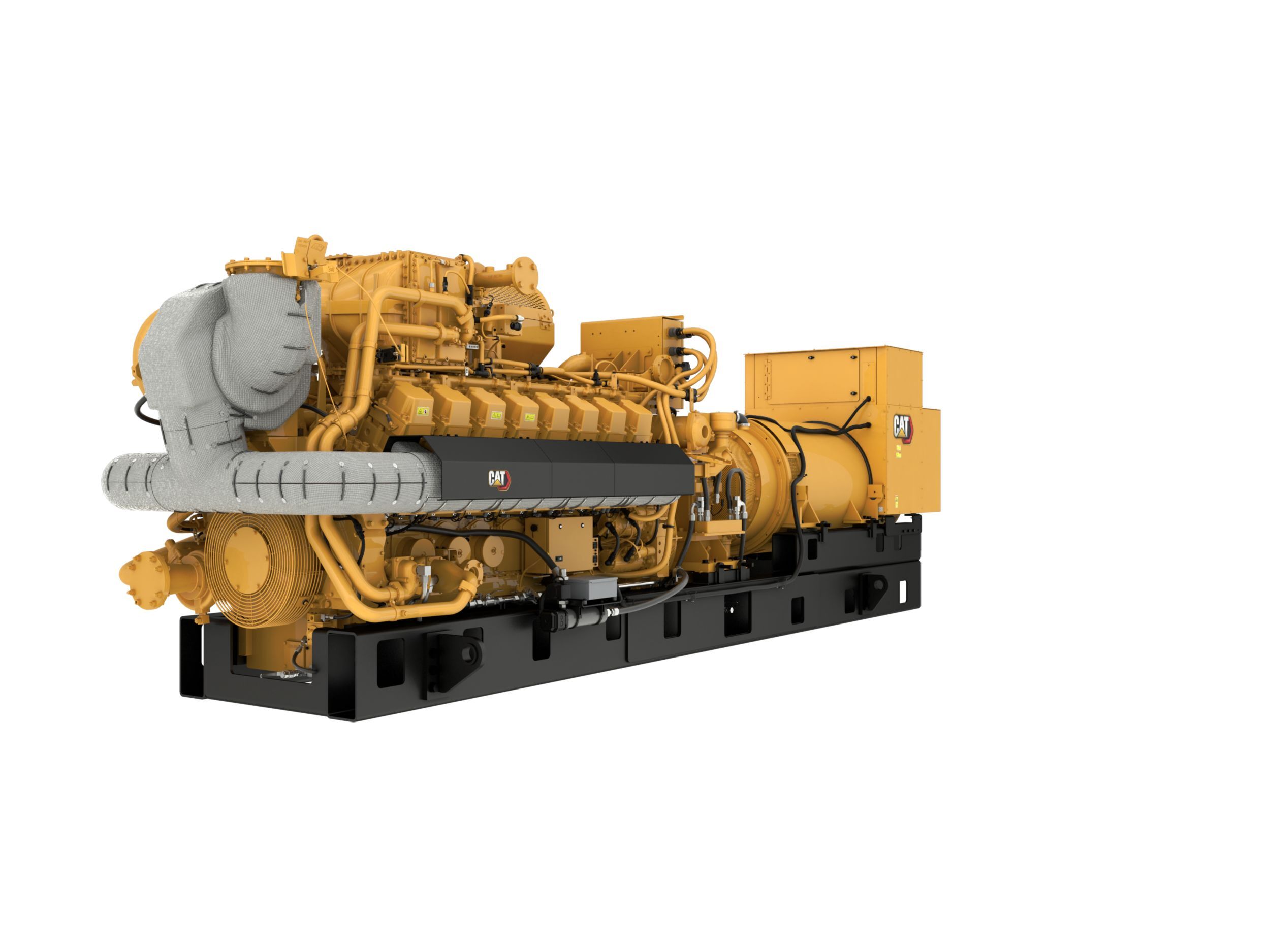

G3516H
Gas Generator G3516H
From natural gas to biogas, coal mine gases, or hydrogen fuel blends to support combined heat and power (CHP), emergency power, and local grid support applications, Caterpillar has a wide range of reliable gas power solutions.
Cat G3516H Gas Engine
- Robust high speed block design provides prolonged life and lower owning operationg costs
- Designed for maximum performance on low pressure pipeline natural gas and hydrogen mixtures
- Simple open chamber combustion system for reliability and fuel flexibility
- Leading edge technology in ignition system and air/fuel ratio control for lower emission and engine efficiency
- One electronic control module handles all engine functions: ignition, governing, air/fuel ratio control and engine protection
SR5 Generator
- Designed to match performance and output characteristics of Caterpillar gas engines
- Industry leading mechanical and electrical design
- High efficiency
EMCP 4.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Emissions
- Meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment
Proven System
- Field proven in a wide range of applications worldwide
- Fully prototype tested
- Certified torsional vibration analysis available
Full Range of Attachments
- Wide range of bolt-on system expansion attachments
- Factory designed and tested
- Flexible packaging options for easy and cost effective installation
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Documents & Brochures
Standard Equipment
Control Panels
- EMCP4.3
Air Inlet
- Package Mounted Air Cleaner with service indicator
- Two-element single-stage air cleaner with enclosure and service indicator
Cooling
- Jacket water and SCAC driven thermostats
- ANSI Class 150/DN custom flange connections for JW inlet and outlet
- Engine driven water pumps for jacket water and after cooler
- 2nd stage SCAC-Cat Flange
Exhaust
- Center section cooled turbocharger with Cat flanged outlet
- Individual exhaust port and turbocharger outlet wired to integrated temperature sensing module (ITSM) with GCEM providing alarms and shutdowns
- Dry exhaust manifolds, insulated and shielded
- Cat-flanged face outlet on turbocharger
Fuel System
- Throttle plate, 24V DC actuator, controlled by GECM
- Electronic fuel metering valve
- Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
Ignition System
- Electronic Ignition System (controlled by ADEM A4)
- Individual Cylinder Detonation Sensitive Timing (DST)
Generator
- Permanent Magnet Excitiation
- Anti-condensation space heater
- Winding temperature detectors
- SR5
- Reactive Droop
- Caterpillar's Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control
General
- Crankshaft vibration damper and guard
- Paint - Caterpillar Yellow except rails and radiators gloss black
- RH Service
- Parts book
- Operation and maintenance manuals
Governing System
- ADEM A4 4-20mA (0-5V) Speed Input
Starting/Charging
- 24V starting motors
Additional information
| Offering Type | |
|---|---|
| Generator Set Specifications - Continuous Rating | 2027 / 2007 ekW @ 1.0pf |
| Generator Set Specifications - Fuel Type | Natural Gas, Hydrogen Blend (up to 25%) |
| Generator Set Specifications - Maximum Electrical Efficiency | 45.30% |
| Generator Set Specifications - Frequency | 50 / 60 Hz |
| Generator Set Specifications - RPM | 1500 rpm |
| Engine Specifications - Engine Model | G3516H |
| Engine Specifications - Displacement | 78 l ( 4765 in³ ) |
| Engine Specifications - Aspiration | TA |
| Engine Specifications - Bore | 170 mm ( 6.7 in ) |
| Engine Specifications - Stroke | 215 mm ( 8.5 in ) |
| Engine Specifications - Compression Ratio | 12.1 |
| Generator Set Dimensions - Length | 7395 mm ( 291 in ) |
| Generator Set Dimensions - Width | 2139 mm ( 84 in ) |
| Generator Set Dimensions - Height | 2402 mm ( 95 in ) |
| Generator Set Dimensions - Dry Weight - Genset | 18315 kg ( 40384 lb ) |
| Engine Specifications - Fuel System | Natural Gas |
-
