G3516C

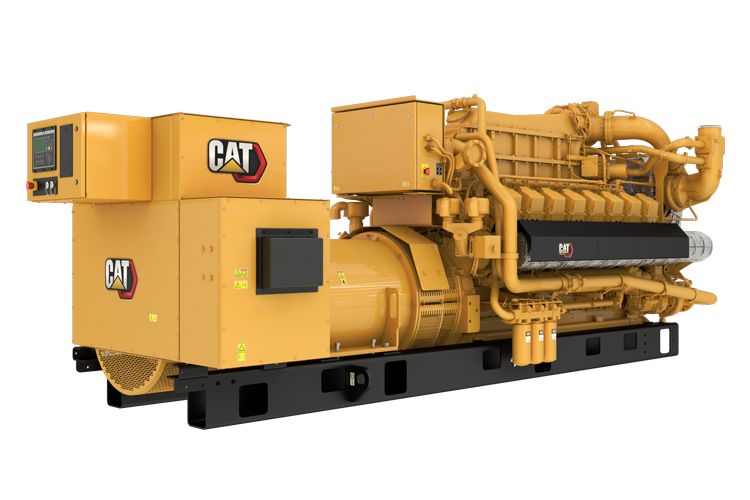

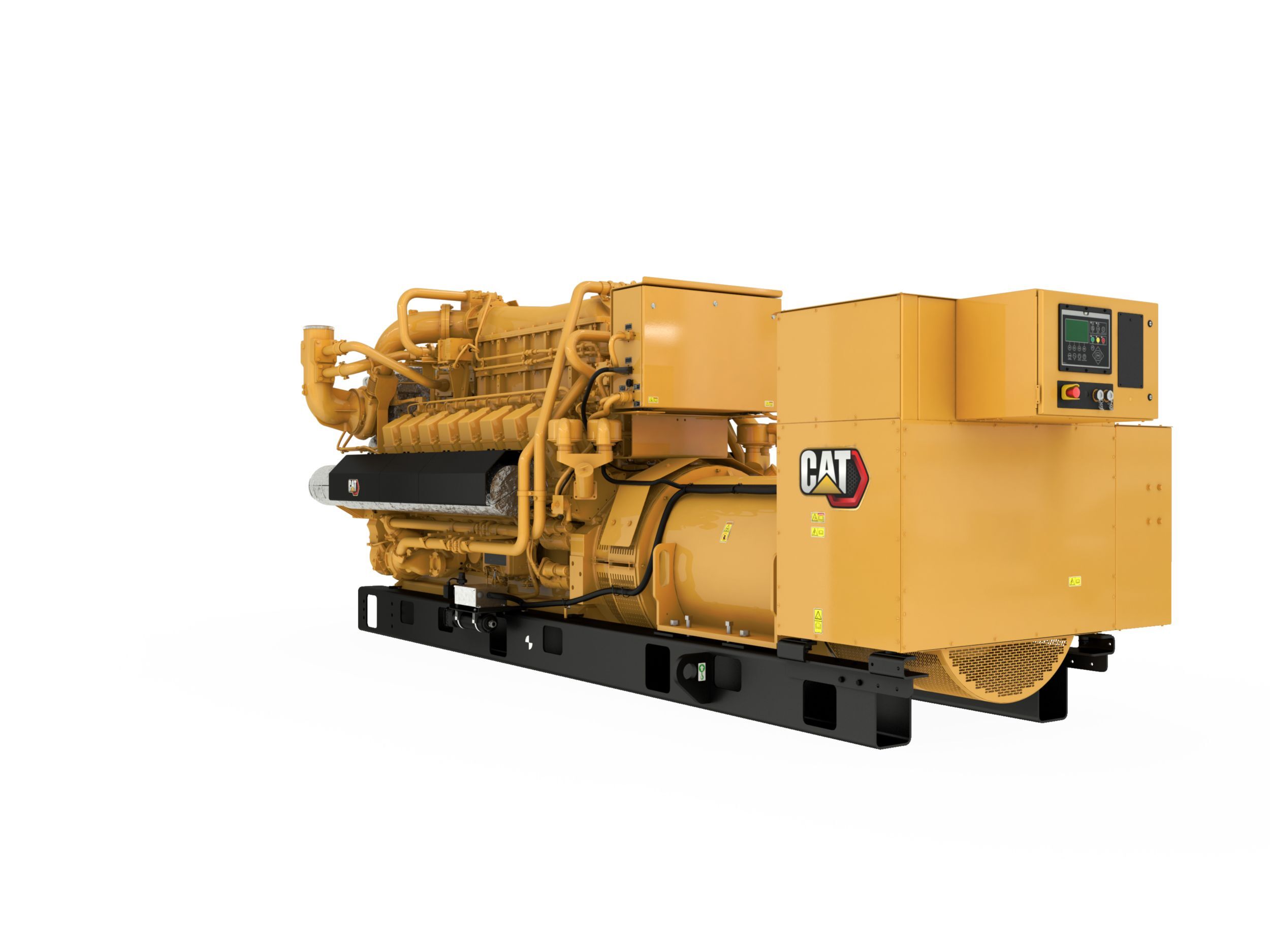

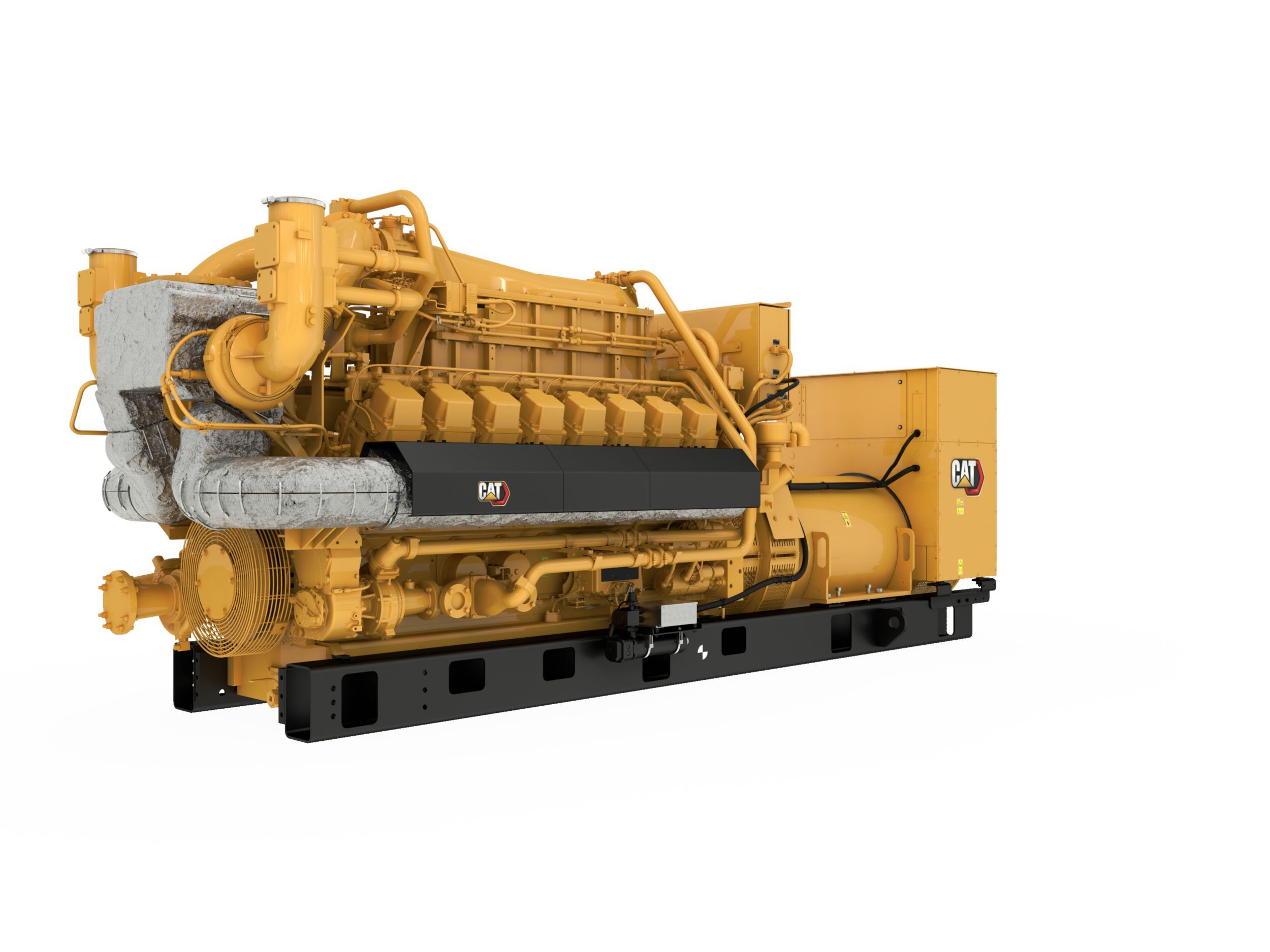

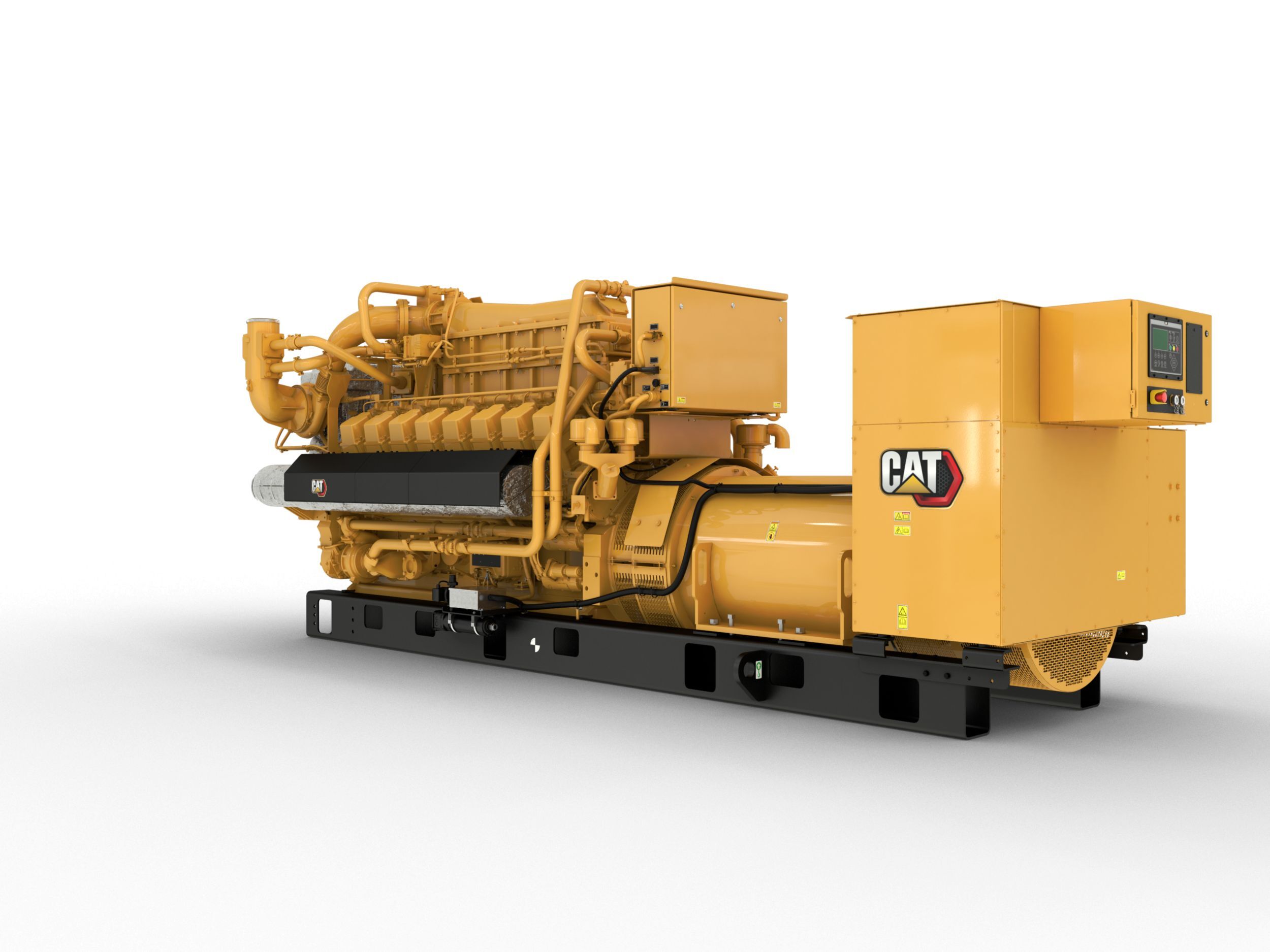

Cat G3516C Gas Engine
- Robust high speed block design provides prolonged life and lower owning operationg costs
- Designed for maximum performance on low pressure pipeline natural gas
- Simple open chamber combustion system for reliability and fuel flexibility
- Leading edge technology in ignition system and air/fuel ratio control for lower emission and engine efficiency
- One electronic control module handles all engine functions: ignition, governing, air/fuel ratio control and engine protection
SR4B Generator
- Designed to match performance and output characteristics of Caterpillar gas engines
- Industry leading mechanical and electrical design
- High efficiency
EMCP 4.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Emissions
- Meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment
Proven System
- Field proven in a wide range of applications worldwide
- Fully prototype tested
- Certified torsional vibration analysis available
Full Range of Attachments
- Wide range of bolt-on system expansion attachments
- Factory designed and tested
- Flexible packaging options for easy and cost effective installation
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Virtual Tours
Documents & Brochures
Standard Equipment
Air Inlet
- Two-element single-stage air cleaner with enclosure and service indicator
Control Panels
- EMCP 4.3
Cooling
- Jacket water and SCAC driven pumps and bypass lines
- 2nd Stage SCAC-Cat Flange
- Engine driven water pumps for jacket water and aftercooler
- Jacket water and SCAC thermostats
- ANSI/DN customer flange connections for JW inlet and outlet
- Cat flanges on SCAC circuit
Exhaust
- Integrated Sensing Module (ISM)
- Cat-flanged face outlet on turbocharger
- Provides exhaust port temperatures and stack temperature to customer supplied screen via CCM
- Dry exhaust manifolds, insulated and shielded
Fuel System
- 24V ETR Gas Shutoff Valve
- Engine installed, fuel metering valve
- Throttle plate, 24V DC actuator, controlled by ECM
- Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
- Fuel Filter
Ignition System
- Individual Cylinder Detonation Sensitive Timing (DST)
- Electronic Ignition System (controlled by ECM)
Fuel system
- Electronic fuel metering valve
Generator
- Anti-condensation space heater
- Busbar connections
- Class H Insulation & Class F temperature rise
- Reactive Droop
- Permanent Magnet Excitation
- 3-phase brushless, salient pole
- Caterpillar's Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control
- SR4B
- Winding temperature detectors
General
- RH Service
- Operation and maintenance manuals
- Crankshaft Vibration Damper and Guard
- Parts Book
Starting/Charging
- 24V starting motors
Additional information
مواصفات مجموعة المولدات - الحد الأقصى للتقديرات المتواصلة | 1660 كيلووات كهربائي |
---|---|
مواصفات مجموعة المولدات - نوع الوقود | الغاز الطبيعي |
مواصفات مجموعة المولدات - أقصى كفاءة كهربائية | 37.70% |
مواصفات مجموعة المولدات - أقصى تقدير للطاقة الاحتياطية | 1500 |
مواصفات مجموعة المولدات - التردد | 50 / 60 هرتز |
مواصفات مجموعة المولدات - دورة في الدقيقة | 1500/1800 |
مواصفات المحرك - موديل المحرك | G3516C |
مواصفات المحرك - الإزاحة | 69 l ( 4210 بوصة³ ) |
مواصفات المحرك - السحب | TA |
مواصفات المحرك - التجويف | 170 مم ( 6.7 بوصة ) |
مواصفات المحرك - الشوط | 190 مم ( 7.5 بوصة ) |
أبعاد مجموعة المولدات - الطول | 5553 مم ( 219 بوصة ) |
أبعاد مجموعة المولدات - العرض | 1828 مم ( 72 بوصة ) |
أبعاد مجموعة المولدات - الارتفاع | 2340 مم ( 92 بوصة ) |
أبعاد مجموعة المولدات - الوزن الجاف - مجموعة المولد | 14161 كجم ( 31226 رطل ) |
