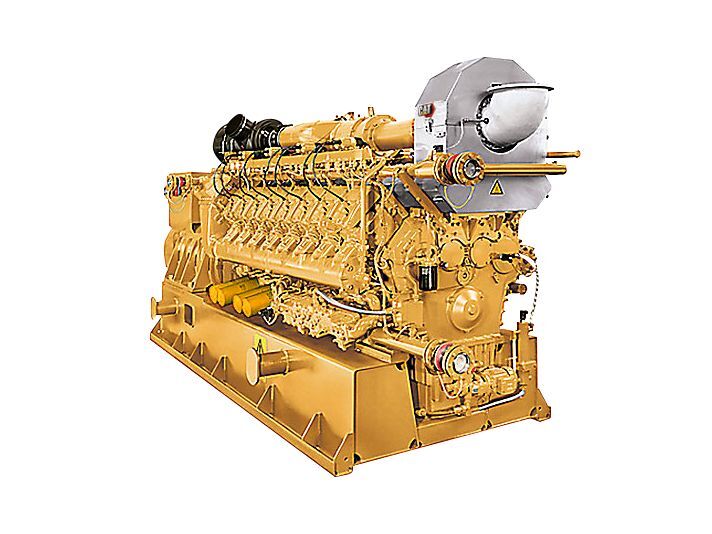

CG170-16 K
CG170 Gas Generator Set
From natural gas-fueled combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.
Documents & Brochures
Standard Equipment
Air Inlet
- Two-element single-stage air cleaner with enclosure and service indicator
- Turbocharger for the CG170K comes with a water-cooled bearing case
Control Panels
- TEM(Total Electronic Management)
Exhaust
- Closed crankcase ventilation system
- Low resistence exhaust system
Cooling
- Engine driven water pumps for jacket water and after cooler
- Jacket water and SCAC thermostats
- Flange connections for JW inlet and outlet
Fuel system
- Electronic fuel metering valve
- Pre-chamber spark plugs
- Independently controlled cylinder monitoring and ignition system
Generator
- Reactive droop
- Winding temperature detectors
- 3-phase sensing and KVAR/PF control
- Anti-condensation space heater
- Busbar connections
Starting/Charging
- Battery disconnect switch
- 24V starting motors
General
- Crankshaft vibration damper and guard
Additional information
| Offering Type | |
|---|---|
| Generator Set Specifications - Continuous Rating | 1500 ekW |
| Generator Set Specifications - Fuel Type | Natural Gas |
| Generator Set Specifications - Maximum Electrical Efficiency | 40.90% |
| Generator Set Specifications - Frequency | 50 or 60 Hz |
| Generator Set Specifications - RPM | 1500 or 1800 rpm |
| Engine Specifications - Engine Model | CG170K-16 |
| Engine Specifications - Displacement | 70.8 l ( 4320 in³ ) |
| Engine Specifications - Aspiration | TA |
| Engine Specifications - Bore | 170 mm ( 6.7 in ) |
| Engine Specifications - Stroke | 195 mm ( 7.7 in ) |
| Generator Set Dimensions - Length | 6640 mm ( 261 in ) |
| Generator Set Dimensions - Width | 1810 mm ( 71 in ) |
| Generator Set Dimensions - Height | 2210 mm ( 87 in ) |
| Generator Set Dimensions - Dry Weight - Genset | 14900 kg ( 32848 lb ) |
