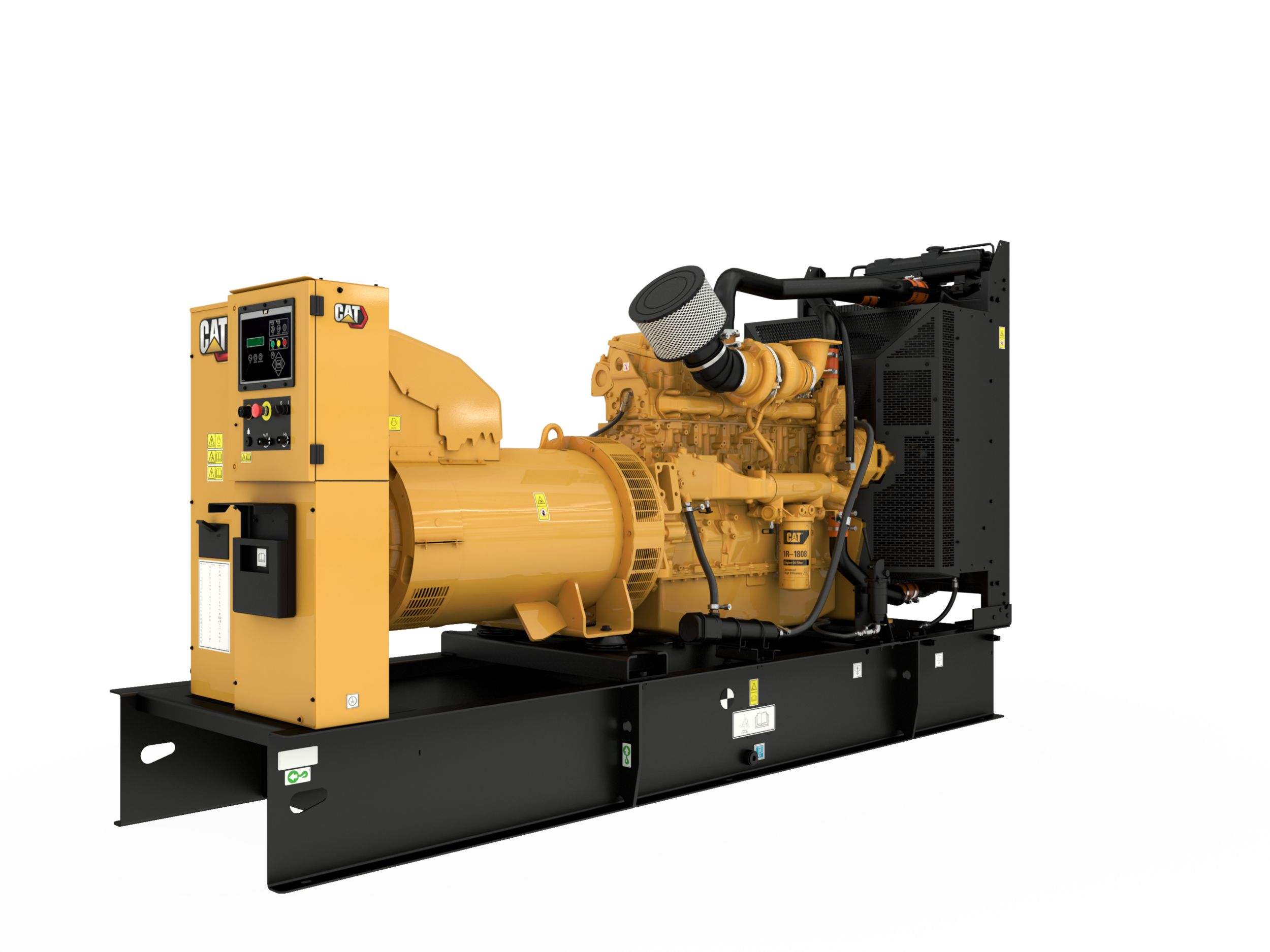

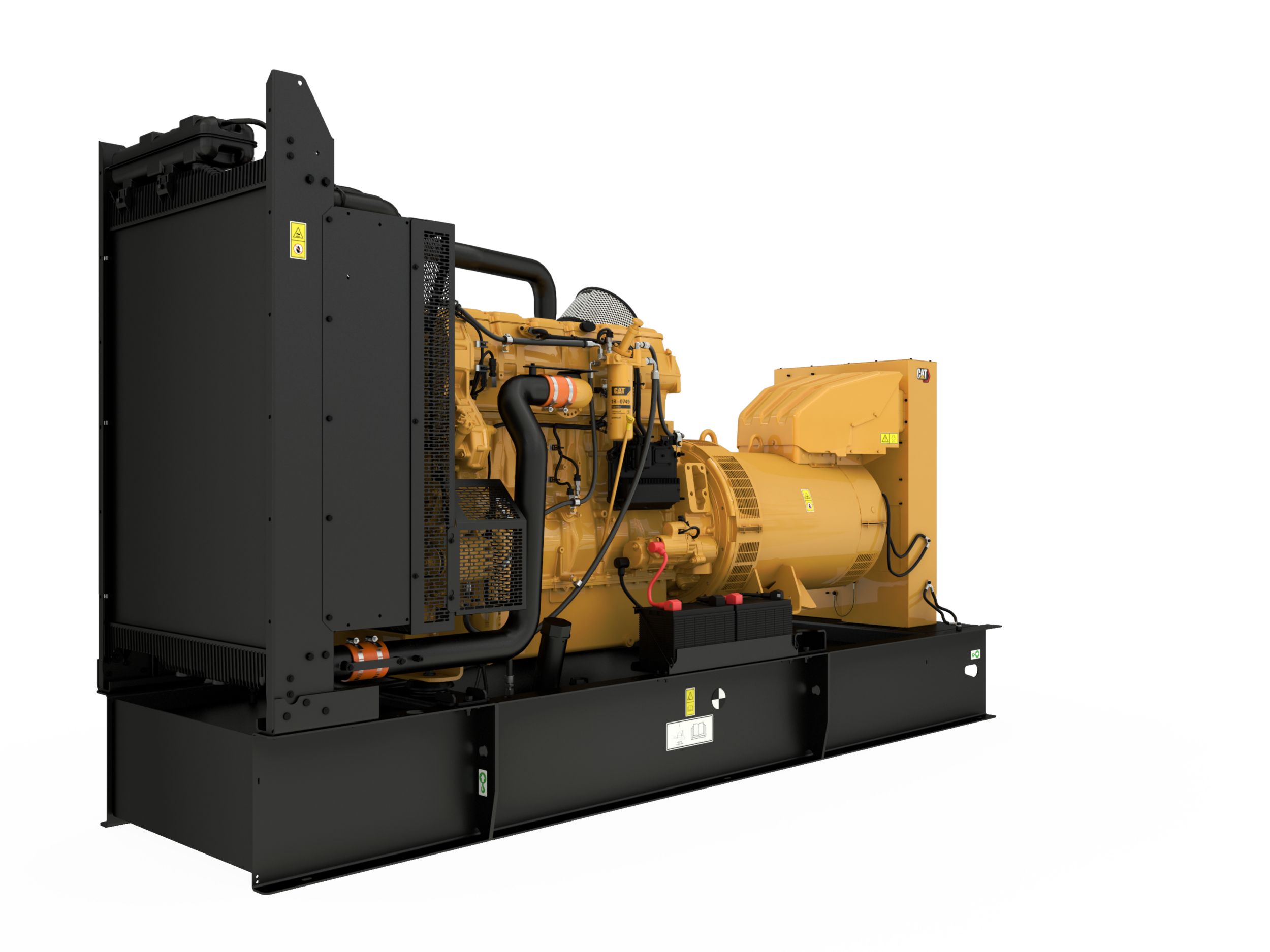

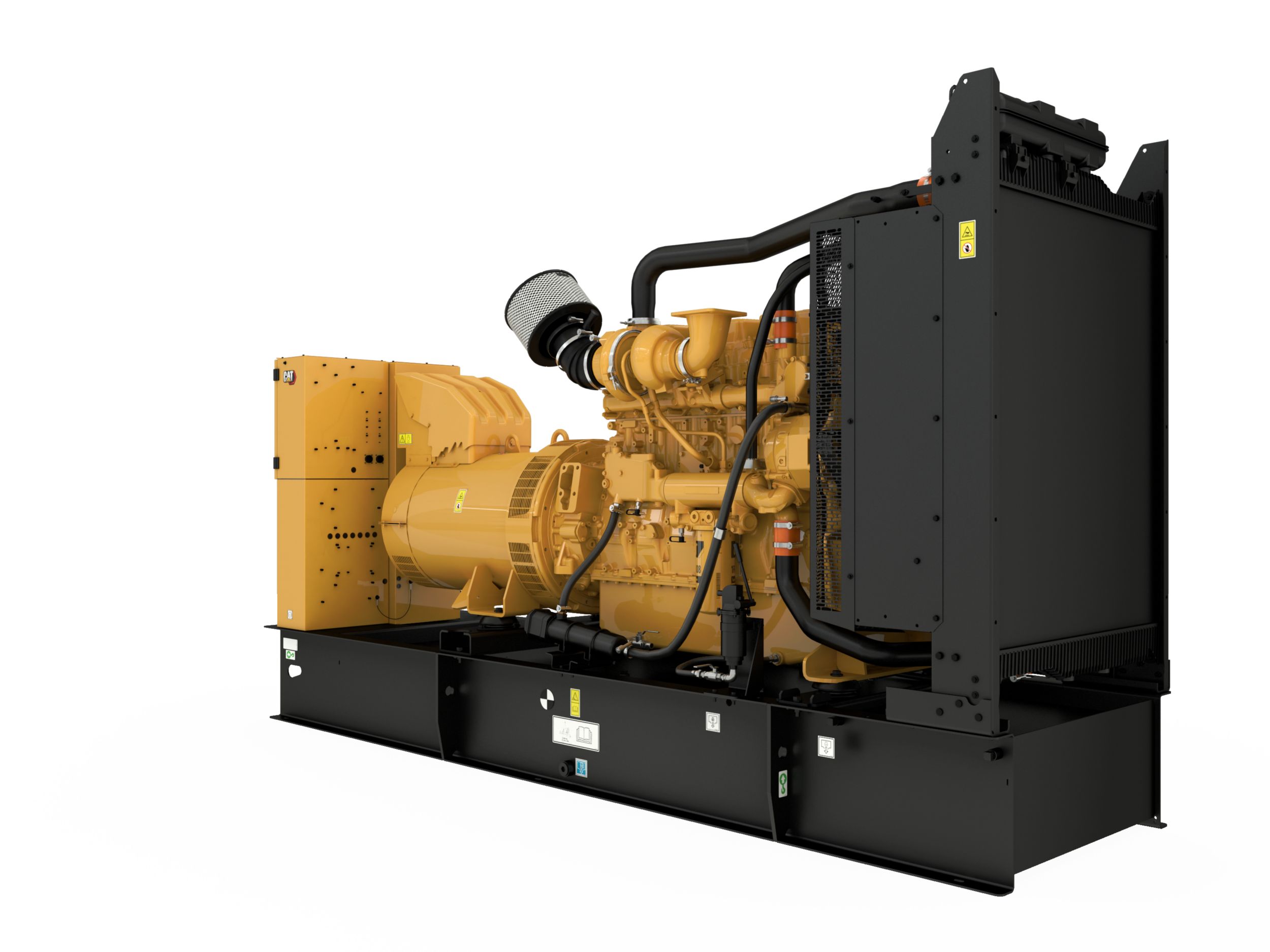

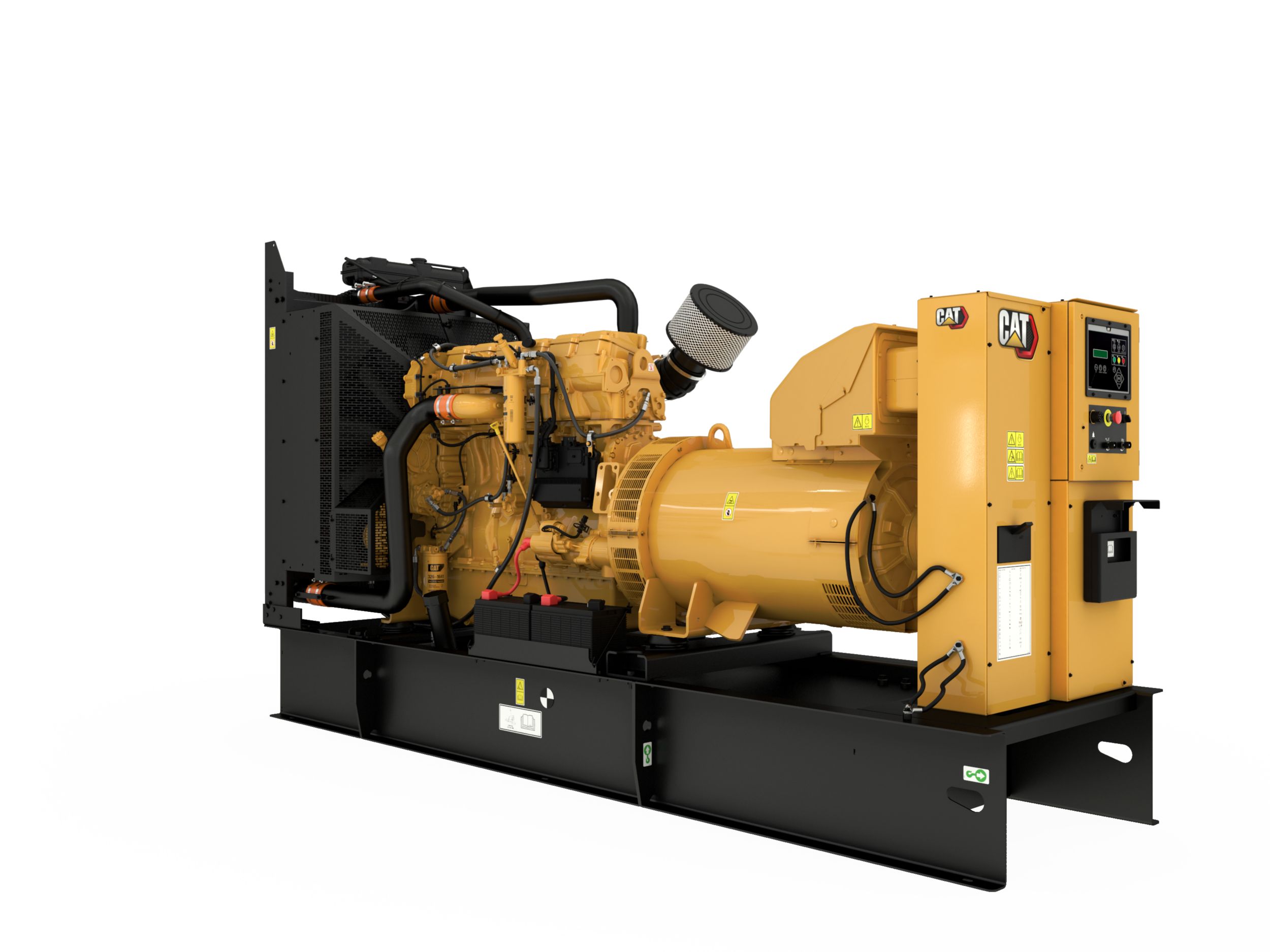

C15 (50 Hz) China Non Road
C15 (50 Hz) China Non Road
The C15 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 365 to 550 kVA at 50 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. The engines are certified Low Fuel Consumption, U.S. EPA Certified for Stationary Emergency Use Only (Tier 2 or Tier 3 Nonroad Equivalent Emission Standards), EU Stage IIIA Nonroad Emission Standards, China Nonroad III Emission Standards Emissions / Fuel Strategy.
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Virtual Tours
Documents & Brochures
Standard Equipment
Air System
- Aftercooler core
- Turbocharger
- Air cleaner - Non canister disposable paper filter
Air Inlet
- Air cleaner
Control Panel
- GCCP 1.3
- GCCP 1.3
Cooling
- Package mounted radiator
Cooling System
- Radiator and cooling fan with guard
- Coolant drain line with valve
- Caterpillar extended life coolant
- Fan drive, battery charging alternator drive
Fuel
- Secondary fuel filters
- Fuel priming pump
- Primary fuel filter with integral water separator
Exhaust
- Stainless steel exhaust flex, gaskets, raincap & SAE exhaust flange
for customer use - shipped loose - Exhaust flange outlet
Fuel System
- Standard open set fuel tank/base supplied
- Base, formed steel with single wall integral 8-hour fuel tank
Generator
- IP23 Protection
- Matched to the performance and output characteristics of Cat engines
- Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time
Generator and Attachments
- IP23 Protection
- A Frame generator - IP21 Protection
- Segregated low voltage (AC/DC) wiring panel
- Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
- Optional LC Frame generator - IP23 Protection
- Power center, IP22
- Integrated voltage regulator (IVR)
Power Termination
- Busbar
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Lubricating oil
- Oil drain valves
Mounting
- Rubber vibration isolators
Mounting System
- Rubber vibration isolators
Starting/Charging
- 24 Volt battery with rack and cables
- Batteries
- 24 volt starting motor
General
- Engine and alternator pre paint, Caterpillar yellow
- Paint - Caterpillar yellow except rails and radiators gloss black
Additional information
| مواصفات مجموعة المولدات - أقصى معدل | 550 كيلوفولت أمبير |
|---|---|
| مواصفات مجموعة المولدات - أدنى معدل | 365 كيلوفولت أمبير |
| مواصفات مجموعة المولدات - الانبعاثات/إستراتيجية الوقود | استهلاك وقود منخفض، المستوى 2 أو 3 |
| مواصفات مجموعة المولدات - الجهد | 208 إلى 600 فولت |
| مواصفات مجموعة المولدات - التردد | 50 هرتز |
| مواصفات مجموعة المولدات - السرعة | 1500 دورة في الدقيقة |
| مواصفات مجموعة المولدات - دورة العمل | الاحتياطية، والرئيسية |
| مواصفات المحرك - موديل المحرك | C15 ATAAC ديزل، I-6، 4 أشواط ومبرد بالمياه |
| مواصفات المحرك - التجويف | 137.2 مم ( 5.4 بوصة ) |
| مواصفات المحرك - الشوط | 171.4 مم ( 6.75 بوصة ) |
| مواصفات المحرك - الإزاحة | 15.2 l ( 927.56 بوصة³ ) |
| مواصفات المحرك - نسبة الانضغاط | 16.1:1 |
| مواصفات المحرك - السحب | تبريد لاحق هواء إلى هواء |
| مواصفات المحرك - نظام الوقود | MEUI |
| مواصفات المحرك - نوع المنظم | Adem™A4 |
| أبعاد مجموعة المولدات - الطول - الحد الأقصى | 5656 مم ( 222.7 بوصة ) |
| أبعاد مجموعة المولدات - العرض - الحد الأقصى | 2286 مم ( 90 بوصة ) |
| أبعاد مجموعة المولدات - الارتفاع - الحد الأقصى | 2367 مم ( 93.2 بوصة ) |
